JBL NORTHRIDGE E80 Bedienungsanleitung

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir 1

Technical Manual

JBL NORTHRIDGE E80

Acoustic & Electrical specification:

•Nominal Impedance: 8 ohm

•Recommended amp power max: 200W

•Frequency response: 38Hz -20KHz - 3dB

•Sensitivity 91 dB at 2.8volt,1 metre

•Crossover frequency 300Hz,4000Hz

Physical Specifications:

•Enclosure Dimension: H927mm, W: 213mm, D:349mm

•Speaker Weight 19.1Kg each

•Woofer: Dual 6” 170mm PolyPlas Shielded

•Midrange: 4” 100mm PolyPlas shielded

•Tweeter: ¾” 19mm titanium-laminate dome shielded

•Terminal: gold plated, Bi wireable

Specification

E80 BK 350117-001 CTN,OUTER,MASTER,E80 1

E80 BE 350117-002 CTN,OUTER,MASTER,E80B 1

E80 CH 350117-003 CTN,OUTER,MATER-E80CH 1

E80

BK/BE/CH 350119-001 PAD,END-E80 SERIES 2

E80

BK/BE/CH 315953-001 BAG,ZIPLOCK,9X12 1

E80

BK/BE/CH 49790P MICROFOAM,.062x20x18" 2

E80

BK/BE/CH 338836-001 LBL, COUNTRY OF ORIGI 2

E80

BK/BE/CH 350038-001 MNL,OWNER-NE SERIES 1

E80

BK/BE/CH 338322-001 WARRANTY CARD,JBL PAS 1

E80

BK/BE/CH 338076-001 KIT,SPIKE FT-S310II/ 1

Capacitors C1 102uF/100V

C2 30uF/100V

C3 50uF/100V

C4 10uF/100V

C5 5.1uF/100V

Resistor R1 10ohm/5W

R2 1.5ohm/5W

R3 1.5ohm/5W

Coil L1 4.8mH/ø1.2mm

L2 0.1mH/ø0.7mm

L3 0.6mH/ø0.9mm

L4 0.12mH/ø0.7mm

Wire IN1+ Red

IN1- Blk

IN2+ Red

IN2- Blk

W1+ Grn

W1- Grn/Blk

W2+ Grn

W2- Grn/Blk

M+ Wht

M- Wht/blk

T+ Yel

T- Yel/Blk

Packa

e Schematic

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir 2

Technical Manual

JBL NORTHRIDGE E80

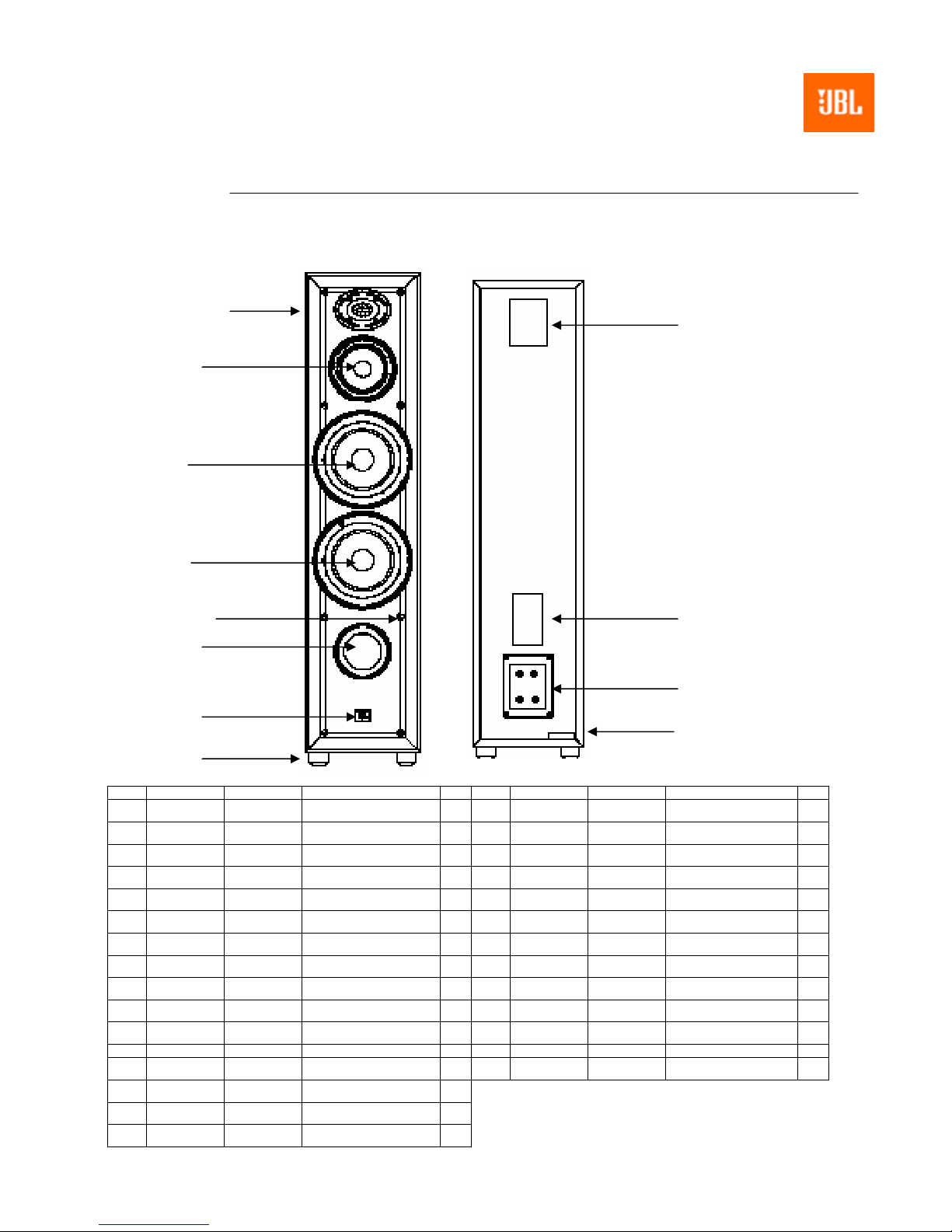

Part list

ITEM Model/color Part number Description qty ITEM Model/color Part number Description qty

E80

BK/BE/CH 338035-001 ASY,TWTR,3/4 1 10

E80

BK/BE/CH 338037-001 FT,RUBBER-ASSY/THD IN 4

E80

BK/BE/CH 350354-001 GSKT,TWTR PL-NE SER 1 11

E80

BK/BE/CH 350542-001 ASY.LOGO-NE-SER 1

E80

BK/BE/CH 338059-001

BAR,HOLD DOWN-

NRTHDGE 1 12 E80 BK 333249-001 CUP,GRL-HLS retainer 8

E80

BK/BE/CH 350130-001 PL,FACE,TWTR-NE SER 1 13 E80 BE/CH 333249-003

CUP,GRL-INTRMZO

retainer 8

E80

BK/BE/CH 350124-001 ASY,GRL,FRNT,E80 SERI 1

E80

BK/BE/CH 335588-002 ASY,MIDRNG-N38II/ND31 1 15

E80

BK/BE/CH 350066-001 ASY,PTB-E80 Port tupe 1

E80

BK/BE/CH 350144-001 RING,TRIM,4",MDRNG,E 1

E80

BK/BE/CH 339097-001 CAUTION STICKER 1

E80

BK/BE/CH 350540-001 ASY,WFR,6"-NS-W6SH 2 18

E80

BK/BE/CH 350125-001 FOILCAL,E80 SERIES 1

E80

BK/BE/CH 350123-001 ASY,XOVER-E80 SERIES 1 19

E80

BK/BE/CH 350161-001 LBL,JBL"Assem. in Mex 1

E80

BK/BE/CH 351317-001 T-CUP,BI-WIRE,PLSTC-N 1

E80

BK/BE/CH 39106S NAIL,FNSHG,1" 4

E80

BK/BE/CH 903401-012 SCR,PB,PPH,#6x.75,BLK 8

E80

BK/BE/CH 903802-012 SCR,PB,HXS,#8x.75,ZIN 12

E80

BK/BE/CH 905402-010 SCR,MS,PPH,H/L,6-19X5 2

E80

BK/BE/CH 908302-012 SCR,PB,HXS,#6x.75,ZIN 8

12/13
