JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

Technical Manual

JBL PRX715XLF/230

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Frequency Response (±3 dB): 44 Hz – 91 Hz

• Frequency Range (–10 dB): 37 Hz – 113 Hz

• Maximum SPL Output: 131 dB Peak

• Input Impedance: 20K Ohms (balanced)

• Crossover Frequency:

Internal: 90 Hz DSP Contolled 48 dB/

Octave

Loop Out: 120 Hz Analog 24 dB/Octave

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 5030588

• Low Frequency Driver: 2275H, 15 inch (380mm)

woofer

• D.C.Resistance: 5.1 ohm +/- 10%

AURAL SWEEP TEST SPECIFICATIONS:

A.System.Aural Sweep Test: 0.15V Input, 50 Hz Ito 20 kHz

Knob Fully CW.Line In and

Main

B.L.F.Aural Sweep Test: 15.0V Input, 10 Hz to 100 Hz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 547.1 mm x 445.0 mm x 580.0 mm

(HxWxD) (H x W x D)(21.54 in x 17.52 in x

22.48 in D)

• Net Weight: 56 lb (25.4 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

JBL PRX715XLF/230 REV A

12-13

PACKAGE WIRING DIAGRAM

Warranty Card

59660

User’s Guide

5032132

Carton

5032256

Filler (2)

5032258

PKG, Microfoam (8)

49790P

Cord, AC, Line

425-00000-00 (120V)

425-00000-01 (230V)

2275H Driver, Low Freq

(5029733X)

C8R2275

Amplier Assembly

5032246

Wire Harness

5033756

Green

Green/Black

Grommet

5038031

JBL PRX715XLF/230

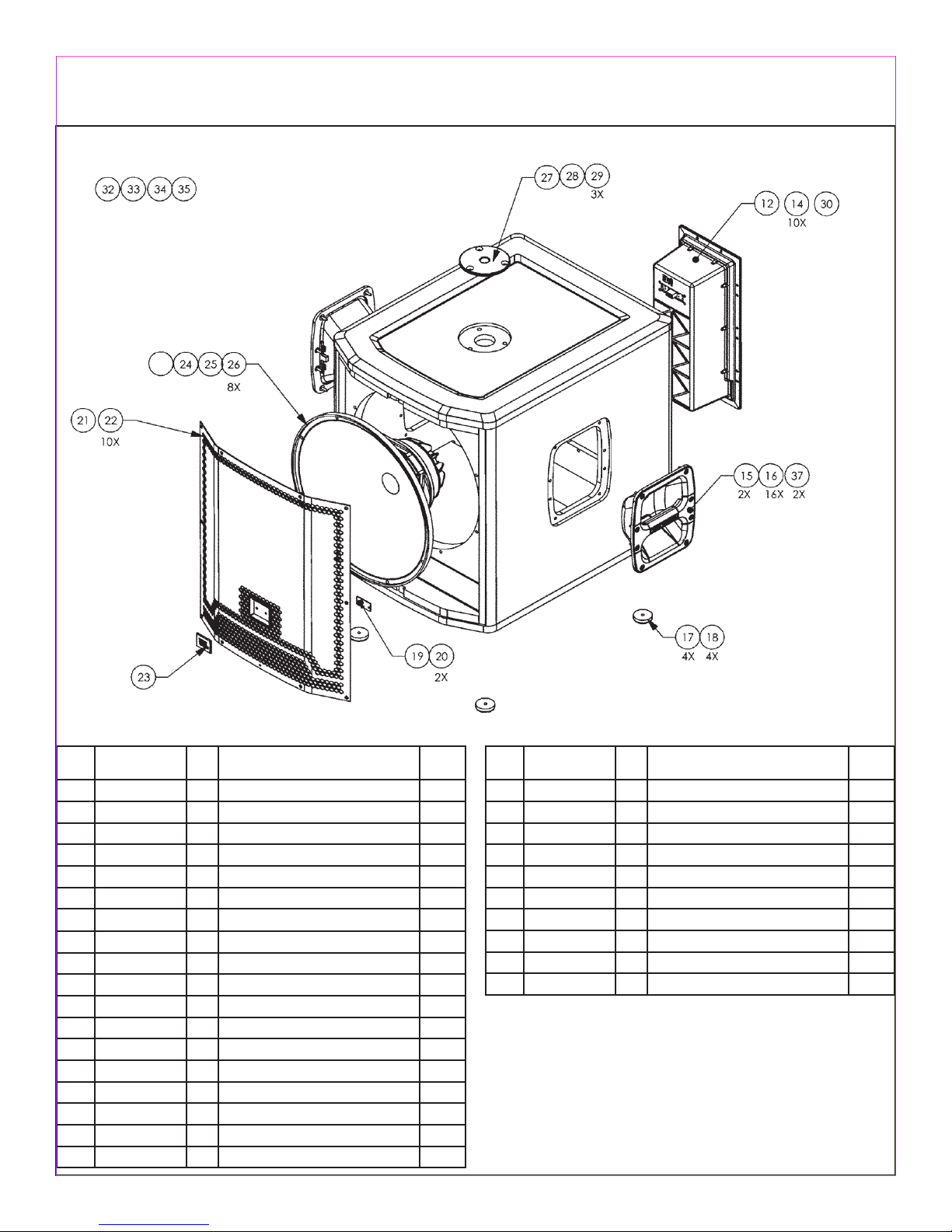

COMPONENT EXPLODED VIEW

COMPONENT PARTS LIST:

JBL PRX715XLF/230

Item Part No. Qty Description Ref.

Des.

1 5029733X 1 M/I 2275H n/a

12 5032246 1 AMP ASSY, PRX715XLF n/a

14 804-11110-12 10 SCR, 10-32 X 3/4",FLT,PH,BLK ZINC,LCS n/a

15 5032124 2 HANDLE ASSY, PRX700 n/a

16 446376-001 16 SCREW, #8-32, HANDLE n/a

17 353445-001 4 FOOT n/a

18 884-41110-12 4 SCR,10 X 3/4,PAN,PH,PB,BLK ZINC,LCS n/a

19 5030688 1 LED PCB n/a

20 882-41110-12 2 SCR,6X3/4",PAN,PH,PB,BLK n/a

21 5030588 1 GRILLE, PRX715XLF n/a

22 882-51110-12 10 SCR, 6 X 3/4,OV,PH,PTCL,BLK ZC,LCS n/a

23 5014533 1 STX Logo Small Plastic n/a

25 360-70002-01 1 GASKET, REAR 15" n/a

26 804-01110-16 8 SCR,10-32 X 1,FIL,PH,BLK n/a

27 364808-001 1 GASKET, POLE CUP n/a

28 5003856 1 Pole mount, M20 3 hole pattern n/a

29 806-11010-20 3 SCR,1/4-20 X 1 1/4,FLT,PH,UNC,BLK ZNC,L n/a

30 5033756 1 HARNESS ASSY, PRX715XLF n/a

Item Part No. Qty Description Ref.

Des.

37 445327-001 2 GASKET, HANDLE n/a

N/A

JBL PRX715XLF/230

COMPONENT EXPLODED VIEW

COMPONENT PARTS LIST:

JBL PRX715XLF/230

Item Part No. Qty Description Ref.

Des.

1 5037676 1 Input Board Assy PRX710 n/a

2 5032687 1 PSU/Amp Board Assy PRX710 n/a

3 5032701 1 Input Plate Assembly PRX710 n/a

5 5032753 1 Interface PCB Assy. Sub n/a

8 5032723 1 26 Pin Ribbon Cable n/a

9 5032725 2 GAP PAD Top n/a

10 5032727 1 GAP PAD Middle n/a

11 5032729 1 GAP PAD Bottom n/a

12 5032731 1 Isolating Sheet n/a

21 5032747 1 AC Inlet Socket n/a

22 5032749 1 Fan Assmebly n/a

23 5034166 6 Light Pipe n/a

24 445045 2 Volume Knob n/a

25 363638 2 Switch Cap n/a

28 5032126 2 Amplier Gasket n/a

29 5038780 1 Pass Thru PCB Gasket n/a

30 5041553 1 NC3MB AV J4

31 5041554 2 XCR, 1/4 Combo Input J5,J7

Item Part No. Qty Description Ref.

Des.

32 5041555 1 RCA Dual Input J6

33 5041556 4 Switch TL2201 SW1, SW2,

SW3, SW4

34 5041557 2 Slice Switch SW3.SW4

35 5041558 2 10k 20% .05 w VR1, VR2

36 ZD8016 1 Fuse5x20mm T6.3A/250V F1

30 31 32 33 34 35 36
