PACKAGE WIRING DIAGRAM

01-12

Technical Manual

JBL SRX715/F

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Power Capacity: Continuous / Program / Peak:

Passive: 800W / 1600W / 3200W

Bi-amp LF: 800W / 1600W / 3200W

Bi-amp HF: 75W / 150W / 300W

• Frequency Range: 43 Hz – 20 kHz (–10 dB)

• Maximum SPL: 131 dB SPL peak

L.F. 134 dB SPL cont avg (140 dB peak)

H.F. 133 dB SPL cont avg (139 dB peak)

Passive mode:134 dB SPL cont avg (140 dB peak)

• System Sensitivity: Passive Mode 96 dB SPL (1 watt @ 1 meter)

• Crossover Freq.: 1.2 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 353406-002

• Low Frequency 2265HPL, 380 mm (15 in) Differential Driver

Transducer: woofer with neodymium-magnet & dual voice coils

• DC Resistance: 5.1 ohms ± 10%

SYSTEM COMPONENTS:

(CONT’D)

• High Frequency 2431H, 75 mm (3 in) voice coil,

Transducer: neodymium magnet compression driver

• DC Resistance: 4.0 ohms ± 10%

• Crossover Network: 353341-001

AURAL SWEEP TEST SPECIFICATIONS:

System Aural Sweep Test:

10.0V Input, 20 Hz to 20 kHz

B. L.F. Aural Sweep Test: 15.0V Input, 10 Hz to 100 kHz

C. H.F. Aural Sweep Test: 2.83V Input, 550 Hz to 20 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 771 x 439 x 406 mm D

(28.0 x 17.3 x 27.16 in. D)

• Net Weight: 48 lb (22 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Carton

352664-001

Manual

354538-001

Top and

Bottom Filler

352665-001

Poly Bag

350691-001

NETWORK SCHEMATIC - (353341-001)

SCHEMATIC (353305-001)

0.30mH

3.30uF 250V

12 Ohm 25W

1.15uF

250V 10.0uF

250V

10.75uF

250V

1.80mH

0.10mH

0.40mH

24” Red

24” Black

24” Green

24”Yellow

24” Green

24” Green/Black

24”Yellow

24”Yellow/Blalck

+W1

-W1

-T

+IN

-IN

Driver, High Freq

2431H

(339894-002X)

DiaphRepl

D8R2431

Driver,

Low Freq

2265HPL

(338343-003X)

Cone Repl

C8R2265

Network

Assembly

353341-001

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

YEL/BLK

YEL

GRN

GRN/BLK

JBL SRX715/F

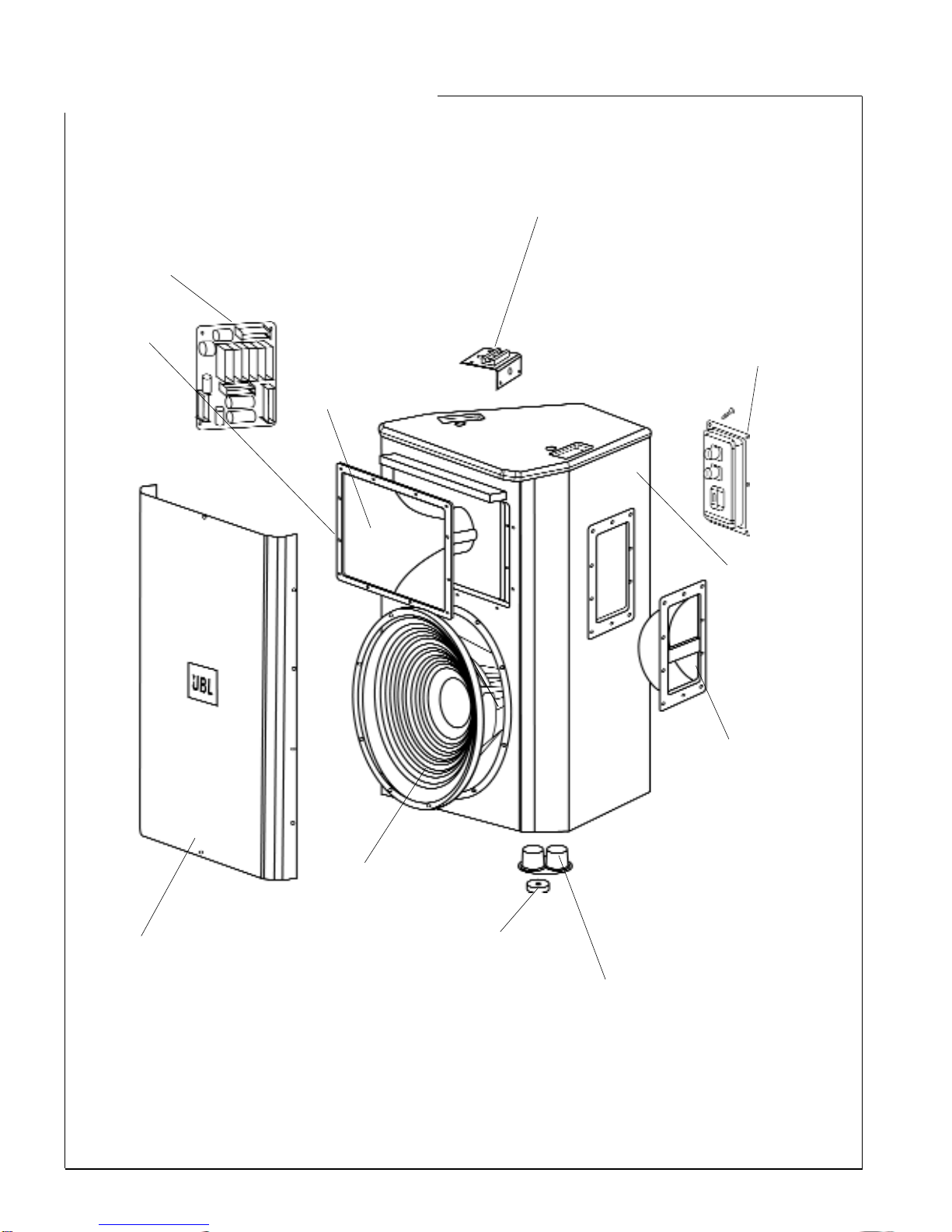

COMPONENT EXPLODEDVIEW

Driver, Low Freq

2265HPL

(338343-003X)

Cone Repl

C8R2265

Screw (8)

804-01110-16

10-32 x 1

FIL, PH, BLK ZINC,

LCS

Gasket, Woofer

360-70002-01

Foot (4)

353445-001

Screw (4)

884-41110-12

10-32 x 3/4

PAN, PH, PB,

BLK ZINC, LCS Cup, Dual Pole

351256-001

Gasket, Dual Pole Cup

352957-001

Screw (6)

804-41110-12

10-32 x 3/4

PAN, PH, BLK ZINC,

LCS

Enclosure Assembly

SRX715F

(Not Available for

Sale)

L Bracket (5)

353296-001

Bolt (10)

Brackets

352051-001

M10X 25mm Hex Black

Screw (15)

Brackets

883-41110-08

#8 x 0.5

PAN, PH, PB, BLK ZINC,

LCS

Flying Track (5)

353314-001

Screw (15)

354468-001

M6 x 20

HEX, SKT, Flat, MCS,

Black

Grille Assembly

353406-002

(does not include the

grille badge)

Grille Badge

353849-001

(self adhesive)

Screw (10)

882-51110-12

6 x 3/4

OV, PH, PTCL,

BLK ZINC, LCS

Gasket, Handle (2)

382-00337-00

Handle (2)

923-00022-06

T-Nut (8)

61861

10-32 x 7/16

Step Barrel

Screw (8)

Handle - Metal

804-41110-12

10-32 x 3/4

PAN, PH, BLK ZINC,

LCS

Screw (12)

Handle - Wood

844-41110-12

10 x 3/4

PAN, PH, PB,

BLK ZINC, LCS

Driver, High Freq

2431H

(339894-002X)

Diaph Repl

D8R2431

Horn

352606-002

Gasket, Horn

353444-002

Screw (10)

804-41110-16

10-32 x1

PAN, PH, BLK ZINC,

LCS

T-Nut (18)

61861

10-32 x 7/16

Step Barrel

Dust Dome

71646-04

Screw (2)

806-73014-08

1/4-20x5/16

SKT, HEX,

BLK ZINC, ALLOY

Sticker, Horn (2)

337882-001

Lock Washer, (2)

Horn

844-03100-03

Network Assembly

353341-001

Screw (5)

882-41110-10

6 x 5/8

PAN, PH, PB, BLK ZINC, LCS

Screw (6)

882-41110-10

6 x 5/8

PAN, PH, PB, BLK

ZINC, LCS

Terminal Cup Assy.

353305-001

Input Plate Overlay

362372-001

Input Plate Overlay/F

362372-006
