JBL TLX CENTER1 Bedienungsanleitung

TLX Center1

TLX Center2

simple set-up guide

thank youfor choosing JBL. For over 50 years, JBL

has been involved in every aspect of musical and film recording

and reproduction, from live performances to monitoring the

recordings you play in your home, car, or office.

We’re confident that the JBL Loudspeaker you have

chosen will provide every note of enjoyment that you expected –

and that when you think about purchasing additional audio

equipment for your home, car, or office, you will once again

choose JBL.

Please take a moment to complete the enclosed profile card.

It enables us to keep you posted on our latest advancements,

and helps us to better understand our customers and build

products that meet your needs and expectations.

JBL Consumer Products

TLX center1&@ – OM 7/27/98 4:56 PM Page 2

– + – +

– +

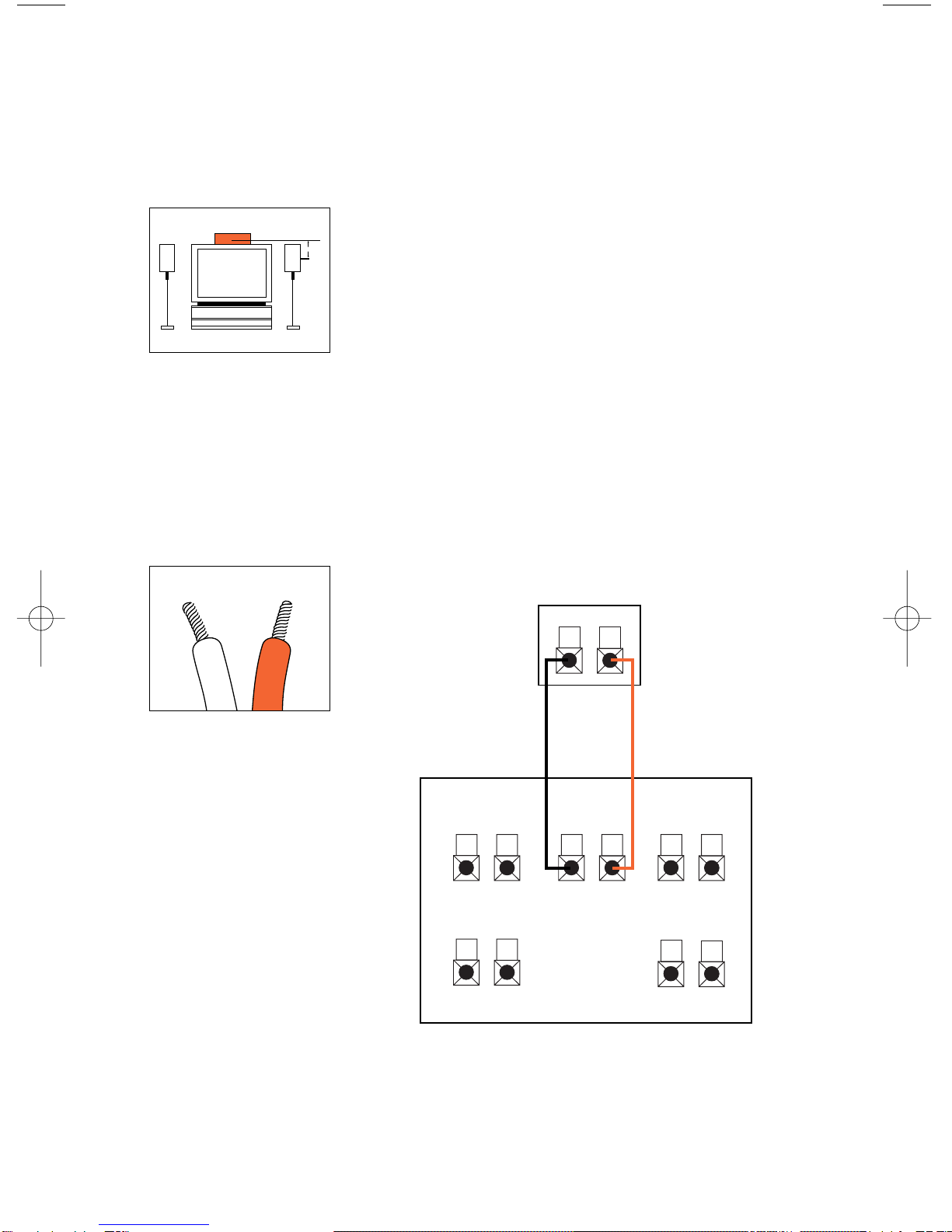

Receiver

Center

Front

Left

Left

Surround

Front

Right

Right

Surround

– +

Center 

Speaker

two.Speaker Connections

Separate and strip the ends of

the speaker wire as shown.

Speakers and electronics ter-

minals have corresponding (+)

and (–) terminals. It is impor-

tant to connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and

(–) on the speaker to (–) on

the amplifier. Wiring “out of

phase” results in thin sound,

weak bass and a poor stereo

image.

Connection Tips

On TV.

one.Speaker Placement

0-2 ft.

TLX Center1

TLX Center2

TLX center1&@ – OM 7/27/98 4:56 PM Page 3

JBL continually strives to improve its products. New materials, production methods and design refinements are introduced into

existing models without notice as a routine expression of our design philosophy. For this reason, JBL loudspeakers may differ in

some respect from their published specifications and descriptions, but will always equal or exceed the original specifications unless

otherwise stated.

If there is no sound from the center

speaker, check the following:

• Make sure that your receiver’s Center Channel

Mode is in the “normal” or “wide” position. If

it is in the “phantom” position, the center

speaker will not play.

• Check all connections between processor/

amplifier and the center speaker.

If the system plays at low volumes but

shuts off as volume is increased, check

the following:

• Check all wires and connections between

receiver/amplifier and speakers. Make sure all

wires are connected. Make sure none of the

speaker wires are frayed, cut, or punctured.

• If more than one pair of main speakers is

being used, check the minimum impedance

requirements of your receiver/amplifier.

Troubleshooting

TLX Center1

High-Frequency Transducer

Low Frequency

Crossover Frequency

Frequency Response (–6dB)

Sensitivity (1 watt/1 meter)

Impedance

Recommended

Amplifier Power*

Dimensions (HxWxD)

Weight

Center

2-1/2" fiber cone

4-1/2" (2)

7.5kHz

90Hz – 20kHz

90dB

8 ohms (nominal)

10 – 100 watts

6-1/2 x 18-1/2 x 6-1/8"

165 x 470 x 156mm

10 lbs/4.5 kg

Specifications

TLX Center2

High-Frequency Transducer

Low Frequency

Crossover Frequency

Frequency Response (–6dB)

Sensitivity (1 watt/1 meter)

Impedance

Recommended

Amplifier Power*

Dimensions (HxWxD)

Weight

* Undistorted continuous power per channel.

Center

14mm titanium

5-1/4" (2)

2.7kHz

80Hz – 20kHz

87dB

8 ohms (nominal)

10 – 100 watts

7 x 20 x 6-1/2"

178 x 508 x 165mm

15 lbs/6.8 kg

TLX center1&@ – OM 7/27/98 4:56 PM Page 4

JBL Consumer Products

80 Crossways Park West, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

1-800-336-4JBL (4525) (USA only)

www.jbl.com

trademark of JBL, Incorporated.

3/97 Part No. TLXCENTER1&2OM

We, JBL Europe A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the loudspeakers

decribed in this owner's manual are in compliance with

technical standards:

EN 50 081-1/1992

EN 50 082-1/3.1995

Steen Michaelsen

JBL Europe A/S

Birkerød. DENMARK. 3/97

Declaration of Conformity

TLX center1&@ – OM 7/27/98 4:56 PM Page 1
