JBL VP7212 Bedienungsanleitung

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBLVP7210/95DPC REV C

11-11

Technical Manual

JBLVP7212/95DPC

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Frequency Response: 65 Hz - 18 kHz (±3 dB)

• Frequency Range: 55 Hz - 20 kHz (–10 dB)

• Maximum Peak Output: 134 dB SPL 1m

• Coverage Pattern: 90º x 50°

• Directivity Factor (Q): 12.6

• Directivity Index (DL): 11 dB

TRANSDUCER SECTION:

• Cabinet: Enclosure (Not for Sale)

• Grille: 365659-001

• Low Frequency Driver: 2262FF, 304mm (12 in) dia., 76mm

(3 in) Dual Coil neodymium Differential

Drive®,Direct Cooled

• Bandpass Nominal Impedance: 2 x 2 ohms

• High Frequency Driver: 2452H-SL, 100mm (4 in) titanium

damped diaphragm, 1.5 in exit,

• Bandpass Nominal Impedance: 8 Ohms

SYSTEM:

• DPC1 Internal Amplification 1750W Peak, 875W Continuous

Output (at nominal load):

• DPC1 Output: 750 LF/125 HF Watts (Continuous

IEC shaped pink noise into rated load

impedance)

• DPC1 Output Section: LF: Dual Bridged Technology™, Class D

HF: Bridged Class D

SYSTEM CONT’D:

• Audio Input Connector: XLR with loop-through

• User Controls: 80 Hz Subwoofer High Pass Filter.

Enable / Disable 0-16 dB input

Attenuator w/ 32 precision 0.5 dB steps

• Signal Processing: DSP based, resident in Input Module

• System Management: DSP based limiters for mechanical

and thermal protection

• AC Power Operating Range: 90-132 VAC/216-264 VAC, 50/60 Hz

• AC Line Voltage: 50/60 Hz, User Selectable; 120V/240V

(-15%, +10%)

• AC Input Connector: Neutrik PowerCon (NAC 3MPA)

• AC Look-thru: Neutrik PowerCon (NAC 3MPB)

• AC Current Requirement: 6A per system at 120V, 3A/system at

240V

AURAL SWEEPTEST SPECIFICATIONS:

System Aural Sweep Test:

150mV Input, 20 Hz to 20 kHz

Volume control clockwise

B. L.F. Aural Sweep Test: 7V Input, 10 Hz to 1 kHz

C. H.F. Aural Sweep Test: 2.5V Input, 300 Hz to 20 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 533 x 358 x 334 mm

(Height x Width x Depth) 21.0 x 14.1 x 13.1 in

• Net Weight: 47 lb (21.3 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Owners Manual

363642-003

Carton (1)

365664-001

Top/Bottom Set Filler (2)

365662-001

Face Pad Filler

365663-001

PKG, Microfoam (4)

49790P

Power Cord Assy Pack

355040-002

PACKAGE WIRING DIAGRAM

SCHEMATIC

Driver, Low Freq.

2262FF

(363946-001X)

Cone Repl

C2X2R2262

Wire Harness

363640-001

Driver, High Freq.

2452H-SL

(352328-003X)

Diaph Repl

D8R2452-SL

Yel/Blk Yel

Blu/Blk

Grn

Blu

Grn/Blk

Waveguide

338650-001

Gasket

351577-001

Screw (10)

804-41110-20

10-32 x 1 1/4

PAN,PH,BLK ZINC,

LCS

Low Freq, Driver

2452H-SL

(352328-003X)

Diaph Kit

D8R2452

Stud (4)

75815

#1/4-20 x 1.5 LG

Washer (4)

845-00110-08

#5/16 x .08

FLT PLREGBLK,

ZINC,CS

Nut (4)

834-30010-00

1/4-20 Keps

BLK ZINC, LCS,

RIGHT

Handle Assembly (2)

363366-001

Small

T-Nut (8)

61860

8-32x11/32

T-Nut (32)

61861

10-32x7/16

Step Barrel

Mounting Support (6)

381-00023-01

90 Degrees 2x M10

Screw (8)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS

Bolt (9)

352051-001

M10 x 25MM

HEX, BLK

Rear Mounting Bracket (2)

363926-001

Screw (4)

883-41110-08

8 x 1/2

PAN,PH,PB,

BLK ZINC,LCS

Amp Board

w/Modulator PCB

5009380

Input Board

5009382

Interface PCB

5009381

Screw (10)

804-51110-12

10-32 x 3/4

OVAL, PH, BLK

ZINC,LCS

Wire Harness

363640-001

Screw (2)

883-11100-08

8 x 1/2

FLT,PH, PB,CLR

ZINC, LCS

Amplifier Trim

363560-001

Screw (20)

803-51010-16

8-32 x 1

OVAL, PH,BLK

ZINC, LCS

Handle Backing

Plate (4)

363614-001

Screw (8)

883-11100-08

8 x 1/2

FLT,PH,PB,CLR

ZINC,LCS

T-Nut (4)

804-90003-00

1/4-20

Short Barrel

Pole Mount

365645-001

Screw (4)

806-61010-16

1/4-20 x 1

FLAT 100, PH,

BLK ZINC

Grille Support (2)

365653-001

Driver, Low Freq.

2262FF

(363946-001X)

Cone Repl

C2X2R2262

Gasket

339391-001

Rear 12”

Screw (8)

804-01110-16

10-32 X 1

FIL,PH, BLK ZINC,LCS

Dome

71646-001

Grille Assembly

365659-001

Screw (4)

804-51110-40

10-32 x 2 1/2

OVAL,PH,BLK ZINC,

LCS

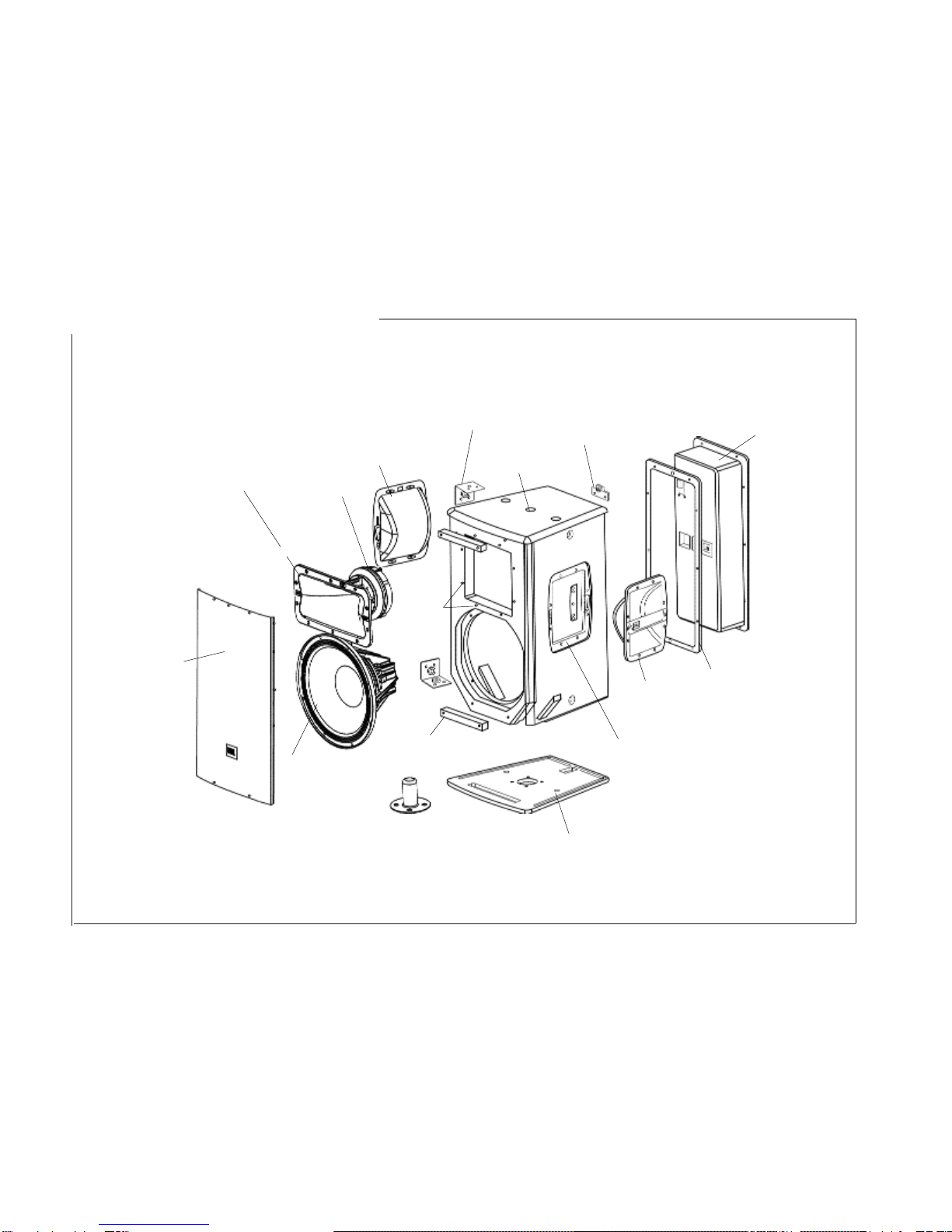

COMPONENT EXPLODED VIEW

JBLVP7212/95DPC

JBL VP7212/95DPC

Enclosure Assembly

VP7212-95DCP

(Not Available for Sale)

JBL VP7212/95DPC

AMPLIFIER ASSEMBLY

363679-006

JBLVP7212/95DPC

Amp Board

w/Modulator PCB

5009380

Input Board

5009382

Interface PCB

5009381

Crown Amp Logo Badge

362969-001

Input Label

364074-001

Top Label

365638-001

Knob,Volume,dbx

DPIP Horiz

355039-002

Warning Label

362965-001
