JCM Technologies KEEROLL Bedienungsanleitung

jcmtechnologies

user manual

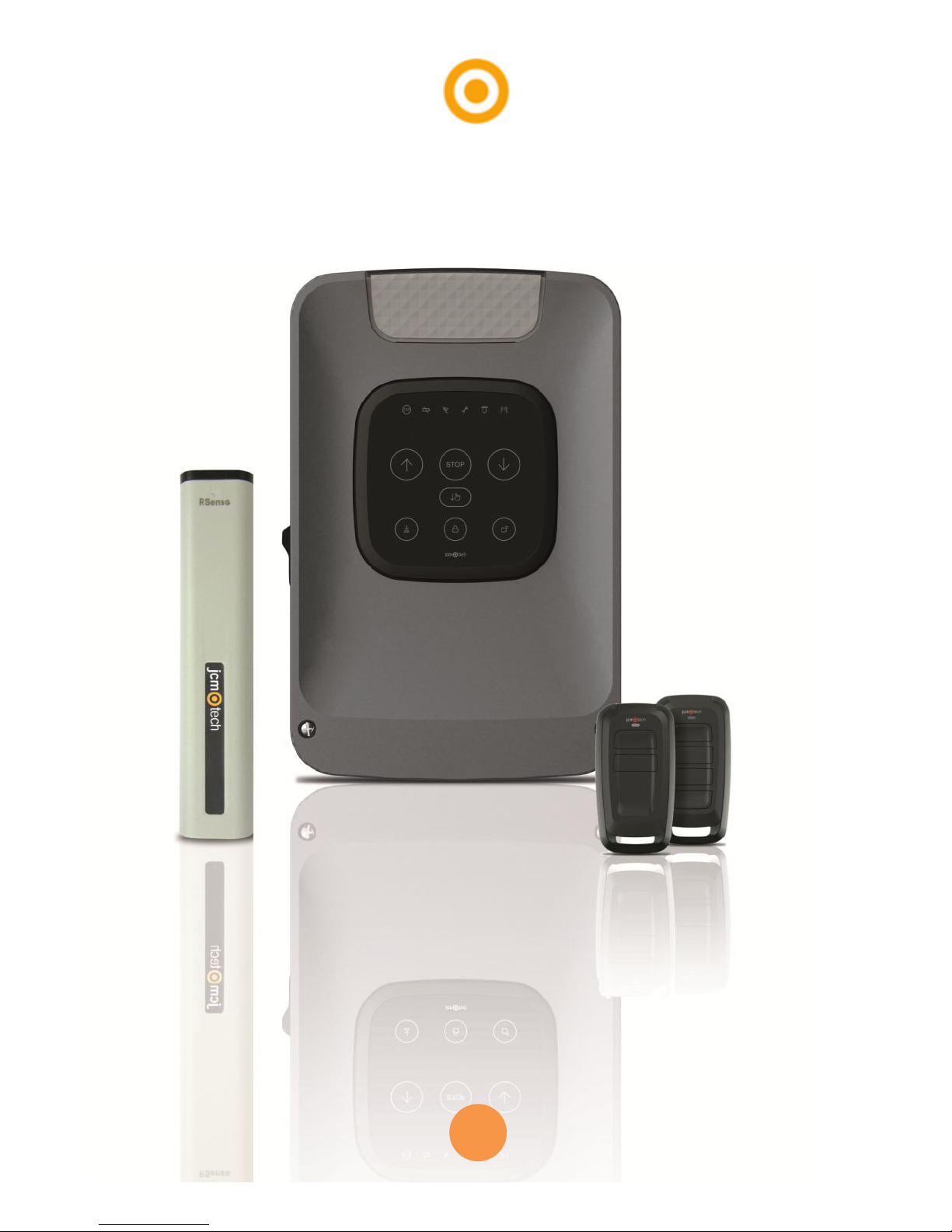

KEEROLL KIT

KEEROLL + RSENS3 TGL868 + 2 MUV

KEEROLL

jcmtechnologies

Introduction 3

General description 3

RadioSens3 System description 5

Installation 6

Control panel fixations 6

Connections 8

Configuration / Starting up 10

Options selection 10

Programming 11

Transmitter programming 11

Safety elements programming 11

Manoeuvre programming 12

Verification 13

Verify that the control panel is working properly 13

Communication’s quality 13

Impact detection adjustment 13

Maintenance 14

Fuse replacement 15

Battery replacement of RadioSens3 transmitter 15

Use of the system 15

Troubleshooting 16

Technical Data 17

Electrical parameters 17

Radio transmitters frequency parameters 17

Radio safety elements frequency parameters 17

Notes 18

Regulatory Data 20

Safety instructions for installation 20

Safety instructions for the use 20

EC Declaration of Conformity 20

KEEROLL

Introduction

General description

Designed for residential aluminium roller shutters, the KEEROLL solution, together with the RadioSens3

system, has direct communication with the user and the installer.

Its capacitive front with illuminated keys provides comfort and security. The door can be opened and

closed by any person without the need for technical know-how. The installer requires no initial training

in the product.

The control panel incorporates the most advanced system for detecting obstacles via radio, without

wires. With the RadioSens3 system you can forget about fitting a safety edge. You only need to fit the

transmitter onto the last slat of the door to comply with all safety regulations. It's clean, quick and

straightforward.

In addition, the system includes two smart-looking pocket transmitters that allow you to open the door

from your car.

The system complies with standard EN ISO 13849-1: 2008, category 2, PLd.

KEEROLL

jcmtechnologies

Indicators

Actions

Press to open, stop and close the door.

Press to close the door in dead man mode.

Block function: KEEROLL control panel incorporates a block button on the cover to

prevent the door from being opened accidentally.

Press to block the door, key lights ON.

The control panel will not be able to move the door neither to receive any transmitter.

Useful function to block the door during the night.

Adjust self-closing time: The user can set the desired time to leave the door open

simply by pressing a button on the cover.

New transmitters: The user can program new transmitters simply by pressing a

button on the cover (deleting transmitters is an action that is only allowed in installer

mode).

Alarm function: With the ALARM accessory it is possible to detect unwanted

openings of the door (robbery), enabling the control panel’s

sound alarm to be activated, or even connecting it to the

alarm system already present in the home.

Dipswitch 4 at ON. With door totally closed, if someone

tries to move it manually, the alarm will be activated.

To stop the alarm, press any button of a programmed transmitter.

ALARM device is

necessary to

activate this

function

KEEROLL

RadioSens3 System description

RadioSens3 is an impact detection system installed at the last slat of the roller shutter. It detects the

obstacle and reopens without causing any damage.

The communication system between the RS3 T868 and the KEEROLL is permanently monitored (two-

way link via radio)

Battery life

Table

Battery life in days

Manoeuvres / day

Manoeuvre time (s)

320

410

440

450

275

375

425

435

250

350

410

420

220

325

385

410

200

300

375

390

Options and

sensibility selectors

must be set before

programming. Any

later change will

have no effect.

(guide values, with alkaline batteries and at an ambient temperature of 25ºC)

KEEROLL

jcmtechnologies

Installation

Control panel fixations

Remove the front cover of the control panel. Install the bottom part on the wall in a vertical position, at

least 1,5 meters over the ground and in accordance with the assembly instructions below.

1st

2nd

KEEROLL

RadioSens3 fixations

Install the transmitter in horizontal position, at the middle of the last slat. Avoid placing metallic

surfaces between the receiver and the transmitter.

Control panel detects automatically the limit switches in the tubular motor. An adjustment of the limit

switches before RadioSens3 installation is requested.

SWIPE TO OPEN COVER REMOVE COVER DRILL DOOR

Maximum width of the door: 4 m

Recommended door speed: 0.1m/s or higher

(and 17 rpm motors).

<10m

The last

slat must

have a

tolerance of

minimum

1mm of

movement.

KEEROLL

jcmtechnologies

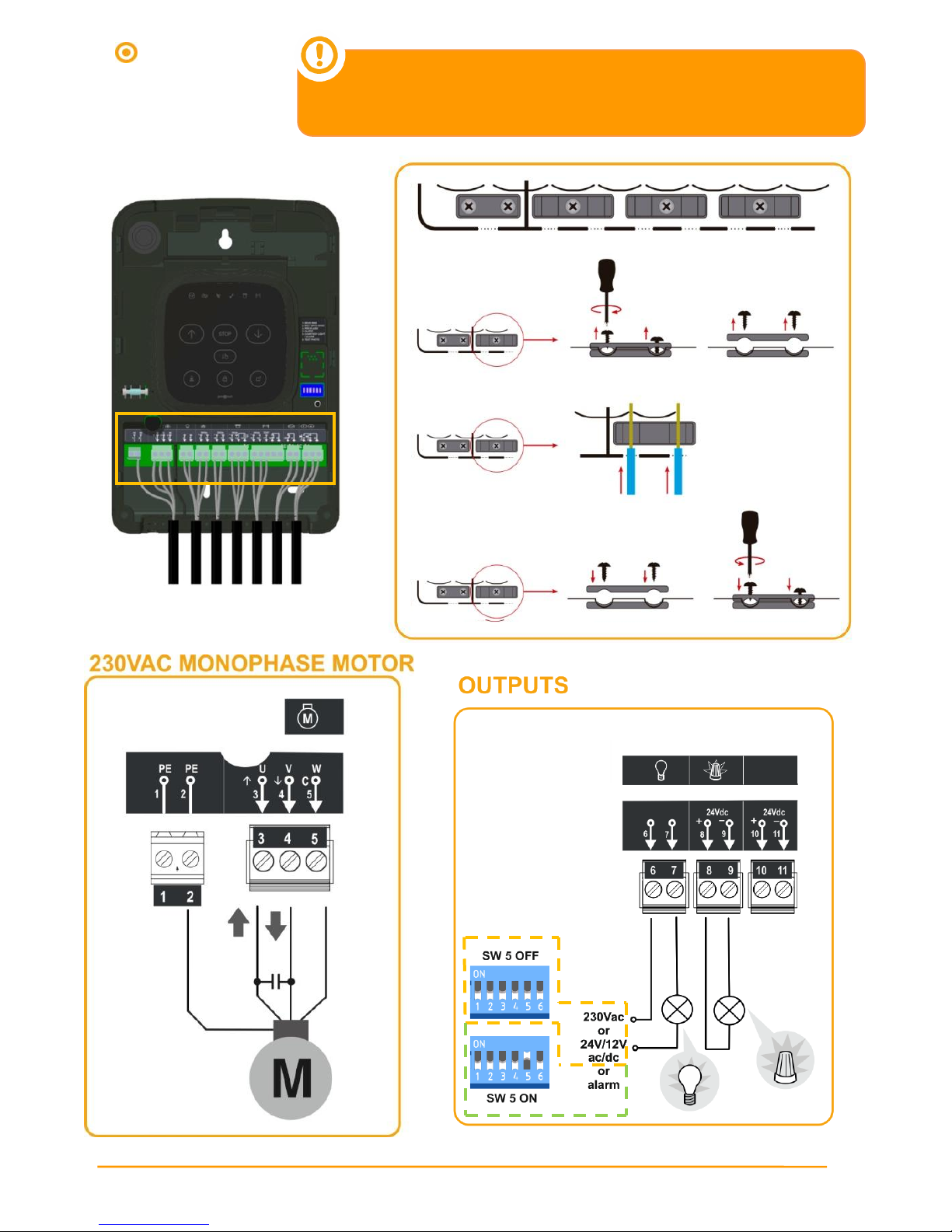

Connections

To prevent electric shocks, the equipment must be

disconnected from the power supply and all the electrical

connections.

KEEROLL

jcmtechnologies

Configuration / Starting up

Connect the power supply

Adjusting limit switch

Dipswitch 1 at ON. Door will move in dead man mode. Keep pressed or to move

up and down the door.

Press , to change the phase of the motor in case the door is not moving in the proper

sense.

Dipswitch 1 at OFF to exit dead man mode.

Options selection

Dipswitch function

OFF

1- DEADMAN

Normal operation

Dead man operation

2- SAFETY EDGE WIRED

8K2 safety edge connection

Optical safety edge connection

3- PRE-FLASH

Pre-flash disabled

3s pre-flash enabled

4- ALARM* (detector needed)

Alarm function disabled

Alarm function enabled

5- COURTESY LIGHT / ALARM

Courtesy light output

External alarm output

6- TEST PHOTO

Test photocell disabled

Test photocell enabled

* Optional alarm. JCM can provide you the alarm detector (optional)

Door MUST BE AT HALFWAY position before

starting the limit switch adjusting
