COLUMN REFRIGERATION

SINGLE UNIT

RÉFRIGÉRATEUR INTÉGRÉ EN COLONNE

COMPARTIMENT UNIQUE

W11362249A

IMPORTA NT SAFETY INSTRUCTIONS

WA RN IN G: To reduce the risk of ﬁre, electric shock, or injury to persons when using your appliance, follow basic precautions,

including the following:

SAVE THESE INSTRUCTIONS

■Children should be supervised to ensure that they do not

play with the appliance.

■This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

■Do not use an extension cord.

■If power supply cord is damaged, it must be replaced by the

manufacturer, its service agent, or a similarly qualiﬁed

person in order to avoid a hazard.

■Connect to potable water supply only.

■This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops,

ofﬁces, and other working environments; farm houses and

by clients in hotels, motels, and other residential-type

environments; bed and breakfast-type environments; and

catering and similar non-retail applications.

■Do not store explosive substances such as aerosol cans

with a ﬂammable propellant in this appliance.

■Do not use replacement parts that have not been

recommended by the manufacturer (e.g., parts made at

home using a 3D printer).

■Keep ventilation openings, in the appliance enclosure or in

the built-in structure, clear of obstruction.

■Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

■Do not damage the refrigerant circuit.

■Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type

recommended by the manufacturer.

■Ice maker kit can be added to some models. See serial tag

inside the food compartment of appliance for ice maker kit

model information.

■A qualiﬁed service technician must install the water line and

ice maker. See installation instructions supplied with ice

maker kit for complete details.

You can be killed or seriously injured if you don't

immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all

safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

With the launch of the ﬁrst ever JennAir®columns, we reimagined the entire columns

installation process, eliminating problems that affect our sub-par competitors. Some of

the features professional installers are most excited about:

• Concealed six-point panel adjustment

Easy and precise alignment

• Site-tailored Rotter system shims

Guide and keep column in position

• Precision four-point front leveling

On sturdy rollers that easily bear full weight

• Metal fascia

Increases durability

EASE. SPEED. SAFETY.

• Solid wood core stainless steel panels

Easy to prep and hang and do not

require drilling through steel

• Expanded utility areas

Reduced changes to replace built-ins

or upgrade from competitor columns

And with your help, we’ll just keep getting better.

Contact the JennAir Epicenter through jennair.com or at 1-800-JENNAIR (536-6247)

to report installation tips and tricks, or to consult with experts who know

the installation process inside and out.

INTRODUCTION 3

IMPORTANT: Child entrapment and

suffocation are not problems of the past.

Junked or abandoned refrigerators are still

dangerous – even if they will sit for "just a

few days." If you are getting rid of your old

refrigerator, please follow these instructions

to help prevent accidents.

WARNING: Risk of child entrapment.

Before you throw away your old

refrigerator or freezer:

■ Take off the doors.

■ Leave the shelves in place so that children

may not easily climb inside.

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

Important information to know about disposal of

refrigerants:

Dispose of refrigerator in accordance with Federal and Local

regulations. Refrigerants must be evacuated by a licensed,

EPA certified refrigerant technician in accordance with

established procedures.

WHY WE LOVE

JENNAIR INSTALLERS

THEY’RE TOTAL PROFESSIONALS AND PERFECTIONISTS.

It’s all about getting that seamless ﬂush execution, that down-to-the-

millimeter adjustment. Flawless installation is incredibly important to

the function, appearance and lifetime enjoyment of our products, and

our installers make it happen every day.

THEY DO THEIR HOMEWORK. AND HELP US WITH OURS.

These experts know JennAir®products inside and out. They train

extensively on JennAir installation, learning the latest techniques and

insider tips so they can install our cutting edge appliances with ease.

And we value their input, incorporating installer feedback to reﬁne and

perfect our installations.

THEY THINK THROUGH EVERY DETAIL OF THE EXPERIENCE.

Above and beyond dedication is the baseline. The JennAir experience

starts the minute an installer brings the customer’s column home.

Keeping the site spotless, taking extreme care with both the appliances

and the home and providing an unforgettable introduction to columns

is all part of the game plan.

4INTRODUCTION

TABLE OF CONTENTS

INTRODUCTION

02 SAFETY INSTRUCTIONS

06 TOOLS & PARTS

08 PRODUCT DIMENSIONS

10 OPENING DIMENSIONS

12 SITE PREP

PREPARATION

16 SECTION 1  COLUMN

21 SECTION 2  FURNITURE

COLUMN

28 SECTION 3  INSTALLATION

TOEKICK

36 SECTION 4  COLUMN PREPARATION

42 SECTION 5  CUSTOM WOOD

PREPARATION

46 SECTION 6  STAINLESS STEEL

PREPARATION

49 SECTION 7  ALIGNMENT

AND INSTALLATION

PANEL

55 SECTION 8 CUSTOM WOOD

PREPARATION

60 SECTION 9  STAINLESS STEEL

PREPARATION

63 SECTION 10  HANGING

AND ADJUSTMENT

COMPLETE

70 SECTION 11  COMPLETE INSTALLATION

APPENDIX

74 ADDITIONAL SHIM INFORMATION

INTRODUCTION 5

TABLE DES MATIÈRES

INTRODUCTION

77 INSTRUCTIONS DE SÉCURITÉ

80 OUTILS ET PIÈCES

82 DIMENSIONS DU PRODUIT

84 DIMENSIONS DE L’OUVERTURE

86 PRÉPARATION DE L’EMPLACEMENT

PRÉPARATION

90 SECTION1  RÉFRIGÉRATEUR

INTÉGRÉ EN COLONNE

95 SECTION2  MEUBLE

RÉFRIGÉRATEUR INTÉGRÉ

EN COLONNE

102 SECTION3  INSTALLATION

PLINTHE

110 SECTION4  PRÉPARATION

DE L’APPAREIL

116 SECTION5  PRÉPARATION DU

PANNEAU EN BOIS PERSONNALISÉ

120 SECTION6  PRÉPARATION DU

PANNEAU EN ACIER INOXYDABLE

123 SECTION7  ALIGNEMENT ET

INSTALLATION

PANNEAU

129 SECTION8  PRÉPARATION DU

PANNEAU EN BOIS PERSONNALISÉ

134 SECTION9  PRÉPARATION DU

PANNEAU EN ACIER INOXYDABLE

137 SECTION10  SUSPENSION ET

AJUSTEMENT

TERMINER

144 SECTION11  TERMINER

L’INSTALLATION

ANNEXE

148 INFORMATIONS SUPPLÉMENTAIRES

SUR LES CALES

TOOLS + PARTS

PROVIDED

#2 Square-drive screws 8-18 x 3/4 Phillips head screws 6-20 x .375 screws

5 mm driver bitFour installation shims

3 mm driver bit

Shim installation template

READ AND FOLLOW THE INSTRUCTIONS PROVIDED WITH

ANY OF THE TOOLS LISTED

6INTRODUCTION

3MM

5MM

Toe-kick and door panel installation template 3 mm †Allen®wrench

5 mm Allen®wrench

Gripping pads

†®Allen is a registered trademark of Apex Brands, Inc.

TOOLS + PARTS

NOT PROVIDED

TOOLS

Cordless drill and drill bits or impact driver

Drill bit set including 3/32" and 1/8" diameter bits

Two adjustable wrenches

#2 Phillips bit

1/4" magnetic nut driver

#2 square-drive bit

48" or longer level or straight edge

3/8" and 1/2" open-end wrenches

Tape measure

Utility knife

Masking tape

Appliance dolly

Right angle drill adapter

6" drill extension

#8 pan head wood screws of assorted lengths

including 1", 1-1/4", 1-1/2"

PARTS

Flexible code-approved water supply line

Custom door panels

• Stainless steel panels: order from JennAir

• Custom wood panels: consult a qualiﬁed

cabinetmaker or carpenter

Additional fasteners will be required according

to the kitchen furniture construction

This recommended process might be unfamiliar to you as an installer, but it adds

enormous value to both you and your client. Use the Rotter system to:

• Help position column without scratching

• Create precise 1/8" reveals on each side

• Always have ready-made shims tailored to each site

• Keep column stable in cutout over lifetime

• Eliminate misalignment issues for your client

WHY USE

ROTTER

SYSTEM

SHIMS?

INTRODUCTION 7

9/32″ 1/4″

3/16″ 1/16″

1/8″

DIMENSIONS

PRODUCT

OVERALL PRODUCT NO PANEL

Width See unit width table below

Height 83-1/2" (212 cm)

Depth 23-7/8" (60.6 cm)

Raw Door Height 62-3/16" (157.9 cm)

Toe-kick Height 3-9/16" (9.1 cm)

Toe-kick Depth 3-1/4" – 4-7/8" (8.3 cm-12.4 cm)

PRODUCT WIDTH

Model Width

18"

JBZFR18IGX

JBZFL18IGX

ALOVE18FLC

17-3/4"

(45.1 cm)

24"

JBRFR24IGX

JBRFL24IGX

JBZFR24IGX

JBZFL24IGX

ALOVE24FLC

ALOVE24RRC

23-3/4"

(60.3 cm)

30"

JBRFR30IGX

JBRFL30IGX

JBZFR30IGX

JBZFL30IGX

ALOVE30RRC

29-3/4"

(75.6 cm)

36"

JBRFR36IGX

JBRFL36IGX

35-3/4"

(90.8 cm) Width varies

(See table)

83 1/2"

23-7/8"

8INTRODUCTION

DIMENSIONS

ACCESSORIES

CUSTOM TOEKICK

Height 3-9/16" (9.1 cm)

Thickness 3/16"-3/4" (.47 cm-1.9 cm)

STAINLESS STEEL PANEL

Height 80" (203.2 cm)

Thickness 13/16" (2.1 cm)

CUSTOM PANEL

Thickness 3/4" (1.9 cm) max.

Weight 60 lbs. (27.2 kg) max.

Typical Height 80" (203.2 cm)

MODEL FLUSH WIDTH

18" 17-3/4" (45.1 cm)

24" 23-3/4" (60.3 cm)

30" 29-3/4" (75.6 cm)

36" 35-3/4" (90.8 cm)

1/8"

Furniture

Panel

INTRODUCTION 9

DOOR STYLE

CUSTOM PANEL WIDTH

1/8"

Pinch Hazard

Installation of door panels with less than a ³⁄₈" (0.95 cm) gap

between the door panel and the adjacent cabinet increases

the risk of potential pinching.

CAUTION

DIMENSIONS

OPENING

OPENING WIDTH

Model Width (A)

18"

JBZFR18IGX

JBZFL18IGX

ALOVE18FLC

18"

(45.7 cm)

24"

JBRFR24IGX

JBRFL24IGX

JBZFR24IGX

JBZFL24IGX

ALOVE24FLC

ALOVE24RRC

24"

(61 cm)

30"

JBRFR30IGX

JBRFL30IGX

JBZFR30IGX

JBZFL30IGX

ALOVE30RRC

30"

(76.2 cm)

36"

JBRFR36IGX

JBRFL36IGX

36"

(91.4 cm)

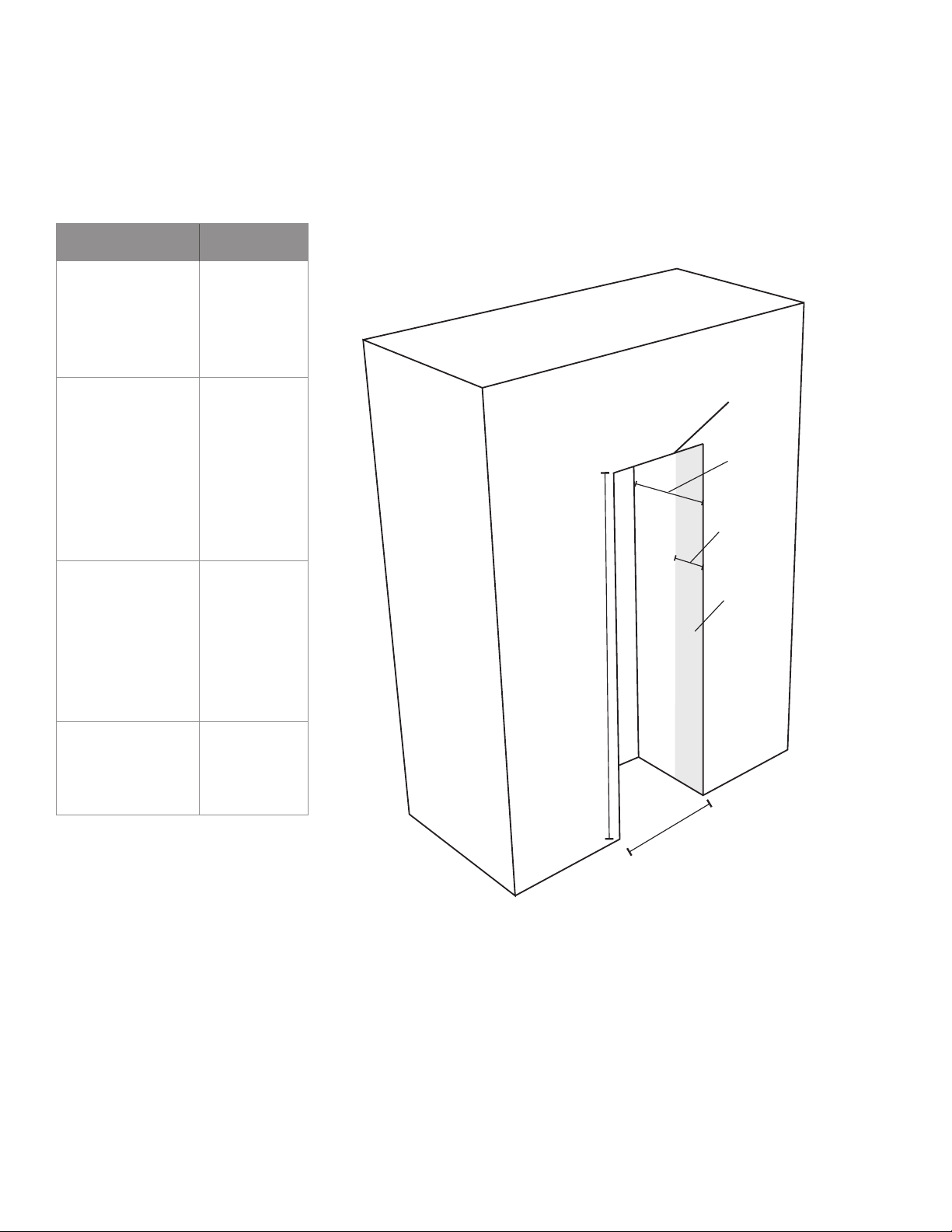

84"

25"**

**24" with 24" trim kit

Width (A)

10 INTRODUCTION

Furniture

return

8" Upper

furniture

return

Sofﬁt

Andere Handbücher für JBZFR18IGX

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air Luxury Series Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW10 Bedienungsanleitung

Jenn-Air

Jenn-Air W10292391 Bedienungsanleitung

Jenn-Air

Jenn-Air JFFCC72EHL01 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42SEFXDA Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2285KEF Bedienungsanleitung

Jenn-Air

Jenn-Air JS42PPFXDA Bedienungsanleitung

Jenn-Air

Jenn-Air W10130023A Produktinformationsblatt

Jenn-Air

Jenn-Air SIDE BY SIDE Bedienungsanleitung

Jenn-Air

Jenn-Air JBRFR24IGX Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW Bedienungsanleitung

Jenn-Air

Jenn-Air W10379136A Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089HPR10 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089WEM1 Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXRW Bedienungsanleitung

Jenn-Air

Jenn-Air 36" Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AEP10 Bedienungsanleitung

Jenn-Air

Jenn-Air JUC2450ARW Bedienungsanleitung

Jenn-Air

Jenn-Air JUD278DBCX00 Bedienungsanleitung

Jenn-Air

Jenn-Air JUR248RYEP Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JBR2086HES Bedienungsanleitung

Jenn-Air

Jenn-Air JSC23C9EEM Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
