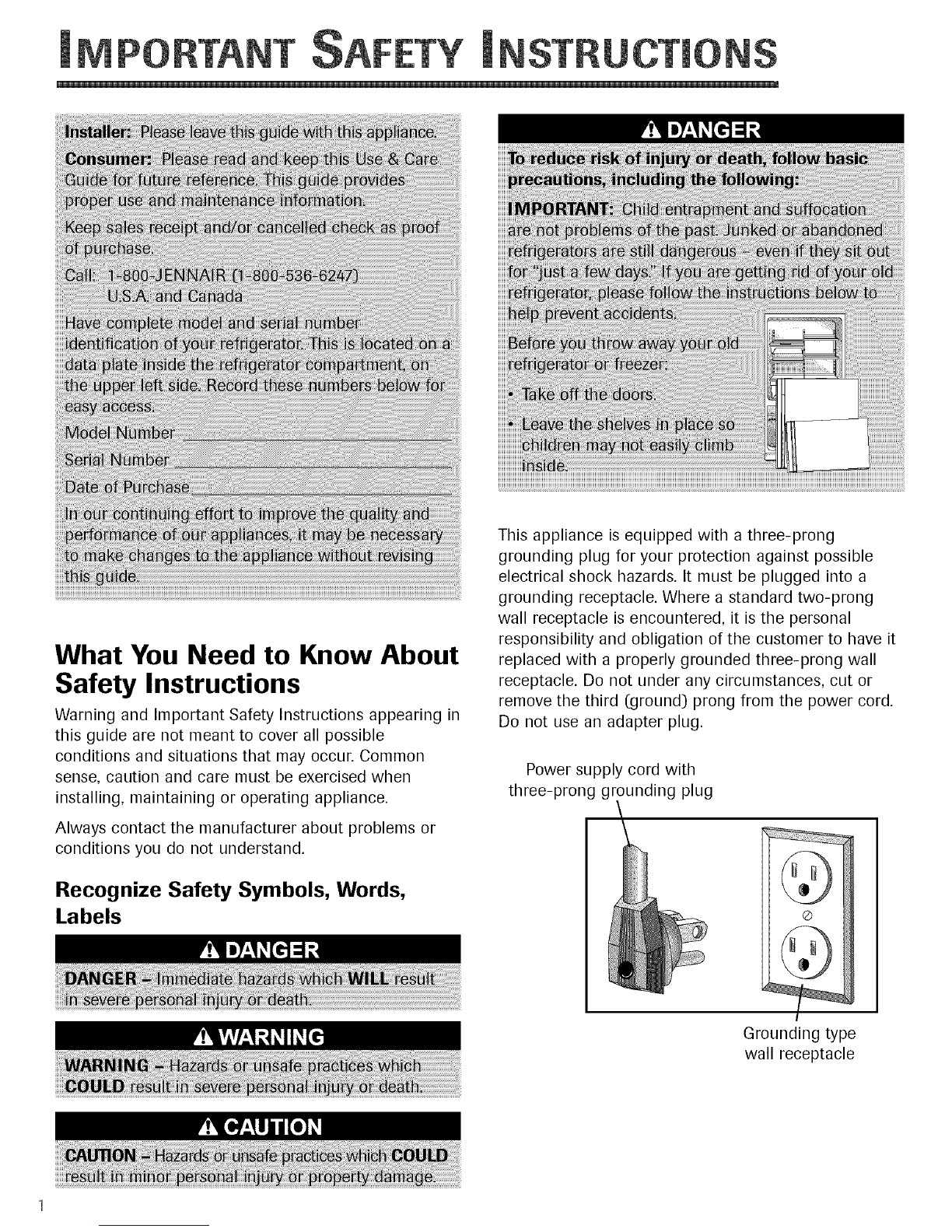

What You Need to Know About

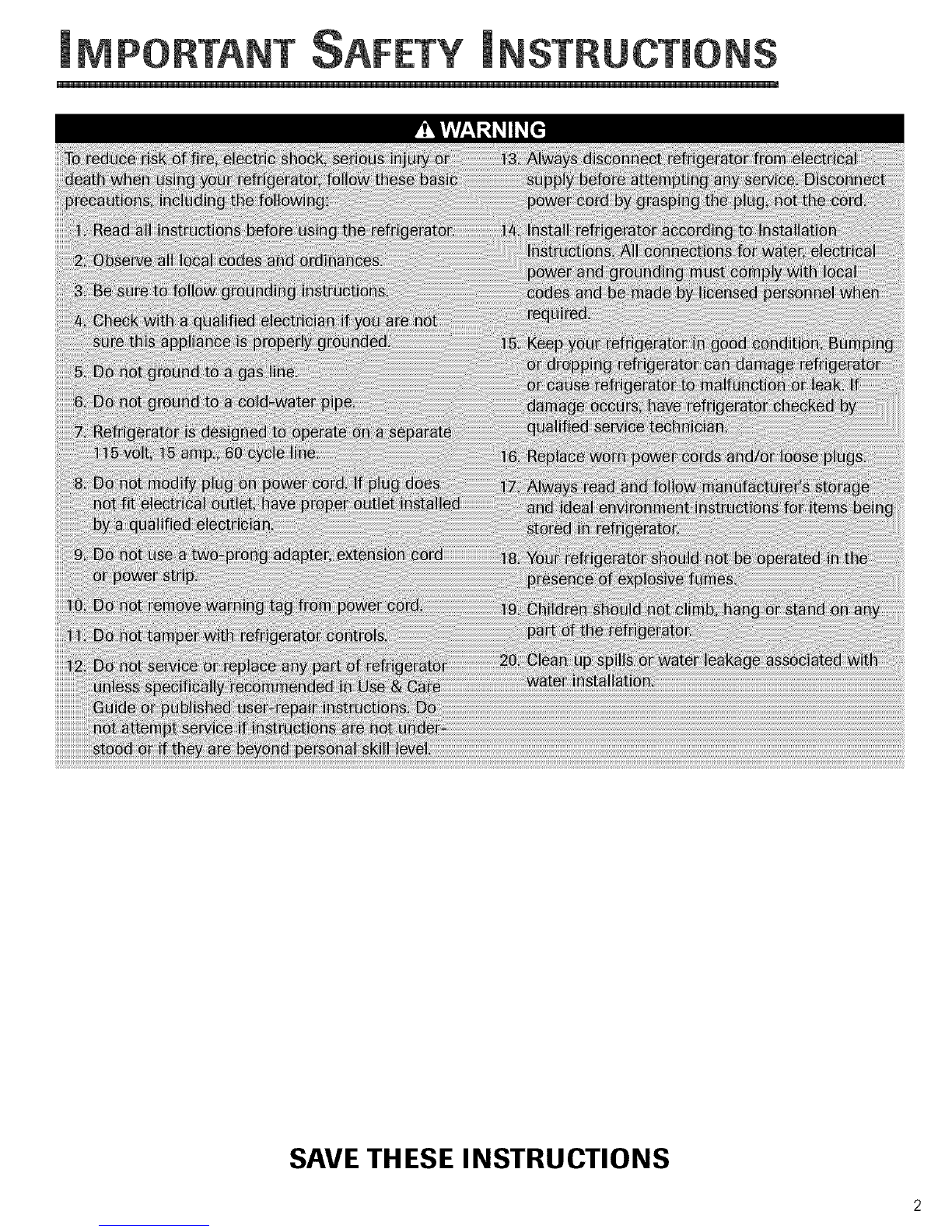

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

SAVE THESE INSTRUCTIONS

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

• Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow '/2"space at top and '/;' space behind the

machine compartment cover (located in the rea0 for

proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

IMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

To enhance the appearance and maintain performance,

the refrigerator should be level.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed

• 3/8"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swinging it off.

3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

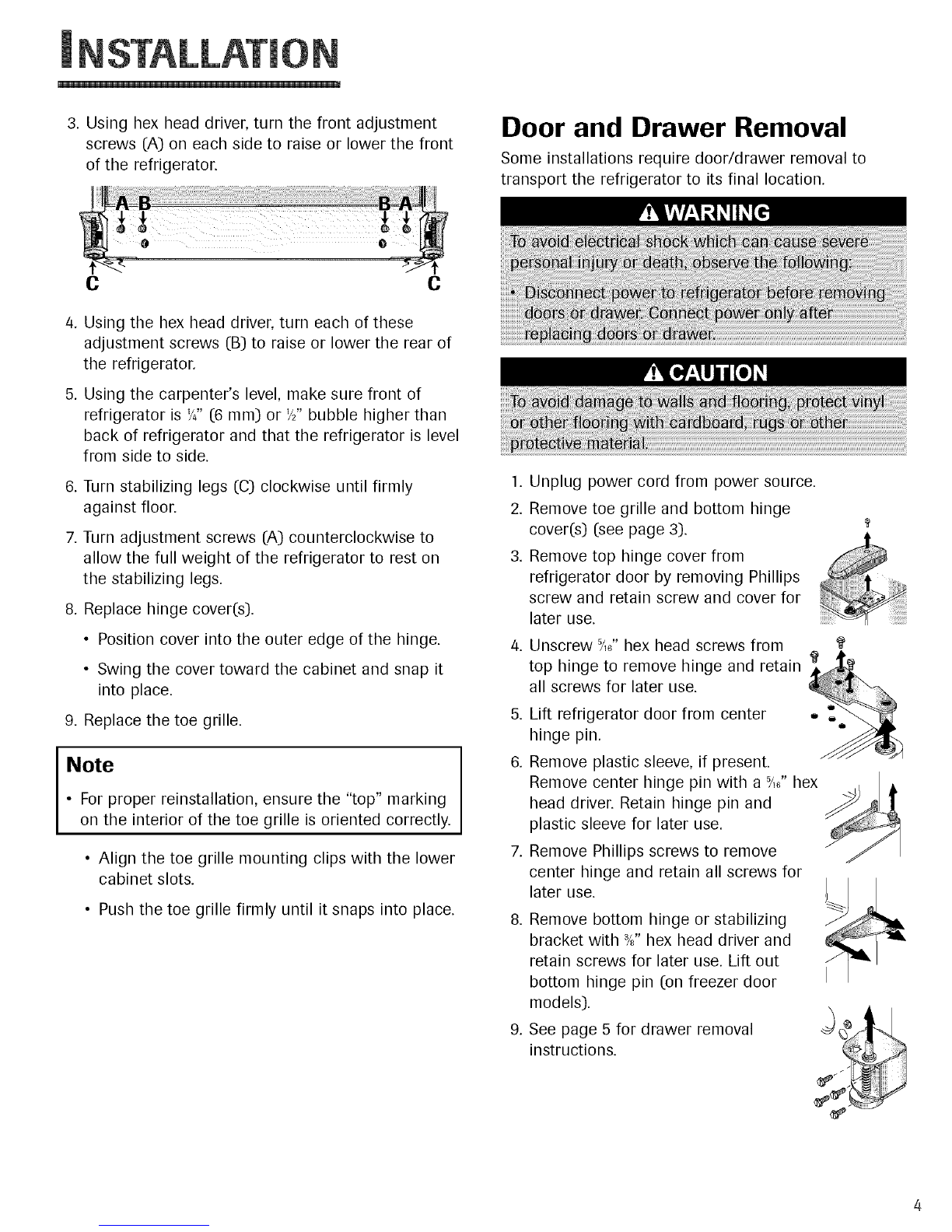

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

C C

4. Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

5. Using the carpenter's level, make sure front of

refrigerator is '/4"(6 ram) or '/2"bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace hinge cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Unplug power cord from power source.

Remove toe grille and bottom hinge

cover(s) (see page 3).

Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew 5/,6"hex head screws from

top hinge to remove hinge and retain ._._

all screws for later use.

Lift refrigerator door from center

hinge pin.

Remove plastic sleeve, if present.

Remove center hinge pin with a 5/,,, hex

head driver. Retain hinge pin and

plastic sleeve for later use.

Remove Phillips screws to remove

center hinge and retain all screws for

later use.

8. Remove bottom hinge or stabilizing

bracket with _/;' hex head driver and

retain screws for later use. Lift out

bottom hinge pin (on freezer door

models).

9. See page 5 for drawer removal

instructions.

Pullout Freezer Drawer

(select modeHs)

To Install:

1. Pull both rails out to full

extension.

2. While supporting door front,

hook supports into tabs

located on inside of rail.

3. Lower door front into

final position.

To Remove:

1. Pull drawer open to full extension.

2. Pull upper basket out to full extension and lift out

to remove.

Lift lower basket straight up and out to remove.

On each side rail is a

basket cradle with two snap

attachments. To release

each cradle, unlatch the

snaps by pushing them

inward, away from the side

rail system. Lift the cradles

off of the rails.

5. Remove Phillips screw

from each side of rail

system (select models).

6. Lift top of drawer front

to unhook supports

from rail system. Lift

door front out to

remove.

Replace and tighten Phillips screws that were

removed from each side of rail system (select

models).

Place the basket cradles back onto the side rails.

Align snaps with the slots on the side rails and

press each snap towards the rail until it clicks.

With rails pulled out to full extension, set the

basket straight down into the basket cradles.

Basket cradle

snap attachments

7.Slide upper basket into freezer. Make sure that rear

of basket hooks behind rail catch.

Reinstallation of the Doors

1. Install hinge assemblies:

• Install top hinge loosely with 5/,,, hex

head screws.

• Install center hinge with Phillips

sc rews.

2. Place hinge side of freezer door on

bottom hinge pin and hold freezer

door upright while installing center

hinge pin with %_"hex head driver.

• Replace plastic sleeve.

• Replace any applicable door shims.

• Make sure the hinge pin is installed

tightly.

3. Place hinge side of refrigerator door

on center hinge pin.

4. While holding refrigerator door upright, tighten

down top hinge with 5/,,, hex head driver and

replace hinge cover.

Handle Re[illova_ (style varies by model)

Materials Needed:

3/_2"allen wrench

To Remove:

"Remove set screw' from

handle mounting post

using -_2"allen wrench.

Repeat the procedure on

all posts to remove the

handle.

To Replace:

.Align handle with the

mounting posts.

.Fully tighten all set screws to secure handle

in place.

Connecting the Water Supply

Cselect models)

Materials Needed

• '/4"outer diameter flexible copper tubing

• Shut-off valve (requires a '/4"hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• '/_"hex nut driver

Note

Add 8' to tubing length needed to reach water

supply for creation of service loop.

Create service loop with copper

tubing (minimum 2' diamete0.

Avoid kinks in the copper tubing

when bending the service loop.

Do not use plastic tubing.

Remove plastic cap from water valve _ o

inlet port.

Hace brass nut (A} and sleeve (B} on

copper tube end as illustrated.

Reminder: Do not use old sleeve. The

nut and the sleeve are A

provided in the use and

care packet.

Place end of copper

tubing into water valve

inlet port. Shape tubing

slightly. Do not kink - so that tubing

feeds straight into inlet port.

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

UMPORTANT: Do not overtighten. Cross

threading may occur.

Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C} and turn on

water supply. Check for leaks and

correct if necessary. Continue to observe

the water supply connection for two to

three hours prior to moving the

refrigerator to its permanent location.

7_ Monitor water connection for 24 hours.

Correct leaks, if necessary.

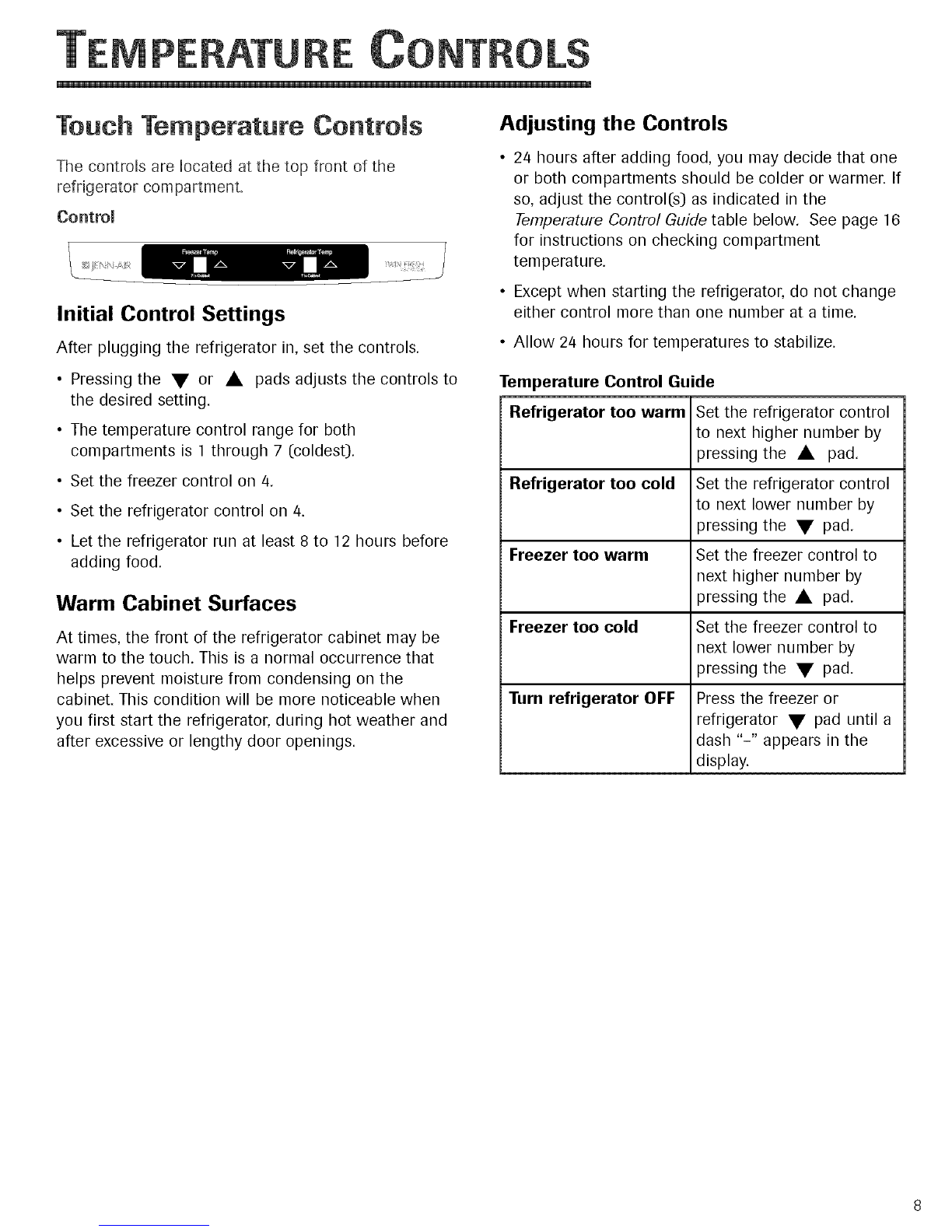

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Controm

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the • or • pads adjusts the controls to

the desired setting.

• The temperature control range for both

compartments is 1 through 7 (coldest).

• Set the freezer control on/4.

• Set the refrigerator control on/4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 16

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

• Allow 24 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the refrigerator control

to next higher number by

pressing the • pad.

Set the refrigerator control

to next lower number by

pressing the • pad.

Set the freezer control to

next higher number by

pressing the • pad.

Set the freezer control to

next lower number by

pressing the • pad.

Press the freezer or

refrigerator • pad until a

dash "-" appears in the

display.

Your refrigerator has either Spillsaver TM or non-sealed

shelves. Spillsaver TM shelves have a spill retainer edge

which allows for easier clean up and some are

equipped with a roll out feature. To roll out (select

models}, grasp the front of the shelf and pull forward.

Push in the shelf to return to the original position.

To Remove a Shelf:

Slightly tilt up the front and lift up

the rear of the shelf, then pull the

shelf straight out.

To Lock the Shelf Unto Another Position:

Tilt up the front edge of the shelf.

Insert the hooks into the desired frame openings and

let the shelf settle into place.

Be sure the shelf is securely locked at the rear.

The Crisper Top serves as the lower fresh food shelf.

To Remove the Crisper Top:

,Remove crisper drawers as indicated on page 10.

,Place hand under the frame to push up the glass. Lift

glass out.

,Lift frame from refrigerator liner rails.

,To install, repeat above instructions in reverse order.

Door Storage

Dairy Center

The Dairy Center provides

convenient door storage for

spreadable items such as butter and margarine. This

compartment can be moved to different locations to

accommodate storage needs. To use the dairy

compartment, raise the cover.

To Remove:

•Raise the cover, pull upward and tilt out.

To Install:

• Reverse above procedure.

Door Buckets

Door Buckets can be moved to meet

storage needs.

To Remove:

• Slide bucket up and pull straight

out.

To Install:

• Slide bucket in and down until firmly seated in the

door liner.

Beverage Chiller TM

[select models]

The Beverage Chiller TM keeps

beverages and other items cooler than

the rest of the fresh food section. A cold

air inlet allows air from the freezer

section to pass into the beverage chiller.

The Beverage Chiller TM control is located

on the left wall of the fresh food j,

compartment. The control adjusts the ._ ......

amount of cold air allowed in to the _'<

beverage chiller. Turn the control

clockwise for a colder temperature. _" .....

Andere Handbücher für JBR2086HES

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JS42NXFXDE Bedienungsanleitung

Jenn-Air

Jenn-Air JBC2088HTQ Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2589AEP10 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air SIDE BY SIDE BUILT-IN Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290VEP0 Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AEP6 Bedienungsanleitung

Jenn-Air

Jenn-Air jb36ssfxra Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2582WTF Bedienungsanleitung

Jenn-Air

Jenn-Air W10276304A Bedienungsanleitung

Jenn-Air

Jenn-Air Luxury Series Bedienungsanleitung

Jenn-Air

Jenn-Air JS42PPDUDB00 Bedienungsanleitung

Jenn-Air

Jenn-Air JFD2589KES Bedienungsanleitung

Jenn-Air

Jenn-Air JUR248RBES Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW10 Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FR S Series Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JBL2088HES13 Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Jenn-Air

Jenn-Air Euro Series Produktinformationsblatt

Jenn-Air

Jenn-Air JCB2585WEP00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
