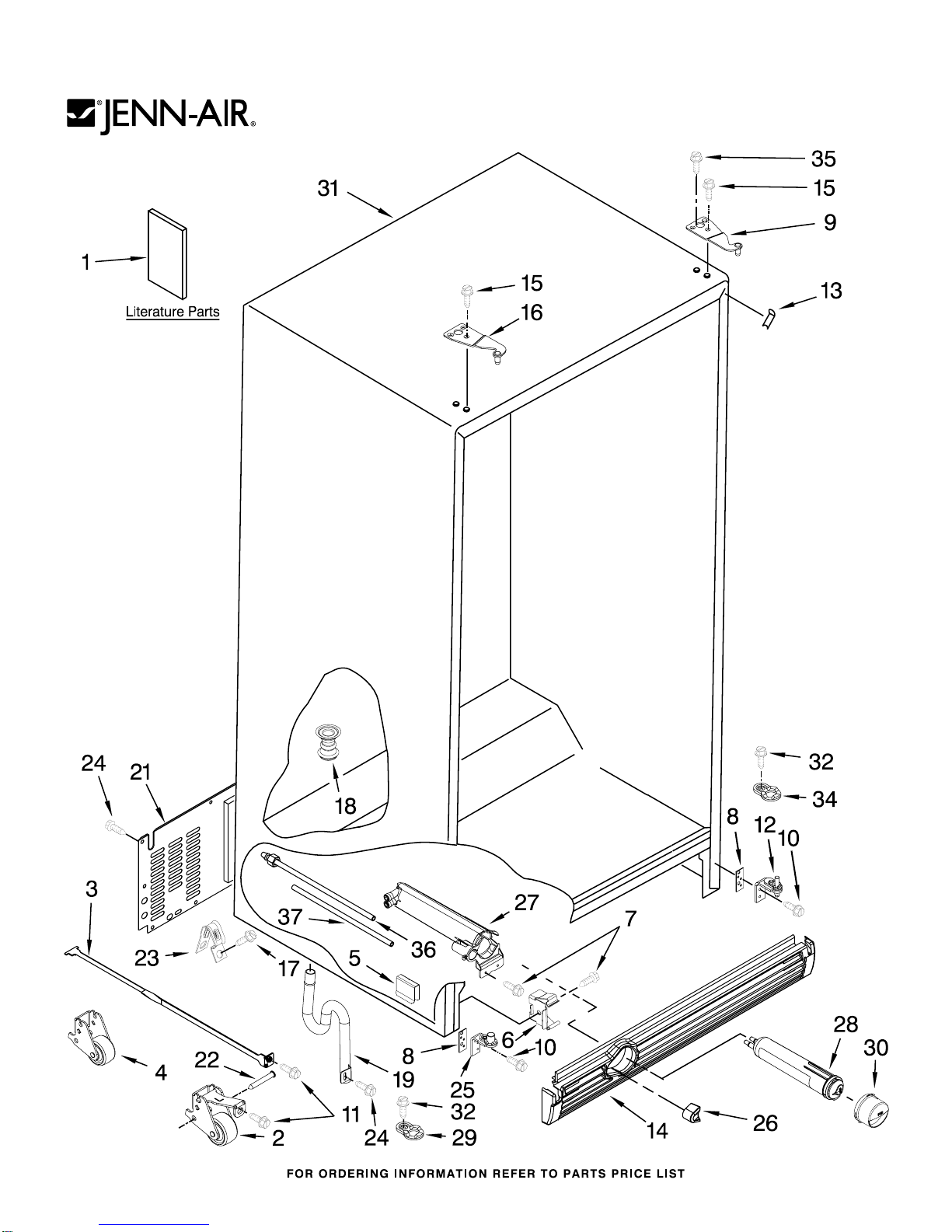

CABINET PARTS
1
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
7−12 Printed In U.S.A. (mms)(bay) Part No. W10239508 Rev. B
REFRIGERATOR
CABINET PARTS
2
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10203274
Use & Care Guide
W10152832
Service & Wiring
Sheet
2318510 Installation Instructions
W10204993
Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7
W10001260
Screw
8 2223545 Shim
9 Hinge Top, RC
2307008AP
Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
(Includes #34)
13 Filler, Wrapper
2223893AP
Apollo Gray
14 Grille
W10194061
Midnight Grey
15 3400108 Screw
16 Hinge, Top FC
2307007AP
Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503MG
Midnight Grey
27
W10121140
Housing, Water
Filter
28 8212650 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260502MG
Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32
W10142234
Screw
34 2307049 Door Closer, RC
35 3400858 Screw
36 2224020 Tube, Filter
Outlet
37 2319867 Tube, Filter Inlet

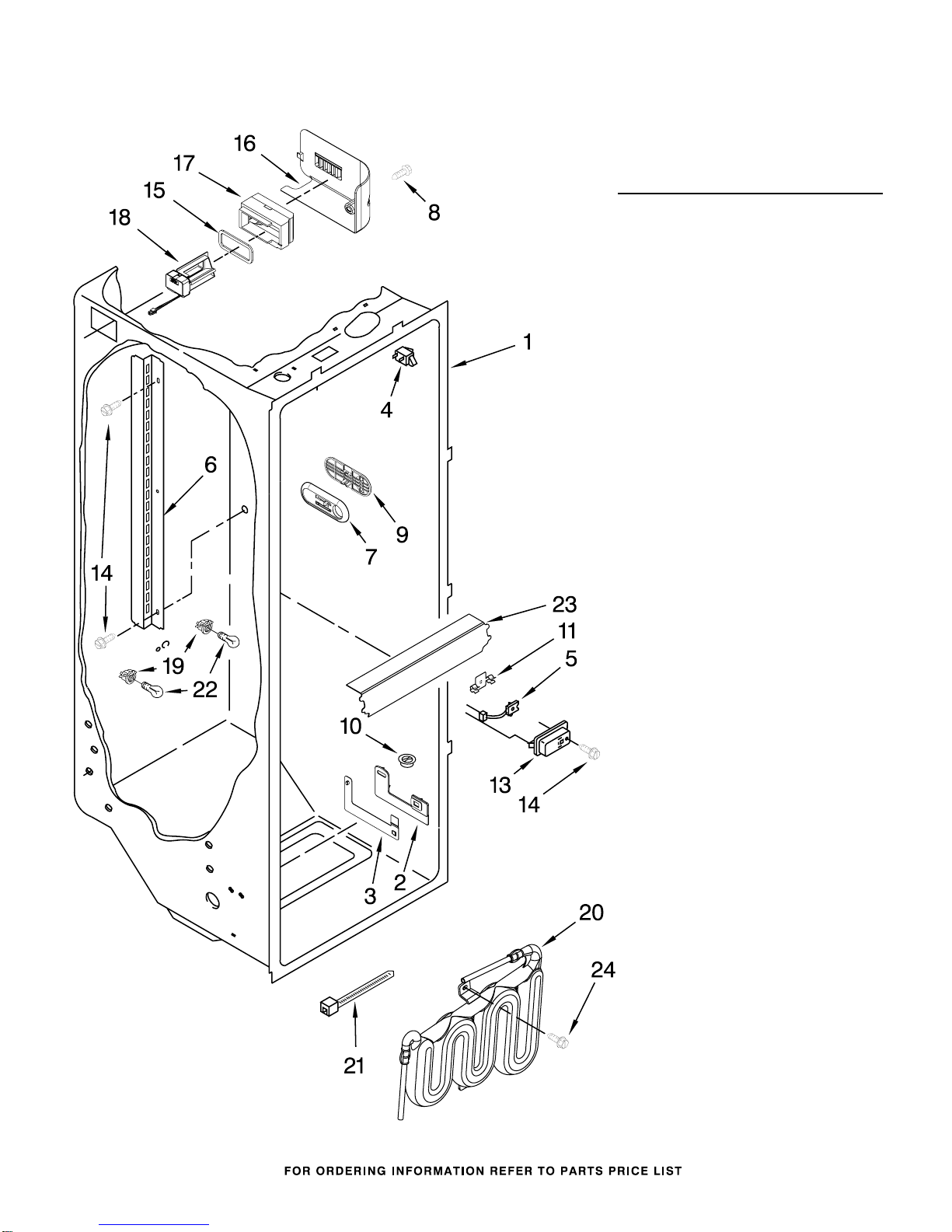

REFRIGERATOR LINER PARTS
3
Illus. Part
No. No. DESCRIPTION
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide, Meat
Pan Control
4 1118894 Switch, Rocker
Arm
5 2188820 Thermistor
6 2223456 Ladder, Shelf (2)
7 2301234 Housing, Door
Control
8 489084 Screw
9
W10162918
Slide, Door
Control
10 2171846 Release Valve
11 2209204 Clip, Thermistor
13 1116793 Cover, Thermistor
14
W10001260
Screw
15 2304597 Gasket,
Air Baffle
16 2223403 Cover,
Air Baffle
17 2224076 Air Diffuser
Assembly
18
W10185224
Air Baffle
19 2162085 Socket
20 2307107 Reservoir
21 2205813 Strap
22
W10194422
Light Bulb
23 2223663 Light Lens
24
W10141625
Screw

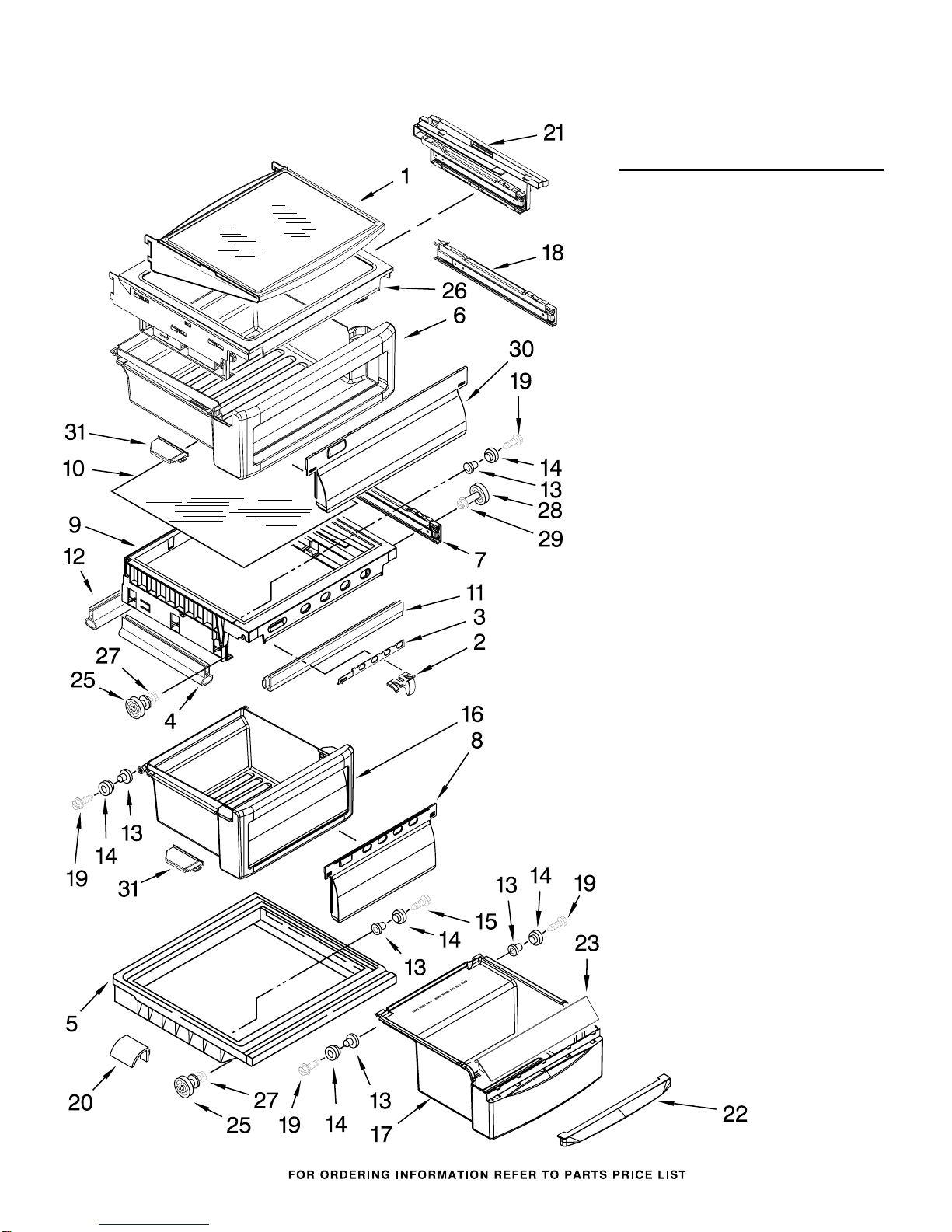

REFRIGERATOR SHELF PARTS
4
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1
W10163053
Shelf Assembly,
Cantilever (3)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6
W10163047
Snack Pan
(Includes 30 & 31)
14, & 19)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9
W10163043
Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14, & 19)
10
W10163045
Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16
W10163039
Crisper Pan
(Includes 8, 13,
14, 19, & 31)
17
W10162924
Meat Pan
(Includes 13, 14,
19, & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
23
W10270142
Door, Meat Pan
25 2196485 Stud Assembly
26
W10163048
Shelf, Snack Pan
27
W10191954
Screw
28 2196483 Stud Assembly
29
W10191952
Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side
FREEZER LINER PARTS
5
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

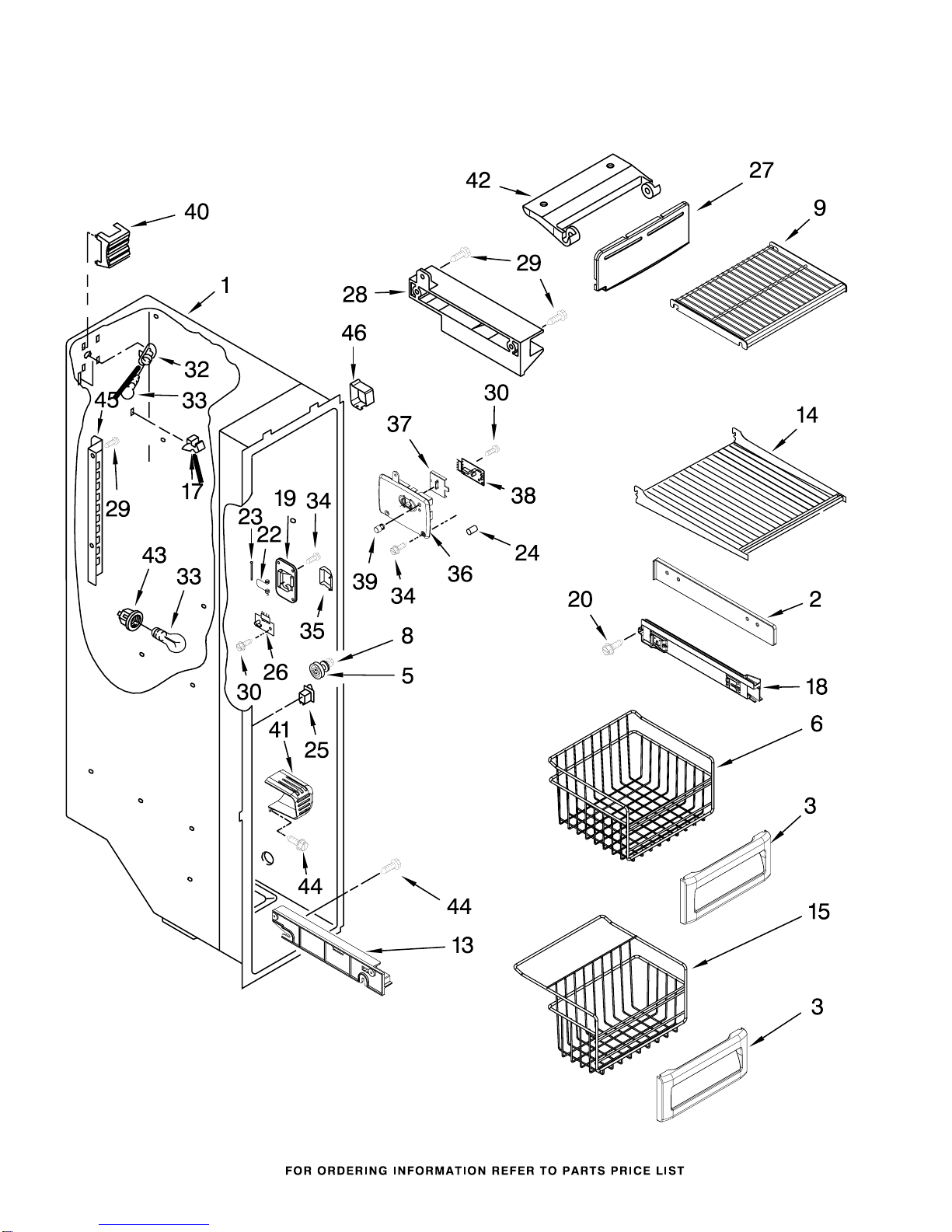

FREEZER LINER PARTS
6
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2224053 Basket, Front
5 2196483 Stud Assembly
6 2223691 Basket, Deep (2)
(Includes #3)
8
W10191952
Screw
9 2223500 Shelf Assembly,
Cantilever (2)
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2254615 Shelf, Fixed
15 2223694 Basket, Lower
(Includes #3)
17 842534 Clip, Air Duct
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26
W10193840
P.C. Board
Emitter
27
W10185438
Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29
W10001260
Screw
30 489214 Screw
32 2162085 Light Socket
33
W10194422
Light Bulb
34 8281185 Screw
35 2198633 Flipper
36
W10173569
Cover, Receiver
37 2315398 Slide, Ice Maker
Shut Off
38
W10193666
P.C. Board,Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 3400893 Screw
45 Ladder
2223414 Left Side
2223415 Right Side
46 2303378 Shield, Wiring

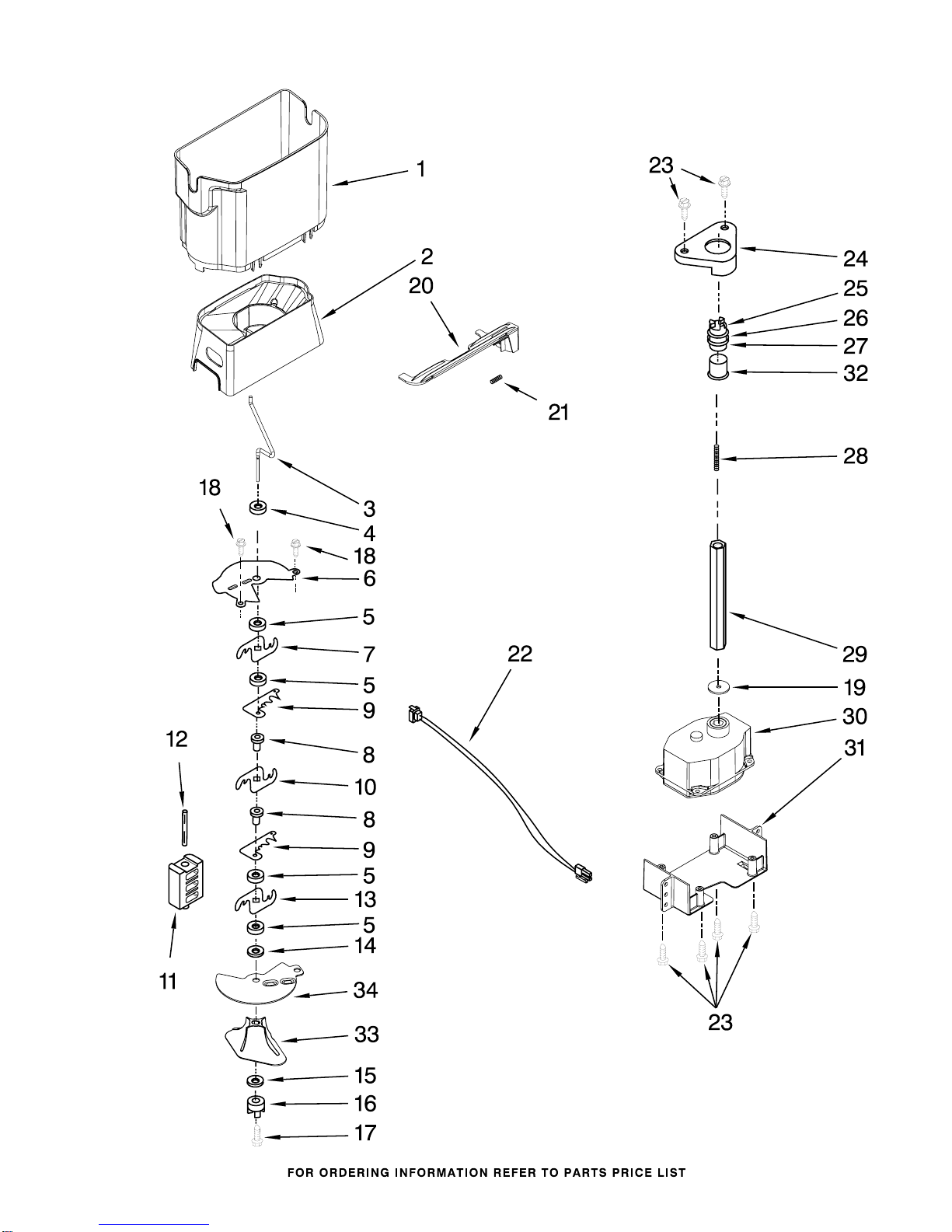

MOTOR AND ICE CONTAINER PARTS
7
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
MOTOR AND ICE CONTAINER PARTS
8
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1
W10139482
Ice Bin
2
W10205004
Crusher Bin
3
W10140642
Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6
W10139321
Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20
W10140685
Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Harness,
IDI Motor
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2198607 Spring
29 2305243 Drive Shaft
30 2252130 Dispenser, Motor
31 2305208 Bracket, Motor
32 2212365 Sleeve, Coupling
33 2317243 Wiper
34 2317250 Divider−Chamber
100
W10205005
Ice Container
(Complete)

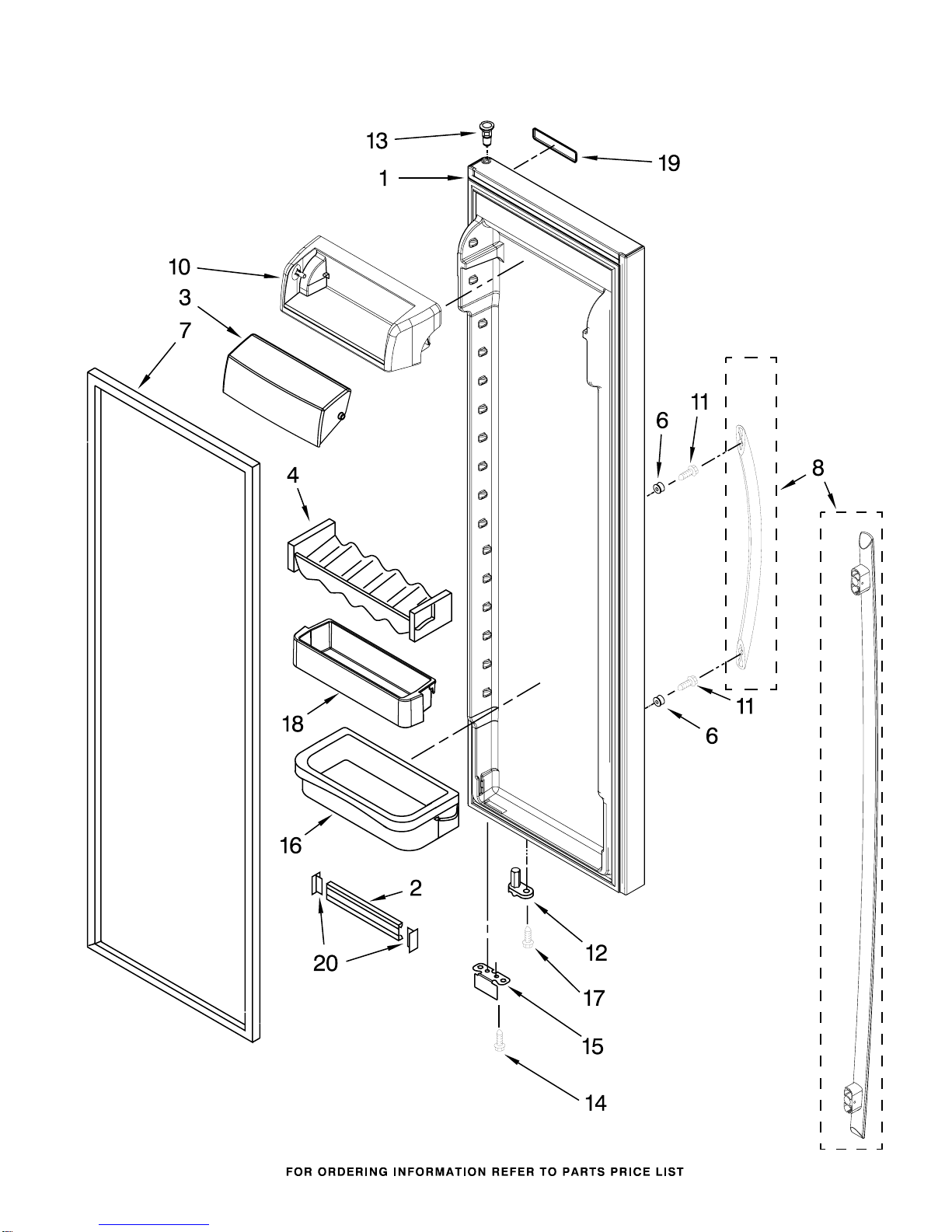

REFRIGERATOR DOOR PARTS
9
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
REFRIGERATOR DOOR PARTS
10
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10190731
Stainless
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 2326259 Stud, Handle
7 Door Gasket,
Magnetic
2326341 Apollo Grey
8 Handle Assy
W10183428
Stainless
W10214166
Stainless Pro
10 2223879 Dairy Compartment
11 488208 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Nameplate
W10214168
Stainless
W10159578
Stainless Pro
20 2156006K Plug, Trim
