Introduction .................... 1

Sa[ety Instructions ............... 2

Installation Instructions .......... 3

Features at aGlance .............. 4

Temperature Controls ............. 5

Interior Designs ............... 6-11

Ice Service ..................... 12

Ice and Water Service .......... 13-14

Water Filter Information ....... 14-16

Refrigerator Cleaning Chart ....... 17

Storage and Maintenance ........ 18

Food Storage 7_ps ............... 19

Food Storage Chart .............. 20

Be[ore You Call ................. 2I

Notes ......................... 22

Warranty ...................... 23

4_ 4k 00004_ 0_04_000•4s •

MCSp/n61004965 FormNO,B/11/00 PartNo,111072-1 •m.• • ._, _,.*_ ••. • • • _i. _.

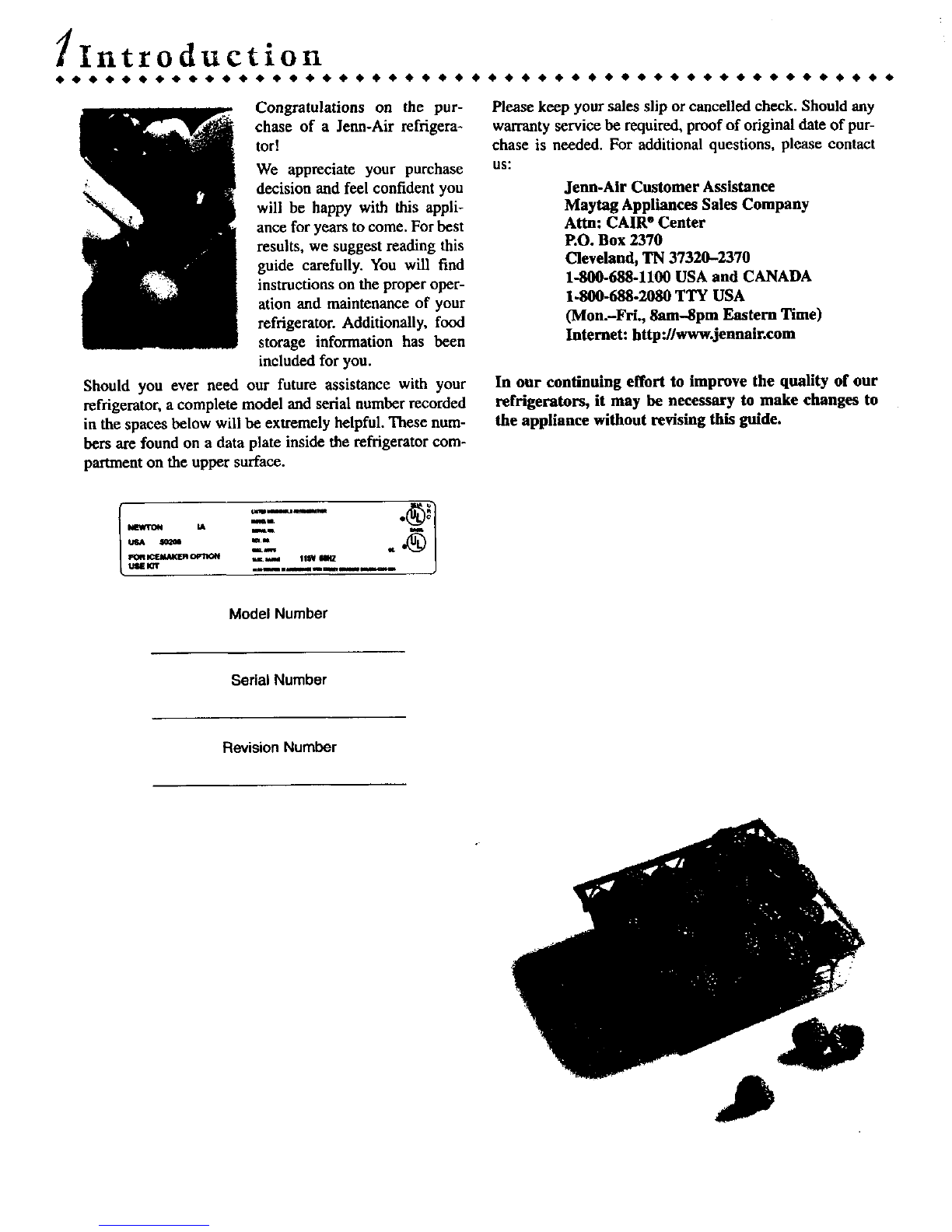

[Introduction

00_00_0_00000_0_00000

Congratulations on the pur-

chase of a Jenn-Air refrigera-

tor!

We appreciate your purchase

decision and feel confident you

will be happy with this appli-

ance for years to come. For best

results, we suggest reading this

guide carefully. You will find

instructions on the proper oper-

ation and maintenance of your

refrigerator. Additionally, food

storage information has been

included for you.

Should you ever need our future assistance with your

refrigerator, a complete model and serial number recorded

in the spaces below will be extremely helpful. These num-

bers are found on a data plate inside the refrigerator com-

partment on the upper surface.

_0,_.0, 00000000_0t000000_

Please keep your sales slip or cancelled check. Should any

warranty service be required, proof of original date of pur-

chase is needed. For additional questions, please contact

us:

Jenn-Air Customer Assistance

Maytag Appliances Sales Company

ARm CAIR °Center

P.O. Box 2370

Cleveland, TN 37320-2370

1-800-688-1100 USA and CANADA

1-800-688-2080 TTY USA

(Mon.-Fri., 8am-Spm Eastern Time)

Internet: http://www.jennair.com

In our continuing effort to improve the quality of our

refrigerators, it may be necessary to make changes to

the appliance without revising this guide.

tl_t m

offllON

nm_mm*

lm N

:: . J

Model Number

Serial Number

RevisionNumber

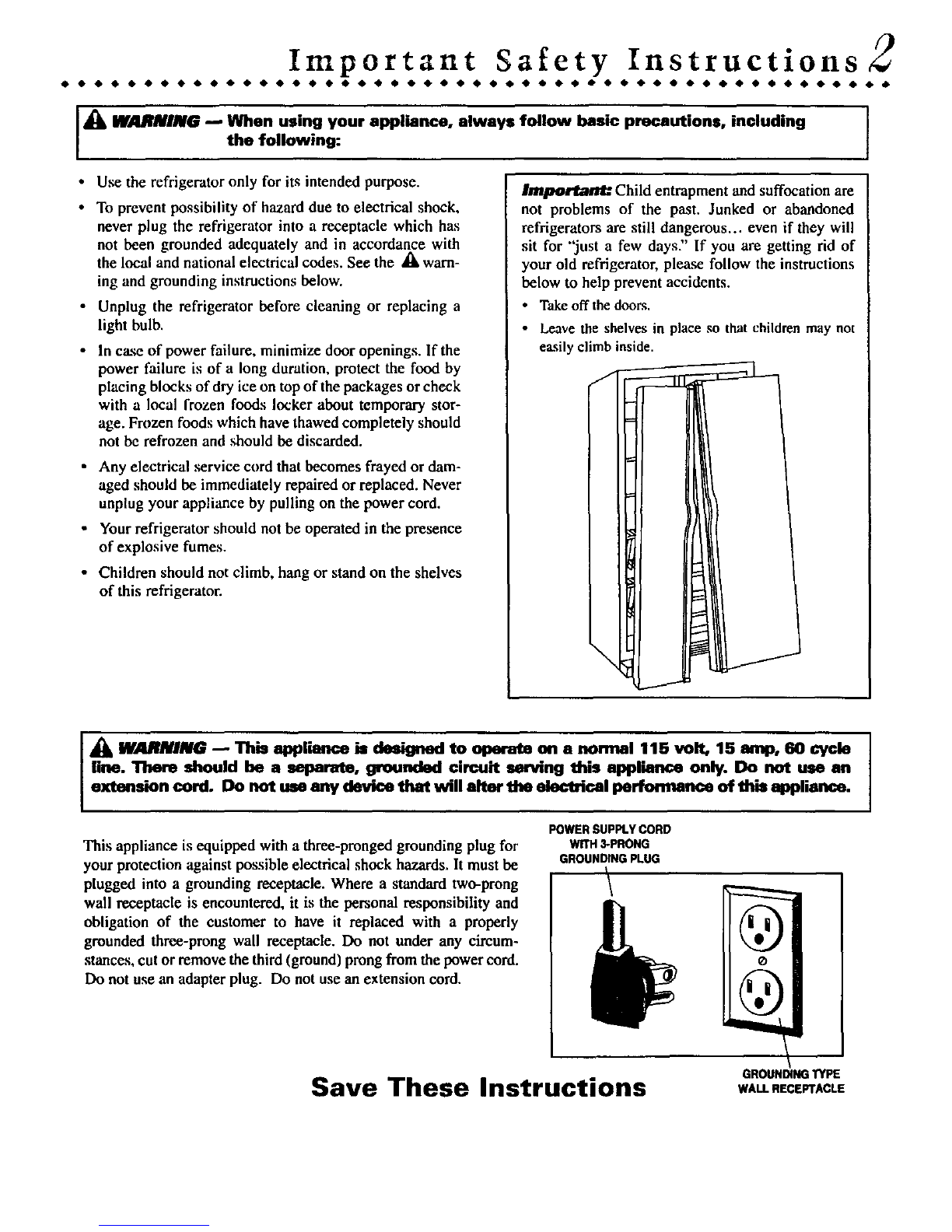

I_L WARNING --. When using your appliance, always follow basic precautions, including [

the following: I

•Use the refrigerator only for its intended purpose.

• To prevent possibility of hazard due to electrical shock,

never plug the refrigerator into a receptacle which has

not been grounded adequately and in accordance with

the local and national electrical codes. See the _k warn-

ing and grounding instructions below.

•Unplug the refrigerator before cleaning or replacing a

light bulb.

•In case of power failure, minimize door openings. If the

power failure is of a long duration, protect the food by

placing blocks of dry ice on top of the packages or check

with a local frozen foods locker about temporary stor-

age. Frozen foods which have thawed completely should

not be refrozen and should be discarded.

• Any electrical service cord that becomes frayed or dam-

aged should be immediately repaired or replaced. Never

unplug your appliance by pulling on the power cord.

•Your refrigerator should not be operated in the presence

of explosive fumes.

•Children should not climb, hang or stand on the shelves

of this refrigerator.

Impor/an_ Child entrapment and suffocation are

not problems of the past. Junked or abandoned

refrigerators are still dangerous.., even if they will

sit for "'justa few days?' If you are getting rid of

your old refrigerator, plea._ follow the instructions

below to help prevent accidents.

•Take off the doors.

•Leave the shelves in place _ that children may not

easily climb inside.

Jk WA//NIN6 -- This appliance is designed to. operateonaml 115volt, 15amp, 60cycle I

line. There should be a separate, grounded circuit serving this appliance only. Do not use an

extension cord. Do not use any device that will alter the electrical performance of this appliance.

This appliance is equipped with a three-pronged grounding plug for

your protection against possible electrical shock hazards, It must be

plugged into a grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal responsibility and

obligation of the customer to have it replaced with a properly

grounded three-prong wall receptacle. Do not under any circum-

stances, cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug. Do not use an extension cord.

POWER SUPPLY CORD

WITH 3-PRONG

GROUNDING PLUG

Save These Instructions GROUNDINGTYPE

WALL RECEPTACLE

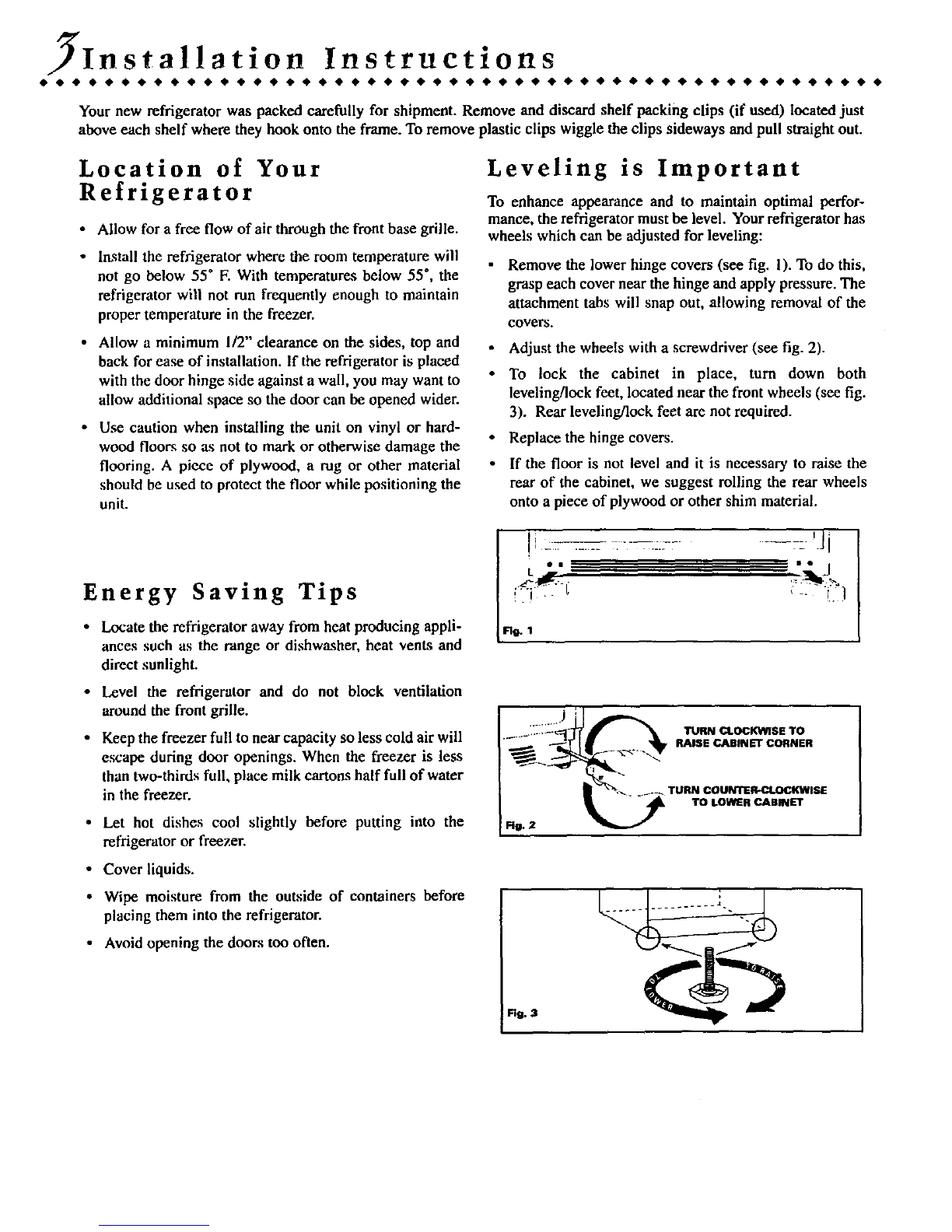

Installation Instructions

Your new refrigerator was packed carefully for shipment. Remove and discard shelf packing clips (if used) located just

above each shelf where they hook onto the frame. To remove plastic clips wiggle the clips sideways and pull straight out.

Location of Your

Refrigerator

•Allow for a free flow of air through the front base grille.

• Install the refrigerator where the room temperature will

not go below 55* EWith temperatures below 55*, the

refrigerator will not run frequently enough to maintain

proper temperature in the freezer.

• Allow a minimum 1/2" clearance on the sides, top and

back for ease of installation. If the refrigerator is placed

with the door hinge side against a wall, you may want to

allow additional space so the door can be opened wider.

•Use caution when installing the unit on vinyl or hard-

wood floors so as not to mark or otherwise damage the

flooring. A piece of plywood, a rug or other material

should be used to protect the floor while positioning the

unit.

Leveling is Important

To enhance appearance and to maintain optimal perfor-

mance, the refrigerator must be level. Your refrigerator has

wheels which can be adjusted for leveling:

Remove the lower hinge covers (see fig. 1). To do this,

grasp each cover nearthe hinge and apply pressure. The

attachment tabs will snap out, allowing removal ofthe

covers.

Adjust the wheels with a screwdriver (see fig. 2).

• To lock the cabinet in place, turn down both

leveling/lock feet, located near the front wheels (see fig.

3). Rear leveling/lock feet are not required.

• Replace the hinge covers.

• If the floor is not level and it is necessary to raise the

rear of the cabinet, we suggest rolling the rear wheels

onto a piece of plywood or other shim material.

Energy Saving Tips

Locate the refrigerator away from heat producing appli-

ances such as the range or dishwasher, heat vents and

direct sunlight.

Level the refrigerator and do not block ventilation

around the front grille.

Keep the freezer full to near capacity so less cold air will

escape during door openings. When the freezer is less

than two-thirds full, place milk cartons half full of water

in the freeze_

•Let hot dishes cool slightly before puaing into the

refrigerator or_eeze_

[i...................... ']j

: 1

Fig. I

........ .]]_]-.,_:1-_'_ _lr _i TURN CLocKWISE TO

_-----'_'_-_...._'r i I!,,li-__ --. RAISE CABINET CORNER

TURN COUNTER-CLOCKWISE

TO LOWER CABINET

Fig. Z

• Cover liquids.

• Wipe moisture from the outside of containers before

placing them into the refrigerator.

•Avoid opening the doors too often.

Fig. 3

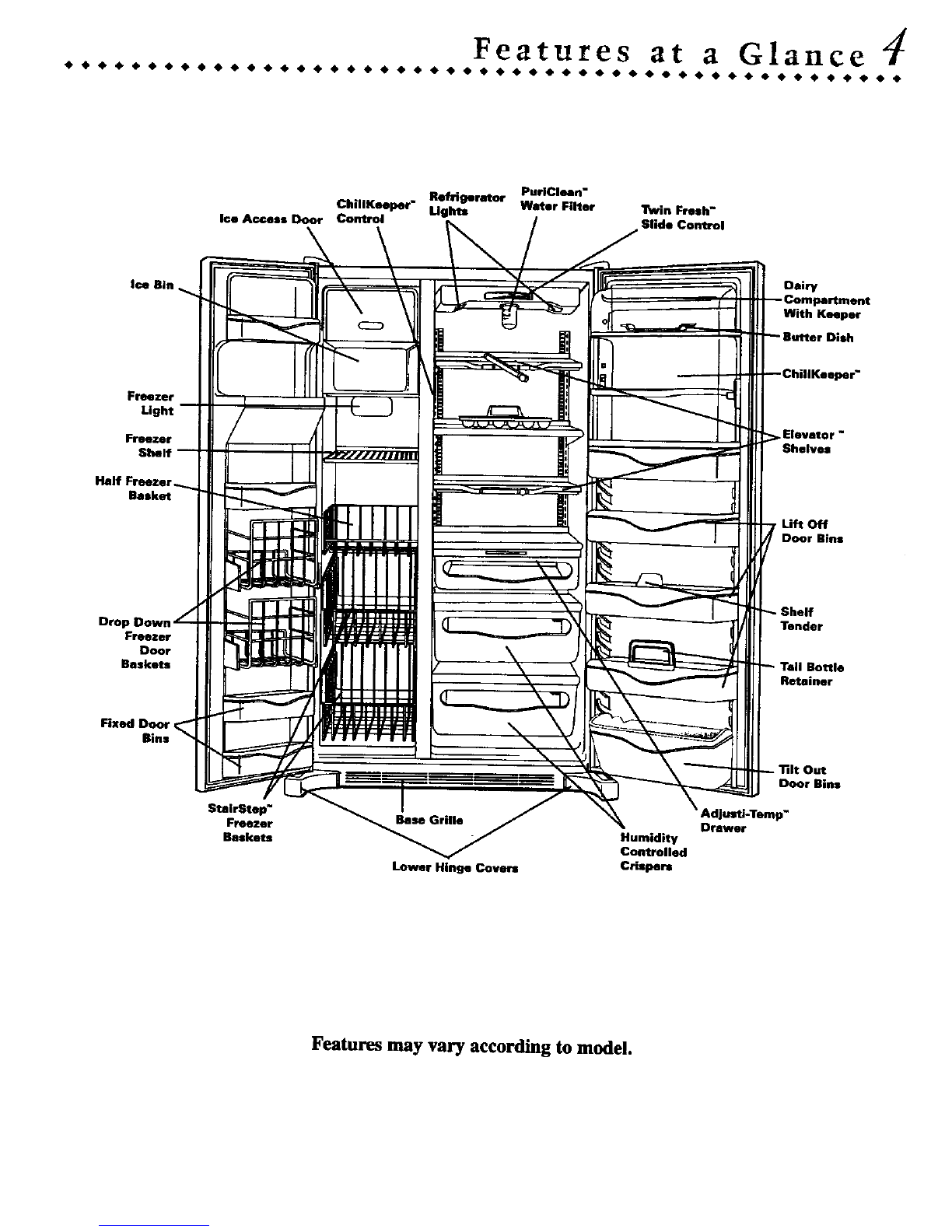

Refrigerator PuriClean"

ChillKeeper" Ughts Water Filter

Ice Access Door Control Twin Fresh"

Slide Control

ice Bin

Freezer

Light

Freezer

Basket

Drop Freezer

Door

Baskets

Fixed Door

Bins

StalrStep"

Freezer

Baskets

Lower Hinge Covers

Humidity

Controlled

Crispem

Dairy

With Keeper

.Elevator"

Shelves

Lift Off

Door Bins

Sh_f

Tender

Retainer

Door Bins

AdJuati-Temp"

Drawer

Features may vary according to model.

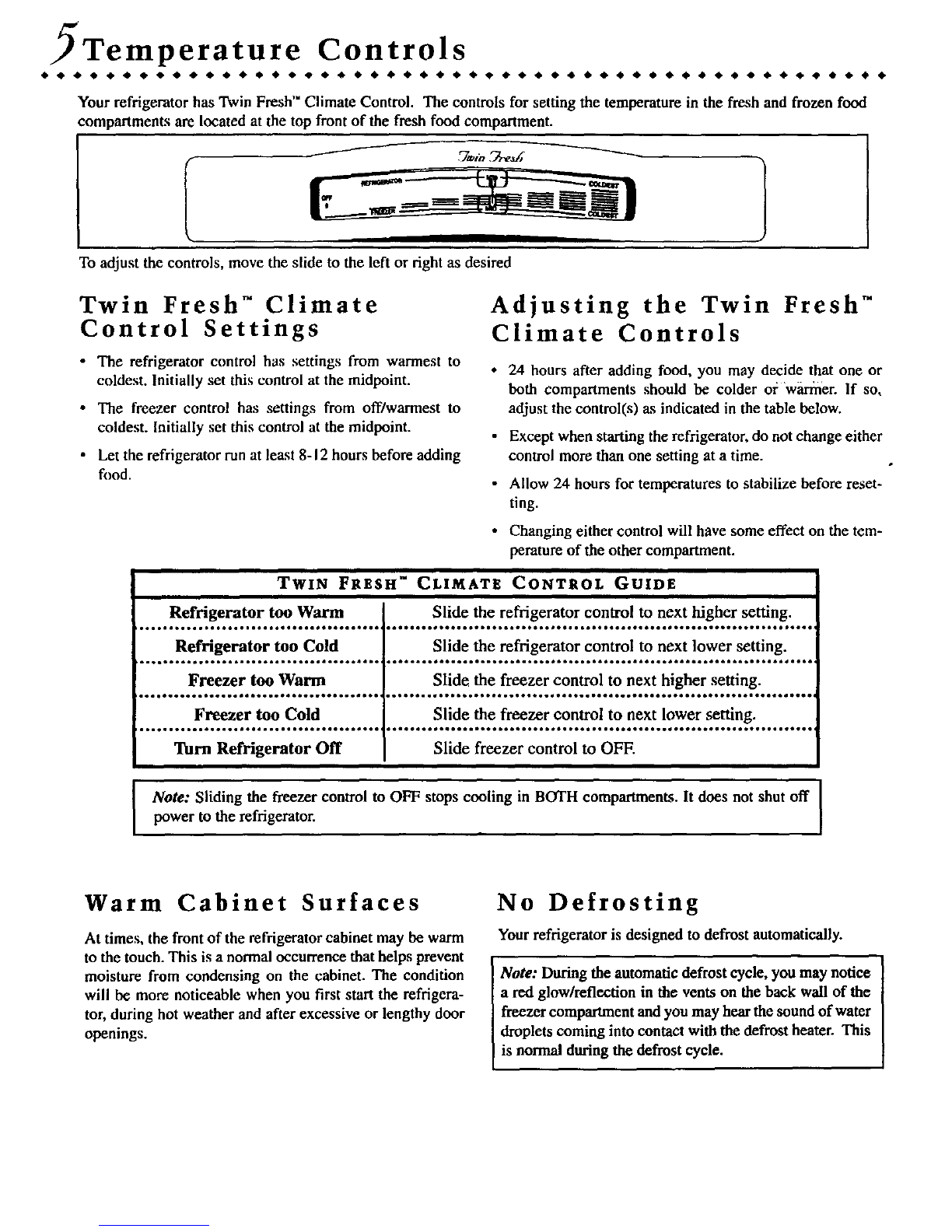

Temperature Controls

Your refrigerator has Twin Fresh TM Climate Control. The controls for setting the temperature in the fresh and frozen food

compartments are located at the top front of the fresh food compartment.

To adjust the controls, move the slide to the left or right as desired

Twin Fresh TM Climate

Control Settings Adjusting the Twin Fresh TM

Climate Controls

• The refrigerator control has settings from warmest to

coldest. Initially set this control at the midpoint.

• The freezer control has settings from off/warmest to

coldest. Initially set this control at the midpoint.

• Let the refrigerator run at least 8-12 hours before adding

food.

24 hours after adding food, you may decide that one or

both compartments should be colder m: warmer. If so,

adjust the control(s) as indicated in the table below.

Except when starting the refrigerator, do not change either

control more than one setting at a time.

Allow 24 hours for temperatures to stabilize before reset-

ting.

• Changing either control will have some effect on the tem-

perature of the other compartment.

TWIN FRESH" CLIMATE CONTROL GUIDE

Refrigerator too Warm

9tQeto_g_f_e***goleoe**_Ioeel_o_e_*_*

Refrigerator too Cold

FreezertooWarm

Freezer too Cold

Turn Refrigerator Off

Slide the refrigerator control to next higher setting.

Slide the refrigerator control to next lower setting.

Slide the freezer control to next higher setting.

Slide the freezer control to next lower setting.

Slide freezer control to OFF.

Note: Sliding the freezer control to OFF stops cooling in BOTH compartments. It does not shut off I

power to the refrigerator. I

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm

to the touch. This is a normal occurrence that helps prevent

moisture from condensing on the cabinet. The condition

will be more noticeable when you first start the refrigera-

tor, during hot weather and after excessive or lengthy door

openings.

No Defrosting

Your refrigerator is designed to defrost automatically.

Note: During the automatic defrost cycle, you may notice

a red glow/reflection in the vents on the back wall of the

freezer compartment and you may hear the sound of water

droplets coming into contact with the defrost heater. This

is normal during the defrost cycle.

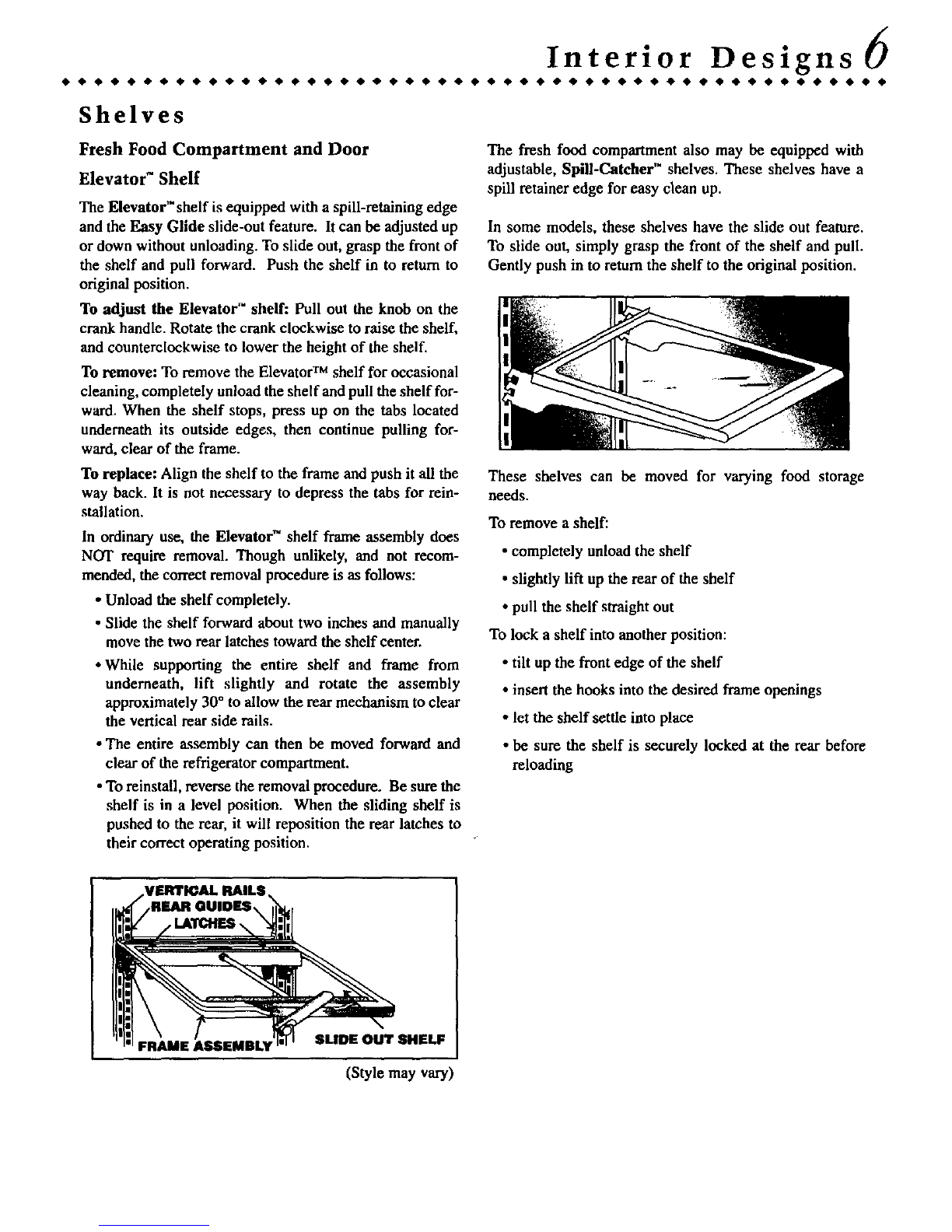

Interior Designs 6

Shelves

Fresh Food Compartment and Door

Elevator" Shelf

The Elevator" shelf is equipped with a spill-retaining edge

and the Easy Glide slide-out feature. It can be adjusted up

or down without unloading. To slide out, grasp the front of

the shelf and pull forward. Push the shelf in to return to

original position.

To adjust the Elevator" shelf: Pull out the knob on the

crank handle. Rotate the crank clockwise to raise the shelf,

and counterclockwise to lower the height of the shelf.

To remove: To remove the Elevator TM shelf for occasional

cleaning, completely unload the shelf and pull the shelf for-

ward. When the shelf stops, press up on the tabs located

underneath its outside edges, then continue pulling for-

ward, clear of the frame.

To replace: Align the shelf to the frame and push it all the

way back. It is not necessary to depress the tabs for rein-

stallation.

In ordinary use, the Elevator TM shelf frame assembly does

NOT require removal. Though unlikely, and not recom-

mended, the correct removal procedure is as follows:

•Unload the shelf completely.

•Slide the shelf forward about two inches and manually

move the two rear latches toward the sheff center.

•While supporting the entire shelf and frame from

underneath, lift slightly and rotate the assembly

approximately 30 °to allow the rear mechanism to clear

the vertical rear side rails.

•The entire assembly can then be moved forward and

clear of the refrigerator compartment.

•To reinstall, reverse the removal procedure. Be sure the

shelf is in a level position. When the sliding shelf is

pushed to the rear, it will reposition the rear latches to

their correct operating position.

The fresh food compartment also may be equipped with

adjustable, Spill-Catcher" shelves. These shelves have a

spill retainer edge for easy clean up.

In some models, these shelves have the slide out feature.

To slide out, simply grasp the front of the shelf and pull.

Gently push in to return the shelf to the original position.

These shelves can be moved for varying food storage

needs.

To remove a shelf:

•completely unload the shelf

• slightly lift up the rear of the shelf

•pull the shelf straight out

To lock a shelf into another position:

•tilt up the front edge of the shelf

•insert the hooks into the desired frame openings

• let the shelf settle into place

• be sure the shelf is securely locked at the rear before

reloading

RAILS

FRAME ASSEMBLY SLIDE OUT SHELF

(Style may vary)

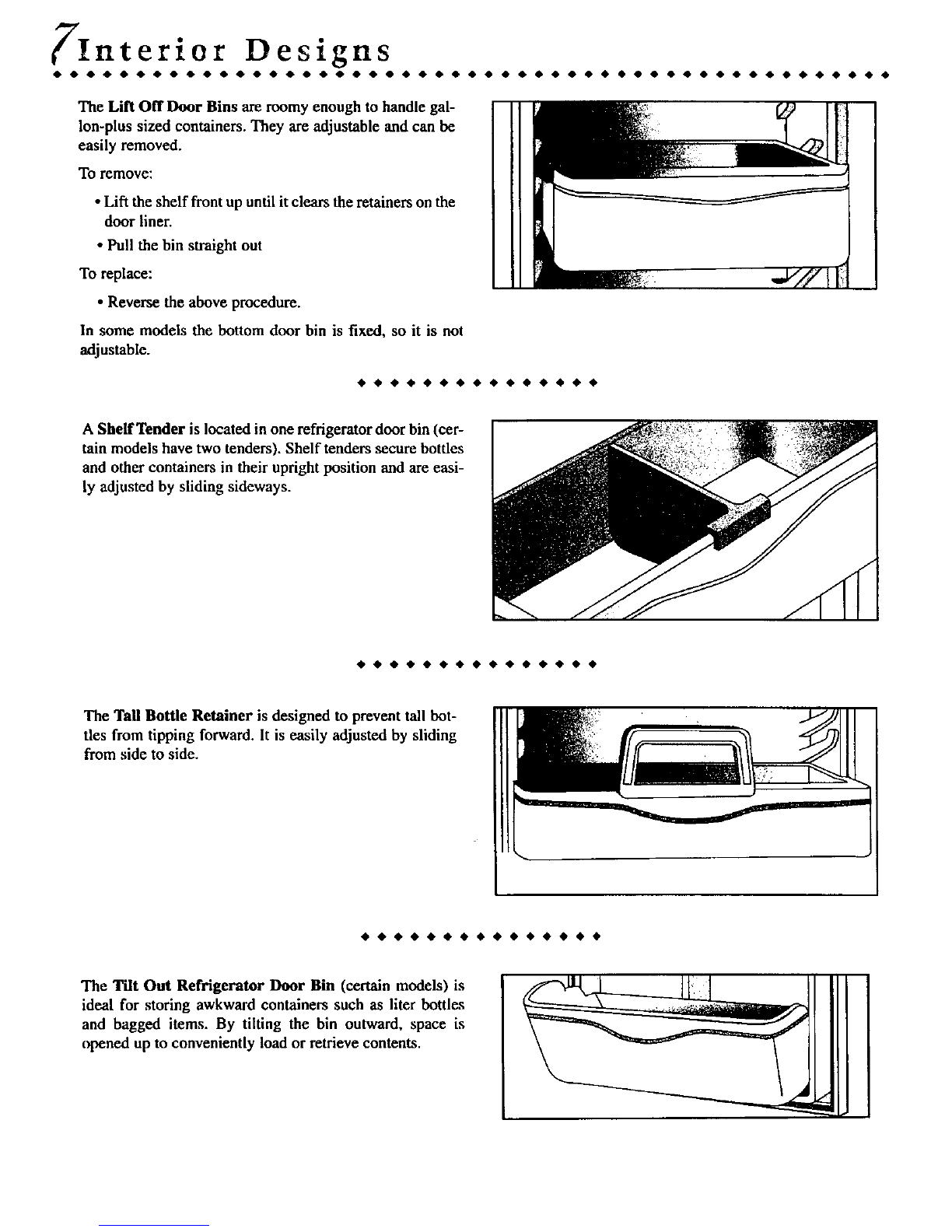

TheLift Off Door Bins are roomy enough to handle gal-

lon-plus sized containers. They are adjustable and can be

easily removed.

To remove:

• Lift the shelf front up until it clears the retainers on the

door liner.

• Pull the bin straight out

To replace:

•Reverse the above procedure.

In some models the bottom door bin is fixed, so it is not

adjustable.

000000000000000

A Shelf Tender is located in one refrigerator door bin (cer-

tain models have two tenders). Shelf tenders secure bottles

and other containers in their upright position and are easi-

ly adjusted by sliding sideways.

The Tall Bottle Retainer is designed to prevent tall bet-

ties from tipping forward. It is easily adjusted by sliding

from side to side.

OOOOO_4OO_OOO

The Tilt Out Refrigerator Door Bin (certain models) is

ideal for storing awkward containers such as liter bottles

and bagged items. By tilting the bin outward, space is

opened up to conveniently load or retrieve contents.

Freezer Compartment

The freezer of the model you have chosen has either wire

or glass shelves. The shelves rest on support rails which

are molded into the wall of the freezer. Some models have

freezer shelves that slide forward for easier access to the

rear of the shelf.

To remove a freezer shelf:

•Empty the shelf of its contents & lift straight up.

•Tilt the shelf sideways & pull it straight out.

To replace the freezer shelf, reverse the removal procedure.

The freezer compartment also has one or more freezer bas-

kets for food storage, These baskets slide out for more

convenient access to the frozen foods. They rest and slide

on support rails which are molded into the wall of the

freezer.

To remove a freezer basket:

•Slide basket out until it stops.

• Depress tabs located at the rear of each side of the bas-

ket.

• Continue sliding the basket out.

To replace a freezer basket:

• Line the basket up to the appropriate support rails.

• Slide it into place.

4k t , 4_ _" * 4P 4_ O _' 41' O 4" • 4_

StairStep" Freezer Baskets

Certain models feature StairStep" baskets for the bottom

two freezer baskets. These two baskets interact for total

accessibility to their contents.

To use:

• Pull the lower basket forward to gain access to its con- -

tents, Continue pulling the lower basket to open the

upper basket as well. Reverse the action to close both

baskets.

• Pulling forward the upper basket provides access to its

contents. The lower basket will also move forward

but will not open.

To remove the baskets:

• Pull forward on the upper basket until it stops.

• Lift up slightly and continue pulling forward.

• The baskets are removed together.

To replace:

• Reverse the above procedure.

Interior Designs

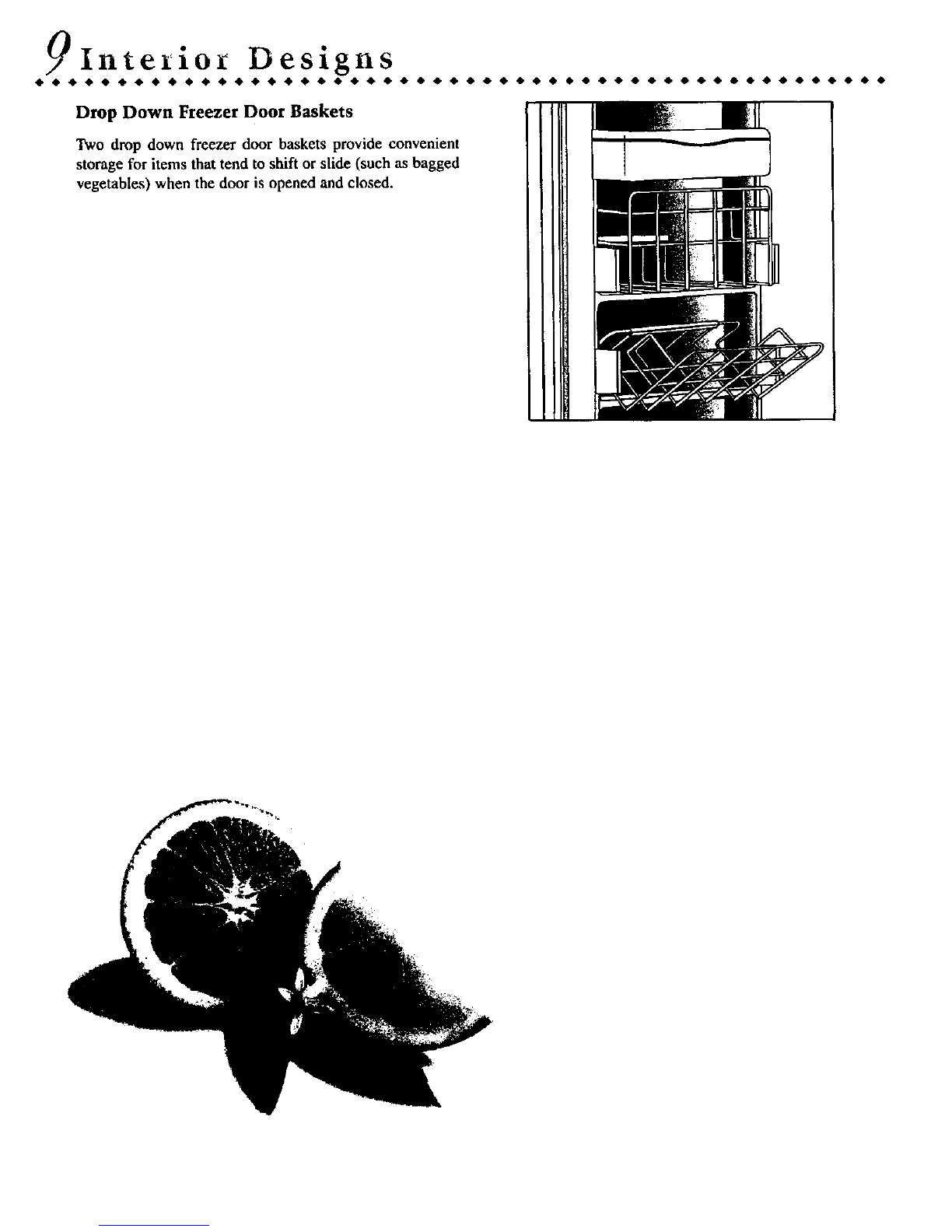

Drop Down Freezer Door Baskets

Two drop down freezer door baskets provide convenient

storage for items that tend to shift or slide (such as bagged

vegetables) when the door is opened and closed.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JUD248RWRS00 Bedienungsanleitung

Jenn-Air

Jenn-Air 2289 Guide Bedienungsanleitung

Jenn-Air

Jenn-Air JUCFP242HXPA Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FR S Series Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AES2 Bedienungsanleitung

Jenn-Air

Jenn-Air JS48PPDUDB01 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089BEP Bedienungsanleitung

Jenn-Air

Jenn-Air JCD2295KEP Bedienungsanleitung

Jenn-Air

Jenn-Air JBL2088HES3 Bedienungsanleitung

Jenn-Air

Jenn-Air JUDFP242HM Bedienungsanleitung

Jenn-Air

Jenn-Air EDR3RXD1B Bedienungsanleitung

Jenn-Air

Jenn-Air ALOVE30RRC Bedienungsanleitung

Jenn-Air

Jenn-Air JFD2589KEP12 Bedienungsanleitung

Jenn-Air

Jenn-Air JFFCC72EFS Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JFFCC72EFP Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JCD2591WES00 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDE Merkblatt

Jenn-Air

Jenn-Air JUR248RBCX Bedienungsanleitung

Jenn-Air

Jenn-Air Euro-Style Design JS48SSDUDE Bedienungsanleitung

Jenn-Air

Jenn-Air JBR2086HES Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FR*S series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
