TA B L E O F CON T E N T S

Form No. C/12/04 Part No. 12828119 Printed in U.S.A.

JE N N - A I R

FR E N C H DO O R RE F R I G E R A T O R

USE & CARE

GUIDE

Important Safety Instructions ........................................1-2

Installation.............................................................................3-9

Temperature Controls...................................................10-12

Fresh Food Features.....................................................13-14

Freezer Features ...................................................................15

Ice and Water.........................................................................16

Water Filter .......................................................................17-19

Food Storage Tips..........................................................20-22

Care and Cleaning ........................................................23-26

Operating Sounds ................................................................27

Troubleshooting..............................................................28-30

Warranty & Service...............................................................31

Guide de l’utilisateur...........................................................32

Guía de Uso y Cuidado......................................................64

12828119 Jenn-Air Trio Eng 1/14/05 8:52 AM Page 1

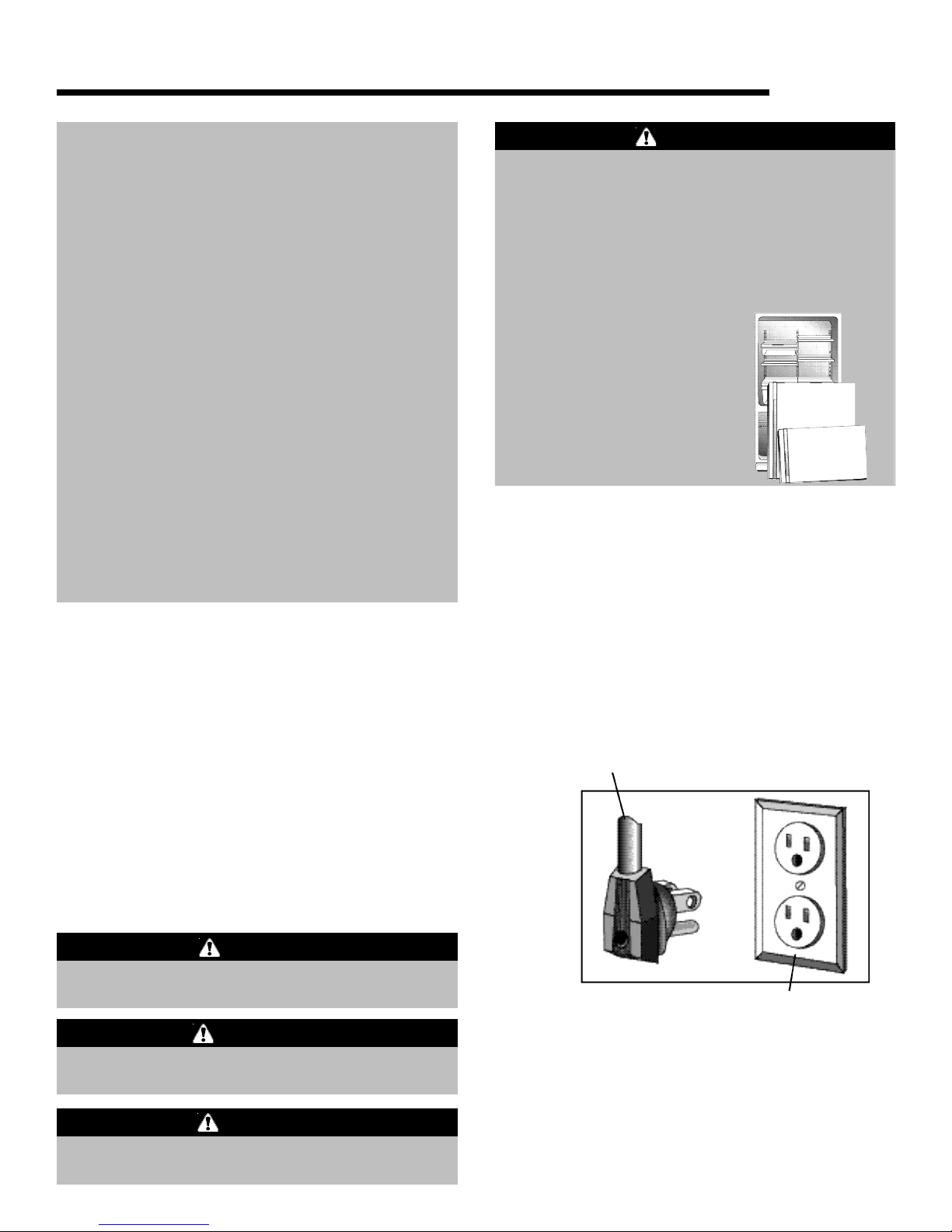

IMPORTANT SAFETY INSTRUCTIONS

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

To reduce risk of injury or death, follow basic

precautions, including the following:

IMPORTANT: Child entrapment and suffocation

are not problems of the past. Junked or abandoned

refrigerators are still dangerous – even if they sit out

for “just a few days.” If you are getting rid of your old

refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old

refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so

children may not easily climb

inside.

DANGER

WARNING – Hazards or unsafe practices which

COULD result in severe personal injury or death.

WARNING

DANGER – Immediate hazards which WILL result

in severe personal injury or death.

DANGER

CAU T I ON – Hazards or unsafe practices which COUL D

result in minor personal injury or property damage.

CAUTION

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

I n s t a l l e r : Please leave this guide with this appliance.

Consumer: Please read and keep this Use & Care

Guide for future reference. This guide provides

proper use and maintenance information.

Keep sales receipt and/or cancelled check as proof

of purchase.

Call: 1-800-JENNAIR (1-800-536-6247)

U.S.A. and Canada

Have complete model and serial number

identification of your refrigerator. This is located on a

data plate inside the refrigerator compartment, on

the upper left side. Record these numbers below for

easy access.

Model Number _______________________________

Serial Number ________________________________

Date of Purchase ______________________________

In our continuing effort to improve the quality and

performance of our appliances, it may be necessary

to make changes to the appliance without revising

this guide.

12828119 Jenn-Air Trio Eng 1/14/05 8:52 AM Page 2

To reduce risk of fire, electric shock, serious

injury or death when using your refrigerator,

follow these basic precautions, including the

following:

1. Read all instructions before using the refrigerator.

2. Observe all local codes and ordinances.

3. Be sure to follow grounding instructions.

4. Check with a qualified electrician if you are not

sure this appliance is properly grounded.

5. Do not ground to a gas line.

6. Do not ground to a cold-water pipe.

7. Refrigerator is designed to operate on a separate

115 volt, 15 amp., 60 cycle line.

8. Do not modify plug on power cord. If plug does

not fit electrical outlet, have proper outlet installed

by a qualified electrician.

9. Do not use a two-prong adapter, extension cord

or power strip.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls.

12. Do not service or replace any part of refrigerator

unless specifically recommended in Use & Care

Guide or published user-repair instructions. Do

not attempt service if instructions are not under-

stood or if they are beyond personal skill level.

13. Always disconnect refrigerator from electrical

supply before attempting any service. Disconnect

power cord by grasping the plug, not the cord.

14. Install refrigerator according to Installation

Instructions. All connections for water, electrical

power and grounding must comply with local

codes and be made by licensed personnel when

required.

15. Keep your refrigerator in good condition. Bumping

or dropping refrigerator can damage refrigerator

or cause refrigerator to malfunction or leak. If

damage occurs, have refrigerator checked by

qualified service technician.

16. Replace worn power cords and/or loose plugs.

17. Always read and follow manufacturer’s storage

and ideal environment instructions for items being

stored in refrigerator.

18. Your refrigerator should not be operated in the

presence of explosive fumes.

19. Children should not climb, hang or stand on any

part of the refrigerator.

20. Clean up spills or water leakage associated with

water installation.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING

12828119 Jenn-Air Trio Eng 1/14/05 8:52 AM Page 3

INSTALLATION

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

•Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

•Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction may

occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow 1⁄2” space at top and 1⁄2” space behind the machine

compartment cover (located in the rear) for proper air

circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

IMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use distance from floor to top of hinge cap to

verify proper clearance.

Glass Panel Doors (select models)

To avoid possible injury, product or property damage,

observe the following:

• When working directly on the doors, protect the

door corners and sides by placing doors on a

nonabrasive surface protected by towels or rugs.

• Protect the glass panel sides when securing the

unit to a dolly. DO NOT OVERTIGHTEN! Over-

tightening the restraints may shatter the glass

which could cause personal injury.

• DO NOT carry or transport removed doors by the

handles.

• Fully tighten handle set screws when installing the

door handles.

CAUTION

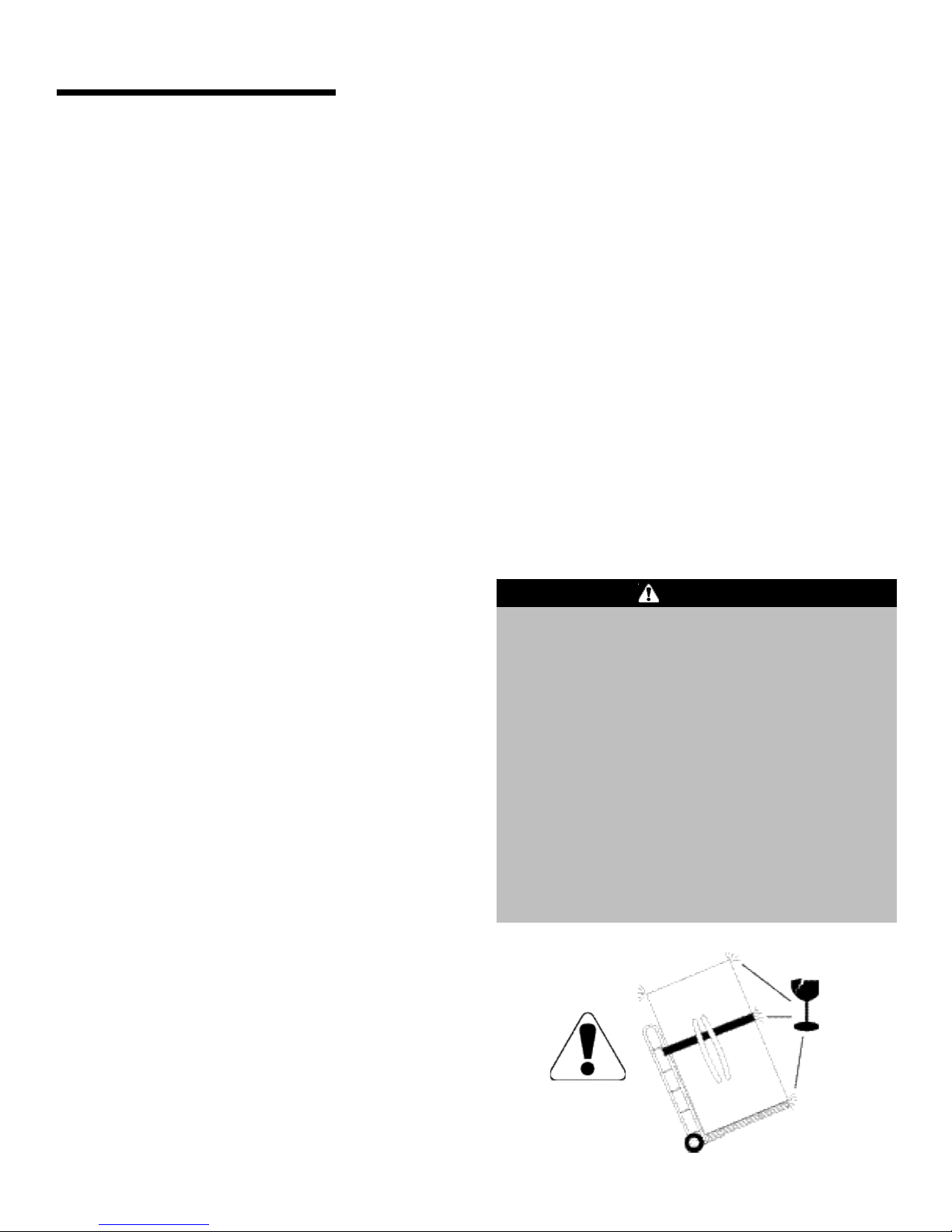

Transporting Your Refrigerator

•NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

•Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back–NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

•Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 4

•Use slight pressure to pry the

cover loose.

•Continue to maintain

downward pressure to the

notched side of the cover while

swinging it off.

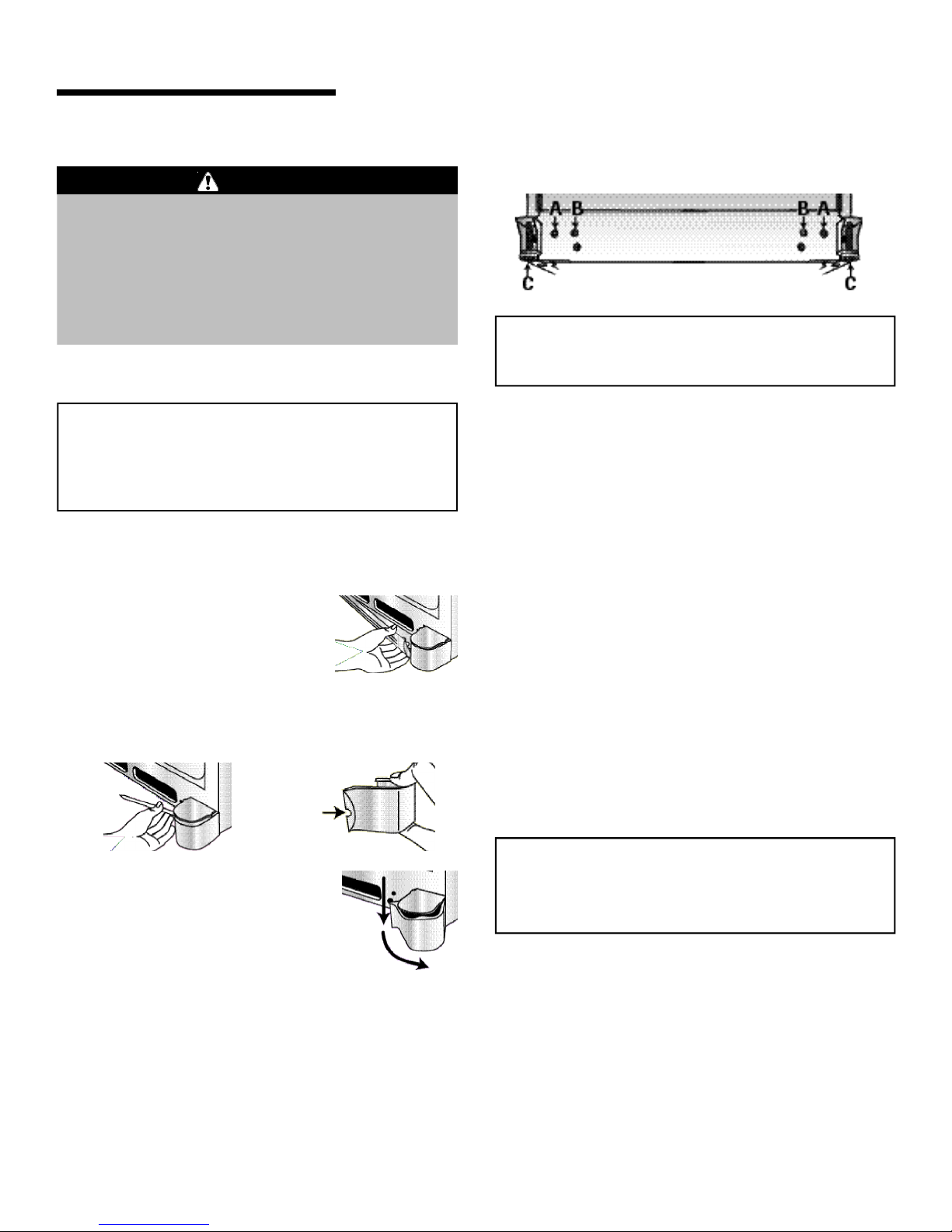

Leveling

To protect property and refrigerator from damage,

observe the following:

• Protect vinyl or other flooring with cardboard, rugs,

or other protective material.

•Do not use power tools when performing leveling

procedure.

CAUTION

To enhance the appearance and maintain performance,

the refrigerator should be level.

Note

•Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed:

•3⁄8” hex head driver

•Carpenter’s level

1. Remove toe grille.

•Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

•Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

4. Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

5. Using the carpenter’s level, make sure front of

refrigerator is 1⁄4” (6 mm) or 1⁄2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace bracket cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the “top” marking

on the interior of the toe grille is oriented correctly.

•Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

INSTALLATION

Note

•Some models only have adjustment screws “A.”

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 5

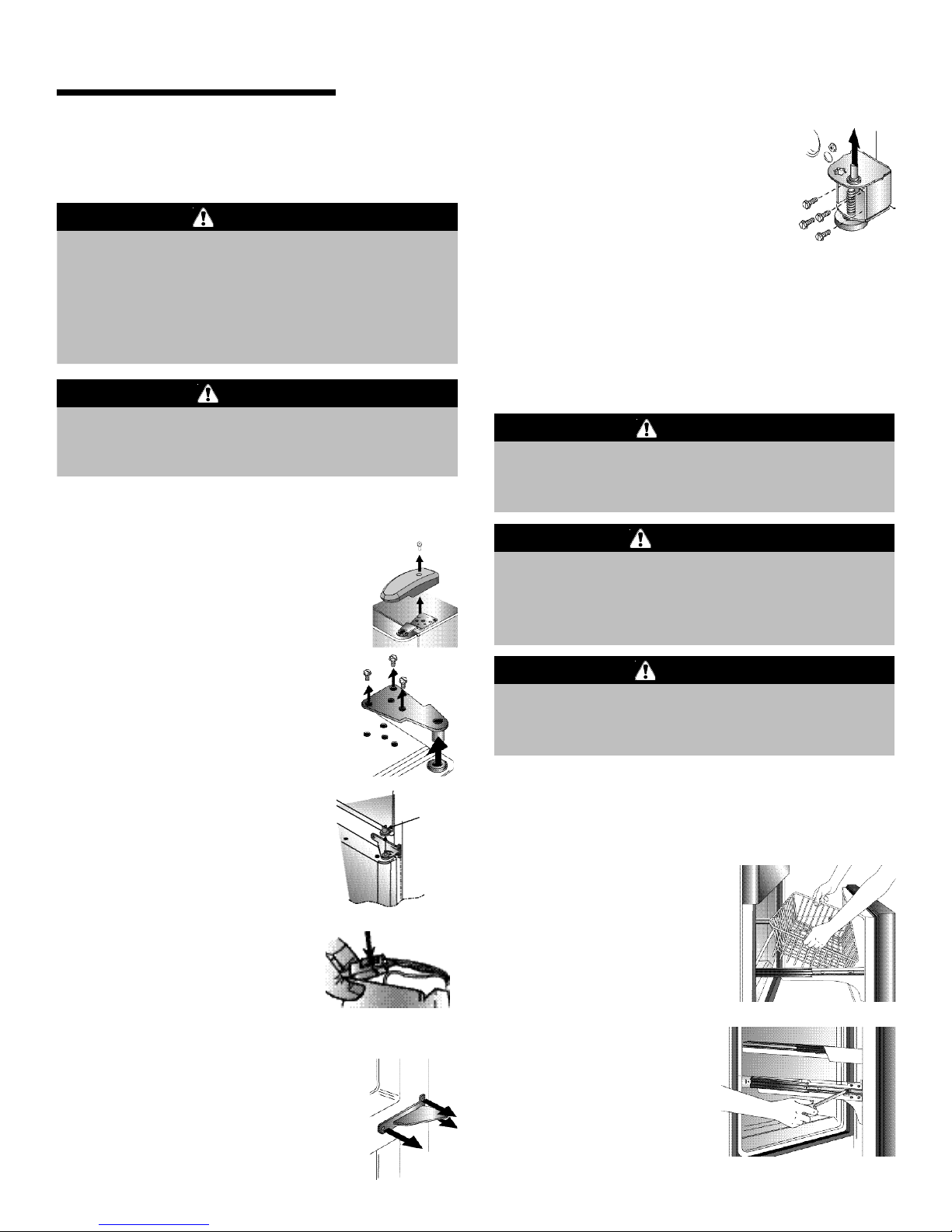

To avoid damage to walls and flooring, protect vinyl

or other flooring with cardboard, rugs or other

protective material.

CAUTION

1. Unplug power cord from power source.

2. Remove toe grille and bottom hinge

cover(s) (see page 4).

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

4. Unscrew 5⁄16” hex head screws from

top hinge to remove hinge and retain

all screws for later use.

5. Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on

the right side and retain for later

use.

6. Disconnect wire harness on top

of left side refrigerator door top

hinge.

Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

Green ground wire remains

attached to the hinge.

7. Unscrew 5⁄16” hex head screws from

top hinge to remove hinge and retain

for later use.

Lift left side refrigerator door, along

with top hinge, from center hinge pin.

right

side

door

closure

To avoid electrical shock which can cause severe

personal injury or death, observe the following:

•Disconnect power to refrigerator before removing

doors or drawer. Connect power only after

replacing doors or drawer.

WARNING

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

INSTALLATION

Remove center hinge pin with a 5⁄16”

hex head driver and retain hinge pin

for later use.

8. Remove Phillips screws to remove

right and left hinges and retain all

screws for later use.

9. Remove both stabilizing brackets with 3⁄8” hex head

driver and retain screws for later use.

Pullout Freezer Drawer

(select models)

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before removing doors. After replacing

doors, connect power.

WARNING

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket.

DANGER

To avoid possible injury, product, or property

damage, you will need two people to perform the

following instructions.

CAUTION

To Remove:

1. Pull drawer open to full extension.

2. Tilt the lower basket forward and lift to remove.

3. On each white drawer

bracket is a basket cradle

with two snap attachments.

To release each cradle,

unlatch the snaps by

pushing them inward, away

from the side bracket. Lift

the cradles off of the rails.

4. Remove Phillips screw

from each of the drawer

slides (select models).

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 6

INSTALLATION

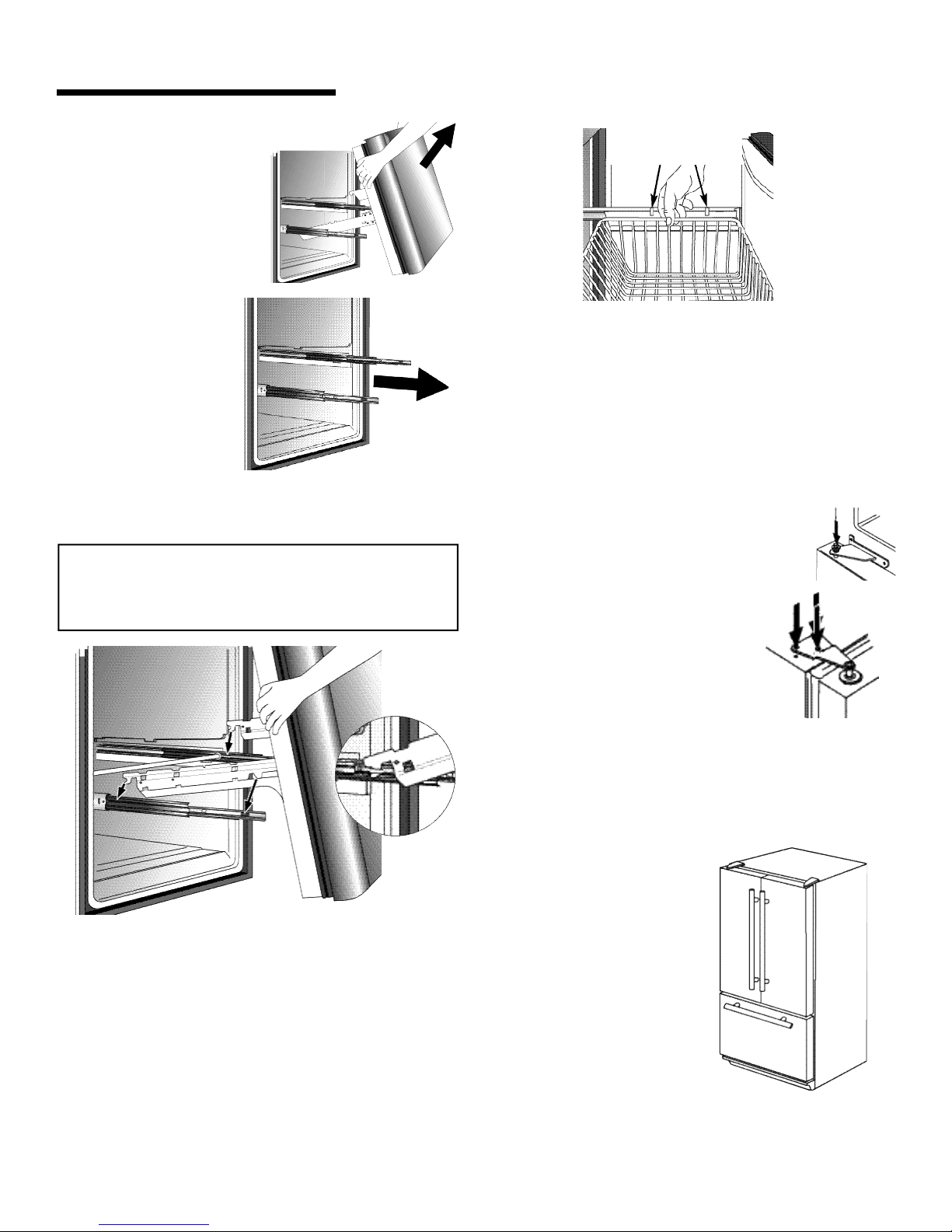

Door Reinstallation

1. Install hinge assemblies:

• Install center hinge with Phillips screws.

2. Place hinge side of refrigerator door on center

hinge pin.

• Install top hinge with 5⁄16” hex head

screws.

3. While holding refrigerator door

upright, tighten down top hinge

with 5⁄16” hex head driver.

4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles (style varies by model)

This handle style is installed at the factory. Style may

vary by model.

Materials Needed:

•3⁄32”allen wrench

To Remove:

•Remove set screw from

handle mounting post

using the 3⁄32” allen

wrench.

•Repeat the procedure on

all posts to remove the

handle.

To replace:

•Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

5. Lift top of drawer front

to unhook the drawer

from the slides. Lift

door front out to

remove.

2. While supporting door front, hook supports into

slots located on inside of each slide.

To Install:

1. Pull both rails out to

full extension.

Note

•All four drawer bracket supports must be in the

proper slots for the drawer to function properly.

6. Tilt the lower basket front down and set it down

into the basket cradles.

Basket cradle

snap attachments

3. Lower door front into final position.

4. Replace and tighten Phillips screws that were

removed from the drawer slides (select models).

5. Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle

towards the bracket until it clicks.

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 7

INSTALLATION

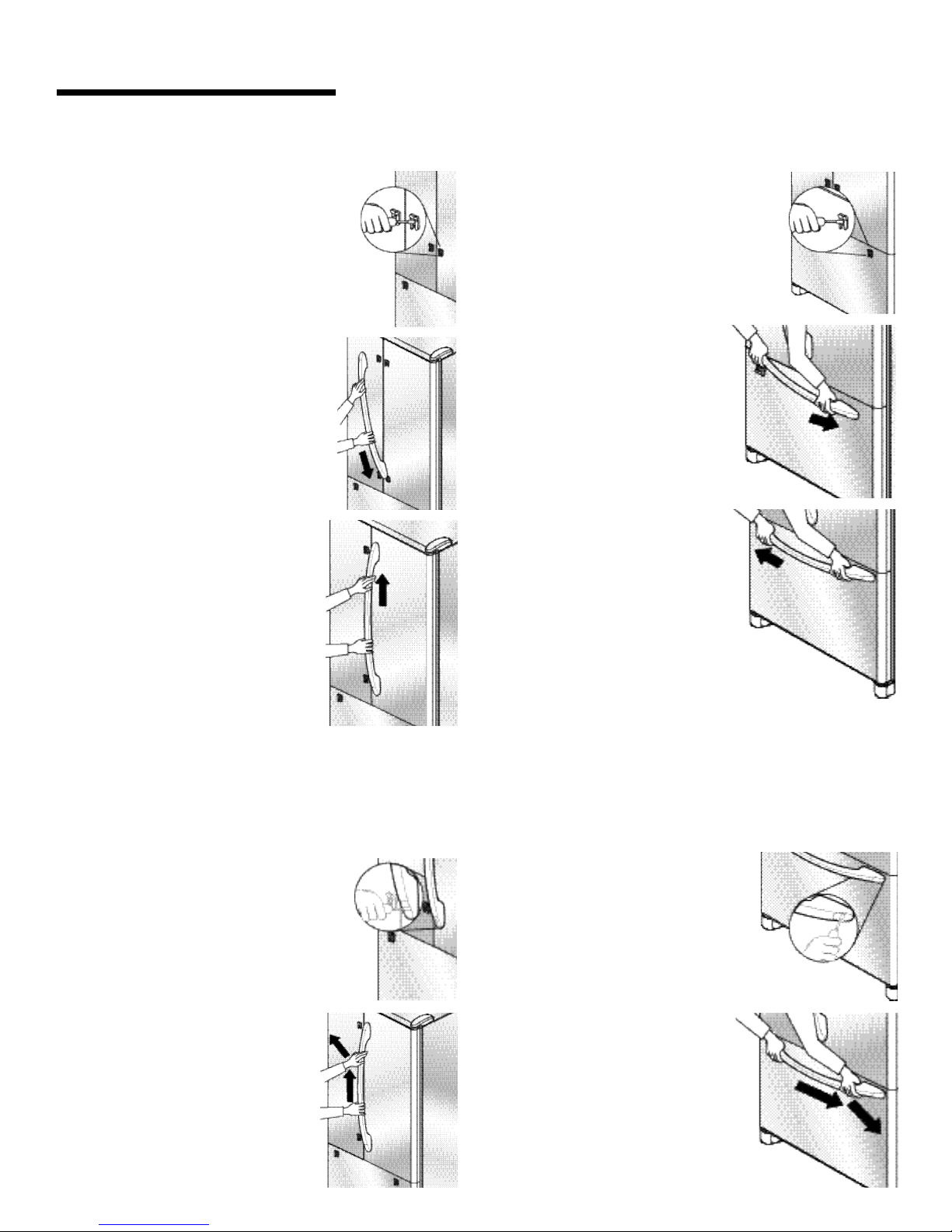

Installing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Loosen lower door clip on door

with a phillips screwdriver.

2. Locate predrilled hole at

base of handle, and fit hollow

end of handle over left door

clip.

3. Fit other end of handle over

left door clip and slide left as

far as possible.

NOTE: If end of handle does

not fit over left clip, loosen

right clip further until fit can

be accomplished.

4. Insert phillips screwdriver

into predrilled hole at end of

handle to tighten screw.

Insert plastic button plug into

hole.

Removing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Remove right side plastic button

plug at end of handle with a

very small flat-blade screwdriver.

• Insert phillips screwdriver into

predrilled hole to remove

screw.

2. Slide handle right and remove

from door clip.

Installing Front-Mounted Handles for

Stainless Steel Door

1. Loosen lower door clip on door with a

phillips screwdriver.

2. Locate predrilled hole at base of

handle, and fit hollow end of

handle over lower door clip.

3. Fit other end of handle over upper

door clip and slide up as far as

possible.

NOTE: If top of handle does not

fit over top clip, loosen lower clip

further until fit can be

accomplished.

4. Insert phillips screwdriver into

predrilled hole at base of handle

to tighten screw. Insert plastic

button plug into hole.

5. Repeat above steps to install other handle.

Removing Front-Mounted Handles for

Stainless Steel Door

1. Remove plastic button plug at base

of handle with a very small flat-blade

screwdriver.

• Insert phillips screwdriver into

predrilled hole to remove screw.

2. Slide handle down and remove from

door clip.

3. Repeat above steps to remove

other handle.

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 8

INSTALLATION

To avoid electrical shock which can cause severe

personal injury or death, DO NOT attempt to remove

the hinged seal from the fresh food section.

WARNING

To avoid possible product damage, ALWAYS verify

that the hinged seal is folded against the edge of

the door prior to closing.

CAUTION

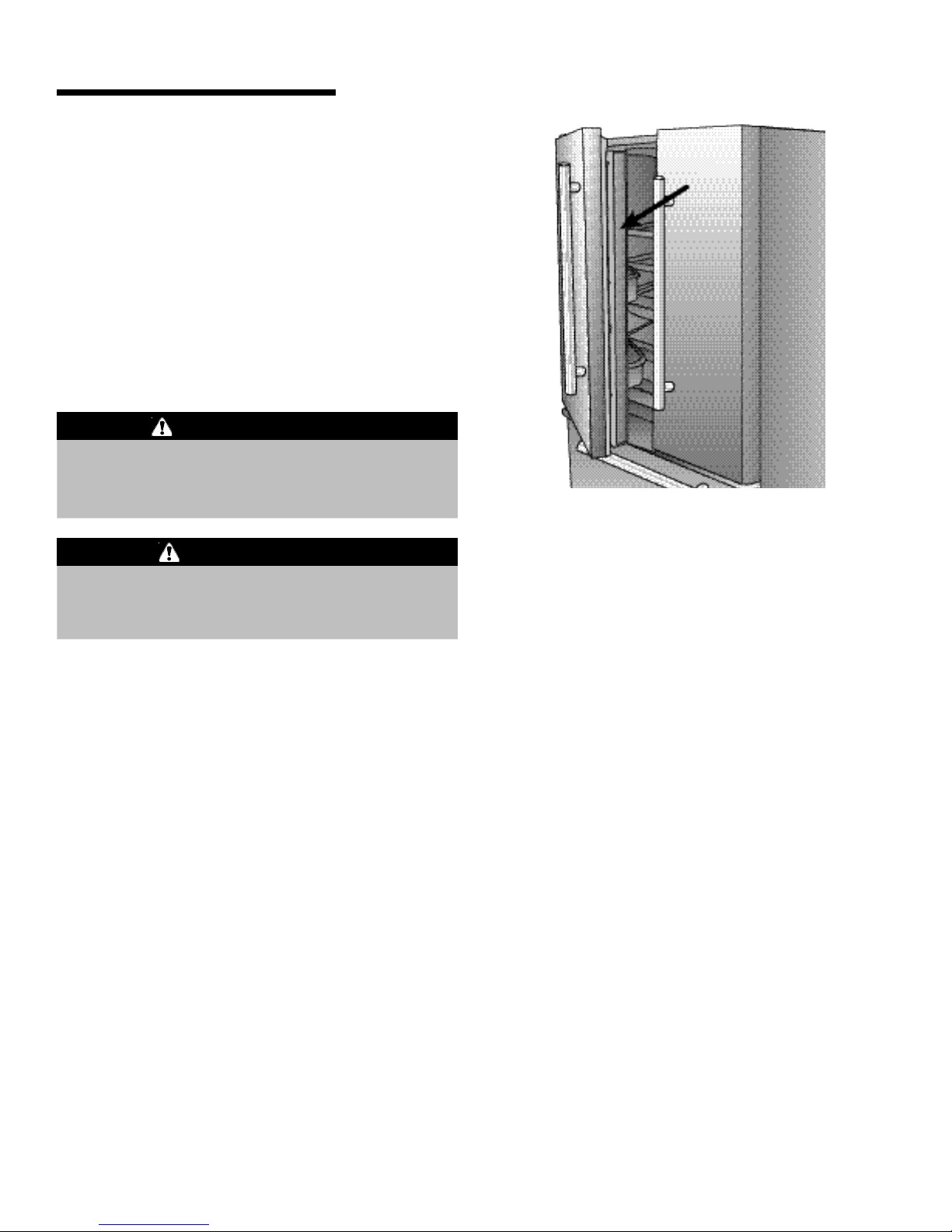

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door. When the left door is closed, the hinged

section automatically forms a seal between the two

doors when both doors are closed.

When the left door is opened, the hinged seal

automatically folds inward so that it is out of the way.

Hinged

Seal

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 9

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

IMPORTANT: Do not overtighten. Cross

threading may occur.

6. Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C) and turn on

water supply. Check for leaks and

correct if necessary. Continue to

observe the water supply connection

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 24 hours. Correct

leaks, if necessary.

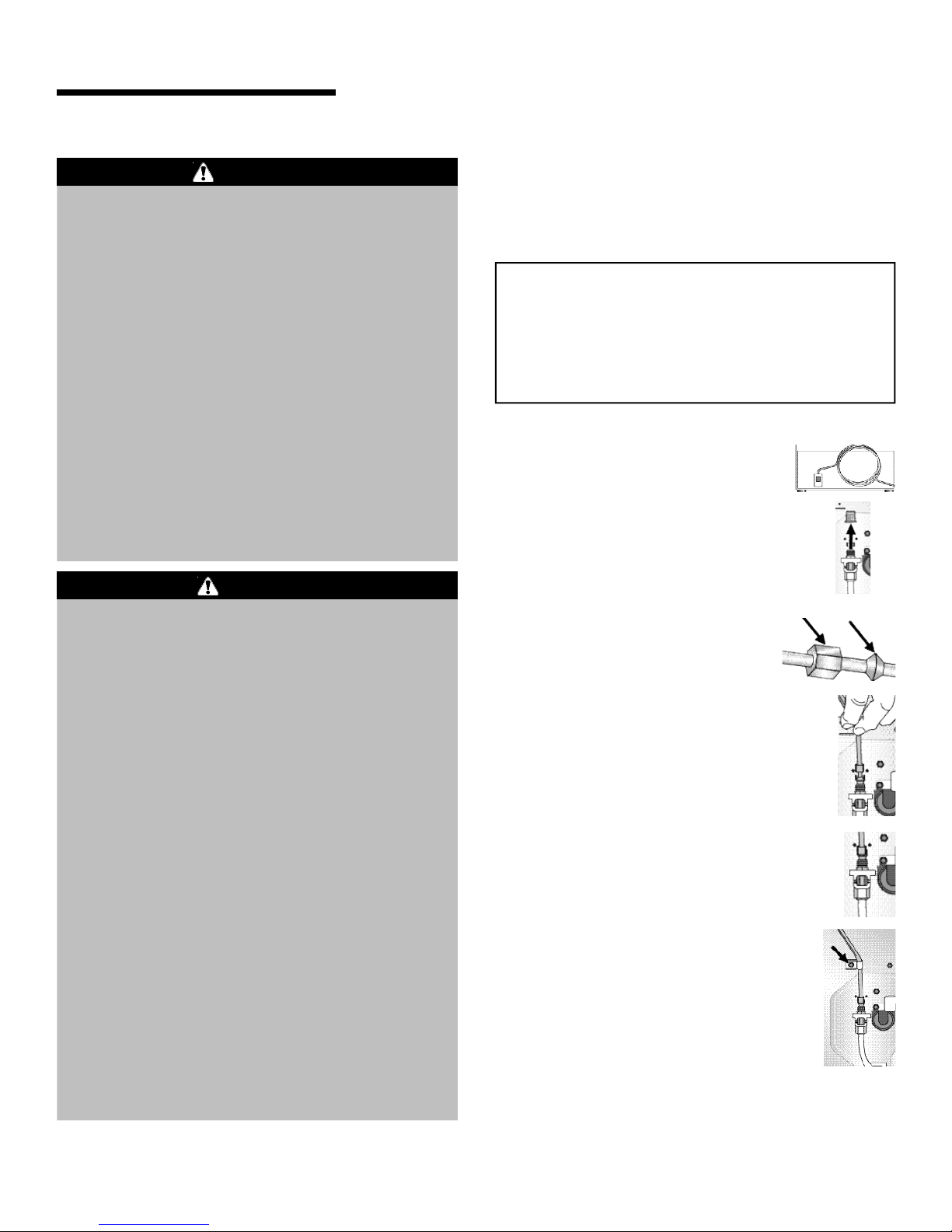

Connecting the Water Supply

To reduce the risk of injury or death, follow

basic precautions, including the following:

•Read all instructions before installing ice maker.

•Do not attempt installation if instructions are not

understood or if they are beyond personal skill

level.

•Observe all local codes and ordinances.

•Do not service ice maker unless specifically

recommended in Use & Care Guide or published

user-repair instructions.

•Disconnect power to refrigerator before installing

ice maker.

• Water damage due to an improper water

connection may cause mold/mildew growth. Clean

up spills or leakage immediately!

WARNING

To avoid property damage or possible injury,

follow basic precautions, including the

following:

•Consult a plumber to connect 1⁄4” O.D. copper

tubing to household plumbing to assure

compliance with local codes and ordinances.

•Confirm water pressure to water valve is between

35 and 100 pounds per square inch, 20 pounds

per square inch without filter.

•Do not use a self-piercing, or 3⁄16” saddle valve.

Both reduce water flow and can become clogged

over time, and may cause leaks if repair is

attempted.

• Tighten nuts by hand to prevent cross threading.

Finish tightening nuts with pliers and wrenches.

Do not overtighten.

• Wait two to three hours before placing refrigerator

into final position to check and correct any water

leaks. Recheck for leaks after 24 hours.

• Verify the copper tubing under the sleeve is

smooth and free from defects. Do not reuse an old

sleeve.

CAUTION

INSTALLATION

Materials Needed:

•1⁄4” outer diameter flexible copper tubing

•Shut-off valve (requires a 1⁄4” hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

•1⁄4” hex nut driver

Notes

•Use copper tubing only for installation. Plastic is

less durable and can cause damage.

•Add 8’ to tubing length needed to reach water

supply for creation of service loop.

1. Create service loop with copper

tubing (minimum 2’ diameter).

Avoid kinks in the copper tubing

when bending it into a service

loop. Do not use plastic tubing.

2. Remove plastic cap from water valve inlet

port.

3. Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve. The nut and sleeve are

provided in the use and care packet.

4. Place end of copper tubing into water

valve inlet port. Shape tubing slightly. Do

not kink – so that tubing feeds straight

into inlet port.

2’ diameter

minimum

12828119 Jenn-Air Trio Eng 1/14/05 8:53 AM Page 10

Andere Handbücher für JFC2089HEP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JUD24FR S Series Bedienungsanleitung

Jenn-Air

Jenn-Air W10297654A Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXRW Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290VEP5 Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2589AEP10 Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2582WEF00 Bedienungsanleitung

Jenn-Air

Jenn-Air W10292391 Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW01 Bedienungsanleitung

Jenn-Air

Jenn-Air JRSD2490 Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2587WEF00 Bedienungsanleitung

Jenn-Air

Jenn-Air JF36NXFXDE Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089HEP Bedienungsanleitung

Jenn-Air

Jenn-Air JS42SEDUDB00 Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FCECX Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW00 Bedienungsanleitung

Jenn-Air

Jenn-Air jb36ssfxra Bedienungsanleitung

Jenn-Air

Jenn-Air Euro-Style Design JS42SSDUDE Bedienungsanleitung

Jenn-Air

Jenn-Air Euro-Style Design JS42SSDUDE Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AES2 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air EDR3RXD1B Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Jenn-Air

Jenn-Air JKCPL301GM Bedienungsanleitung

Jenn-Air

Jenn-Air UNDER COUNTER REFREGERATOR Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
