Form No. A/01/06 Part No. 12828149 Printed in USA

JENN-AIR

FRENCH DOOR REFRIGERATOR

USE & CARE

GUIDE

Important Safety Instructions ........................................1-2

Installation.............................................................................3-8

Temperature Controls.....................................................9-11

Fresh Food Features.....................................................12-13

Freezer Features ...................................................................14

Ice and Water.........................................................................15

Water Filter.......................................................................16-18

Food Storage Tips..........................................................19-21

Care and Cleaning ........................................................22-25

Operating Sounds ................................................................26

Troubleshooting..............................................................27-30

Warranty & Service...............................................................31

Guide de l’utilisateur...........................................................32

Guía de uso y cuidado.......................................................64

IMPORTANT SAFETY INSTRUCTIONS

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use & Care

Guide for future reference. This guide provides

proper use and maintenance information.

Keep sales receipt and/or cancelled check as proof

of purchase.

Call: 1-800-JENNAIR (1-800-536-6247)

USA and Canada

Have complete model and serial number

identification of your refrigerator. This is located on a

data plate inside the refrigerator compartment, on

the upper left side. Record these numbers below for

easy access.

Model Number _______________________________

Serial Number ________________________________

Date of Purchase______________________________

In our continuing effort to improve the quality and

performance of our appliances, it may be necessary

to make changes to the appliance without revising

this guide.

WARNING – Hazards or unsafe practices which

COULD result in severe personal injury or death.

WARNING

DANGER – Immediate hazards which WILL result

in severe personal injury or death.

DANGER

CAUTION – Hazards or unsafe practices which COULD

result in minor personal injury or property damage.

CAUTION

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounded plug for your protection against possible

electrical shock hazards. It must be plugged into a

properly grounded wall receptacle. Where a standard

two-prong wall receptacle is encountered, it is the

personal responsibility and obligation of the customer

to have it replaced with a properly grounded three-

prong wall receptacle. Do not, under any

circumstances, cut or remove the third (ground)

prong from the power cord. Do not use an adapter

plug.

Power supply cord with

three-prong grounded plug

Properly

grounded type

wall receptacle

To reduce risk of injury or death, follow basic

precautions, including the following:

Important: Child entrapment and suffocation are

not problems of the past. Junked or abandoned

refrigerators are still dangerous – even if they sit out

for “just a few days.” If you are getting rid of your old

refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old

refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so

children may not easily climb

inside.

• Cut off power cord plug.

DANGER

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

To reduce risk of fire, electric shock, serious

injury or death when using your refrigerator,

follow basic precautions, including the following:

1. Read all instructions before using the refrigerator.

2. Observe all local codes and ordinances.

3. Be sure to follow grounding instructions.

4. Check with a qualified electrician if you are not

sure this appliance is properly grounded.

5. Do not ground to a gas line.

6. Do not ground to a cold-water pipe.

7. Refrigerator is designed to operate on a separate

115 volt, 15 amp., 60 cycle line.

8. Do not modify plug on power cord. If plug does

not fit wall receptacle, have proper receptacle

installed by a qualified electrician.

9. Do not use a two-prong adapter, extension cord

or power strip.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls.

12. Do not service or replace any part of refrigerator

unless specifically recommended in Use and Care

Guide or published user-repair instructions.

Do not attempt service if instructions are not

understood or if they are beyond personal skill

level.

13. Always disconnect refrigerator from electrical

supply before attempting any service. Disconnect

power cord by grasping the plug, not the cord.

14. Install refrigerator according to Installation

Instructions. All connections for water, electrical

power and grounding must comply with local

codes and be made by licensed personnel when

required.

15. Keep your refrigerator in good condition. Bumping

or dropping refrigerator can damage refrigerator

or cause refrigerator to malfunction or leak. If

damage occurs, have refrigerator checked by

qualified service technician.

16. Have worn power cords and/or loose plugs

replaced by a qualified service technician.

17. Always read and follow manufacturer’s storage

and ideal environment instructions for items being

stored in refrigerator.

18. Your refrigerator should not be operated in the

presence of explosive fumes.

19. Children should not climb, hang or stand on any

part of the refrigerator.

20. Clean up spills or water leakage associated with

water installation.

WARNING

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

•Do not install refrigerator near oven, radiator or

other heat source. If not possible, shield refrigerator

with cabinet material.

•Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow 1⁄2” space at top and 1⁄2” space behind the

machine compartment cover (located in the rear) for

proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling, page 4.

Important: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Glass Panel Doors (select models)

To avoid possible injury, product or property

damage, observe the following:

• When working directly on the doors, protect the

door corners and sides by placing doors on a

non-abrasive surface protected by towels or rugs.

• Protect the glass panel sides when securing the

unit to a dolly. DO NOT OVER-TIGHTEN!

Overtightening the restraints may shatter the glass

which could cause personal injury.

•Do not carry or transport removed doors by the

handles.

• Fully tighten handle set screws when installing the

door handles.

CAUTION

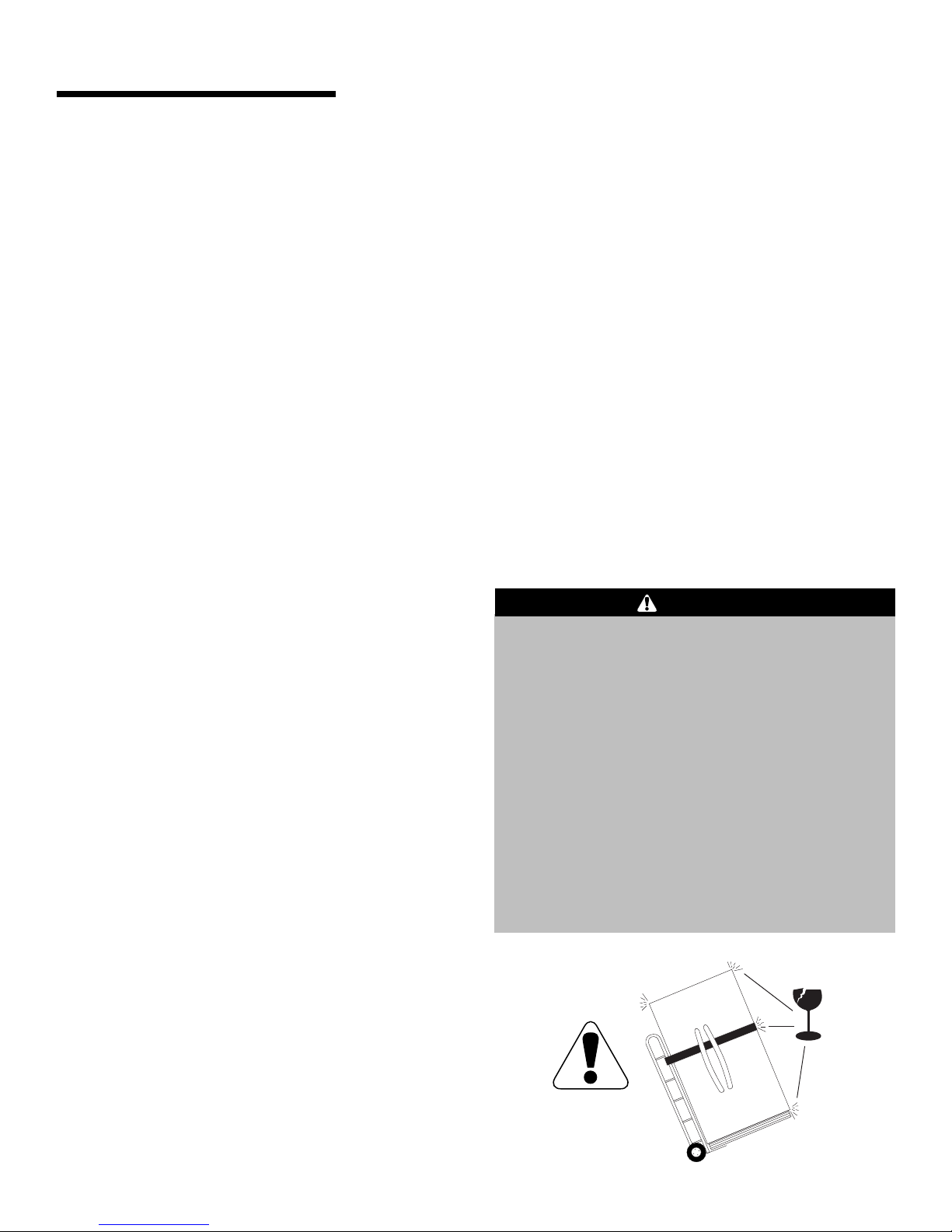

Transporting Your Refrigerator

•NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back–NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not over-tighten. Over-tightening

restraints may dent or damage outside finish.

INSTALLATION

Materials Needed:

• 3⁄8” hex head driver

• Carpenter’s level.

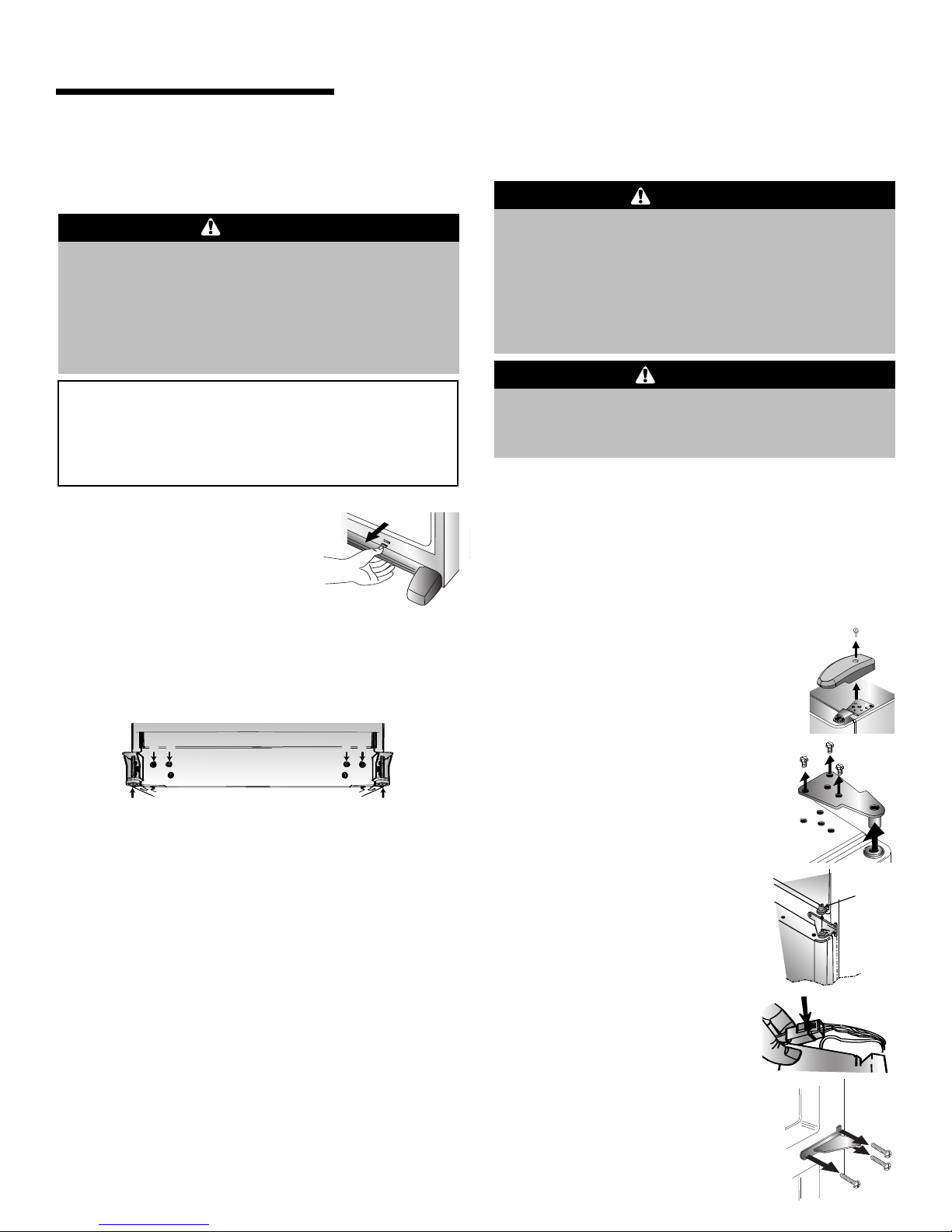

1. Remove toe grille.

• Grasp firmly and pull outward to unclip.

2. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator (see illustration below).

3. Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

4. Using a carpenter’s level, make sure front of

refrigerator is 1⁄4” (6 mm) or 1⁄2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

5. Turn stabilizing legs (C) clockwise until firmly

against floor.

6. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

7. Replace the toe grille.

Leveling

To protect property and refrigerator from

damage, observe the following:

• Protect vinyl or other flooring with cardboard, rugs,

or other protective material.

•Do not use power tools when performing leveling

procedure.

CAUTION

To enhance the appearance and maintain performance,

the refrigerator should be leveled per instructions

below.

Notes:

• Complete any required water supply connection

before leveling.

• Some models only have adjustment screws (A).

ABA

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

To avoid electrical shock which can cause

severe personal injury or death, observe the

following:

• Disconnect power to refrigerator before removing

doors or drawer. Connect power only after

replacing doors or drawer.

WARNING

To avoid damage to walls and flooring, protect vinyl

or other flooring with cardboard, rugs or other

protective material.

CAUTION

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

Materials Needed:

•5⁄16” hex head driver

• Phillips screwdriver

• 3⁄8” hex head driver

1. Unplug power cord from power source.

2. Remove toe grille.

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

4. Unscrew 5⁄16” hex head screws from top

hinge to remove hinge and retain all

screws for later use.

5. Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on the

right side and retain for later use.

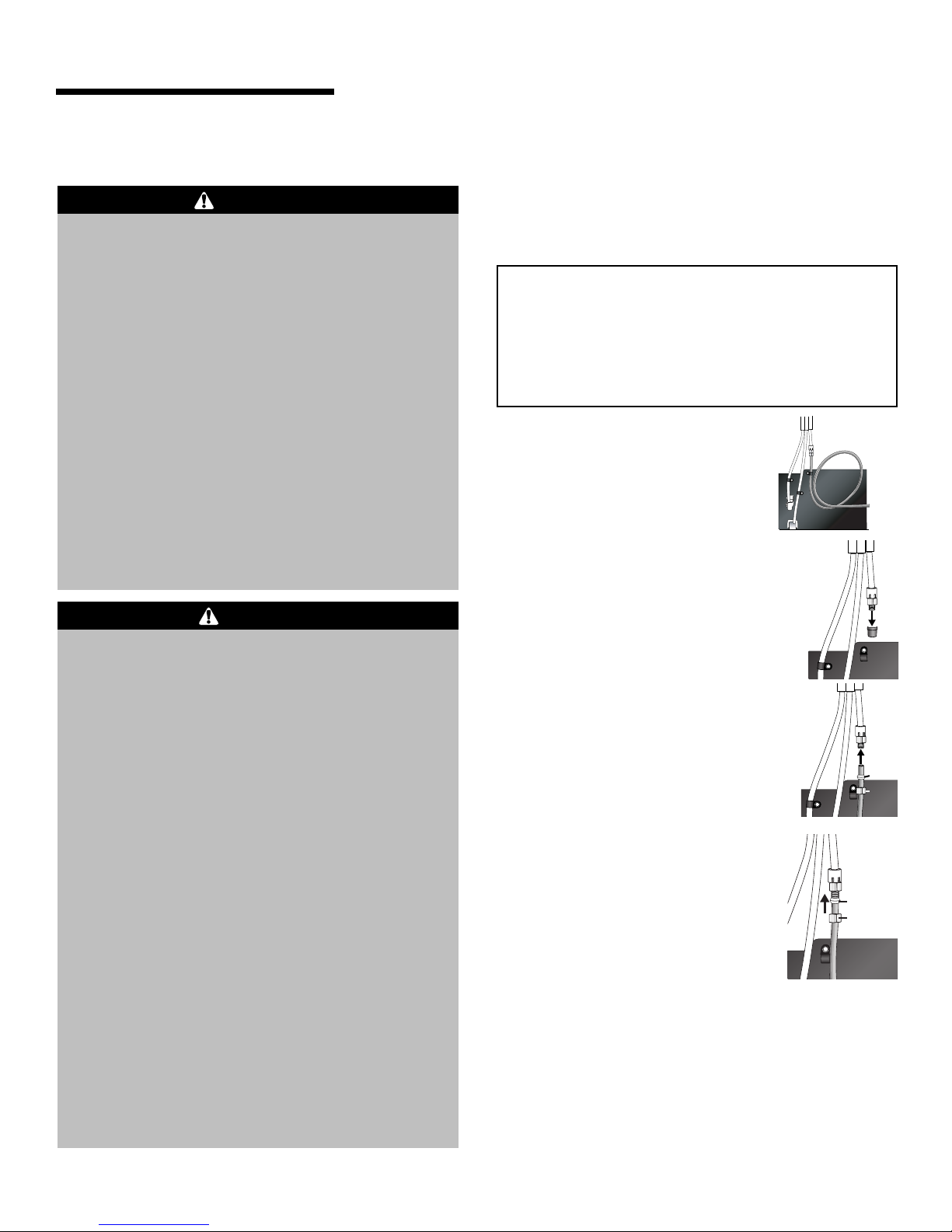

6. Disconnect wire harness on top

of left side refrigerator door top

hinge.

• Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

• Green ground wire remains

attached to the hinge.

7. Unscrew 5⁄16” hex head screws from

top hinge to remove hinge and

retain for later use.

8. Remove Phillips screws to

remove right and left hinges and

retain all screws for later use.

9. Remove both stabilizing brackets with 3⁄8” hex head

driver and retain screws for later use.

right

side

door

closure

INSTALLATION

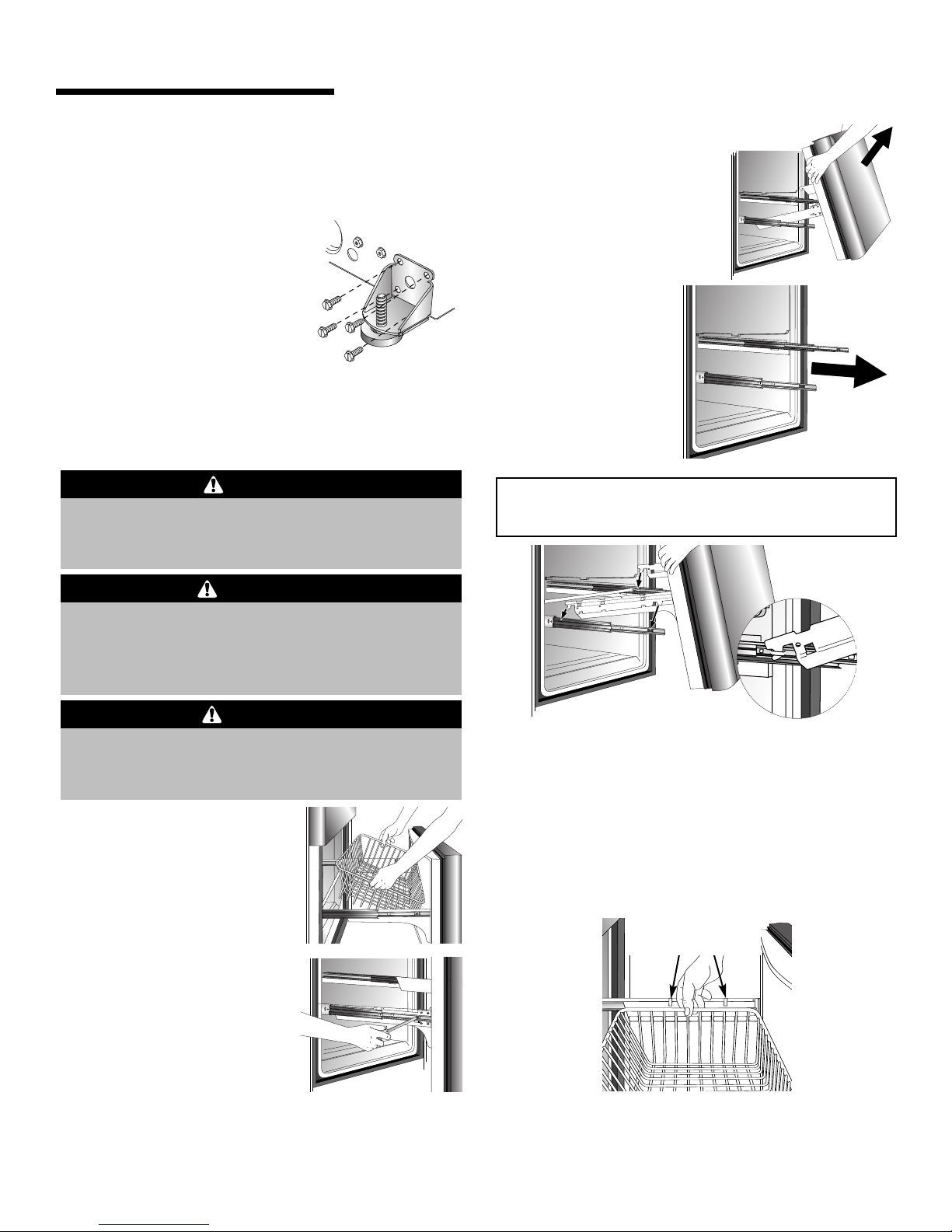

Pullout Freezer Drawer

(select models)

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before removing doors. After replacing

doors, connect power.

WARNING

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the

top freezer basket.

DANGER

To avoid possible injury, product, or property

damage, you will need two people to perform the

following instructions.

CAUTION

Materials Needed:

• Phillips screwdriver

To Remove:

1. Pull drawer open to full

extension.

2. Tilt the lower basket

forward and lift to remove.

3. On each white drawer

bracket is a basket cradle

with two snap attachments.

To release each cradle,

unlatch the snaps by

pushing them inward, away from the side bracket.

Lift the cradles off of the rails.

4. Remove Phillips screw from each of the drawer

slides (select models).

To Install:

1. Pull both rails out to

full extension.

2. While supporting

door front, hook

supports into slots

located on inside of

each slide.

6. Tilt the lower basket front down and set it down

into the basket cradles.

Basket cradle

snap attachments

Note: All four drawer bracket supports must be in

the proper slots for the drawer to function properly.

3. Lower door front into final position.

4. Replace and tighten Phillips screws that were

removed from the drawer slides (select models).

5. Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle toward

the bracket until it clicks.

•Lift left side refrigerator door, along with top

hinge, from center hinge pin.

• Remove center hinge pin with a 5⁄16” hex head

driver and retain hinge pin for later use.

8. Remove Phillips screws to

remove right and left hinges

and retain all screws for later

use.

9. Remove both stabilizing

brackets with 3⁄8” hex head

driver and retain screws for

later use.

5. Lift top of drawer front to

unhook the drawer from

the slides. Lift door front

out to remove.

INSTALLATION

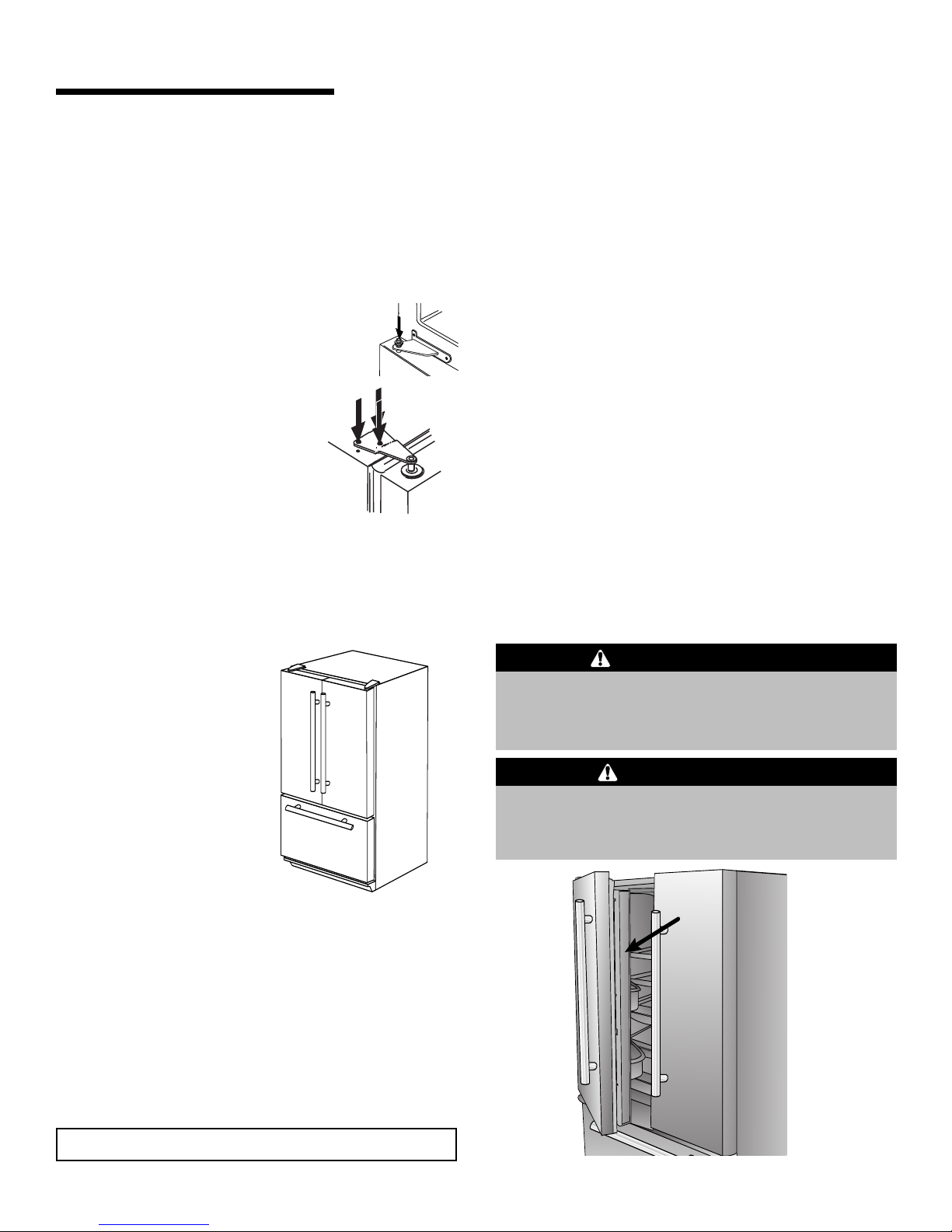

Door Reinstallation

Materials Needed:

• Phillips screwdriver

• 5⁄16” hex head driver

1. Install hinge assemblies:

• Install center hinge with Phillips screws.

2. Place hinge side of refrigerator door

on center hinge pin.

• Install top hinge with 5⁄16” hex head

screws.

3. While holding refrigerator door

upright, tighten down top hinge

with 5⁄16” hex head driver.

4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles (style varies by model)

This handle style is installed at the factory. Style may

vary by model.

Materials Needed:

• 3⁄32” Allen wrench

To Remove:

• Remove set screw from

handle mounting post

using the 3⁄32” Allen

wrench.

• Repeat the procedure on

all posts to remove the

handle.

To replace:

•Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

To Remove:

• Loosen set screws in handle using 3⁄32” Allen

wrench.

• Repeat the procedure on all screws.

To Replace:

• Align handle with the mounting posts.

• Apply upward pressure to the handle and hold.

• Fully tighten all set screws to secure handle in

place.

Metal Handle

Materials Needed:

•3⁄32” Allen wrench

• Gloves to protect hands

Note: Metal handles can scratch doors.

To avoid electrical shock which can cause severe

personal injury or death, DO NOT attempt to remove

the hinged seal from the fresh food section.

WARNING

To avoid possible product damage, ALWAYS verify

that the hinged seal is folded against the edge of

the door prior to closing.

CAUTION

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door. When the left door is closed, the hinged

section automatically forms a seal between the two

doors when both doors are closed.

When the left door is opened, the hinged seal

automatically folds inward so that it is out of the way.

Vertically

hinged section

INSTALLATION

Connecting the Water Supply

(select models)

To reduce the risk of injury or death, follow

basic precautions, including the following:

• Read all instructions before installing ice maker.

•Do not attempt installation if instructions are not

understood or if they are beyond personal skill

level.

• Observe all local codes and ordinances.

•Do not service ice maker unless specifically

recommended in Use & Care Guide or published

user-repair instructions.

• Disconnect power to refrigerator before installing

ice maker.

• Water damage due to an improper water

connection may cause mold/mildew growth. Clean

up spills or leakage immediately!

WARNING

To avoid property damage or possible injury,

follow basic precautions, including the

following:

• Consult a plumber to connect 1⁄4”O.D. copper

tubing to household plumbing to assure

compliance with local codes and ordinances.

• Confirm water pressure to water valve is between

35 and 100 pounds per square inch, 20 pounds

per square inch without filter.

•Do not use a self-piercing or 3⁄16” saddle valve.

Both reduce water flow and can become clogged

over time, and may cause leaks if repair is

attempted.

• Tighten nuts by hand to prevent cross threading.

Finish tightening nuts with pliers and wrenches.

Do not over-tighten.

• Wait two to three hours before placing refrigerator

into final position to check and correct any water

leaks. Recheck for leaks after 24 hours.

• Verify the copper tubing under the sleeve is

smooth and free from defects. Do not reuse an

old sleeve.

CAUTION

Materials Needed:

•1⁄4” outer diameter flexible copper tubing

• Shut-off valve (requires a 1⁄4” hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench (2)

•1⁄4” hex nut driver

Notes:

• Use copper tubing only for installation. Plastic is

less durable and can cause damage.

• Add 8’ to tubing length needed to reach water

supply for creation of service loop.

1. Create service loop with

copper tubing (minimum 2’

diameter). Avoid kinks in the

copper tubing when

bending the service loop. Do

not use plastic tubing.

2. Remove plastic cap from water valve

inlet port.

3. Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve. The nut and sleeve are

provided in the Use and Care

packet.

4. Place end of copper tubing into

water valve inlet port. Shape

tubing slightly. Do not kink – so

that tubing feeds straight into inlet

port.

2’ diameter

minimum

INSTALLATION

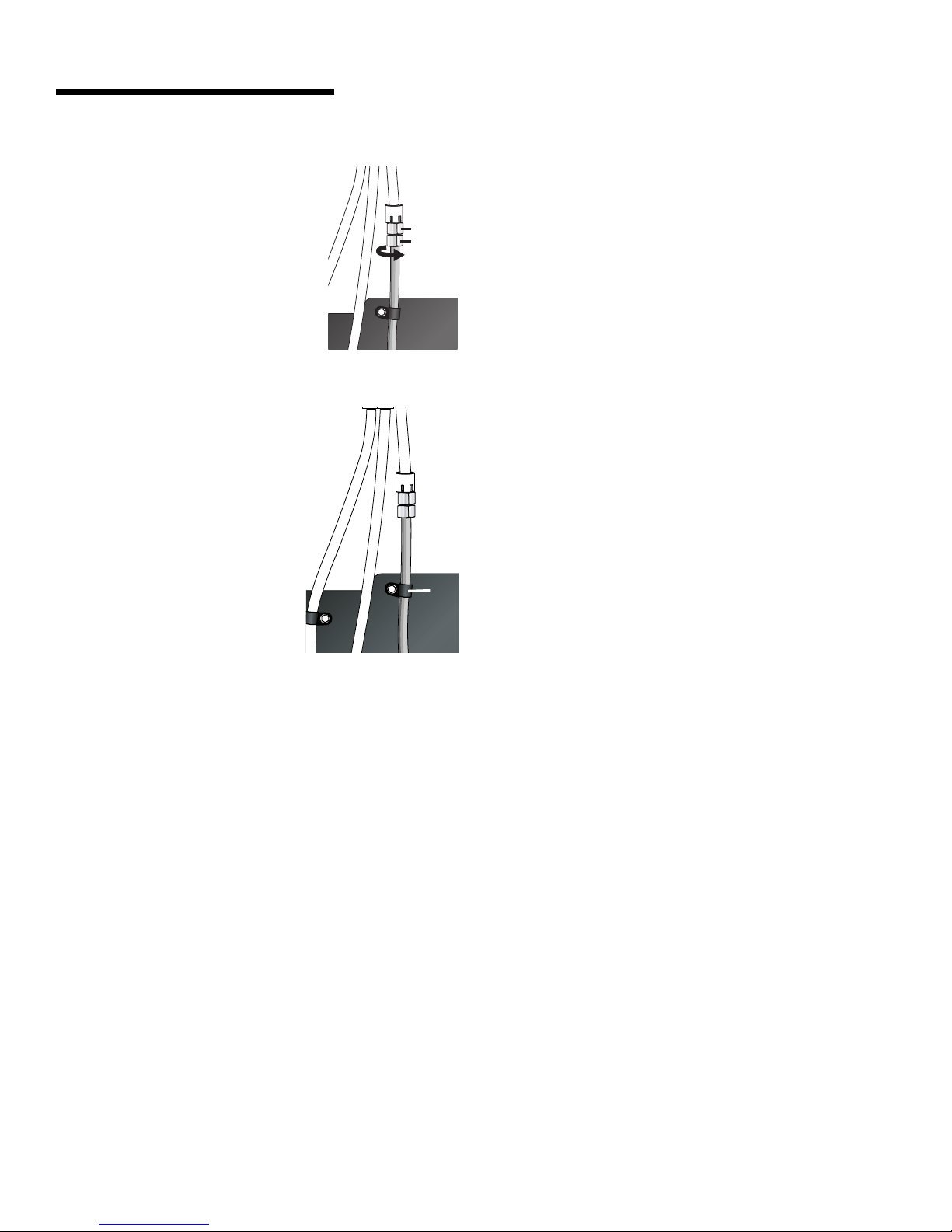

5. Slide brass nut over sleeve and screw

nut into inlet port.

Place adjustable wrench on nut

(1) attached to plastic waterline

and maintain position.

Using second adjustable wrench

turn the lower nut (2)

counterclockwise and fully

tighten while holding the upper

nut in place.

Important: Do not over-tighten.

Cross threading may occur.

6. Pull on tubing to confirm

connection is secure.

Connect tubing to frame

with water tubing clamp (C)

and turn on water supply.

Check for leaks and correct

if necessary. Continue to

observe the water supply

connection for two to three

hours prior to moving the

refrigerator to its permanent

location.

7. Monitor water connection for 24 hours.

Correct leaks, if necessary.

TEMPERATURE CONTROLS

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Control

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the or pads adjusts the controls to

the desired setting.

• The temperature control range for both

compartments is 1 through 7 (coldest).

• Set the Freezer control on 4.

•Set the Refrigerator control on 4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

Adjusting the Controls

• 24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 19

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

• Allow 24 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the Refrigerator control

to next higher number by

pressing the pad.

Set the Refrigerator control

to next lower number by

pressing the pad.

Set the Freezer control to

next higher number by

pressing the pad.

Set the Freezer control to

next lower number by

pressing the pad.

Press the Freezer or

Refrigerator pad until

a dash “–” appears in the

display.

Andere Handbücher für JFC2089HPR

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JUG24FLERS Bedienungsanleitung

Jenn-Air

Jenn-Air JFD2589KES Bedienungsanleitung

Jenn-Air

Jenn-Air W10231365B Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JUBFL242HL Bedienungsanleitung

Jenn-Air

Jenn-Air JS42PPDUDB00 Bedienungsanleitung

Jenn-Air

Jenn-Air JBR2086HES Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290REY Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2589AES2 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDE Bedienungsanleitung

Jenn-Air

Jenn-Air 2289 Guide Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089HEP Bedienungsanleitung

Jenn-Air

Jenn-Air JSD2695KGB Bedienungsanleitung

Jenn-Air

Jenn-Air JUD278DBCX00 Bedienungsanleitung

Jenn-Air

Jenn-Air RISE JB36NXFXLE Merkblatt

Jenn-Air

Jenn-Air JB36SSFXLA Bedienungsanleitung

Jenn-Air

Jenn-Air KitchenAid KBSD708M S00 Series Bedienungsanleitung

Jenn-Air

Jenn-Air JUD248CCCX00 Gebrauchsanweisung

Jenn-Air

Jenn-Air JFC2089HEP13 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air W10292391 Bedienungsanleitung

Jenn-Air

Jenn-Air JRTDE228 Bedienungsanleitung

Jenn-Air

Jenn-Air JF36NXFXDE Bedienungsanleitung

Jenn-Air

Jenn-Air JBL2088HES13 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
