Jenn-Air JSD2695KGB Bedienungsanleitung

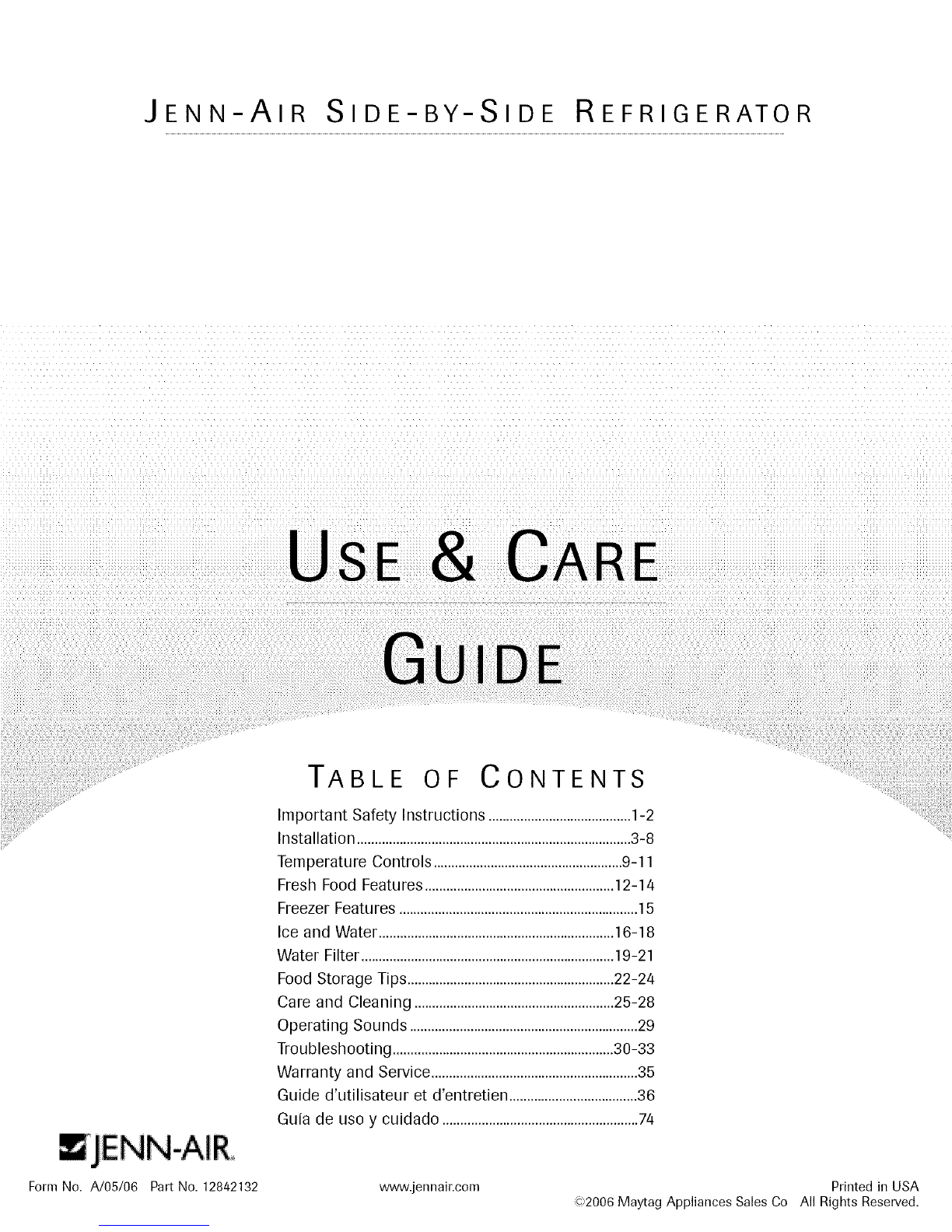

JENN-AIR SIDE-BY-SIDE REFRIGERATOR

TABLE OF CONTENTS

Important Safety Instructions ........................................1-2

Installation .............................................................................3-8

Temperature Controls .....................................................9-11

Fresh Food Features .....................................................12-14

Freezer Features ...................................................................15

Ice and Water ..................................................................16-18

Water Filter .......................................................................19-21

Food Storage Tips ..........................................................22-24

Care and Cleaning ........................................................25-28

Operating Sounds ................................................................29

Troubleshooting ..............................................................30-33

Warranty and Service ..........................................................35

Guide d'utilisateur et d'entretien ....................................36

Guia de uso y cuidado .......................................................74

Form No. A/05/06 Part No. 12842132 www.jennair.com Printed in USA

I MPORTANT SAFETY I NSTRUCTIONS

iiiiiiiiiiiiiii

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounded plug for your protection against possible

electrical shock hazards. It must be plugged into a

properly grounded wall receptacle. Where a standard

two-prong wall receptacle is encountered, it is the

personal responsibility and obligation of the customer

to have it replaced with a properly grounded three-

prong wall receptacle. Do not, under any

circumstances, cut or remove the third (ground)

prong from the power cord. Do not use an adapter

plug.

Power supply cord with

three-prong grounded plug

Properly

grounded type

wall receptacle

I MPORTANT SAFETY I NSTRUCTIONS

SAVE THESE INSTRUCTIONS

I NSTALLATI 0N

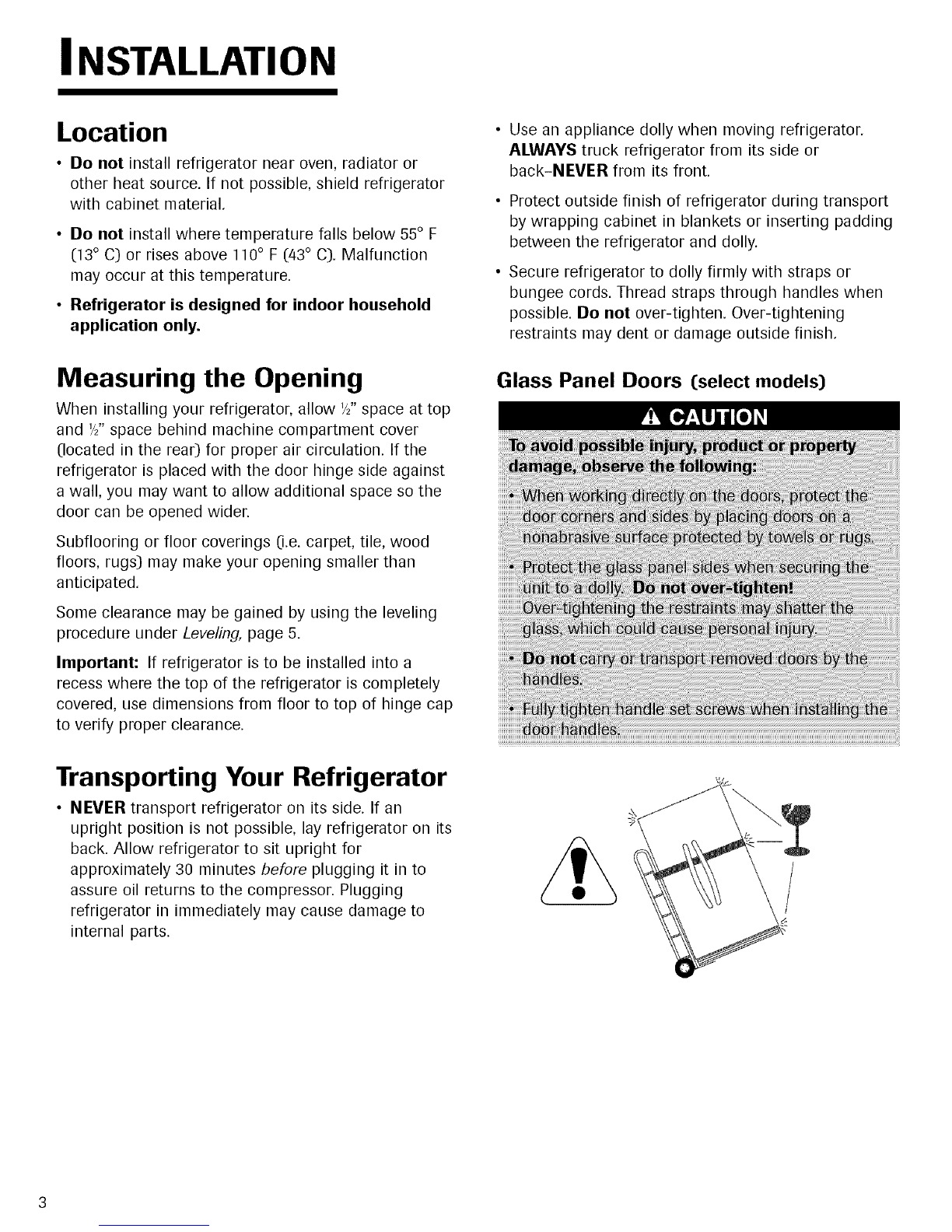

Location

•Do not install refrigerator near oven, radiator or

other heat source. If not possible, shield refrigerator

with cabinet material.

•Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, allow '/2"space at top

and '/;' space behind machine compartment cover

(located in the rea0 for proper air circulation. If the

refrigerator is placed with the door hinge side against

a wall, you may want to allow additional space so the

door can be opened wider.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling, page 5.

Important: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not over-tighten. Over-tightening

restraints may dent or damage outside finish.

Glass Panel Doors (select models)

Transporting Your Refrigerator

•NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging

refrigerator in immediately may cause damage to

internal parts.

I NSTALLATI ON

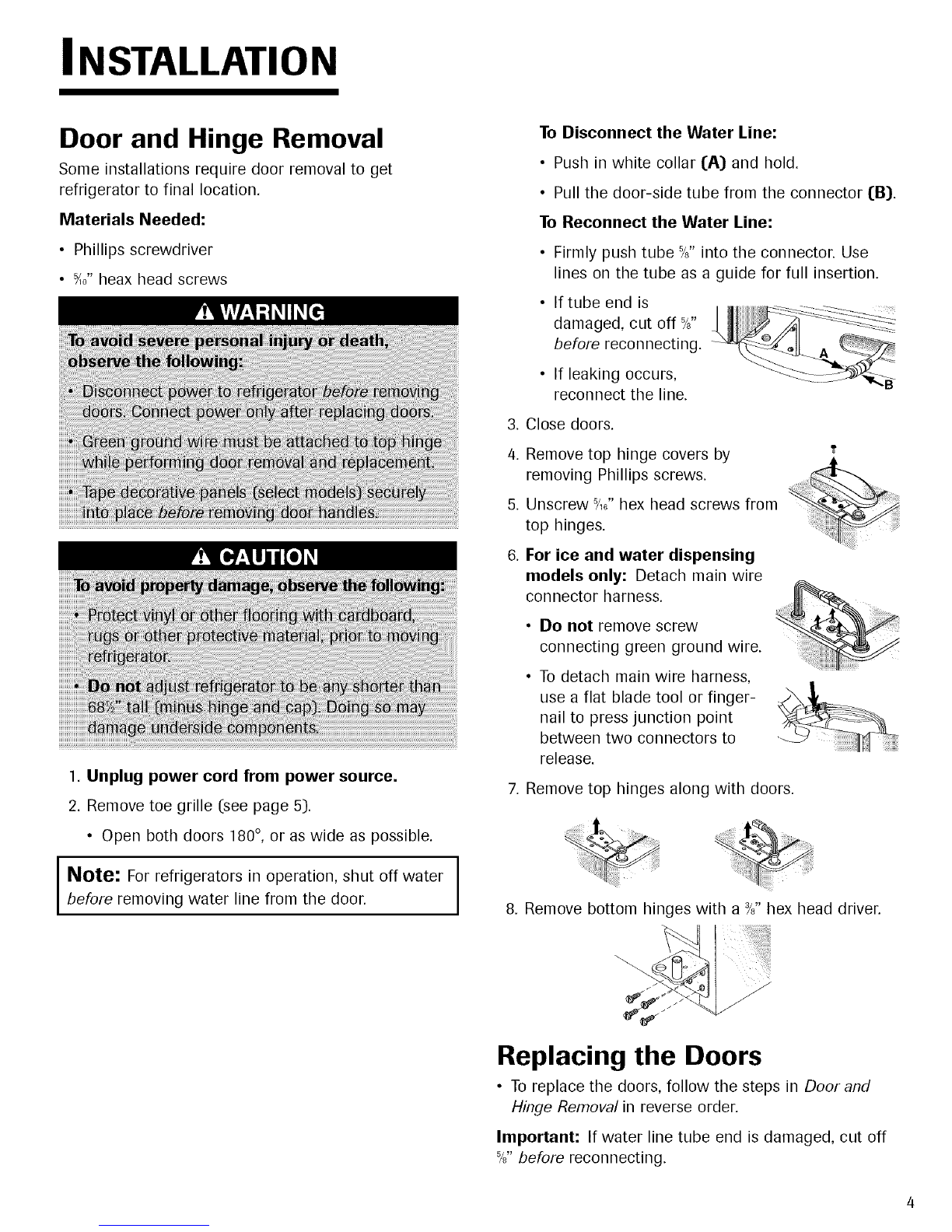

Door and Hinge Removal

Some installations require door removal to get

refrigerator to final location.

Materials Needed:

•Phillips screwdriver

• %" heax head screws

1. Unplug power cord from power source.

2. Remove toe grille (see page 5).

• Open both doors 180°, or as wide as possible.

I Note: For refrigerators in operation, shut off water

before removing water line from the door.

To Disconnect the Water Line:

• Push in white collar (A) and hold.

• Pull the door-side tube from the connector (B).

To Reconnect the Water Line:

• Firmly push tube %" into the connector. Use

lines on the tube as a guide for full insertion.

• If tube end is

damaged, cut off 5/8"

before reconnecting.

• If leaking occurs,

reconnect the line.

3. Close doors.

Remove top hinge covers by

removing Phillips screws.

Unscrew 5/,,, hex head screws from

top hinges.

For ice and water dispensing

models only: Detach main wire

connector harness.

•Do not remove screw

connecting green ground wire.

• To detach main wire harness,

use a flat blade tool or finger-

nail to press junction point

between two connectors to

release.

7. Remove top hinges along with doors.

8. Remove bottom hinges with a _" hex head driver.

Replacing the Doors

• To replace the doors, follow the steps in Door and

Hinge Removal in reverse order.

Important: If water line tube end is damaged, cut off

%" before reconnecting.

I NSTALLATI ON

Leveling

To enhance the appearance and maintain performance,

the refrigerator should be level.

Notes:

•Complete any required door reversal, panel

installation and/or a water supply connection

before leveling.

• Some models only have adjustment screws (A).

Materials Needed

• 3/8"hex head driver

• Carpenter's level

1. Remove toe grille. ..... /

• Grasp firmly and pull

outward to unclip.

2. Using hex head driver, turn front adjustment

screws (A) clockwise to raise and counterclockwise

to lower the front of the refrigerator.

5. If required, correct rocking of refrigerator by

turning rear adjustment screw clockwise to raise

rocking corner. If doors are uneven, do the

following:

• Determine which

door needs to be

raised.

• Turn front roller

adjustment screw

(A) clockwise to

raise front corner of

door.

If one refrigerator door has reached the limit of

its adjustment range and doors are still not level,

raise or lower the opposite door by turning roller

adjustment screw clockwise or counterclockwise.

Check with level to verify '/4"tilt to the back for

proper door closure.

• If refrigerator is aligned and stable, replace toe

grille and hinge covers.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Select models also have rear adjustment screws

(B). Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/#' (6 ram) or '/2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

I NSTALLATI ON

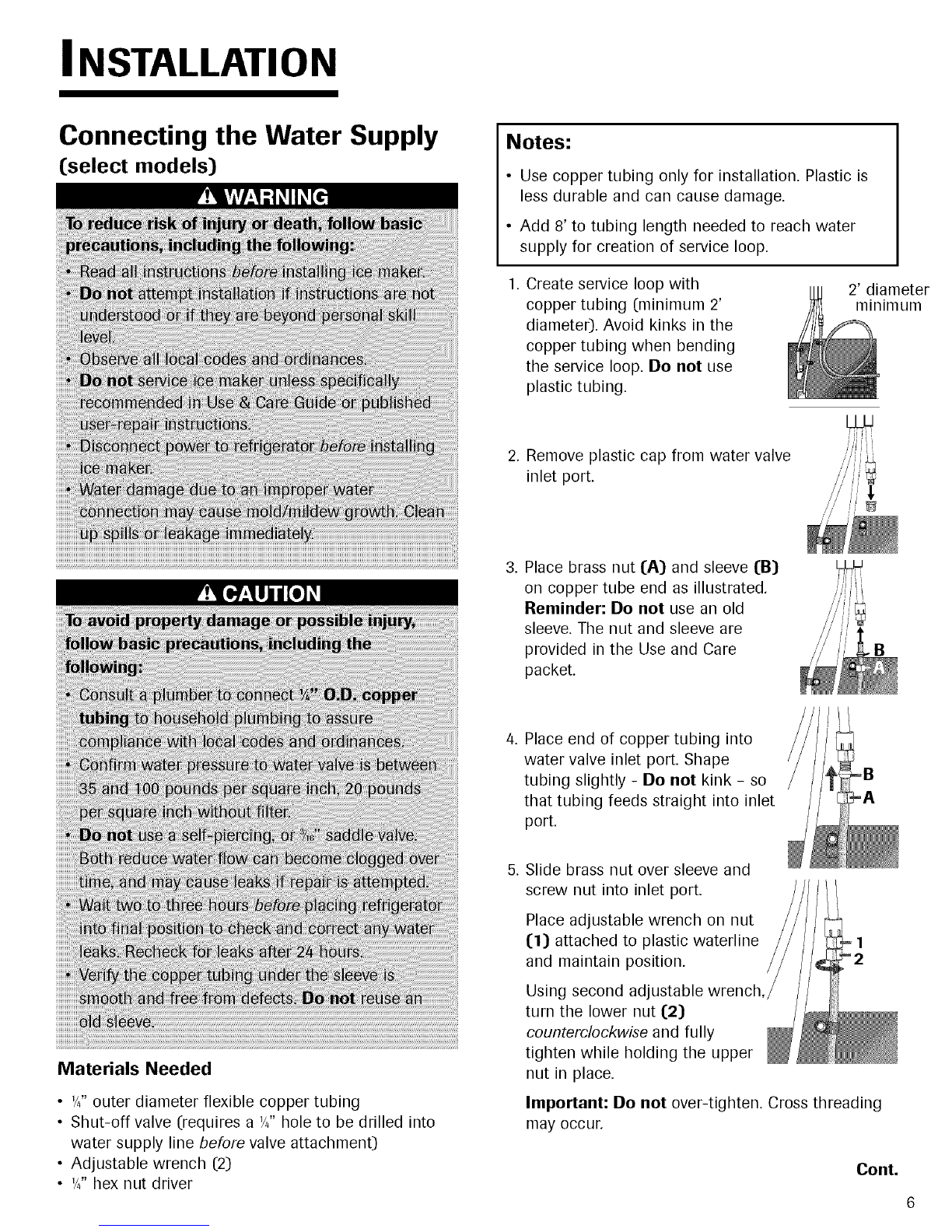

Connecting the Water Supply

(select models) Notes:

• Use copper tubing only for installation. Plastic is

less durable and can cause damage.

• Add 8' to tubing length needed to reach water

supply for creation of service loop.

Create service loop with

copper tubing (minimum 2'

diamete0. Avoid kinks in the

copper tubing when bending

the service loop. Do not use

plastic tubing.

2' diameter

minimum

2. Remove plastic cap from water valve

inlet port.

3. Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve. The nut and sleeve are

provided in the Use and Care

packet.

.Place end of copper tubing into

water valve inlet port. Shape

tubing slightly - Do not kink - so

that tubing feeds straight into inlet

port.

Materials Needed

• '/4"outer diameter flexible copper tubing

• Shut-off valve (requires a '/4"hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench (2)

• '//' hex nut driver

5. Slide brass nut over sleeve and

screw nut into inlet port.

Place adjustable wrench on nut

(1) attached to plastic waterline

and maintain position.

Using second adjustable wrench

turn the lower nut (2)

counterclockwise and fully

tighten while holding the upper

nut in place.

Important: Do not over-tighten. Cross threading

may occur.

Cont.

I NSTALLATI 0N

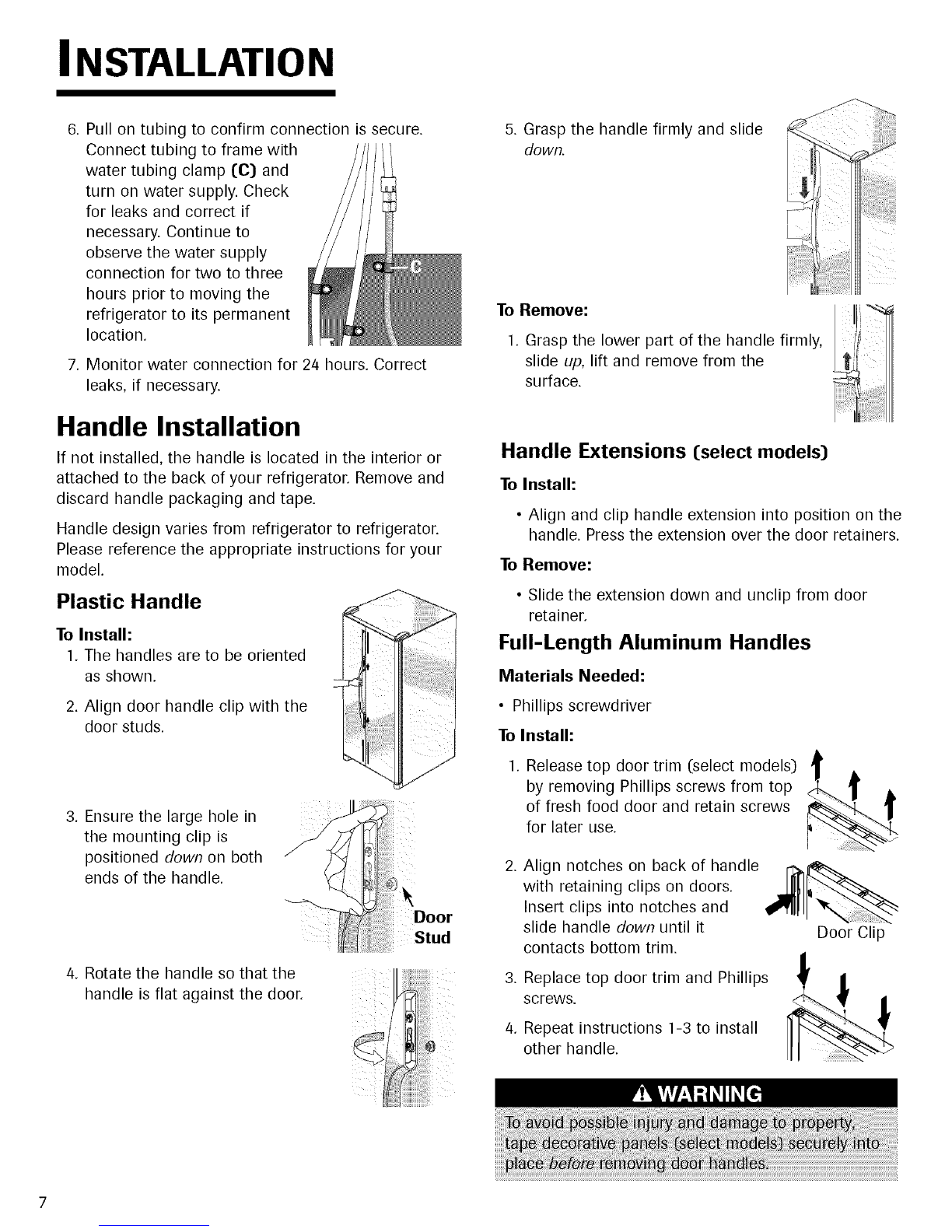

Pull on tubing to confirm connection is secure.

Connect tubing to frame with

water tubing clamp (C) and

turn on water supply. Check

for leaks and correct if

necessary. Continue to

observe the water supply

connection for two to three

hours prior to moving the

refrigerator to its permanent

location.

7. Monitor water connection for 24 hours. Correct

leaks, if necessary.

Handle Installation

If not installed, the handle is located in the interior or

attached to the back of your refrigerator. Remove and

discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model.

Plastic Handle

To Install:

1. The handles are to be oriented

as shown.

2. Align door handle clip with the

door studs.

3. Ensure the large hole in

the mounting clip is

positioned down on both

ends of the handle.

4. Rotate the handle so that the

handle is flat against the door.

Door

Stud

5. Grasp the handle firmly and slide

down.

To Remove:

1. Grasp the lower part of the handle firmly,

slide up, lift and remove from the

surface.

Handle Extensions (select models)

To Install:

• Align and clip handle extension into position on the

handle. Press the extension over the door retainers.

To Remove:

• Slide the extension down and unclip from door

retainer.

Full-Length Aluminum Handles

Materials Needed:

• Phillips screwdriver

To Install:

Release top door trim (select models)

by removing Phillips screws from top

of fresh food door and retain screws

for later use.

Align notches on back of handle

with retaining clips on doors.

Insert clips into notches and

slide handle down until it

contacts bottom trim. Door Clip

3. Replace top door trim and Phillips

screws.

4. Repeat instructions 1-3 to install

other handle.

I NSTALLATI 0N

To Remove:

1. Release top door trim (select models)

by removing Phillips screws from top

of fresh food door and retain screws

for later use.

2. Grasp handle firmly with both

hands. Slide handle upward

approximately _/4"to release.

3. Repeat instructions 1-2 to

remove other handle.

To Reinstall:

1. Repeat in reverse order.

Euro Handles

This handle style is installed at the factory.

Materials Needed:

•3/32"Allen wrench

To Remove:

• Remove set screw from

handle mounting post

using 3/3;'Allen wrench.

• Repeat the procedure on

all posts to remove the

handle.

To Replace:

• Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

Metal Handle

Materials Needed:

• 3/_,,Allen wrench

• Gloves to protect hands

I Note: Metal handles can scratch doors.

To Remove:

• Loosen set screws in handle using 3/3;'Allen

wrench.

• Repeat the procedure on all screws.

To Replace:

• Align handle with the mounting posts.

• Apply upward pressure to the handle and hold.

• Fully tighten all set screws to secure handle in

place.

TEMPERATURE CONTROLS

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Control

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the • or • pads adjusts the controls to

the desired setting.

• Set the Freezer control on 4.

• Set the Refrigerator control on 4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

Adjusting the Controls

• 24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 22

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

• Allow 2/4 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the Refrigerator control

to next higher number by

pressing the • pad.

Set the Refrigerator control

to next lower number by

pressing the • pad.

Set the Freezer control to

next higher number by

pressing the • pad.

Set the Freezer control to

next lower number by

pressing the • pad.

Press the Freezer or

Refrigerator • pad until

a dash "-" appears in the

display.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JUD24FR*S series Bedienungsanleitung

Jenn-Air

Jenn-Air JFX2597AEP0 Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air W10549542A Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDE Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW00 Bedienungsanleitung

Jenn-Air

Jenn-Air W10292391 Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2585WES Bedienungsanleitung

Jenn-Air

Jenn-Air JS48PPDBDA Leitfaden

Jenn-Air

Jenn-Air Euro-Style Design JS42SSDUDE Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JCD2395WES01 Bedienungsanleitung

Jenn-Air

Jenn-Air JS48PPDUDB01 Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089WES6 Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AEP Bedienungsanleitung

Jenn-Air

Jenn-Air JUD248CCCX00 Gebrauchsanweisung

Jenn-Air

Jenn-Air JS42NXFXDW01 Bedienungsanleitung

Jenn-Air

Jenn-Air JUR248RBCX Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AES2 Bedienungsanleitung

Jenn-Air

Jenn-Air 12642718 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
