CABINET PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

2−08 Litho In U.S.A. (pl) Part No. W10190617 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10189628

Tech Sheet

W10189629

Use & Care Guide

W10190618

Guide, Energy

16026312 Service Manual

(Bottom Mount)

2 67006317 Tube W/Waterline,

Fill−IM

3 67003405 Block, Pivot

4 B5759649 Gasket, MC Back

W10164420

Board, HV Control

6 Cover, Fill Tube

67006320 Black

7 67006427 Cover, Control Box

8 M0108105 Clamp, Tube

9 67006521 Screw, Hinge Cover

W10164397

Tube, Drain

11 67006380 Screw, Center

Hinge

12 67006611 Bolt, Roller Adj.

13 Cover, Top Hinge

(Left)

67005951 Black

14 67006303 Screw, Top Hinge

15 Hinge, Center (RT)

67006443 Black

16 67006390 Box, HV Control

17 Cover, Corner (2)

67003485 Black

18 67005950 Hinge, Top Left

19 67007174 Bracket, Foot

Cabinet (2)

20 67006564 Screw (8)

21 Shim, Top Hinge

67006308 Left

67006309 Right

22 Grille, Toe

67006375 Black

23 67006428 Lid, HV Control

24 Hinge, Center (LT)

67006442 Black

25 67006425 Screw, Cover

26 67006118 Roller Assy. (2)

27 67006426 Cover, Water Valve

28 67006626 Screw, Block

29 67006429 Gasket, HV Control

12575101ED

Cover, MC Back

31 67005955 Hinge, Top Right

32 67001067 Clip, Drain Tube

33 67003796 Fiber, Acoustic

34 67003868 Brake, Foot

35 Cabinet (Not a

Servicable Part)

36 Cover, Top Hinge

(Right)

67005956 Black

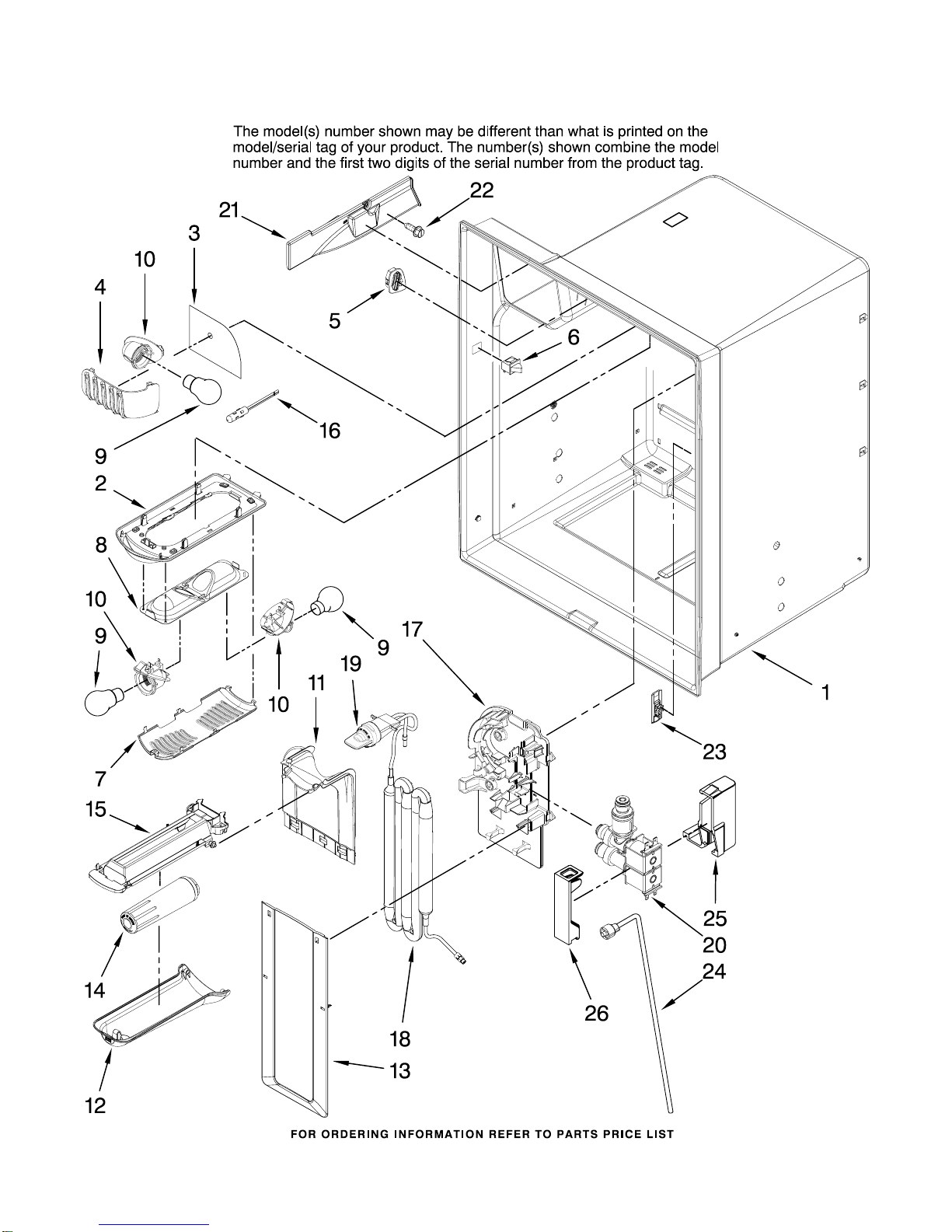

REFRIGERATOR LINER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

REFRIGERATOR LINER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67006328 Module, Light

3 67006326 Foil, Light

4 67006327 Cover, Light

5 67006316 Grille, Air

6 12466103 Switch, Light (2)

7 67006318 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67006330 Cover, Water Tank

(Upper)

12 67006331 Lid, Water Filter

13 67006329 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 67006325 Bracket, Filter

Base

16 12002355 Thermistor

17 67006324 Bracket, Water

Tank & Valve

18 12956202 Water Tank &

Head Assembly

19 12664501 Plug, Bypass

20 67006322 Valve, Water Inlet

21 67006350 Cover, Ice Box

Harness

22 M0238642 Screw

23 67006319 Cover, Chiller

Vent

24 12962204 Waterline, Cabinet

(W/Nut)

W10118193

Enclosure, Water

Valve Connector

W10118194

Lid, Enclosure

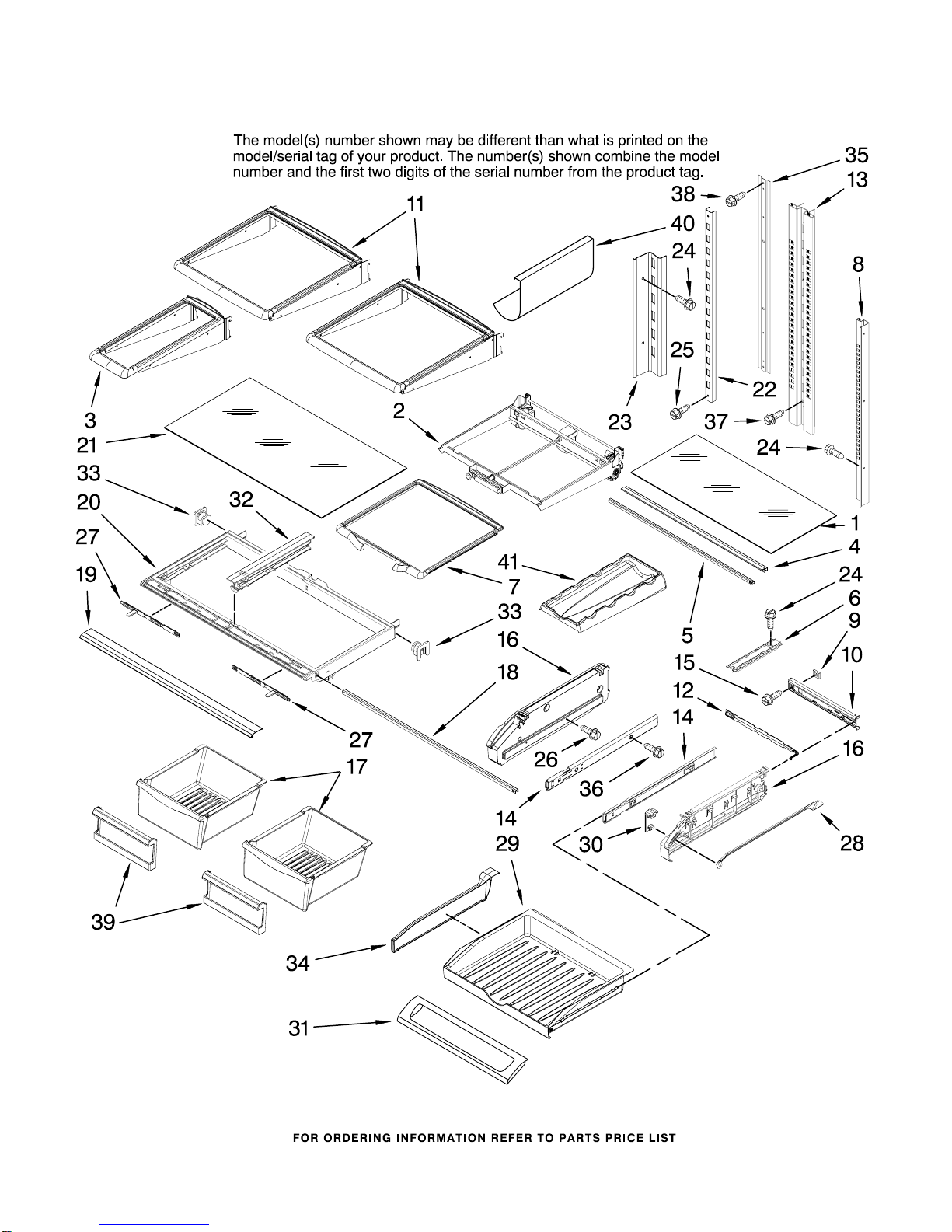

SHELF PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

SHELF PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67002761 Glass, Pantry

2 12753917 Frame Assy.,

Elevator Shelf

W10187852

Shelf, Mini

(Stationary)

4 67006010 Extr, Glass

Support (2)

5 67002330 Brace, Pantry (2)

6 67001719 Track, Pantry

W10187854

Shelf, Elevator

8 67006355 Ladder, Side

Elevator

9 67002329 Gasket, Pantry

10 67005625 Housing, Control

W10187845

Shelf, Glide (2)

12 67003793 Slide, Temperature

13 67006356 Ladder, Center

Elevator

14 67007026 Glide, Drawer (2)

15 67006400 Screw

16 Endcap, Pantry

67005863 Left

12656014 Right

17 67004515 Pan, Crisper (2)

18 67002748 Brace, Crisper

Cover

19 12530643 Trim, Crisper

20 67003854 Frame, Crisper

21 67006704 Glass, Crisper

Cover

22 67006358 Ladder, Center

23 67006354 Ladder, Side

24 67006400 Screw

25 67006360 Screw (2)

26 67006415 Screw

27 67005864 Slide, Humidity

Control

28 67003795 Rod, Temperature

Control

29 67003531 Drawer, Pantry

30 67003791 Knob, Temperature

Control

31 67005899 Door,

Pantry Drawer

32 67004514 Rail, Center

Crisper Frame

33 12603701 Supports,

Crisper Frame

34 67002759 Divider,

Pantry Drawer

35 67006536 Adapter, Center

Ladder

36 67006287 Screw

W10164192

Screw (2)

38 67006415 Screw, Adapter

39 67005912 Front, Crisper

Pan (2)

40 67005999 Rack, Bottle

41 67001656 Trivet, Wine

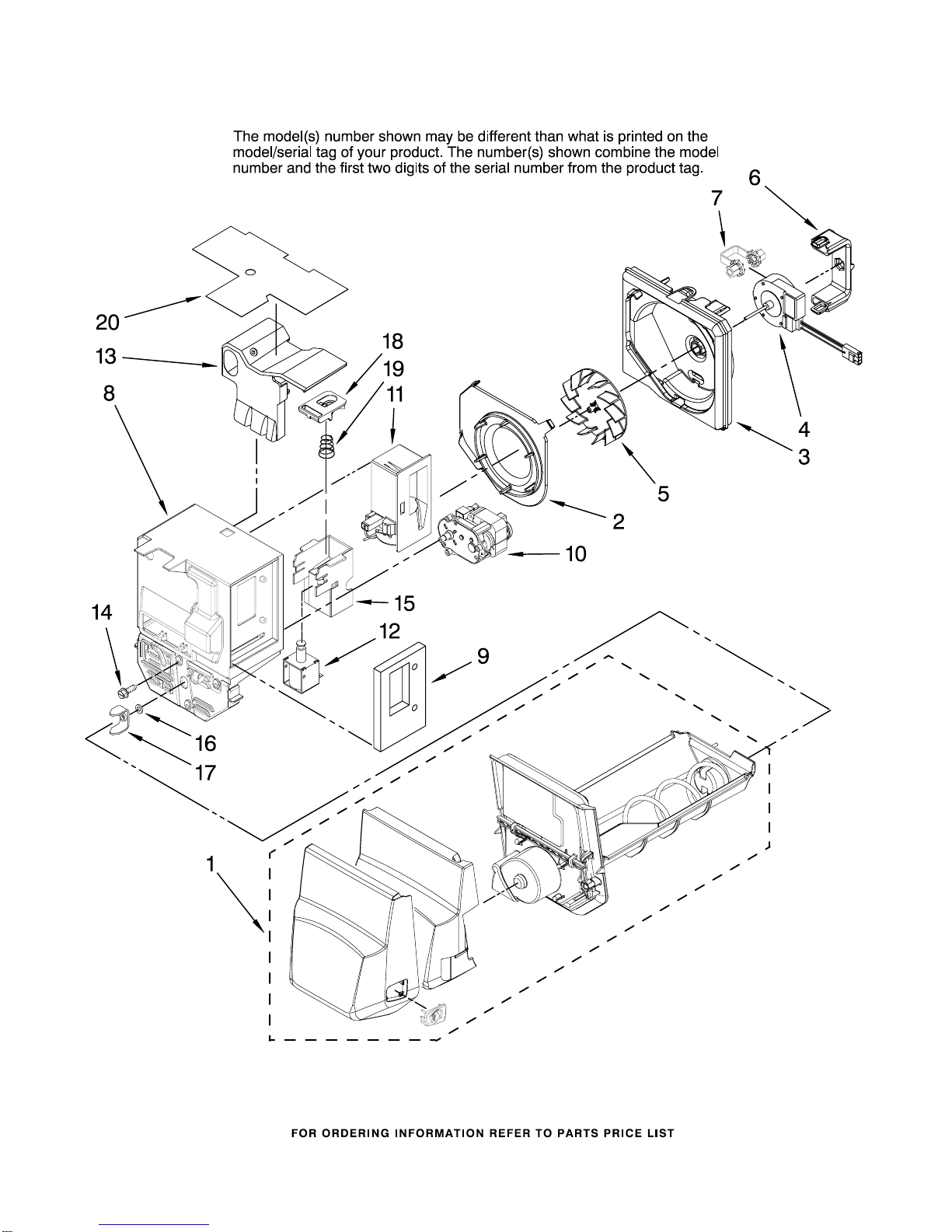

MOTOR AND ICE CONTAINER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

MOTOR AND ICE CONTAINER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

Illus. Part

No. No. DESCRIPTION

67006349

Ice Bin Assembly

(Includes Auger)

W10121282

Inlet, Blower

W10121281

Scroll, Blower

W10162697

Motor, Fan

W10123444

Wheel, Blower

W10165970

Clip, Fan Motor

W10151687

Grommet, Fan Motor

W10187860

Divider, Ice Box

9 67006341 Gasket, Damper

10 67006342 Motor, Auger

W10127427

Damper, Control

12 67006344 Solenoid

W10118612

Liner, Divider

14 67006425 Screw (3)

15 67007111 Bracket, Solenoid

16 67006346 Washer

17 63052−1 Yoke, Ice

Dispenser

18 67006347 Yoke, Solenoid

19 67006348 Spring, Solenoid

W10142628

Foil, Ice Box

ICEMAKER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

ICEMAKER PARTS

For Models: JFI2589AEP10, JFI2589AES10

(Stainless) (Stainless)

W10190617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10122527

Mold & Heater

Assembly (Also

Order 542638

Grease)

W10175514

Arm, Shutoff

3 628515 Cup, Fill

4 627843 Ejector

5 2182124 Ice Stripper

6 2194712 Support, Housing

7 2315522 Retainer,

Thermostat

8 627985 Thermostat

(Also Order 542369

Cement)

9 489464 Screw (3)

W10121440

Extension, Shutoff

Arm

11 8533917 Screw (2)

W10121444

Cover

13 2313326 Switch, On−Off

W10121269

Impinger Assy.

W10117806

Harness, Icemaker

16 67006425 Screw, Impinger

17 626678 Module Assembly

18 489279 Screw (3)

19 628379 Clip

W10121434

Insert, Fill Cup

100

W10122533

Icemaker Assembly

Following Parts Not Illustrated

10244904 Coupling
