jobmate YT9231 Bedienungsanleitung
3
Know Your Product................................................................................................. 4
Technical Specications......................................................................................... 5
Description of Symbols...........................................................................................6
Contents of Petrol Line Trimmer............................................................................. 7
General Safety Instructions.................................................................................... 8
Additional Safety Instructions................................................................................. 10
Assembly Instructions............................................................................................ 11
Operation............................................................................................................... 13
Starting With A Cold Motor................................................................................ 13
Starting With A Warm Motor .............................................................................13
Switching the Motor Off.................................................................................... 13
Tips for Using Your Petrol Line Trimmer .......................................................... 14
Maintenance........................................................................................................... 15
Warranty ................................................................................................................ 18
CONTENTS
4
1 Trimming head 2 Cutting line
3Protective cover with screw insert 4Guide shaft with drive shaft
5Additional handle 6 On/Off switch
7Throttle trigger lock 8Throttle trigger
9Fastening eye for carry strap 10 Choke lever
11 Starter cord 12 Spark plug connector
13 Air lter cover 14 Petrol tank
15 Housing for motor cooling and starter 16 Fuel pump / primer
17 Carry belt 18 Guide shaft connection piece
KNOW YOUR PRODUCT
15
6
7
8
9
10
11 12
13 14
1
3
4
5
18
2
17
3
16
17
5
TECHNICAL SPECIFICATIONS
Motor power 750W
Motor type 2-stroke, air-cooled
Displacement 25CC
No-load speed 7500/min
Fuel Petrol/oil mix 40:1
Cutting width 38cm
6

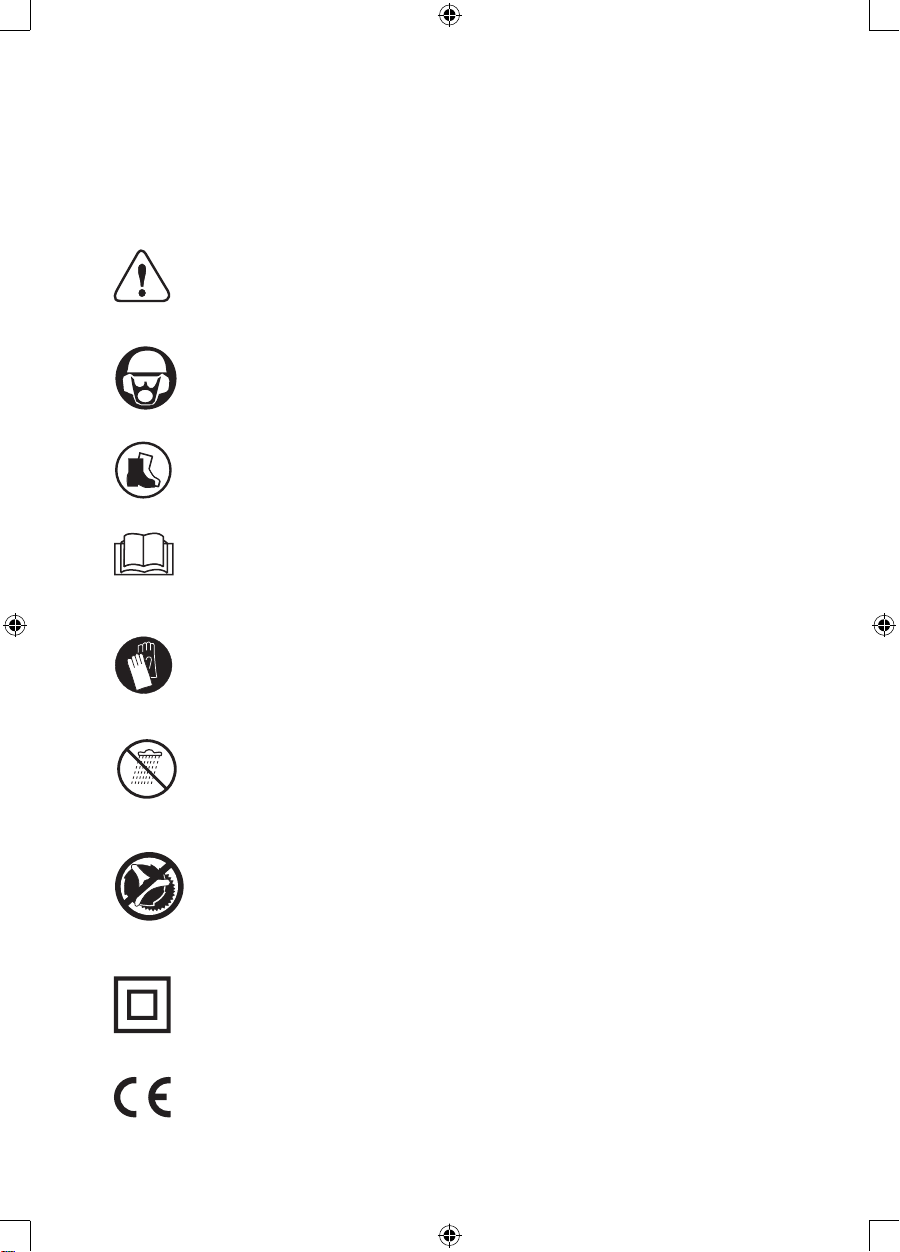

The rating plate on your tool may show symbols. These represent important
information about the product instruction on its use.
Conforms to all relevant European Directives.
Double insulated for additional protection.
DESCRIPTION OF SYMBOLS
Use eye protection.
Use ear protection.
Wear respiratory protection.
Wear sturdy, non-slip footwear.
Read the user manual.
Do not expose to rain.
Do not use the metal saw blades.
Use protective gloves.
Denotes risk of personal injury, loss of life, or damage to the tool in case
of nonobservance.
7
1* Unit
1* Guide shaft
1* Additional handle
1* Protective cover
1* Wrench
1* Ratio tank
1* Instruction manual

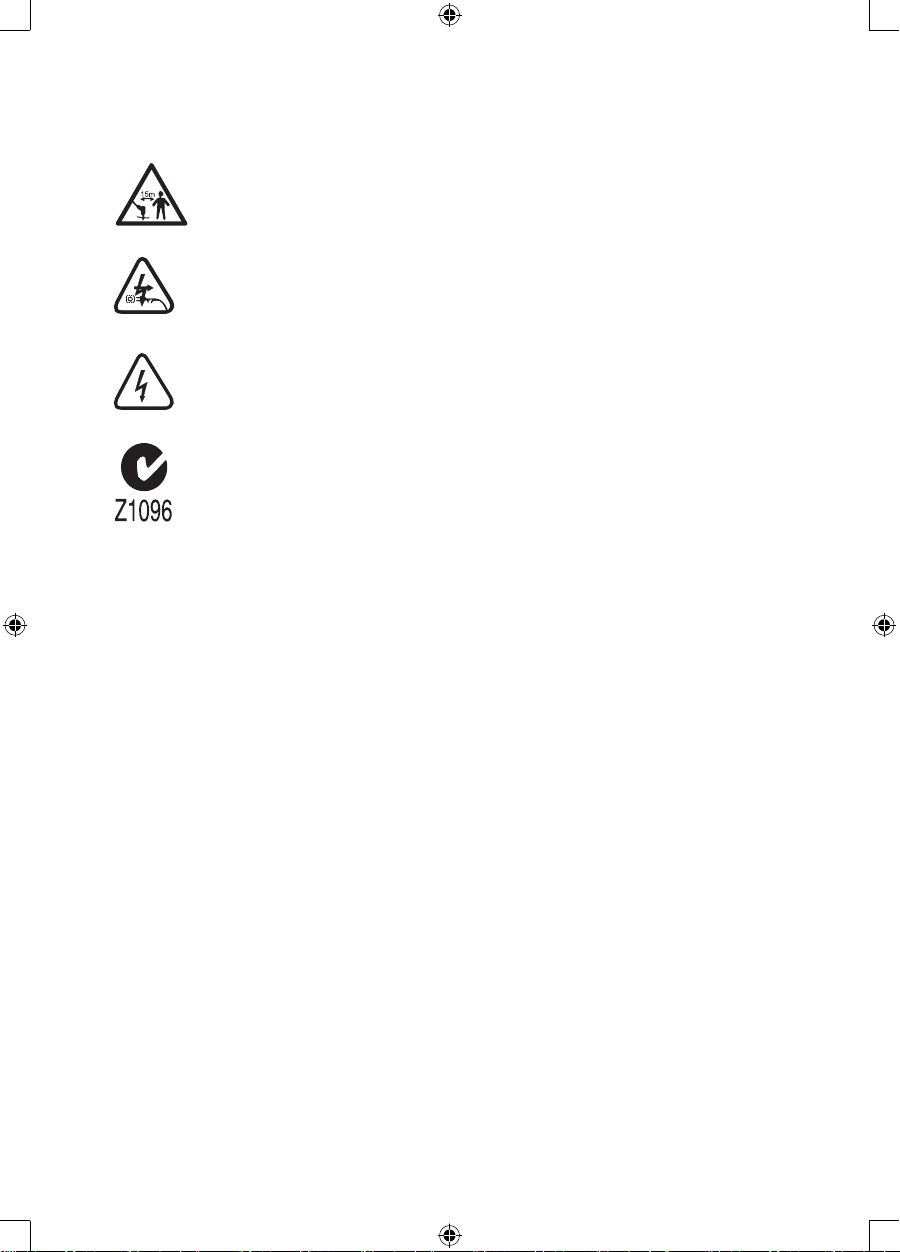

DESCRIPTION OF SYMBOLS (CONT.)
CONTENTS OF PETROL GRASS TRIMMER
Denotes risk of electric shock.
Conforms to relevant standards for electromagnetic compatibility.
Disconnect from mains power immediately if the power cord becomes
damaged.
Keep children at a distance of no less than 15m from the work area.
8
WARNING! Read all safety instructions and operating instructions. Failure
to comply with the operating instructions or safety instructions can lead to electric
shocks, burns and/or serious injuries. Keep the safety instructions and operating
instructions safely for future use.
Safety equipment
When working with the device, the corresponding plastic protective cover for the
ejected at high speed. The blade integrated into the protective cover for the trimming
line cuts the line automatically to the optimum length.
1. Read the operating instructions carefully. Familiarise yourself with the settings
and the correct use of the machine.
2. Never allow children or other persons who are not familiar with the operating
instructions to use the machine. Local regulations may stipulate a minimum age
for operators.
3. Never mow whilst other persons, in particular children or animals, are nearby.
Warning: Observe a safety distance of 15m. If approached, switch the
machine off immediately. Bear in mind that the operator or user of the machine is
responsible for accidents involving other people or their property.
Preparatory measures
1. Sturdy footwear and long trousers should always be worn whilst mowing. Do not
mow barefoot or whilst wearing light sandals.
2. Check the area where the machine is to be used and remove any objects that
could be caught up and thrown.
• Store petrol exclusively in containers intended for this purpose.
whilst the motor is running or whilst the machine is still hot.
be removed from the area where the petrol has been spilled. Do not attempt to
start the machine until the petrol vapour has dissipated completely.
• For safety reasons petrol tanks and other tank connections must be replaced if
they are damaged.
4. Replace faulty silencers.
5. Before using carry out a visual check to ensure that the cutting tools, fastening
bolts and the complete cutting unit are not worn out or damaged. In order to avoid
an imbalance worn out or damaged cutting tools and fastening bolts should be
replaced in complete sets.
GENERAL SAFETY INSTRUCTIONS
9
GENERAL SAFETY INSTRUCTIONS (Cont.)
Handling
sturdy work shoes, tough work gloves, a protective helmet, a protective mask
for the face or protective goggles to protect the eyes and good earplugs or other
hearing protection to protect against the noise.
2. Store the device in a safe place. Open the petrol cap slowly in order to release
hazards, make sure that you are at least 3 metres from the refuelling area before
starting the device.
3. Switch the device off, before setting it down.
should wrap completely around the handle.
the device if it has not been correctly set up or is not complete or securely
assembled.
6. Take care that the handles are dry and clean and that there is no petrol mix on
them.
7. Guide the trimming head at the desired height. Avoid touching small objects (e.g.
stones) with the trimming head. When mowing on a slope always
stay downhill of the cutting device. Never cut or trim on a slick or slippery hill or
slope.
8. Check the area to be mowed, solid objects such as stones, metal parts etc. can
be picked up and ejected at high speed. Danger of injury!
9. Keep all parts of the body and all of your clothing far from the trimming head,
when starting or running the motor. Before starting the motor do not forget that
the trimming head must not come into contact with any obstacle.
10. Always turn off the motor before working on the cutting device.
sources or heat/sparks such as gas water heaters, clothes driers, oil stoves or
portable radiators etc.
12. Always keep the protective cover, trimming head and the motor free of mowing
residue.
13. Only appropriately trained adults are permitted to operate, adjust and service
the device.
14. If you are not familiar with the trimmer, practice handling with the motor
turned off (ON/OFF).
15. Always check the area to be mowed, solid objects such as metal parts,
bottles, stones etc. can be caught up and ejected at high speed and can cause
serious injuries to the operator and can damage the device permanently. If you
should inadvertently touch a solid object with the trimmer then turn the motor
off immediately and check the device for damage. Never use the device when it
is damaged or appears to be faulty.
16. Always trim and cut in the upper speed range. Do not let the motor run at a low
speed at the start of mowing or during trimming.
10
GENERAL SAFETY INSTRUCTIONS (Cont.)
ADDITIONAL SAFETY INSTRUCTIONS
17. Use the device exclusively for its intended purpose, such as trimming and
mowing weeds.
18. Never hold the trimming head above knee height when in operation.
19. Do not use the device if bystanders or animals are in the immediate vicinity.
Maintain a minimum distance of 15m between the operator and other persons
or animals when mowing. When mowing down to ground level please maintain a
minimum distance of 30m.
20. When mowing on a slope always stay downhill of the cutting device. Only work
1. DO NOT USE ANY FUEL other than that recommended in the operating
instructions. Always observe the instructions in the “Fuel and oil“ section of these
operating instructions. Do not use petrol that has not been correctly mixed with
2-stroke engine oil. Otherwise, there is a risk of permanent damage to the motor,
whereby the manufacturer‘s guarantee will be void.
3. DO NOT USE THE DEVICE WITHOUT ITS EXHAUST and correctly installed
exhaust guard.
4. DO NOT TOUCH THE EXHAUST, either with hands or your body. Hold the device
5. DO NOT USE THE DEVICE IN AN UNCOMFORTABLE POSITION, do not use
when off balance, with outstretched arms or with one hand. Always use both
handles.
6. Always keep the trimming head on the ground when the device is in operation.
7. Use the grass trimmer/motor scythe exclusively for its intended purpose, i.e.
trimming grass and mowing.
8. Do not use the device for extended periods of time, take regular breaks.
9. DO NOT USE THE DEVICE WHILST UNDER THE INFLUENCE OF ALCOHOL
OR DRUGS.
10. ONLY USE THE DEVICE IF THE PROTECTIVE COVER AND/OR EQUIPMENT
IS INSTALLED AND IN GOOD CONDITION.
11. Any changes, additions or removals carried out on the product can endanger
personal safety and voids the manufacturer’s guarantee.
12. Never use the device near easily combustible liquids or gases, either in
13. DO NOT USE ANY OTHER CUTTING TOOLS. For your own safety use only
accessories and ancillary equipment that are listed in the operating instructions
or that are recommended or listed by the manufacturer. The use of tools or
accessories other than those recommended in the operating instructions or in the
catalogue can present a risk of personal injury for you.
11
ASSEMBLY INSTRUCTIONS
1. Assembly of guide shaft (g. D - E)
Loosen the handle screw (A) on the coupling sleeve (B), pull the knob (D), feed
the drive axle (C) in and let it latch into place. In doing so ensure that the drive
shafts inside the guide shaft mesh together properly (turn the reel head a little
if necessary). Now tighten the handle screw (A) as shown in g. 4b. After being
assembled for the rst time the handle screw need only be loosened a little and the
lever actuated in order to dismantle the guide shaft.
B17
3
C
19
AB
CD
D
A
EF1
3
F2 3
G
17
9
G1
3
1
G2
G3
16
HI
