FX80 Supervisory Controller Installation
Instructions
Applications
This document describes how to mount and wire the following:
• DIN-mount, 24 VAC/DC powered FX80 controller
• Wall-mount, Class 2 universal AC power adapter supplying 24 VAC
Note: The FX80 controller requires, at a minimum, FX Supervisory Release 14.1. A maximum
of four total option card modules are supported. Separate limits may exist in the controller’s
license to further limit functionality.
Figure 1: FX80 Controller
North American Emissions Compliance
United States
This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the users will be required to correct the interference at their own
expense.
Part No. 24-10143-861 Rev. A
2019-03-22 (barcode for factory use only)
FX-SC8BASE-0, FX-SC8BASE-700
*2410143861A*
Canada
This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Installation
Unpack the FX80 controller and inspect the contents of the package for damaged or missing
components. If the controller is damaged, contact the Johnson Controls® Product Sales Operations
team and return any damaged components for repair or replacement.
Parts included
• FX80 controller
• MicroSD card installed in the controller
• Coax-mount 2.4 GHz antenna for Wi-Fi, two 3-position RS-485 connector plugs, and a grounding
wire
• 2-position 24 VAC/DC connector plug
• This FX80 Installation Sheet
• FX80 IT Security Notice
Special tools needed
• One of the following:
- UL listed, Class 2, 24 VAC transformer, rated at minimum of 20 VA
- 24 VDC power supply, capable of supplying at least 1A (24W)
- FX-SC8XPS-0 wall-mount AC power adapter with barrel connector plug
Note: A dedicated transformer is required (it cannot power additional equipment).
• DIN rail, type NS35/7.5 (35mm x 7.5mm) and DIN rail end-clips (stop clips), recommended for any
installation that includes option modules.
• Suitable tools and fasteners for mounting the unit and any accessories.
Precautions
General precautions
Warning
Risk of Electric Shock.
Disconnect the power supply before making electrical connections. Contact with components carrying
hazardous voltage can cause electric shock and may result in severe personal injury or death.
FX80 Supervisory Controller Installation Instructions2
Warning
Risque de décharge électrique.
Débrancher l'alimentation avant de réaliser tout branchement électrique. Tout contact avec des
composants conducteurs de tensions dangereuses risque d'entraîner une décharge électrique et de
provoquer des blessures graves, voire mortelles.
Important: Use copper conductors only. Make all wiring in accordance with local, national,
and regional regulations. Do not exceed the FX80 Supervisory Controller’s electrical ratings.
Important: Remove all power to controller before attaching (plug in) or detaching (unplug)
any option card module, to prevent possible equipment damage.
Static Discharge Precautions
Static charges produce voltages high enough to damage electronic components. The
microprocessors and associated circuitry within the devices are sensitive to static discharge.
Note: Removal of the cover is not required. The controller contains no configurable or user-
serviceable items (such as jumpers).
Mounting
Mount the controller in a location that allows clearance for wiring, servicing, and module removal.
Physical mounting
The following applies when you physically mount the unit.
• Horizontal mounting is strongly recommended to achieve maximum heat dissipation and meet
the operating temperature upper limit. Any other mounting orientation reduces the upper limit.
• Mounting on a 35 mm wide DIN rail is recommended. The controller's unit base has a molded
DIN rail slot and locking clip, as do option modules. DIN rail mounting ensures alignment of the
connectors between the devices.
• Up to four option modules are supported.
• Dimensions of a unit appear in the following figure.
3FX80 Supervisory Controller Installation Instructions
Figure 2: Mounting dimensions of Controller and option modules
Environmental requirements
Note: This product is for indoor use only (altitude to 2,000 m [6,562 ft]).
Ambient conditions must be within the range of:
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing. Pollution Degree 3
• Supply (mains) voltage requirements are as follows:
- Allowable voltage fluctuation to -15%, +10%
- Temporary overvoltages +/- 15%
Note: Horizontal mounting is strongly recommended to achieve maximum heat dissipation
and meet the operating temperature upper limit. Any other mounting orientation reduces this
upper limit.
Mounting on the DIN rail
1. Pull the controller’s locking clip down.
FX80 Supervisory Controller Installation Instructions4
Figure 3: Fastening to the rail
2. Tilt the module to hook over the DIN rail.
3. Push down and in on the unit, fastening it to the rail.
4. Slide the module firmly into the controller’s connector (or existing option module) to seat.
5. Mount any option card module onto the DIN rail in the same way.
Figure 4: Slide module into Controller's connector
6. Slide the module firmly into the controller’s connector to seat. Repeat for other modules as
needed (four maximum).
7. Secure both ends of the final assembly with DIN rail end-clips provided by the DIN rail vendor.
Wiring
Earth ground and power
Earth grounding provides protection from electrostatic discharge or other forms of EMI.
5FX80 Supervisory Controller Installation Instructions
Figure 5: Earth ground and power options
Depending on the power source used:
•2.1 (AC): Dedicated 24 V transformer required, with neither side of the transformer secondary
tied to ground.
•2.2 (DC): Polarity is not important (uses onboard diode bridge), with neither leg tied to ground.
•2.3 (Wall-mount AC adapter, FX-SC8XPS-0) instead of wiring 24 V to 2-position connector. Do not
use the wall-mount AC adapter simultaneously with power wired 2-position connector.
Wiring earth ground and power
Important: Before making power terminations, de-energize the 24 V power source. Do not
restore power until completing all other mounting and wiring.
Important: A grounding point must be present nearby.
1. Install the included earth ground wire to the controller's earth ground spade lug, and
terminate the other end to a nearby earth ground.
2. Unplug the controller's 2-position power connector plug and terminate the 24 V supply source
(AC or DC) to the connector. Leave the connector unplugged.
Communications wiring
FX80 Supervisory Controller Installation Instructions6
Figure 6: Communications ports on the Controller
Table 1: Communications ports on the Controller
Callout Description
1 RS-485 ports and bias switches
2 Wi-Fi adapter, settings switch, and antenna
3 Ethernet ports, 10/100-Mbit, RJ-45
4 Earth ground and 24 V power input
Wi-Fi
An integral Wi-Fi adapter provides wireless connectivity using the IEEE 802.11b/g/n standard, and
provides an RP-SMA coax antenna connector.
The Wi-Fi configuration switch sets operation as follows:
•OFF - (Default, middle) Wi-Fi adapter is disabled.
•ACC - Controller provides operation as a Wi-Fi access point for up to 20 clients.
•CLT - Controller operates as a client to an existing 802.11b/g/n router or access point.
Note: By default, the Wi-Fi software is disabled. You must enable the WiFi within the software
before it becomes available.
RS-485 wiring
On the controller's top side, two RS-485 ports operate as COM1 and COM2. Each port is capable of
up to 115,200 baud, and uses a 3-position, screw terminal connector.
Use shielded, twisted-pair, 18-22 AWG cabling to wire in a continuous daisy chain fashion to other
RS-485 devices: minus-to-minus, plus-to-plus, and shield-to-shield. Connect the shield wire to earth
ground at one end only.
For more information about wiring guidelines, refer to FX-PC Series Controllers MS/TP
Communications Bus Technical Bulletin (LIT-12011670).
7FX80 Supervisory Controller Installation Instructions

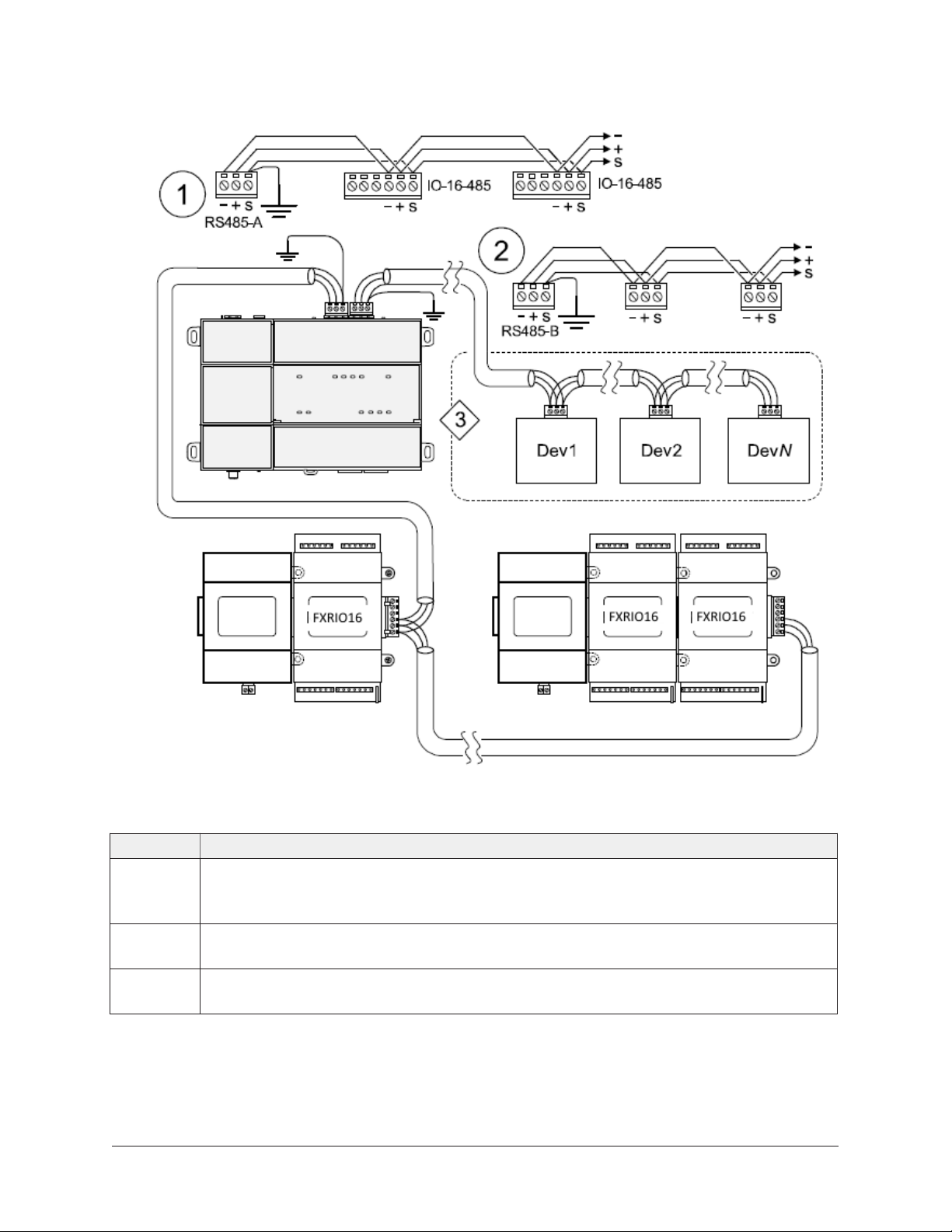

Figure 7: RS-485 wiring example
Table 2: RS485 wiring example
Callout Description
1 RS-485 port A (COM1) is often used to support a trunk of LP-FXRIO16-0 modules. Do
not mix LP-FXRIO16-0 modules with other types of RS-485 devices on the same RS-485
trunk.
2 RS-485 port B (COM2) supporting a network of other field devices using RS-485 field
communication.
3 RS-485 devices on the same network should use the same protocol and baud rate. Up
to 32 or more devices may be supported depending on device specifications.
RS-485 bias switches
Each RS-485 port has an adjacent 3-position biasing switch, with these settings:
•BIA - (Default, middle) Controller provides RS485 biasing, but without a termination resistor.
FX80 Supervisory Controller Installation Instructions8
•END - Both RS485 biasing and a termination resistor are provided by the controller.
•MID - No RS485 biasing or termination resistor is provided by the controller.
Often, adding RS-485 biasing can improve communications by eliminating indeterminate idle
states.
Note: FX-PC controllers implement biasing. When using RS485 for BACnet MS/TP with FX-PC
controllers, we recommend using the MID position (with FX-PC controllers at the ends of the
trunks with their EOLs set). The BIA position is not required for an all FX-PC controller trunks.
For more information, refer to the FX-PC Series Controllers MS/TP Communications Bus Technical
Bulletin (LIT-12011670).
Ethernet wiring
Two RJ-45 10/100-Mbit Ethernet connectors are labeled PRI (LAN1) for primary, and SEC (LAN2) for
secondary. Use a standard Ethernet patch cable to an Ethernet switch.
The factory-default IP address for PRI is 192.168.1.149. The default subnet mask is 255.255.255.0.
By default, the SEC (LAN2) port is disabled.
Setup and adjustments
Power Up and initial checkout
1. Apply power. To do this, do one of the following:
- Insert the 2-position 24 V power connector plug.
- Insert the barrel plug of the wall-mount AC adapter (FX-SC8XPS-0).
2. Check the STAT (Status) and BEAT (Heartbeat) LEDs.
When power is applied, the green STAT LED flashes. This LED indicates that the system is work-
ing, with power applied. During startup, the BEAT LED may blink at 1 Hz with a 90/10 percent
on/off duty cycle. When startup completes, the platform daemon is started, and the normal 1
Hz flash at 50/50 percent on/off duty cycle of the BEAT LED returns.
LEDs
The controller provides a number of status LEDs. All but one of the LEDs are visible with the front
access door closed.
Figure 8: LEDs and descriptions
9FX80 Supervisory Controller Installation Instructions
Table 3: LEDs and descriptions
Callout Description
1Wi-Fi (Green) - Lit when Wi-Fi configuration switch is not off
2RS-485 A (COM1) - Transmit (TX) and Receive (RX)
3RS-485 B (COM2) - Transmit (TX) and Receive (RX)
4STAT (Green) - Remains lit when controller is powered
5BEAT (Yellow) - Heartbeat, normally 1 Hz 50% duty cycle
6Secondary Ethernet - SEC (LAN2) Link and Activity
7Primary Ethernet - SEC (LAN1) Link and Activity
8(Behind door) BACKUP (Green) - Typically off
If the BEAT LED stays on constantly, does not light, or blinks very fast, have your ABCS Distributor
contact the FSC or your appropriate technical support group.
Important: The 1 Hz, 90/10 percent on/off BEAT flash at startup also occurs during other
critical operations, such as a firmware upgrade to the controller or any attached modules.
To be safe, do not remove power from the controller while its BEAT LED flashes with a 90/10
percent on/off duty cycle. Wait for the normal (50/50 percent) flash to return before removing
power.
Remove or replace the microSD flash memory card
If necessary, you may need to remove or replace microSD flash memory card.
Figure 9: MicroSD card location in Controller
Table 4: MicroSD card location in Controller
Callout Description
1Access shutter for the microSD card (slide to open or close)
2Card carrier inside the controller
3MicroSD card to insert or remove from the card carrier
Important: Disconnect all power to the controller before removing or inserting the
microSD card. Otherwise, equipment damage is likely to occur.
FX80 Supervisory Controller Installation Instructions10
Inhaltsverzeichnis
Andere Johnson Controls Controller Handbücher
Johnson Controls
Johnson Controls VMA1200 Series Betriebsanleitung
Johnson Controls
Johnson Controls tyco iSTAR Edge G2 Bedienungsanleitung
Johnson Controls
Johnson Controls VMA 1400 Series Bedienungsanleitung
Johnson Controls
Johnson Controls VA9208-GG Series Bedienungsanleitung
Johnson Controls
Johnson Controls CIS01 Bedienungsanleitung
Johnson Controls
Johnson Controls M4-CGM Series Bedienungsanleitung
Johnson Controls
Johnson Controls VMA18 Series Bedienungsanleitung
Johnson Controls
Johnson Controls SE-ZEC510-1 Bedienungsanleitung
Johnson Controls
Johnson Controls FX Supervisory Controller RS-485 Card Bedienungsanleitung
Johnson Controls
Johnson Controls A28 Series Bedienungsanleitung
Johnson Controls
Johnson Controls VA7820-GG-1 Series Bedienungsanleitung
Johnson Controls
Johnson Controls S321 Beilage
Johnson Controls
Johnson Controls CK721-A Bedienungsanleitung
Johnson Controls
Johnson Controls G861 Series Service-Handbuch
Johnson Controls
Johnson Controls Metasys DX-9100 Service-Handbuch
Johnson Controls
Johnson Controls FX-PCV1656 Bedienungsanleitung
Johnson Controls
Johnson Controls FMS-1655L Bedienungsanleitung
Johnson Controls
Johnson Controls Tyco Kantech KT-400 Bedienungsanleitung
Johnson Controls
Johnson Controls M9132-AG -1N Series Bedienungsanleitung
Johnson Controls
Johnson Controls MR12DR230-1C Bedienungsanleitung
