Installation Instructions M9206-DNx

Issue Date August 29, 2014

M9206-DNx Series Electric Spring Return

Economizer Damper Actuators

Installation

IMPORTANT: Use this M9206-DNx Series

actuator only to control equipment under normal

operating conditions. Where failure or malfunction of

the damper actuator could lead to personal injury or

property damage to the controlled equipment or

other property, additional precautions must be

designed into the control system. Incorporate and

maintain other devices, such as supervisory or alarm

systems or safety or limit controls, intended to warn

of or protect against failure or malfunction of the

damper actuator.

IMPORTANT : Utiliser ce M9206-DNx Series

actuator uniquement pour commander des

équipements dans des conditions normales de

fonctionnement. Lorsqu'une défaillance ou un

dysfonctionnement du damper actuator risque de

provoquer des blessures ou d'endommager

l'équipement contrôlé ou un autre équipement, la

conception du système de contrôle doit intégrer des

dispositifs de protection supplémentaires. Veiller

dans ce cas à intégrer de façon permanente d'autres

dispositifs, tels que des systèmes de supervision ou

d'alarme, ou des dispositifs de sécurité ou de

limitation, ayant une fonction d'avertissement ou de

protection en cas de défaillance ou de

dysfonctionnement du damper actuator.

The M9206-DNx actuator is designed for use with the

Johnson Controls AD-DME100-0 Economizer

Controller.

Parts Included

The M9206-DNx actuator is included.

Special Tools Required

•5/16 in. (8 mm) square socket or 3/8 in. (10 mm)

12-point socket

•5/16 in. (8 mm) hex socket or nut driver

Setup and Adjustments

Spring Return Direction - Counterclockwise (CCW)

Operation

For CCW spring return operation, mount the actuator

to the damper shaft so the CCW face of the actuator

(Figure 1) is away from the damper. The coupler is at

the 0° position to drive Clockwise (CW) and spring

return CCW.

Arrow

Indicating

CCW

Spring Return

Direction

Auxiliary

Switch

Adjuster

Located

on the Left

0° Position

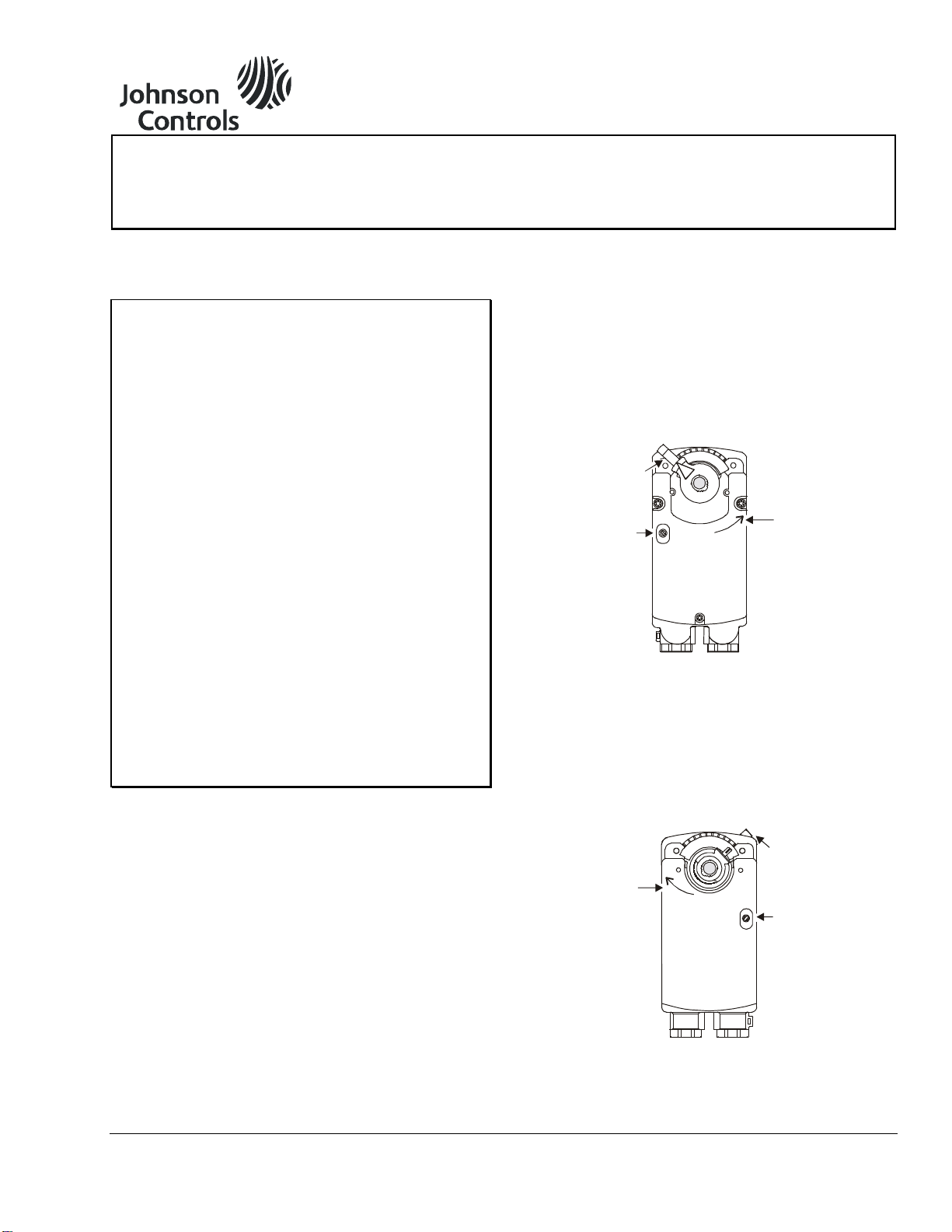

Figure 1: CCW Face of the Actuator

Spring Return Direction - Clockwise (CW)

Operation

To change the spring return direction to CW, mount

the actuator to the damper shaft so the CW face of the

actuator (Figure 2) is away from the damper. The

actuator now drives CCW from the 0° position.

Arrow

Indicating

Spring Return

Direction

Auxiliary

Switch

Adjuster

Located

on the Right

0° Position

Figure 2: CW Face of the Actuator

Part No. 34-1280-130, Rev. C www.johnsoncontrols.com

Insert the coupler in the CW face of the actuator for

easier access to the coupler set screw. (Refer to the

Removable Coupler section.)

Removable Coupler

If the damper shaft is less than 3.2 in. (80 mm) long,

insert the coupler in the face of the actuator closest to

the damper.

If the damper shaft is shorter than 1.7 in. (42 mm),

mounting the actuator requires a shaft extension.

To change the coupler’s position, refer to Figure 3 and

proceed as follows:

Groove for the

Locking Clip

Splines

Coupler

Locking Clip

in Position

on the Coupler

Locking

Clip

Figure 3: Changing the Position of the Coupler

1. Pull the locking clip off the coupler, and remove

the coupler from the actuator.

Note: Proceed to the Rotation Range section for a

rotation range less than 90°.

2. Reinsert the coupler into either the CW or CCW

face of the actuator (determined by the shaft

length discussed earlier in this section).

Note: The coupler splines (shown in Figure 3) are

designed to prevent inserting the coupler at the wrong

end of the rotation range.

IMPORTANT: For 0 to 93° rotation, the coupler

must fit as close as possible to, but not on top of, the

metal plate at the spring return position.

3. Snap the locking clip securely into the coupler

groove to retain the coupler in the actuator.

Mounting

Mount the M9206-DNx actuators in any convenient

orientation in economizer applications only. Install the

actuators on a 1/2 in. (13 mm) round damper shaft,

using the M9000-159 anti-rotation bracket. If the shaft

extends less than 3.2 in. (80 mm), refer to the

Removable Coupler section.

Note: The anti-rotation bracket is part of the

economizer installation, but not included with an

M9206-DNx actuator. If the bracket is missing, order

one using product code number M9000-159.

You may use the existing mounting arrangement. For a

new application, mount the actuator as follows:

1. Attach the M9000-159 anti-rotation bracket to the

appropriate face of the actuator, using two

4.5 mm x 13 mm Phillips thread-forming screws

(Figure 4). Use the most appropriate pair of

notches in the bracket tab.

M9000-159

No. 10-16 x 5/8 in.

Hex Washer-head

Tapping Screw (2)

4.5 x 13 mm

Phillips

Thread-forming

Screw (2)

Tab

M9206

Figure 4: Attaching the Anti-Rotation Bracket to

the Actuator

2. Tighten the screws to 15 lb·in (1.7 N·m).

IMPORTANT: The tab on the anti-rotation

bracket must fit into the actuator slot. This prevents

actuator binding and premature wear.

Do not overtighten the sheet metal screws to avoid

stripping the threads. Do not overtighten the Phillips

thread-forming screws to avoid stripping the actuator

threads.

3. Position the M9206-DNx actuator (with the

M9000-159 anti-rotation bracket attached) on the

damper shaft, and secure the bracket to the

mounting surface with two No. 10-16 x 5/8 in. hex

washer-head tapping screws.

2M9206-DNx Series Electric Spring Return Economizer Damper Actuators Installation Instructions

4. Rotate the damper to the desired position when

power is lost. If a tight seal is required, grasp the

damper drive shaft with pliers and compress the

damper seals.

5. Hold the damper shaft in this position, and tighten

the coupler set screw. Recommended torque for

the set screw is 150 to 180 lb∙in (17 to 20 N∙m).

Rotation Range

The actuator is factory set for 0 to 93° rotation.

To reduce the rotation range, reposition the coupler as

follows:

1. Make sure that the damper blade is visually

accessible or its position is permanently marked

on the end of the damper shaft (Figure 5).

Figure 5: Damper Position Icons

2. Determine the desired rotation range, and subtract

this amount from 90°.

3. Remove the locking clip from the coupler.

(Shown in Figure 3.)

4. Manually reposition the coupler, so the coupler set

screw aligns with the nodule guide that

corresponds to the value determined in Step 2.

Examples:

1. For a rotation range of 60°, move the coupler so

the coupler set screw is at the 30° nodule guide

(90° - 60° = 30°). Refer to Figure 6.

Nodule Guides

in 10° Increments

(Starting with 0°)

CCW Face of Actuator

Note: Coupler set screw is shown at 30° in both applications.

CW Face of Actuator

0° Nodule

Guide

90° Nodule Guide

Figure 6: Actuator Set for 60° Rotation

2. For a rotation range of 45°, move the coupler so

the coupler set screw is midway between

the 40° and 50° nodule guides (90° - 45° = 45°).

Note: The minimum rotation range is 34.5°.

3. Snap the locking clip securely into the coupler

groove to retain the coupler in the actuator.

Wiring

WARNING: Risk of Electric Shock.

Disconnect or isolate all power supplies before

making electrical connections. More than one

disconnection or isolation may be required to

completely de-energize equipment. Contact with

components carrying hazardous voltage can cause

electric shock and may result in severe personal

injury or death.

AVERTISSEMENT : Risque de décharge

électrique.

Débrancher ou isoler toute alimentation avant de

réaliser un raccordement électrique. Plusieurs

isolations et débranchements sont peut-être

nécessaires pour -couper entièrement l'alimentation

de l'équipement. Tout contact avec des composants

porteurs de tensions dangereuses risque d'entraîner

une décharge électrique et de provoquer des

blessures graves, voire mortelles.

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

MISE EN GARDE : Risque de dégâts matériels.

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils formant

un court-circuit ou connectés de façon incorrecte

risquent d'endommager irrémédiablement

l'équipement.

M9206-DNx Series Electric Spring Return Economizer Damper Actuators Installation Instructions 3

CAUTION: Risk of Property Damage.

Do not plug or unplug an actuator into a DME

controller with power applied. Making such a

connection or disconnection may result in permanent

damage to the controller or actuator.

MISE EN GARDE : Risque de dégâts matériels.

Ne pas connecter ou déconnecter un actionneur d'un

contrôleur DME sous tension. Une telle connexion ou

déconnexion risque d'endommager

irrémédiablement le contrôleur ou l'actionneur.

IMPORTANT: Make all wiring connections in

accordance with the National Electrical Code and

local regulations. Use proper Electrostatic Discharge

(ESD) precautions during installation and servicing to

avoid damaging the actuator’s electronic circuits.

The M9206-DNx actuator is supplied with a

factory-wired 5-pin connector that connects to an

AD-DME-100-0 Economizer Controller. To wire the

auxiliary switch on the DNB, refer to Figure 7.

Auxiliary Switch

(Shown Factory Set)

White/Yellow

White/Gray

White/Blue

COM

(21)

(23)

(22)

Figure 7: Wiring Diagram for the M9206-DNB Model

Auxiliary Switch (DNB Models)

The M9206-DNB-3S model has a built-in auxiliary

switch with a switch adjuster accessible on either face

of the actuator. (See Figure 1 and Figure 2.) The

factory setting is 20°. Refer to the Auxiliary Switch

Rating in the Technical Specifications section.

The switch point is continuously adjustable from

0 to 90°. For the most accurate position of the switch,

refer to Figure 9 and use the method in the following

example.

To change the trip point:

1. Position the actuator in the full spring return

position.

Note: The switch is factory set to trip when the

actuator reaches the 20° position.

2. Turn the switch adjuster until it points to the

desired switch trip point.

3. Connect the switch to an ohmmeter and apply

power to the actuator through the economizer

controller. Modify the settings so the actuator

passes the point where the switch should trip. If

the point is not in the proper position, turn the

switch adjuster again to optimize the setting.

405070

Switch

Adjuster

Figure 8: Switch Trip Point Setting

Repairs and Replacement

Do not make field repairs. For a replacement or an

accessory, refer to the M9206-DNx Series Electric

Spring Return Economizer Damper Actuators Product

Bulletin (LIT-120111).

4M9206-DNx Series Electric Spring Return Economizer Damper Actuators Installation Instructions

Technical Specifications

Product

M9206-DNx Series Electric Spring Return Economizer Damper Actuators

Power Requirements

and Input Signal

See

AD-DME100-0

Direct-Mount Economizer Controller Installation Instructions

(Part No. 24-9618-30).

Auxiliary Switch Rating DNB: Single-Pole, Double-Throw (SPDT), switch rated at 24 VAC, 1.5 A inductive, 3.0 A

resistive, 50 VA maximum, Class 2

Spring Return Direction is selectable with the mounting position of the actuator:

CCW face of actuator away from the damper for CCW spring return;

CW face of actuator away from the damper for CW spring return

Mechanical Output

Running Torque: 53 lb∙in (6 N∙m)

Rotation Range

Adjustable from 34.5 to 90

CW or CCW, mechanically limited to 93

±3 degrees

Rotation Time Powered (On): CW (non-spring return direction): 10-40 seconds for full travel for 0 to 6 NM

(0 to 53 lb·in) all operating conditions, 22 seconds nominal for 50% rated load.

Powered (On): CCW (spring return direction): 20-70 seconds for full travel for 0 to 6 NM

(0 to 53 lb·in) in all operating conditions.

Unpowered (Off): Spring return time is 35 seconds nominal, 70 seconds maximum

Cycles

60,000 full stroke cycles; rated at 53 lb∙in (6 N∙m)

Audible Noise Rating 55 dBA nominal at 1 m

Electrical Connection Actuator: 17 in. (0.43 m) cable with 5-pin connector

Auxiliary Switch: 48 in. (1.2 m) cable with 18 AWG wire leads

Mechanical Connection

1/2 in. (13.0 mm) diameter round shaft or a 3/8 in. (10 mm) square shaft

Enclosure

IP20

Ambient Conditions Operating: -25 to 140°F (-32 to 60°C); 10 to 90% RH, noncondensing

Storage: -40 to 186°F (-40 to 86°C); 5 to 95% RH, noncondensing

Dimensions (H x W x D)

DNx: 6.98 x 3.25 x 2.99 in. (177.29 x 82.55 x 75.95 mm)

Shipping Weight

3.45 lb (1.56 kg)

Agency Compliance

UL Listed, File E27734, CCN XAPX (US) XAPX7 (Canada)

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these

specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication

or misuse of its products.

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.

M9206-DNx Series Electric Spring Return Economizer Damper Actuators Installation Instructions 5

Inhaltsverzeichnis

Andere Johnson Controls Controller Handbücher

Johnson Controls

Johnson Controls FA-33-741 Series Bedienungsanleitung

Johnson Controls

Johnson Controls LN Series Bedienungsanleitung

Johnson Controls

Johnson Controls MP8 20 Series Bedienungsanleitung

Johnson Controls

Johnson Controls F4-CV Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9116-GG-1N4 Series Bedienungsanleitung

Johnson Controls

Johnson Controls Metasys MS-FEU1610-0U Bedienungsanleitung

Johnson Controls

Johnson Controls tyco Kantech IP LINK Bedienungsanleitung

Johnson Controls

Johnson Controls PCV1617 Bedienungsanleitung

Johnson Controls

Johnson Controls PENN P70 Series Bedienungsanleitung

Johnson Controls

Johnson Controls M4-CVM03050 Bedienungsanleitung

Johnson Controls

Johnson Controls VA7800 Series Bedienungsanleitung

Johnson Controls

Johnson Controls VA9208-AG Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9310 Series Bedienungsanleitung

Johnson Controls

Johnson Controls EDA-8100 Montageanleitung

Johnson Controls

Johnson Controls PENN P70AB-2 Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCG26 Bedienungsanleitung

Johnson Controls

Johnson Controls Metasys NCE25 series Bedienungsanleitung

Johnson Controls

Johnson Controls M9108-GG 1N Series Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCA3611 Bedienungsanleitung

Johnson Controls

Johnson Controls EasyIO FW-08 V3 Bedienungsanleitung

Johnson Controls

Johnson Controls CIS01 Bedienungsanleitung

Johnson Controls

Johnson Controls Metasys FAC4911 Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCG1621 Series Bedienungsanleitung

Johnson Controls

Johnson Controls VA-7010 Series Handbuch

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
