CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

CKM-EP1502 CONTROLLER

This document provides hardware installation and setup instructions for

CKM-EP1502, the authentic Mercury™ intelligent dual reader controller. This

document is divided into the following sections:

•General Information on page 1

•Mounting Information on page 2

•Wiring Information on page 3

•Memory and Real-Time Clock Backup Battery on page 7

•Setup Information on page 8

•Addressing Mode Configuration (Static IP or DHCP) on page 12

•Status LEDs on page 14

•Specifications on page 15

•Maintenance on page 17

•Connecting Third Party Devices (Assa Abloy®) on page 18

GENERAL INFORMATION

The CKM-EP1502 intelligent dual reader controller provides decision making,

event reporting, and database storage for the Mercury hardware platform. Two

reader interfaces provide control for two doors.

It communicates with the host via onboard 10-BaseT/100Base-TX Ethernet

port. Port 1 (RS-232) is reserved for future use.

Two physical barriers can be controlled with the CKM-EP1502. Each reader

port can accommodate a read-head that utilizes Wiegand, magnetic stripe, or

two-wire RS-485 electrical signaling standards; one- or two-wire LED

controls; and buzzer control (one-wire LED mode only). Four Form-C relay

outputs may be used for strike control or alarm signaling. The relay contacts are

rated at 5 A at 30 VDC, dry contact configuration. Eight inputs are provided for

monitoring the door contacts, exit push buttons and alarm contacts. The CKM-

EP1502 requires 12-24 VDC for power. We recommend that the CKM-EP1502

be mounted 0.25 in. minimum above any conductive surface.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

MOUNTING INFORMATION

Figure 1: CKM-EP1502 Hardware

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

WIRING INFORMATION

This sections covers the following:

•Cable Routing

•Input Power, Cabinet Tamper, and UPS Fault Input Wiring

•Communication Wiring

•Reader Wiring

•Input Circuit Wiring

•Relay Circuit Wiring

Cable Routing

The cables should run in grounded conduit or at least two feet from AC

power, fluorescent lights, or other high energy sources.

IMPORTANT: All data cables should be physically separated from power lines. If

conduit is used, do not run data cables in the same conduit as power cables or

certain door strike cables, e.g. strike voltage greater that 42V or Magnetic door

locks without EMI suppression.

All cables must conform with the following regulations:

• National Electrical Code

•NFPA 70

• Local electrical codes

• Canadian Electric Code C22.1 (installations in Canada)

• BSI Standard BS7671, latest edition (installations in Great Britain)

Cabling should be made using good wiring practices and should be long

enough to allow service loops at their terminations in the enclosure.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

Input Power, Cabinet Tamper, and UPS Fault Input Wiring

The CKM-EP1502 requires 12-24 VDC power. Locate power source as

close to the unit as possible.

IMPORTANT: Connect power with minimum of 18 AWG wire. Connect the GND

signal to earth ground in one location within the system. Multiple earth ground

connections may cause ground loop problems and is not advised.

IMPORTANT: Observe polarity on 12-24 VDC input.

There are two dedicated inputs for cabinet tamper and UPS fault

monitoring. Normal (safe) condition is a closed contact. If you are not

using these inputs, install a jumper wire.

Figure 2: CKM-EP1502 Input Power, Cabinet Tamper, and UPS Fault Input Wiring

Communication Wiring

The CKM-EP1502 controller communicates to the host via the onboard

10-BaseT/100Base-TX Ethernet interface (port 0).

The serial I/O device communication port (TB3) is a two-wire RS-485

interface which you can use to connect additional I/O panels. The

interface allows multidrop communication on a single bus of up to 4,000

feet (1,219 m). Use twisted pairs (minimum 24 AWG) with an overall

shield for communication.

IMPORTANT: Install the termination jumper ONLY on the panel at each end of the

RS-485 bus. Failure to do so compromises the proper operation of the

communication channel.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

Figure 3: CKM-EP1502 Communications Wiring

Reader Wiring

Each reader port supports Wiegand, magnetic stripe, and two-wire RS-

485 electrical interfaces. Power to the reader is selectable: 12 VDC (VIN

must be greater than 20 VDC), or power is passed through (PT) from the

input voltage of the CKM-EP1502 (TB1-VIN) and is current limited to

150 mA for each reader port. Readers that require different voltage or

have high current requirements should be powered separately. Refer to

the reader manufacture specifications for cabling requirements. In the

two-wire LED mode, the Buzzer output in used to drive the second LED.

Reader port configuration is set via the host software.

Figure 4: CKM-EP1502 Reader Wiring

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

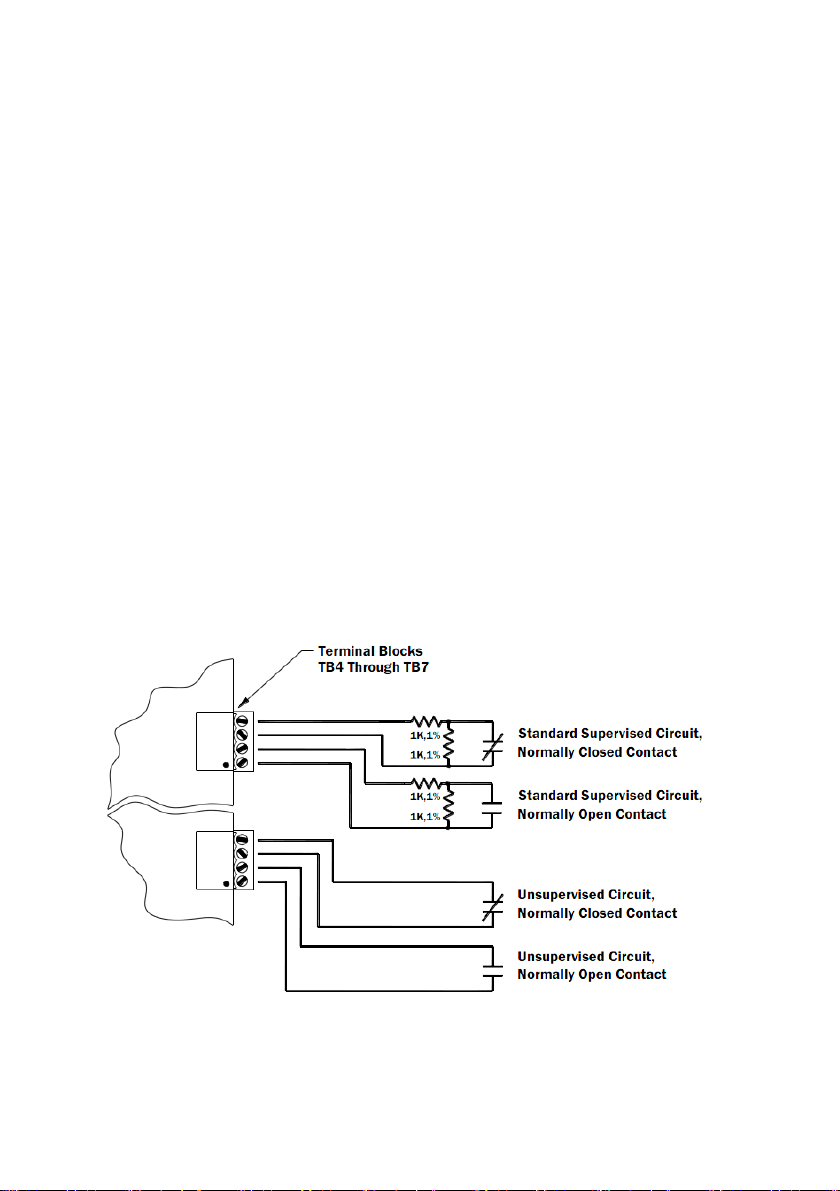

Input Circuit Wiring

Typically, you use these inputs to monitor door position, request to exit,

or alarm contacts. You can configure input circuits as unsupervised or

supervised.

When request to exit (REX) input is supervised, the strike remains locked

when a transition to open state or short state occurs. Such transitions do

not generate notifications. The strike relay unlocks only when the REX

input changes to the active state, that is, when the REX switch contact

opens or closes depending on the configuration.

When you configure input circuits as unsupervised, reporting consists of

only the open or closed states.

When you configure input circuits as supervised, the input circuit reports

not only open and closed states, but also open and short. A supervised

input circuit requires two resistors added to the circuit to facilitate proper

reporting. The standard supervised circuit requires 1k Ohm, 1% resistors,

and should be located as close to the sensor as possible. Configure

custom end of line (EOL) resistances via the host software.

The input circuit wiring configurations shown in Figure 5 are supported,

but may not be typical.

Figure 5: CKM-EP1502 Input Circuit Wiring

Andere Handbücher für P2000

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Johnson Controls Controller Handbücher

Johnson Controls

Johnson Controls LX-HPUL-1 Bedienungsanleitung

Johnson Controls

Johnson Controls NAE35 Bedienungsanleitung

Johnson Controls

Johnson Controls ATC1510 Bedienungsanleitung

Johnson Controls

Johnson Controls LP-FXVMA Series Bedienungsanleitung

Johnson Controls

Johnson Controls VA9208-AG Series Bedienungsanleitung

Johnson Controls

Johnson Controls P266 Series Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCA3611 Bedienungsanleitung

Johnson Controls

Johnson Controls York 366-70488 Bedienungsanleitung

Johnson Controls

Johnson Controls F4-CG Series Bedienungsanleitung

Johnson Controls

Johnson Controls M100C Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco Power Neo HS2016 Bedienungsanleitung

Johnson Controls

Johnson Controls FEC26 Series Bedienungsanleitung

Johnson Controls

Johnson Controls SMART EQUIPMENT VERASYS VEC100 Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCV Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9203-B Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9102 GA-1S Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9203-AG-2 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PCA3613 Bedienungsanleitung

Johnson Controls

Johnson Controls NXA-VAV-01 Bedienungsanleitung

Johnson Controls

Johnson Controls LP-FX2211T-0 Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCA3611 Bedienungsanleitung

Johnson Controls

Johnson Controls Hitachi C4IRK01 Bedienungsanleitung

Johnson Controls

Johnson Controls PCV1617 Bedienungsanleitung

Johnson Controls

Johnson Controls PENN ACT2 Service-Handbuch

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
