IPL, LT2216, 96041010101, 2010-01

LT2216

ILLUSTRATED PARTS LIST

MODEL NO. 96041010101

CUSTOMER CATALOG NO. LT2216

PRODUCT NO. 960 41 01-01

532 43 01-15 Rev.1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire F T 15 x 6 0 - 6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Operators

3 532 19 68-41 Decal, Warning Eng. Symbols

4 532 42 40-75 Decal, Side Panel

5 532 15 97-36 Decal, Chassis Hot Muffler

6 532 18 04-32 Decal, Fender 100 DB/CE

7 532 18 21-66 Decal, Cutfinger CE

8 532 41 30-02 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 532 14 08-37 Decal, Saddle Brake Parking

11 532 19 63-57 Decal, Warning

12 532 19 43-02 Decal, Mower V-Belt Schematic

13 532 15 97-37 Decal, Brake/Clutch Symbol

14 532 40 91-50 Decal, Eng. HP

15 532 18 39-30 Decal, Cover/Belt GRD

16 532 42 26-85 Decal, Steering

- - 532 40 95-05 Pad, Footrest, LH

- - 532 41 12-73 Pad, Footrest, RH

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 43 14-03 Manual Oper. Euro

- - 532 43 14-04 Manual Oper. Scan

- - 532 43 14-05 Manual Oper. E-Bloc

- - 532 43 14-06 Manual Oper. Baltic

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

DECALS

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

A2A1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

SCHEMATIC

30 33

79 21

43 27

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

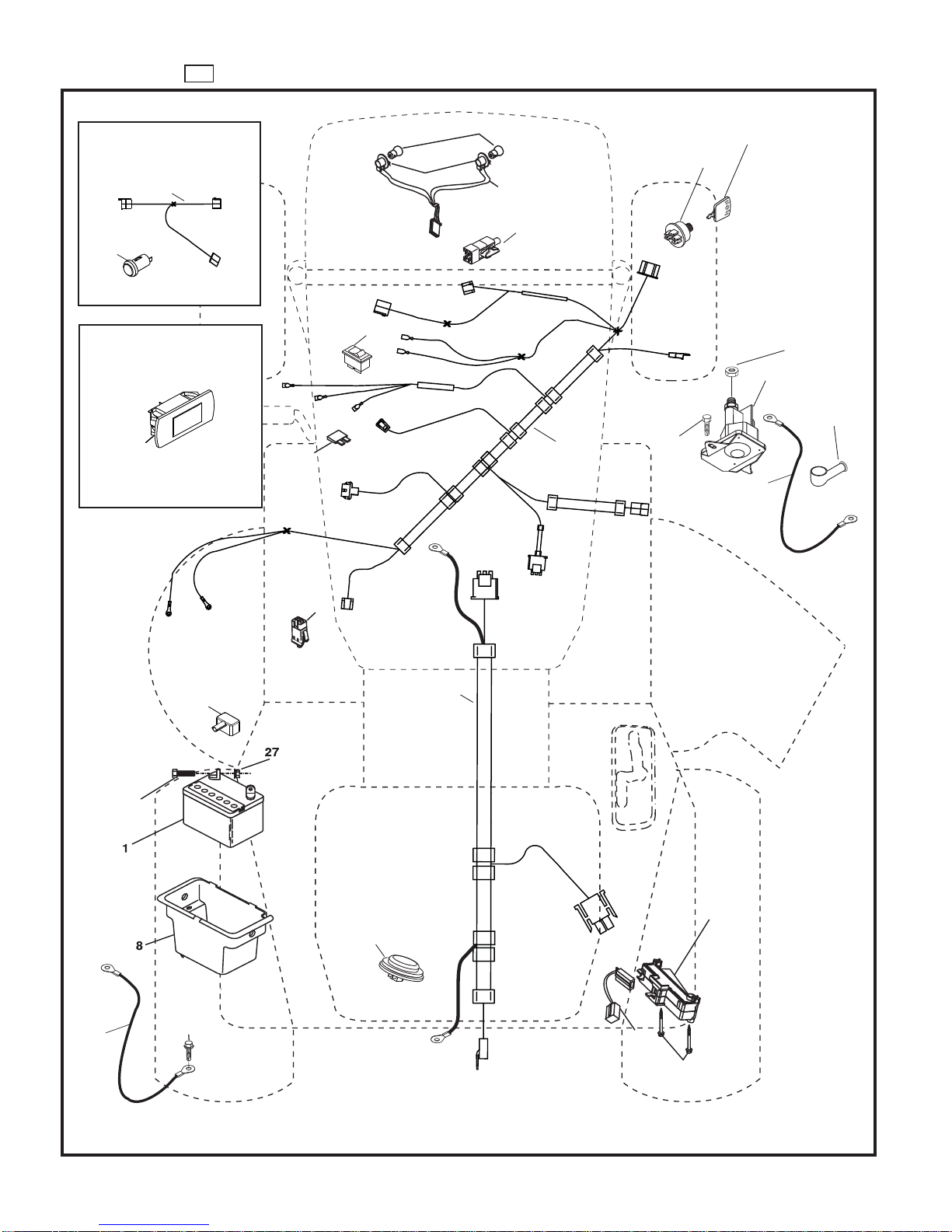

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light

22 532 00 41-52 Bulb Light

25 532 41 28-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ign. Chassis

79 532 17 52-42 Socket Asm Bulb

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-25 Cover Terminal

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

ELECTRICAL

181

196

287

153

130

176

151

225

176

130

130 130

150

191

297

181

194

203

202

176

182

176

175

177

68 68

183 183

236

236 34

235

213

218

chassis-tex_TEX LT PRED_45

217

189

152

228

194

159

180

189

237

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

CHASSIS AND ENCLOSURES

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

5 532 40 95-97 Dash

14 532 42 43-32 Hood

18 532 42 65-11 Grille

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 42 43-35 Fender

52 873 68 05-00 Nut Lock 5/16-18

58 532 41 22-80 Drawbar Upper

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750 BOS THREAD

150 532 40 02-67 Duct Heat Hood

151 532 18 75-68 Bracket Pivot

152 532 19 95-35 Shield Browning

153 532 40 97-40 Lens Bar

159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-28 Bushing Steering

180 532 41 50-63 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo.

182 532 40 71-76 Dash Lower

183 874 78 05-20 Bolt Fin Hex 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-02 Reflector RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 41 45-79 Console Asm. Deck Lift

202 532 42 33-17 Vent Side Hood RH

203 532 42 33-16 Vent Side Hood LH

213 874 76 05-12 Bolt 5/16-18 unc x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

225 532 42 32-28 Bumper

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18

237 532 40 37-04 Plug Mount Cargo

287 817 60 04-06 Screw Hex Wash 1/4-20 x 3/8

297 532 40 18-27 Reflector Insert LH

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

CHASSIS AND ENCLOSURES

185

165 166

64 188

172

125

161

203

184 221

167

160

134

192

157

141

140

139 202

232

175

192 176

178

174

22 166

15 159

195125

158

1183 37

205

155

193

186

189

49 187

190

116

drive-tex_peerless_fender_20_r1

233

275 263

268

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

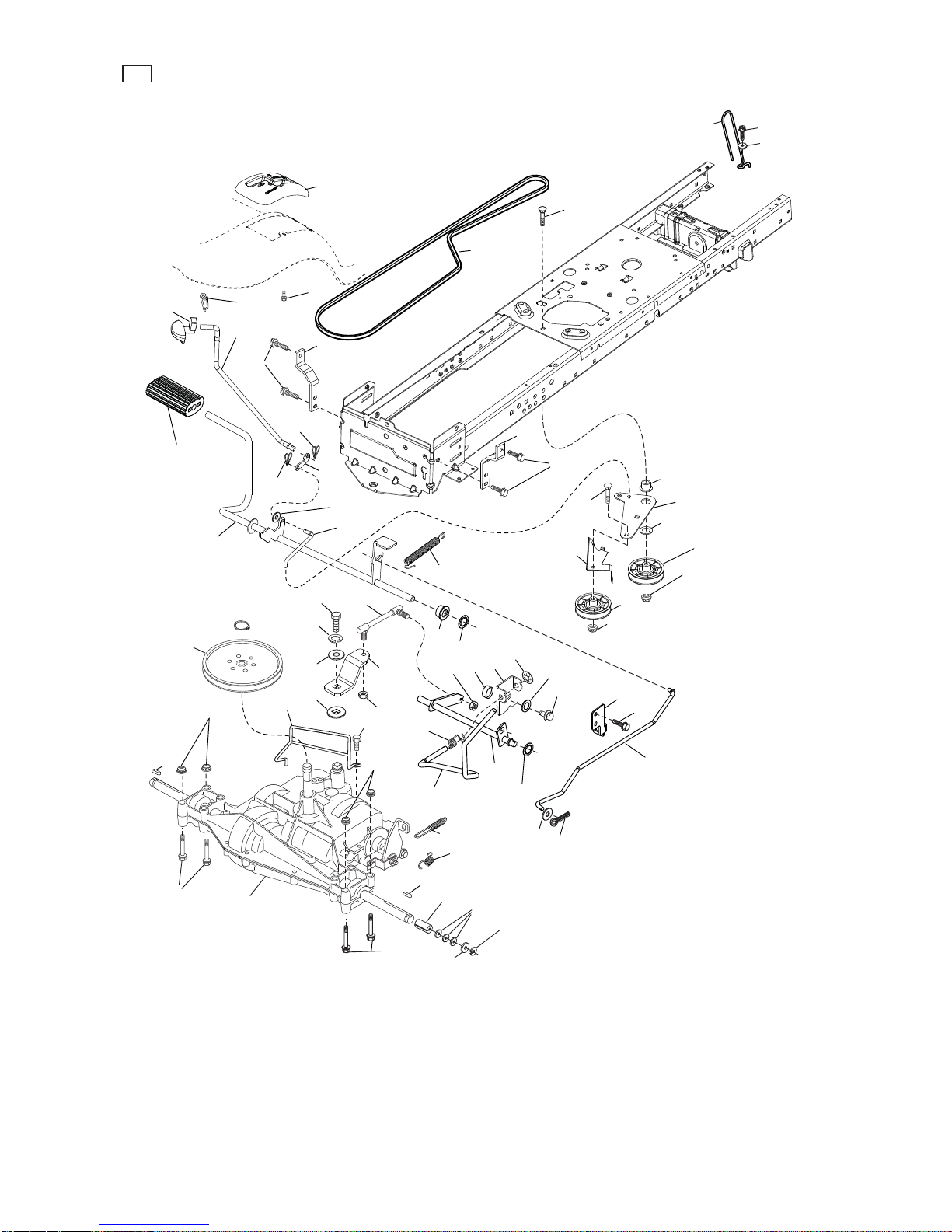

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - Transaxle, Peerless 206-565

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-97 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob

26 532 19 74-55 Spring Brake Return

29 532 19 72-67 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" OFFSET

56 532 19 43-46 V-Belt, Drive

61 532 12 36-66 Pulley Transaxle

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 12-90 Console

73 874 49 05-44 Bolt Hex FLGHD 5/16-18 Gr. 5

74 532 14 24-32 Screw 1/4 x 1/2

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

134 532 19 78-57 Asm Shift

139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch

140 810 04 04-00 Washer Lock Hvy Helical 1/4

141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

155 812 00 00-28 Ring Retainer

157 532 10 57-01 Washer Plate Shift

158 532 19 43-52 Belt Keeper

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

165 532 19 62-12 Bushing Shaft Brake Hand Control

166 532 42 83-05 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 532 19 76-57 Strap Torque LH

174 532 19 72-89 Nut Push

175 532 19 78-58 Shaft Asm. Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Axle

184 532 40 97-47 Handle Parking

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd

193 817 06 05-12 Screw 5/16-18 x 3/4

195 532 19 73-32 Bracket Brake Rod

202 532 19 78-59 Link Transaxle

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt Fin Hex 7/16-14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

263 817 00 06-12 Screw 3/8-16 x 3/4

268 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

275 532 18 24-02 Guard Muffler

TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

DRIVE

Andere Handbücher für LT2216

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Jonsered Rasenmäher Handbücher

Jonsered

Jonsered LT2323 CMA2 Bedienungsanleitung

Jonsered

Jonsered LT2113 Bedienungsanleitung

Jonsered

Jonsered 967 327901-00 Bedienungsanleitung

Jonsered

Jonsered Z48F Bedienungsanleitung

Jonsered

Jonsered LM 2147 CM Bedienungsanleitung

Jonsered

Jonsered LM 2154 CMD Bedienungsanleitung

Jonsered

Jonsered LT2115CM Bedienungsanleitung

Jonsered

Jonsered ICT18A Bedienungsanleitung

Jonsered

Jonsered LT2218A2 Bedienungsanleitung

Jonsered

Jonsered LT2223CMA2 Bedienungsanleitung

Jonsered

Jonsered LT2114CM Bedienungsanleitung

Jonsered

Jonsered FRH 13 M Bedienungsanleitung

Jonsered

Jonsered LT2118CMA Bedienungsanleitung

Jonsered

Jonsered Frontrider FR2216MA 4X4 Bedienungsanleitung

Jonsered

Jonsered LM 2152CMDAE Bedienungsanleitung

Jonsered

Jonsered LT2114 Leitfaden

Jonsered

Jonsered Poulan 12597RB Bedienungsanleitung

Jonsered

Jonsered LM 2153CMDAE Bedienungsanleitung

Jonsered

Jonsered LT2115A Leitfaden

Jonsered

Jonsered FR 13 Gebrauchsanweisung

Jonsered

Jonsered LT2117CMA Bedienungsanleitung

Jonsered

Jonsered FR 2213 MA Bedienungsanleitung

Jonsered

Jonsered LT2216 Leitfaden

Jonsered

Jonsered FR2312 MA Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
