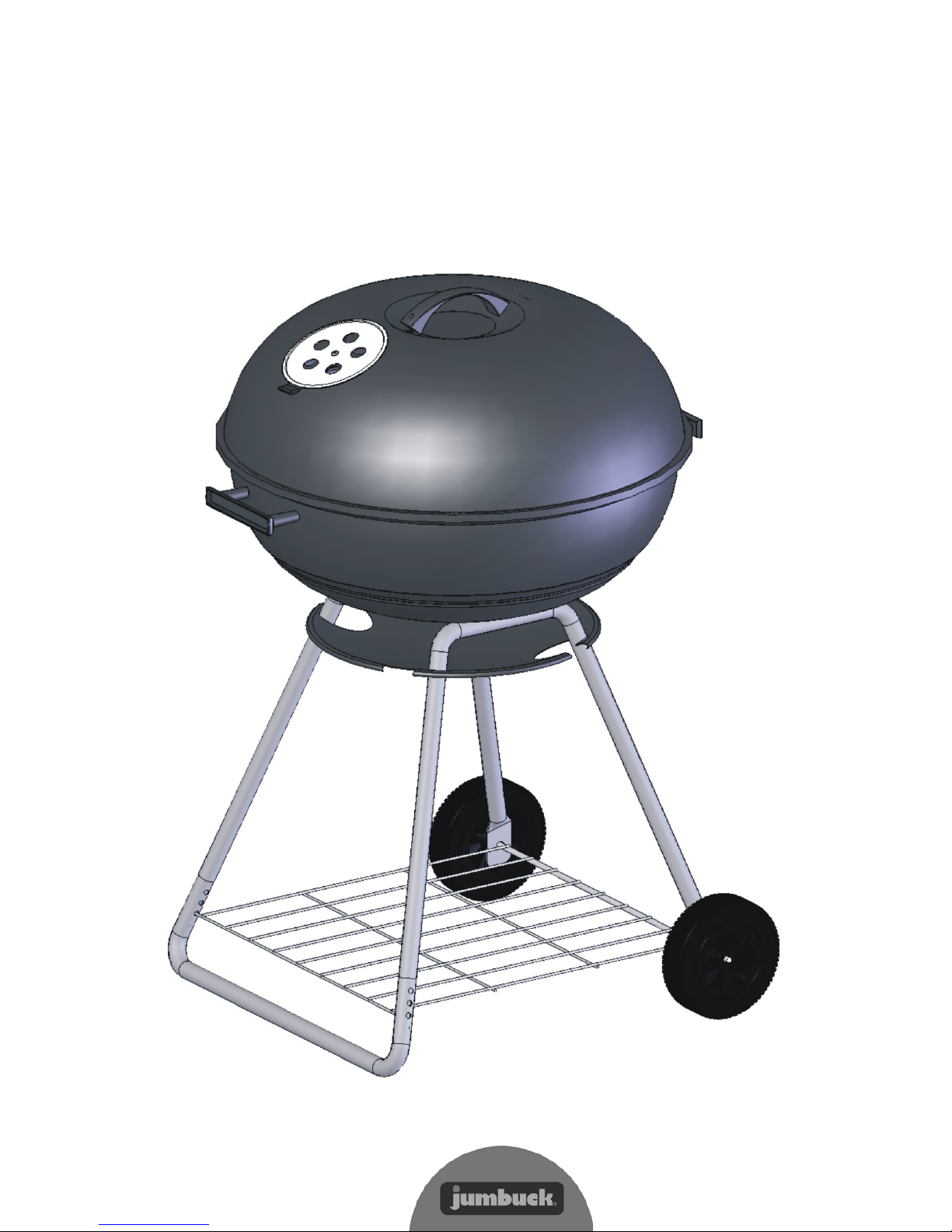

Jumbuck CB001 Bedienungsanleitung

CB001

Assembly instructions

PART NUMBER PART NAME SUPPLIER CODE

1 Round bakelite handle CB00101

2 LID CB00102

3 Air vent with handle(for

Lidl) CB00103

4 Hanging hook CB00104

5 Square bakelite handle CB00105

6 Fire bowl CB00106

7 Air vent with handle(for

fire bowl) CB00107

8 Ash tray CB00108

9 Leg R CB00109

10 Leg L CB00110

11 Wire shelf CB00111

12 Leg-M CB00112

13 Wheel(150) CB00113

1.Leg L …. 1pc

2. Leg-R .........

1pcs

3. Wire shelf... 1pc

4. Leg-M..... 1pcs

5. Square bakelite

handle..2pcs

6 . Wheel(150) ...

2pcs

7. Air vent with handle(for

fire bowl).......1pcs

8. Fire bowl.....

1pcs

9.Charcoal grid.. 1pcs

10. Cooking

grid …... 1pcs

11. Round bakelite

handle…... 1pcs

12. Lid ... 1pcs

13. Air vent(for lid).......

1pcs

14. Hanging hook ...

1pc

15 Ash tray......1pcs

zFor outdoor use only.

zImproper installation, adjustment, alteration,

service or maintenance can cause property damage,

injury or death. Read the installation, operating

and maintenance instructions thoroughly before

installing or servicing this equipment.

zWarning: accessible parts may be very hot. Keep

young children away.

zDo not move the appliance during use.

zAny modification of the appliance may be

dangerous.

zInstaller to leave instructions with the consumer

and consumer to retain them for future reference.

4pcs

2 pcs

4 pcs

2 pcs

Bolt

M6 x 35 mm

4 pcs

2 pcs

12pcs

4 pcs

2 pcs

Bolt

M5 x 32 mm

Bolt

M6 x 15 mm

Flat Washer

Ø4.0 mm

Lock Washer

Ø5.0 mm

Flat Washer

Ø6.0 mm

Nut M6

Bolt

M5 x 10 mm

Wing Nut

Nut M5

Bolt

M4x 20 mm

Nut M4

Nut M8

Dispose of all polythene packing carefully and keep out of the reach of

children.

Please read the section on barbecue safety prior to using your Barbecue.

TOOLS REQUIRED

*Philips screwdriver

*Pliers or adjustable spanner

IMPORTANT NOTES

*Do not use this appliance indoors.

*Do not use this appliance inside a tent, gazebo or whithin a confined

space.

*This heater will become very hot during and for some time after

use.Keep children away from the heater and do not touch metal parts of

the heater when in use. Use suitable gloves for protection, especially

*when loading the heater with logs and coal.

We recommend protecting your heater when not in use with a cover to

protect from rusting and exposure to rain.

STEP 1

Insert Leg L (Part 1) and Leg R (Part 2) to the Leg M (Part 4) as shown, and then

assemble Bottom shelf (Part 3) to the legs.

STEP 2

Assemble wheel axis through Leg L & R and Wheel (Part 6), use bolt (x, 2) to tighten.

STEP 3

Assemble Body handle (Part 5) to the Pan (Part 8) as shown, use bolt B (x, 4) to

tighten.

STEP 4

Assemble Air valve (Part 7) to the Pan as shown, use bolt, nut to tighten.

STEP 5

Assemble Pan to the legs as shown, use Lock washer C (x, 4), Nut F(x, 4), Flat

washer E(x, 4), Bolt J(x, 4) to tighten.

STEP 6

Place Cooking grid (Part 9) into the Pan.

STEP 7

Then place Cooking grid (Part 10) into the Pan.

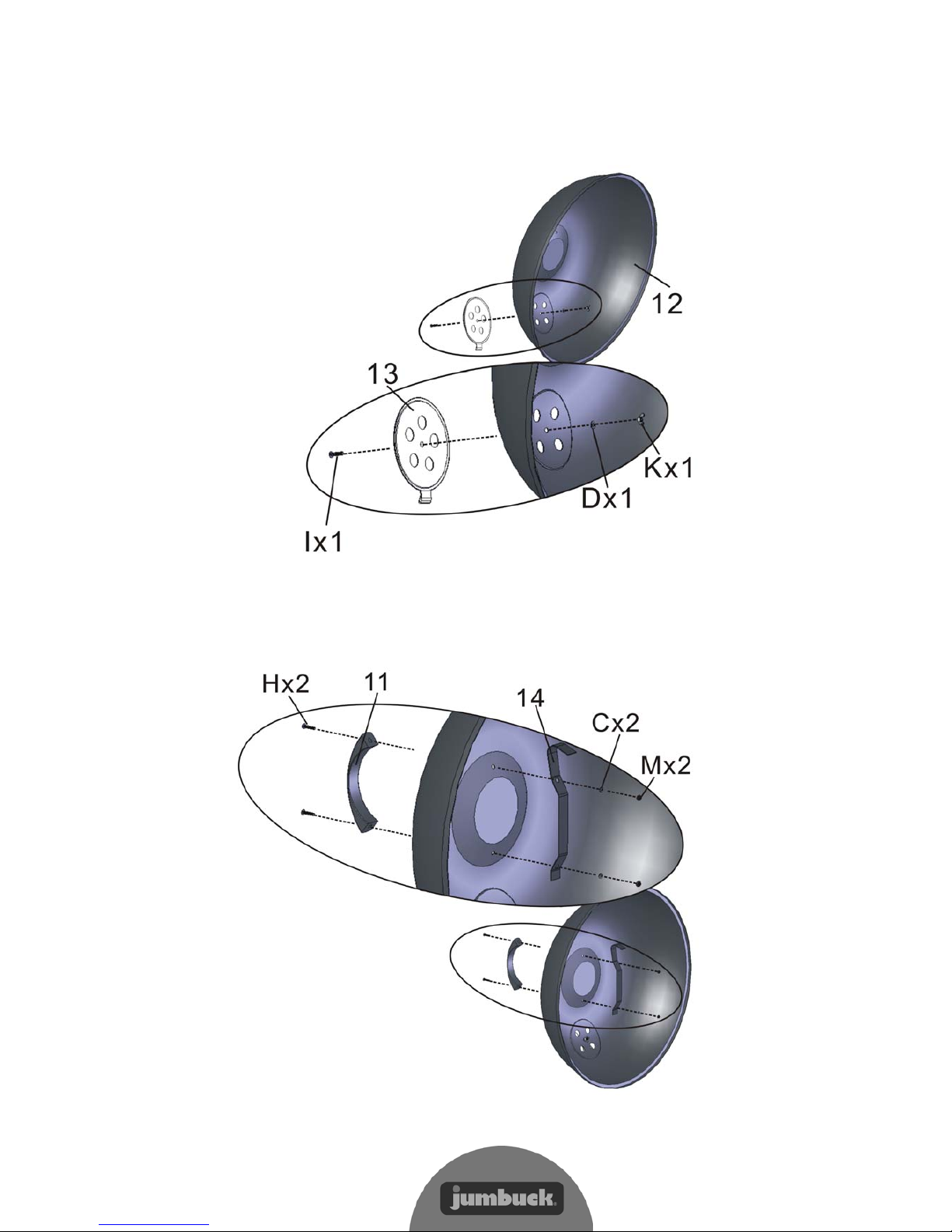

STEP 8

Assemble Cover air valve (Part 13) to the Top cover (Part 12)as shown, use bolt I (x,

1), Flat washer D(x, 1) and Wing nut K (x, 1) to tighten.

STEP 9

Assemble Cover handle (Part 14) as shown, use Bolt H(x, 2) and Nut M(x, 2) to

tighten.
