Juniper MX10004 Bedienungsanleitung

Quick Start Guide

MX10004

IN THIS GUIDE

Step 1: Begin | 1

Step 2: Up and Running | 8

Step 3: Keep Going | 12

Step 1: Begin

SUMMARY

In this guide, we provide a simple, three-step path, to quickly

get you up and running with your new MX10004 router.

We've simplied and shortened the installaon and

conguraon steps. You'll learn how to install the MX10004

in a rack, power it up, and congure basic sengs.

IN THIS SECTION

Meet the MX10004 | 1

Rack It | 2

Power On | 7

Meet the MX10004

The Juniper Networks® MX10004 is the most compact, high-density, and power-ecient modular chassis in the

MX10000 line of modular packet-roung transport routers. At only 7 U in height, the MX10004 is designed for today’s

space-constrained facilies. The MX10004 supports Juniper’s 400 GbE architecture with inline Media Access Control

Security (MACsec) on all ports for point-to-point security on Ethernet links. MX10004 provides 1 GbE, 10 GbE, 25 GbE,

40 GbE, 50 GbE, 100 GbE, or 400 GbE modular soluons that support up to 38.4 Tbps of throughput.

Rack It

IN THIS SECTION

What's in the Box? | 2

What Else Do I Need? | 3

Assemble the Rack Mount Kit | 3

Mount the MX10004 in the Rack and Ground the Chassis | 4

What's in the Box?

Along with your MX10004 router, you’ll nd:

• Rack-mount kit

• Twelve Phillips 8-32 x .375 in. at-head screws

• Two mounng blades

• A mounng tray

• A rear safety restraint

• Front door

• An accessory kit with:

• RJ-45 Ethernet cable

• RJ-45 to DB9 rollover cable

•Electrostac discharge (ESD) wrist strap with cable

• Media kit (ash drives, PCMCIA card adapter)

• Ground chassis lug, 2-hole, 10-32, 6 AWG

• Six power cord retainer clips, for AC conguraons

What Else Do I Need?

• A mechanical li rated for 250 lb (113.4 kg). You can mount an MX10004 router manually or by using a mechanical

li. Because of the router's size and weight, we strongly recommend that you use a mechanical li to mount the

MX10004. In this guide, we show you how to mount the router using a mechanical li.

• 4 AWG (21.1 mm²) stranded wire grounding cable rated 75° C or per local electrical code

• A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack-mount screws

• Twenty eight rack mount screws appropriate for your rack to secure the mounng blades, mounng tray, chassis,

and safety restraint to the rack

• A number 3 Pozidriv or Phillips (+) screwdriver for the grounding screws

CAUTION: Ensure that a licensed electrician aaches the appropriate grounding lug to your grounding

cable. Using a grounding cable with an incorrectly aached lug can damage the router.

Assemble the Rack Mount Kit

Here's how to assemble the MX10004 rack-mount kit in a four-post rack:

1. Review the General Safety Guidelines and Warnings.

2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site

ESD point.

3. Aach the mounng blades to the front rack posts by using six rack mount screws.

4. From the rear of the rack, slide the mounng tray into the rear posts of the rack such that the mounng blades slide

into the grooves on the mounng tray.

5. Aach the mounng tray to the rear rack posts by using eight rack mount screws.

6. Check that the mounng tray is level.

7. Aach the mounng tray to the mounng blades in the rack with the 12 Phillips 8-32 x .375 in. at-head screws.

Mount the MX10004 in the Rack and Ground the Chassis

Here’s how to install the MX10004 in a four-post rack:

1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site

ESD point.

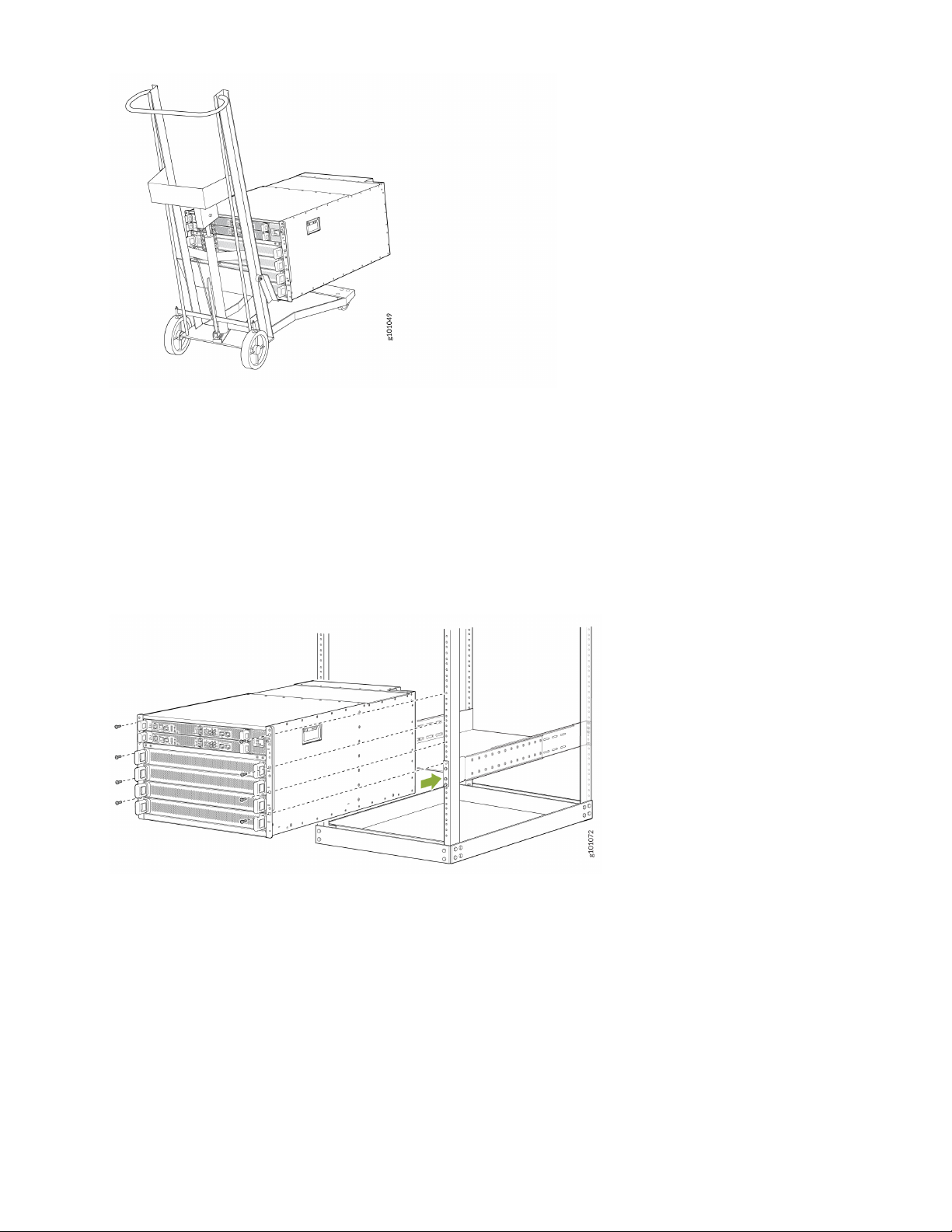

2. Load the router onto the li, making sure it rests securely on the li plaorm.

3. Align the router in front of the rack, centering it in front of the mounng tray.

4. Li the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounng tray. Align the chassis as close as

possible to the mounng tray.

5. Carefully slide the chassis onto the mounng tray unl the chassis anges touch the rack rails.

6. Starng at the boom, aach the chassis to the rack by inserng eight rack mount screws through each open

ange hole and rack hole.

7. Move the li away from the rack.

8. Check the alignment of the router. The rack mount screws on each side of the rack should line up, and the router

should be level. Tighten the screws.

9. Insert the safety restraint between the rear posts of the rack. It should rest on the top of the chassis and align with

the holes in the rack.

10. Aach the restraint to the rack by inserng six mounng screws through each ange hole and rack hole and

ghtening the screws.

11. Install the line cards:

a. Remove the line card cover by grasping the handles and pulling straight out to expose the slot for the line card.

Save the cover.

NOTE: If you are not installing a line card do not remove the line card cover.

b. Slide the line card all the way into the slot unl the handle holes line up.

c. Rotate the handles simultaneously into the chassis unl the card is fully seated and the handles are vercal.

12. Install the opcs and oponal cable management system.

13. Li the front door and line up the capve screws in the door with the holes in the chassis ange.

Aach the door to the chassis and rack using the capve screws. Turn the screws unl they are nger ght.

14. Have a licensed electrician aach the cable lug (provided in the accessory kit) to the grounding cable.

15. Remove the two M6 screws with aached washers below the boom power supply using a Pozidriv or Phillips

screwdriver.

16. Place the chassis grounding lug and cable over the screw holes with the cable connecon poinng to the le. Place

the two screws with aached washers over the grounding lug and grounding cable. Tighten the two M-6 screws

using a Pozidriv or Phillips screwdriver.

Power On

Now that you’ve installed your MX10004 in the rack and grounded the chassis, you’re ready to connect it to power.

The MX10004 supports AC, DC, high-voltage alternang current (HVAC), and high-voltage direct current (HVDC). In

this guide, we show you how to connect AC power. For DC, HVAC, and HVDC installaons, see MX10004 Universal

Roung Plaorm Hardware Guide.

1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to one of

the ESD grounding points on the router.

2. Turn o the power switch on the power supply.

3. If the power source outlet has a power switch, turn it o.

4. Aach each AC power supply to a dedicated power source.

NOTE: If you need power source redundancy, you can aach each power cable to separate power sources.

5. For each AC power cable, insert the end of the cable with the Anderson connector into the power supply. The

connector snaps and locks the cable into posion.

WARNING: Ensure that the power cord does not block access to router components or drape

where people can trip on it.

6. Set the three DIP switches on the power supply to indicate whether one or both power feeds are used, and to

indicate the amperage of the feeds. Together, these switches determine if the chassis operates at 3,000 W, 5,000

W, or 5,500 W. If you're using both power feeds, set switch 1 and switch 2 to the on (|) posion. Power is shared. If

you’re not using power source redundancy, set the unused source to the o (O) posion. The LED turns red and

indicates an error if a power source input is not in use and the DIP switch is on (|).

Switch State Descripon

1 On INP1 is present.

O INP1 is not present.

2 On INP2 is present.

O INP2 is not present.

3 On Enabled for 30-A feed; 5,000 W for

single feed, 5,500 W for dual feeds.

O Enabled for 20-A feed; power supply

capacity is 3,000 W.

7. Plug the AC power cord into the power outlet.

8. If the power source outlet has a power switch, turn it on.

9. Turn on the power switch on the power supply.

10. If you’re using two power feeds, verify that the 1 and 2 LEDs on the power supply faceplates are steadily lit. These

LEDs correspond to INP1 and INP2.

Step 2: Up and Running

SUMMARY

Now that the MX10004 is powered on, let’s do some inial

conguraon to get the router up and running on the

network. It’s simple to provision and manage the MX10004

on your network.

IN THIS SECTION

Connect to the Router and Enter Conguraon

Mode | 8

Connect to the Router and Enter Conguraon Mode

Before you begin conguring the router:

• Ensure that the Roung Control Board (RCB) has the Junos OS Release 22.3R1 or later operang system installed.

• If you want to use an RCB that has Junos OS release prior to 22.3R1 or if the show version command displays the

router model as mx10016-olive, you must use the USB install method (not the CLI method) to upgrade the Junos OS

release on the RCB to 22.3R1 or later.

1. Connect the console port on the MX10004 to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9

adapter. The console (CONSOLE) port is located on the Roung and Control Board (RCB).

2. Verify that your laptop or PC has the following default values:

• Baud Rate—9600

• Flow Control—None

• Data—8

• Parity—None

• Stop Bits—1

• DCD State—Disregard

3. Log in as root. There is no password. If the soware boots before you connect to the console port, you might need

to press the Enter key for the prompt to appear.

4. Start the CLI.

root@% cli

5. Enter conguraon mode.

root> configure

6. Add a password to the root administraon user account.

[edit]

root@# set system root-authentication plain-text-password

New password:

password

Retype new password:

password

NOTE: Oponally, instead of conguring the root password at the [edit system] hierarchy level, you can use

a conguraon group to strengthen security.

7. (Oponal) Congure the name of the router. If the name includes spaces, enclose the name in quotaon marks (“ ”).

You can congure the router name at the [edit system] hierarchy level.

[edit]

root@# set system host-name

host-name

If your MX10004 router has two RCBs, it is recommended you use a conguraon group. You can use group-name

as re0 or re1.

[edit]

root@# set groups

group-name

system host-name

host-name

For Example:

[edit]

root@# set groups re0 system host-name alpha-router0

[edit]

root@# set groups re1 system host-name alpha-router1

8. Congure the default gateway.

[edit]

root@# set routing-options static route default next-hop

address

9. Congure the IP address and prex length for the router management interface.

[edit]

root@# set interfaces em0 unit 0 family inet address

address/prefix-length

NOTE: The management port, em0 (MGMT for RJ-45 connecons) is found on the front of the RCBs of the

MX10004 router.

If your MX10004 router has two RCBs, you can congure each RCB with a separate IP address for the

management Ethernet interface.
