Introduction

The SA-DV6000 Network Pack is designed to enhance and complement the BR-DV6000 DV Video Cassette Recorder functionality.

By adding networking capabilities to the BR-DV6000, the SA-DV6000 allows users to connect to and stream video and audio from the

VTR in real-time, from anywhere in the world.

Viewers can connect using Windows Media Player, Quick Time Player, or the application software provided with SA-DV6000.

All while recording the highest quality video to DV tape.

It is also possible to operate the BR-DV6000 (PLAY, STOP, REC, etc.) via a network.

The SA-DV6000 allows real-time streaming of video from BR-DV6000’s Video inputs as well as from pre-recorded DV and miniDV

tapes.

With bit rates ranging from 56 to 512kb/s, the SA-DV6000 supports many connection types, from MODEMS and ISDN to broadband.

When using the trigger mode function of this unit, video can be recorded to a client PC on a network.

The SA-DV6000 even allows the BR-DV6000 VTR to become a publishing point for a media server.

When used with a CompactFlash memory card, the SA-DV6000 features can enhance productivity of any studio.

At the same time as recording to a DV tape, scene file (streaming data) and clip list (CSV file) that contains information such as the

starting and ending points, time code, etc. are automatically recorded to the Compact Flash Memory.

This log file is readable by database, spreadsheet, and text editing programs, and can be use with non-linear editing systems.

The log and scene files are small enough to send anywhere, instantly through email.

Using the provided application (CFViewer), you can view thumbnail images of all recorded scenes, and even perform basic assemble

editing for review.

In addition, the CF card prevents SA-DV6000 obsolescence.

As improvements are made, just download the files from our Web Site onto a CF card, and update your SA-DV6000.

Characters and symbols used in this instruction book

Caution Cautionary notes concering operation of the unit

Memo Reference such as restrictions of features, etc.

☞Reference page or item

* In general, the names of products manufactured by other companies and mentioned in these instructions are trademarks or regis-

tered trademarks of these companies.

Symbols like ™, ©, ®, etc., are not used in these instructions.

Caution

●Make sure the power of BR-DV6000 is off when inserting/

removing a CF memory card/LAN card. Inserting/removing

a card with the unit power on may damage the data storage

section of the CF memory card or the card itself.

●Do not remove the power cable with the power of the BR-

DV6000 on. Recorded section on the CF Memory Card or

the CF Memory Card itself may be damaged as a result.

●Do not use the wireless LAN card continuously for more

than 48 hours.

LCD screen

Card status display

: Flashes during

initialization

: LAN card or built-

in LAN enabled

: CF memory card

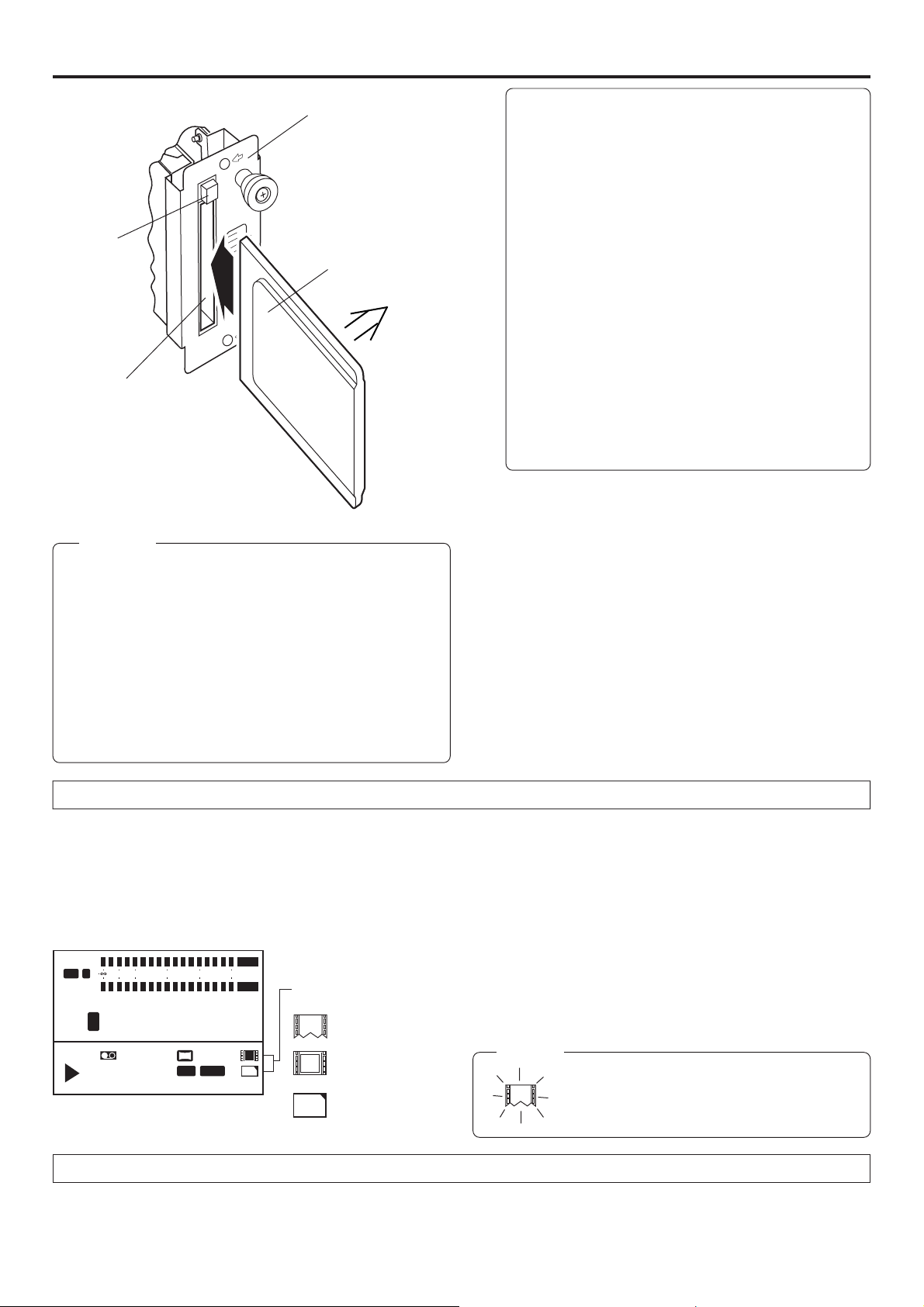

Inserting card

Turn off the BR-DV6000 power.

Insert a card into the SA-DV6000 card slot.

Turn on the BR-DV6000 power.

●Card status according to the inserted card type is displayed on

the LCD screen. (☞page 6)

●The card status is displayed when setting the LCD screen to the

Enlarged display mode.

Memo

When turning the power on, the card status

display shown on left will flash during initial-

ization.

Basic Inserting/removing CF memory card/LAN card

●TheSA-DV6000 accepts the following cards for which operation has

been confirmed: (As of June 2003)

Operating voltage 3.3 V / 5 V

Current consumption Max. 250 mA

●Wired LAN-card

US: EA2900-117 (Revision C) (Name of manufacturer: Socket

Communications, Inc)*1

Europe: EA2903-162 (Revision C) (Name of manufacturer: Socket

Communications, Inc)*1

Asia: EA2906-194 (Revision C) (Name of manufacturer: Socket

Communications, Inc)*1

* Revision indicated on the upper right of package production label.

●Wireless LAN-card

TEW-201PC

TEW-202CF

TEW-PC16 (firmware version 0.8.3 or later) (Name of manufacturer:

TRENDware)

WCF11 (Name of manufacturer: LINKSYS)*2

AIR-PCM350

(Name of manufacture: Cisco Systems)

FCCID: LDK102040

●CF (Compact Flash) card

SDCFB-16 ~ SDCFB-256 (Name of manufacturer: SanDisk)*1

*1: Use PCMCIA card TYPE 1or TYPE 2adapter

*2: Use PCMCIA card TYPE 2adapter

For the latest operational check card, visit the website

below or contact your JVC dealer.

http://www.jvc-victor.co.jp/english/pro/prodv/

Removing card

Turn off the BR-DV6000 power.

Press the EJECT button of SA-DV6000 and remove the card.

EJECT button

SA-DV6000

Card slot

CF memory card or

LAN card

CH1

NDF

12H34M34S10F

FREE

CH2

PLAY

SP222

min

01/02/03

01:23:45 INS

OVER

48k

dB010203040

OVER

Y/C

SYNC

‰

Surface

Other than the use of a LAN card, this unit is also equipped with a LAN terminal for LAN connection.

Basic Using LAN terminal

LAN cable types

●When connecting directly to a PC, use a 10/100 BASE-T cross cable.

●When connecting to a network hub, use a 10/100 BASE-T straight cable.

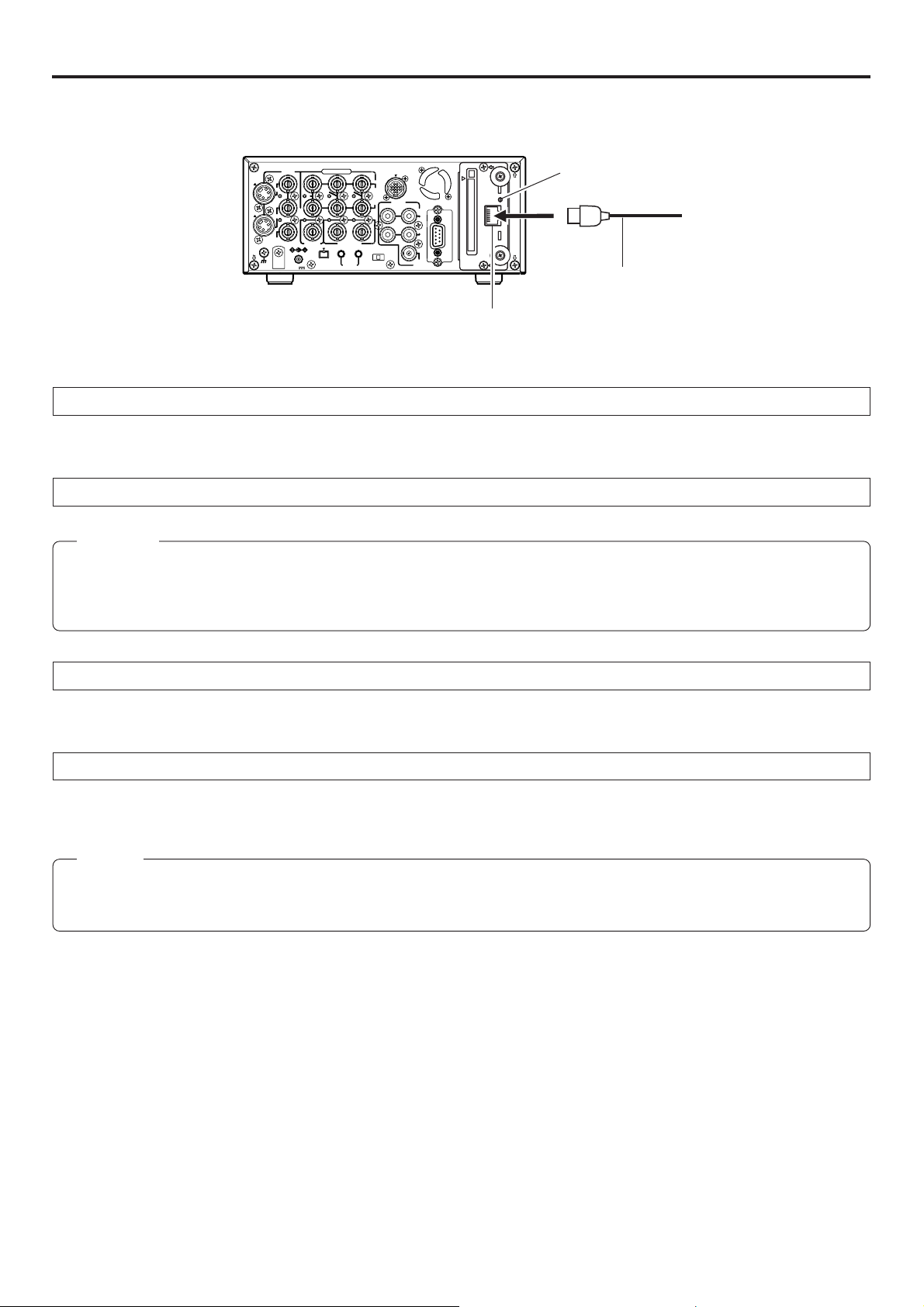

Connecting to the LAN terminal

Completely insert the connector of the LAN cable.

Caution

●Do not remove the LAN cable when the Link LED is on. For a short time, menus cannot be opened.

●Do not connect/disconnect the LAN cable when recording to a CF memory card.

●Do not mount a LAN card when the Link LED is on.

Link LED

The Link LED will light when connected to a network using the LAN terminal.

When mounted with a LAN card, the Link LED will not light.

When using both LAN card and LAN terminal

When mounted with a LAN card, the LAN card will be given priority for LAN connection. In this case, communication via the LAN

terminal is not possible.

Memo

When mounted with a CF memory card, the following can be performed:

●Transferring of a clip recorded on a CF memory card to a server via the LAN terminal.

VIDEO

LINE

OUT

MONITOR

OUT

DC12V

IN/OUT

IN OUT OFF

AUDIO

REMOTE2

B-YR-Y

SYNC IN TIME CODE

IN OUT

COMPONENT

OUT CH 1/3 CH 2/4

OUT

MONITOR

OUT REMOTE1

TIMER

REC PLAY

SERIAL

REMOTE

SIGNAL

GND

Y/C

LAN

Link LED

LAN terminal

LAN cable

Basic LCD screen

Information from Network Pack SA-DV6000 is displayed on the BR-DV6000 LCD screen.

Card status and warnings will be displayed when setting the LCD screen to the Enlarged display mode.

\Card status displays

Display

(White display)

(Red display)

(White display)

(Red display)

Flashing display

Description

Flashing display during initialization (after

power on).

LAN card is inserted in the Network Pack, or

built-in LAN is enabled.

Video/audio data is being sent via LAN card.

CF memory card is inserted in Network Pack.

CF memory card is being recorded with data.

Card is inserted in Network Pack but trans-

mission is not available.

There is possibility of unit malfunction.

Contact your nearest JVC dealer.

\CF Memory card warning display

Displays CF memory card status and system errors.

* For details concerning warning displays, see page 65.

When inputting the 44.1kHz sampling audio signal

This unit is not compatible with audio sampling frequency of

44.1kHz. When playing back a tape recorded with audio of

44.1kHz on BR-DV6000 or when inputting audio in the 44.1kHz

mode into the DV terminal, the audio will be processed as

muted sound. However,the video will be processed as nor-

mal.

Receiving Level Indicator of Wireless LAN

If you are using wireless LAN card that can detect receiving

level, receiving level indicator is shown next to the card status

information on LCD of the BR-DV6000. The indicator shows

value from 5 to 0, 5 means maximum level and 0 means mini-

mum level. (The indicator is for reference. The value does not

guarantee communication.)

Some cards may not be able to accurately display the strength

of the signals of the wireless LAN if communication is abruptly

interrupted.

CH1

NDF

12H34M34S10F

FREE

CH2

PLAY

SP222

min

01/02/03

01:23:45 INS

OVER

48k

dB010203040

OVER

Y/C

SYNC

‰

Card status display

About restrictions of BR-DV6000

Only BR-DV6000 marked with (A) at the end of the model

name on the Rating Label is compatible with this unit (SA-

DV6000).

If a line appears between the time code and level meter on

the LCD screen (Enlarged display mode) while SA-DV6000 is

mounted on BR-DV6000, the BR-DV6000 in use is not com-

patible with SA-DV6000 and requires an upgrade.

For details, consult your JVC dealer.

Menu settings Menu screen structure

When attaching Network Pack SA-DV6000 to BR-DV6000 DV Video cassette recorder, NETWORK PACK CONFIG menu and MOVIE

CLIP menu are added to the BR-DV6000 TOP MENU screen.

(These menus will not appear during initialization when the unit is first turned on.)

ENCODE .

MP EG .REC .........

MENU .RESET

PAGE .BACK ...

TRIG.

.CANCEL

NETWORKSETUP.

SETUP . .

MOVIE CLIP .SETUP

NETWORKPACKCONFIG

MA I N

(WMPundr8)

e(CFView r)

SYSTEM ..

REMOTE ..

AUD I O . .

VIDEO. .

TC / UB / CL OCK . .

DISPLAY SET . . ..

MO V I C L IP. .

NETWORKPACKCONFIG

EXIT

NET WORKNSETUP. .

SETUP. .

PORT.

WIRELESS.LAN.SETUP. .

SETUP. .

SERVER.S

PAGE.BACK. . NNN

WOETNRK

MA I N

.ENCODE.SETUP .

FRAME.SIZE NNNNNNNN320x240.

BIT.RAT E. NNNNNNNNNN3 8 4 kb/s ..

MAX .F RAME.RAT ENNNNNMIDNNNNN

ST REAM. NNNNNNNNfor WM P NN

PRE LTE NNNNNNNNNAD1 NNNNN

.MOV I E .CL I P SETUP

DELETE .ALLNNNNNNNNNNNCANCEL

CANCEL

FORMA T . . . NNNNNNNNN . . .

REPEAT PLAY ..........REPEAT

CAPTURE . . ..................

FILE.SEND ............

PAGE .BACK ..................

TYPE

FRI

PAG.BAC NNNNNNNNNNNNNNNNNNEK

00 1 .

0asf WR/

IEOVMCIP

10 25/02/09 0 0:00:

00 2 .

0asf WR/

10 25/02/09 3 0:25:

00 3 .

0asf WR/

10 25/02/10 1 0:55:

00 4 .

0asf WR/

10 25/02/11 0 0:00:

AGE BACK

.NETWORK .SETUP .

HOS T .NAME . . ....

.......

NNNNNNNNNNNN

DHCP . NNNNN NOFFNNN

IP.ADDRESS . . ........

ASK . . .

NNNNNNN

SUBNET .MNNNNNNNNNNNNN

GATEWAY . . .N

NAME .SERVER .

NNNNNNNNNNNNNNN

FTPECl i ent..

PAGE .BACK ..N

NNNNNNNNNNNNNNN

HTTP.for WEB Browser

HTTP.for Media player

... .

RTSP.for Streamproducer

...

PAGE BACK.....NNNNN. .. NNNN

ST G. BACKNNNNNNNNNNNfor WMP N

PAG. BACK. NNNNNNNNNNNNNNNNN

SETUP.WI RELESS .LAN .

SETUP

AD .HOC .MOD E NNNNNNNNOFF

10C

CEL

CANCEL

Primary ESS .ID.

Secondary ESS I D

.NNNN . . .

.......REPEAT

Country ESS ID.......USAEAT

CH ... ................ H.

2CHWE P .KEY .............. ..

OFFLEAP ................. ..

2CHPAGE .BACK ............ ..

.SERVERN

SETUP .ON .WEB ........OFF ....

LEAP .USER .NAME . . . . . . 115200 .

LEAP .PASS .WO R D . . . . . . 1152

HTTP .PASS .WO R D . . . . . . 1152

00 .

HTTP .USER .NAME . . . . . . 11520

FTP .USER .NAME . . . . . .11520

FTP .PASS .WO R D . ....

PAGE .BACK ...

. 11520

FTP C

MA C I N E N A ME ..

USER

NAME. .

PASSWORD . .

DIRECTORY. .

PASS IVE DE ONMO

LIENT SETU P

RTSP.for QuickTime

.. ..

TORPET

SUP

PAGE.BACK

TC 00:00: 000 . 0

TC 00:00: 000.0

TC 00:00: 000.0TC 00:00: 000.0

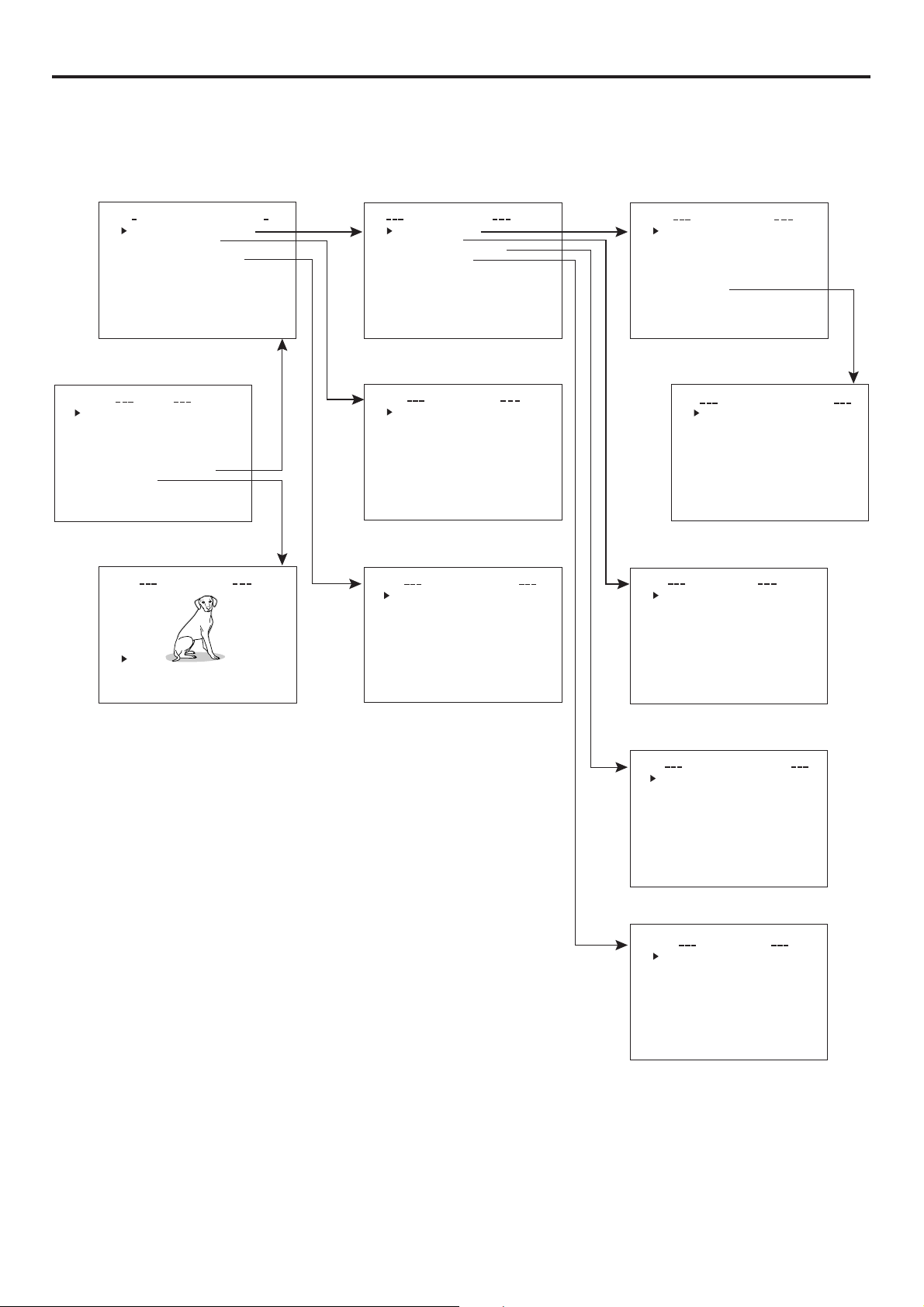

TOP MENU screen

NETWORK MAIN

menu screen

* Example of display when there are

clip files in the CF memory card

NETWORK PACK CONFIG

menu screen

MOVIE CLIP list screen

(☞page 39)

NETWORK SETUP

menu screen

PORT SETUP menu screen

WIRELESS LAN SETUP

menu screen

MOVIE CLIP SETUP

menu screen

SERVER SETUP

menu screen

FTP CLIENT SETUP

menu screen

ENCODE SETUP

menu screen

*1 Indicates the currently compatible version of Windows Media

Player.

*2 When (CFViewer) is displayed, a clip list (CSV file) that can be used

with CFViewer (provided application) is created. (During the TRIG

mode)

Menu settings NETWORK PACK menu screen items

䢇indicates default factory setting.

✩indicates items that can also be set from a PC. (☞page 54)

Item

NETWORK MAIN SETUP

ENCODE SETUP

FRAME SIZE

BIT RATE

MAX FRAME

RATE

STREAM TYPE

PRE FILTER

PAGE BACK

Setting

䢇320 ×240

160 ×120

56K

128K

256K

䢇384K

512K

MAX

䢇MID

MIN

䢇for WMP

for QT

䢇AD1

AD2

→OVER

FRAME SIZE

BIT RATE 320 ×240 160 ×120

MAX MID MIN MAX MID MIN

512K 15 10 7.5 30 15 10

384K 15 10 7.5 30 15 10

256K 15 7.5 5 30 15 7.5

128K 7.5 5 3 15 10 7.5

56K 3 1 1 10 7.5 5

FRAME SIZE

BIT RATE 320 ×240 160 ×120

MAX MID MIN MAX MID MIN

512K 12.5 5 5 25 12.5 12.5

384K 12.5 5 5 25 12.5 5

256K 12.5 5 5 25 12.5 5

128K 5 5 1 12.5 12.5 5

56K 1 1 1 12.5 5 5

Memo

•No sound will be heard when playing back using QuickTime while in the WMP mode.

•No sound will be heard when playing back using Media Player while in the QT mode.

•Set to WMP mode when recording to CF memory card.

✩

Description

Displays menu screen for network related settings. (☞page 11)

Displays menu screen for setting video and audio compressions.

Sets the video compression size.

320 ×240: Sets the image size to 320 ×240 pixels.

160 ×120: Sets the image size to 160 ×120 pixels.

* The input image for a 160x120 pixel image is 160x120 pixels. However, they

will be 160x128 pixels when compressed.

Sets streaming speed (bps).

56K: MPEG4 24 kbps (G726 16 kbps for WMP) (µlaw 64kbps for QT)

128K: MPEG4 104 kbps (G726 16 kbps for WMP) (µlaw 64kbps for QT)

256K: MPEG4 224 kbps (G726 32 kbps for WMP) (µlaw 64kbps for QT)

384K: MPEG4 352 kbps (G726 32 kbps for WMP) (µlaw 64kbps for QT)

512K: MPEG4 472 kbps (G726 40 kbps for WMP) (µlaw 64kbps for QT)

Sets the frame rate per second. The maximum tranmitted frames per second varies

depending on the FRAME SIZE and BIT RATE settings as shown below:

\NTSC signal

\PAL signal

* The frame rates shown in the table are not guaranteed values.

Sets the player for stream playback.

for WMP : Media Player, Provided application

for QT : Quick Time

AD1 is effective for video with many still images and AD2 is effective for video with

motion.

Pressing the SET button or SEARCH–button returns to the NETWORK PACK CONFIG

menu screen.

Memo

When setting MPEG REC to SPLIT, the following will appear in the NETWORK PACK CONFIG menu screen.

CF REC: PUSH ‘SET’

Item

MPEG REC

MOVIE CLIP SETUP

DELETE ALL

FORMAT

PLAY MODE

CAPTURE

FILE SEND

PAGE BACK

MENU RESET

PAGE BACK

Description

Selects the operation method for recording video data to a CF memory card or sending

data to a Client PC from a LAN card/LAN terminal.

TRIG: Operation will start when pressing the REC and PLAY buttons of BD-DV6000 at

the same time. Use this setting when simultaneously recording to a DV tape.

SPLIT: Use this setting when recording or transferring with CF memory card or LAN

card/LAN terminal only. Operation starts when pressing the SET button of BR-

DV6000.

OFF: Recording will not be made to the CF Memory Card. Transmission of streaming

data to a PC from the LAN card/LAN terminal is possible.

Displays the menu screen for CF memory card related settings such as formatting or

deleting all recorded clip files.

Selecting EXECUTE and pressing the SET button deletes all clip files on the CF memory

card.

Protected clip files are not deleted.

Selecting EXECUTE and pressing the SET button starts formatting the card.

All recorded clips are erased.

Caution: All protected clip files and other files will also be erased.

Playback is performed from the specified clip file to the latest clip file and pauses at the

specified clip file.

Specified clip file is played backed 3 times.

Playback is performed 3 times from the specified clip file to the latest clip file.

When pressing the SET button, the FILE CAPTURE screen appears.

Recording can be made to the CF memory card by specifying the range of the DV

cassette tape in the FILE CAPTURE screen settings. (☞page 36)

When pressing the SET button, the clip file specified from a CF memory card can be

transferred to a specified server via FTP.

Transfer will be performed via the LAN terminal. (☞page 46)

Pressing the SET button returns to the NETWORK PACK CONFIG menu screen.

Selecting EXECUTE and pressing the SET button returns NETWORK PACK CONFIG

menu screen settings to the original factory settings.

Pressing the SET button SEARCH–button returns to the TOP MENU screen.

Menu settings NETWORK PACK menu screen items

Setting

䢇TRIG

SPLIT

OFF

䢇CANCEL

EXECUTE

䢇CANCEL

EXECUTE

OFF

REPEAT 1

䢇REPEAT

䢇CANCEL

EXECUTE

Menu settings Setting the NETWORK PACK menu screen

Menu screen settings can be made regardless of whether a card is inserted. Settings will be stored in the SA-DV6000 memory even

when turning the power off.

\Settings are made by viewing the LCD screen or video monitor.

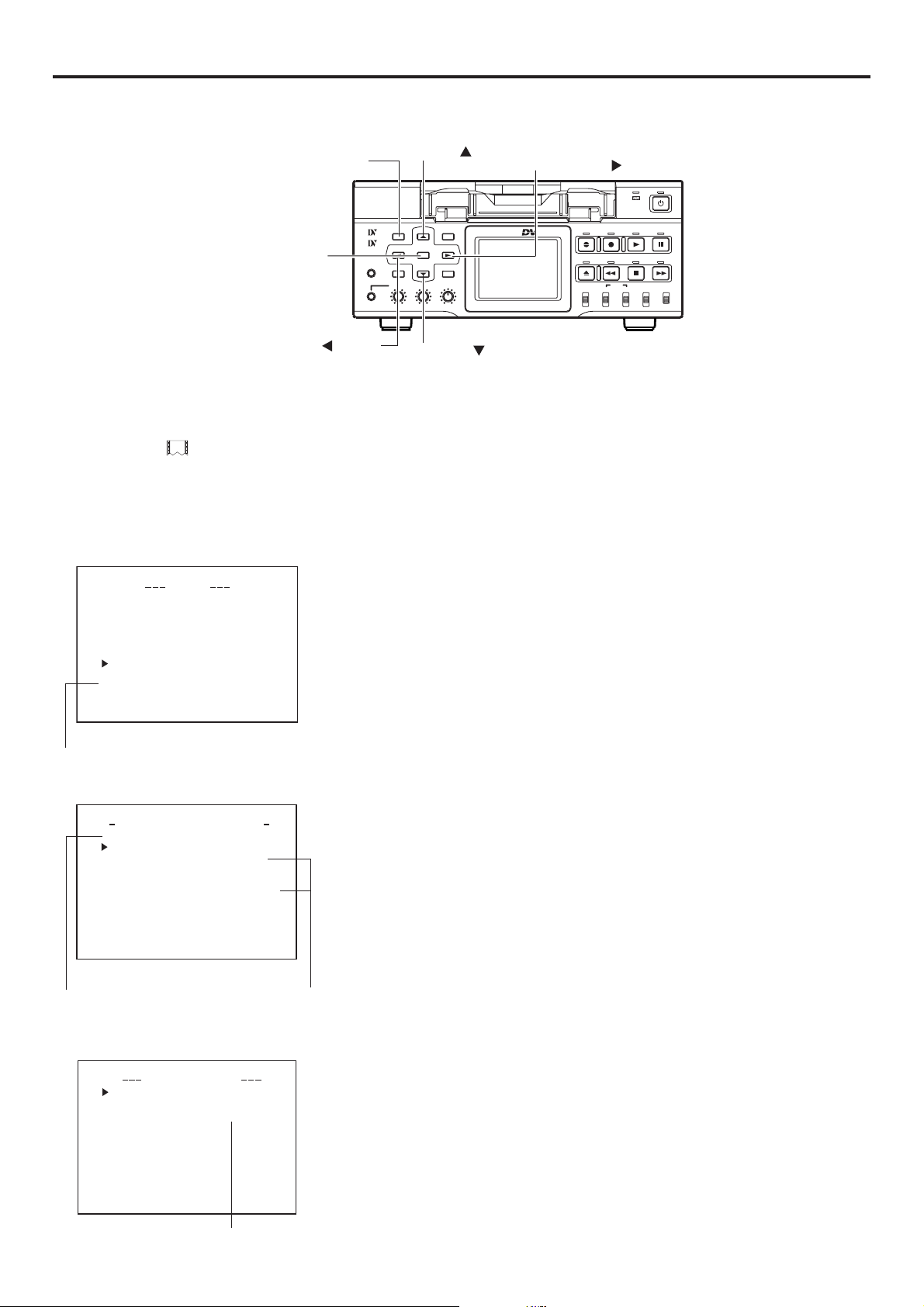

Turn on the BR-DV6000 power.

Press the MENU button. The TOP MENU screen appears.

Press the DISP (6) or the BLANK (7) button, move the cursor (t) to NETWORK

PACK CONFIG and press the SET button or SEARCH+ (t) button.

●The NETWORK PACK CONFIG menu screen appears.

Select the item to set.

Press the DISP (6) or the BLANK (7) button, move the cursor to the desired item

to set and press the SET button.

●The selected menu screen appears.

●When selecting MPEG REC or MENU RESET, the setting area flashes and the

setting can be changed. Set the item according to step 6.

●When selecting NETWORK MAIN SETUP, the network related setting screen

appears. (☞page 11)

Select an item within the menu screen.

Press the DISP (6) or the BLANK (7) button, move the cursor (t) to the desired

item to set and press the SET button.

●The setting area flashes and the setting can be changed.

Change the setting.

Press the DISP (6) or the BLANK (7) button to change the setting and press the

SET button.

●Flashing of the setting area stops and the new setting is confirmed.

\When changing multiple settings, repeat steps 5 and 6 above.

Return to the TOP MENU screen.

Press the DISP (6) or the BLANK (7), move the cursor (t) to PAGE BACK and

press the SET button or SEARCH–(8) button.

When quitting menu screen setting and returning to the normal screen, perform

one of the following operations.

●Press the MENU button.

●Move the cursor (t) to EXIT in the TOP MENU screen and press the SET

button.

●The NETWORK PACK CONFIG menu

screen will not appear during card initial-

ization (flashing display).

The NETWORK PACK CONFIG menu set-

tings cannot be changed when recording

to a CF Memory Card or transmitting data

via LAN.

TOP MENU screen

NETWORK MAIN SETUP menu screen

(☞page 11)

NETWORK PACK CONFIG

menu screen

Cursor

Setting

NE T WOR K T U P . .SE

ORTWENKACK

PON

CIG

ENCODE

MPE G R EC TRGI

MOV I E CLIP

MEN U R E S E T C AN C E L

PAGE BACK

TUP. .SE

MANI

(WMP under 8 CFVi ewer)()

TC 00 : 0 0 : 000 . 0

ODNCEEET

SUP

FRAME SIZE 320x24

BI T RATE 384kb/

MAX F RAME RA T E M I D

STREAM TYPE for WMP

PAGE BACK

TC 00 : 0 0 : 000 . 0

Setting

SYSTEM . .

REMOTE . .

AUD I O . .

VIDEO. .

TC / UB / CLOCK . .

DISPLAY SET . . ..

MO V I C L I P . .

NETWORKPACKCONFIG

EXIT

BR-DV6000

PROFESSIONAL

MENU RESET A.DUB

EJECT

COUNTER AUDIO INPUT

SELECT

MONITOR OUTPUT REMOTE

LOCAL

CTL L

MIX

CH-1/2

MIX

CH-3/4

LINE

Y/C

(CPN)

REW STOP FF

REC

OPERATE

PLAY PAUSE

DISP

SET SEARCH+

BLANK CUE UP

HOLD

PHONES REC LEVEL

CH-1/3 CH-2/4

MIC

SEARCH–

Mini

MENU button

SET button

SEARCH–(

) button

DISP (

) button

BLANK (

) button

SEARCH+ (

) button

Andere Handbücher für Network Pack SA-DV6000

Inhaltsverzeichnis

Andere JVC Netzwerkkarte Handbücher

JVC

JVC Network Pack SA-DV6000 Bedienungsanleitung

Beliebte Netzwerkkarte Handbücher anderer Marken

FirstComm

FirstComm OBiWiFi5G Bedienungsanleitung

Sun Microsystems

Sun Microsystems Interface Adapter Bedienungsanleitung

TRENDnet

TRENDnet TU2-ETG Bedienungsanleitung

YASKAWA

YASKAWA SI-EN3 Bedienungsanleitung

Paradyne

Paradyne BitStorm 2600 IP DSLAM Bedienungsanleitung

Belkin

Belkin F5D7050 Bedienungsanleitung

3Com

3Com EtherLink 3C509B Bedienungsanleitung

TRENDnet

TRENDnet TEG-PCITX Bedienungsanleitung

Cisco

Cisco MC16E Bedienungsanleitung

Delta Electronics

Delta Electronics Braking Modules VFDB Series Bedienungsanleitung

TwinMOS

TwinMOS Booming Bedienungsanleitung

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Bedienungsanleitung

Buffalo

Buffalo AirStation WLI-PCM-L11GP Bedienungsanleitung

National Instruments

National Instruments NI 9234 Bedienungsanleitung

Hama

Hama 49276 Bedienungsanleitung

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Bedienungsanleitung

Compaq

Compaq Wireless LAN 100 Bedienungsanleitung

Bose

Bose PowerMatch Dante Bedienungsanleitung
