JVC V.NETWORKS VN-C30U Betriebsanleitung

VN-C30U

INSTRUCTIONS

For Customer Use:

Enter below the Serial No. which is

located on the body. Retain this

information for future reference.

Model No. VN-C30U

Serial No.

This instruction manual is printed on

recycled paper.

LWT0031-001D

Thank you for purchasing the JVC VN-C30U.

To gain maximum benefit from this product, read this

instruction manual carefully befor use and retain it for future

reference.

The serial number is very important for maintaining quality of

your product. At the time of purchase, check to see that the

serial number is correctly printed on the top of the unit and

that the serial numbers on the unit and warranty match.

ADDITIONS TO INSTRUCTIONS

– Control from Web Browser –

VN-C30ULWT0031-001D 03.10.17, 11:21 AMPage 33 AdobePageMaker6.5J/PPC

With VN-C30U Version 2, it has become possible to view images and to

perform various controls and settings of operations configurations via the

web browser.

This manual has been compiled in order to describe this new facility, which

is the “Control via Web Browser”. However, note that MPEG1 moving images

cannot be viewed and the image up-down inversion function is unavailable

via the web browser.

OPERATING ENVIRONMENT

The environment described below is necessary for operation of the VN-C30U

through a web browser.

A personal computer running the following web browser:

•The PC needs to satisfy the operational environment (P.10), which is

described in a separate volume of the manual.

•Web browser that has compatibility with Java Script and Frame:

Netscape Ver. 4.x or Internet Explorer Ver. 4.x, 5.x, 6.x is required.

•For the CPU performance and memory capacity requirements, refer to

the values recommended for the web browser in use.

To obtain smooth moving image displays on a large screen, a web

browser capacity above the recommended value is required.

Camera supplied images will not be displayed correctly in the 256-

color mode.

In order to view a moving image with a Web browser, a JAVA VM is required.

CAUTION:

5If a Microsoft Corporation JAVA VM is not used to view a moving image, please

go to the following Homepage address for further advice.

http://www.jvc-victor.co.jp/english/pro/vnetworks/index-e.html

5A Microsoft VM is not provided with a WindowsXP SP1a.

LAN Environment

•The VN-C30U unit functions as a web server based on HTTP protocol.

Access linkage using a host name is possible if the environment allows

the DNS (Domain Name System) to be used.

•It is possible to connect a VN-C30U unit and a PC in a direct 1:1

connection by using a cross cable. (Certain LAN boards do not allow

the use of a cross cable, though this is a very rare case. Be sure to

check your LAN board.)

VN-C30ULWT0031-001D 03.10.17, 11:18 AMPage 2 AdobePageMaker6.5J/PPC

1. Setup

1-1 Changing the IP Address of the PC

Select the [Start] button then select [Settings] – [Control Panel] –

[Network] to display the [Network] settings panel.

2Before making a change, always make

a note of the original IP address.

Change the IP address to:

192.168.0.3

Set [Subnet Mask] to a value suitable for

the setting operation. If a suitable value

is unknown, check with the network

administrator.

1Select item “TCP/IP” then click on

<Properties>.

3Click on <OK> and then

restart the PC.

VN-C30ULWT0031-001D 03.10.17, 11:18 AMPage 3 AdobePageMaker6.5J/PPC

Web Page Illustrations Used inThis Manual

Hereafter, the figures entitled VN-C30U Page show a display of the web

page data of the VN-C30U (including images captured by the cameras) by

the web page display function of the web browser.

Due to this mechanism, the format and character font of the displayed web

pages may be variable depending on the types and settings of the web

browser in use. Should the operation be hindered due to a lack of any of the

screen display items that should be displayed, adopt measures for displaying

all items by resizing the window, etc.

The figures in this manual are based on Netscape web page displays.

When the browser in use is Netscape

•When a moving image of the VN-C30U is displayed, the web page

display cannot be updated by changing the Netscape window size. In

this case, click on the <Update> button on the Netscape window to

update the web page display.

When the browser in use is Internet Explorer

•After the password has been changed, the password entry confirmation

window may ask for the password twice. In this case, enter the same

password twice.

•When the VN-C30U is connected through a proxy server, the correct

pan/tilt positions may sometimes not be enabled to be displayed. In

this case, click “Pan/Tilt” a few times until the correct display is obtained.

VN-C30ULWT0031-001D 03.10.17, 11:18 AMPage 4 AdobePageMaker6.5J/PPC

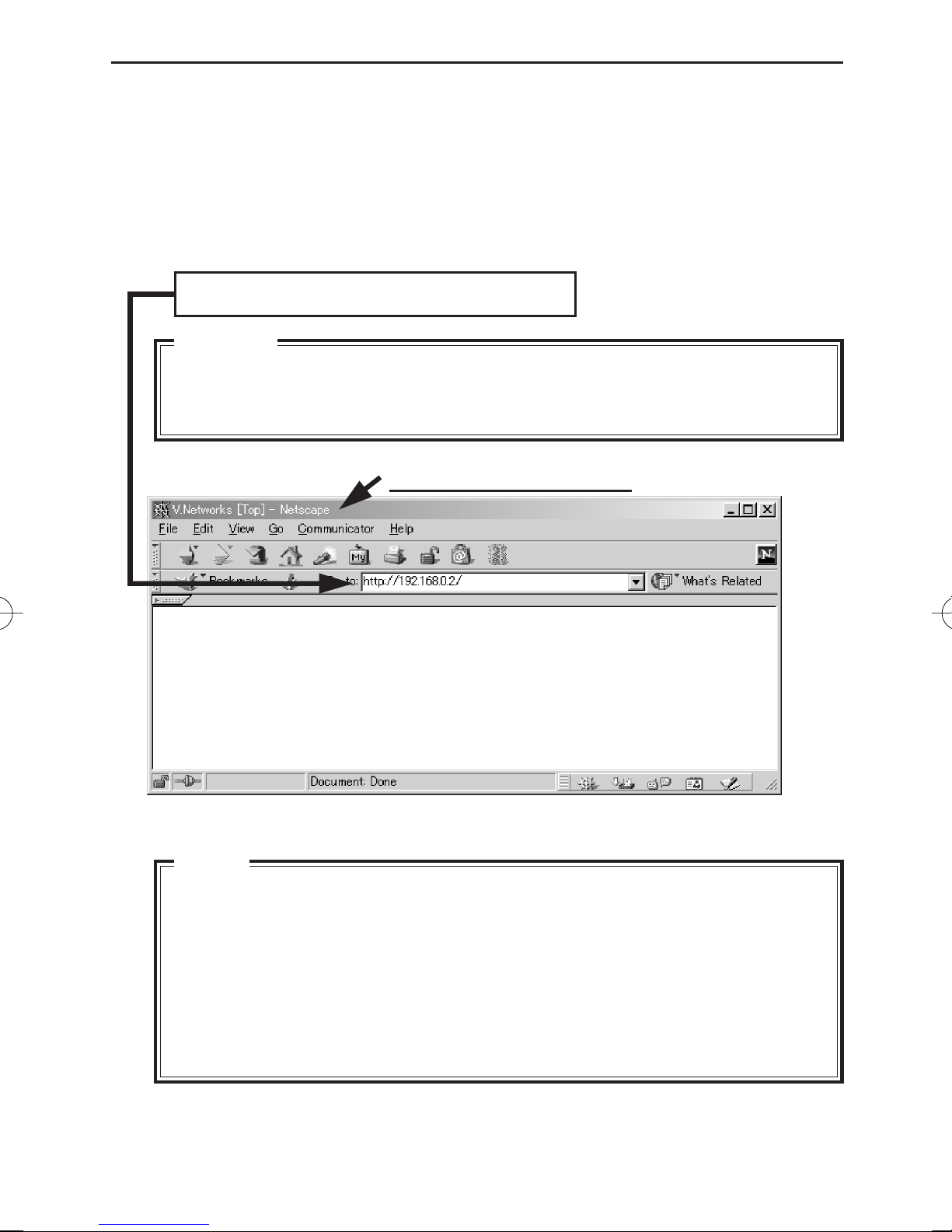

1-2 Changing the internal settings

Start the web browser.

In the web browser, specify the factory-set web page address of the

VN-C30U. (Direct specification of the factory-set web page address

enables the web browser to display the VN-C30U Top Page.)

http://192.168.0.2/index-e.html

Caution

If a proxy server is set for accessing the Internet, a direct specification

may not be permitted. In this case, change the proxy setting to permit

direct address specification.

Display with Netscape

Note:

●In this manual, the terms “Top page” and “Home page” are used as

described below:

Top page

:Indicates “index-e.html”

Home page

:•If the default page (See page 8) is set to valid, the

specified html page is indicated.

•If the default page is set to invalid, “index-e.html” is

indicated.

VN-C30ULWT0031-001D 03.10.17, 11:18 AMPage 5 AdobePageMaker6.5J/PPC

The VN-C30U Top page appears.

CAUTION

•The background changes to blue when the image mode of the VN-C30U

is set to the MPEG mode.

•The Top page will not appear if the “HTTP Viewing” is set to “Disable”

using the Setup Tool.

Instead the message “403 Forbidden” will be displayed.

VN-C30U Top page

Click on <Settings>.

VN-C30U Settings page

VN-C30ULWT0031-001D 03.10.17, 11:19 AMPage 6 AdobePageMaker6.5J/PPC

The setup consists of changing the contents of [Other Settings]. (The same

setup is also available using the Setting tool provided with the standard

controller.)

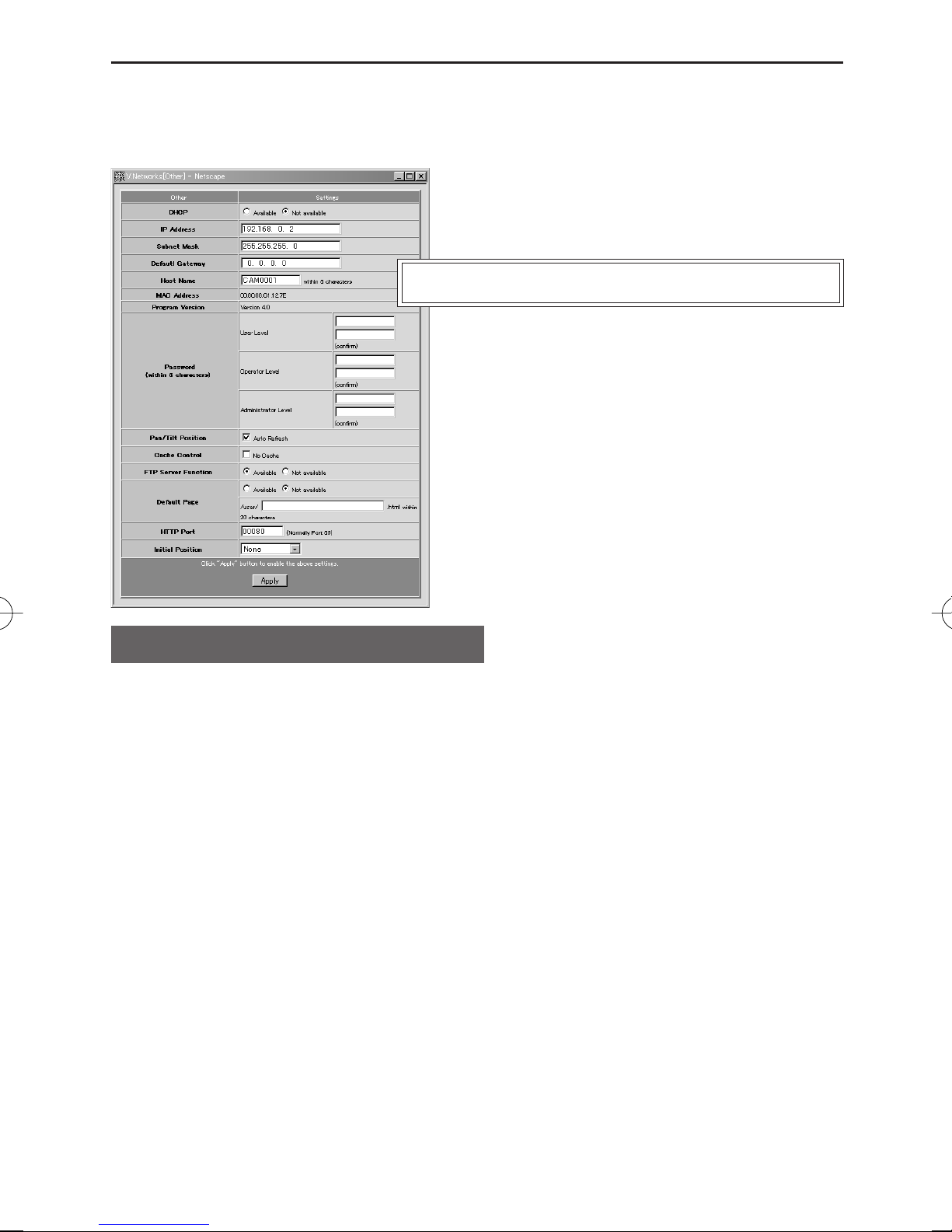

VN-C30U Settings page [Other Settings]

Items in [Other Settings]

[DHCP] Set this to “Enable” when the DHCP is used.

[IP Address] To change to the IP address assigned to or approved for

the network administrator. (This is can be changed only

when DHCP is not used.)

[Subnet Mask] Similarly to the IP address, to set the value assigned to

or approved for the network administrator

[Default Gateway]

To set the IP address of the default gateway

If this is not used, set “0.0.0.0”.

[Host Name] To specify the host name using up to 8 alphanumeric

characters

This should be set when access linkage using a host

name is required in an environment allowing the use of

the DNS (Domain Name System). The host name is

displayed in the title bars of sub-windows including the

control windows.

Do not specify anything when the host name is not used

or unknown.

[MAC Address] A physical address proper to each product.

* This cannot be changed.

VN-C30ULWT0031-001D 03.10.17, 11:19 AMPage 7 AdobePageMaker6.5J/PPC

[Program Version] Program version of the firmware in the VN-C30U

unit.

* This cannot be changed.

[Password] To set the password using up to 8 alphanumeric

characters.

The same password should be entered twice at

each level for confirmation.

[Pan/Tilt Position] To select whether the current pan/tilt positions

are to be displayed in the control and

configuration windows. (This is ineffective with

the VN-C30U Ver. 2.)

[Cache Control] With a very small number of proxy servers that

caches cgi, the pan/tilt control may not function

correctly. In this case, inhibit the Cache operation

by checking the cache box.

[FTP Server Function] Set whether FTP Server is valid/invalid.

If this is set to valid, it will be possible to upload

various user HTML pages, GIF and JPEG image

files, etc. to this unit using common FTP client

software.

* Uploaded files will all be placed directly under

the “/user folder” directory.

Access from a web browser can be done by

inputting the URL such as http://192.168.0.2/

user/aaa.html

(When accessing “aaa.html” stored on FTP, the

“192.168.0.2” denotes the IP address of this

machine.)

* The FTP user name is fixed as “Administrator”.

For the FTP password, use the administrator

level password.

* When the “HTTP Viewing” is set to “Disable”

using the Setup Tool, it will not be able to

access the file uploaded with a Web browser.

VN-C30ULWT0031-001D 03.10.17, 11:19 AMPage 8 AdobePageMaker6.5J/PPC

[Default Page Set-up] If “invalid”, it will be set to the regular VN-C30U

Top Page.

If “valid”, the HTML file you set will be used as

the default page.

*Default Page refers to the page that is displayed when only the IP address

is specified.

ATTENTION

Even if the function is “valid”, if the HTML file specified here does not

exist then a message such as “404: Not Found” will be displayed by the

browser when “http://192.168.0.2/” is specified, so make sure that the

setting is made correctly.

[HTTP Port] It is possible to change the port number of the

HTTP Server on this unit to a number other than

the default port 80 to raise the level of security.

(Selectable range: 1-65535 excluding 20 and 21)

If the HTTP Port is changed, access from web

browser will be done as follows:

http://192.168.0.2:12345/ or http://

192.168.0.2:12345/index.html

(Example when Port 12345 is selected)

When you don’t know or forget the HTTP Port

number, use the provided Setup tool to check it.

[Default positioning] This enables setting the HTTP port automatically

in order to resume a specified position number

when the power is turned on or if the software is

reset. (It is necessary to register a position in

advance in the memory to enable this function.

Refer to page 19.)

CAUTION

•The allotted FTP user area is approximately 90 K bytes, however since

this unit’s file system is generated dynamically, the actual storable

capacity may be less than this in certain cases.

•Folders cannot be created on this FTP server. Only file upload/delete/

rename are possible.

VN-C30ULWT0031-001D 03.10.17, 11:19 AMPage 9 AdobePageMaker6.5J/PPC

Password protection

Access protection using a password is provided with the VN-C30U to

restrict other connecting browsers (users). The access protection function

provides three security levels, each of which is allowed to access the

kinds of pages as shown in the following table.

(For the configuration of the VN-C30U web pages, see page 14.)

Level Access Permission

User Image pages only.

Operator Web pages other than the configuration pages.

Administrator All web pages

CAUTION

•Never forget the current password for it cannot be canceled or changed

unless it matches the password set at the administrator level.

•Even when the user or operator level password is set, the password will

not be asked for unless the administrator level password is set.

VN-C30ULWT0031-001D 03.10.17, 11:19 AMPage 10 AdobePageMaker6.5J/PPC

Andere Handbücher für V.NETWORKS VN-C30U

Inhaltsverzeichnis

Andere JVC Sicherheitskamera Handbücher

JVC

JVC V.NETWORKS VN-C625U Bedienungsanleitung

JVC

JVC TK-N1100 Bedienungsanleitung

JVC

JVC VN-C3U - V-networks Pan/tilt/zoom Camera Bedienungsanleitung

JVC

JVC VN-V225VPU Bedienungsanleitung

JVC

JVC TKC215V12U - CCTV Camera Bedienungsanleitung

JVC

JVC TK-WD31 Bedienungsanleitung

JVC

JVC TK-C205U(A) Bedienungsanleitung

JVC

JVC VN-T16U Bedienungsanleitung

JVC

JVC VN-C2WU - V-networks Pan/tilt Camera Bedienungsanleitung

JVC

JVC TK-C2201WPE(EX) Bedienungsanleitung

JVC

JVC V.NETWORKS VN-C1U Bedienungsanleitung

JVC

JVC VN-V225U - Ip Network Mini-dome Camera Bedienungsanleitung

JVC

JVC TK-AM200U - Active Movement Color Dome... Bedienungsanleitung

JVC

JVC KY-F55U - 3-ccd Multi-purpose Camera Less... Bedienungsanleitung

JVC

JVC VN-V25U VN-V26U Bedienungsanleitung

JVC

JVC TK-C1480B Bedienungsanleitung

JVC

JVC TK-T2100RU Bedienungsanleitung

JVC

JVC VN-T216U Bedienungsanleitung

JVC

JVC TK-C700U - Color Cctv Camera Bedienungsanleitung

JVC

JVC VN-C215V4U - Fixed Ip Network Mini Dome Benutzerhandbuch

JVC

JVC VN-H657U Bedienungsanleitung

JVC

JVC TK-C205VP Bedienungsanleitung

JVC

JVC LoLux TK-T2101RU Bedienungsanleitung

JVC

JVC VN-C215VP4U - Fixed Ip Network Mini Dome Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
