JVC LS-M1 Bedienungsanleitung

LVT1248-002A

[US]

LS-M1

SPEAKER STAND

INSTRUCTIONS

English

cover_LS-M1[US].p65 04.10.28, 6:58 PM3

English

Thank you for purchasing a JVC product.

Before you begin using it, please read the instructions carefully.

Warnings, Cautions and Others

Warning

Observe the following carefully before installation;

otherwise, the speaker may fall over, causing damage or

injury.

– Do not install the speaker stand on an uneven surface

or in a place subject to vibration.

– Do not lean against the speaker stand. Especially pay

attention to children not to do so.

– Fasten all the screws firmly when assembling the

speaker stand, and check its tightness afterwards

regularly.

– Do not install any overweight equipment (over 10 kg)

on the speaker stand.

7Precautions

• For safety use

–Do not climb or hang on to the speaker stand.

–Attach the speaker firmly to the speaker stand.

• For installation

–While installing the speaker on the stand, do not drop it from

the stand. Pay attention not to damage the speaker cabinet.

–To obtain the best bass sound quality, install the speaker

stand on the flat floor.

• For daily use

–Wipe with a dry, soft cloth if the speaker stand should

become dirty. If very dirty, wipe with a cloth applied a small

amount of water or neutral detergent, then wipe with a dry

cloth.

–Do not use chemicals such as benzine and thinner for

cleaning the speaker stand; otherwise, the speaker stand

may deteriorate or its paint may come off.

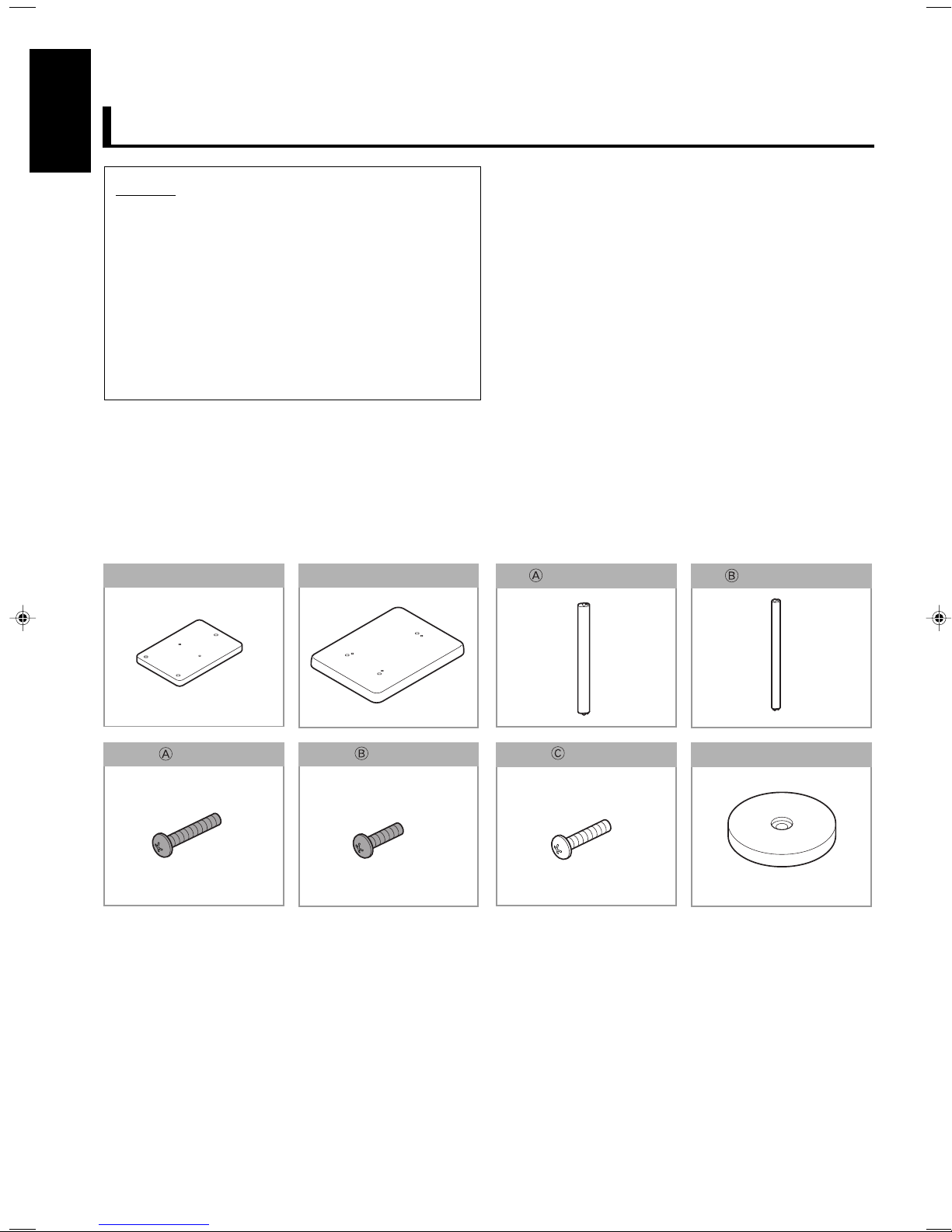

7Checking the supplied parts

Check to be sure you have the following supplied parts.

The quantity of piece supplied is for one pair of speaker stands.

If any item is missing, contact your dealer immediately.

Screws ------------------- 6

Top plate --------------------- 2 Bottom plate--------------- 2

Screws ------------------- 6

(Black: M6 x 30 mm) (Black: M6 x 16 mm)

Screws ------------------- 4

Leg ------------------------ 4

Leg holder ------------------ 6

(thick) (thin)

(Silver: M5 x 28 mm)

Leg ------------------------ 2

EN_LS-M1[US]4.p65 04.11.4, 4:57 PM2

English

Before assembling—

•Prepare a Phillips screwdriver.

•Place a large, thick cloth on the floor where you assemble the

speaker stand to protect the floor and the speaker stand.

7Assembling the speaker stand

•Tighten the screws firmly so that no space is left between

the legs and plates.

Fix the top plate.

• Align the projection of the legs to the holes of the top plate

correctly, then attach them with three of the supplied

screws B(M6 x 16 mm).

* The side without spacer should face outside.

Fix the bottom plate and leg holders.

• Align the projection of the legs to the holes of the bottom

plate correctly, then attach them with three of the supplied

screws A(M6 x 30 mm).

Finally tighten screws Aand Bfully.

• Tighten them firmly and fully so that no space is left between

the legs and plates.

7Attach the speaker on the stand

Locate the speaker properly by aligning both screw holes

of the speaker and the speaker stand.

• Do not install the speaker stand on an uneven surface or in

a place subject to vibration.

• Do not install any overweight equipment (over 10 kg) on the

speaker stand.

Fix the speaker with the supplied screws C(M5 x 28 mm).

• Do not overtighten the screws, but firmly enough to prevent

the speakers from being shaky.

Assembly Installing Speaker

Leg B(thin)

Screws A

(M6 x 30 mm)

Spacer

Bottom plate

Leg A(thick)

Spacer

Leg holder

Thick cloth

(not supplied)

Screw C(M5 x 28 mm)

Spacer

Screws B

(M6 x 16 mm)

Top plate

Leg B(thin)

Leg A(thick)

330260

632

585 1530

Unit: mm

Design and specifications subject to change without notice.

Mass: 5.3 kg each

Maximum load: 10 kg

Dimensions: See the diagram.

Specifications

EN_LS-M1[US]4.p65 04.11.4, 4:57 PM3

1104NSMMDWHCE

LS-M1 SPEAKER STAND
