For

model:

AV-14F703

JVC

COLOR

TELEVISION

USER'S

GUIDE

■

i

IMPORTANT

NOTE

TO

THE

CUSTOMER:

In

the

space

below,

enter

the

serial

number

for

your

television

(located

on

the

rear

of

the

television

cabinet).

Staple

your

sales

receipt

or

invoice

to

the

inside

cover

of

this

guide.

Keep

this

user's

guide

in

a

convenient

place

for

future

reference.

Keep

the

carton

and

original

packaging

for

future

use.

Serial

Number

/

▼

\

/

•

\

CAUTION:

to

reduce

the

risk

of

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL

_

The

lightning

flash

with

arrowhead

symbol,

within

an

equilateral

triangle

ral

triangle

is

intended

to

ature

accompanying

the

WARNING

:

to

prevent

fire

or

shock

hazard,

do

not

expose

this

appliance

to

rain

or

moisture.

CAUTION

:

TO

prevent

electric

shock

do

not

use

this

polarized

plug

with

an

extension

cord,

RECEPTACLE

OR

OTHER

OUTLET

UNLESS

THE

BLADES

CAN

BE

FULLY

INSERTED

TO

PREVENT

BLADE

EXPOSURE.

IMPORTANT

SAFEGUARDS

2

13.

LIGHTNING

To

protect

your

unit

during

a

lightning

storm,

or

when

it

is

left

unattended

and

unused

for

long

periods

of

time,

unplug

it

from

the

wall

outlet

and

disconnect

the

antenna

or

cable

system.

This

will

prevent

damage

to

the

unit

due

to

lightning

and

power

line

14.

POWER

LINES

An

outside

antenna

system

should

not

be

located

in

the

vicinity

of

overhead

power

lines

or

other

electric

light

or

power

circuits,

or

where

it

can

fall

into

such

power

lines

or

circuits.

When

installing

an

outside

antenna

system,

extreme

care

should

be

taken

to

keep

from

touching

such

power

lines

or

circuits,

as

contact

with

them

might

be

fatal.

15.

OVERLOADING

16.

OBJECT

AND

LIQUID

ENTRY

Do

not

push

objects

through

any

openings

in

this

unit,

as

they

may

touch

dangerous

voltage

points

or

short

out

parts

that

could

result

in

fire

or

electric

shock.

Never

spill

or

spray

any

type

of

liquid

into

the

unit.

17.

OUTDOOR

ANTENNA

GROUNDING

If

an

outside

antenna

or

cable

system

is

connected

to

the

unit,

be

sure

the

antenna

or

cable

system

is

grounded

to

provide

some

protection

against

voltage

surges

and

built-up

static

charges,

Section

810

of

the

National

Electrical

Code,

ANSI/NFPA

70,

provides

information

with

respect

to

proper

grounding

of

the

mast

and

supporting

structure,

grounding

of

the

lead-in

wire

to

an

antenna

discharge

unit,

size

of

grounding

conductors,

location

of

antenna

discharge

unit,

connection

to

grounding

elec¬

trodes,

and

requirements

for

the

grounding

electrode.

18.

SERVICING

hazards.

Refer

all

servicing

to

qualified

service

personnel.

19.

DAMAGE

REQUIRING

SERVICE

Unplug

this

unit

from

the

wall

outlet

and

refer

servicing

to

qualified

service

personnel

under

the

following

conditions:

a.

When

the

power-supply

cord

or

plug

is

damaged.

b.

If

liquid

has

been

spilled,

or

objects

have

fallen

into

the

unit.

d.

If

the

unit

does

not

operate

normally

by

following

the

operating

instructions.

Adjust

only

those

controls

that

are

covered

by

the

operating

instructions,

as

an

improper

adjustment

of

other

controls

may

result

in

damage

and

will

often

require

extensive

work

by

a

qualified

technician

to

restore

the

unit

to

its

normal

operation.

e.

If

the

unit

has

been

dropped

or

the

cabinet

has

been

damaged.

f.

When

the

unit

exhibits

a

distinct

change

in

performance,

this

indicates

a

need

for

service.

20.

REPLACEMENT

PARTS

When

replacement

parts

are

required,

be

sure

the

service

technician

uses

replacement

parts

specified

by

the

manufacturer

or

those

that

have

the

same

characteristics

as

the

original

part.

Unauthorized

substitutions

may

result

in

fire,

electric

shock

or

other

hazards.

21.

SAFETY

CHECK

Upon

completion

of

any

service

or

repairs

to

this

unit,

ask

the

service

technician

to

perform

safety

checks

to

determine

that

the

amplifiers)

that

produce

heat.

23.

NOTE

TO

CATV

SYSTEM

INSTALLER

This

reminder

is

provided

to

call

the

CATV

system

installer's

attention

to

Article

820-40

of

the

NEC

that

provides

guidelines

for

proper

grounding

and,

in

particular,

specifies

that

the

cable

ground

shall

be

connected

to

the

grounding

system

of

the

building,

as

close

to

the

point

of

cable

entry

as

practical.

EXAMPLE

OF

ANTENNA

GROUNDING

:

NATIONAL

ELECTRICAL

CODE

IMPORTANT

RECYCLING

INFORMATION

This

product

utilizes

both

a

Cathode

Ray

Tube

(CRT)

and

other

com¬

ponents

that

contain

lead.

Disposal

of

these

materials

may

be

regu¬

lated

in

your

community

due

to

environmental

considerations.

For

disposal

or

recycling

information,

please

contact

your

local

athori-

ties,

or

the

Electronic

Industries

Alliance:

http://www.eiae.org

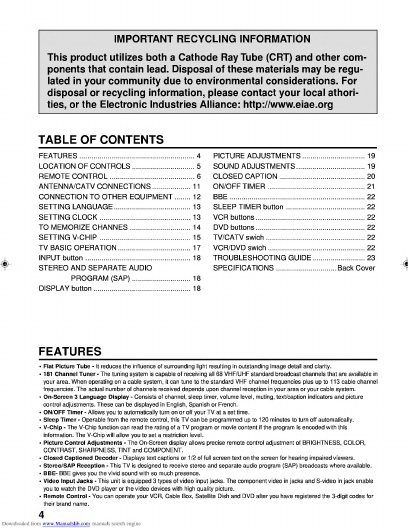

TABLE

OF

CONTENTS

FEATURES.,***,.4

LOCATION

OF

CONTROLS.5

REMOTE

CONTROL.6

ANTENNA/CATV

CONNECTIONS.11

CONNECTION

TO

OTHER

EQUIPMENT

12

SETTING

LANGUAGE.13

SETTING

CLOCK.13

TO

MEMORIZE

CHANNES.

14

SETTING

V-CHIP.

15

TV

BASIC

OPERATION.

17

INPUT

button.18

STEREO

AND

SEPARATE

AUDIO

PROGRAM

(SAP).18

DISPLAY

button.18


ADJUSTMENTS.***«

19

SOUND

ADJUSTMENTS.19

CLOSED

CAPTION.20

ON/OFF

TIMER

.21

BBE.22

SLEEP

TIMER

button.22

VCR

buttons.22

DVD

buttons.22

TV/CATV

swich.22

VCR/DVD

swich.22

TROUBLESHOOTING

GUIDE

.23

SPECIFICATIONS.Back

Cover

FEATURES

•

Flat


Tube

-

It

reduces

the

influence

of

surrounding

light

resulting

in

outstanding


detail

and

clarity.

•

181

Channel

Tuner

-

The

tuning

system

is

capable

of

receiving

all

68

VHF/UHF

standard

broadcast

channels

that

are

available

in

your

area.

When

operating

on

a

cable

system,

it

can

tune

to

the

standard

VHF

channel

frequencies

plus

up

to

113

cable

channel

frequencies.

The

actual

number

of

channels

received

depends

upon

channel

reception

in

your

area

or

your

cable

system.

•

On-Screen

3

Language

Display

-

Consists

of

channel,

sleep

timer,

volume

level,

muting,

text/caption

indicators

and


control

adjustments.

These

can

be

displayed

in

English,

Spanish

or

French.

•

ON/OFF

Timer

-

Allows

you

to

automatically

turn

on

or

off

your

TV

at

a

set

time.

•

Sleep

Timer

-

Operable

from

the

remote

control,

this

TV

can

be

programmed

up

to

120

minutes

to

turn

off

automatically.

•

V-Chip

-

The

V-Chip

function

can

read

the

rating

of

a

TV

program

or

movie

content

if

the

program

is

encoded

with

this

information.

The

V-Chip

will

allow

you

to

set

a

restriction

level.

.


Control

Adjustments

-

The

On-Screen

display

allows

precise

remote

control

adjustment

of

BRIGHTNESS,

COLOR,

CONTRAST,

SHARPNESS,

TINT

and

COMPONENT.

•

Closed

Captioned

Decoder

-

Displays

text

captions

or

1/2

of

full

screen

text

on

the

screen

for

hearing

impaired

viewers.

•

Stereo/SAP

Reception

-

This

TV

is

designed

to

receive

stereo

and

separate

audio

program

(SAP)

broadcasts

where

available.

•

BBE-

BBE

gives

you

the

vivid

sound

with

so

much

presence.

•

Video

Input

Jacks

-

This

unit

is

equipped

3

types

of

video

input

jacks.

The

component

video

in

jacks

and

S-video

in

jack

enable

you

to

watch

the

DVD

player

or

the

video

devices

with

high

quality

picture.

•

Remote

Control

-

You

can

operate

your

VCR,

Cable

Box,

Satellite

Dish

and

DVD

after

you

have

registered

the

3-digit

codes

for

4

LOCATION

OF

CONTROLS

TifW-

1.

POWER

Button

-

Press

to

turn

the

TV

on

or

off.

2.

Remote

Sensor

-

Signals

from

the

Remote

Control

unit

are

received

here.

3.

ON

TIMER

Indicator

-

This

indicator

lights

up

when

the

powered

up.

It

also

lights

up

when

ON

TIMER

program

is

turned

ON

while

power

is

OFF.

4.

CHANNEL

+/-

Buttons

-

Press

to

select

a

higher

or

lower

numbered

channel

set

into

memory.

5.

VOLUME

+/-

Buttons

-

Press

to

raise

or

lower

the

volume

of

the

sound.

6.

VIDEO

3

IN

Jacks

(Front)

-

Audio

and

video

signal

cables

from

an

external

source

can

be

connected

7.

HEADPHONES

JACK

-

Plug

an

earphone

or

head¬

phones

with

an

1/8

miniplug

into

tnis

jack

for

listening.

8.

VHF/UHF

IN

(ANT)

Jack

-

Connect

a

VHF/UHF

antenna

or

CATV

cable

to

this

jack.

9.

VIDEO

1

IN

Jacks

(Rear)

-

Audio

and

video

signal

cables

from

an

external

source

(ex.

VCR)

can

be

connected

here.

If

your

video

device

has

S-video

out

jack,

connect

to

S-video

in

jack.

10.

VIDEO

2

IN

Jacks

-

Audio

and

video

signal

cables

from

an

external

source

(ex.

DVD)

can

be

connected

If

you

have

a

DVD

with

component

video

out

jacks,

connect

to

the

component

video

in

jacks.

If

you

have

a

video

device

without

the

component

video

out,

connect

to

video

in

jack.

11.

REAR

AUDIO

(L

/

R)

/VIDEO

OUT

Jacks

-

Used

to

output

audio

and

video

signals

to

a

TV,

amplifier

or

VCR.

NOTE:

This

video

out

jack

does

not

output

the

signal

from

component

video

in

jacks.

12.

AC

Power

Cord

-

Connect

to

a

120V,

60Hz

outlet.

5

REMOTE

CONTROL

1.

Slide

the

battery

compartment

cover

in

the

direction

of

the

arrow.

1.

TV/CATV

Switch

-

Used

to

select

the

TV

or

Cable

Box

to

be

operated.

(You

can

operate

your

cable

box

after

you

have

programed

the

remote

control.)

2.

VCR/DVD

switch

-

Used

to

select

the

VCR

or

DVD

to

be

operated.

(You

can

operate

your

VCR

or

DVD

after

you

have

programed

the

remote

control.)

3.

BBE

Button

-

Press

to

turn

BBE

On

or

Off.

4.

DISPLAY

Button

-

Displays

the

current

status

time,

channel

(or

Input),

the

present

settings

on

the

TV

screen.

5.

SLEEP

TIMER

Button

-

Sets

the

TV

to

turn

off

automatically

after

up

to

120

minutes.

6.

C.C.

(Closed

Caption)

Button

-

Switches

between

Caption,

Text

and

TV

modes

for

Closed-Captioned

programs.

7.

MUTING

Button

-

Press

to

turn

off

the

sound.

Press

again

to

turn

the

sound

back

on.

8.

CH

+/-

Buttons

-

Press

the

+

button

to

change

to

a

higher

numbered

channel

set

into

memory.

Press

the

-

button

to

change

to

a

lower

numbered

channel

set

into

memory.

Press

to

select

the

desired

item

during

On-Screen

operations.

9.

MENU

Button

-

Press

to

display

the

On-Screen

menu

function.

10.

VCR

or

DVD

Operation

Buttons

-

Press

to

operate

your

VCR

or

DVD.

11.

POWER

Button

-

Press

to

turn

the

TV

on

or

off.

12.

STANDARD

Button

-

Press

to

reset

the

On-Screen


adjustments

or

Audio

adjustment

to

their

factory

preset

positions.

13.

INPUT

Button

-

Switches

between

the

TV

and

external

input

sources.

14.10-key

pad

-

Allows

direct

access

to

any

channel

of

the

TV,

VCR

or

Cable

box.

15.

RETURN

Button

-

Switches

between

the

present

channel

and

the

last

channel

selected.

16.

LIGHT

Button

-

Press

to

turn

the

illumination

on

for

CH

+/-

and

VOL

+/-

buttons.

17.

AUDIO

SELECT

Button

-

Switches

sound

between

mono

and

stereo,

and

SAP

when

receiving

broad¬

casts

in

stereo

or

SAP.

18.

ENTER

Button

-

Press

to

enter

selected

setup.

19.

VOL

+/-

Buttons

-

Press

the

+

button

to

increase,

or

the

-

button

to

decrease

the

volume

level.

Press

to

select

the

desired

setting

or

arrangement

during

On-

Screen

operations.

20.

EXIT

Button

-

Press

to

exit

the

On-Screen

menu

function.

REMOTE

CONTROL

BASICS

•

Before

you

can

operate

the

remote

control,

you

must

first

install

the

batteries

(included).

See

“Changing

the

Batteries”

on

this

page

above

for

instructions.

(For

an

illustration,

please

see

page

6.)

•

Press

the

POWER

button

to

turn

the

television

on

or

off.

•

Make

sure

the

TV/CATV

switch

is

set

to

TV.

Move

the

switch

to

CATV

only

if

you

need

to

operate

a

cable

box.

Slide

the

VCR/DVD

selector

switch

to

VCR

to

control

a

VCR,

slide

to

DVD

to

control

a

DVD

player.

Please

see

pages

8

to

10

for

instructions

on

programming

your

remote

control

to

operate

a

Cable

box,

VCR

or

DVD

player.

Press

the

CH

+

and

CH

-

buttons

to

scan

through

the

channels.

Tap

the

CH

+

or

CH

-

button

to

move

Press

VOL

+

or

VOL

-

to

raise

or

lower

the

volume.

An

indicator

bar

will

appear

onscreen

to

show

you

the

television

volume

level.

The

CH

+/-

and

VOL

+/-

buttons

are

also

used

to

10-key

pad.

•

This

remote

includes

illuminated

buttons

for

key

features

like

CH

+/-

buttons,

and

VOL

+/-

buttons.

Press

the

LIGHT

button

to

tur

CHANGING

THE

BATTERIES

towards

the

bottom

to

remove

it.

Insert

two

AA

batteries

(supplied),

carefully

noting

the

“+”

and

markings

on

the

batteries

and

on

the

remote

When

batteries

are

installed,

slide

the

cover

back

into

place

(until

it

clicks

into

position).

•

If

the

remote

control

acts

erratically,

replace

the

We

recommend

using

alkaline

batteries

for

longer

battery

life.

When

you

change

the

batteries,

try

to

complete

the

task

within

three

minutes.

If

you

take

longer

than

three

minutes,

the

remote

control

codes

for

your

VCR,

DVD,

and/or

Cable

Box

may

have

to

be

reset

(pages

8-10).

BATTERY

PRECAUTIONS

batteries

in

this

device:

2.

Be

sure

to

follow

the

correct

polarity

when

installing

the

batteries

as

indicated

in

the

battery

compartment.

Reversed

batteries

may

cause

damage

to

the

device.

To

avoid

a

potential

short

circuit,

insert

the

”

end

3.

Do

not

mix

different

types

of

batteries

together

(e.g.

Alkaline

and

Carbon-zinc)

or

old

batteries

with

fresh

4.

If

the

device

is

not

to

be

used

for

a

long

period

of

time,

remove

the

batteries

to

prevent

damage

or

injury

from

possible

battery

leakage.

recharged;

they

can

overheat

and

rupture.

(Follow

battery

manufacturer’s

directions.)

6.

When

you

change

the

batteries,

try

to

complete

the

may

have

to

be

reset

(see

page

8).

EFFECTIVE

DISTANCE

OF

THE

REMOTE

CONTROL

TRANSMITTER

■

4

operate.

•

When

direct

sunlight,

an

incandescent

lamp,

fluorescent

lamp

or

any

other

strong

light

REMOTE

CONTROL

(CONTINUED)

REMOTE

PROGRAMMING

Setting

the

CATV,

VCR

and

DVD

Codes

You

can

program

your

remote

to

operate

your

cable

box,

satellite

receiver,

VCR

or

DVD

player

by

using

the

instructions

and

codes

listed

below.

If

the

equipment

does

not

respond

to

any

of

the

codes

listed

below

or

to

the

code

search

function,

use

the

remote

control

supplied

by

the

manufacturer.

Cable

Box

or

Satellite

setup

The

remote

control

is

programmed

with

CATV

and/or

Satellite

codes

for

power

on,

power

off,

channel

up,

channel

down,

and

f

0

key

operation.

Cable/Satellite

Search

Codes

Function:

f)

Slide

the

2-Way

Mode

Selector

switch

to

CATV.

2)

Press

the

TV

POWER

and

RETURN

buttons.

Hold

for

at

least

three

seconds

and

release.

3)

Press

TV

POWER,

see

if

the

CATV

or

Satellite

box

responds.

4)

If

there

was

a

response,

press

RETURN.

The

operating

codes

are

now

set.

If

there

was

no

response,

repeat

Step

3.

If

you

repeat

Step

3

a

total

of

52

times

without

a

response,

use

the

remote

control

which

came

with

the

equipment.

5)

Press

RETURN

to

exit.

8

■

power

on,

power

off,

play,

stop,

fast-forward,

VCR

setup

The

remote

control

is

programmed

with

VCR

codes

for

record,

channel

up,

and

channel

down

operation.

2)

Slide

the

first

2-way

selector

switch

to

‘TV

"and

the

other

2-way

selector

switch

to

“VCR

3)

Press

and

hold

down

the

DISPLAY

button.

4)

With

the

DISPLAY

button

held

down,

enter

the

first

code

number

listed

with

the

10

key

pad.

5)

Release

the

DISPLAY

button.

6)

Confirm

the

operation

of

the

VCR.

•

If

your

VCR

does

not

respond

to

the

first

code,

try

the

others

listed.

If

it

does

not

respond

to

any

code,

try

the

Search

Codes

Function

as

shown

below.

VCR

Search

Codes

Function:

1)

Slide

the

first

2-way

selector

switch

to

'TV

”

and

the

other

2-way

selector

switch

to

“VCR

”.

2)

Press

the

VCR

POWER

and

RETURN

buttons.

Hold

for

at

least

three

seconds

and

release.

3)

Press

VCR

POWER,

see

if

the

VCR

responds.

4)

If

there

was

a

response,

press

RETURN.

The

operating

codes

are

now

set.

If

there

was

no

response,

repeat

Step

'

■

If

you

repeat

Step

3

a

total

of

80

times

without

a

response,

use

the

manufacturers

remote

control

which

came

with

the

VCR.

5)

Press

RETURN

to

exit.

REMOTE

CONTROL

(CONTINUED)

DVD

setup

The

remote

control

is

programmed

with

DVD

codes

for

power

on,

power

off,

play,

stop,

fast-forward,

rewind,

previous

chapter,

next

chapter,

tray

open/close,

and

still/pause

operation.

1)

Find

the

DVD

player

brand

from

the

list

of

codes

shown

below.

2)

Slide

the

first

2-way

selector

switch

to

“TV"

and

the

other

2-way

selector

switch

to

“DVD".

3)

Press

and

hold

down

the

DISPLAY

button.

4)

With

the

DISPLAY

button

held

down,

enter

the

first

code

number

listed

with

the

10

key

pad.

5)

Release

the

DISPLAY

button.

6)

Confirm

the

operation

of

the

DVD

player.

•

If

your

DVD

player

does

not

respond

to

the

first

code,

try

the

others

listed.

If

it

does

not

respond

to

any

code,

try

the

Search

Codes

Function

as

shown

below.

•

After

you

program

your

remote,

some

DVD

buttons

may

not

work

properly.

If

some

buttons

do

not

work

properly,

use

the

remote

control

which

came

with

your

DVD

player.

DVD

Player

Search

Codes

Function:

1)

Slide

the

first

2-way

selector

switch

to

“TV"

and

the

other

2-way

selector

switch

to

“DVD",

2)

Press

the

DVD

POWER

and

RETURN

buttons.

Hold

for

at

least

three

seconds

and

release.

3)

Press

DVD

POWER,

see

if

the

DVD

player

responds.

4)

If

there

was

a

response,

press

RETURN.

The

operating

codes

are

now

set.

If

there

was

no

response,

repeat

Step

3.

If

you

repeat

Step

3

a

total

of

30

times

without

a

response,

use

the

manufacturers

remote

control

which

came

with

the

DVD

player.

5)

Press

RETURN

to

exit.

10
