INSTRUCTIONS

GGT0114-001A-H

AV-21MT16 AV-29MT16

AV-21MT36 AV-29MT36

AV-25MT16

COLOR TELEVISION EQUALIZER •CINEMA SURROUND •COMPONENT INPUT

Contents

Knowing your TV’s features .................................................... 3

Remote control buttons and basic functions ........................... 4

TV buttons and functions......................................................... 6

Setting up your TV................................................................... 7

Basic setting for picture .......................................................... 9

Advanced setting for picture...................................................11

Basic setting for sound .......................................................... 12

Advanced setting for sound................................................... 13

DVD function ......................................................................... 14

Customized setting ............................................................... 15

TV channel presetting .......................................................... 17

Additional preparation .......................................................... 18

Troubleshooting..................................................................... 20

Speciﬁcations ........................................................................ 21

GGT0114-001A-H.indd 1GGT0114-001A-H.indd 1 23.01.2006 11:10:45 Uhr23.01.2006 11:10:45 Uhr

15 cm

10 cm 10 cm 15 cm

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with

it when handling the TV. Should the TV screen become soiled, wipe it

with a soft dry cloth. Never rub it forcefully. Never use any cleaner or

detergent on it.

7 This TV can be turned on / off power by connecting / disconnecting the

AC Plug into AC outlet. While this TV is being installed, enough space

should be reserved for connecting / disconnecting the AC Plug into AC

outlet by hand.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects ﬁlled with liquids, such as vases, shall be placed on the ap-

paratus.

WARNING: <AV-21M, AV-25M, AV-29M Series>

YOU CAN DETACH THE PROTECT SHEET ON THE TOP

AND BOTTOM OF FRONT FRAME IF YOU NEEDED.

THE FRONT BUTTON DOOR OF THE TV SHOULD BE

PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE

UPPER PART, OR YOUR FINGER MAY BE PINCHED.

Thank you for buying this JVC color television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

✓

PULL PULL

GGT0114-001A-H.indd 2GGT0114-001A-H.indd 2 23.01.2006 11:10:46 Uhr23.01.2006 11:10:46 Uhr

Knowing your TV’s features

EXIT

CLOSED

CAPTION

VNR ECO CINEMA

SURROUND BASS

RM-C1287

100+

COLOR

Main features

DVD MENU Just connect DVD player to the television. The television will detect DVD signal and display

picture on the screen automatically and you can adjust pictures and sound while you are

watching DVD as your desire.

MTS You can listen the stereo sound or SAP from TV program broadcasting by MTS system.

(SAP: Second audio program.)

CLOSED CAPTION You can display dialog on the screen from TV broadcasting with Closed caption system.

You also may be able to display some information in text form if available.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

suitable level for a better eye care.

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

change of the volume when selecting different TV channel or selecting Video mode.

VNR You can reduce the picture noise when viewing noisy TV programs or video sources.

Conﬁrm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

Please see the chart below and check the functions that are equipped for your TV’s model number. The

model number is indicated at the rear of your TV. When you press a button concerned to a function that is

not available for your TV, it does not work and the logo “Ø” appears on the screen.

NO.

Model No.

Function

AV-21MT16

AV-21MT36

AV-25MT16

AV-29MT16

AV-29MT36

1SUPER BASS — O — — O

— PICTURE TILT — — — O O

GGT0114-001A-H.indd 3GGT0114-001A-H.indd 3 23.01.2006 11:10:47 Uhr23.01.2006 11:10:47 Uhr

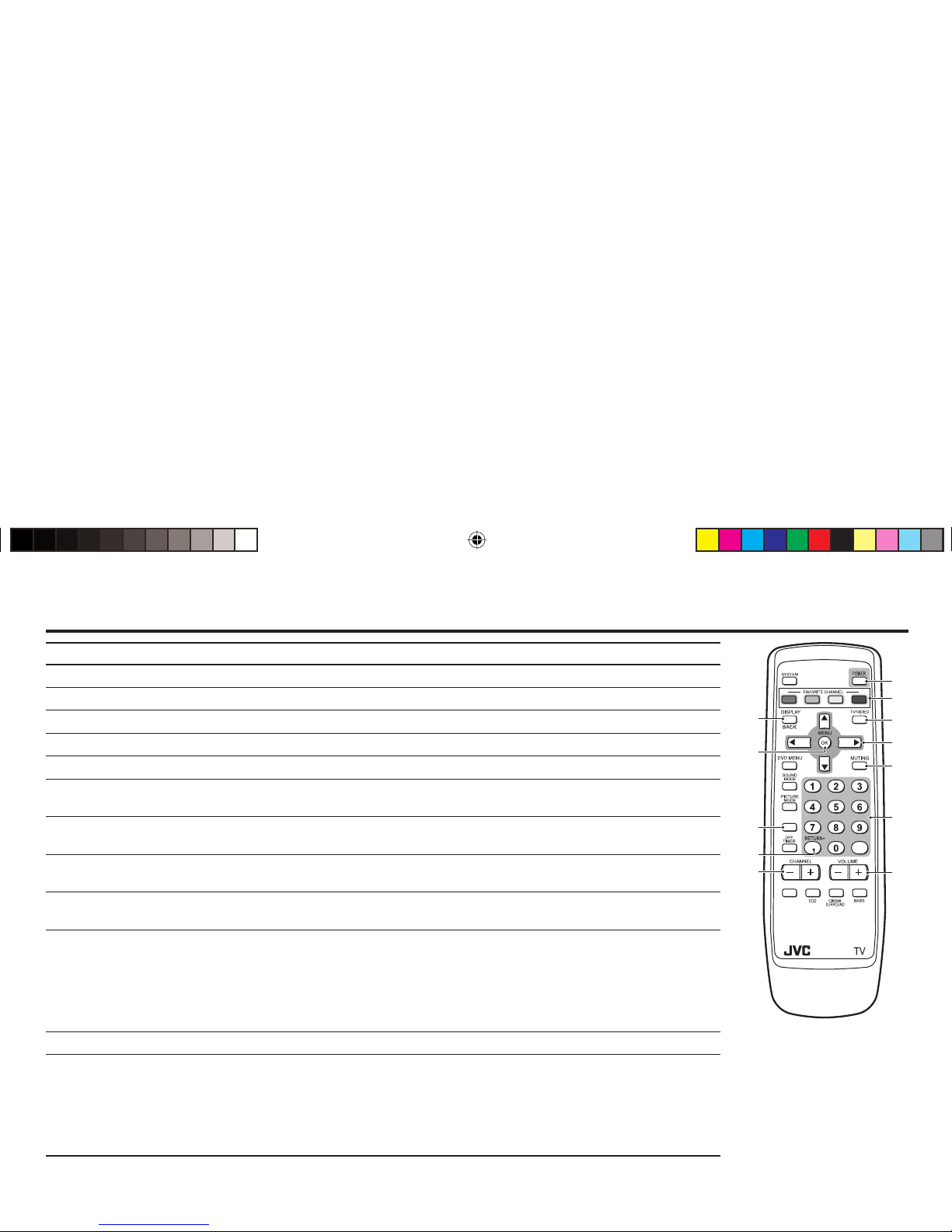

Remote control buttons and basic functions

EXIT

CLOSED

CAPTION

100+

VNR

RM-C1287

COLOR

No. Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and conﬁrm selected function.

35/ ∞/ 2/ 3Select and adjust menu function.

4CHANNEL -/+ Select the desired channel number.

5VOLUME -/+ Adjust the volume level.

6TV/VIDEO

EXIT

Select TV or video terminal input.

On the other hand, you can use this button to EXIT from the menu.

7MUTING Turn off the volume.

Press this button again to resume the volume.

8DISPLAY

/BACK

Display the program number or video terminal number on the screen.

On the other hand, you can use this button to return the previous menu.

90~9, 100+ Select the program number. For three digits program number, press 100+, then press the

number button.

!RETURN+a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have canceled the Return

channel as above.

CLOSED CAPTION

Display information in text which are broadcasted by some TV channels.

#FAVORITE

CHANNEL

(color buttons:

red, green,

yellow, blue)

1. Choose the TV channel you want to register then press and hold a color button until

“FAVORITE CHANNEL ■PROGRAMMED!" appears.

2. To register other favorite channels, repeat step 1.

To recall the favorite channel, press the color button.

When the TV is in menu mode, the favorite channel function is not available.

GGT0114-001A-H.indd 4GGT0114-001A-H.indd 4 23.01.2006 11:10:49 Uhr23.01.2006 11:10:49 Uhr

Remote control buttons and basic functions (continued)

The following chart shows locations of functions in menus. In this manual,

location of a function is described as follows:

Note: Some functions have the 4th menus as the sub-menus.

How to operate menus and menus locations

To Operation Note

Display the MENU Press the MENU/OK button 2.To exit the MENU,

press the DISPLAY/

BACK button 8or

choose EXIT menu

or TV/VIDEO/EXIT

button 6.

Display the top

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press ∞button 3to

display the next page

for more functions.

Display the 2nd

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Display the 3rd

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Return to the

previous menu

Press the DISPLAY/BACK button

8.–

Choose the setting

of a function

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to change the setting.

Press the TV/VIDEO/

EXIT button 6to

exit from the menu.

Adjust the effect

level of a function

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to adjust the effect

level.

Display the sub

menu of a function.

Press the 5/∞buttons 3to

choose a function. Then press

MENU/OK button 2to display

the sub menu.

–

MENU Top menu 2nd menu

Top menu 2nd menu 3rd menu

Top menu 2nd menu Location 3rd menu Location

MENU PICTURE PICTURE MODE P.9 ——

PICTURE SETTING P.10 PICTURE P.10

BRIGHT P.10

DETAIL P.10

COLOR P.10

TINT P.10

WHITE BALANCE P.10 ——

VNR P.15 ——

SOUND MTS P.13 ——

AI VOLUME P.13 ——

SOUND MODE P.12 ——

EQUALIZER P.13 ——

BALANCE P.12 ——

CINEMA SURROUND

P.13 ——

SUPER BASS

P.12 ——

FEATURES DVD MENU P.14

AUTO SIGNAL DETECT

P.14

DVD PICTURE MODE

P.14

TINT COLOR

P.14

WHITE BALANCE

P.14

SOUND MODE

P.14

CINEMA SURROUND

P.14

OFF TIMER P.15 ——

CHILD LOCK P.15 ——

COMPRESS (16:9)

P.11 ——

AI ECO SENSOR P.11 ——

INSTALL SETUP TOUR P.16 ——

AUTO PROGRAM P.17 ——

CHANNEL SUMMARY

P.17 ——

COLOR SYSTEM P.9 ——

LANGUAGE P.16 ——

VIDEO-2 SETTING P.16 ——

BLUE BACK P.11 ——

CLOSED CAPTION P.15

CAPTION

P.15

TEXT

P.15

PICTURE TILT P.11 ——

EXIT —— — —

GGT0114-001A-H.indd 5GGT0114-001A-H.indd 5 23.01.2006 11:10:49 Uhr23.01.2006 11:10:49 Uhr

TV buttons and functions

The illustrations shown below is for 21M, 25M and 29M series only, which are used for explanation purpose.

Your TV may not look exactly the same as illustrated.

Front of the TV

21M / 25M series

Rear of the TV

21M series 29M series

29M series

How to operate the menus with the TV button

TV button Work as same as the button on the

remote control unit Note

MENU MENU/OK button To display main menu and exit

menu after ﬁnish setting.

CHANNEL -/+ ∞/5button To select menu function.

VOLUME -/+ 2/3button To adjust the desired function.

No. Button/terminal Description Page

1L(main power) Press to turn on or turn off the TV’s main power. —

2POWER lamp Indicate the TV is being turned on or off. —

No color : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Note: When you turn off the power switch while TV is in standby

mode, the light of power lamp will be off in 10 -15 seconds.

3ECO sensor —

4Remote control sensor —

5TV/VIDEO/EXIT

Press to select TV or Video terminal input or exit from menu.

—

6VOLUME -/+ Press to adjust the volume level. —

7CHANNEL -/+ Press to select the desired channel. —

8MENU Press to display the menu. —

9IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 18

!Headphone jack. 18

"Aerial socket. 7

#OUTPUT Video and audio output jacks. (The component video

signal cannot be output.)

$COMPONENT

(VIDEO-2) INPUT

Video or component video, and audio input jacks for

VIDEO-2 mode. You can select the input signal by

setting the “VIDEO-2 SETTING” function (see page 16).

%VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1

mode

BASS SPEAKER OUT

Twin Port Bass Blaster Unit output terminal. 19

IN (VIDEO-3)

L / MONO

CHANNEL

VOLUME

POWER

243 1

87 6

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

BASS

SPEAKER

OUT

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

%$# "

IN (VIDEO-3)

OK EXIT

TV/VIDEO

- CHANNEL + - VOLUME +

L/MONO

87 56432

! 9

POWER

GGT0114-001A-H.indd 6GGT0114-001A-H.indd 6 23.01.2006 11:10:51 Uhr23.01.2006 11:10:51 Uhr

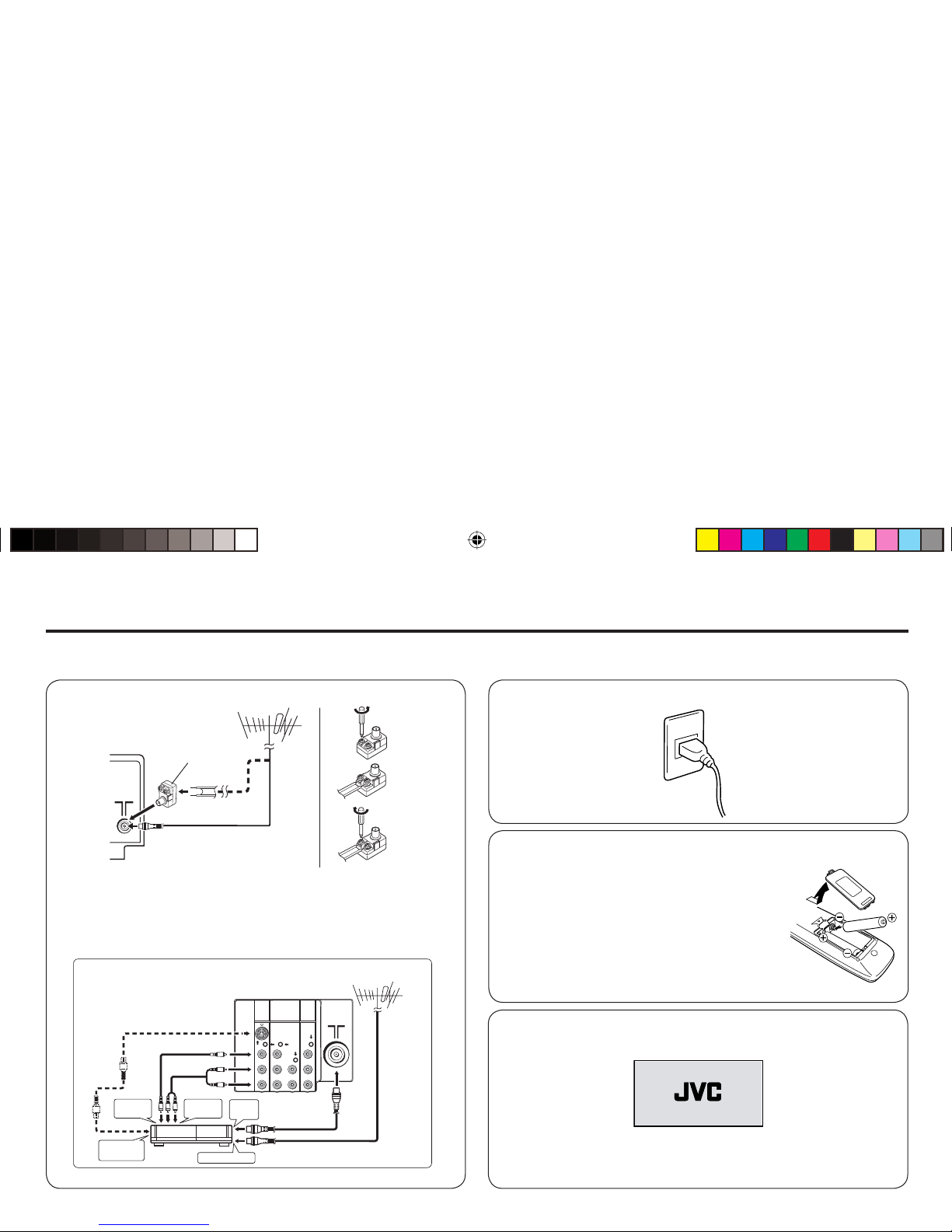

2Connecting the compatible main plug to the AC outlet.

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

(1)

(2)

(3)

1Connecting the aerial cable.

3Inserting batteries into the remote control.

Insert two batteries by following the +and -polarities

and inserting the -end ﬁrst.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly,

ﬁt new batteries. The supplied batteries are for

testing, not regular use.

4Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1

INPUT

COMPONENT

(VIDEO-2)

INPUT

Rear of TV

29M series

VHF/UHF outdoor aerial

VCR

If you connect a VCR, connect the aerial output jack of your VCR

and the aerial jack on the TV with aerial cable. Then connect the

output jacks of your VCR and the VIDEO-1 input jacks of the TV

with the video cable (or S-VIDEO cable if available) and audio

cables. For details, see the manual of your VCR.

The illustration shown is just a sample. It may not be same as your TV.

JVC logo will appear on the screen again at the phase of “SETUP

TOUR RESTART?” function. Then the initial setting can be

performed according to page 8.

To video

output

To audio

output

To RF

output

To S-video

output To aerial input

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

Matching aerial

adapter (supplied)

GGT0114-001A-H.indd 7GGT0114-001A-H.indd 7 23.01.2006 11:10:52 Uhr23.01.2006 11:10:52 Uhr

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by following the steps as below:

• Press 5,∞button or

CH +/- key to select

AIR or CABLE, press

the MENU/OK button.

• TV will start searching

for the channels.

To stop AUTO

PROGRAM, press

MENU/OK button.

Setting up your TV (continued)

• To complete the initial

setting, press the

MENU/OK button.

To set undesired

channels to be

skipped, see page 17.

• After that, when turn

on the TV at the next

time. “SETUP TOUR

RESTART?” will be

displayed.

Press the MENU/OK

button to cancel

the SETUP TOUR

RESTART function.

If you want to make

initial settings again

when the next time

you turn on the TV,

press the Red button

to activate the SETUP

TOUR RESTART

function.

LANGAUGE

CH03

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

AUTO PROGRAM

MENU : OK

10%

CHANNEL SUMMARY

MENU : OK

■

SKIP

■

CANCEL

CH/CC SKIP

CH 02

CH 03

CH 04

CH 05

CH 06

✔

CH 07

✔

CH 08

AUTO PROGRAM

MENU : NO

SETUP TOUR RESTART?

■

: YES

ENGLISH

ESPAÑOL

PORTUGUÊS

AUTO PROGRAM

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

AIR

CABLE

■

• Press 5/∞button to

select your desired

language.

GGT0114-001A-H.indd 8GGT0114-001A-H.indd 8 23.01.2006 11:10:53 Uhr23.01.2006 11:10:53 Uhr

COLOR SYSTEM

You can select the appropriate color system when the picture is

not clear or no color appears.

Press the COLOR SYSTEM button to select a setting.

To operate this function with a menu:

For the color system in each country or region, see the table

below:

Area Country or Region System

South America

Argentina, Paraguay, Uruguay PAL-N

Brazil PAL-M

Chile, Peru, Bolivia, Colombia, Venezuela,

Ecuador, etc.

NTSC

PICTURE MODE

You can choose the desired picture setting with one-touch.

Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting as you like.

Select USER and adjust following items in the

PICTURE SETTING menu. (PICTURE, BRIGHT,

DETAIL, COLOR, TINT*)

When you select to VIDEO-2 Mode. You cannot adjust DETAIL

and TINT.

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

To return the USER setting to the default, press the blue button

when the PICTURE SETTING menu appears.

About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Basic setting for picture

MENU INSTALL menu COLOR SYSTEM

MENU PICTURE menu PICTURE MODE



AUTO NTSC PAL-M PAL-N

GGT0114-001A-H.indd 9GGT0114-001A-H.indd 9 23.01.2006 11:10:54 Uhr23.01.2006 11:10:54 Uhr

PICTURE SETTING

You can adjust the desired picture setting when selecting USER

in PICTURE MODE.

1Select the USER in PICTURE MODE under PICTURE menu.

2Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

PICTURE 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

DETAIL 2: Softer 3: Higher

COLOR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

When you select to VIDEO-2 Mode. You cannot adjust DETAIL

and TINT.

* TINT can only be adjusted in NTSC system.

Basic setting for picture (continued)

WHITE BALANCE

You can change the white balance of the picture to better match

the type of video being viewed.

Select the WHITE BALANCE in the PICTURE menu, then choose

the desired setting.

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

When you select to VIDEO-2. You cannot adjust WHITE BALANCE.

You can adjust it in DVD Menu.

About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

MENU PICTURE menu WHITE BALANCE

MENU PICTURE menu PICTURE MODE

USER

MENU PICTURE menu PICTURE SETTING



GGT0114-001A-H.indd 10GGT0114-001A-H.indd 10 23.01.2006 11:10:55 Uhr23.01.2006 11:10:55 Uhr

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-N2172 Bedienungsanleitung

JVC

JVC AV-14F703 Bedienungsanleitung

JVC

JVC AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16, AV21MT16, AV21VT16, AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16,... Bedienungsanleitung

JVC

JVC LT-32EC3208 Bedienungsanleitung

JVC

JVC AV-29J314 Bedienungsanleitung

JVC

JVC AV29BF10ENS Bedienungsanleitung

JVC

JVC AV-21D114 Bedienungsanleitung

JVC

JVC AV-21F3 Bedienungsanleitung

JVC

JVC AV-36260 Bedienungsanleitung

JVC

JVC AV-28GT20U Bedienungsanleitung

JVC

JVC AV-29L6SU, AV-29L6BU Bedienungsanleitung

JVC

JVC AV-20420/SA Bedienungsanleitung

JVC

JVC AV-34WP84 /ZA Bedienungsanleitung

JVC

JVC AV-14F116 Bedienungsanleitung

JVC

JVC AV-21Q118B Bedienungsanleitung

JVC

JVC LT-26X575/KA Bedienungsanleitung

JVC

JVC PD-42V31BJE Bedienungsanleitung

JVC

JVC AV-14F4TEE Bedienungsanleitung

JVC

JVC AV-28R4SK Bedienungsanleitung

JVC

JVC AV-21NT4BU Bedienungsanleitung

JVC

JVC LT-65MA 875 Bedienungsanleitung

JVC

JVC AV-21B17 Bedienungsanleitung

JVC

JVC AV21BT7ENS Bedienungsanleitung

JVC

JVC AV21BJ8ENS Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
