COLOUR TELEVISION

INSTRUCTIONS

The illustrations of AV-14UMG7 is used in this instruction manual for explanation

purpose. Your TV may not look exactly the same as illustrated.

This illustration shows AV-14UMG7.

AV-21B17

AV-21B17B

AV-21BMG7

AV-21BMG7B

AV-21BMG7S

AV-21BMG8

AV-21Y17

AV-21Y18

AV-21YMG7

AV-21YMG7B

PREPARATION FUNCTIONS REFERENCE

Contents

Safety precautions ......................... 2

Connections .................................. 3

Initial settings ................................. 3

Remote control buttons

and functions ................................. 4

TV buttons and functions ............... 4

Using the TV’s MENU .................... 5

Presetting TV channels ................. 6

Using the timer .............................. 7

Playing game ................................. 7

Sound and Colour system in your

country or region ........................... 7

Troubleshooting ............. Back cover

Speciﬁcations ................ Back cover

AV-14A17

AV-14AMG7

AV-14U17

AV-14U19

AV-14UMG7

AV-14UMG7B

GGT0130-002A-H

POWER /

ON TIMER

If a television is not positioned in a sufﬁciently stable

location, it can be potentially hazardous due to

falling. Many injuries, particularly to children, can be

avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the

manufacturer of the television.

• Only using furniture that can safely support the

television.

• Ensuring the television is not overhanging the edge of

the supporting furniture.

• Not placing the television on tall furniture (for example,

cupboards or bookcases) without anchoring both the

furniture and the television to a suitable support.

• Not standing the televisions on cloth or other materials

placed between the television and supporting furniture.

• Educating children about the dangers of climbing on

furniture to reach the television or its controls.

• The surface of the TV screen is easily damaged.

Be very careful with it when handling the TV.

Should the TV screen become soiled, wipe it with a

soft dry cloth. Never rub it forcefully. Never use any

cleaner or detergent on it.

• The apparatus shall not be exposed to

dripping or splashing and that no objects

ﬁlled with liquids, such as vases, shall be

placed on the apparatus.

•

Do not allow objects or liquid into the cabinet

openings.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

• Operate only from the power source

indicated on the rear of the TV.

• Avoid damaging the power cord and

mains plug. When unplugging the TV,

grasp the mains plug. Do not pull on

the power cord.

• This TV can be turned on/off power by

connecting/disconnecting the AC plug

into AC outlet. While this TV is being

installed, enough space should be

reserved for connection/disconnecting

the AC plug into AC outlet by hand.

• Never block or cover the ventilation openings.

• Never install the TV where good ventilation is unattainable.

• When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

In the event of

a fault, unplug the unit

and call a service technician. Do

not attempt to repair it yourself or

remove the rear cover.

CAUTION

• Never listen to headphones at high volume!

- It may damage your hearing.

PREPARATION

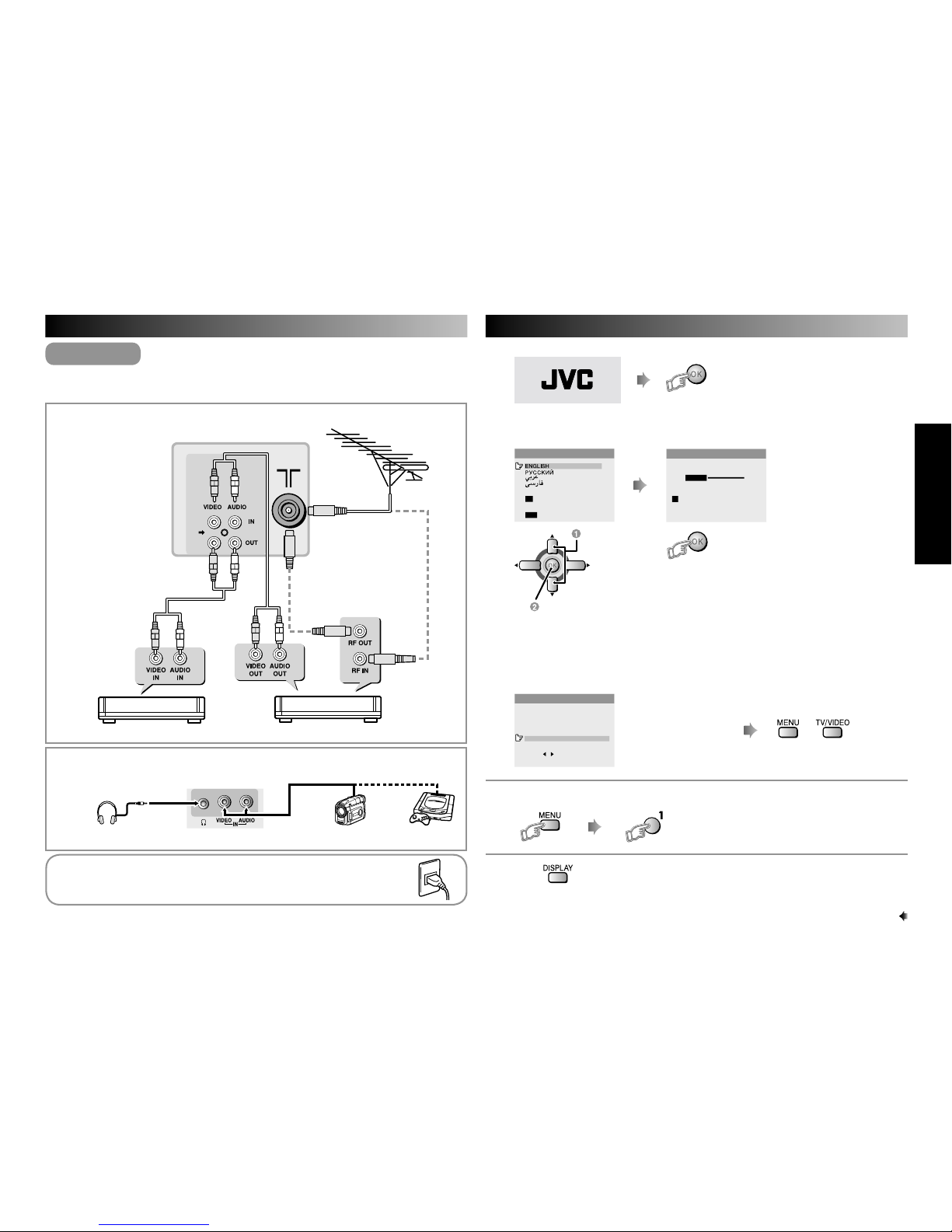

Connections Initial settings

Ensure to turn off all equipments including the TV before connecting the

AC mains plug to the AC outlet.

VHF/UHF

outdoor aerial

75-ohm coaxial

cable (not supplied)

Connecting to the aerial cable and VCR

After all the connections have been made, insert the mains

plug to the AC outlet.

Camcorder TV gameHeadphones

Connecting to the TV front terminals

Turn on the TV.

or wait 15 seconds to run Setup Tour

JVC logo appears.

Select a language.

to stop or wait until AUTO

PROGRAM ﬁnishes

LANGUAGE

DISPLAY

: AUTO PROGRAM

: EXIT

: BACK

FRANÇAIS

Select

Proceed to AUTO PROGRAM

Searching for the channels.

AUTO PROGRAM

: MANUAL PROGRAM

Search a channel manually or ﬁne-tune a channel.

MANUAL PROGRAM

VOLUME-/+ : SEARCH-/+

/ : FINE-/+

DISPLAY : SOUND SYSTEM

PR CH / CC

05 B/G CC 06

06 B/G CH 05

07 B/G CH 08

08 B/G CH 10

09 B/G CH 12

To perform manual

search and ﬁne-tune

(FINE), \ page 6. To complete

Setup Tour

To restart Setup Tour after above setup has completed

If you press when LANGUAGE is displayed (Step 2), the screen will exit to MENU.

CAUTION

VCR (for recording) VCR

TV rear terminals

TV front terminals

(while the cursor is pointing to PICTURE

MODE and within 3 seconds)

* This illustration

shows AV-14UMG7.

* This illustration shows AV-14UMG7.

Note

This Language Menu’s on screen is used for explanation purpose only.

Your TV may not show the same as this on screen.

POWER /

ON TIMER

• Insert two batteries by following

the and polarities and inserting the end ﬁrst.

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, ﬁt new

batteries. The supplied batteries are for testing, not

regular use.

WARNING:

Batteries shall not be exposed

to excessive heat such as direct

sunshine, ﬁre or the like.

If this symbol is

shown, it is only valid

in the European

Union.

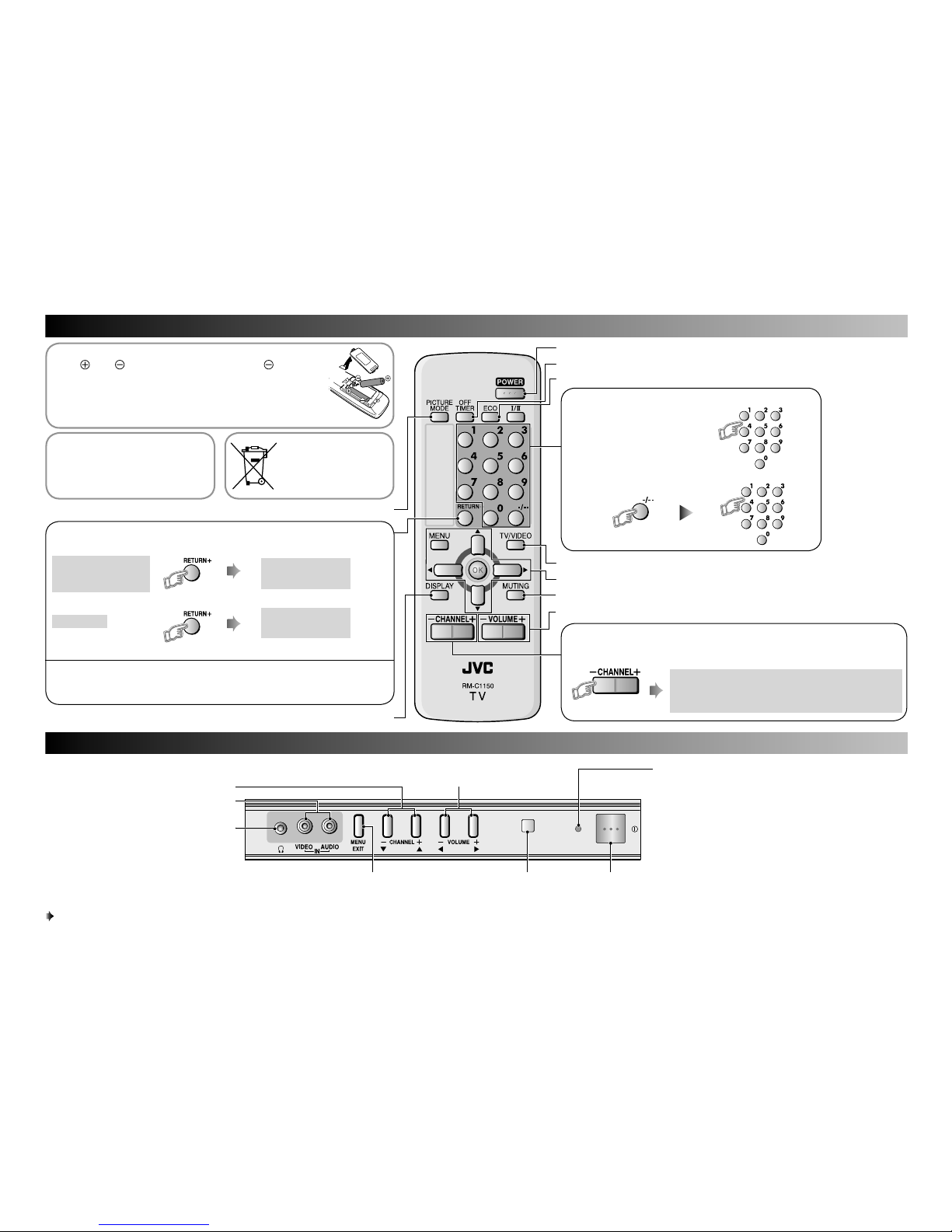

Remote control buttons and functions

TV buttons and functions

Turn the TV on from standby and vice versa

Set OFF TIMER (\ page 7)

Select ECO MODE (\ page 5)

Select programme number

Operating the menus (\ page 5)

Turn the volume Off / On

Adjust the volume level, Turn off Muting

Select Channel

Select the desired channel number.

For Hyper Scan:

Press and hold

PR changes without changing the picture. Once

you stop pressing CHANNEL+ or CHANNEL-

button, picture will change to the desired PR.

Display the programme number or video terminal number.

Select PICTURE MODE (\ page 5)

RETURN PLUS function

Return to the frequently viewed channel.

RETURN PLUS

PROGRAMMED!

Press and hold

RETURN PLUS

CANCELED!

To cancel

Choose the channel

you want to

programme

RETURN function

If you have not set or have canceled the RETURN PLUS channel, this will

return to the previously viewed channel.

Press and hold

Remote control

sensor

POWER lamp - Indicates the TV’s status.

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Blink : While the TV is in standby mode, ON

TIMER function is in used. While the

TV is in turn on mode, OFF TIMER

function is in used.

Note: When you turn off the power switch while

TV is in standby mode, the power lamp will go

off in 5 -10 seconds. When you operate the TV,

POWER Lamp will blink.

TV’s main

power on/off

Video and audio input jack

Headphone jack

Display the TV’s MENU,

Exit after ﬁnish setting

Adjust volume level

Select Channel

Select TV or video input

For two digits programme number

* This illustration shows AV-14UMG7.

PICTURE MODE

PICTURE SETTING

WHITE BALANCE NORMAL

ECO MODE

ON TIMER

OFF TIMER

MENU (1 / 3)

FUNCTIONS

Using the TV’s MENU

MENU Item Description

(Setting / Adjustment)

PICTURE MODE USER Change picture settings

(\ PICTURE SETTING)

VIVID Heightens contrast and sharpness

SOFT Softens contrast and sharpness

PICTURE SETTING

PICTURE SETTING can

operate when PICTURE

MODE is set to USER

(\ PICTURE MODE)

On screen scale colour

Center position : Yellow

Others position : Green

CONTRAST Adjust contrast (Lower j Higher)

BRIGHT Adjust brightness

(Darker j Brighter)

SHARP Adjust sharpness

(Softer j Higher)

COLOUR Adjust colour (Lighter j Deeper)

TINT Adjust colour tint

(Reddish j Greenish)

RESET Reset all items level to center

WHITE BALANCE NORMAL Normal white balance

COOL Bluish white

WARM Reddish white

ECO MODE

Adjust picture contrast

according to room

brightness

OFF Cancel the function

ECO-1 Mild contrast (recommended)

ECO-2 Even contrast

ON TIMER Turns on the TV from standby mode (\ page 7)

OFF TIMER Turns off the TV to standby mode (\ page 7)

AI VOLUME ON Sets the volume level for all

channels and video inputs

automatically depends on the

strength of signal from the source.

OFF Volume can be adjusted individually

for each channel

CHILD LOCK ON Disable the front buttons of the TV

OFF Cancel the function

BLUE BACK ON Displays a blue screen and mutes

the sound when signal from the

aerial is weak or absent

OFF Cancel the function

VNR

To reduces the picture

noise

AUTO Effect of VNR is automatically

controlled

MIN Effect of VNR becomes minimum

MAX Effect of VNR becomes maximum

OFF Cancel the function

GAME Select a game to play (PUZZLE / TWINS)

(\ page 7)

LANGUAGE Choose your desired on screen display language.

AUTO PROGRAM Automatically registers channels (\ page 6)

MANUAL PROGRAM Manually search channels and fine-tunes

channels (\ page 6)

INSERT / DELETE Add, delete and move registered channels

(\ page 6)

COLOUR SYSTEM Select the appropriate system

In TV mode :

(

AV-14A17 / AV-14U17 / AV-14U19 / AV-21B17 / AV-21B17B /

AV-21Y17 / AV-21Y18 : AUTO / PAL / SECAM)

(Other models : AUTO / PAL / SECAM / NTSC3.58 /

NTSC4.43)

In VIDEO mode (All models) :

(AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43)

(\ page 7)

SOUND SYSTEM Select the appropriate system

(AV-14A17 / AV-14U17 / AV-14U19 / AV-21B17 /

AV-21B17B / AV-21Y17 / AV-21Y18 : BG / I / DK)

(Other models : BG / I / DK / M) (\ page 7)

To return to previous screen

To exit from Menu or

Display MENU

Showing MENU

page 1 of 3

On-screen guide

/ Select function, go to

previous/next page

/ Display function setting.

/ Change setting

Operating the menus

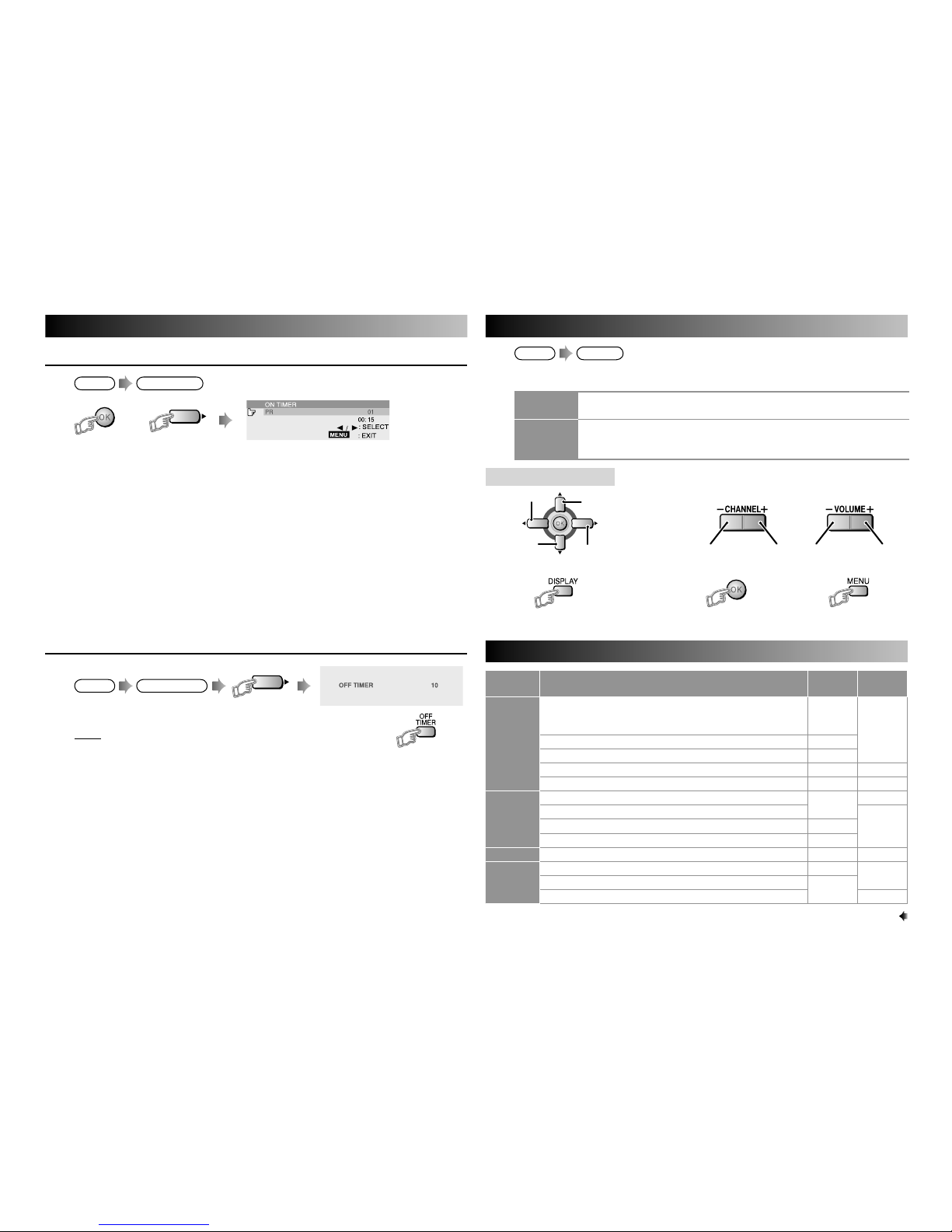

Presetting TV channels

AUTO PROGRAM

AUTO PROGRAMMENU

to stop or when AUTO PROGRAM ﬁnishes.

MANUAL PROGRAM screen appears (\ MANUAL PROGRAM).

MANUAL PROGRAM

4to exit.

MANUAL PROGRAM

VOLUME-/+ : SEARCH-/+

/ : FINE-/+

DISPLAY : SOUND SYSTEM

PR CH / CC

05 B/G CC 06

06 B/G CH 05

07 B/G CH 08

08 B/G CH 10

09 B/G CH 12

To search for a

channel manually

(SEARCH)

1. Select the PR number you wish to store the

channel.

2. Press the VOLUME +/- button to start searching

from the present channel. Searching stops when

the following channel is found.

To ﬁne-tune a channel

(FINE)

1. Select the channel you wish to ﬁne-tune.

2. Press the or button until a clear picture is

obtained.

INSERT / DELETE

After this operation, other channel's PR number will be changed.

INSERT / DELETEMENU

To add the new

channel (INSERT)

1. Select the PR number you wish to store the new

channel.

2. Press the VOLUME+ button.

3. Press button to choose “CH” or “CC”.

4. Enter the CH/CC number for the channel you wish to

add. The TV starts to search for the channel.

Certain channels are not available in some countries.

If you cannot receive a channel by INSERT, use

MANUAL PROGRAM.

To delete a

channel (DELETE) Select the channel you wish to delete and press .

To change the PR

number (MOVE)

1. Select the PR number you wish to move.

2. Press the button.

3. Press or button to move it to the new PR number.

4. Press button.

4to exit.

AUTO PROGRAM

: MANUAL PROGRAM

INSERT / DELETE

MOVE

VOLUME+ : INSERT

MUTING : DELETE

PR CH / CC

05 B/G CC 06

06 B/G CH 05

07 B/G CH 08

08 B/G CH 10

09 B/G CH 12

CH/CC CCIR OIRT CH/CC CCIR OIRT CH/CC CCIR OIRT

CH02 E2 R1 CH21 E21 CC01 S-1

CH03 E3 CH22 E22 CC02 S-2

CH04 E4 R2

CH05 E5 R6

CH06 E6 R7

CH07 E7 R8 CC41 S-41

CH08 E8 R9 CC75 X

CH09 E9 CC76 Y R3

CH10 E10 R10 CC77 Z R4

CH11 E11 R11 CC78 Z+1 R5

CH12 E12 R12 CH69 E69 CC79 Z+2

CCIR: Middle East, Southeast Asia, etc.. OIRT: Russia etc..

Channel table

If noisy sound is heard

and unsuitable sound

system for your broad-

casting (\ Page 7)

1. Press DISPLAY button then on screen will

change to Sound System,

2. Choose an appropriate sound system.

Using the timer Playing game

ON TIMER

ON TIMERMENU

ON TIMER

Choose the PR (channel) that you want to watch when the TV turns

on. External input, AV position and any un-preset channel cannot be

chosen for PR.

Set the ON TIMER to your desired period of time. When the ON TIMER

is set to other than 00:00, the ON TIMER is activated. You can set the

period of time to a maximum of 12 hours in 15-minute intervals.

To off the ON TIMER, set the time to 00:00.

OFF TIMER

When the remaining elapse time is one minute, “GOOD NIGHT!”

appears on the screen.

You can display the OFF TIMER screen again to conﬁrm or change

the remaining time.

To off the OFF TIMER, select OFF or turn off the TV’s main power.

OFF TIMER

1GAME

2Select a game.

PUZZLE This game needs you to rearrange the numbers 1 to 15 in order

by swapping the blank card with the numbered card.

TWINS This game needs you to ﬁnd all the matching pairs of cards. If

you open a correct pair, the card will stay uncovered. If you miss,

they will ﬂip back.

Instructions to play

Right

Down

Left

To move

Up Left RightDown

To move

To open a card (TWINS only) To restart the game To exit the game

Sound and Colour system in your country or region

Area Country or Region Sound

System

Colour

System

Asia,

Middle

East

Bahrain, Kuwait, Oman, Qatar, United Arab

Emirates, Yemen, etc.

Indonesia, Malaysia, Singapore, Thailand, India, etc

B/G

PAL

China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G SECAM

Philippines, Taiwan, Myanmar, etc. M NTSC

Europe

Russia, etc. D/K SECAM

Czech Republic, Poland, etc.

PAL

Germany, Holland, Belgium, etc. B/G

UK, etc. I

Oceania Australia, New Zealand, etc. B/G PAL

Africa

Republic of South Africa, etc. IPAL

Nigeria, etc. B/G

Egypt, Morocco, etc. SECAM

You can set the period of time to a maximum of 120 minutes in 10

minutes intervals.

Note You can select OFF TIMER function by direct key.

Troubleshooting Speciﬁcations

If a problem occurs when you are using the TV, check the below trouble-

shooting guide before calling for repair.

Problem Cause / Solution

No or poor picture • Turn OFF BLUE BACK if it is ON. (\ page 5)

• Adjust the COLOUR or BRIGHT setting. Refer to

“PICTURE SETTING”. (\ page 5)

• Choose the appropriate colour system. (\ page 5)

Snowy picture • Check the aerial and TV connections. (\ page 3)

Stripes or coloured

patches appeared

• Interference caused by electrical appliances or

speakers. Move them away from the TV.

Double-picture

(ghosting)

• Interference caused by signal reflecting from mountains

or buildings. Adjust the aerial’s direction or use another

antenna.

No or poor sound • Choose the appropriate sound system. (\ page 5)

White and bright still

image looks as if it is

coloured

• Inevitable phenomenon due to the nature of the picture

tube. This is not a malfunction.

Image from video input

is distorted

• The image was not properly recorded. This is not a

malfunction.

Cannot operate the

remote control

• Replace the batteries. (\ page 2)

• Operate it at less than 7 meters from the TV.

Cannot operate the

• Exit and enter the MENU again.

Cannot operate the

front panel buttons

• Turn OFF CHILD LOCK if it is ON.

Image takes a while to

be displayed

• Image requires time to stabilize before display.

This is not a malfunction.

TV emits crackling

sound

• Caused by a sudden change in temperature and it is not

a malfunction. Call a service technician for inspection.

Static shock when

touch the TV screen

• Caused by static electricity of the picture tube and it will

not harm the human body. This is not a malfunction.

The TV turns off

suddenly

• This is not a malfunction. If you had set the BLUE

BACK function to ON, TV will be turned off automatically

when no signals are received from an antenna for about

15 minutes or longer.

TV RF systems AV-14A17 / AV-14U17 / AV-14U19 / AV-21B17 / AV-21B17B /

AV-21Y17 / AV-21Y18 : B, G, I, D, K

Others models : B, G, I, D, K, M

Colour systems AV-14A17 / AV-14U17 / AV-14U19 / AV-21B17 / AV-21B17B /

AV-21Y17 / AV-21Y18 : PAL, SECAM, NTSC 3.58 MHz /

NTSC 4.43 MHz

(in VIDEO mode only)

Others models : PAL, SECAM, NTSC 3.58 MHz /

NTSC 4.43 MHz

Receiving

channels

VHF low channel (VL), VHF high channel (VH), UHF channel (U)

Receives cable channels in mid band, super band and hyper band.

Power requirements

For Malaysia /

Australia AC 160 to 240 V, 50 Hz / 60 Hz

For others AC 110 to 240 V, 50 Hz / 60 Hz

External input / output

INPUT VIDEO input, AUDIO input

OUTPUT VIDEO output, AUDIO output

Headphone jack Stereo mini jack (3.5 mm diameter)

Design and speciﬁcations are subject to change without notice.

Andere Handbücher für AV-21B17

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-20NX14, AV-21DX14 Bedienungsanleitung

JVC

JVC AV-14A17 Bedienungsanleitung

JVC

JVC AV-28KT1BUF Bedienungsanleitung

JVC

JVC AV-32X4 Bedienungsanleitung

JVC

JVC AV-29ED5BN, AV-29ED5SN Bedienungsanleitung

JVC

JVC AV-29ED5BN, AV-29ED5SN Bedienungsanleitung

JVC

JVC AV-28H35SUE Bedienungsanleitung

JVC

JVC AV-21F1P Bedienungsanleitung

JVC

JVC AV-28X37SUE Bedienungsanleitung

JVC

JVC AV-29M201 Bedienungsanleitung

JVC

JVC CX-60ME Bedienungsanleitung

JVC

JVC AV-21VS11 Bedienungsanleitung

JVC

JVC InteriArt AV-28R47SK Bedienungsanleitung

JVC

JVC AV-21D43 Bedienungsanleitung

JVC

JVC AV-36F802, AV-36F702, AV-32F802, AV-32F702, AV-27F802,... Bedienungsanleitung

JVC

JVC AV-14F114/B Bedienungsanleitung

JVC

JVC AV-28BT80EP Bedienungsanleitung

JVC

JVC AV-21B116 Bedienungsanleitung

JVC

JVC AV-17V214/V Bedienungsanleitung

JVC

JVC AV-14F33 Bedienungsanleitung

JVC

JVC AV-21F24, AV-21L24, AV-21C14, Bedienungsanleitung

JVC

JVC 0803-CR-JMT Bedienungsanleitung

JVC

JVC AV28BT5ENS Bedienungsanleitung

JVC

JVC LT-42E910 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
