GGT0015-001A-H

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-21V311

AV-21V511

AV-21V531

AV-29V311

AV-29V511

AV-29V531

Contents

Safety precautions2

Preparation 3

1 Confirm which remote control you have .. 3

Insert the batteries into the remote control .. 3

3 Connecting the aerial and VCR .................. 4

4 Connecting other devices .......................... 5

Connect the power cord to the AC outlet ...... 5

6 SETUP TOUR .............................................. 6

Basic operation 7

Remote control buttons and functions 8

MUTING button ............................................. 8

BASS button .................................................. 8

SOUND SYSTEM button ............................... 8

COLOUR SYSTEM button ............................. 8

DISPLAY button ............................................. 8

CINEMA SURROUND button ........................ 9

ECO SENSOR button ..................................... 9

button ........................................... 10

PICTURE MODE button ............................... 10

button ..................................................... 10

OFF TIMER button ....................................... 10

CHANNEL SCAN button .............................. 11

FAVORITE CH button ................................... 11

RETURN + button ........................................ 11

Using the TV’s menus 12

Basic operation ............................................ 12

INPUT ........................................................... 13

PICTURE TILT ............................................... 13

VNR ............................................................... 13

COMPRESS (16:9) ........................................ 13

AUTO SHUTOFF .......................................... 14

CHILD LOCK ................................................. 14

BLUE BACK .................................................. 14

VIDEO-2 SET ................................................ 15

LANGUAGE .................................................. 15

AUTO CH PRESET ....................................... 15

MANUAL CH PRESET .................................. 16

SKIP .............................................................. 17

SETUP TOUR ............................................... 17

Picture Adjustments .................................... 17

Sound Adjustments ..................................... 17

AI VOLUME .................................................. 18

SUPER BASS ................................................ 18

FAVORITE CH SETTING ............................... 18

VIDEO SETTING ........................................... 19

AI ECO SENSOR .......................................... 19

AI ECO DISPLAY .......................................... 19

Attaching the Twin Port Bass Blaster Unit 20

TV buttons and parts 21

Using the buttons on the TV 22

Troubleshooting 23

Specifications 24

Safety precautions

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING

THE USE OF THIS TV.

•Operate only from the power source specified on the TV.

•Avoid damaging the power cord and main plug. When you unplug the TV, pull it out

by the main plug. Do not pull on the power cord.

•Never block or cover the cabinet opening

for ventilation. Never install the TV where

good ventilation is unattainable. When

installing this TV, leave spaces for

ventilation around the TV more than the

minimum distances shown in the diagram.

•Do not allow objects or liquid into the

cabinet openings.

•In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt

to repair it by yourself or remove the rear cover.

•The surface of the TV screen is easily damaged. Be very careful with it when

handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any cleaner or detergent on it.

•When you don’t use this TV for a long period of time, be sure to disconnect the

power plug from the AC outlet.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

<AV-21V531/AV-29V531>

The Twin Port Bass Blaster Unit is packaged together with the TV.

Before you use the TV, mount the Twin Port Bass Blaster Unit correctly on the TV.

15 cm

10 cm 15 cm10 cm

Preparation

1Confirm which remote control you have

Your TV comes with one of the three remote controls shown below. Functions you

can operate differ depending on the type of remote control.

<RM-C1303><RM-C1305><RM-C1307>

For TV model: For TV model: For TV model:

AV-21V511 AV-21V311 AV-21V531

AV-29V511 AV-29V311 AV-29V531

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

SYSTEM

COLOUR SOUND

CHANNEL

RETURN+

POWER

DISPLAY

ΙΙ

TV/VIDEO

VOLUME

123

456

789

0-/--

CINEMA

SURROUND

RM-C1303

FAVORITE CH

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

SYSTEM

COLOUR SOUND

CHANNEL

RETURN+

POWER

DISPLAY

ΙΙ

TV/VIDEO

VOLUME

123

456

789

0-/--

CINEMA

SURROUND

RM-C1305

FAVORITE CH

MUTING BASS

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

SYSTEM

COLOUR SOUND

CHANNEL

RETURN+

POWER

DISPLAY

ΙΙ

TV/VIDEO

VOLUME

123

456

789

0-/--

CINEMA

SURROUND

RM-C1307

FAVORITE CH

2 Insert the batteries into the remote control

Correctly insert two batteries, observing the ,and .

polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly, fit new batteries.

The supplied batteries are for testing, not regular use.

Preparation

3Connecting the aerial and VCR

•Read the manuals provided with the devices. Depending on the device, the connection

method may be different from the diagrams. Also the device settings may need to change

depending on the connection method.

•Turn off all the devices including the TV.

•Connecting cables are not supplied.

•When connecting monaural audio to the TV, use the L/MONO jack.

•You can connect an S-VIDEO compatible device (such as an S-VHS VCR) to the S-connector

with an S-VIDEO cable and enjoy the high quality picture of the S-VIDEO signal (Y/C

signal). In that case, do not connect it to the TV with a video cable.

• If you connect the VCR to the TV only with an aerial cable, you should preset the video

channel from the VCR to the AV channel (channel number 0) on this TV. See “MANUAL CH

PRESET” on page 16 and preset it manually.

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

MONO

VHF/UHF outdoor aerial

(1)

(2)

(3)

Matching

aerial

adapter

(supplied)

Connecting the aerial

OVER

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRRC

To RF

output

To video

output

To S-video

output

VCR

VHF/UHF outdoor aerial

To aerial input

To audio

output

OVER

MONO

Connecting the aerial and VCR

Preparation

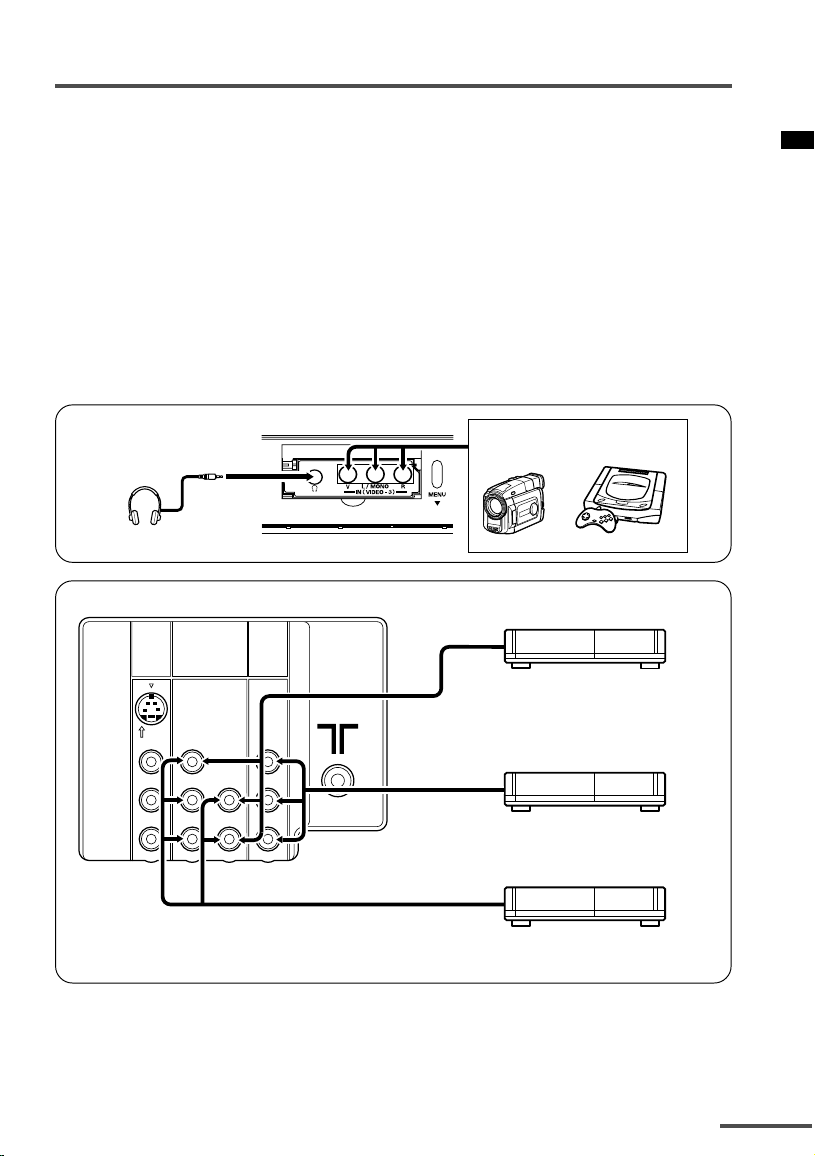

4Connecting other devices

If you are not connecting any other devices, skip step 4 and perform step 5.

• Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

•The OUTPUT terminal outputs the video and sound signals which you are viewing on the

TV. You can dub them onto the VCR connected to the OUTPUT terminal.

(The OUTPUT terminal cannot output S-VIDEO signals or component video signals. Also it

cannot output any signals when the TV is turned off.)

•Connect components outputting a component signal (Y/CB/CRsignal), such as a DVD player,

to the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 15.)

•The following illustrations are for the AV-21V311/AV-21V511/AV-21V531. Your TV’s front and

rear panels may not look exactly like the illustrations.

5 Connect the power cord to the AC outlet

Operate only from the power source indicated on the rear of the TV.

Front

Rear

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRR

VVV

VCR (for playing)

VCR (for recording)

DVD player

(composite signals)

DVD player

(component video signals)

MONO

OVER

Camcorder or TV game

Headphones

Preparation

6SETUP TOUR

When the TV is first turned on, it enters the SETUP TOUR mode, and the JVC logo

is displayed. Follow the instructions on the on-screen display to perform the SETUP

TOUR.

• In case of resetting that the reason for such as removal, you can set the AUTO CH PRESET

function on the “MENU 3” menu. For details, see page 15.

1Press the Main power button

on the TV.

The POWER lamp lights. After the

JVC logo has been displayed, the

TV automatically switches to the

language setting mode.

SETUP TOUR

2Press the CHANNEL –/+ or

the MENU

buttons to

select the on-screen

language.

SETUP TOUR

LANGUAGE

ENGLISH

EXIT BY

OPERATE BY -+

DISPLAY

3The AUTO PROGRAMMING

function will start and the

indicator blinks.

STOP BY

SETUP TOUR

NOW PROGRAMMING

•To stop the AUTO PROGRAMMING

function, press the CHANNEL mor

the MENU

buttons.

When all the TV channels that can

be received on your TV have been

preset, the display goes out and the

AUTO PROGRAMMING function

operation is completed.

OFF

TIMER

ECO

SENSOR

SYSTEM

COLOUR SOUND

CINEMA

SURROUND

DISPLAY

TV/VIDEO

123

DISPLAY

button

MENU t

buttons

CHANNEL –/+

buttons


MODE

CHANNEL

SCAN

CHANNEL

RETURN+

VOLUME

456

789

0-/--

ΙΙ

POWER lamp Main power button

•If a TV channel you want to view is not

set to the channel, set it with the

MANUAL CH PRESET function. For

details, see page 16.

4Upon the completion of

AUTO PROGRAMMING

function, the message below is

displayed.

SETUP TOUR

THANK YOU!

Basic operation

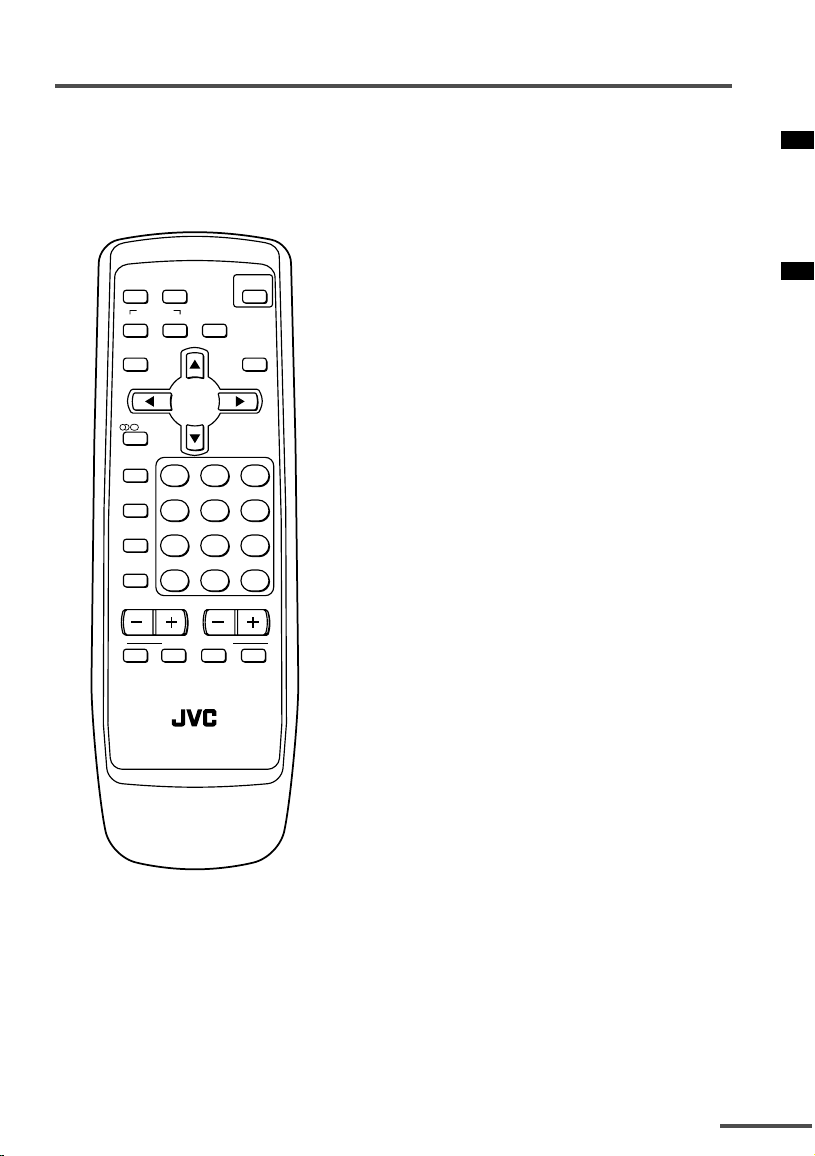

The illustration below is for the

remote control unit RM-C1307.

Your remote control may not look

exactly like the illustration.

MUTING BASS

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

SYSTEM

COLOUR SOUND

CHANNEL

RETURN+

POWER

DISPLAY

ΙΙ

TV/VIDEO

VOLUME

123

456

789

0-/--

CINEMA

SURROUND

RM-C1307

FAVORITE CH

1Press the POWER button to

turn your TV on.

•If your TV does not turn on, press the

Main power button on the TV, then

press the POWER button again.

•You can also turn on your TV by

pressing any of the following buttons;

- the CHANNEL mbutton

-the Number buttons

-the TV/VIDEO button

2Select a channel.

■Press the CHANNEL m button.

•Up/down selection cannot be selected

for channels to which the SKIP has

been set to “YES”. See page 17.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit

number, press the -/-- button to select

the two digit mode “--”, then enter the

channel number.

3 Press the VOLUME –/+ button

to adjust the sound.

4To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the

main power off if you do not plan to use

your TV for a long time or if you wish

to save energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see

page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to

select another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to

select the VIDEO mode. For details, refer to

page 13.

Remote control buttons and functions

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

BASS button

<AV-21V531/AV-29V531 only>

You can enjoy a powerful bass sound

by using the BASS (Bass Reflex)

function.

Press this button to turn the BASS

function on or off.

• To use this function, you must first mount

the Twin Port Bass Blaster Unit packaged

with the TV on top of the TV. For details,

see page 20.

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

<AV-21V311/AV-29V311 only>

B/G

B/G IMD/K

•You cannot select any sound system when

in a VIDEO mode.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour

system to another colour system.

Press this button to select the colour

system.

In TV mode:

<AV-21V311/AV-29V311 only>

AUTO PAL SECAM

AUTO PAL SECAM

NTSC3.58

NTSC4.43

In VIDEO mode:

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•If the picture is not normal in the AUTO

mode, change the AUTO mode to another

colour system.

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a VIDEO mode with no

signal, indication of the VIDEO mode

becomes fixed on the screen.

ECO SENSOR button

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of

your room. This function reduces eye

strain and the power consumption of

this TV.

Press this button to select the desired

mode.

AI ECO SENSOR 1:

The AI ECO SENSOR function switches

on.

Usually, it is recommended to watch the

TV in this mode.

AI ECO SENSOR 2:

The AI ECO SENSOR function switches

on.

If you feel the screen in the “AI ECO

SENSOR 1” mode is too dark, select this

mode.

AI ECO SENSOR OFF:

The AI ECO SENSOR function switches

off.

• You can display on the screen the effect of

the AI ECO SENSOR function.

For details, see “AI ECO DISPLAY” on

page 19.

Remote control buttons and functions

CINEMA SURROUND button

You can enjoy an enhanced sound for a

wider audience by using CINEMA

SURROUND function.

Press this button to select one of the

CINEMA SURROUND mode.

HIGH/LOW:

When you listen to the stereo sound,

please select HIGH mode or LOW mode.

You can enjoy the sound for a wider

audience similar to the experience at the

theatre.

• In case that you setting up the CINEMA

SURROUND function to HIGH mode, there

may be slight volume distortion. In case that

occurs, please switch the HIGH mode to

LOW mode, the effect of CINEMA

SURROUND functions will be less

noticeable, however, the volume distortion

will be corrected.

MONO SURROUND:

Select the MONO SURROUND mode,

when you listen to the mono sound.

You can enjoy the sound for a wider

audience similar to stereo sound.

OFF:

The CINEMA SURROUND function

swiches off.

button

<AV-21V511/AV-21V531/AV-29V511/

AV-29V531 only>

You can select a sound setting for stereo

broadcast programmes and bilingual

programmes.

Press this button to select a sound

setting.

: Stereo sound

: Bilingual I (sub I) sound

: Bilingual II (sub II) sound

: Monaural sound

MONO :Cancels the multi-sound

function, and the sound

becomes monaural.

•If you have poor reception of a stereo

broadcast, you can change from stereo

sound ( ) to monaural sound ( ) so that

you can hear the broadcast more clearly and

easily.

•If the multi-sound function cannot work

normally due to poor signal quality, noise

may be included in the sound, or the sound

may change many times. If this happens,

change the sound setting to MONO mode to

cancel the multi-sound function.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture

settings in “MENU 4” to their default

settings.

button

<AV-21V311/AV-29V311 only>

You can select one of the two bilingual

sounds in an A2 Sound-multiplex

programme’s bilingual programme.

Press this button to select a bilingual

sound.

: Bilingual I sound

: Bilingual II sound

•The A2 Bilingual function has no effect on

stereo programmes of the A2 Sound-

multiplex broadcast programme type,

although an A2 Bilingual function indicator

will appear on the screen.

•The A2 Bilingual function has no effect on

programmes other than A2 Sound-multiplex

broadcast programme type, although an A2

Bilingual function indicator will appear on

the screen.

•The A2 Bilingual function has no effect in

VIDEO mode, although an A2 Bilingual

function indicator will appear on the screen.

OFF TIMER button

You can set the TV to automatically turn

off after a set time.

Press this button to select the period

of time.

•You can set the period of time to a

maximum of 120 minutes in 10 miniute

increments.

•1minute before the OFF TIMER function

turns off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to

“0”.

•The OFF TIMER function will not turn off

the TV’s main power.

Remote control buttons and functions

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-21C116 Bedienungsanleitung

JVC

JVC AV-29MX7 Bedienungsanleitung

JVC

JVC AV-21QS27 Bedienungsanleitung

JVC

JVC AV-14JT5EU, AV-21JT5EU Bedienungsanleitung

JVC

JVC AV-N29F45/S Bedienungsanleitung

JVC

JVC InteriArt HV-32P37SUE Bedienungsanleitung

JVC

JVC AV-21LS2, AV-21WS3, AV-25LS3, Bedienungsanleitung

JVC

JVC AV-2586ME Bedienungsanleitung

JVC

JVC AV-29QS17B Bedienungsanleitung

JVC

JVC AV-28BH8EPB Bedienungsanleitung

JVC

JVC I'Art Pro AV-48P775 Installationshandbuch

JVC

JVC LT-32WX84 Bedienungsanleitung

JVC

JVC AV-21QT19 Bedienungsanleitung

JVC

JVC AV-32T67SKE Bedienungsanleitung

JVC

JVC TM-2001U Bedienungsanleitung

JVC

JVC AV-14FTT Bedienungsanleitung

JVC

JVC LT-55NQ7105A Bedienungsanleitung

JVC

JVC AV-16N73 Bedienungsanleitung

JVC

JVC AV-29J334/V Bedienungsanleitung

JVC

JVC AV-21KT1BNF Bedienungsanleitung

JVC

JVC LT-43C870(A) Bedienungsanleitung

JVC

JVC AV-29ED5BN, AV-29ED5SN Bedienungsanleitung

JVC

JVC HV-53PRO/K Bedienungsanleitung

JVC

JVC AV-28KT1BUF Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
