INSTRUCTIONS

GGT0080-001A-D

Contents

Knowing your TV’s features ....................................................... 3

Remote control buttons and basic functions .............................. 4

TV buttons and functions ........................................................... 6

Setting up your TV ..................................................................... 7

Basic setting for picture.............................................................. 9

Advanced setting for picture ..................................................... 11

Basic setting for sound............................................................. 12

Advanced setting for sound ..................................................... 13

Favorite channel and video setting .......................................... 14

Customized setting .................................................................. 15

TV channel presetting .............................................................. 17

Additional preparation .............................................................. 18

Troubleshooting ....................................................................... 20

Specifications ........................................................................... 21

COLOR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

AV-29VT15 AV-21VT15

AV-29VT35

AV-25VT15

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM1

15 cm

10 cm 10 cm 15 cm

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it

with a soft dry cloth. Never rub it forcefully. Never use any cleaner or

detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the

apparatus.

Thank you for buying this JVC color television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM2

Knowing your TV’s features

Confirm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

Please see the chart below and check the functions that are equipped for your TV’s model number. The

model number is indicated at the rear of your TV. When you press a button concerned to a function that is

not available for your TV, it does not work and the logo “Ø” appears on the screen. For a function that is

not available for your TV, it is not displayed in the menu.

No.

1*ECO __ _

2*BASS _––

–PICTURE TILT __ –

–COMPRESS (16:9) __ _

AV-29VT35

AV-29VT15

AV-25VT15

AV-21VT15

Model No.

Function

Main features

MTS You can listen to the stereo sound or SAP from TV program broadcasting by MTS system.

(SAP: Second audio program.)

CLOSED CAPTION You can display dialog on the screen from TV broadcasting with Closed Caption system.

You may also be able to display some information in text form if available.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

suitable level for a better eye care.

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

change of the volume when selecting different TV channel.

VNR You can reduce the picture noise when viewing noisy TV programs or video sources.

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM3

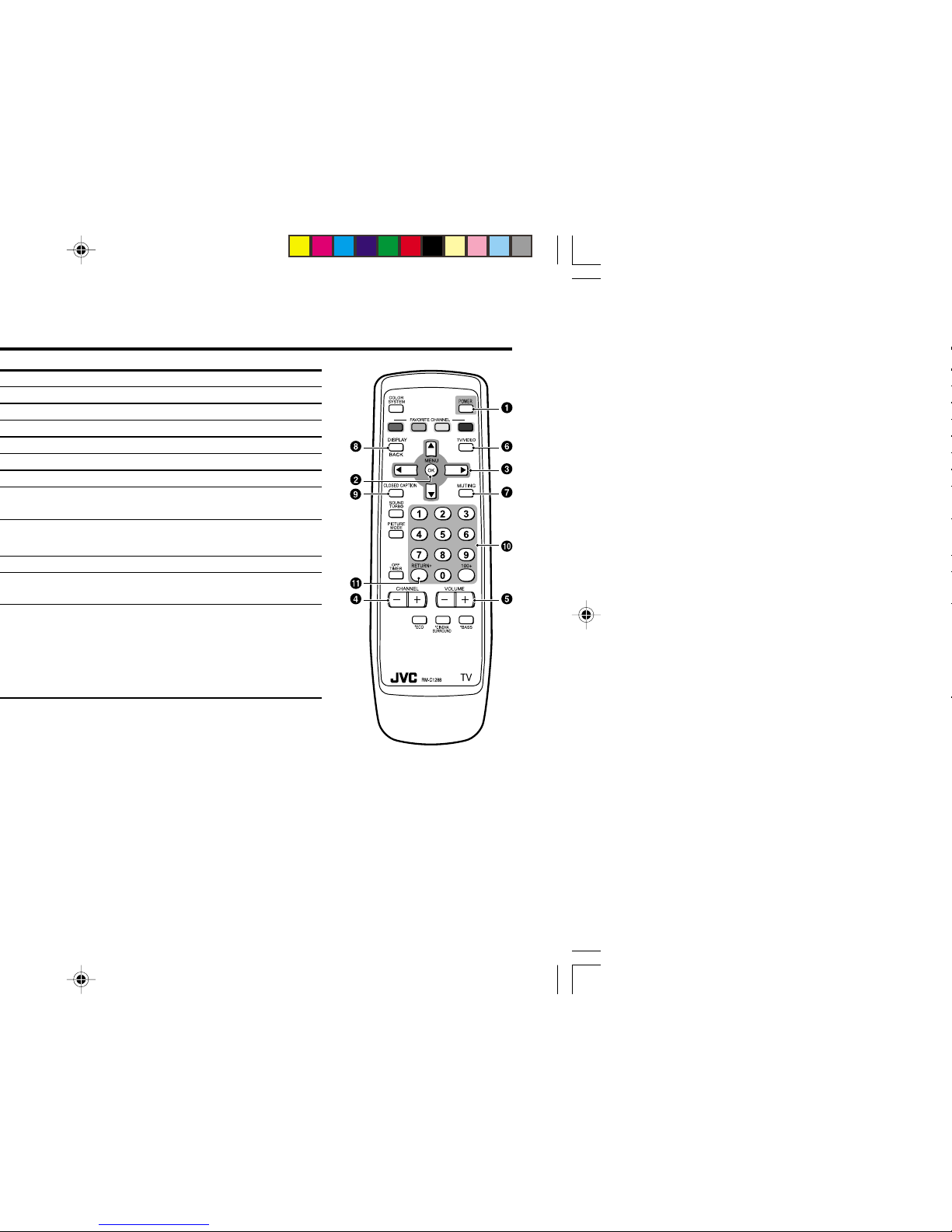

Remote control buttons and basic functions

No. Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and confirm selected function.

35/ ∞/ 2/ 3Select and adjust menu function.

4CHANNEL -/+ Select the desired channel number.

5VOLUME -/+ Adjust the volume level.

6TV/VIDEO Select TV or video terminal input.

7MUTING Turn off the volume.

Press this button again to resume the volume.

DISPLAY/BACK

Display the program number or video terminal number on the screen.

On the other hand, you can use this button to return to the previous menu.

CLOSED CAPTION

Display information in text which are broadcasted by some TV channels.

!0~9, 100+ Select the program number. For three digits program number, press 100+, then press the

number button.

"RETURN +a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!”appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!”appears.

b) Return to the previously viewed channel, if you have not set or have canceled the Return

channel as above.

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM4

Remote control buttons and basic functions (continued)

The following chart shows locations of functions in menus. In this manual,

location of a function is described as follows:

Note: Some functions have the 4th menus as the sub-menus.

* To exit the menu, the on screen display will show BACK indicated in

blue. But it doesn’t refer to the blue button on the remote control.

Instead, it refers to the DISPLAY/BACK button on the remote control.

Display the MENU

Display the top

Display the 2nd

Display the 3rd

Return to the

previous menu

Choose the setting

of a function

Adjust the effect

level of a function

Display the sub

menu of a function.

Operation

Press the MENU/OK button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press the DISPLAY/BACK button*

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to change the setting.

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to adjust the effect

level.

Press the 5/∞buttons 3to

choose a function. Then press

MENU/OK buttons 2to display

the sub menu.

Note

To exit the MENU,

press the DISPLAY/

BACK button* 8or

choose EXIT menu.

Press ∞button 3to

display the next page

for more functions.

–

Press the MENU/OK

button 2to exit from

the menu.

–

Top menu 2nd menu Location 3rd menu Location

MENU INPUT EXT. INPUT P.16 – –

DISPLAY P.16 – –

CLOSED CAPTION P.15 – –

PICTURE PICTURE MODE P.9 – –

PICTURE SETTING P.10 – –

WHITE BALANCE P.10 – –

PICTURE – VNR P.15

FEATURES

FAVORITE CH SETTING

P.14

VIDEO SETTING P.14

COLOR SYSTEM P.9

COMPRESS (16:9) P.11

PICTURE TILT P.11

SOUND AI VOLUME P.13 – –

MTS P.13 – –

SOUND MODE P.12 – –

EQUALIZER P.13 – –

BALANCE P.12 – –

SOUND TURBO P.12 – –

CINEMA SURROUND

P.13 – –

SUPER BASS

P.12 – –

FEATURES OFF TIMER P.15 – –

CHILD LOCK P.15 – –

AI ECO SENSOR P.11 – –

INSTALL AUTO PROGRAM P.17 – –

CHANNEL SUMMARY

P.17 – –

LANGUAGE

P.16 – –

BLUE BACK P.11 – –

AUTO SHUTOFF P.16 – –

VIDEO-2 SETTING P.16 – –

AI ECO DISPLAY P.11 – –

EXIT – – – –

How to operate menus and menus locations

MENU Top menu 2nd menu

Top menu 3rd menu

MENU 2nd menu

*If you want to

adjust PICTURE

SETTING menu,

you must set

PICTURE MODE

menu to USER.

*If you want to

adjust

EQUALIZER

menu, you must

set SOUND

MODE menu to

USER.

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM5

TV buttons and functions

The illustrations shown below is for AV-29VT35 only,

which are used for explanation purpose.

Your TV may not look exactly the same as illustrated.

IN (VIDEO-3)

L/MONO

CHANNEL

VOLUM E

TV/VIDEO

EXIT

POWER

!9 8765 2

34 1

Front of the TV

AV-29VT35

Rear of the TV

AV-29VT35

No. Button/terminal Description Page

1L(main power) Press to turn on or turn off the TV’s main power. –

2POWER lamp Indicate the TV is being turned on or off. –

No color: TV’s main power is being turned off.

Red: TV’s main power is being turned on.

Note: When you turn off the power switch while TV is in standby

mode, the light of power lamp will be off in 10 -15 seconds.

3ECO sensor –

4Remote control sensor –

5TV/ VIDEO Press to select TV or video mode. –

6VOLUME -/+ Press to adjust the volume level. –

7CHANNEL -/+ Press to select the desired channel. –

8MENU Press to display the menu. –

9IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 18

IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode. 18

!Headphone jack. 18

"Aerial socket. 7

#OUTPUT Video and audio output jacks. (The component video

signal cannot be output.) 18

$COMPONENT Video or component video, and audio input jacks for

(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING”function (see page 16). 18

%VIDEO-1 INPUT

Video or S-VIDEO, and audio input jacks for VIDEO-1 mode

BASS SPEAKER OUT

Twin Port Bass Blaster Unit output terminal. 19

How to operate the menus with the TV button

TV button Work as same as the button on the Note

remote control unit

MENU MENU/OK button To display main menu and exit

menu after finish setting.

CHANNEL -/+ ∞/5button To select menu function.

VOLUME -/+ 2/3button To adjust the desired function.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

%$#"

BASS

SPEAKER

OUT

GGT0080-001A-D(01-10) 12/2/04, 10:08 AM6

1Connecting the aerial cable.

If you connect a VCR, connect the aerial output jack of your VCR

and the aerial jack on the TV with the aerial cable. Then connect the

output jacks of your VCR and the VIDEO-1 input jacks of the TV

with the video cable (or S-VIDEO cable if available) and audio

cables. For details, see the manual of your VCR.

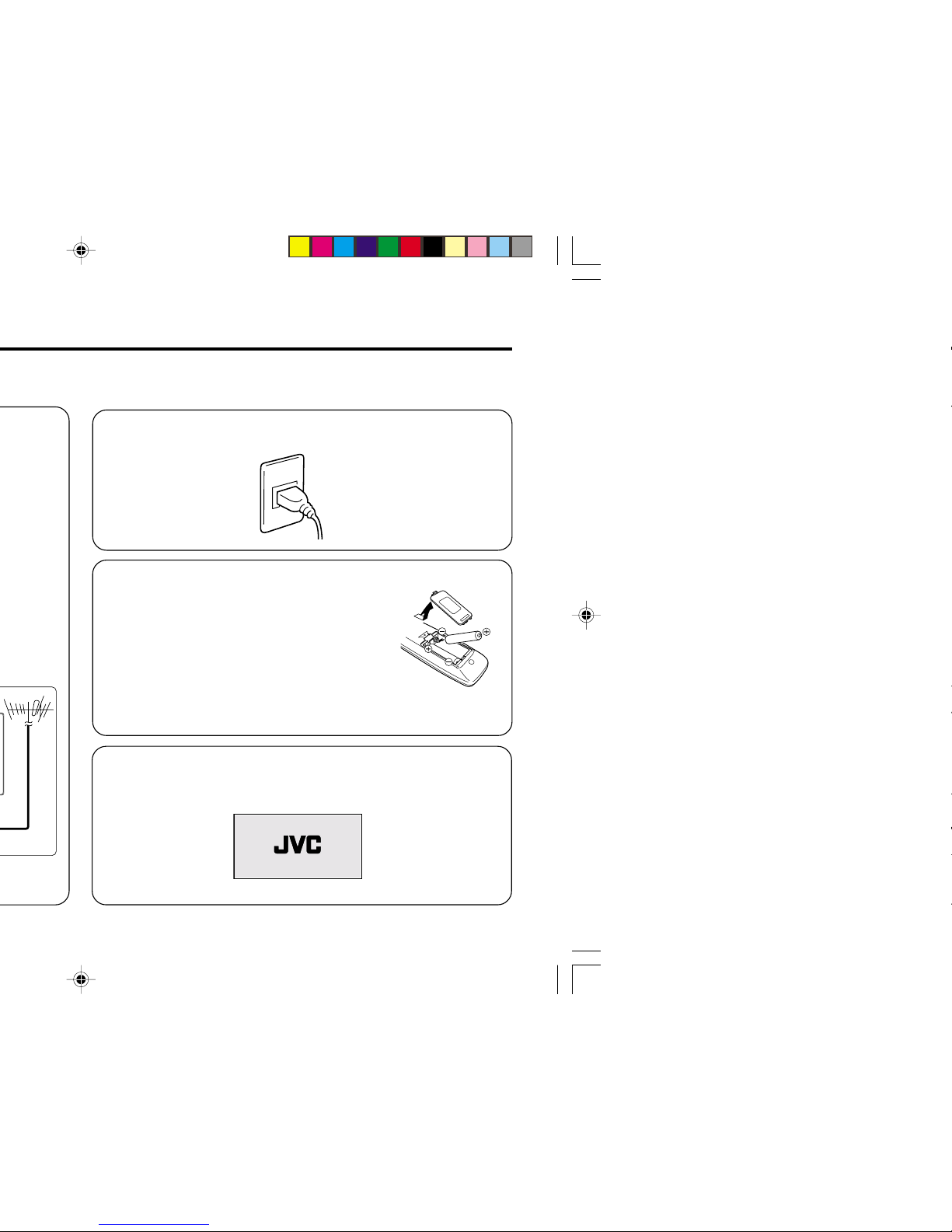

2Connecting the compatible main plug to the AC outlet.

3Inserting batteries into the remote control.

Insert two batteries by following the +and -

polarities and inserting the -end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•It the remote control does not work properly, fit

new batteries. The supplied batteries are for

testing, not regular use.

4Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

Setting up your TV

CAUTION

•Turn off the equipment including the TV before connecting.

The illustration shown is just a sample. It may not be same as your

TV.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

To RF

output

To video

output

To S-video

output To aerial input

To audio

output

Rear of TV

VHF/UHF outdoor aerial

VCR

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

GGT0080-001A-D(01-10) 12/2/04, 10:09 AM7

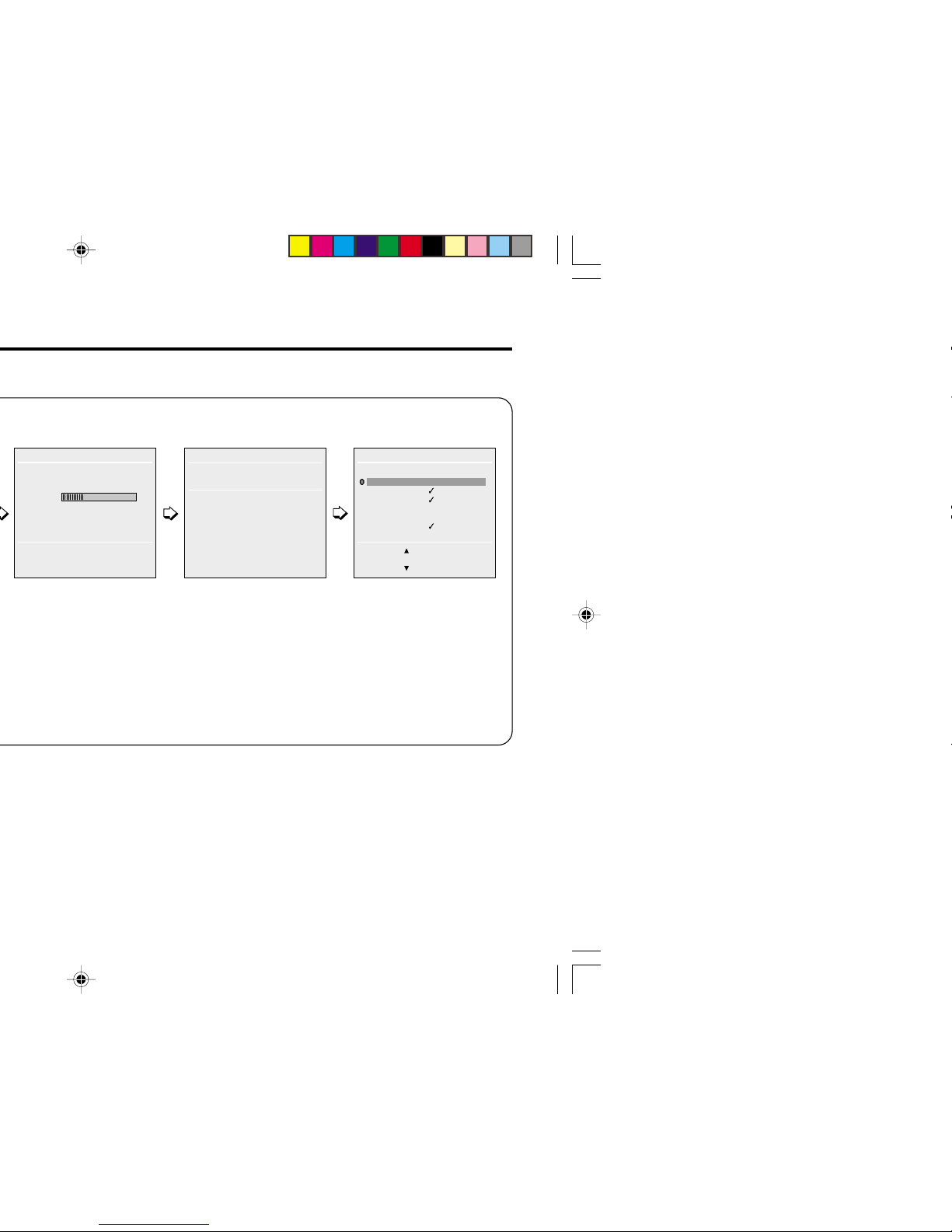

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then the TV will operate by following steps as below:

•Press 5/∞button to

select AIR or CABLE,

press the MENU/OK

button.TV will start

searching for the

channels.

AUTO PROGRAM

CH 12

22%

AIR

CABLE

BACK

■

SETUP TOUR RESTART?

AUTO PROGRAM

RESTART

■

CHANNEL SUMMARY

BACK

■

SKIP

■

CANCEL

CH/CC SKIP

CH02

■

CH03

■

CH04

■

CH05

■

CH06

CH07

CH08

LANGUAGE

ENGLISH

ESPAÑOL

PORTUGU

BACK

■

Setting up your TV (continued)

•To complete the initial

setting, press the

MENU/OK button. To

set undesired

channels to be

skipped, see page 17.

If the JVC logo does not appear, use AUTO PROGRAM function to make the initial settings. This function is located in the INSTALL

menu.

If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO button to exit from initial settings.

•To stop AUTO

PROGRAM, press

MENU/OK button.

•Press the red button to

cancel the SETUP TOUR

RESTART function.

If you want to make initial

settings again when the

next time you turn on the

TV, press the MENU/OK

button to activate the

SETUP TOUR RESTART

function.

•Press 5/∞button to

select your desired

language.

GGT0080-001A-D(01-10) 12/2/04, 10:09 AM8

COLOR SYSTEM

You can select the appropriate color system when the picture is

not clear or no color appears.

Press the COLOR SYSTEM button to select a setting.

To operate this function with a menu:

For the color system in each country or region, see the table

below:

PICTURE MODE

You can choose the desired picture setting with one-touch.

Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting as you like.

Select USER and adjust following items in the

PICTURE SETTING menu. (PICTURE, BRIGHT,

DETAIL, COLOR, TINT*)

*TINT can only be adjusted in NTSC signal and 525i component

video signal.

To operate this function with a menu:

To return the USER setting to the default, press the blue button

when the PICTURE SETTING menu appears.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations”on page 5.

Basic setting for picture

AUTO NTSC PAL-M PAL-N

MENU PICTURE menu PICTURE FEATURES menu

COLOR SYSTEM

Country or Region

Argentina, Paraguay, Uruguay

Brazil

Chile, Peru, Bolivia, Colombia, Venezuela, Ecuador,

etc.

MENU PICTURE menu PICTURE MODE

❇

System

PAL-N

PAL-M

NTSC

Area

South America

GGT0080-001A-D(01-10) 12/2/04, 10:09 AM9

Adjusting the picture – USER

You can adjust the desired picture setting when selecting USER

in PICTURE MODE.

1Select the USER in PICTURE MODE under PICTURE menu.

2Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

PICTURE 2: Lower 3: Higher

BRIGHT 2: Darker 3: Brighter

DETAIL 2: Softer 3: Higher

COLOR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

*TINT can only be adjusted in NTSC signal and 525i component

video signal.

Basic setting for picture (continued)

WHITE BALANCE

You can change the white balance of the picture to better match

the type of video being viewed.

Select the WHITE BALANCE in the PICTURE menu, then choose

the desired setting.

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations”on page 5.

MENU PICTURE menu WHITE BALANCE

MENU PICTURE menu PICTURE MODE

USER

MENU PICTURE menu PICTURE SETTING

❇

GGT0080-001A-D(01-10) 12/2/04, 10:09 AM10

Andere Handbücher für AV-21VT15

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-28T4SP Bedienungsanleitung

JVC

JVC AV-36D503/Y Bedienungsanleitung

JVC

JVC 0801-Ki-NV-JET Bedienungsanleitung

JVC

JVC AV-32920 Bedienungsanleitung

JVC

JVC AV-14F4TEE Bedienungsanleitung

JVC

JVC PD-35DX, PD-42DX Bedienungsanleitung

JVC

JVC AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16, AV21MT16, AV21VT16, AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16,... Bedienungsanleitung

JVC

JVC 0307-TKH-VT-VT Bedienungsanleitung

JVC

JVC AV-32X37SUE Bedienungsanleitung

JVC

JVC AV 32230 Bedienungsanleitung

JVC

JVC InteriArt HV-32P37SUE Bedienungsanleitung

JVC

JVC AV-16N311 Bedienungsanleitung

JVC

JVC I'ART AV-27F704 Bedienungsanleitung

JVC

JVC HV-34LH21 Bedienungsanleitung

JVC

JVC I Art PRO AV-48P777 Administratorhandbuch

JVC

JVC AV-25VM1EN Bedienungsanleitung

JVC

JVC InteriArt AV-28Z25EU Systemhandbuch

JVC

JVC I' Art AV-27F802 Bedienungsanleitung

JVC

JVC AV29BF10EPS Bedienungsanleitung

JVC

JVC InteriArt AV32H20EUS Bedienungsanleitung

JVC

JVC AV-14F1P(PH) Bedienungsanleitung

JVC

JVC InteriArt AV32H20EUS Bedienungsanleitung

JVC

JVC AV20BJ8EES Bedienungsanleitung

JVC

JVC AV-21QS5SE Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
