JVC AV-29J314 Bedienungsanleitung

INSTRUCTIONS

GGT0041-001A-H

Contents

Knowing your TV’s features ....................................................... 3

Remote control buttons and basic functions .............................. 4

TV buttons and functions ........................................................... 6

Setting up your TV ..................................................................... 7

Basic setting for picture .............................................................. 9

Advanced setting for picture ..................................................... 11

Basic setting for sound ............................................................. 12

Advanced setting for sound ..................................................... 13

Favorite channel and video setting .......................................... 14

Customized setting .................................................................. 15

TV channel presetting .............................................................. 17

Additional preparation .............................................................. 20

Troubleshooting ....................................................................... 22

Specifications ........................................................................... 23

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

AV-29J314 AV-21V314

AV-29J534 AV-21V514

AV-29V314 AV-21V534

AV-29V514 AV-21W314

AV-29V534

AV-25V314

AV-25V514

15 cm

10 cm 10 cm 15 cm

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it

with a soft dry cloth. Never rub it forcefully. Never use any cleaner or

detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the

apparatus.

WARNING: <AV-21W314 only>

A REMOVABLE PLASTIC COVER IS FIXED TO THE

TELEVISION’S FRONT AUDIO/VIDEO CONNECTOR. TO

PREVENT THIS COVER FROM BEING ACCIDENTALLY

SWALLOWED BY BABIES OR CHILDREN, REMOVE IT

FROM THE TELEVISION AND STORE IT IN A SAFE

PLACE. IF THE COVER IS SWALLOWED SEEK THE

ADVICE OF A DOCTOR IMMEDIATELY.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

Knowing your TV’s features

Confirm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

Please see the chart below and check the functions that are equipped for your TV’s model number. The

model number is indicated at the rear of your TV. When you press a button concerned to a function that is

not available for your TV, it does not work and the logo “Ø” appears on the screen. For a function that is

not available for your TV, it is not displayed in the menu.

No.

*BASS _––_

–PICTURE TILT __ ––

AV-29V534

AV-29J534

AV-29V514

AV-29V314

AV-29J314

AV-25V514

AV-25V314

AV-21V514

AV-21V314

AV-21W314

AV-21V534

Model No.

Function

Main features

A2/NICAM You can listen to the stereo sound or bilingual sound from TV programme broadcasting by A2

(STEREO / I■II)or NICAM Sound-multiplex system.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

suitable level for a better eye care.

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

change of the volume when selecting different TV channel.

VNR You can reduce the picture noise when viewing noisy TV programmes or video sources.

WHITE BALANCE You can choose one of three tones of white to match the video source such as movie,

sports, etc. Changing WHITE BALANCE affects the appearance of all other colours on the

screen.

Remote control buttons and basic functions

No. Press To

POWER Turn on or off the TV from standby mode.

MENU/OK Display menu and confirm selected function.

5/ ∞/ 2/ 3Select and adjust menu function.

CHANNEL -/+ Select the desired channel number.

VOLUME -/+ Adjust the volume level.

TV/VIDEO Select TV or video terminal input.

MUTING Turn off the volume.

Press this button again to resume the volume.

DISPLAY Display the programme number or video terminal number, stereo/bilingual broadcast system

and PR list (channel list) on the screen.

You can select the channel using the PR list.

1Press the DISPLAY button once to display the PR list.

2Press 5/ ∞/ 2/ 3buttons to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite channels are

indicated with coloured mark.

0~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

number button.

RETURN +a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

Remote control buttons and basic functions (continued)

The following chart shows locations of functions in menus. In this manual,

location of a function is described as follows:

Note: Some functions have the 4th menus as the sub-menus.

Display the MENU

Display the top

Display the 2nd

Display the 3rd

Return to the

previous menu

Choose the setting

of a function

Adjust the effect

level of a function

Display the sub

menu of a function.

Operation

Press the MENU/OK button

Press 5/∞buttons

to choose a

menu title. Then press MENU/OK

button

Press 5/∞buttons

to choose a

menu title. Then press MENU/OK

button

Press 5/∞buttons

to choose a

menu title. Then press MENU/OK

button

Press the DISPLAY button

Press 5/∞buttons

to choose

a function. Then press the 2/3

buttons

to change the setting.

Press 5/∞buttons

to choose

a function. Then press the 2/3

buttons

to adjust the effect

level.

Press the 5/∞buttons

choose a function. Then press

MENU/OK buttons

to display

the sub menu.

Note

To exit the MENU,

press the DISPLAY

button

or choose

EXIT menu.

Press ∞button

display the next page

for more functions.

–

Press the MENU/OK

button

to exit from

the menu.

–

Top menu 2nd menu Location 3rd menu Location

MENU INPUT EXT. INPUT P.16 – –

DISPLAY P.16 – –

PICTURE PICTURE MODE P.9 – –

PICTURE SETTING P.10 – –

WHITE BALANCE P.10 – –

PICTURE – VNR P.15

FEATURES

FAVORITE CH SETTING

P.14

VIDEO SETTING P.14

COLOUR SYSTEM P.9

COMPRESS (16:9) P.11

PICTURE TILT P.11

SOUND STEREO/

■

P.13 – –

AI VOLUME P.13 – –

SOUND MODE P.12 – –

EQUALIZER P.13 – –

BALANCE P.12 – –

SOUND TURBO P.12 – –

CINEMA SURROUND

P.13 – –

SUPER BASS

P.12 – –

FEATURES OFF TIMER P.15 – –

CHILD LOCK P.15 – –

AI ECO SENSOR P.11 – –

INSTALL AUTO PROGRAM P.17 – –

EDIT/MANUAL P.17 DELETE, MOVE, P.17-

MANUAL,INSERT P.18

LANGUAGE P.17 LANGUAGE P.15

BLUE BACK P.11 – –

AUTO SHUTOFF P.18 – –

VIDEO-2 SETTING P.18 – –

AI ECO DISPLAY P.11 – –

EXIT – – – –

How to operate menus and menus locations

MENU Top menu 2nd menu

Top menu 3rd menu

MENU 2nd menu

*If you want to

adjust PICTURE

SETTING menu,

you must set

PICTURE MODE

menu to USER.

*If you want to

adjust

EQUALIZER

menu, you must

set SOUND

MODE menu to

USER.

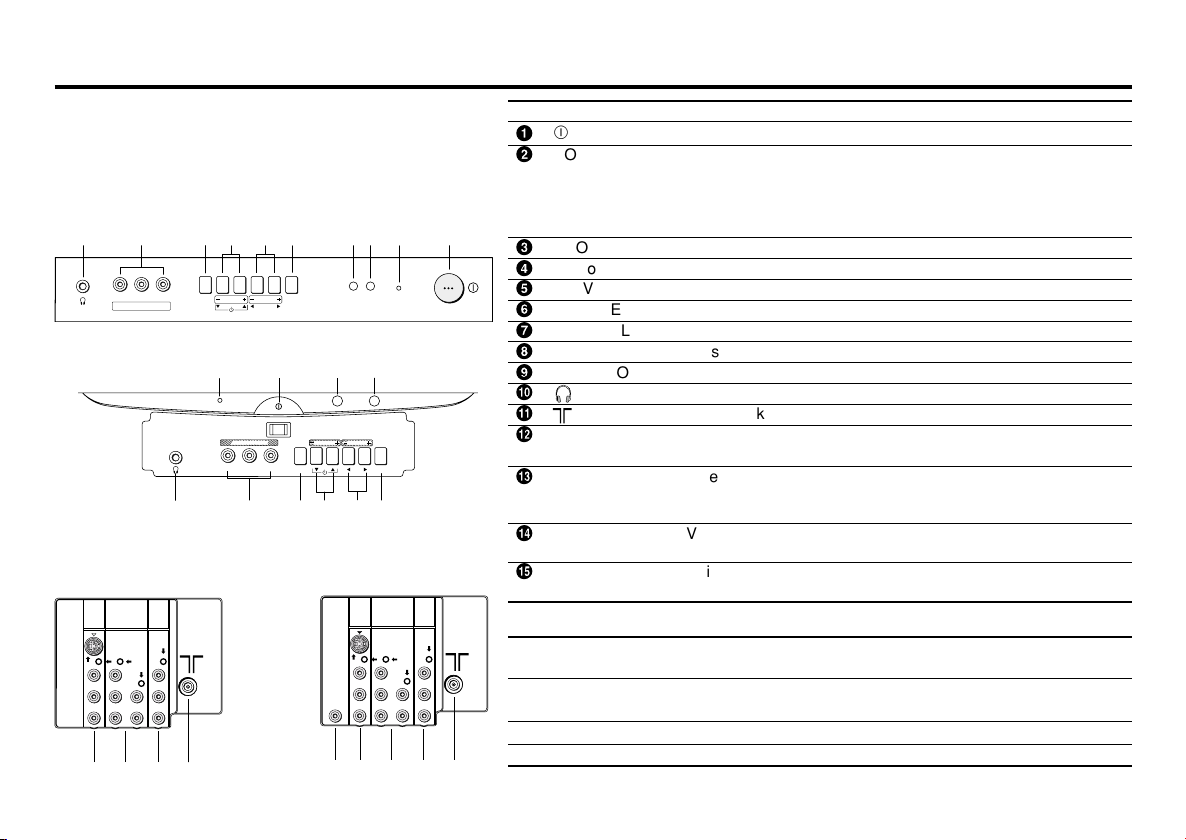

TV buttons and functions

The illustrations shown below is for 29V and 29J series

only, which are used for explanation purpose.

Your TV may not look exactly the same as illustrated.

IN (VIDEO-3)

L/MONO

CHANNEL

VOLUME

TV/VIDEO

EXIT

POWER

!9 8765 2341

Front of the TV

29V Series

Rear of the TV

For models without Bass

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

%$# "

No. Button/terminal Description Page

L(main power) Press to turn on or turn off the TV’s main power. –

POWER lamp Indicate the TV is being turned on or off. –

No colour: TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Note: When you turn off the power switch while TV is in standby

mode, the light of power lamp will be off in 10 -15 seconds.

ECO sensor –

Remote control sensor –

TV/ VIDEO Press to select TV or video mode. –

VOLUME -/+ Press to adjust the volume level. –

CHANNEL -/+ Press to select the desired channel. –

MENU Press to display the menu. –

IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 20

Headphone jack. 20

Aerial socket. 7

OUTPUT Video and audio output jacks. (The component video

signal cannot be output.) 20

COMPONENT Video or component video, and audio input jacks for

(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING” function (see page 16). 20

VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1

mode 7

BASS SPEAKER Twin Port Bass Blaster Unit output terminal. 21

OUT

How to operate the menus with the TV button

TV button Work as same as the button on the Note

remote control unit

MENU MENU/OK button To display main menu and exit

menu after finish setting.

CHANNEL -/+ 5/∞button To select menu function.

VOLUME -/+ 2/3button To adjust the desired function.

For models with Bass

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

%$#"

BASS

SPEAKER

OUT

29J Series

965

IN (VIDEO-3)

V L/MONO R

CHANNEL

VOLUME

TV/VIDEO

POWER

EXIT

1Connecting the aerial cable.

If you connect a VCR, connect the aerial output jack of your VCR

and the aerial jack on the TV with the aerial cable. Then connect the

output jacks of your VCR and the VIDEO-1 input jacks of the TV

with the video cable (or S-VIDEO cable if available) and audio

cables. For details, see the manual of your VCR.

2Connecting the compatible main plug to the AC

outlet.

3Inserting batteries into the remote control.

Insert two batteries by following the +and -

polarities and inserting the -end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

•It the remote control does not work properly, fit new

batteries. The supplied batteries are for testing, not regular use.

4Turn on the TV by pressing the main

power button.

JVC logo appears on the screen.

Setting up your TV

CAUTION

•Turn off the equipment including the TV before connecting.

(1)

(2)

(3)

The illustration shown is just a sample. It may not be same as your TV.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1

INPUT

To RF

output

To video

output

To S-video

output To aerial input

To audio

output

COMPONENT

(VIDEO-2)

INPUT

Rear of TV

VHF/UHF outdoor aerial

VCR

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

Matching aerial

adapter (supplied)

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then the TV will operate by following steps as below:

• Press 5/∞button to

select your desired

language.

•TV will start searching

for the channels.

To stop AUTO

PROGRAM, press

MENU/OK button.

•Press the red button to

cancel the SETUP TOUR

RESTART function.

If you want to make initial

settings again when the

next time you turn on the

TV, press the MENU/OK

button to activate the

SETUP TOUR RESTART

function.

LANGUAGE

ENGLISH SETUP TOUR RESTART?

AUTO PROGRAMAUTO PROGRAM

CH 12

22%

BACK ■

RESTART

■

EDIT

BACK ■

■

INSERT

MOVE

■

DELETE

■

MANUAL

PR CH/CC

7 CH 09

8 CH 11

9 ■CH 13

Setting up your TV (continued)

•To complete the initial

setting, press the

MENU/OK button. To

edit the channel list,

see page 17.

If the JVC logo does not appear, use LANGUAGE, and AUTO PROGRAM functions to make the initial settings. Those functions are

located in the INSTALL menu.

If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO button to exit from initial settings.

COLOUR SYSTEM

You can select the appropriate colour system when the picture is

not clear or no colour appears.

Press the COLOUR SYSTEM button to select a setting.

<AV-29J314/AV-29V314/AV-25V314/AV-21V314/AV-21W314>

In TV mode:

In VIDEO mode:

To operate this function with a menu:

PICTURE MODE

You can choose the desired picture setting with one-touch.

Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting as you like.

Select USER and adjust following items in the

PICTURE SETTING menu. (CONTRAST, BRIGHT,

SHARP, COLOUR, TINT*)

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

To return the USER setting to the default, press the blue button

when the PICTURE SETTING menu appears.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Basic setting for picture

AUTO PAL SECAM

MENU PICTURE menu PICTURE FEATURES menu

COLOUR SYSTEM

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,

Yemen, etc. PAL

Indonesia, Malaysia, Singapore, Thailand, India, etc.

Asia, Middle China, Vietnam, etc. PAL

East Hong Kong, etc. PAL

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM

Philippines, Taiwan, Myanmar, etc. NTSC

Russia, etc. SECAM

Europe Czech Republic, Poland, etc. PAL

Germany, Holland, Belgium, etc. PAL

UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Republic of South Africa, etc. PAL

Africa Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

MENU PICTURE menu PICTURE MODE

❇

For the colour system in each country or region, see the table below:

AUTO PAL SECAM

NTSC4.43 NTSC3.58

AUTO PAL SECAM

NTSC4.43 NTSC3.58

Adjusting the picture – USER

You can adjust the desired picture setting when selecting USER

in PICTURE MODE.

1Select the USER in PICTURE MODE under PICTURE menu.

2Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

*TINT can only be adjusted in NTSC system.

Basic setting for picture (continued)

WHITE BALANCE

You can change the white balance of the picture to better match

the type of video being viewed.

Select the WHITE BALANCE in the PICTURE menu, then choose

the desired setting.

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

MENU PICTURE menu WHITE BALANCE

MENU PICTURE menu PICTURE MODE

USER

MENU PICTURE menu PICTURE SETTING

❇

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-21Y314 Bedienungsanleitung

JVC

JVC AV-16N7 Gebrauchs- und Wartungshandbuch

JVC

JVC AV-14FTG2 Bedienungsanleitung

JVC

JVC AV-14RM4SP Kurzanleitung

JVC

JVC AV-21BS26 Bedienungsanleitung

JVC

JVC AV-28X5BU Bedienungsanleitung

JVC

JVC AV28R100EKS Bedienungsanleitung

JVC

JVC AV-21BD5EKI Bedienungsanleitung

JVC

JVC AV-27D104 Bedienungsanleitung

JVC

JVC AV-28WFR1EKS/A Bedienungsanleitung

JVC

JVC AV-20F475 Bedienungsanleitung

JVC

JVC HV-32D25EUW Bedienungsanleitung

JVC

JVC AV-21YMG4/G Administratorhandbuch

JVC

JVC SELECT LT-58EC3508 Bedienungsanleitung

JVC

JVC AV-27F703 - 27" Real Flat TV Bedienungsanleitung

JVC

JVC AV-21FT5SU Montageanleitung

JVC

JVC AV-21V115/B Bedienungsanleitung

JVC

JVC InteriArt LT-20A55SJ Bedienungsanleitung

JVC

JVC AV-32920 Bedienungsanleitung

JVC

JVC Select Series Bedienungsanleitung

JVC

JVC AV-32220/G Bedienungsanleitung

JVC

JVC AV-21MT16 Bedienungsanleitung

JVC

JVC InteriArt AV-28R47SK Bedienungsanleitung

JVC

JVC AV-36850 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
