OWNER’S MANUAL

COMPACT PRIMARYAND BACKUP PUMP SYSTEM

Questions, problems, missing parts? Before returning to the store call K2 Customer

Service 8 a.m. - 6 p.m., EST, Monday-Friday

Rev. 11/6/19

Model: SPC03301K

2 For Professional Technical Support call 1-844-242-2475

PERFORMANCE

Performance - PSP

GPH at total feet of lift

Series

MAX LIFT

Primary Pump

1/3

4000

3700

3300

2800

1860

Performance - BSP

GPH at total feet of lift

Series

MAX LIFT

Backup Pump

1/16

2100

1500

1000

450

Electrical & Switch Specifications

Series

Motor Full Load

Amps

Branch Circuit Req.

(Amps)

Primary Pump

1/3

6.1

Backup Pump

1/16

SAFETY INSTRUCTIONS

1. Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the

presence of flammable or explosive vapors. Using this pump with or near flammable liquids can cause an

explosion or fire, resulting in property damage, serious personal injury, and/or death.

2. ALWAYS disconnect the power to the pump before servicing.

3. Do not touch the motor housing during operation. The motor is designed to operate at high temperatures. Do not

disassemble the motor housing.

4. Do not handle the pump or pump motor with wet hands or when standing on a wet or damp surface, or in water

before disconnect the power.

5. Release all pressure and drain all water from the system before servicing any component.

6. Secure the discharge line before starting the pump. An unsecured discharge line will whip, possibly causing

personal injury, and/or property damage.

7. Extension cords may not deliver sufficient voltage to the pump motor. Extension cords present a life threatening

safety hazard if the insulation becomes damaged or the connection ends fall into water. The use of an extension

cord to power this pump is not permitted.

8. Wear safety goggles at all times when working with pumps.

9. This unit is designed only for use on 115 volts (single phase), 60 Hz, and is equipped with an approved

3-conductor cord and 3-prong grounded plug. Do not remove the ground pin under any circumstances. The

3-prong plug must be directly inserted into a properly installed and grounded 3-prong, grounding-type receptacle.

Do not use this pump with a 2-prong wall outlet. Replace the 2-prong outlet with a properly grounded 3-prong

receptacle (a GFCI outlet) installed in accordance with the National Electrical Code and local codes and

ordinances. All wiring should be performed by a qualified electrician.

10. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord. Do not use

damaged or worn cords.

11. Failure to comply with the instruction and designed operation of this unit may void the warranty. ATTEMPTING TO

USE ADAMAGED PUMP can result in property damage, serious personal injury, and/or death.

For Professional Technical Support call 1-844-242-2475 3

12. Ensure that the electrical circuit to the pump is protected by a 15 Amp fuse or circuit breaker.

13. Do not lift the pump by the power cord.

14. Know the pump and its applications, limitations, and potential hazards.

15. Secure the pump to a solid base. This will aid in keeping the pump in a vertical orientation. This is critical in

keeping the pump operating at maximum efficiency. It will also help prevent the pump from clogging resulting in

premature failure.

16. Periodically inspect the pump and system components to ensure the pump suction screen is free of mud, sand,

and debris. Disconnect the pump from the power supply before inspecting.

17. Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all

Occupational Safety and Health Administration (OSHA) guidelines must be followed.

18. The motor of this pump has a thermal protector that will trip if the motor becomes too hot. The protector will reset

itself once the motor cools down and an acceptable temperature has been reached. The pump may start

unexpectedly if it is plugged in.

19. Ensure the electrical power source is adequate for the requirements of the pump.

20. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time

when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris

may cause the pump to fail. Please carefully read the manual and follow the instructions regarding common pump

problems and remedies.

PRE-INSTALLATION

GENERAL INFORMATION

The Battery Backup Combo Kit is pre-plumbed up to the hose and clamp assembly. The system includes the primary

sump pump (PSP), backup sump pump (BSP) assembly, and vertical float switch. The unit is equipped with two check

valves - one for the primary pump and one for the backup pump.

The battery backup pump is not a substitute for your primary sump pump. It is designed to temporarily backup your

primary sump pump during a power outage or other problem which prevents normal operation of the primary pump. Do

not use this system to pump flammable liquids or chemicals. Pump clear sump water only with this pump. For

residential use only.

Keep the battery charger dry and protected from damage. This system is designed to work with either a sealed

lead-acid AGM battery or a flooded lead-acid battery. Use of a true Gel Cell (often confused for AGM) or a standard

automotive battery with this charger is not recommended. An automotive battery may require charging after only 1-2

hours of continuous use, and the repeated charging cycles may cause early plate failure in the battery.

Specifications

Maximum vertical pumping distance

13.35 feet (3.4M)

Power supply required

Primary Sump Pump

115V, 60 HZ

Backup Sump Pump

12V DC Battery

Liquid Temp. Range

32°F to 90°F

Individual Branch Circuit Required (min.)

15 Amps

Discharge:

Hose & Clamp Assembly

1-1/2”Slip

Minimum pit diameter

10”

Minimum depth

14”

4 For Professional Technical Support call 1-844-242-2475

NOTICE: Do not reduce size of discharge pipe or hose below 1-1/2” diameter. If discharge is too small, pump will

overheat and fail prematurely.

NOTICE: If a Carbon Monoxide (CO) sensor is installed, it must be at least 15 feet away from battery charger in order

to avoid nuisance CO alarms. Please refer to your CO detector’s installation guidelines for more information.

PRE-INSTALLATION

APPLICATION

This compact primary and backup pump system is designed for home sump applications. Use this pump only for

pumping water.

This unit is not designed as a waterfall or fountain pump, or for applications involving salt water or brine! Use with

waterfalls, fountains, salt water or brine will void warranty.

Do not use where water recirculates.

Not designed for use as a swimming pool drainer.

TOOLS REQUIRED

MATERIALS REQUIRED (NOT INCLUDED)

NOTE: Parts shown below not to scale.

1-1/2’’ ABS or

PVC Pipe

Thread Tape

1-1/2”

Coupling

ABS or PVC

Cement

(to match the

pipe)

1-1/2” 90°

Elbow

Phillips

Screwdriver

Flathead

Screwdriver

Safety

goggles

Tape

Measure

Channel

Locks

Pipe wrench

Cable

Ties

Hacksaw

For Professional Technical Support call 1-844-242-2475 5

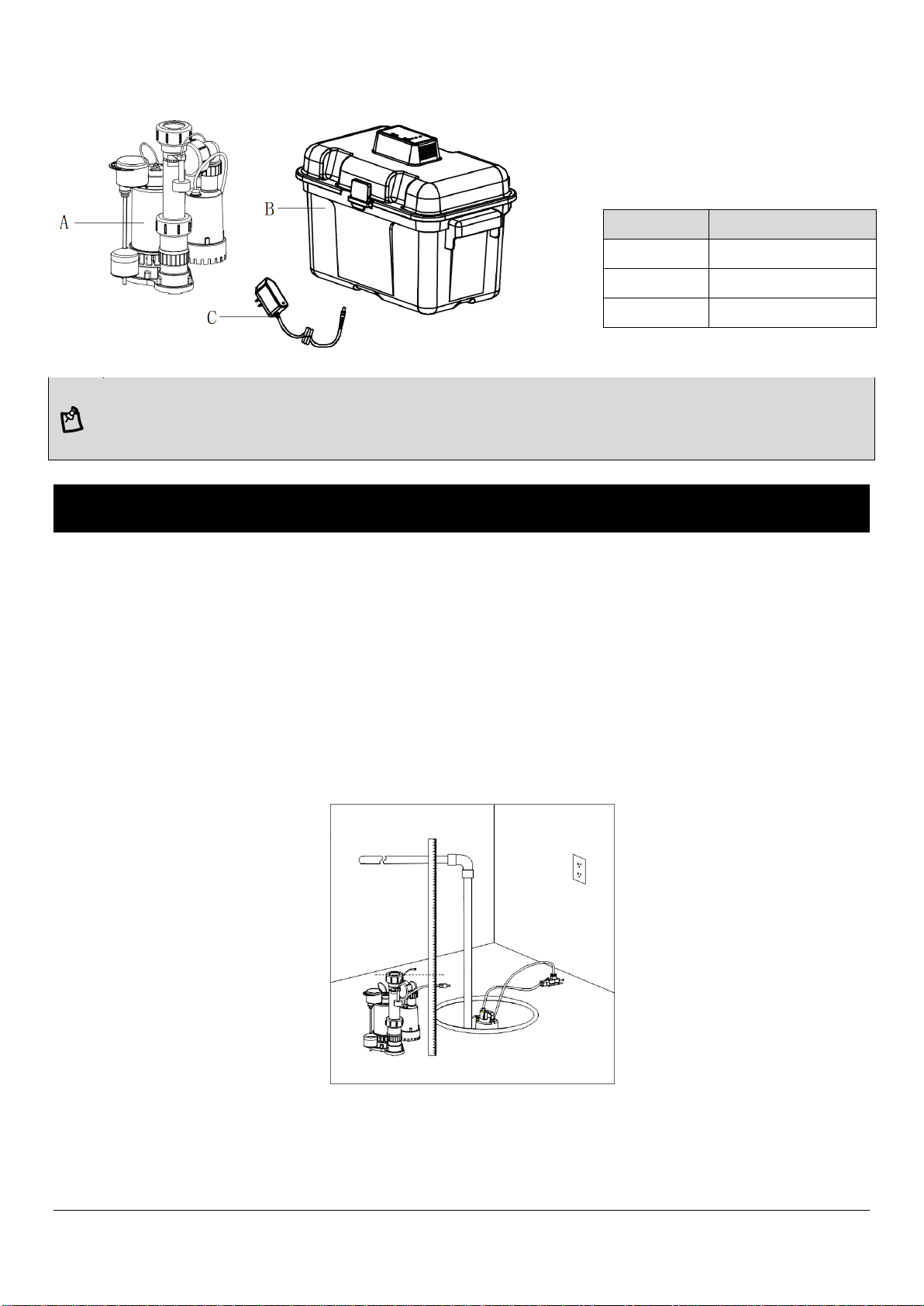

PACKAGE CONTENTS

NOTE:Do not reduce size of discharge pipe or hose below 1-1/2 in. diameter. If discharge is too small, pump

will overheat and fail prematurely. This pump is designed for use in a residential sump only. Only pump water

with this pump.

INSTALLATION

1. Drain the sump pit as far as possible without running the pump dry. Do this by:

A. Piggyback switch: Unplug the pump and switch from the outlet, then unplug the pump from the piggyback switch.

Reset the circuit breaker or reinstall the fuse and plug the pump directly into the outlet. The pump will start. Drain the

pit and unplug the pump. OR

B. No piggyback switch: Reset the circuit breaker or reinstall the fuse and use a non-conducting broom handle or

stick to raise the float switch; the pump should start. Drain the pit and then release the switch. When the pit has

drained, turn off (open) the circuit breaker or remove the fuse again to avoid electrical shock while working on the

installation. Unplug existing sump pump and place power cord and piggyback switch out of the way of work and

water.

2. Measure height from base to top of quick connector assembly, Make sure to leave enough water outlets.

3. Use hacksaw to cut horizontally along cut line completely through pipe.

NOTICE: Depending on where your current check valve is located, there may be excess water. Let the water

drain/drip into the sump pit.

4. Remove old sump from sump pit.

Part

Description

Pump

Battery box

adaptor

6 For Professional Technical Support call 1-844-242-2475

NOTICE: Remove all sand, clay, and gravel before installing.

5. Install the outlet pipe on the quick connector.

NOTICE: The quick connector must be tightened.

6. Place Combo Kit into sump pit. Make sure vertical float switches can operate freely inside sump pit, once the

Combo Kit is firmly seated in the base of the pit, then connect the pump outlet pipe to the top outlet pipe with a

hose clamp assembly.

7. Secure power cord around pipe with a cable tie. Plug the primary pump into a standard household 15 amp

outlet.

NOTICE: The circuit should be dedicated to the sump pump exclusively.

Remember: Do not handle the pump while it is plugged in; whether it is running or not.

For Professional Technical Support call 1-844-242-2475 7

8. Place the battery (sold separately) into the control box. Connect the leads from controller: Red+ to battery

Red+; Black- to battery Black-. Note: Be sure the battery box ventilation holes are unobstructed. Battery control

box must be set up in a well-ventilated area. Smoking and open flames are prohibited.

NOTICE: If the leads are reversed, the pump will run backward and not pump water.

9. Battery and control box wiring and set-up

1.Plug the pump wire male terminal into the female terminal “PUMP” on the control box

2. Plug the float switch male terminal into the female terminal “FLOAT” on the control box.

3. Plug the 12 V adaptor outlet plug into the power connector “POWER” on the control box.

Plug the adaptor into a 115 V GFCI power outlet. The LED indicators on the control box screen should be on.

4. Follow the on-screen instructions. Test the pump operation by lifting and holding the float.

The “Pump Status” LED will continuously light and the buzzer will beep steadily. The pump should start. If the

pump does not run, check all the connections and reconnect them as necessary.

8 For Professional Technical Support call 1-844-242-2475

10. Battery backup system testing

To verify the system is operational, press “RESET” button 1–4 seconds. The system will complete a self-testing

diagnostic. The DC pump will run for 3 seconds.

Green light is on: The system is normal.

Yellow light quickly flashes and alarm sounds: Battery disconnected or DC fuse blown. Connect the battery or

replace the fuse.

Yellow light slowly flashes and alarm sounds: Power off or power adaptor failed.

Yellow light is on: Battery recharging.

Red light is on and the alarm sounds: Battery backup pump working.

Red light slowly flashes and alarm sounds: Pump wire connection problems or pump failed.

NOTE: Do not reduce size of discharge pipe or hose below 1 1/4” (3.2 cm) diameter. If discharge is too small,

pump will overheat and fail prematurely. This pump is designed for use as a residential sump only. Only pump

water with this pump.

11. Once all wiring is complete, fill your pit with water and verify that the PSP removes the water and the BSP

doesn't run. Then, unplug your PSP and refill your pit with water. Verify that the BSP removes the water.

OPERATION

Risk of electric shock. Can shock, burn or kill. Do not handle a pump or pump motor with wet hands

or when standing on wet or damp surface, or in water.

1. Shaft seal depends on water for lubrication. Do not operate pump unless it is submerged in water as seal may

be damaged if allowed to run dry.

2. Motor is equipped with automatic reset thermal protector. If temperature in motor should rise, switch will cut off

all power before damage can be done to motor. When motor has cooled, switch will reset automatically and

restart motor. If protector trips repeatedly, pump should be removed and checked. Low voltage, long extension

For Professional Technical Support call 1-844-242-2475 9

cords, clogged impeller, very low head or lift, or a plugged or frozen discharge pipe, etc., could cause cycling.

3. Pump will not remove all water. If operating a pump manually and suddenly no water comes out of the

discharge hose, shut off the unit immediately. The unit has broken prime due to a very low water level.

Risk of electric shock. Can shock, burn or kill. Before attempting to check why unit has stopped

operating, disconnect power from unit.

SPECIFICATIONS

• Water-cooled, high-efficiency motor for extended operation during power outages.

• Use a deep-cycle marine battery for maximum performance.

• High-quality surface finish and corrosion-resistant thermoplastic structure for long life with minimum

maintenance.

• Reliable reed-sensor water detection for automatic operation.

• Includes controller, charger, float switch, pump, and battery box.

• Easy installation without any major plumbing changes.

CARE AND MAINTENANCE

To prevent serious injury from accidental operation, unplug the pump from its electrical outlet before performing

any inspection, maintenance, or cleaning procedures. To prevent serious injury from pump failure, do not use

damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

BATTERY MAINTENANCE

To protect the battery case from chipping and gouging, do not let the battery sit on a concrete floor. Install the

battery on a shelf or protective pad such as plywood. Always install the battery in a dry location that is protected

from flooding. Follow the battery manufacturer’s recommendations for maintenance and safe use of the battery.

10 For Professional Technical Support call 1-844-242-2475

PRIMARY PUMP TROUBLESHOOTING

Symptom

Possible Cause(s)

Corrective Action

Pump won’t start or run

No power.

Reset GFCI switch/Reset the

breaker/Secure the plug/Clean the

plug prongs.

The impeller is blocked.

Remove the debris around the

impeller.

The float switch failed.

Replace the float switch.

The motor failed.

Replace the pump.

Float obstructed

Remove obstruction.

Pump starts and stops too often

Faulty float switch

Replace float switch.

Pump won’t shut off

Defective float switch

Replace float switch.

Restricted discharge

(obstacle or ice in piping)

Remove pump and clean pump and

piping.

Float obstructed

Remove obstruction.

Restricted intake screen

Remove the pump and clean the

intake screen and the impeller.

Pump operates but

delivers little or no water

Low line voltage

If voltage under recommended

minimum, check size of wiring from

main switch on property. If OK,

contact power company or hydro

authority.

Something caught in

impeller

Remove the pump and clean out

the impeller.

Worn or defective parts or

plugged impeller

Clean impeller if plugged; otherwise

replace pump.

BATTERY BACKUP SYSTEM TROUBLESHOOTING

Pump will not start

or run

Check all the wiring connections.

Check for a low or defective battery.

Check that the float switch is free to move

up and down.

Press the circuit breaker reset button on the control panel.

Motor hums but pump won’t run

Check for low or defective battery.

Pump runs but pumps very little or

no water

The Positive (+) and negative (–) pump wires are reversed.

Disconnect them and reconnect correctly.

Check for a low or defective battery.

Check for an obstruction in the discharge pipe.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere K2 Pumps Wasserpumpe Handbücher

K2 Pumps

K2 Pumps SPT03301TPK Bedienungsanleitung

K2 Pumps

K2 Pumps UTT01003K Bedienungsanleitung

K2 Pumps

K2 Pumps SPP03301K Bedienungsanleitung

K2 Pumps

K2 Pumps SPI03302K Bedienungsanleitung

K2 Pumps

K2 Pumps UTM01602K Bedienungsanleitung

K2 Pumps

K2 Pumps UTM02501K Bedienungsanleitung

K2 Pumps

K2 Pumps Contractor Series Bedienungsanleitung

K2 Pumps

K2 Pumps WPS05002K Bedienungsanleitung

K2 Pumps

K2 Pumps WPS07505PCK Bedienungsanleitung

K2 Pumps

K2 Pumps WPS05001K Bedienungsanleitung

K2 Pumps

K2 Pumps WPD07502K Bedienungsanleitung

K2 Pumps

K2 Pumps ASP00001K Bedienungsanleitung

K2 Pumps

K2 Pumps UTA02505APK Bedienungsanleitung

K2 Pumps

K2 Pumps Contractor Series Bedienungsanleitung

K2 Pumps

K2 Pumps WPS05003K Bedienungsanleitung

K2 Pumps

K2 Pumps SPA02501VDK Bedienungsanleitung

K2 Pumps

K2 Pumps SPI03303TPK Bedienungsanleitung

K2 Pumps

K2 Pumps IRP07501K Bedienungsanleitung

K2 Pumps

K2 Pumps UTM02501K Bedienungsanleitung

K2 Pumps

K2 Pumps SPI05008TPK Bedienungsanleitung

K2 Pumps

K2 Pumps UTT05001K Bedienungsanleitung

K2 Pumps

K2 Pumps SPP05001K Bedienungsanleitung

K2 Pumps

K2 Pumps UTS03301K Bedienungsanleitung

K2 Pumps

K2 Pumps UTA02502K Bedienungsanleitung

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
