KAM Mini Par 12 USB Bedienungsanleitung

Version 1.0

Mini Par 12 USB

KML409

Unpacking Instructions

Read Manual before Operation

Please note the warnings in bold which will ensure the safe and smooth operation. These

warnings are important to a certain extent.

Attention! Indicates a skill or other useful information for special situations.

Caution! Prevent damage or injury from incorrect operation.

Warning Data

Carefully unpacking the carton, checking contents to ensure that all parts are in good

condition. Inform the shipper immediately and retaining packing

material for inspection if any parts damaged from shipping or device damaged.

Keep packing materials as evidence for shipper’s confirmation.

Attention!

This unit is in perfect condition before delivery; please check all accessories when

unpacking the unit. User should follow this user manual to operate this unit, and make

sure that you are clear on all LED safety information and unit operation before power it on.

Any wrong operation will make this unit out of warranty.

Carefully moving after receiving it, checking whether there is any damage from shipping,

and all the accessories in it.

Before operating this device, please read the manual thoroughly, and retain for future use.

Unpacking Instructions

Warning!

If the external flexible cable or cord of this luminaire is damaged, it should be replaced by a

special cord or cord exclusively available from the manufacturer or his service agent.

Shields, lenses or ultraviolet screens should be changed if they have become visibly

damaged to such an extent that their effectiveness is impaired, for example by cracks or

deep scratches.

The lamps should be changed if it has become damaged or thermally deformed.

NAME

LED system

Power Adaptor

USB A to Type-C cable

IR remote controller

User manual

1set

1pc

QTY

Safety Instructions

0.2in

To protect the environment, please try to recycle the packing material as much as possible.

The KML409 is for indoor use only, IP20. Use only in dry locations. Keep this device away

from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water

or any other fluids, or metallic objects.

Don’t throw this product away just as general trash, please deal with the product follow the

abandon electronic product regulation in your country.

Locate the fixture in a well ventilated spot, away from any flammable materials and/or

liquids. The fixture must be fixed at least 50cm from surrounding walls.

To avoid condensation to be formed inside, allow this unit to adapt to the surrounding

temperatures when bringing it into a warm room after transport. Condensation

sometimes prevents the unit from working at full performance or may even cause

damages.

Don’t cover any ventilation openings as this may result in overheating.

Don’t install it on flammable object.

Don not use it when maximum ambient temperature is higher than 40 degree.

Unplug the unit when it is not used for a longer time or before replacing the bulb.

Don’t open the top cover to avoid unit damage.

Please use the original packing when the device is to be transported.

Never expose the lens to direct sunlight, even for a short

period, This may damage the light effect or even cause fire!

◆

Overhead Rigging

Attention! The installation must be carried out by qualified service personal only.

Improper installation can result in serious injuries and /or damage to property.

Overhead rigging required extensive experience! Working load limits should be

respected, Certified installation materials should be used, the installed device should

be inspected regularly for safety.

Make sure the area below the installation place is free from unwanted persons during

rigging, de-rigging and servicing.

Locate the fixture in a well ventilated spot, far away from any flammable materials

and/or liquids. The fixture must be fixed at least 50cm from surrounding walls

The device should be installed out of reach of people and outside areas where persons

may walk by or be seated.

The device should be well fixed; a free swinging mounting is dangerous and may not

be considered!

Do not cover any ventilation opening as this may result in overheating

Before the first time use, it must be inspected by professional staff to make sure safety,

inspection regularly every year.

◆

Please use the included power adaptor and check that

power outlet to make sure the input voltage and frequency

are the same as the rated. This device can be powered by

DC 5V/2A through USB Type-C plug that is most

popular charger for mobile phones or other electronic

devices.

Power Adaptor

◆

Before rigging make sure that installation area can hold the 10 times weight of device.

Using the steel rope which can hold 12 times weight of device, through the eye-bolt for

assisting hang installment.

Adjust Angle

ON/OFF

Product diagram

No.

Function

Operation instructions

Name

IR receiver

Hanging bracket

Lense

USB Type-C socket

Modes

The receiver of remote controller

For hanging and angle adjustment

Color effect output

Connect to the power adaptor or PartySet plug

Auto mode

Sound mode

Green and Blue 30%

Red

Green

Green and Blue

Red and Green 30%

Blue

Red 55% and Green 30%

Red and White

Red and Green

White

IR Controller

Close/Auto/Sound

WhiteBlue, Green, Red,

Product Infomation

Product parameter

Model

Light source

Operating modes

Dimensions

Weight

Power input

Power consumption

Maximum working temperature

Mini Par-12 USB-C4

Auto/Sound/IR remote control

156×53.6×171mm

0.25kg

5V/2A USB Type-C

14W

104ºF(40ºC)

Product description

The KAM KML409 is a fantasy LED effect light that includes powerful RGBW four-color LED to

creates constantly rotating multicolor light beams. It can be used with fog or haze to create the

party atmosphere and can be operated in Auto show, Sound activated or IR remote modes. It

can work as one controlled unit of the PartySet system as well.

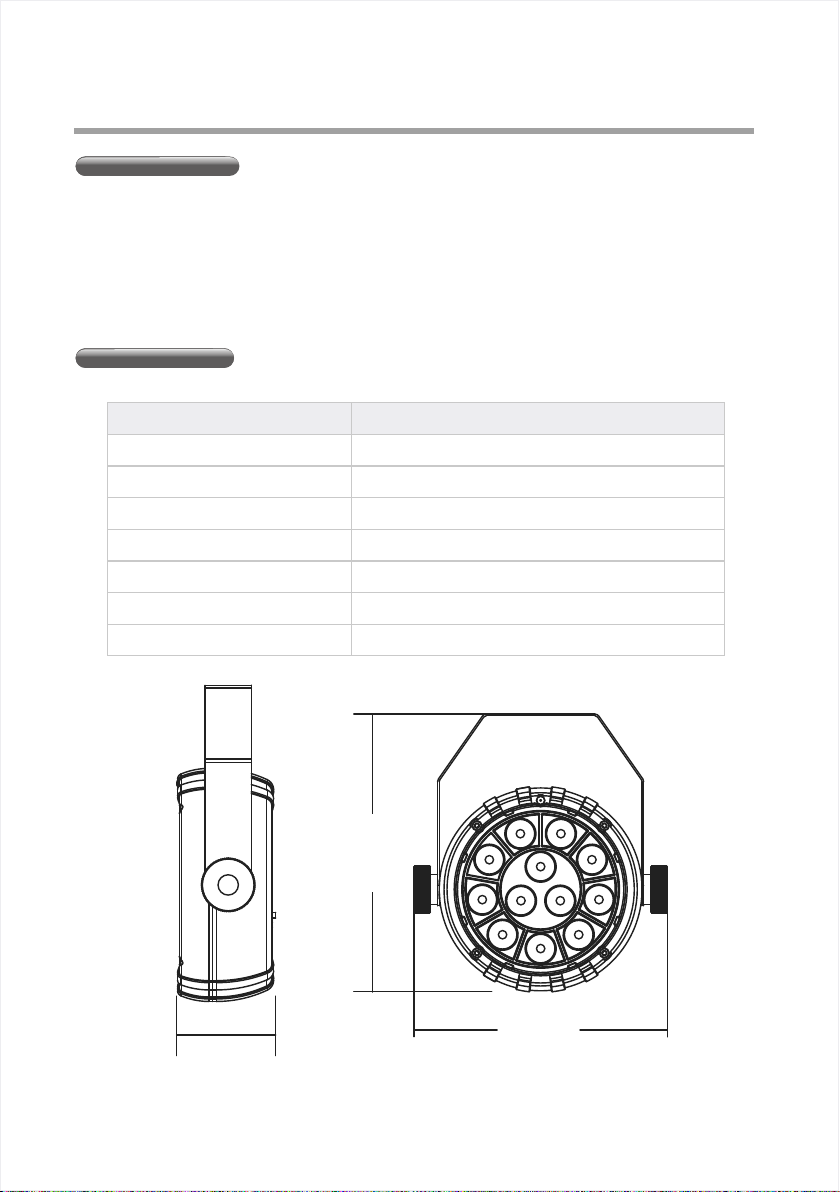

156mm

171mm

53.6mm

UK DISTRIBUTOR

John Hornby Skewes & Co. Ltd.

Salem House, Parkinson Approach, Garforth,

Leeds LS25 2HR, United Kingdom.

www.jhs.co.uk

 

  

CA c� ✓ � • 

-• 

� RoHS
