Kango 800K Installations- und Betriebsanleitung

9800 0334 01 a

800K

Date Code

0001L2001

Service and Repair Manual

Model 800K 2

WARRANTY AND LIABILITY STATEMENT

All repairs may be completed with standard workshop tools and equipment.

SERVICE TOOLS

Use only Authorized parts. Any dama e or malfunction caused by the use of unauthorized parts

is not covered by Warranty or Product Liability.

General

For best performance hammers should be serviced at regular intervals, any indication that the hammer is not performing as specified

should be investigated to prevent any adverse damage occuring.

ALL SEALS, GASKETS, G EASE O OTHE PA TS DEEMED NECESSA Y FO SE VICING A E IN THE SE VICE KIT.

ALL NEEDLE OLLE BEA INGS SHOULD BE P ESSED WITH THE OUNDED EDGE ENTE ING THE BO E FI ST, AND THE P ESS TOOL

P ESSING AGAINST THE FLAT SU FACE OF THE BEA ING.

Cleanin

All mechanical parts with the exception of any sealed bearings should be cleaned in a suitable cleaning fluid. Electrical parts should be

cleaned by the use of compressed air. P ECAUTIONS MUST BE TAKEN FO PE SONAL SAFETY THE USE OF EYE P OTECTION AND

GLOVES IS ECOMMENDED.

Inspection

All mechanical and electric parts should be inspected for wear and replaced as required.

Service and Repair Manual

Model 800K

%SEE PAGE 5 FOR

ADDITIONAL LUBRICATION

AND SERVICE NOTES

EXAMPLE:

Component Parts (Small #) Are Included

When Ordering The Assembly (Large #).

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

4 9170 3251 20 Ball Bearing (1)

7 9170 3251 60 Ball Bearing (1)

13 9170 3253 10 Pivot Nut (1)

15 9170 3252 90 Pivot Bolt (1)

16 9170 3251 00 M6 x 1.0 x 120 Pan Hd. Slt. Tapt. T-27 (4)

19 9170 3253 90 Special Screw (2)

20 9170 3250 10 8-32 x 3/8" Pan Hd. Slt. Tapt. T-20 (4)

21 9170 3251 90 8-16 x 2" Pan Hd. Slt. Plast. T-20 (2)

24 9170 3252 50 M5 x 2.24 x 18 Pan Hd. Slt. PT T-20 (7)

25 9170 4650 10 Dowel Pin-Knurled (1)

26 9170 3237 30 ound Label (1)

31 9170 4668 90 Electronics Assembly (1)

32 9170 4669 00 230 Volt Armature Kit (1)

33 9170 4670 30 230 Volt Field (1)

34 9170 4669 10 Carbon Brush (2)

36 9170 3252 00 Brush Carrier Assembly (1)

39 9170 4669 20 Blade Housing Assembly (1)

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

40 9170 4671 90 Quik-Lok Cord Set (1)

41 9170 3252 10 Brush Spring (2)

42 9170 4652 10 Speed Control Switch (1)

47 9170 3254 10 Upper Handle Mount (1)

50 9170 4652 30 Motor Cover (1)

51 9170 4669 40 Left Handle Half (1)

52 9170 4669 50 ight Handle Half (1)

53 9170 3251 70 Motor Housing (1)

54 9170 3252 30 Left Shroud (1)

55 9170 3252 40 ight Shroud (1)

56 9170 4670 40 Belly Shroud (1)

59 9170 3251 50 etaining ing (1)

80 9170 3251 10 Bearing Cup (1)

87 9170 3254 20 Isolation Bellows (1)

88 9170 3253 00 Pivot Isolator (2)

89 9170 3254 30 Isolation Module Assembly (1)

92 9170 3253 30 Foam Slug Kit (Bag of 10) (1)

93 9170 3252 60 Handle Cushion (1)

110 9170 3254 00 ubber Washer (2)

114 9170 4660 90 Fan (1)

Service and Repair Manual

Model 800K 4

Assemble Thrust Washers

#107 and Belleville Spring

Washers #78 into Intermediate

Housing #46 as illustrated.

NOTE: USE OIL

ON ALL AREAS

TO BE PRESS FIT

%SEE PAGE 5

FOR ADDITIONAL

LUBRICATION

AND SERVICE NOTES

l9170 4666 70 HAMMER SERVICE KIT

THIS KIT CONTAINS:

1 9170 3254 50 Cap-Cover

1 9170 3261 00 ubber Damping Washer

1 9170 3255 00 Seal-Cover

1 9170 3255 50 O- ing

1 9170 4662 90 Cap Seal

1 9170 4664 40 O- ing

1 9170 4665 50 O- ing

1 9170 3251 10 Bearing Cup

1 9170 3261 40 Gasket

1 9170 4671 20 Dust Seal

1 9170 4664 70 7 Oz. Tube "S2" Grease

2 9170 4669 10 Carbon Brush

_______________________________________________________________

______________________________________________________________

________________________________________________________________

_______________________________________________________________

______________________________________________________________

________________________________________________________________

___________________________________________

________________________________________

___________________________________________

FASTENER TORQUE SPECIFICATIONS (IN./LBS.)

SEATING TORQUE

FIG. NO. MINIMUM MAXIMUM

14 120 140

15 20 25

16 30 35

19 30 35

20 25 30

21 20 25

22 25 30

25 30

20 25

610

105 60 70

HANDLE HALVES

AND SHROUDS

CUSHION GRIP

CRANKCASE COVER23

24 9170 4667 00 CARBON BRUSH SERVICE KIT

THIS KIT CONTAINS:

2 --------------- Carbon Brush

Service and Repair Manual

Model 800K

NOTE: Check the clutch torque. Clutch must slip at 35 to 45 ft.lbs.

at the spindle, checked clockwise as viewed from the front

of the tool.

LUBRICATION NOTES: (TYPE "S2" GREASE, NO. 9170 4 4 70)

Fill Piston #95 with grease

and assemble to Connecting

od #100 with Wrist Pin #94.

Front surface of Piston to be

free of grease.

Lubricate O- ing

#67 with grease.

Place 1.5 oz.

grease here.

Place a total of 1.0 oz. grease

in the barrel cavity in the crankcase

#44. Place .5 oz. in each corner in barrel

chamber.

Lightly grease

Spring #74

and bit lock #91.

Place 1.0 oz. grease

in lower cavity.

F ONT OF C ANKCASE

Place

1.5 oz.

grease in

bottom of crankcase

prior to installing

crankshaft assembly.

Dip Felt Washers #106 into light oil.

Press Oil Seal #102 and Felt

Washers into Nose #48 to

dimension shown.

1.5+/-.015

Lubricate O- ing with grease.

Install O- ing onto am.

Assemble Cap Seal onto am.

esize Cap Seal and load

into Barrel (seal end first).

am should be located

flush with end of Barrel.

Seal to be installed with

garter spring to left as shown.

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 9170 4670 50 Grease Displacer (2)

2 9170 4670 60 Spindle Support (1)

3 9170 4661 10 1/4" Steel Ball (1)

5 9170 3254 90 Ball Bearing (1)

9 9170 3255 70 Needle Bearing (1)

10 9170 3255 20 Needle Bearing (1)

14 9170 4661 90 M6 x 1.0 x 70 Skt. Hd. Cap Screw T-27(4)

17 9170 4670 70 Cross Pin (1)

18 9170 3258 10 Dowel Pin (1)

22 9170 3254 60 8-32 x 3/8" Pan Hd. Slt. Taptite T-20 (1)

23 9170 3254 70 M4 x 0.7 x 14 Pan Hd. Slt. Taptite T-20 (4)

28 9170 3257 80 External etaining ing (1)

44 9170 4670 80 Crankcase (1)

45 9170 3254 40 Crankcase Cover (1)

46 9170 4662 30 Intermediate Housing (1)

48 9170 4670 90 Nose Assembly (1)

49 9170 3254 50 Cap-Cover (1)

58 9170 4662 90 Cap Seal (1)

60 9170 4664 40 O- ing (1)

61 9170 3255 80 O- ing (1)

63 9170 3261 00 ubber Damping Washer (1)

64 9170 3255 00 Seal-Cover (1)

65 9170 4664 60 O- ing (1)

66 9170 3255 50 O- ing (1)

67 9170 4665 50 O- ing (1)

69 9170 3254 80 etaining ing-Beveled (1)

72 9170 3255 60 Crankshaft Assembly (1)

73 9170 4671 00 Spindle (1)

74 9170 4666 80 Bit Lock Spring (1)

78 9170 3260 20 Belleville Spring (2)

81 9170 4667 40 Barrel (1)

84 9170 3261 40 Gasket (1)

91 9170 4671 10 Bit Lock (1)

94 9170 4661 60 Wrist Pin (1)

95 9170 4667 60 Piston (1)

98 9170 4667 70 am (1)

100 9170 3255 10 Connecting od Assembly (1)

101 9170 4671 20 Dust Seal (1)

102 9170 4671 30 Oil Seal (1)

104 9170 4668 00 Striker (1)

105 9170 4668 10 DG50 x 16mm Torx Pan Head Screw (2)

106 9170 4671 40 Felt Seal (2)

107 9170 3260 10 Thrust Washer (2)

108 9170 3261 10 Barrel Thrust Washer (1)

109 9170 3260 90 Striker Cushion Washer (1)

113 9170 3257 90 Wave Washer (1)

115 9170 4651 60 Hex Head Bolt-Special (1)

116 9170 3258 80 Side Handle Band (1)

117 9170 3257 70 Side Handle Assembly (1)

120 9170 3258 20 Band etainer (1)

121 9170 3258 00 Side Handle Housing (1)

SERVICE CARRYING CASE

No. 9170 4671 60

Service and Repair Manual

Model 800K 6

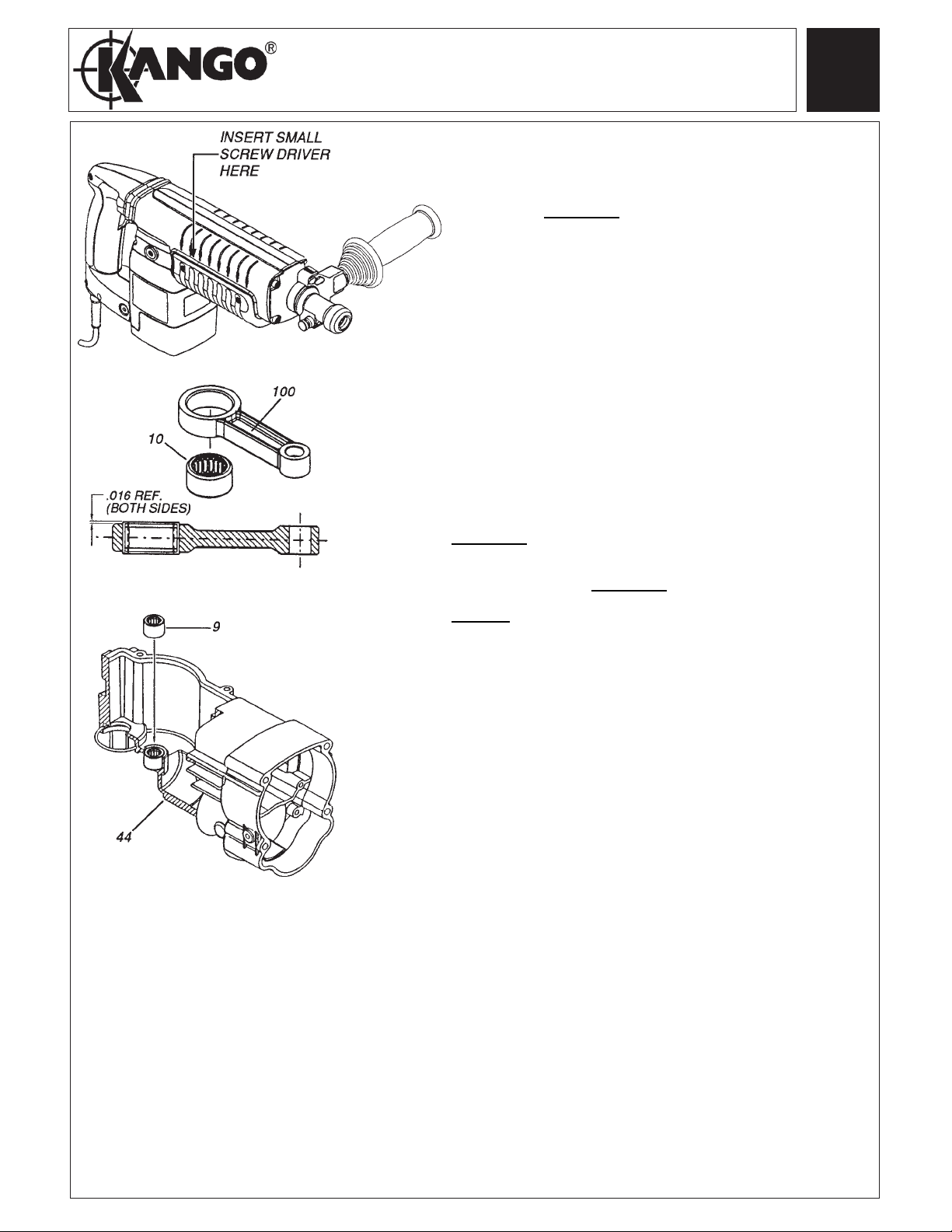

FIG. %NOTES

54, 55, 56 TO REMOVE BELLY SHROUD #56 FROM TOOL, INSERT SMALL

SCREW DRIVER INTO GROOVE BETWEEN BELLY AND SIDE

SHROUDS #54 AND #55, ABOUT 1/3 OF THE WAY FROM THE

MOTOR END, AS SHOWN. PRY OUT AND DOWN ON BOTH

SIDES OF THE TOOL.

54, 55 TO INSTALL THE SIDE SHROUDS #54 AND #55, THE TOP

HINGE OF THE SHROUDS MUST BE COMPLETELY

INTERLOC ED, THEN THE BAC SIDE ROTATED CLOSED

AROUND THE TOOL.

73 LUBRICATE ALL BORES IN SPINDLE #73 WITH A MEDIUM

COATING OF GREASE.

63, 108, 109 LUBRICATE RUBBER DAMPING WASHER #63, BARREL

THRUST WASHER #108 AND STRI ER CUSHION WASHER

#109 WITH A MEDIUM COATING OF GREASE BEFORE

ASSEMBLY.

10, 100 PRESS NEEDLE BEARING #10 IN ROD #100 SO THAT THE

SAME AMOUNT STIC S OUT ON BOTH SIDES OF THE ROD,

AS SHOWN.

9, 44 PRESS NEEDLE BEARING #9 INTO CRAN CASE #44, FLUSH

WITH TOP OF BORE, AS SHOWN.

81 LIGHTLY GREASE INSIDE OF BARREL #81 BEFORE

ASSEMBLY.

48, 73 SMALL OUTSIDE DIAMETER OF SPINDLE #73 IS TO BE

LUBRICATED WITH A LIGHT COAT OF GREASE BEFORE

ASSEMBLING THE NOSE ASSEMBLY #48 TO THE TOOL.

48, 73, 102 NOSE ASSEMBLY #48 MUST BE PLACED SQUARELY OVER

SPINDLE #73, WHEN ASSEMBLING, TO PREVENT DAMAGE TO

OIL SEAL #102.

14, 19, 20, 23 FASTENERS #14, #19, #20 AND #23 ARE TO BE

RE-ASSEMBLED USING BLUE LOCTITE.

48, 102 LUBRICATE BORE IN NOSE ASSEMBLY #48 BEFORE

PRESSING OIL SEAL #102 INTO PLACE.

60, 61, 66, 67 LUBRICATE O-RINGS #60, #61, #66 AND #67 WITH GREASE.

69 INSTALL BEVEL SNAP RING #69 WITH BEVEL SIDE UP.

4, 50, 80 PLACE BEARING CUP #80 ON SMALL ARMATURE BEARING

#4 BEFORE INSTALLING MOTOR COVER #50.

41 BRUSH SPRINGS #41 ARE TO BE WOUND 1/2 TURN TO

ENGAGE BRUSHES.

4 RUBBER SEAL SIDE OF BALL BEARING #4 TO FACE FAN.

95, 98 FACES OF PISTON #95 AND RAM #98 ARE TO BE FREE

OF GREASE.

105 WHEN REASSEMBLING BARREL AND CLUTCH SCREWS

INTO EXISTING CRAN CASE, MA E SURE SCREW IS

STARTED IN EXISTING THREAD. DO NOT CREATE TWO

SETS OF THREADS IN ONE HOLE.

Service and Repair Manual

Model 800K

Wire Color

WIRING

SCHEMATIC

Inductor Boat

Wire Origin or

No. 110 V 120 V 230 V Part No. Connection

1 Blue White Blue Cord Switch

2 Brown Black Brown Cord Switch

3 ed ed ed Field Lead 9

4 ed ed ed Field Switch

5 Yellow Yellow Yellow Field Brush Holder

6 Black Black Black Field Brush Holder

7 White White White Motor Control Assy. Switch

8 Black Black Black Motor Control Assy. Switch

9 Black Blue ed Motor Control Assy. Lead 3

Tuck all wiring into left handle half

prior to assembling right handle half.

This will avoid pinched wires.

Wrap

wire tie around

electronics boat

to retain leads as

shown.

Cord to

be inserted into clamp

trap. Cord to extend 1/4"

minimum above top of

clamp. (For 120 V only.

See below for 110 V

and 230 V.)

Fast-on

terminals must be

completely connected

between leads 4 and 9.

Keep leads

away from

potential

pinch points.

Electronics Assembly

WIRING SPECIFICATIONS

SWITCH

CONNECTIONS

(Bottom view)

Tuck leads

5 and 6

away from

armature.

BRUSH CARD

ASSEMBLY

Brush to

brush plate

connections.

Brush shunt wires to

be positioned up in

brush tube slots, as

shown, for full travel.

Check that there is

clearance between the

fan and brush shunt

wires.

Brush

springs

must be seated

in slot located on

brush tubes.

As an aid to reassembly, take note of wire routin and

position in wire uides and traps while dismantlin tool.

110 V and 230 V

QUIK-LOK CORD

ORIENTATION

Service and Repair Manual

Model 800K 8

ELECTRICAL TESTING

Electrical test

Before assemby all electrical parts MUST be checked for safety, and that they conform to specification.

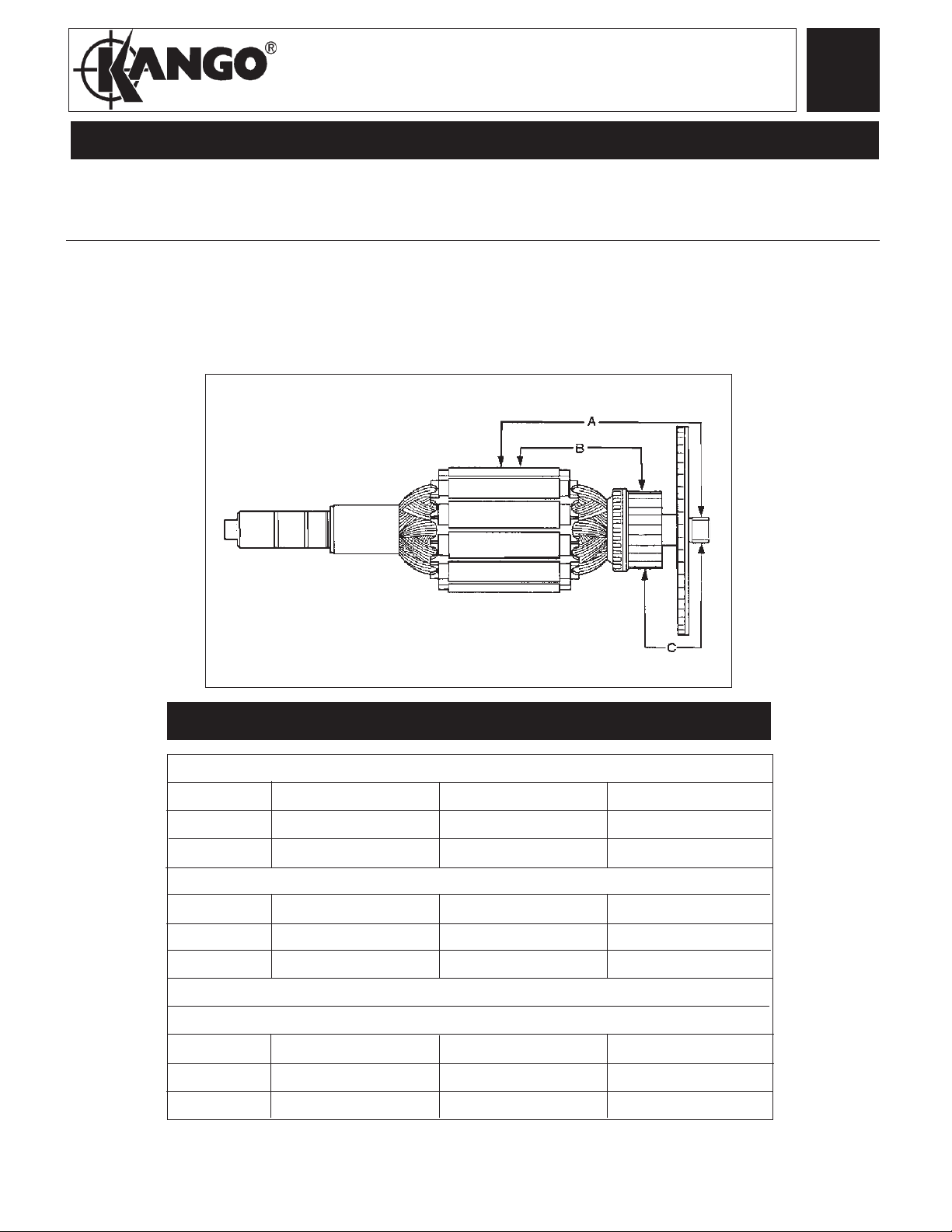

Testin the Armature (Flash Testin )

AArmature shaft to lamination pack 1500 Volts (min)

BLamination pack to commutator 1200 Volts (min)

CArmatuure shaft to commutator 3000 Volts (min)

ELECTRICAL PERFORMANCE TEST READINGS

CLUTCH SLIP

Measured on disassembly/assembly 35/45ft lbs 47/61Nm. (Non Electrical Test)

Note: On all test readings + or -5% of figures shown is acceptable.

800K

MODEL 110V 120V 220V-240V

ARMATURES

.440/.506 Ohms .440/.506 Ohms 1.283/1.477 Ohms

FIELD COILS

800K

110V 120V 220V-240V

4.5/6.5 Amps 4.5/6.5 Amps 2.9/4.4 Amps

.349/.401 Ohms .349/.401 Ohms 1.339/1.54 Ohms

PERFORMANCE

110V 120V 220V-240V

Running No Loa

Service and Repair Manual

Model 800K

WARNING

LETHAL VOLTAGES PRESENT!!

IMPORTANT

On completion of the assembly, the unit must be flash tested at 4000 volts.

Flash Test

1. With the breaker completely assembled and with the switch "ON", apply 2000 volts initially and increase rapidly to 4000 volts between the

main casting and one of the pins of the plug on the power supply cord. Apply test to both live and neutral pins.

2. The full voltage of 4000 volts should be maintained without breakdown or flashover for a few seconds.

3. If the armature has been tested, remove the carbon brushes before carrying out the test, (thus avoiding overstressing the armature

insulation system).

4. The test voltage must be applied between the main casting and each live pin of the plug in succession.

Runnin Test

1. Ensure the unit is switched "ON" before testing. Operate the unit for approx. 10 minutes at half voltage for initial 'bedding in' of the carbon

brushes followed by full operational voltage. Compare readings with Performance Data.

With the aid of the Fault Finding chart (below) the source of any malfunction may be quickly identified and repaired.

FAULT FINDING

9800 0334 01 a

55-24-3900 Drwg. 3 04/02

Atlas Copco Berema AB, Sic la Industriväg 1A, S-105 23

Nac a Sweden

Telephone: +46 (0) 8 743 9600 Fax: +46 (0) 8 743 9650

Inhaltsverzeichnis

Andere Kango Werkzeuge Handbücher

Kango

Kango 900 Anleitung zur Verwendung

Beliebte Werkzeuge Handbücher anderer Marken

Martor

Martor SECUNORM 175 Bedienungsanleitung

ERKCO

ERKCO 1000 Bedienungsanleitung

jbc

jbc N4473 Bedienungsanleitung

FEINMETALL

FEINMETALL FZWZ-SET-001 Bedienungsanleitung

Worx Professional

Worx Professional Sonicrafter WU676 Bedienungsanleitung

Gage Bilt

Gage Bilt GB713SH Bedienungsanleitung

Hilti

Hilti DX 9-ENP Bedienungsanleitung

norbar

norbar NORTRONIC 34399 Bedienungsanleitung

BGS technic

BGS technic 8578 Bedienungsanleitung

Makita

Makita DHR241 Bedienungsanleitung

Motor Guard

Motor Guard JMB-1250 Bedienungsanleitung

Power Adhesives

Power Adhesives 805-12 Bedienungsanleitung

Clemco

Clemco 24189 Bedienungsanleitung

VVG

VVG VNG 903 Series Bedienungsanleitung

Hilti

Hilti FX 3-A Bedienungsanleitung

Grizzly

Grizzly H6472 Bedienungsanleitung

axing

axing BWZ 5-02 Bedienungsanleitung

Dh-Robotics

Dh-Robotics RGI-100 Anleitung zur Verwendung
