Kathrein AVH 06 Bedienungsanleitung

1 / 4

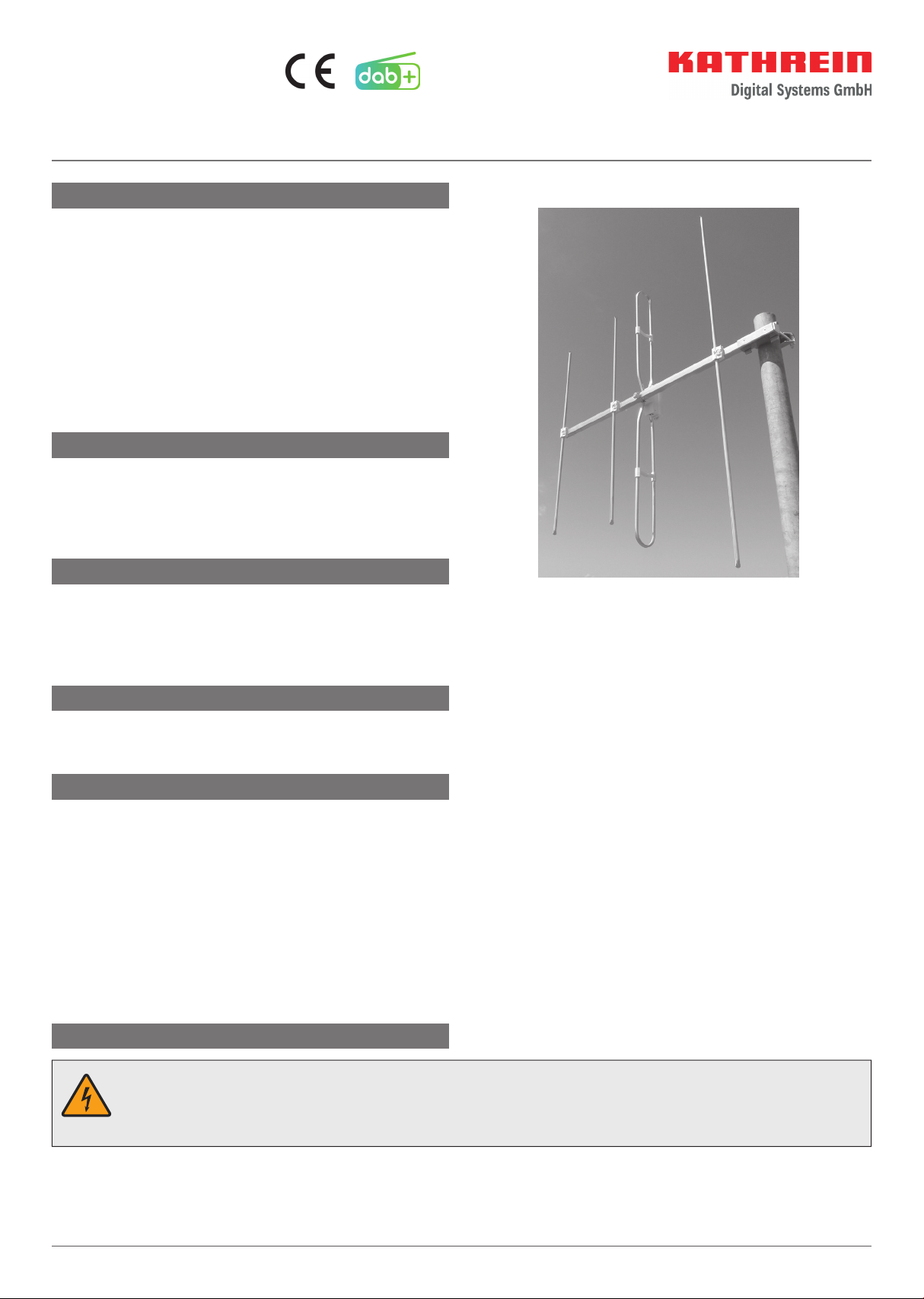

AVH 06 207500001

Band III TV antenna, suitable for DAB+

Features

•Outdoor antenna

•Suiable for DAB+

•Suitable for vertical (pre-installed) and horizontal polarization

•Easy installation

About This Manual

This document is part of the product and describes how to

install and connect the AVH 06 Band III TV antenna.

►Do not install or use the device until you have read and

understood this document.

►Keep this document for reference throughout the service life

of the device and pass it on to any new owner or user.

For the most up-to-date version of this document, go to

www.kathrein-ds.com

Scope of delivery

•Band III TV antenna AVH 06

•F-type screw-on connector for cable LCD 90/111 A+/115 A+/120 A+/130 A+, KEC 120 A+

•Weather protection sleeve

•Instructions for use

Transport and Storage

►Use the original packaging for transporting the device.

►Store the antenna in a dry place and protect it from mechanical damage.

Intended use

The AVH 06 is a Band III TV antenna. The antenna is solely designed for the limited purpose of receiving terrestrial TV and DAB+

signals and as indoor antennas. Under the terms of DIN 4131, an indoor antenna is deﬁ ned as an antenna if the mast length does not

exceed 6 meters and if its ﬁ xed end moment is at 1,650 Nm maximum. Any other use or non-observance of these instructions und

der den Geräten beiliegenden Dokumentation will result in the loss of the warranty and guarantee. The following circumstances lead

to the loss of warranty and liability claims against the manufacturer:

►Improper installation

►Use of unlisted ﬁxing material, which means that mechanical safety cannot be guaranteed

►Structural changes or interventions in the antenna, which can endanger both the mechanical and electrical as well as the func-

tional safety

►disregarding the assembly and safety instructions in this manual

Safety Instructions

ATTENTION! DANGER FOR LIFE!

Do not under any circumstances mount an antenna under power lines. Touching power supply lines with parts of your

body, with antenna parts or tools may cause an electrical shock or serious burns.

Ground the antenna installation according to DIN EN 60728-11!

2 / 4

Please read the following safety instructions carefully and thoroughly before you start installing the antenna, and keep

observing them during the installation!

The installation of the antenna demands a high degree of responsability for yourself and other people. For this reason, the instal-

lation must be executed by an electrician (expert in his/her trade). In order to assist you, some important safety instructions have

been compiled in the following. However, these instructions are not exhaustive, as we are not aware of the local conditions.

►Do not use the antenna for purposes other than intended by the manufacturer.

►Only use the components as prescribed by the manufacturer and do not modify them.

►When selecting the antenna site, take account of the building‘s structural characteristics. Installation on the edge of

cylindrical structures could lead to increased wind loads and vibration stress according to DIN 1055, part 4, DIN 4131.

Non-observance of these instructions may cause exceeding of the load limit or the vibration resistance.

►Do not mount the antenna on buildings with rooftops made of easily inﬂ ammable materials (e.g. straw, reed or

similar materials).

►Only step on ﬁ rm, dry rooftops and protect yourself against falling down

►To ensure safety, ladders, scaoldings, safety belts etc. must be in good structural order.

►Passers-by must not be endangered by falling objects. Secure the work/danger area!

►Ensure that the technical values (e.g. wind load) of the antenna mast are not exceed. Consult the manufacturer

if you do not know these values. See „Suitable Kathrein masts“ on page 4 for an overview of the masts oered by

KATHREIN Digital Systems.

►Mount the antenna mast on solid ground only (walls, concrete, rafters) using the clamps, dowels and screws recom-

mended by the manufacturer

►Immediately leave the roof in case of a thunderstorm!

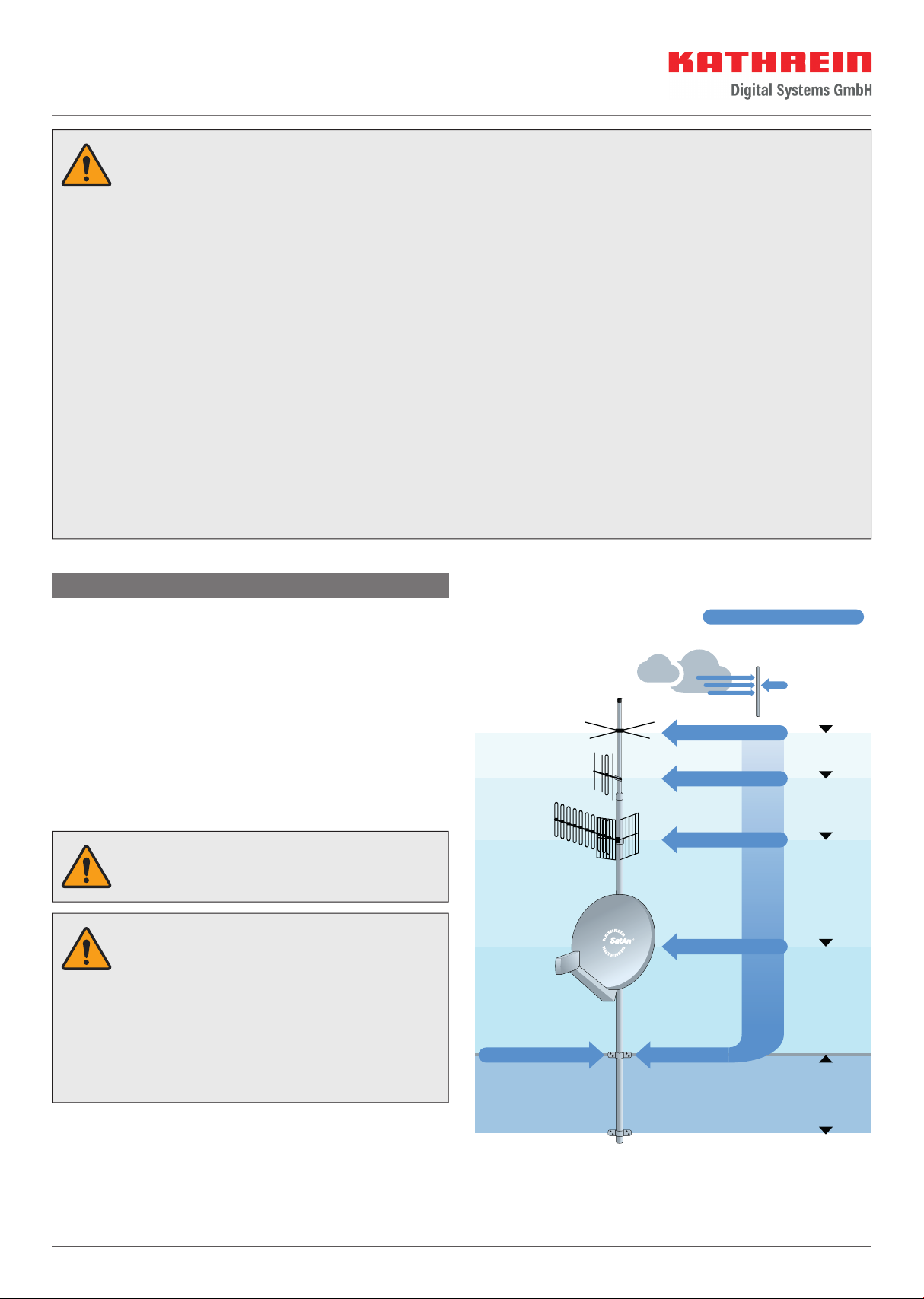

Mast installation and mast calculation

•Make sure masts is in vertical position when installing it

•Only use masts or standpipes specially designed for antenna

installation. Other tubes mostly do not have the necessary

stability to withstand heavy wind or other climatical situations.

Kathrein masts and clamps fulﬁ ll these requirements. See

„Suitable Kathrein masts“ on page 4 for an overview of the

masts oered by KATHREIN Digital Systems.

•The clamping range of the AVH 06 masting clamps is 22 to

55 mm

•If the mast is to be mounted on a roof, at least 1/6 of its length

must be clamped

•Make sure that the mast holders (e.g. clamps) are mounted on

solid ground (wood, concrete, walls)

Never exceed the maximum load capacity of the

mast or clamps when mounting several antennas

on the mast.

The bending moment aects the mast on the

upper attachment point for all antennas. The wind

load on the mast must be included in the calcula-

tion.

The overall bending moment is not to exceed the

maximum permitted bending moment of the mast

and must not be greater than 1,650 Nm. If the

bending moment is greater, a static engineer is

required to provide veriﬁcation of the transfer of

forces into the structure of the building.

CAS 80gr

SAT antenna

Olympia 150

AVH 06

ABA 20

Mast ZSH 59

AOP 65

1138 Nm

Admissible: 1280 Nm

25 N x 4,0 m = 100 Nm

33 N x 3,6 m = 119 Nm

103 N x 2,8 m = 289 Nm

450 N x 1,4 m = 630 Nm

1,4 m

(Middle of the reﬂector)

1,0 m

2,8 m

3,6 m

4,0 m

According to EN 60728-11, the ﬁxing range

of the antenna mast be at least 1/6

of the total mast length.

M = W x a + W x a + W x a + ...

= Bending moment

= Given windload in catalogue

= Mast length from the antenna to

the mast ﬁxing point

1,2,3

3 / 4

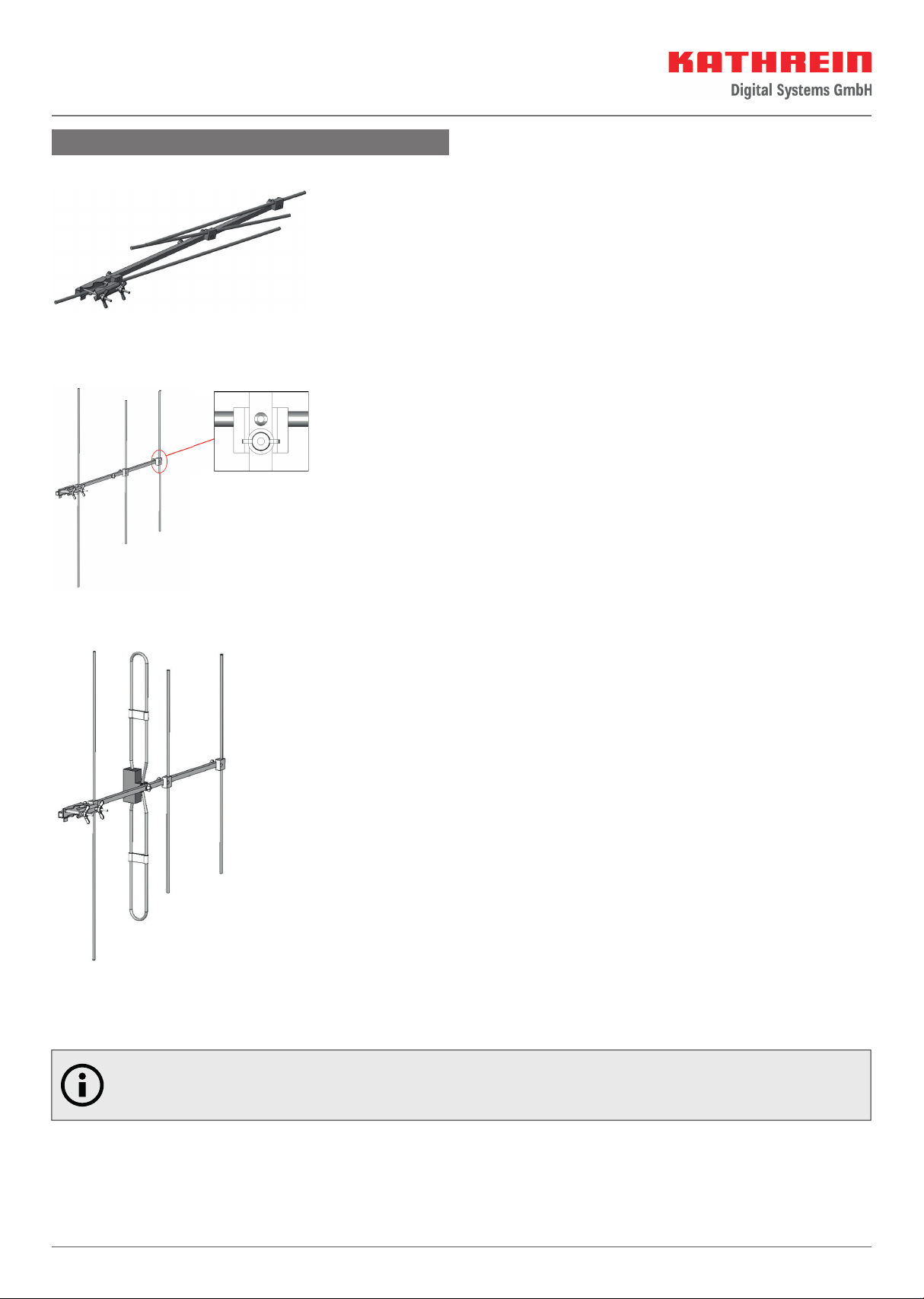

Antenna installation

1. Unpacking the antenna

2. Turn the rods by 90°, push them in the middle (observe

marking) and tighten the screws

3. Dipole mounting (Position according to picture)

4. Connect the cable to the F-socket, put the weather

protection sleeve on

The antenna can also be mounted horizontally. For this purpose the mast clamp must be turned by 90°.

www.kathrein-ds.com | support@kathrein-ds.com 936500054/a/STM/0520/GB |Subject to change.

KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1–3 | 83022 Rosenheim | Germany | Phone +49 731 270 909 70

Technical data

Type | Order no. AVH 06

207500001

Channels 5 - 12

Gain dB 4 - 6

Elements 4

Reception range MHz 174 - 230

Half-power beam width Horiz.°/vert.° 60/95

Front-to-back ratio dB 15

Mast clamp range mm ∅22 - 55

Length mm 755

Wind load N 33 (at 130 km/h wind speed)

Packing unit/weight pc./kg 1/0.61

Packing unit dimensions mm 1014 x 104 x 59

Electronic equipment

Electronic equipment is not domestic waste – in accordance with directive 2012/19/EC OF THE EUROPEAN PARLIAMENT

AND THE COUNCIL dated 04th July 2012 concerning used electrical and electronic appliances, it must be disposed of

properly. At the end of its service life, take this unit to a designated public collection point for disposal.

Disposal

Repair and replacement

autronic electronic-service GmbH

Hauptstraße 2a

35792 Löhneberg-Obershausen

Germany

Phone: +49 6477 612 310 1

Fax: +49 6477 612 302 0

Email: service-kathrein@autronic-service.de

Suitable Kathrein masts

1) Only the upper mast can be used, as the diameter of the lower mast is too large for the mast clamp.

Flat roof antenna mount:

• ZAS 140

Mast tubes:

• ZAS 05

• ZAS 06

Plug-in masts:

• ZSA 21

• ZSA 46

Booms:

• ZTA 11

• ZTA 12

The following masts can be used in conjunction with the AVH 06:

Extending masts:

• ZSD 48

• ZSF 47

• ZSF 48

• ZSH 47

• ZSH 48

• ZSH 59 1)

• ZSH 61 1)

Rafter brackets:

• ZAS 40

• ZAS 41

Further information and the technical data for the masts can be found at https://www.kathrein-ds.com.
