Katool KT-B760 Bedienungsanleitung

- 1 -

1 Performance and characteristics:

- In case of emergency, press the STOP button to stop the wheel from spinning.

- With OPT function, optimize tire rim fit.

- With unit conversion function.

- Multiple balancing methods for your choice.

- Balancing accuracy up to ±1g, short balancing time.

- With self-correction and automatic fault diagnosis function.

- Balance decomposition (hidden lead) function (hide behind spokes)

- With automatic ruler ranging and measuring function

W H E E L B L A N C E R

- 2 -

2Technical Data

The maximum

wheel weight

65kg

Rated power

supply

110V、220V

Balance accuracy

±1g

Width of rim

1.5″－20″

Diameter of rim

8″－30″

3．Control panel:

3.1 Display panel meaning

No. 1-1 window, showing tire inboard unbalance value or reference

distance A size.

Window 2-2, showing tire outside unbalance value or diameter D size.

Window 3-3, showing tire width B dimensions and suggestive

characters.

No. 4-4 window, inner side unbalance position indication (inner side

with key indication).

No. 5-5 window, indication of unbalanced position on the outside

(with key indicator on the outside)

W H E E L B L A N C E R

- 3 -

6- The first five lights on the top row are in balance mode (as shown

in the icon), and the last one is hidden indicator for unbalanced block

segmentation.

The two lights below window 7-1 represent the gram and ounce

switching instructions, and the two lights below window 2 indicate the

tire size unit "mm/INCH" (mm/INCH) switching instructions.

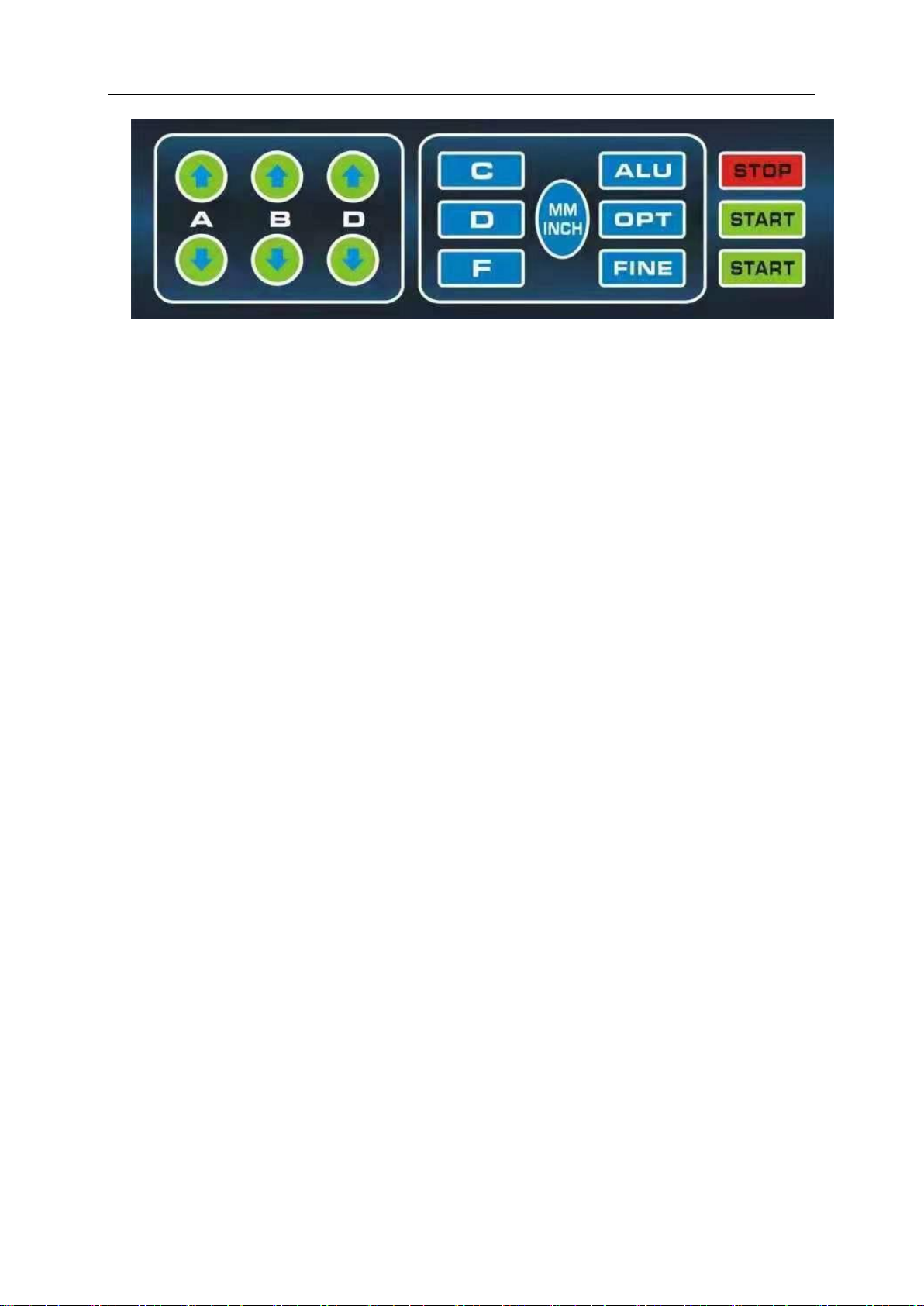

3.2.keyboard

W H E E L B L A N C E R

- 4 -

1. A Manually enter the reference distance size button A, press the

arrow to go up, increase the input size, press the arrow to go down,

reduce the input size.

2. B Manual input size B, press the arrow to go up, the input size

increases, press the arrow to go down, the input size decreases

3, D Manually enter size D, press the arrow to go up, the input size

increases, press the arrow to go down, the input size decreases

4, C correction key/reset key

5, ALU aluminum ring measurement and dynamic balance measurement

selection key

6, D test key, used for balancing machine computer board test

7 OPT balancing machine optimization function operation key, used

for tire rim optimization combination

8. F static and static balance function switch key

W H E E L B L A N C E R

- 5 -

9, The FINE button displays < 5g(0.3oz) actual unbalance value

10, mm/inch for size unit mm/inch switch display

11. Start button

12, STOP emergency STOP and electromagnetic lock button

3. 3 function conversion key combination

3.3.1 After function conversion, shutdown is still saved.

[STOP]+[A ↑]+[A ↓] Grand-ounce conversion key

[STOP]+[C] Start under cover

[STOP]+[FINE] Calibration distance measuring ruler A

[STOP]+[OPT] Calibration Diameter Measurement Ruler D

[F]+[C] Machine System Balance Calibration and Set Machine Parameter

Values

[F]+[START] The machine ages automatically

[D]+[OPT] unbalanced decomposition

Note: Use hand buttons only, do not use clamps or any other sharp

objects.

W H E E L B L A N C E R

- 6 -

4. Tire Balance operation

4.1 After the power is turned on and the device code is displayed, the

display window displays "8.0 5.7 14.0", which proves that the

machine is normal.

4.2 Installation of Wheels

(1) preparation before the test: check and remove the dust, soil and

tread of the tire whether there are metal, stone and other foreign

bodies; Check whether the tire pressure is in line with the specified

value; Check whether the positioning surface and mounting hole of

the rim are deformed, check whether there are foreign bodies in the

tire; Remove the original balance block.

(2) There are three types of wheel installation, including positive

positioning, reverse positioning and additional flanges for large and

medium tires. A positioning method can be selected arbitrarily

according to the actual situation.

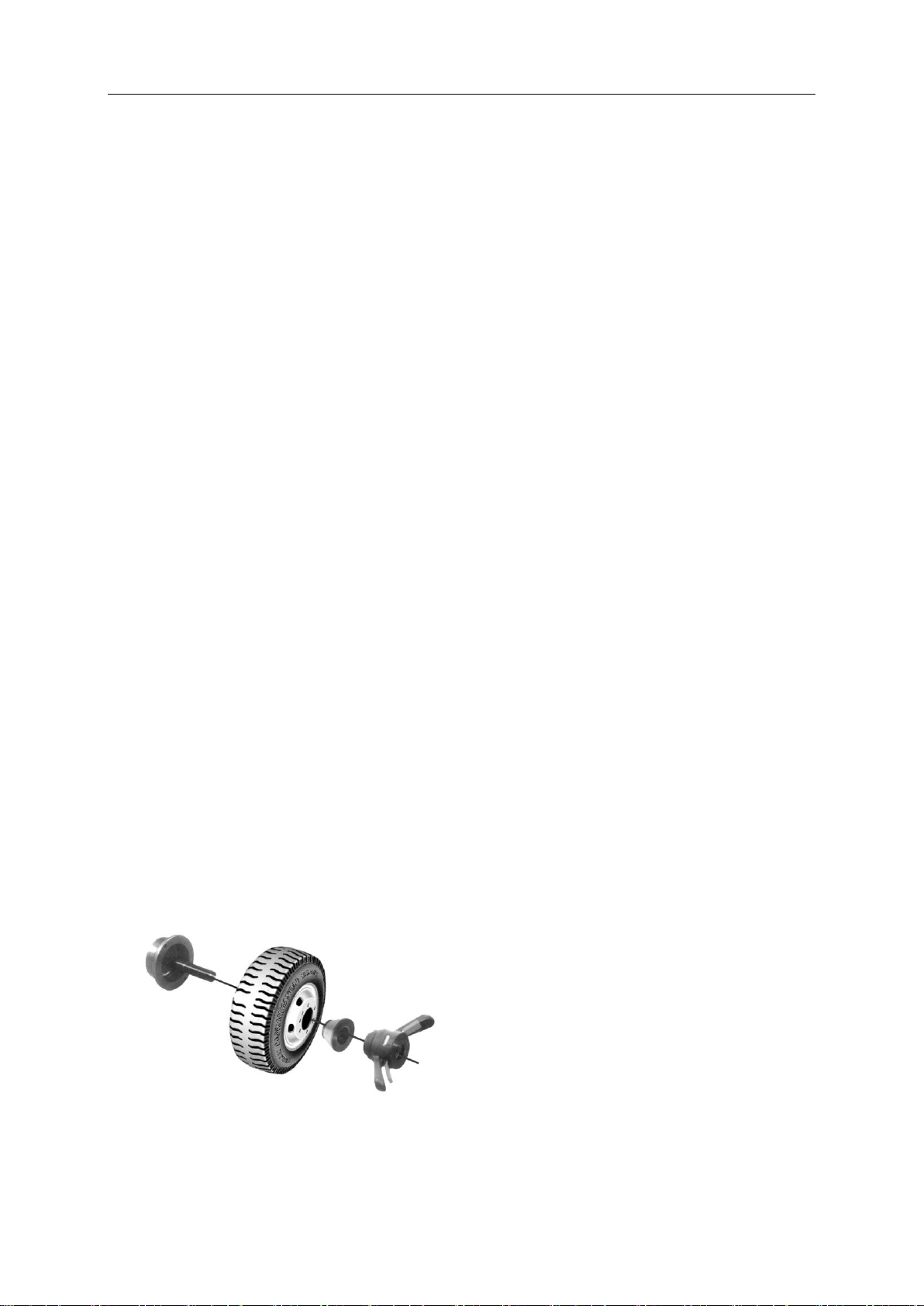

4.2.1 forward positioning

Spindle - Wheels (rim mounting face

inwards)- Fit cone (small head

inwards)- Wheels - Quick nut

forward positioning is a common positioning

method, the operation is simple and fast, mainly suitable for

ordinary steel ring and thin aluminum alloy ring, this

positioning is suitable for the steel ring deformation is

small。

W H E E L B L A N C E R

- 7 -

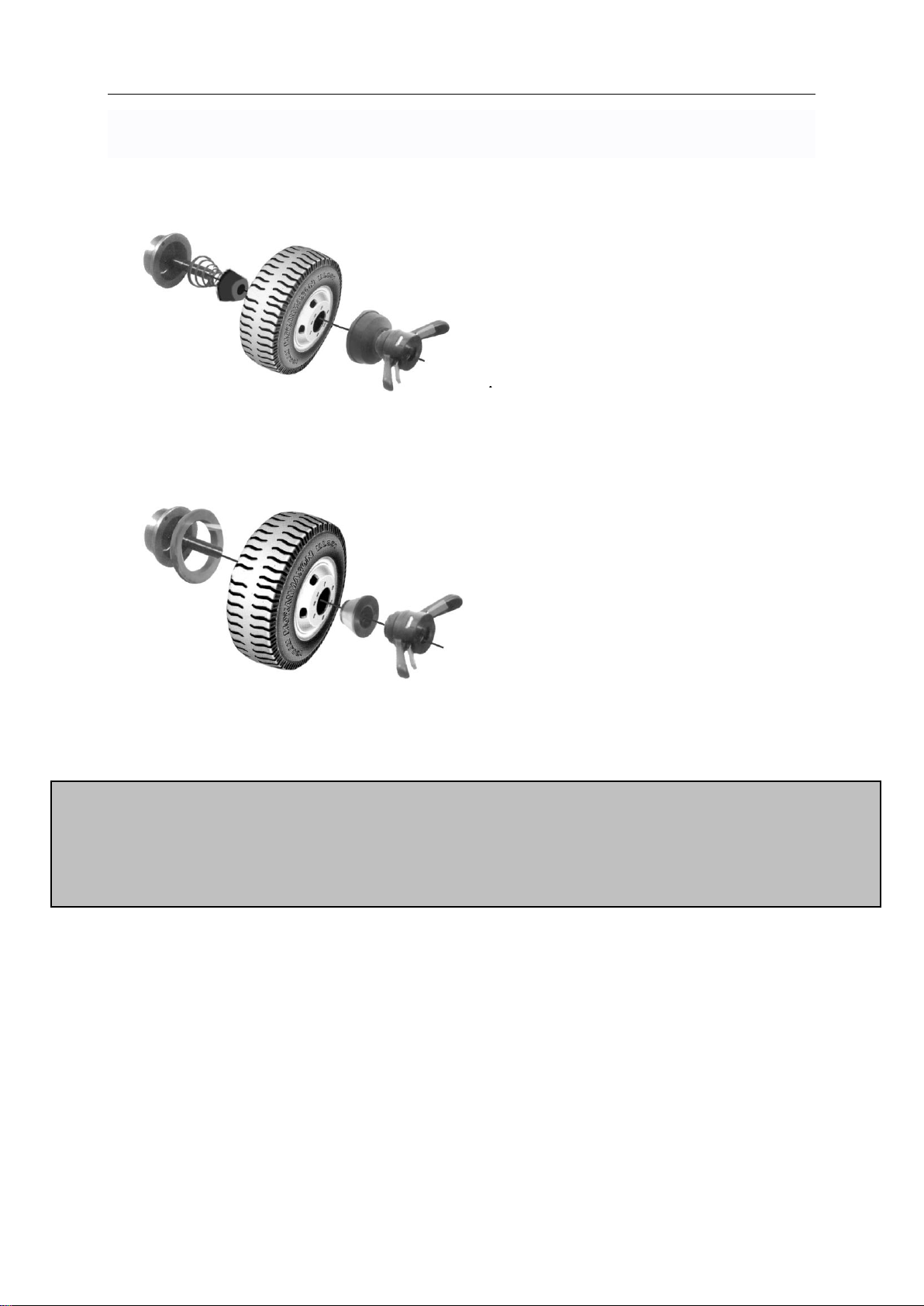

4.2.2 Reverse p o s i ti o n i n g

Spindle - spring - fit cone (big head inward)- wheel - quick nut

4.2.3 Special flange positioning

Fix the large flange to the matcher - wheel - large cone - quick nut

4.3 Size of the input

4.3.1 Input steps:

ⅠFirst enter the size "a"

This positioning method is suitable for the

wheel center hole Φ148 below the tire

installation.

Note: the choice of cone should be adapted to the center hole of the rim, and pay

attention to its direction, otherwise it will cause inaccurate measurement.

When the wheel outside deformation is large,

the reverse positioning is used to ensure the

accurate positioning of the inner hole and spindle

of the steel ring. It is suitable for steel ring,

especially for measuring thick aluminum alloy

ring.

The distance measuring ruler of the machine itself is used to

measure the distance between the body of the balancing machine

and the rim of the inner edge "A" value

Increase by the value []; Decrease by [-]

W H E E L B L A N C E R

- 8 -

Note: use automatic pull feet enter A value, in '0 bit position, pull the pull rod,

the pull end, roof and the tire along, stop for A few seconds, until the left side of

the display window shows the three rung, back on the pull rod, the pull rod

position, at this time on the left side of the digital tube display the value of

reference for the pull rod input size A value, on the right side of the value of

digital tube display is the wheel diameter size D value of reference. If the size

value flashes, the ruler does not return to zero position.

II Then enter the size "b"

III Then enter the size "d"

Note: If the radar width measuring device is available, the machine will

automatically measure the width B value of the tire at the same time as the

protective cover is lowered, without the need to manually input the size

"B".

Measure rim width "b" with width caliper

Increase by the value []; Decrease by [↓]

Until the measured "B" value is displayed

Find the nominal diameter "D" marked on the tire.

Increase by [+]; Decrease by [↓]

Until the set "D" value is displayed

W H E E L B L A N C E R

- 9 -

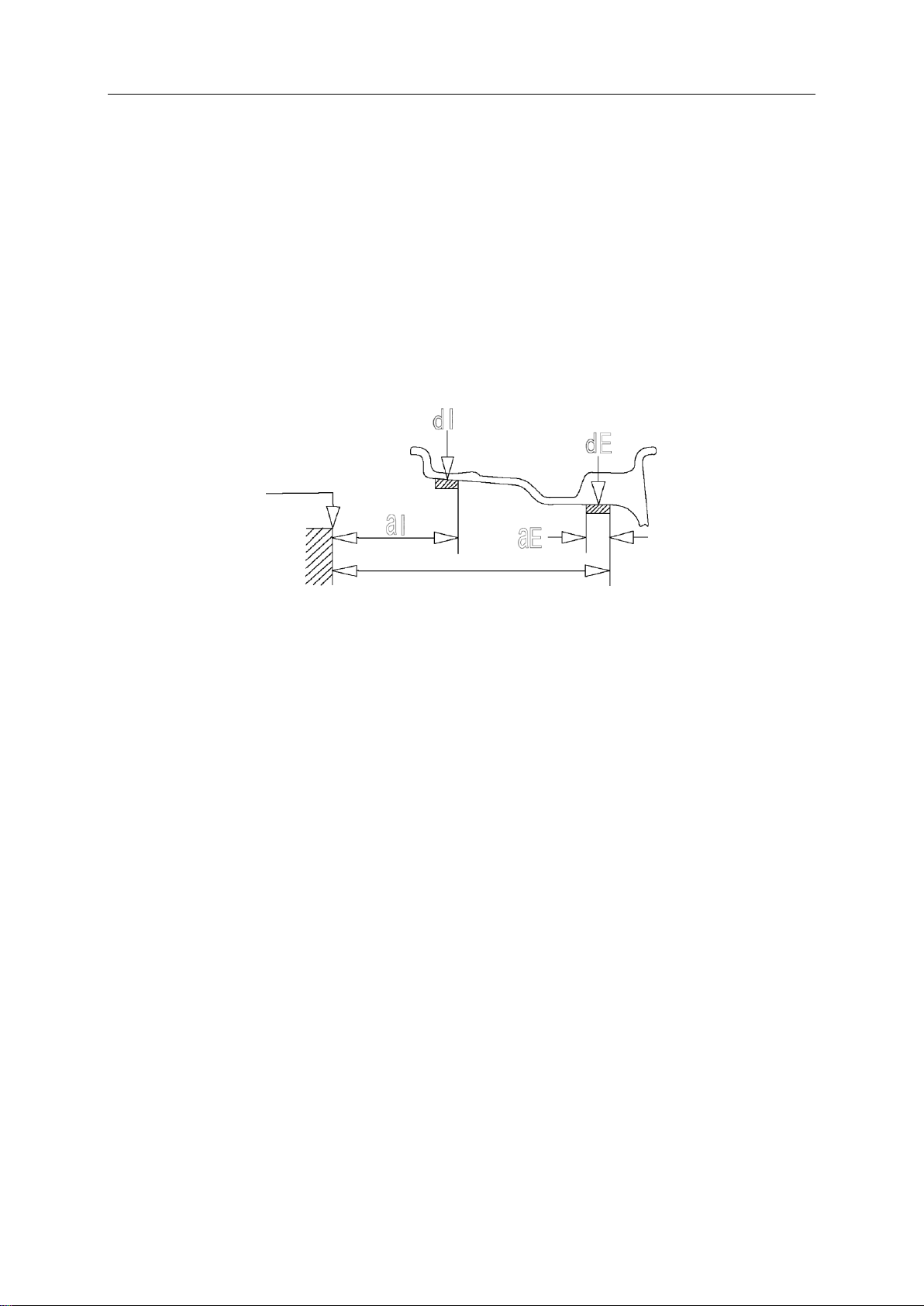

4.3.2 ALU-S balance mode dimension input method

Do not clamp lead on the outside of the aluminum rim balance (S balance).

1) Manual input of rim data

Press key to select "S" balance mode (corresponding indicator light is on),

please refer to (figure)

A) To change AL value, press A ↑, A ↓to change.

B) Change AE value by pressing B ↑, B ↓.

C) To change the DL value, press D↑, D↓to change.

D) To change the DE value, press < FINE > and hold it all the time, and press D

↑, D ↓to change.

Note: The default value DE = 0.8dL. When the dL is changed, DE returns to the

default value. When the system calculates the center of gravity of the balance

block and the distance of the balancing machine, it will automatically consider

the balance block according to 14mm.

0 gauge

14mm

(1)

W H E E L B L A N C E R

- 10 -

2) Automatic rim data

Pull the pull rod, the pull rod to measure the tyres in the first place, stop for a

few seconds, the digital tube display 5.7, aI your measurements first position

and continue to pull the pull rod, to measure the second position, the digital tube

display, ALU S second position after aE measurement, loosen the pull rod

position 0, the value on the left side of the digital tube display is the aI, The

intermediate digital tube display is AE value.

4.4 Balance mode selection

Press F to select static balance and ALU to select other modes.

4.4.1 Select the following different balancing modes according to the position

and mode of adding the balancing block. Press F and ALU continuously in the

display window of balancing mode (such as the control panel diagram) to

display the following different balancing modes. Every time the boot

automatically into the dynamic balance, no need to make a choice.

（2）
