MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

MasterTig 235ACDC, 325DC, 335ACDC,

425DC

MasterTig Cooler M

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

CONTENTS

1. General 4

1.1 Equipment description 5

2. Installation 7

2.1 Installing mains plug 8

2.2 Installing control panel 9

2.3 Installing cooling unit 10

2.4 Installing particle filter (optional) 12

2.5 Mounting units on cart (optional) 13

2.6 Connecting TIG torch 15

2.7 Connecting earth return cable and clamp 16

2.8 Connecting MMA electrode holder 17

2.9 Installing remote control 18

2.10 Installing gas bottle 21

2.11 Installing gas bottle on cart 22

2.12 Moving equipment by lifting 23

3. Operation 25

3.1 Operating power source 26

3.2 Operating control panels MTP23X and MTP33X 27

3.2.1 Home 29

3.2.2 Start & stop sequence 29

3.2.3 Settings 32

3.3 Operating control panel MTP35X 35

3.3.1 Home view 36

3.3.2 Weld Assist view 37

3.3.3 Memory channels view 40

3.3.4 Start & stop sequence view 41

3.3.5 Pulse view 44

3.3.6 Current mode view 45

3.3.7 Settings view 46

3.3.8 Info view 49

3.3.9 Screen saver 50

3.4 Operating cooling unit 52

3.5 Remote control 53

4. Maintenance 54

4.1 Disposal 56

5. Troubleshooting 57

5.1 Error codes 59

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

6. Technical data 61

6.1 Power source MasterTig 235ACDC 62

6.2 Power source MasterTig 325DC 64

6.3 Power source MasterTig 335ACDC 66

6.4 Power source MasterTig 425DC 68

6.5 Cooling unit MasterTig Cooler M 70

6.6 TIG guide tables 71

6.7 Welding processes and features 72

6.8 Symbols used 78

7. Ordering codes 81

7.1 Accessories 82

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

1. GENERAL

These instructions describe the use of Kemppi's MasterTig 235ACDC, 325DC, 335ACDC and 425DC welding power

sources designed for demanding industrial use. The full system consists of MasterTig power source with either DC

(MTP23X) or AC/DC (MTP33X, MTP35X) control panel, optional MasterTig Cooler M water cooler, optional transport unit

and Flexlite TX TIG welding torch.

For the symbols used in this documentation, refer to "Symbols used" on page78.

Important notes

Read the instructions through carefully. For your own safety, and that of your working environment, pay particular atten-

tion to the safety instructions delivered with the equipment.

Items in the manual that require particular attention in order to minimize damage and harm are indicated with the

below symbols. Read these sections carefully and follow their instructions.

Note: Gives the user a useful piece of information.

Caution: Describes a situation that may result in damage to the equipment or system.

Warning: Describes a potentially dangerous situation. If not avoided, it will result in personal damage or fatal injury.

DISCLAIMER

While every effort has been made to ensure that the information contained in this guide is accurate and com-

plete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the spe-

cification of the product described at any time without prior notice. Do not copy, record, reproduce or transmit

the contents of this guide without prior permission from Kemppi.

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

1.1 Equipment description

Kemppi MasterTig 235 AC/DC, 325 DC, 335 AC/DC and 425 DC welding equipment is designed for professional industrial

use, with characteristics especially suitable for welding materials like aluminum and stainless steel. The equipment con-

sists of power source, control panel and cooling unit (optional). The MasterTig Cooler M cooling unit is used in liquid-

cooled TIG welding with MasterTig power source. The multipurpose MasterTig power sources are suitable for MMA weld-

ing, TIG welding and pulsed TIG welding with both direct current (DC) and, depending on the model selected, altern-

ating current (AC).

Available power source models:

•MasterTig 235ACDC GM, multi-voltage and generator compatible (230 A AC/DC) *

•MasterTig 325DC (300 A DC)

•MasterTig 325DC G, generator compatible (300 A DC) *

•MasterTig 325DC GM, multi-voltage and generator compatible (300 A DC)

•MasterTig 335ACDC (300 A AC/DC)

•MasterTig 335ACDC G, generator compatible (300 A AC/DC) *

•MasterTig 335ACDC GM, multi-voltage and generator compatible (300 A AC/DC)

•MasterTig 425DC G, generator compatible (400 A DC) *

* A dedicated VRD(Voltage Reduction Device)model version, where the VRD function is locked on, is also available.

Control panels:

•MTP23X control panel (DC, membrane panel)

•MTP33X control panel (AC/DC, membrane panel)

•MTP35X control panel (AC/DC, 7" TFT LCD display panel).

Equipment:

1. MasterTig 235/325/335/425 power source

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

2. MasterTig Cooler M (optional)

3. TIG torch

4. Electrode holder

5. Earth return cable and clamp

6. Remote control (wired or wireless)

7. Foot pedal remote control (wired or wireless)

8. Power ON/OFFswitch.

Connections:

a. External remote control connector

b. TIG welding cable connector (connection type R1/4)

c. Control cable connector

d. DIX connector (-)

e. DIX connector (+)

f. Coolant liquid inlet and outlet (color-coded)

g. Gas hose connection

h. Mains cable

i. Cooling unit connection

j. Empty holder for unused DIX connector.

EQUIPMENT IDENTIFICATION

Serial number

Serial number of the device is marked on the rating plate or in another distinctive location on the device. It is

important to make correct reference to the serial number of the product when ordering spare parts or making

repairs for example.

Quick Response (QR) code

The serial number and other device-related identification information may also be saved in the form of a QR

code (or a barcode) on the device. Such code can be read by a smartphone camera or with a dedicated code

reader device providing fast access to the device-specific information.

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

2. INSTALLATION

Do not connect the equipment to the mains before the installation is complete.

Do not attempt to move or hang the equipment mechanically (e.g. with a hoist) from the handle on the power

source unit. The handle is meant only for manual lifting.

Place the machine on a horizontal, stable and clean ground. Protect the machine from rain and direct sunshine.

Check that there is enough space for cooling air circulation in the machine vicinity.

Before installation

•Make sure to acknowledge and follow the local and national requirements regarding installation and use of high

voltage units.

•Check the contents of the packages and make sure the parts are not damaged.

•Before you install the power source on site, see the requirements for the mains cable type and fuse rating given in

the "Technical data" on page61 chapter.

Do not connect the machine to the mains before the installation is complete.

Only an authorized electrician is allowed to install the mains cable.

Distribution network

MasterTig 235ACDC: This equipment complies with IEC 61000-3-12 and can be connected to public low-voltage sys-

tems.

MasterTig 325DC and 335ACDC: Provided that the public low voltage short circuit power at the point of common

coupling is higher than or equal to the value stated on the list below, this equipment is compliant with IEC 61000-3-

11 and IEC 61000-3-12 and can be connected to public low voltage systems. It is the responsibility of the installer or

user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the system

impedance complies with the impedance restrictions.

•MasterTig 325DC and 335ACDC: 1.7 MVA

•MasterTig 325DC G and 335ACDC G: 1.9 MVA

•MasterTig 325DC GM and 335ACDC GM: 1.4 MVA

•MasterTig 425DC G: 2.0 MVA

According to the EMC classification (Class A), the MasterTig 235, 325, 335 and 425 equipments are not intended to be

used in residential locations where the electrical power is provided by the public low-voltage supply system.

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

2.1 Installing mains plug

Only an authorized electrician is allowed to install the mains cable and plug.

Do not connect the machine to the mains before the installation is complete.

Install the 3-phase plug according to the MasterTig power source and site requirements. In the 1-phase power source

(MasterTig 235ACDC) the plug is pre-installed. Refer also to "Technical data" on page61 for power source specific tech-

nical information.

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

2.2 Installing control panel

Tools:

•Screwdriver, Torx head (T20).

1. Connect the control panel’s cable and mount the control panel in place:

>> Insert the top of the panel in the slot first, and then lower the bottom of the panel down.

>> Push the bottom of the panel firmly so that it locks in place.

2. Secure the control panel together with the hinged panel cover in place with the screw provided.

The hinged panel cover and the control panel are secured with the same screw.

MasterTig 235ACDC, 325DC, 335ACDC, 425DC

Operating manual - EN

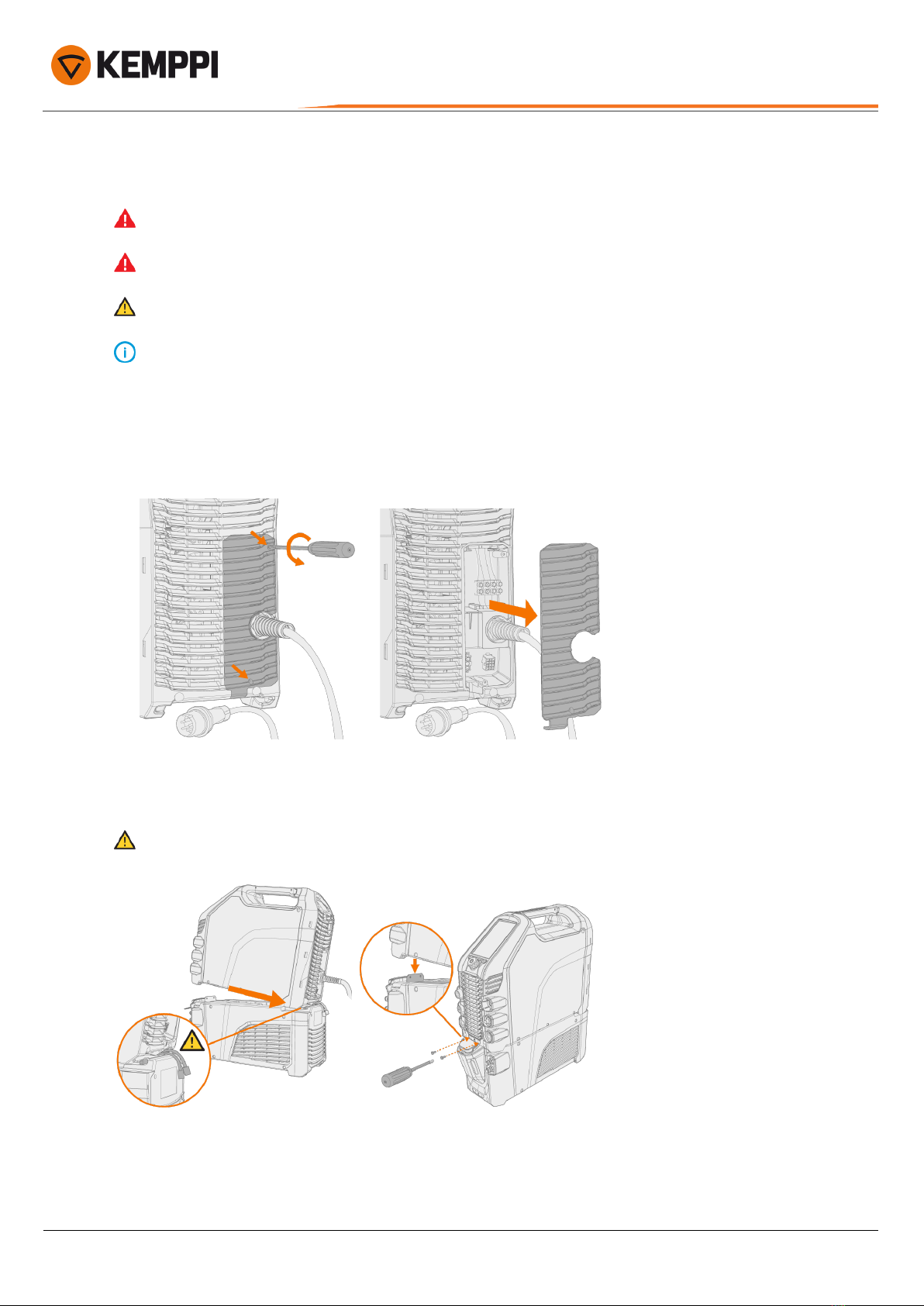

2.3 Installing cooling unit

Only an authorized electrician is allowed to install the cooling unit.

Do not connect the equipment to the mains before the installation is complete.

Do not attempt to move the power source with a hoist from its handle. The handle is meant for manual lifting only.

When a transport cart is used, refer also to "Mounting units on cart (optional)" on page13.

Tools:

•Screwdriver, Torx head (T20).

1. Remove the power source's rear cover.

2. Move the power source on top of the cooling unit so that the bar in the rear goes into the rear connection interface

and lower the front onto the front connection interface. Secure the power source from the front with the screws

provided.

Ensure that the cooling unit’s connection cables don't get caught between the units and get damaged in the process.
