KNOWING YOUR SEWING MACHINE

!. Free arm

2. Free-arm cover

3. Bobbin window

4. Bobbin cover piate

5. Swing-away base release

6. Needleptate

7, Presserfoot

8. Needle bar thread guide

9. Needle clamp screw

t0. Needle bar

11. Thread guide

12, Face cover pIate

13. -Thread tension spring

BACK VIEW

!4. Top threading path

!5. Slotted take-up lever

16. Top thread tension control

17. Built-in buttonhole control

18. Bobbin winder shaft

19. Bobbin winder latch

20. Stitch indicator

21. Stitch width control

22. Stitch selector

23. Reverse stitch control

24. Basting switch

25. Needle position control

26. Cord connection

:27. Nomenclature plate

28. Power/light switch

29. Speed range switch

30. Stitch modifier

31. Stitch length control

32. Spool pins and caps

33, Hand wheel

34. Rear thread guide

35, Bobbin tension disc

36. Rear thread guide

37. Presser foot lever

38. Presser bar

39, Presser foot lock

40. Thread cutter

41, Attachment cover release

42. Feed dogs

43, Attachment cover plate

44. Swing-away base

45. Foot pedal

46. Foot control

SOLID STATE FOOT CONTROL

FRONTVIEW

®®0

GETTING READY TO SEW

SETrlNG UP YOUR MACHINE

When you open your Kenmore carton, you'll find the basic machine,

foot control, the instruction book you now are reading, and one box

of attachments {Accessories end ButtonholerL Set your machine on a

sturdy flat surface. Be sure to wipe off any excess oil that may have

accumulated in shipping,

Step 1: The spool pins

You'tl find Spool Pins (32) packed in

the Accassones and Buttonholer

Box. Using a screwdriver, attach

them securely at rear as indicated.

Step 2: The electrlclty

Plug Foot Controt {46) into Cord

Connection {26). Then, connect cord

into any 110-120 volt wall outlet.

Important safety notes

Your machine will not operate unless

the Power/Light Switch (28) is

turned on. This same switch controls

the machine power, sewing light, the

indicator lights on the stitch selection

panel (20) and needle controls (24

and 25). If you are interrupted or stop

sewing, turn off the switch-this is an

important safety feature that

prevents accidents.

!llt_ i

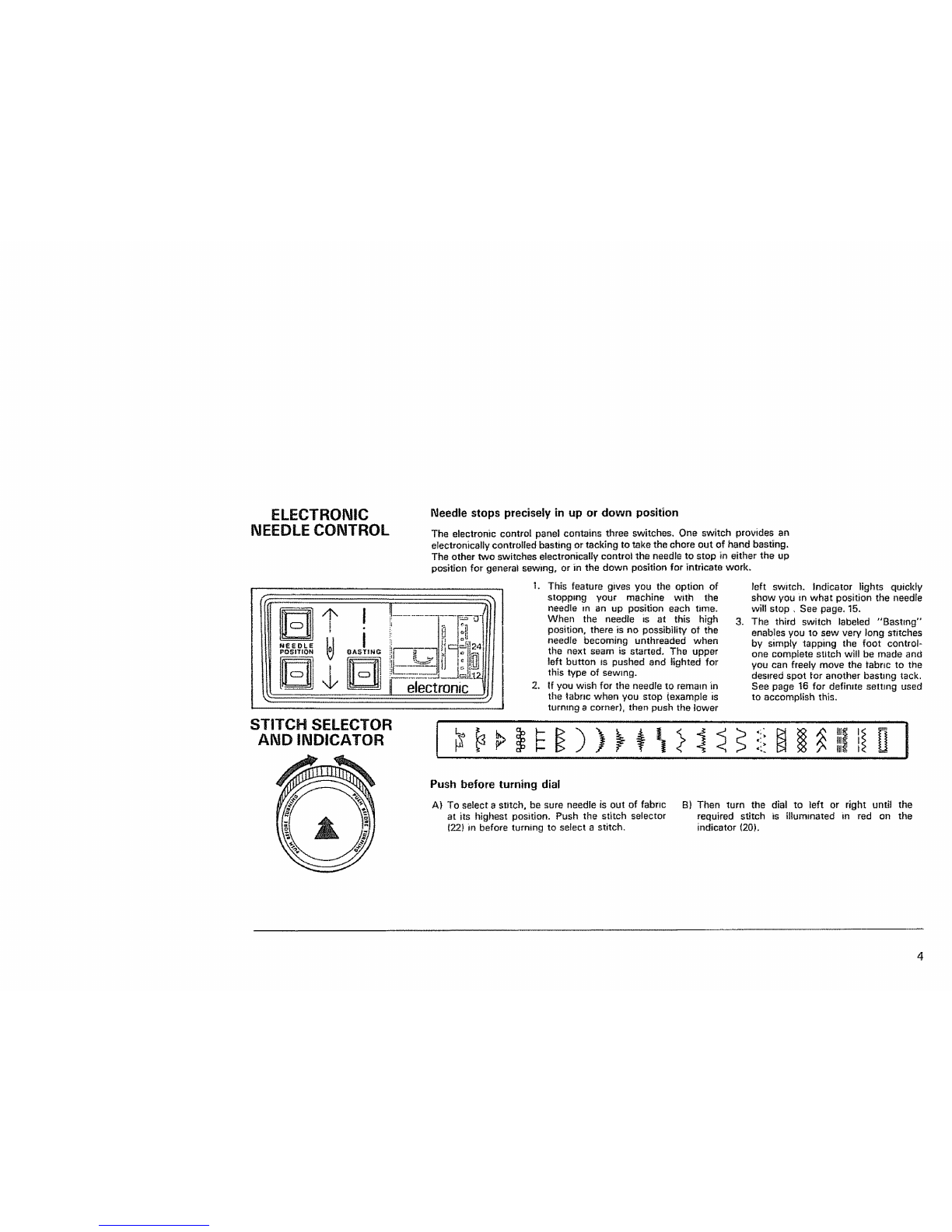

ELECTRONIC

NEEDLE CONTROL Needle stops precisely in up or down position

The electronic control panel contains three switches. One switch provides an

electronically controlled basting or tacking to take the chore out of hand basting.

The other two switches electronically control the needle to stop in either the up

position for general sewing, or in the down position for intricate work.

1. This feature gives you the option of

stopping your machine with the

needle man up position each time.

When the needle is at this high

position, there is no possibility of the

needle becoming unthreaded when

the next seam is started. The upper

left button is pushed and lighted for

this type of sewing.

2. If you wish for the needle to remain in

the tabnc when you stop (exampte is

turning acorner), then push the lower

STITCH SELECTOR

left switch. Indicator lights quickly

show you m what position the needle

will stop, See page. 15.

The third switch labeled "'Basting"

enables you to sew very long stitches

by simply tapping the foot control-

one complete stitch will be made and

you can freely move the fabric to the

desired spot for another basting tack,

See page 16 for defin=te setting used

to accomplish this.

i iii i i i iii i i I

Push before turning dial

A) To select astitch, be sure needle is out of fabric

at its highest position. Push the stitch selector

(22) in before turning to select a stitch.

B) Then turn the dia! to left or right until the

required stitch is illuminated in red on the

indicator (20),

WINDING THE

BOBBIN A) Place thread on Spool Pin

(32) and cover with acap (32) as

shown below. To wind bobbin,

draw thread from spool through

Rear Thread Guides (34 and 36)

and the Bobbin Winder Disc (35)

as indicated below.

B) Pull end of thread through any

hole m bobbin; place bobbin on

Bobbin Winder Shaft (18) with

end of thread coming from top of

bobbin as shown above.

C) Push Bobbin Winder Latch

(19) against bobbin until it clicks.

Then pull Hand Wheel (33) away

from machine to disengage clutch

(see diagram below), Hold end of

thread coming from bobbin (see

above) and step on foot control.

After several rotations of bobbin

re_ease thread.

D) When bobbin is full, winding

stops automatically. Push in Hand

Wheel (33L Remove bobbin from

shaft and trim thread end.

Treat Hand Wheel as a "clutch"

It controls the needle mechanism

so that when pulled out, (disen-

gaged) the rest of the machine will

not operate while the bobbin fs

being wound,

Putt out to

disengage

Push in

to engage

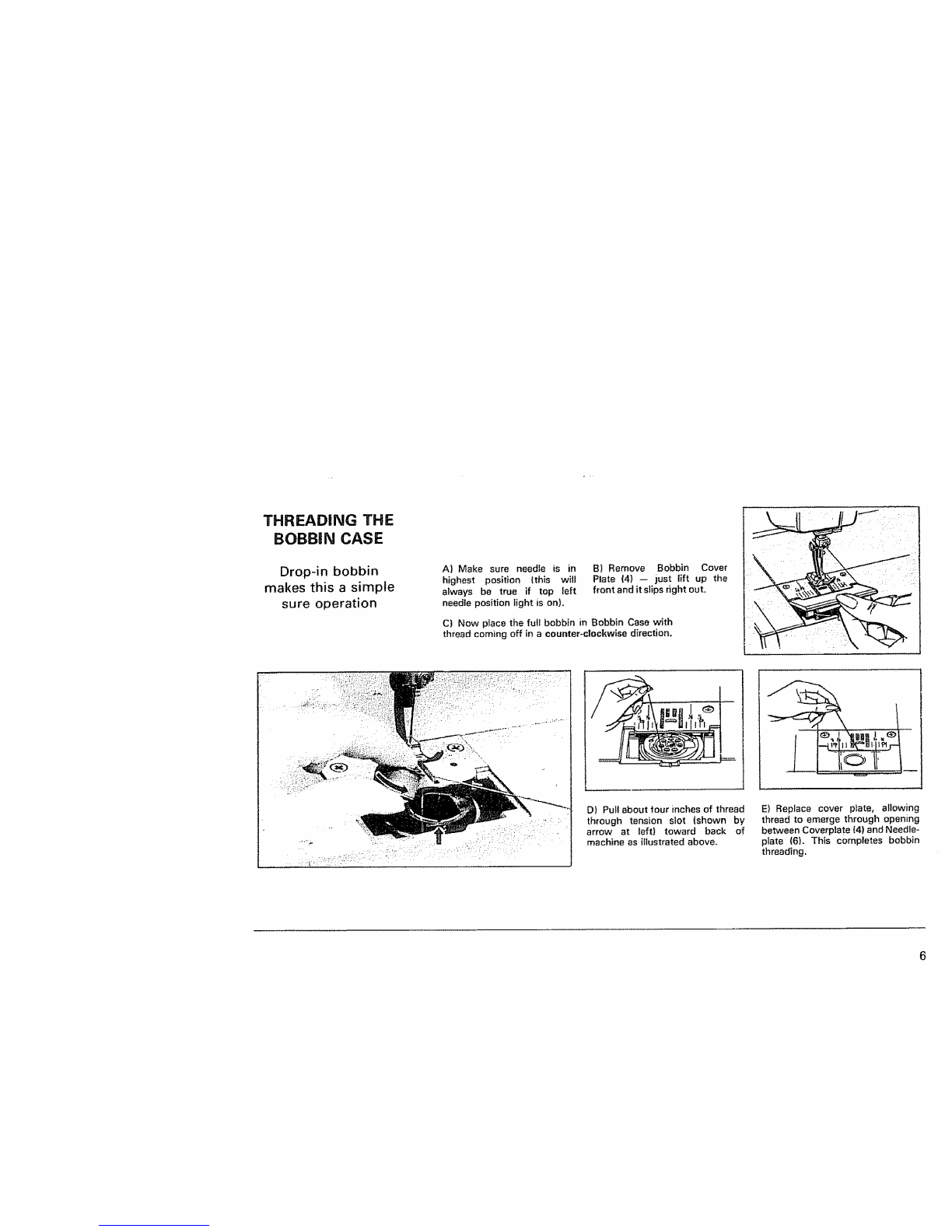

THREADING THE

BOBBIN CASE

Drop-in bobbin

makes this a simple

sure operation

A) Make sure needle is in

highest position (this will

always be true if top left

needle position light is on).

B) Remove Bobbin Cover

Plate (4) -- just lift up the

front and it slips right out.

C) Now place the full bobbin in Bobbin Case with

thread coming off in a counter-clockwise direction.

ii_i ,_i !i_i_ii! _ D) Pull about tour inches of thread

through tension slot (shown by

arrow at left) toward back of

machine as illustrated above.

E) Replace cover plate, allowing

thread to emerge through opening

between Coverplate (4) and Needle-

plate (6). This completes bobbin

threading.

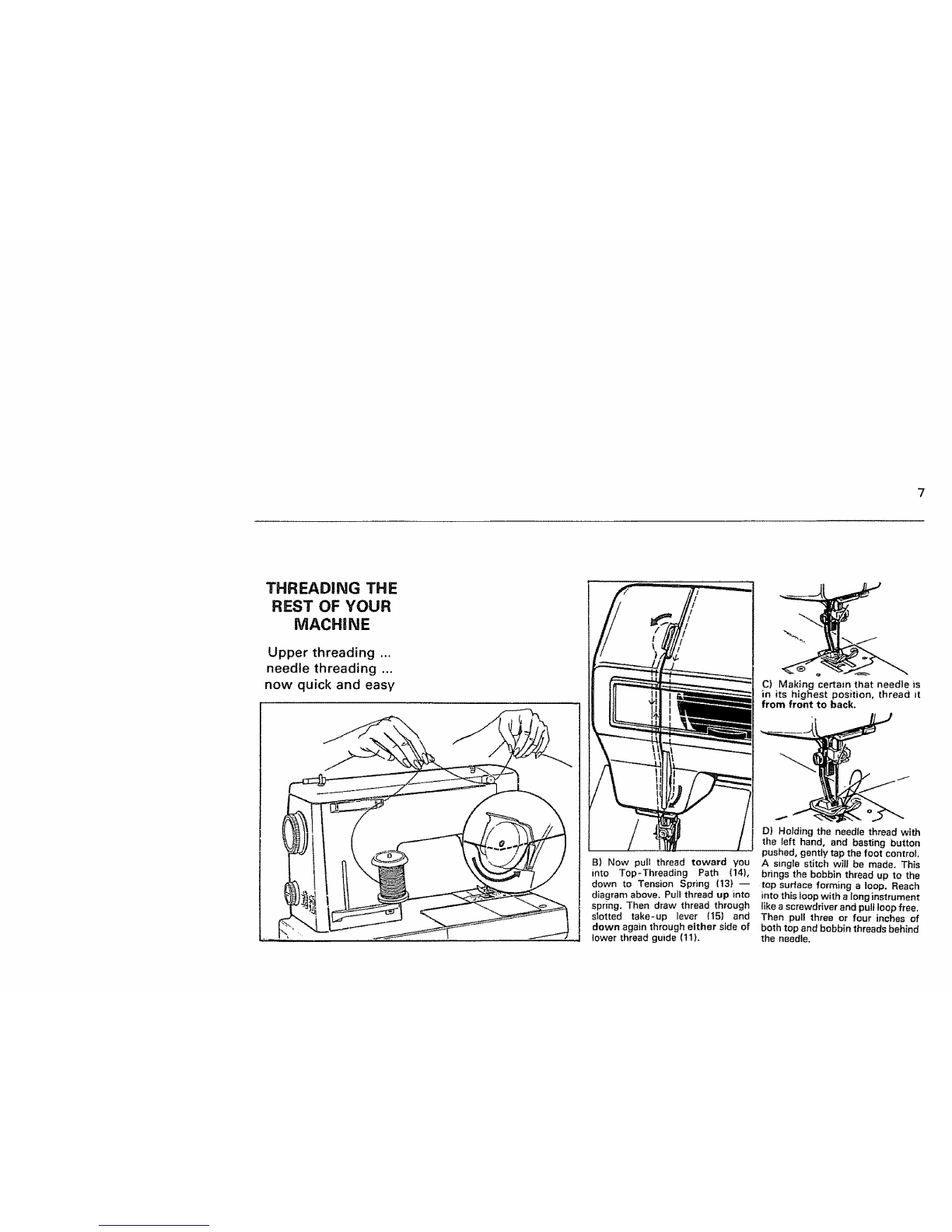

THREADING THE

REST OF YOUR

MACHINE

Upper threading ...

needle threading ...

now quick and easy

B) Now pull thread toward you

into Top-Threading Path (14),

down to Tension Spring (13) --

diagram above, Pull thread up into

spring. Then draw thread through

stotted take-up ]ever (t5} and

down again through either side of

lower thread guide (1t).

C) Making certain that needle is

in its highest position, thread it

from front to back.

D) Holding the needle thread with

the left hand, and basting button

pushed, gently tap the foot control.

A single stitch will be made. This

brings the bobbin thread up to the

top surface forming aloop. Reach

into this loop with a long instrument

like a screwdriver and pug loop free,

Then pull three or four inches of

both top and bobbin threads behind

the needle.

THREAD

TENSION:

STRAIGHT STITCHING

"Balance" isthe key

to handsome,

durable straight

stitching

Decrease tension Increase tension

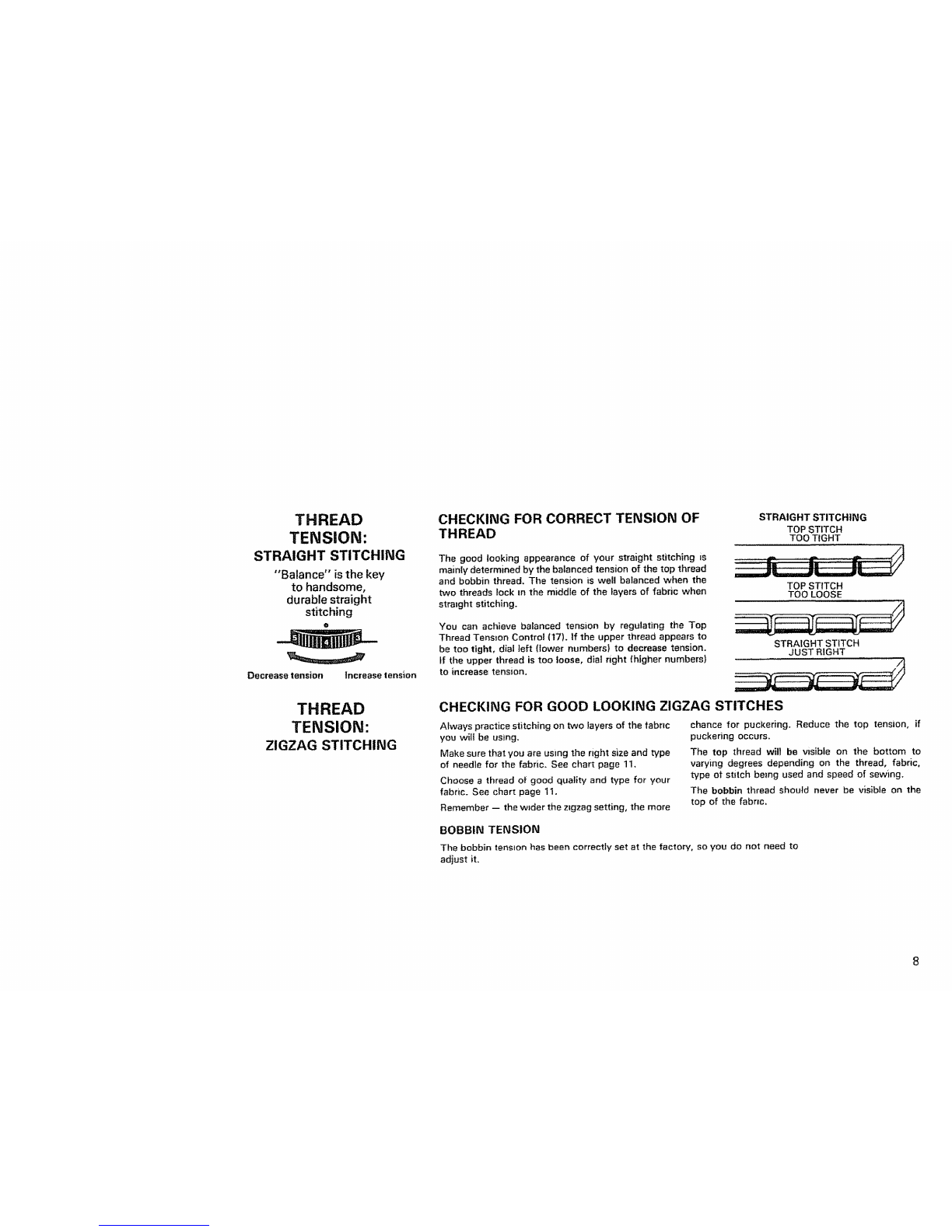

CHECKING FOR CORRECT TENSION OF

THREAD

The good looking appearance of your straight stitching is

mainly determined by the balanced tension of the top thread

and bobbin thread. The tension is well balanced when the

two threads lock m the middfe of the layers of fabric when

straight stitching.

You can achieve balanced tension by regulating the Top

Thread Tension Control (17). if the upper thread appears to

be too tight, dial left (lower numbers) to decrease tension.

If the upper thread is too loose, dial right (higher numbers}

to increase tension.

STRAIGHT STITCHING

TOP STITCH

TOO TIGHT

TOP STITCH

TOO LOOSE

STRAIGHT STITCH

JUST RIGHT

THREAD

TENSION:

ZIGZAG STITCHING

CHECKING FOR GOOD LOOKING ZIGZAG STITCHES

Always practice stitching on two layers of the fabr=c

you will be using.

Make sure that you are using the right size and type

of needle for the fabric. See chart page 11,

Choose a thread of good quality and type for your

fabric. See chart page 11.

Remember -- the wider the zigzag setting, the more

chance for puckering. Reduce the top tension, if

puckering occurs,

The top thread will be visible on the bottom to

varying degrees depending on the thread, fabric,

type of stitch being used and speed of sewing.

The bobbin thread should never be visible on the

top of the fabric,

BOBBIN TENSION

The bobbin tension has been correctly set at the factory, so you do not need to

adjust it.

CHANGING

NEEDLES AND

NEEDLEPLATES

Needle choice depends

on thread _,.,both

determined by fabric

YOUR SIZE 14 NEEDLE IS BASIC., o

o,. to most of your sewing, To replace

needle: Turn hand wheel toward you

to raise Needle Bar (10) to highest posi-

tion. Loosen Needle Clamp Screw (9)

with screwdriver. Holding flat side

away from you, insert needle as far as it

will go. Tighten clamp screw securely,

using screwdriver.

Needteplate Ufts out Replacement Jocks =n

TO REPLACE THE NEEDLEPLATE INSERT

Raise needle to its highest position. Remove Bobbin

Cover Plate (4), Lift Needleptate (6) and remove by

lifting up and out (shown at far left). Insert other

needle plate; push down with both hands to lock.

Replace bobbin cover plate.

_1 1o

I,, ,,.I

For zigzag stitching, use

silver needleptate with

wtde oval hole

ol to

!,, I

For straight and strmght

stretch sewing, silver plate

has round ho_e

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Nähmaschine Handbücher

Kenmore

Kenmore 384.18024000 Bedienungsanleitung

Kenmore

Kenmore 385.190011890 Bedienungsanleitung

Kenmore

Kenmore 385.16774 Bedienungsanleitung

Kenmore

Kenmore 385.12912 Bedienungsanleitung

Kenmore

Kenmore 385.17126 Bedienungsanleitung

Kenmore

Kenmore 385.11607 Series Bedienungsanleitung

Kenmore

Kenmore 1521 Bedienungsanleitung

Kenmore

Kenmore 385.19606 Bedienungsanleitung

Kenmore

Kenmore 385.15208 Bedienungsanleitung

Kenmore

Kenmore 19110 - Computerized Sewing Machine Bedienungsanleitung

Kenmore

Kenmore OVERLOCK 3/4D 385.16631 Bedienungsanleitung

Kenmore

Kenmore 385.16231 Bedienungsanleitung

Kenmore

Kenmore 385.15218400 Bedienungsanleitung

Kenmore

Kenmore 385.19110 Bedienungsanleitung

Kenmore

Kenmore 19501 Bedienungsanleitung

Kenmore

Kenmore 385.15008100 Bedienungsanleitung

Kenmore

Kenmore Kenmore 385.17626 Bedienungsanleitung

Kenmore

Kenmore Kenmore 385.12618 Bedienungsanleitung

Kenmore

Kenmore 385.19110 Bedienungsanleitung

Kenmore

Kenmore 385.15358 Series Bedienungsanleitung

Kenmore

Kenmore 1654 Bedienungsanleitung

Kenmore

Kenmore 385. 18630890 Bedienungsanleitung

Kenmore

Kenmore 385.11602090 Bedienungsanleitung

Kenmore

Kenmore 385.11703 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

HIGHLEAD

HIGHLEAD GC2008-M Bedienungsanleitung
