Kennell ZC4-A2001N Bedienungsanleitung

IP+HD SDI Integrated Camera

User manual V1.0

Safety Notes

Before installing the device, please read this manual carefully and follow instructions

indicated to ensure proper operation. Please keep this manual for future reference.

Please powering on the device, please check the input power voltage carefully, the camera

accepts DC12V, otherwise, it may cause damage to the camera.

Please put power, video and control cables at safe place in order not to cause malfunction to

the device.

Please put the device into use at required working temperature and humidity, working

condition of the device is 0℃~+40℃,humidity at＜90﹪. Please avoid to have unrelated

objects get into the device like corrosive liquid that may cause damage / danger.

Please avoid shock, vibration, soaking may cause to the device when transporting and

installing, otherwise, it may cause damage to the camera.

Please only refer to authorized personnel to repair the device, do not disassemble the

camera by yourself.

Only use shielded control and video cables, and the cables should be connected separately

in order to ensure proper use. Do not aim the camera lens at sunlight or strong lights that

may cause damage to the imaging system of the device.

Please use soft cloth to clean the device, do not use strong or abrasive detergent to clean

that will damage the device’s housing / lens.

Warnings

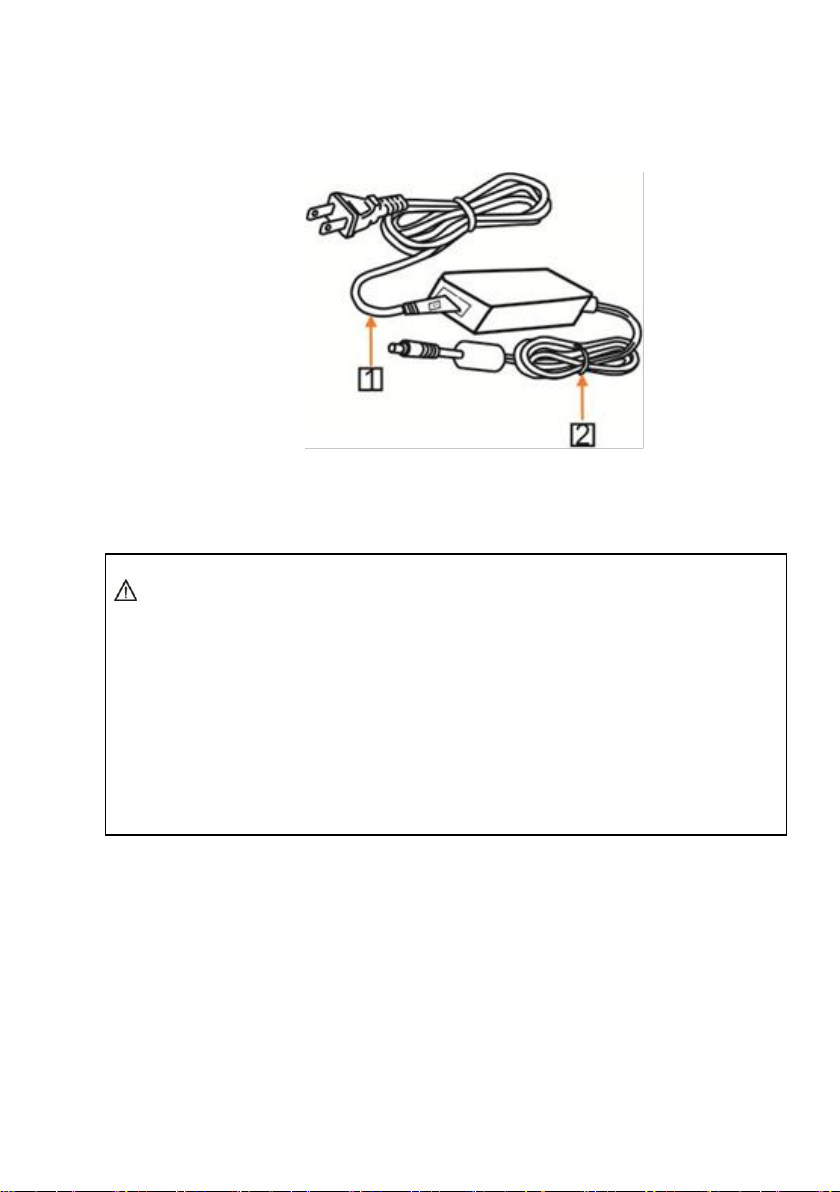

1.If you need to extend the power cable, please extend the power cable from the part on

below picture (220V/110V), do not extend from part 1 on below picture (DC12V), otherwise

it will cause unexpected damage to the device.

2.To prevent infringement of the rights of others, please confirm that it is installed and used

within the scope permitted by local law!

CONTENTS

ABOUT THE PRODUCT-------------------------------------------------------- 1

FEATURES -------------------------------------------------------------------------------- 1

LIST OF PARTS &ACCESSORIES ------------------------------------------------------------ 1

MAIN PARTS &INTERFACES ---------------------------------------------------------------- 2

INSTALLATION ---------------------------------------------------------------- 3

WALL MOUNT------------------------------------------------------------------------------ 3

OPERATION ------------------------------------------------------------------- 4

INTERNET EXPLORER ---------------------------------------------------------------------- 4

MENU------------------------------------------------------------------------------------- 4

SPECIAL PRESETS LIST ------------------------------------------------------ 5

MENU SETTINGS -------------------------------------------------------------- 6

MENU CONFIGURATION--------------------------------------------------------------------- 6

MENU EXPLANATION ----------------------------------------------------------------------- 9

VIDEO ----------------------------------------------------------------------------------- 10

EXPOSURE ------------------------------------------------------------------------------- 10

COLOR----------------------------------------------------------------------------------- 11

ZOOM FOCUS----------------------------------------------------------------------------- 11

SYSTEM---------------------------------------------------------------------------------- 12

STATUS ---------------------------------------------------------------------------------- 12

RESTORE DEFAULTS ---------------------------------------------------------------------- 13

NETWORK SETTING--------------------------------------------------------- 14

QUICK GUIDE ----------------------------------------------------------------------------- 14

IPCAMCONF ------------------------------------------------------------------------------ 15

LOCAL MONITORING AND SETUP ----------------------------------------------------------- 17

ANNEX 1 TECHNICAL SPECIFICATIONS------------------------------------ 29

ANNEX 2 SIZE AND DIMENSION -------------------------------------------- 31

TROUBLE SHOOTING ------------------------------------------------------- 32

ABOUT THE PRODUCT

Features

2.14MP, 1/2.8” CMOS;

H.265/H.264 video compression;

Dual stream, provide various video

resolutions;

3G-SDI full HD output at a variety of video

formats;

Built in OSD menu;

Up to 72.5°FOV;

12x/20x optical zoom;

RS-485/RS-232 control interface;

TF card recording;

Image flip.

List of Parts & Accessories

When you open the box, check all accessories

according to the packing list. In case of any

items missing, please contact your supplier.

Camera (1)

Power Adapter (1)

Wall Mount Bracket (1)

RS-232/RS-485 Connector (1)

Software Disc (1)

Main Parts & Interfaces

Camera

Front View

1 Camera Lens

Rear View

2 RS-232/RS-485

3 3G-SDI Interface

4 3.5mm Audio

5 USB Interface

6 TF Card Slot

7 Power Input（DC12V）

8 Power Indicator

9 Ethernet

Bottom View

10 Mounting Hole (1/4”)

Pin Definition of Control Port

Definition

RS-485B

RS-485A

GND

RS-232RXD

RS-232TXD

INSTALLATION

The installation type of the camera is wall

mount.

Wall Mount

1. According to diameter and position of the

4 installation holes (as shown below on

the bracket ), drill 4 holes on the wall and

fix the bracket onto the wall by using 4

screws, which should be prepared by

yourselves .

2. Use screws to fix the camera on the

bracket, fix the limit screw to lock the

camera. Make sure the camera is tightly

fixed onto the bracket before your hands

leave the camera.

Note

Before installing, make sure there is

enough space to install the camera and its

parts.

Make sure the installed place is strong and

safe enough to hold the camera and

relative parts, it is suggested that the

installed place can withstand 4 times the

weight of the camera and its relative parts.

OPERATION

Before operation, make sure all connections

are correct and firm.

Internet Explorer

1.Make sure PC and the camera are in the

same LAN;

2.Open Internet Explorer and enter Internet

options for security setting;

Tick below two options

options:

Meanwhile make sure the following setting

options are ticked;

3. Input IP address+ port number 88 (default is

88) in the IE address bar:http://IP:88, such

as http://192.168.18.229:88;

4.Install plug-in;

5.Name: admin Initial password: No

password.

Choose 95—Menu in the preset list to open

OSD menu.

Menu Options

In menu, press or to choose a menu

item. Press or to change current value.
