Kent Euroclean Edge 28B Bedienungsanleitung

Edge 28B

PARTS LIST

KENT model: 908 4703 010

146 3087 000(1)2007-01

Sim

le. Clean.

146 3087 000(1)2007-01

2007-01

Edge 28B

146 3087 000(1)2007-01

2007-01

Edge 28B

DESCRIPTION PLAN

GENERAL VIEW

2 - 3

CHASSIS SYSTEM

4 - 5

SIDE BROOM ASSEMBLY

6 - 7

HOPPER SYSTEM

8 - 9

TRANSMISSION SYSTEM

10 - 11

RIGHT-LEFT HATCH ASSEMBLIES

12 - 13

BELT TENSIONER ASSEMBLIES

14 - 15

DUST CONTROL SYSTEM

16 - 17

VACUUM SYSTEM AND FILTER ASSEMBLY

18 - 19

CONTROL PANELS SYSTEMS

20 - 21

WIRING DIAGRAM

RECOMMENDED SPARE PARTS

WHEN ORDERING PARTS

* Use the 8, 9 or 10 digit numbers from the “Ref. No.” columns in this parts list.

* Specify the model and serial number of the machine.

* Use the space below to record the model and serial number for future reference.

Model ___________________ Serial No. ___________________

[ ] = Not shown

* = Optional

 #=ModieditemNo.orNewitemNo.

 xxxxxxx=ContainedinaKit

TABLE OF CONTENTS

146 3087 000(1)2007-01

2007-01

Edge 28B

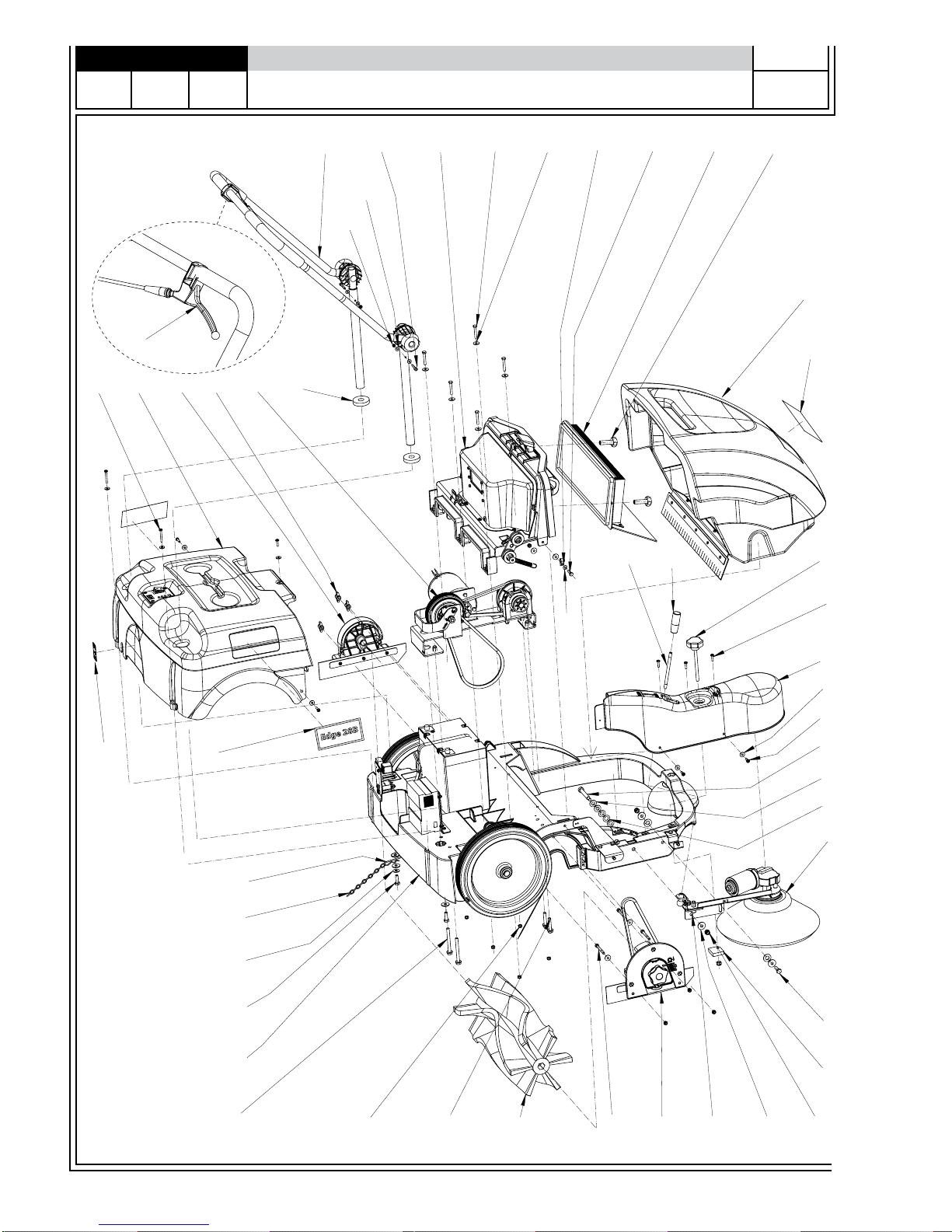

GENERAL VIEW GENERAL VIEW

1 42 38

4739 5

9 37

10 41

31 32

146 3087 000(1)2007-01

2007-01

Edge 28B

Item

No. Ref. No. Qty Description

1 146 3114 000 2 SCREW PAN HD 4.6X40

2 08193000 1 CLAMP CABLE

3 08228600 12 WASHER FLAT 6X18

4 33005607 3 NUT SELFLOCKING M8

5 08300000 5 WASHER 8X24

6 33005604 10 NUT HEX SELFLOCKING M6

7 08812361 3 WASHER

8 08812590 6 SCREW PAN HD 4.6X19.2

9 145 0461 000 3 WING NUT M6

10 33003976 2 SCREW HEX HD M6X25

11 145 1261 000 7 WASHER

12 33003979 5 SCREW HEX HD M6X40

13 145 5740 000 2 SCREW

14 33003788 1 SCREW HEX HD M8X30

15 33004353 3 SCREW

16 33005916 2 WASHER FLAT

17 146 0617 000 2 SPRING

18 146 2991 000 2 HANDWHEEL M6

19 1463202000 1 MAIN BROOM D.200 PPL 0,6 BL

20 146 3033 000 1 SIDE CASE

21 146 3037 000 1 HANDLE

22 146 3038 000 1 BROOM SIDE ADJUSTER BLOCK

23 146 3039 000 1 HANDWHEEL M8

24 146 3040 000 1 SIDE BROOM LEVER

25 146 3041 000 1 SHOULDER BOLT M10X60

26 146 3058 000 1 DECAL KENT

27 146 3062 000 2 DECAL EDGE 28B

28 146 3065 000 1 FUSES DECAL

29 146 3066 000 1 HANDLE BAR

30 146 2090 000 2 SCREW CYL HD M5X16

31 146 3110 000 2 SCREW

32 146 3111 000 2 SCREW

33 146 3122 000 2 WASHER RUBBER

34 1 CHASSIS SYSTEM

35 1 SIDE BROOM ASSEMBLY

36 1 HOPPER SYSTEM

37 1 TRANSMISSION SYSTEM

38 1 LEFT HATCH ASSEMBLY

39 1 RIGHT HATCH ASSEMBLY

40 1 DUST CONTROL SYSTEM

41 1 FILTER ASSEMBLY

42 1 CONTROL PANELASSEMBLY

43 146 3068 000 1 ACCELERATOR LEVER

44 33005839 4 WASHER

45 33005561 2 NUT SELFLOCKING M5

46 145 9116 000 2 SCREW HEX HD M8X25

47 33005913 1 WASHER FLAT

48 33005842 2 WASHER M8

49 145 4533 000 1 SPLIT PIN

50 146 0611 000 1 CHAIN

GENERAL VIEW GENERAL VIEW

146 3087 000(1)2007-01

2007-01

Edge 28B

32 33

48 4

6 16

SEE BELT

TENSIONER

ASSEMBLY

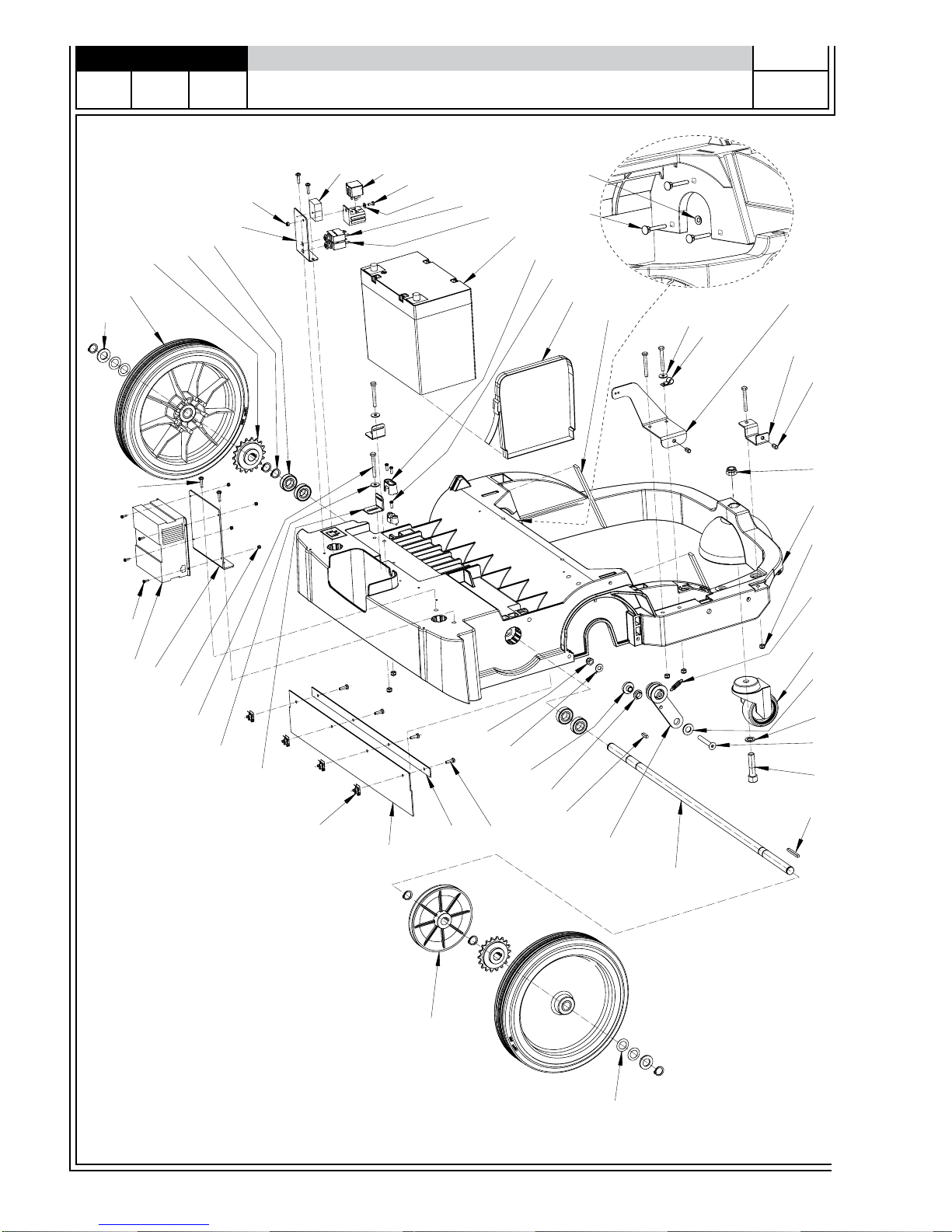

CHASSIS SYSTEM CHASSIS SYSTEM

146 3087 000(1)2007-01

2007-01

Edge 28B

Item

No. Ref. No. Qty Description

1 xxx xxxx xxx 4 CLIPS FOR SCREW M5 (KIT SKIRTS)

2 146 2995 000 2 WHEEL BLACK

3 145 8925 000 1 SPRING

4 08193000 1 CLAMP CABLE

5 08228600 2 WASHER FLAT 6X18

6 33005607 1 NUT SELFLOCKING M8

7 08338600 1 CLAMP

8 33005604 5 NUT HEX SELFLOCKING M6

9 08604077 1 SCREW CYL HD M4X10

10 08812590 4 SCREW PAN HD 4.6X19.2

11 08812804 3 SCREW 4X12

12 145 0571 000 3 SCREW CARRIAGE SS

13 145 2826 000 1 SCREW TCEI M12X55

14 145 2626 000 4 SPRING

15 33005870 1 WASHER, TOOTHED Ø12

16 145 5900 000 1 SCREW 8X55

17 145 5743 000 1 NUT

18 145 6132 000 2 INSERT M5

19 145 8415 000 4 BALL BEARING

20 33005915 1 WASHER FLAT 8X17

21 33005601 4 NUT HEX SELF LOCK M3

22 145 9143 000 4 SCREW CYL HD THD FORM 3X10

23 33003720 1 WASHER FLAT

24 33003981 5 SCREW HEX HD 6X50

25 33005919 2 WASHER FLAT

26 145 9774 000 1 KEY

27 146 0549 000 1 BUSHING FLANGED

28 08601000 1 NUT HEX LOW SELF LOCK M12

29 146 1832 000 1 WHEEL

30 146 2978 000 1 CHASSIS

31 146 2979 000 2 BRACKET BATTERY FIXING

32 xxx xxxx xxx 1 SKIRT REAR (KIT SKIRTS)

33 xxx xxxx xxx 1 PLATE REAR SKIRT (KIT SKIRTS)

34 146 2983 000 1 CARTER FIXING BRACKET

35 146 2984 000 1 CARTER FIXING BRACKET

36 146 2987 000 1 TENSIONER ARM BUSHING

37 146 2994 000 1 WHELLS SHAFT

38 146 2997 000 2 CROWN Z18

39 146 2998 000 1 PULLEY Ø140

40 146 2999 000 1 KEY 5X5X45

41 146 3049 000 1 BATTERY 12V 45AH GEL

41* 1463201000 1 BATTERY 12V 77AH GEL KIT

42 146 3050 000 1 BATT. CHARGER FIX BRACKET

43 146 3051 000 1 BATTERY CHARGER 12V 6AH

44 146 3053 000 1 ELECTRONIC COMP. SUPPORT

45 146 3054 000 1 BATTERY FIXING BELT

46 146 3090 000 1 CIRCUIT BREAKER 5A

47 146 3113 000 1 RELAIS 12V 70ATYCO

48 146 3126 000 2 GASKET

49 909 5706 000 1 CIRCUIT BREAKER 30A

50 909 6341 000 1 FUSE CARRIER

51 xxx xxxx xxx 4 SCREW CYL HD M5X16 (KIT SKIRTS)

52 146 3001 000 6 SEEGER E17

53 146 2081 000 3WASHER RETAINING

54 33005913 1 WASHER FLAT

55 33005911 1WASHER 4x9

[56] 146 3052 000 1MACHINE HARNESS

[57] 08600497 5 CLAMP 2,4X136 WHITE

[58] 146 3124 000 1 SKIRTS KIT (1,32,33,51 - 1,2,3,5,6,7 PAG.9 - 1,2,4,13,14 PAG.13)

[59] 1463166000 1 SKIRTS KIT (32 - 6 PAG. 9 - 13 PAG. 13)

[60]* 1463167000 1 NO MARKING SKIRTS KIT

[61] 909 5783 000 1 CABLE EXTENTION

CHASSIS SYSTEM CHASSIS SYSTEM

146 3087 000(1)2007-01

2007-01

Edge 28B

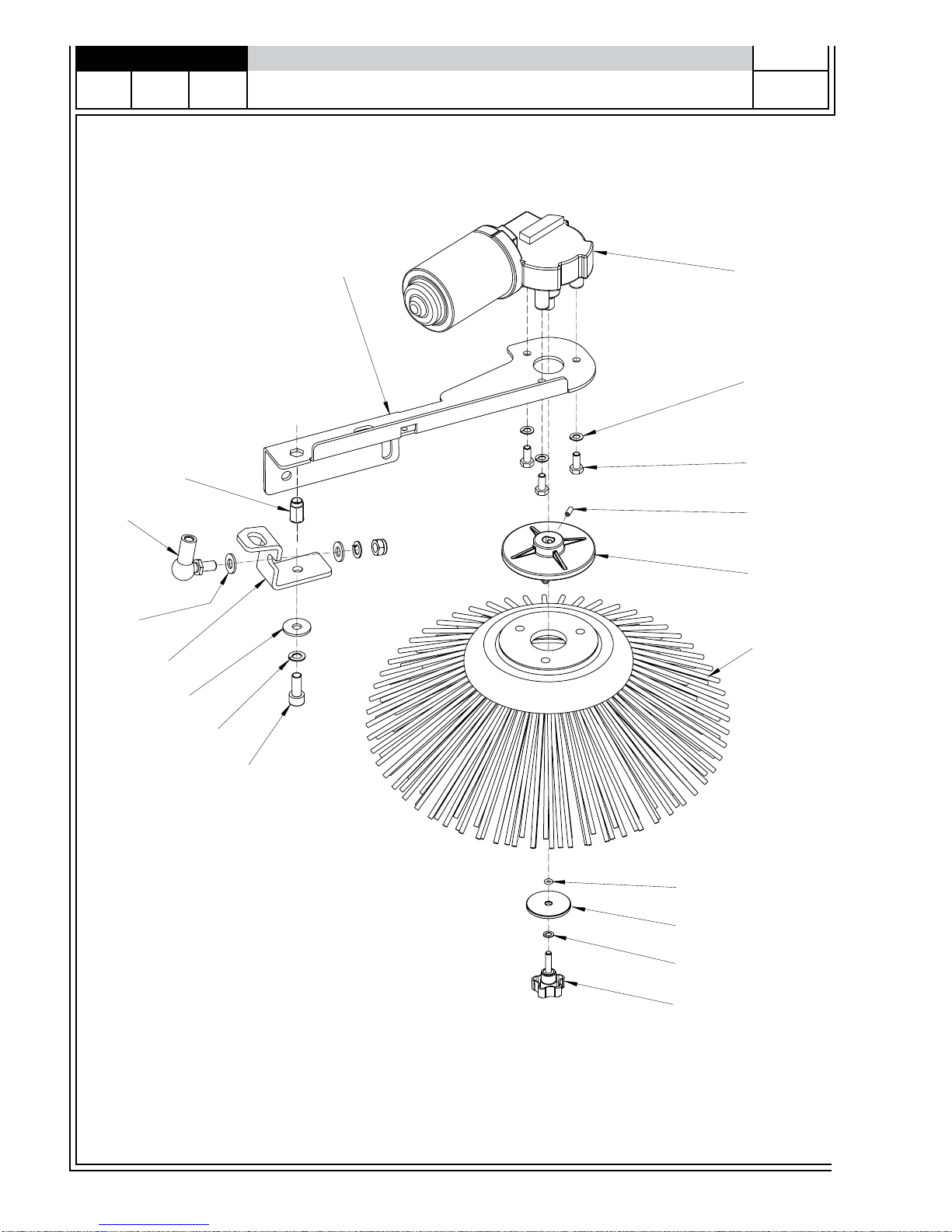

SIDE BROOM ASSEMBLY SIDE BROOM ASSEMBLY

146 3087 000(1)2007-01

2007-01

Edge 28B

SIDE BROOM ASSEMBLY SIDE BROOM ASSEMBLY

Item

No. Ref. No. Qty Description

1 145 9768 000 1 ARTICULATED HEAD

2 08300000 1 WASHER 8X24

3 33004365 1 SCREW

4 33005839 1 WASHER

5 33005842 2 WASHER SPLIT 8

6 145 6133 000 1 INSERT HEX. M8

7 33005915 2 WASHER FLAT 8X17

8 33005851 3 WASHER SPLIT 6

9 146 1533 000 1 DOWEL

10 146 1839 000 1 O-RING GASKET

11 146 1855 000 1 SPACER Ø5,5XØ38X3

12 146 2126 000 3 SCREW HEX HD M6X14

13 146 3028 000 1 REDUCTION GEAR MOTOR

14 146 3029 000 1 SIDE BROOM SUPPORT

15 146 3030 000 1 BRACKET

16 146 3031 000 1 SIDE BROOM HUB

17 146 3032 000 1 KNOB M5X20

18 146 3035 000 1 SIDE BROOM Ø315 PPL 0,5

18* 146 3036 000 1 SIDE BROOM Ø315 (CARPET)

146 3087 000(1)2007-01

2007-01

Edge 28B

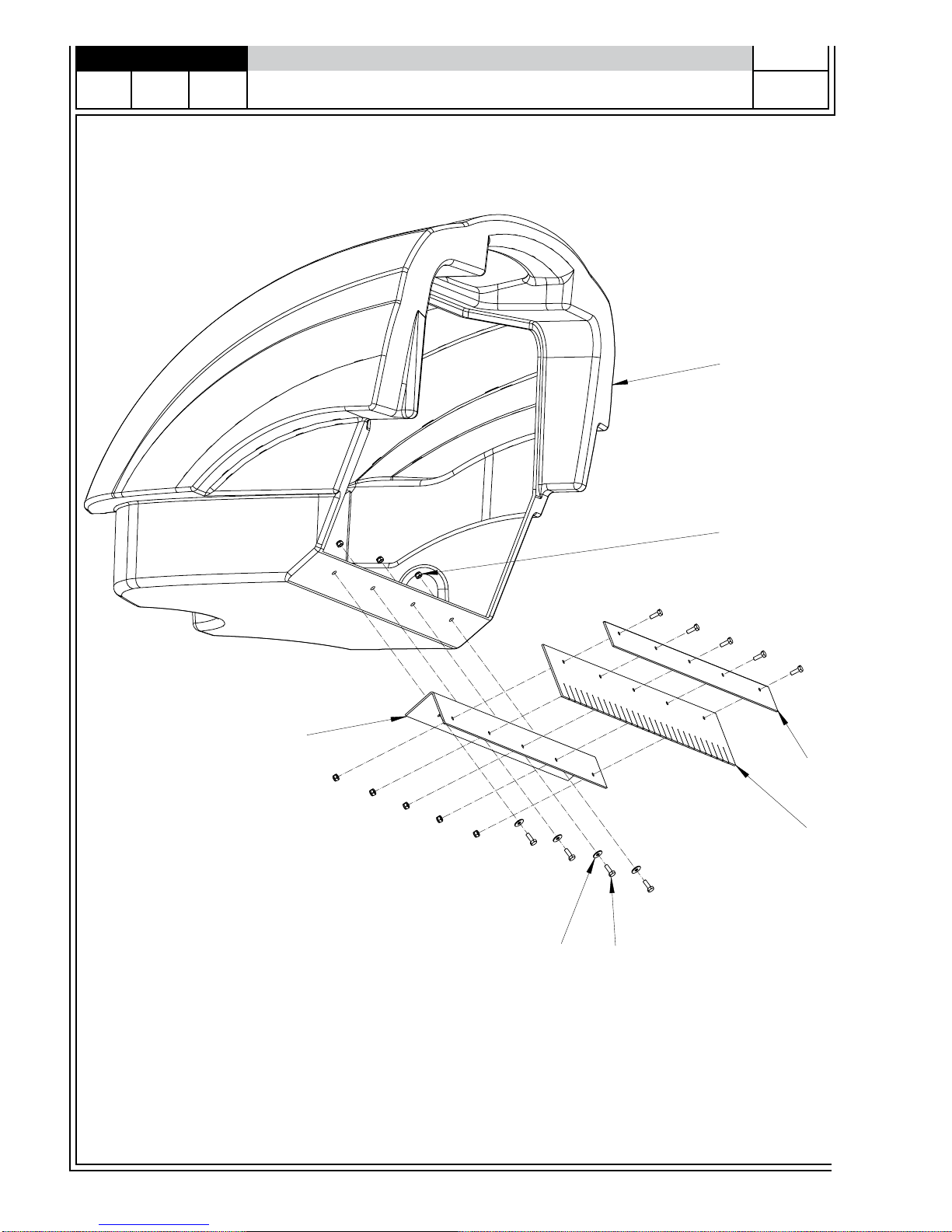

HOPPER SYSTEM HOPPER SYSTEM
