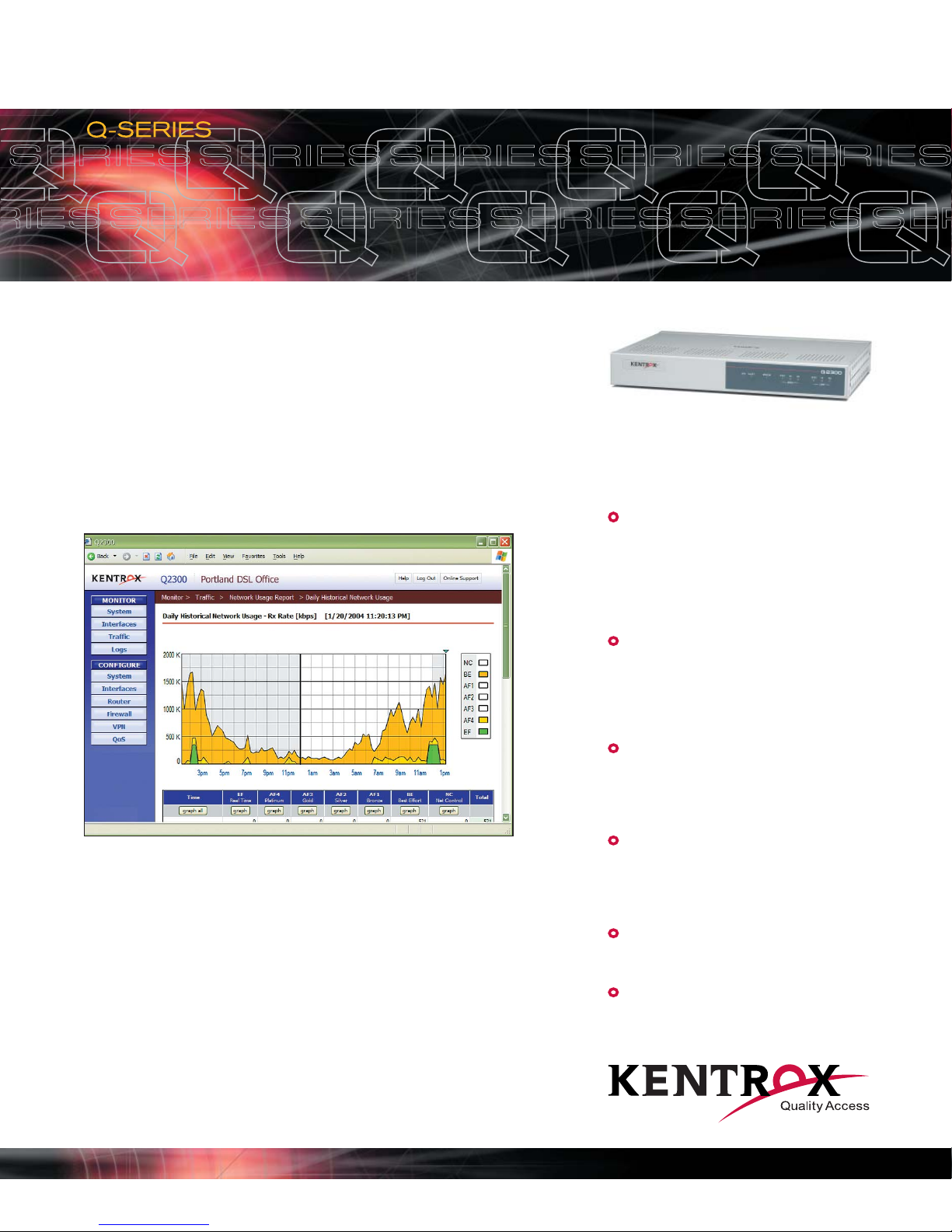

Kentrox Q2300 Bedienungsanleitung

The Q2300 router makes low-cost broadband services practical for

business. Until now, business-class routers have been expensive

and overly complex to set up and use, while consumer-level DSL

and cable-modem routers have lacked business-quality monitoring,

control, and security capabilities. The Q2300 router changes all this

by combining the features of an IP router, QoS appliance, IPSec

VPN appliance, firewall, and Ethernet switch into one easy-to-use

network access device.

Quality of Service support for VoIP and other

critical applications—right out of the box

Mission-critical applications and delay-sensitive trafﬁc, such as VoIP

and video, can degrade signiﬁcantly when competing with bursty

web trafﬁc for WAN bandwidth. The Q2300 is pre-conﬁgured to

provide priority queuing and trafﬁc shaping to ensure high-priority

trafﬁc takes precedence over less critical applications. Trafﬁc can be

classiﬁed with user-created policies, making it easy to prioritize trafﬁc

to meet your needs.

Q2300 Ethernet QoS Access Router

www.kentrox.com

Business-class network access

Easy-to-use graphical interface

Best-in-class QoS reports

High-performance IP Router

Virtual Private Networking (VPN)

Network Address Translation (NAT)

Intuitive CLI for scripting

VLAN support for 8 LAN subnets

Static, RIP, and OSPF support

Ethernet WAN, PPPoE capable

QoS Appliance

Trafﬁc reports and graphs

Auto DiffServ/ToS priority queuing

Class-based weighted fair queuing

User-conﬁgurable QoS policies

Prioritization of VoIP and video trafﬁc

VPN Appliance

100 IPSec tunnels

Encryption (DES, 3DES, AES)

Hardware acceleration for DES/3DES

Windows XP IPsec client support

Stateful Packet Inspection Firewall

Packet ﬁltering (access control lists)

Intrusion Detection System (IDS)

Denial of Service (DoS) protection

Application Layer Gateways (ALG)

Ethernet/DSL/Cable Services

Bandwidth monitoring and control

Alarms and diagnostics

Managed Ethernet Switch

Four 10/100 Ethernet LAN ports

Auto-sensing, auto-polarity

Figure 1: Graphical reports show network statistics and trends at a glance.

For Ethernet/DSL/Cable Services

Q2300 Ethernet QoS Access Router

Simple, low-cost installation

Traditional routers, security devices, and network access

equipment can be difﬁcult to set up, and often require

special training. That can be problematic for many

businesses that are trying to reduce support costs or do

not have on-site expertise.

The Kentrox Q2300 router is designed to simplify install-

ation with its intuitive GUI, making it faster and easier

for both network administrators and less experienced

installers. Advanced feature conﬁgurations, such as VPN

tunnels, ﬁrewall, and QoS policies, are also made simpler

by the router’s GUI.

Figure 3: The graphical interface presents conﬁguration options

for simpler setup.

Embedded, Web-style GUI simpliﬁes

management

The Graphical User Interface contains powerful tools to

troubleshoot problems, run QoS reports, make conﬁgur-

ation changes and reload conﬁgurations, set up trafﬁc-

shaping policies, or just check the health of the network.

Accomplishing these tasks with command line-driven

products can be difﬁcult and time-consuming. Arranged

logically and intuitively by function, the router’s GUI is

point-and-click easy.

Protect internal systems from intrusion

To protect internal networks from outside intrusion, the

router conceals LAN IP addresses using Network Address

Translation (NAT). It also has an integrated Stateful Packet

Inspection (SPI) ﬁrewall. The router ﬁrewall includes

Intrusion Detection System (IDS) capability,

which identiﬁes

and blocks common attacks. Application Layer Gateways

(ALG) pass common trafﬁc types while preventing

unwanted trafﬁc from entering the LAN.

VPN support

With Virtual Private Networks (VPNs), you can take

advantage of the cost savings associated with transmitting

communications over IP services. The Q2300 secures up to

100 VPN tunnels with standards-based IPSec encryption

(DES/3DES/AES) and authentication. The router supports

direct VPN connections with computers running Windows

XP Service Pack II IPsec clients.

Its VPN support is designed for Virtual Private Networks

Consortium interoperability and conformance. Dedicated

hardware accelerates DES/3DES encryption for optimal

performance.

Fine-tune network performance with

QoS monitoring and reports

The Q2300's graphical reports let you monitor trafﬁc

performance at each established QoS priority level to see

whether the critical trafﬁc ﬂows are getting the bandwidth

they need. The report data helps you identify performance

problems and modify your QoS policies appropriately. To

reduce bandwidth pinches, for example, you would simply

view the current and historical performance reports, and

adjust QoS policies as necessary to provide the appropriate

amount of bandwidth for high-priority applications.

IP Network

VPN Tunnel A

VPN Tunnel B

Ethernet Q2200

Q2300

T1 PPP

or FR

Ethernet

DSL/Cable Modem

Analog

Telephone

Adapter

VoIP PBX

PSTN

Figure 2: Up to 100 IPSec VPN tunnels mean ﬂexibility and cost savings.

KENTROX CARE SERVICE AND SUPPORT PART #

Onsite 7x24x4 13803

Onsite 5x8x4 13813

Onsite 7x24xNBD 13802

Onsite 5x8xNBD 13812

Basic 7x24xNBD 13804

Exchange NBD 13809

Onsite Installation 13820

Phone Installation 13830

KENTROX TECHNICAL TRAINING PART #

Customer Site

Basic Conﬁg & Maintenance Lecture, 1 day 133811

Advanced Conﬁg & Maintenance Lecture, 1 day 133812

Per student charge for lecture in excess of

8 students, per day 133819

Kentrox Campus

Basic Conﬁg & Maintenance Lecture, 1 day 133851

Advanced Conﬁg & Maintenance Lecture, 1 day 133852

ORDERING INFORMATION

DESCRIPTION CATALOG #

Q2300 Ethernet QoS Access Router 2300

Q2301 Ethernet QoS Access Router with Modem 2301

Items included with the Q2300 and Q2301:

- Documentation CD (includes Adobe® Acrobat® PDF versions of

the Setup Guide, the User’s Guide and the CLI Reference Guide)

- AC-DC power adapter and cable for use in North America

- One 6’ Ethernet LAN cable, Cat 5E, UTP 568B

- One CLI serial to PC adapter, RJ45 female to DE9 female

(for use with external Ethernet cable)

- Two #8 wood screws and anchors for wall-mounting

Ethernet Cable, Cat 5E, 6' 93006212

Q2300 19" Rack Mounting Kit 77912

Q2300 CLI Serial to PC Adapter, RJ45 Female to DE9

Female (for use with external Ethernet cable) 77910

Protect your network investment with

support plans and technical training

To keep your network healthy and productive, Kentrox

offers Kentrox Care Support Plans for our Q-Series™

access routers. Kentrox technical training courses are also

available on site or at the Kentrox campus to help you get

the most out of your Q-Series routers. For details, visit our

website at www.kentrox.com/services.

Figure 4: The Kentrox Q2300 router offers an intuitive, Web-style GUI to simplify setup and management.

10/100

WAN

Modem

(optional)

Control

port

4 x 10/100

LAN

10/100M ETHERNET LAN Ethernet WAN MODEM RS-232

LINK LINK LINK LINK10BT 10BT 10BT 10BT ACT ACTALMALM

PORT 1

PORT 2

PORT 3

PORT 4

RESET

POWER

12 VDC

Information published here is current as of this document’s date of publication, but is subject to change without notice. You may verify product information by

contacting our headquarters in Hillsboro. Kentrox is an Equal Employment Opportunity/Afﬁrmative Action employer.

Kentrox, LLC

20010 NW Tanasbourne Dr.

Hillsboro, OR 97124

Phone 503-643-1681

Service and Support 800-733-5511

www.kentrox.com

INTERFACES

WAN: One 10/100Base-Tx (RJ45)

LAN: Four-port, 10/100 Ethernet switch (RJ45)

auto-sensing, auto-polarity

Control port (CLI): One RS-232 (RJ45)

Modem (optional): One V.92 modem (RJ11C) for dial-in management

MANAGEMENT/ADMINISTRATION

GUI: Intuitive Web-style GUI (accessible from WAN

or LAN)

Access Management: Three levels—admin, conﬁgure, view;

up to 10 users with passwords

Logs: Alarm, System, Intrusion, Trafﬁc, VPN

Syslog support

SNMP: Traps, MIB II, I /F MIBs

Updates: Software updates via FTP or GUI

CLI: Intuitive command line interface (CLI) accessible

via control port, Telnet, SSH, or modem

Real-time Clock: SNTP support and 8-hour power failure backup

FIREWALL

Protection Methods: Stateful Packet Inspection designed for ICSA

compliance

Denial of Service (DoS)

Intrusion Detection System (IDS)

Blacklist

TCP and UDP packet ﬁltering

NAT

Application Layer Gateways (ALG)

Policies: 50 user-conﬁgurable policies

Mapped IP: 16 mapped IP (virtual DMZ/port forwarding)

Zones: Trusted, Untrusted, DMZ

VIRTUAL PRIVATE NETWORK (VPN)

IPSec: 100 IPSec VPN tunnels

Internet Key Exchange (IKE)

Main and aggressive modes

Difﬁe-Hellman MODP groups 1, 2, and 5

Perfect Forward Secrecy (PFS)

IPSec NAT traversal

Authentication: Pre-shared key

X.509 certiﬁcates

Encryption: DES, 3DES, AES (128 bit), hardware acceleration

for DES/3DES

Hash algorithms: MD5 and SHA-1

WAN PROTOCOLS

Protocols: IP or PPPoE

ROUTER

Routing: Static, RIP v1/v2, and OSPF

DHCP server, client, relay

DNS client, DNS relay

VLAN support for 8 LAN subnets

Load balanced on 4 equal cost routes

QUALITY OF SERVICE

Bandwidth Class-based Weighted Fair Queuing

Management: Auto DiffServ/ToS-based priority queuing

VoIP and video prioritization

All DiffServ classes supported

Conﬁgurable queue weighting

Marking: Conﬁgurable QoS marking

Policies: 32 user-conﬁgurable QoS policies for prioritization

by source and destination addresses, port,

protocol, DiffServ Code Point (DSCP)

Monitoring: QoS trafﬁc reports and graphs

Conﬁgurable WAN Latency report

Standards: Supports 802.1P user priority and

VLAN 802.1Q tags

DIAGNOSTIC LEDS (FRONT PANEL)

System: System status, security alert, modem status

WAN: Port status, Tx status, Rx status

LAN: Port status, Tx status, Rx status

PHYSICAL

Dimensions: 1.6" H x 11.8" W x 8.6" D

(44mm H x 300mm W x 219mm D)

Weight: 3.8 lbs. (1.72 kg)

Power: Universal AC adapter, 100-240 VAC input,

50-60 Hz; power consumption: ≤ 20W

Mounting Options: Table-top, wall-mount or optional

19" rack-mount (1RU)

ENVIRONMENT

Operating: 0° to 50°C (32° to 122°F)

5% to 95% RH (non-condensing)

Storage: -20° to 66°C (-4° to 150°F)

5% to 95% RH (non-condensing)

REGULATORY

Emissions: FCC 47 CFR 15 Class A

Safety: ANSI/UL 60950-1-2002

CAN/CSA-C22.2 No 60950-1-03

Terminal: FCC 47 CFR 68

IC CS-03

SPECIFICATIONS

Inhaltsverzeichnis

Andere Kentrox Netzwerk-Router Handbücher

Kentrox

Kentrox q2200 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
