KENYON

INSTALLATION

INSTRUCTIONS

for

Lite-Touch Touch Control

™

Glass Ceramic Cook-tops

Models:

4BTC Mediterranean

4BTC Caribbean

(B44001 & B43001)

KENYON



P.O. Box 925

#8 Heritage Park Road

Clinton, CT 06413 USA

Phone: (860) 664-4906

Fax: (860) 664-4907

Revision 9/16/02

Part # 006633

\\Mrpserver\KENYON ENGINEERING\MANUALS\4BTC MARINE

Thank you for purchasing a Kenyon glass ceramic cook-top. Kenyon glass ceramic cook-tops

feature good looks and an easy-to-use surface that stays clean and stays looking like new with

very little maintenance. These cook-tops are designed for recess countertop installation

Installation Instructions for Kenyon Ceramic Glass Cook Tops

Important- Save these instructions for the local inspector’s use.

! Proper installation- Be sure your appliance is properly installed and grounded by a

qualified technician. Please read these instructions in their entirety before installation and

operation of cook-top.

Step # 1- Unpacking Your Kenyon Cook Top

Carefully unpack your Kenyon cook-top from its shipping container. Do not discard shipping

carton or protective foam. It may be useful if your unit ever needs to be serviced.

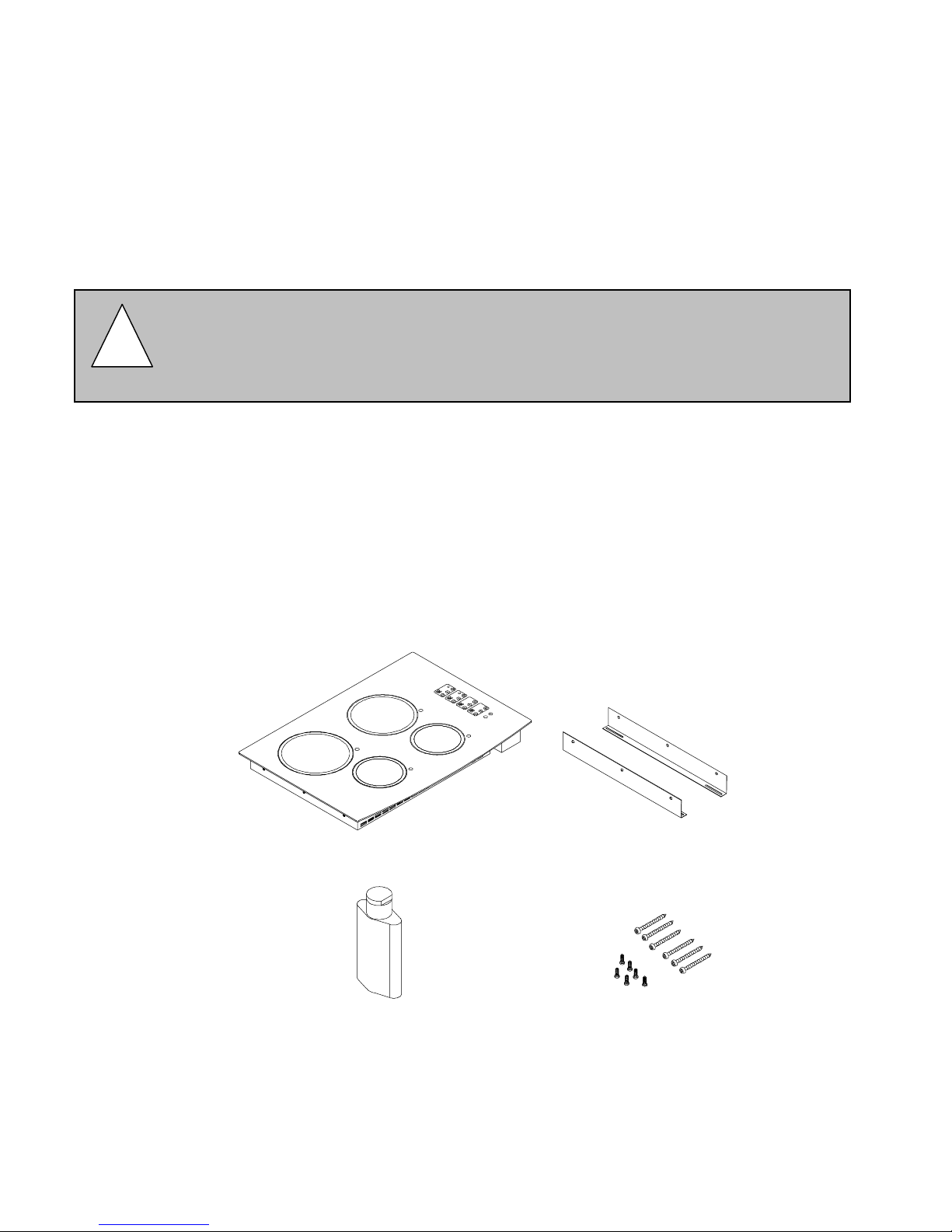

Verify and identify package contents. The following items should be included in carton:

1- Ceramic Glass Cook-Top 1- Cutout Template

1- Glass Cleaner 1- Package of Mounting Screws

Ceramic Glass Cook Top Mounting Brackets

Glass Cleaner

Screws/Hardware

2- Mounting Brackets (Long & Short)

If any components are missing or damaged, please contact factory.

! Important: Do not remove clear plastic covering film on ceramic glass until cook top is

ready to install.

PLEASE RECORD YOUR COOK TOP SERIAL # HERE FOR FUTURE REFERENCE:

Step #2- Check Your Electrical Supply Requirements:

This product must be installed in accordance with national electric codes, as well as state and

local codes. The following table provides the correct voltage, amperage, and frequency that

must be supplied to the appliance.

Kenyon Part #

Model

Max

Connected

Load

Required Power

Supply Input

Minimum

Wire Size

B43001 4BTC-Car 5800 Watts 240 VAC/30A/60 Hz #10 AWG

B44001 4BTC-Med 5800 Watts 240 VAC/30A/60 Hz #10 AWG

The supply must be from an individual grounded circuit that is protected by a circuit breaker

rated per the specifications for the various models as shown in the table above.

Warning: If the electric power supply provided does not meet the product

specifications, call a licensed electrician before proceeding with installation.

Step #3- Power Disconnection:

Disconnect power to the appliance by opening the circuit breaker before proceeding any further

with installation. Failure to disconnect power supply may result in electrical shock or fire

hazard.

Step #4- Counter Top Preparation:

Please read this section carefully prior to making the counter cutout.

It is important to plan out your cook top installation keeping the following dimensions and

distances in mind when planning your installation.

Refer to cabinet/counter figure- Figure A below:

A- 13 inches maximum depth of overhead cabinets

B- 36 inches is minimum height of counter top above floor

C- The minimum flat counter top surface that the cook-top will rest upon must be equal to or

greater than the overall cook-top dimension (Please refer to the following page for overall

cook-top dimensions along with cut out dimensions)

D- 30 inches minimum clearance between the top of the cooking surface and the bottom of an

unprotected wood or metal cabinet, or 24 inches minimum when the bottom of wood or metal

cabinet is protected by not less than ¼ inch thick flame retardant mill board covered with not

less than NO.28 MSG sheet steel, 0.015-inch-thick stainless steel, 0.024-inch-thick

aluminum, or 0.020-inch-thick-copper

E- 1” minimum from back splash of countertop to edge of glass. (Refer to following page for

overall cook-top dimensions)

Warning: To eliminate the risk of burns or fire by reaching over heated surface

units, cabinet storage space located above surface units should be avoided. If

cabinet storage is to be provided, the risk can be reduced by installing a range

hood that projects horizontally a minimum of 5 inches beyond the bottom of the

cabinets.

Before making the counter top cutout, check for clearance. Check to see if the cook top will

clear the front and side walls of the base cabinet. It is also important to provide enough

ventilation. Adequate ventilation of the space below the counter top must be provided to ensure

proper operation of the cook top. Heat transferred from the cook top bottom pan during

operation will overheat an improperly ventilated area.

2" MINIMUM

Allow a 2-inch minimum clearance between the bottom of the metal pan of the cook top and any

combustible surface located below for example the upper edge of a drawer installed below the

cook top. (See Figure below) Failure to provide proper clearances and ventilation may result in a

fire hazard.

Cook top dimensions along with counter top cut out dimensions are shown below for each

model. Please use the cutout template has been provided for assistance.

NOTE:

When installation occurs where a counter top is laminated (Formica )or synthetic (Corian

etc.) radius the corner of the cut out (1/4” radius is typical). This will prevent cracking of

your counter top. Follow the counter top manufacturer’s instructions regarding the minimum

corner radius and reinforcement corners. Use cutout template for layout.

3 1/4" MAX

24"

21 1/2"

22 5/16"

19 15/16"

B43001 or B44001

Step #5- Installing the Cook Top:

Your Kenyon smooth glass ceramic cook-top is supplied with two mounting brackets (1 short

mounting bracket along with 1 long mounting bracket). These brackets are designed to hold

your cook top firmly in place. The cook top does not have a metal frame and should be bedded

to the counter top using a soft bedding compound that will prevent later removal without damage

should service be necessary. We recommend a very small bead of silicone sealant.

Attach the two mounting brackets supplied with your Kenyon Cook Top, as shown to the inside

vertical surface of the cutout. The long bracket should be mounted to the right side of cook top

(control side). Center the brackets in the opening, flush with the counter top, and secure with

long self tapping screws that are provided. Position the cook top in the cut out opening and press

firmly on all sides to seal the frame into the bedding compound. Secure the cook top to the

brackets from underneath with the small sheet metal screws that are supplied. BE CAREFUL

NOT TO OVER TIGHTEN THE SCREWS.

Cooktop

Counter Top

hor

Mounting Bracket

ONG Mounting Bracket

Cut Out

# 8 X 1/4" SS Screw (Provided)

#6 X 1 1/4" Oval Head SS Screw

(Provided)

Step #6- Electrical Connection:

Before proceeding further verify that the power supply is disconnected. Verify that the

appropriate electrical supply requirements have been met. Please refer to the table on page 3

(Step #2) for appropriate electrical requirements. Kenyon Cook top is supplied with a 48 inch

long conduit for a connection to an accessible junction box. The conduit consists of three

insulated wires. There are two insulated hot lead conductors (both tinned copper) and one

insulated ground conductor (green-tinned copper)

Attach conductor wires to residence wiring in accordance with National Electric Codes, state,

municipal and local codes.

WARNING: GROUNDING

! The entire appliance must be grounded at all times when the electrical power

supply is on. Do not ground the appliance with the neutral house supply wire

(white). A separate ground must be used.

Step #7- Final Preparations/Prior to Use:

Clean the cook top before the first time you use it. A thorough cleaning with a recommended

cook top cleaner (such as Cerama Brite Cook-Top Cleaner) will get your new cook top off to a

good start. It takes just a minute and puts a clean, shiny coating on the cook top before its initial

use.

Please read the User’s Guide for important information on use and care of cook top along with

providing you with safety, service, and warranty information.

DO NOT DISCARD THIS MANUAL

SAVE FOR FUTURE REFERENCE
