INSTRUCTION MANUAL
Mediterranean 2-Burner
Caribbean 2-Burner
Mediterranean, Caribbean & Alpine
Ceramic Glass Cook Tops
(240 Volt Models UL/C-UL APPROVED)
KENYON
P.O. Box 925
8 Heritage Park Road Part # 143048
Clinton CT 06413 USA
Phone: (860) 664 - 4906
FAX: (860) 664 - 4907 rev 3/26/2004
DC-1\kenyonengineering\manuals\ulmanuals\143048
KENYON®
PLEASE READ THESE
INSTRUCTIONS IN
THEIR ENTIRETY BEFORE
INSTALLATION AND USE
OF APPLIANCE.
***
DO NOT DISCARD
THIS MANUAL !
SAVE FOR FUTURE
REFERENCE.
Mediterranean Series Cook Top
PRODUCT SPECIFICATIONS
Two Burner
B41511 - 240V AC - one 6” (165mm) burner @ 1200 watts
one 8” (200mm) burner @ 1800 watts
Overall dimensions: 23-1/4” x 14-1/4” x 2-5/8”
590.6mm x 362.0mm x 66.7mm
Cutoutdimensions: 21-3/4” x 12-3/4” with 1/4” radius
552.5mm x 323.9mm with 6.4 radius
Trimline
B41516 - 240V AC - two 6” (165mm) burners @ 1200 watts each
Overall dimensions: 21” x 12” x 2-5/8”
533.4mm x 304.8mm x 63.5mm
Cutoutdimensions: 20” x 10-3/4” with 1/4” radius
508mm x 273mm with 6.4 radius
Single Burner
Single Burner
B41518 - 240V AC - one 6” (165mm) burner @ 1200 watts
Overall dimensions: 12” x 12-1/2” x 2-5/8”
304.8mm x 317.5mm x 63.5mm
Cutoutdimensions: 10-3/4” x 11-1/2” with 1/4” radius
273.0mm x 292.1mm with 6.4 radius
Caribbean Series Cook Top
PRODUCT SPECIFICATIONS
Two Burner
B41602 - 240V AC - two 6” (165mm) burners @ 1200 watts each
Overall dimensions: 21” x 12” x 2-5/8”
533.4mm x 304.8mm x 63.5mm
Cutoutdimensions: 20” x 10-3/4” with 1/4” radius
508mm x 273mm with 6.4 radius
Single Burner
B41606 - 240V AC - one 6” (165mm) burner @ 1200 watts
Overall dimensions: 12” x 12-1/2” x 2-5/8”
304.8mm x 317.5mm x 63.5mm
Cutoutdimensions: 10-3/4” x 11-1/2” with 1/4” radius
273.0mm x 292.1mm with 6.4 radius
Alpine Series Cook Top
PRODUCT SPECIFICATIONS
Two Burner - Large
B49511 - 240V AC - one 6” (165mm) burner @ 1200 watts
one 8” (200mm) burner @ 1800 watts
Overall dimensions: 23-1/4” x 14-1/4” x 2-5/8”
590.6mm x 362.0mm x 66.7mm
Cutoutdimensions: 21-3/4” x 12-3/4” with 1/4” radius
552.5mm x 323.9mm with 6.4 radius
Two Burner - Small
B49516 - 240V AC - two 6” (165mm) burners @ 1200 watts each
Overall dimensions: 21” x 12” x 2-5/8”
533.4mm x 304.8mm x 63.5mm
Cutoutdimensions: 20” x 10-3/4” with 1/4” radius
508mm x 273mm with 6.4 radius
Single Burner
Single Burner
B49518 - 240V AC - one 6” (165mm) burner @ 1200 watts
Overall dimensions: 12” x 12-1/2” x 2-5/8”
304.8mm x 317.5mm x 63.5mm
Cutoutdimensions: 10-3/4” x 11-1/2” with 1/4” radius
273.0mm x 292.1mm with 6.4 radius
INSTALLATIONINSTRUCTIONSFORKENYON
CERAMICGLASSCOOKTOPS
Important: Save this documentation for review by local inspector.
Important: This appliance must be properly installed and
grounded by a qualified technician.
STEP #1
Unpacking the Cook Top
Carefully unpack the cook top from its shipping container. If possible, retain the original
shipping carton and protective packaging in the event the unit ever has to be returned for
service.
Verify and identify the package contents. The following items should be included in the
carton. If any components are missing or damaged, call KENYON immediately.
Ceramic glass cook top • (2) Mounting brackets
(1) Package of mounting screws • (1) Ceramic cook top cleaner
Important: Do not remove the clear plastic covering film on the
ceramic glass until cook top is ready to install.
1
!
Kenyon Cooktop Mounting Brackets
Mounting Screws Package
Ceramic Cooktop Cleaner
!
Cerama Brite
For future reference, please record the serial number of your
cook top here:
STEP #2
Check the Electrical Supply Requirements
This product must be installed in accordance with national, state and local electric codes.
The following table provides the correct voltage, amperage and frequency that must be
supplied to the cook top.
The supply must be from an individual grounded circuit that is protected by a circuit breaker
and rated per the specifications for the various models as shown in the table above.
2
Max Connected RequiredPower Minimum
Kenyon Part # Model # Load Supply Input Wire Size
B41511 MED2 3000Watts 240VAC/12.5A/60Hz #12AWG
B41516 MED2TL 2400Watts 240 VAC/10A/60Hz #12AWG
B41518 MED1 1200Watts 240 VAC/5A/60Hz #12AWG
B41602 CAR2 2400Watts 240 VAC/10A/60Hz #12AWG
B41606 CAR1 1200Watts 240 VAC/5A/60Hz #12AWG
B49511 ALP2LG 3000Watts 240 VAC/12.5A/60 Hz #12AWG
B49516 ALP2SM 2400Watts 240 VAC/10A/60Hz #12AWG
B49518 ALP1 1200Watts 240 VAC/5A/60Hz #12AWG
!
Warning: If the electric power supply does not meet the
product specifications, consult with a licensed electrician
before proceeding with installation.
STEP #3
Countertop Preparation
Please read this section prior to making cutout for cook top.
It is important to plan ahead for installation of the cook top, keeping the following dimensions
in mind (please refer to Figure A).
Fig. A
A- 13 inches maximum depth of overhead cabinets
B - 36 inches is minimum height of countertop above floor
C - The minimum flat countertop surface that the cook top will
rest upon must be equal to or greater than the overall
cooktop dimensions(refer tothe followingpage foroverall
cook top dimensions).
D - 30 inches minimum clearance between the top of the
cooking surface and the bottom of an unprotected wood
or metal cabinet or 24 inch minimum clearance when the
bottom of wood or metal cabinet is protected by not less
than 1/4-inch-thick flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015-inch-thick
stainless steel, 0.024-inch-thick aluminum or 0.020-inch-
thick-copper.
E - 1-inch minimum from backsplash of countertop to edge of
glass (refer to the following page for overall cook top
dimensions).
FOR INSTALLATIONS IN CANADA: “Do Not Install Closer Than 1/2
Inch (12 mm) From Any Adjacent Surface”, and NE PAS INSTALLER
A’MDINS DE 12MM DETOUTE SURFACE ADJACENTE.
Warning: To eliminate the risk of burns by reaching over
heated surface units, cabinet storage space located above
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5” beyond the bottom
of the cabinets.
Before making the countertop cutout, check for clearance. Check to see if the cook top will
clear the front and side walls of the base cabinet. It is also important to provide enough
ventilation.
Adequate ventilation of the space below the
countertop must be provided to ensure proper
operation of the cook top. Heat transferred from
the cook top bottom pan during operation will
overheat an improperly ventilated area.
3
!
Fig.B
Allow a 2” minimum clearance between the bottom of the metal pan of the cook top and any
combustible surface located below, ie: the upper edge of a drawer installed below the
cook top (see Fig. B on previous page). Failure to provide proper clearances and ventilation
may result in a fire hazard.
Cook top dimensions and countertop cutout dimensions for each model are shown below:
Note:
When making countertop,radius
the corner of the cutout (1/4” radius
is typical). This will prevent cracking
of the countertop. Follow the
countertop manufacturer’s
instructions regarding the minimum
corner radius and reinforcement of
corners.
4
2 5/8"
12" 21"
20" 10 3/4"
14 1/4" 23 1/4"
2 5/8"
21 3/4" 12 1/4"
Model : MED2 & ALP2LG Models: MED2TL , CAR2, ALP2SM
12" 12 1/2"
11 1/2" 10 1/4"
2 5/8"
Models: MED1 & CAR1 & ALP1
5

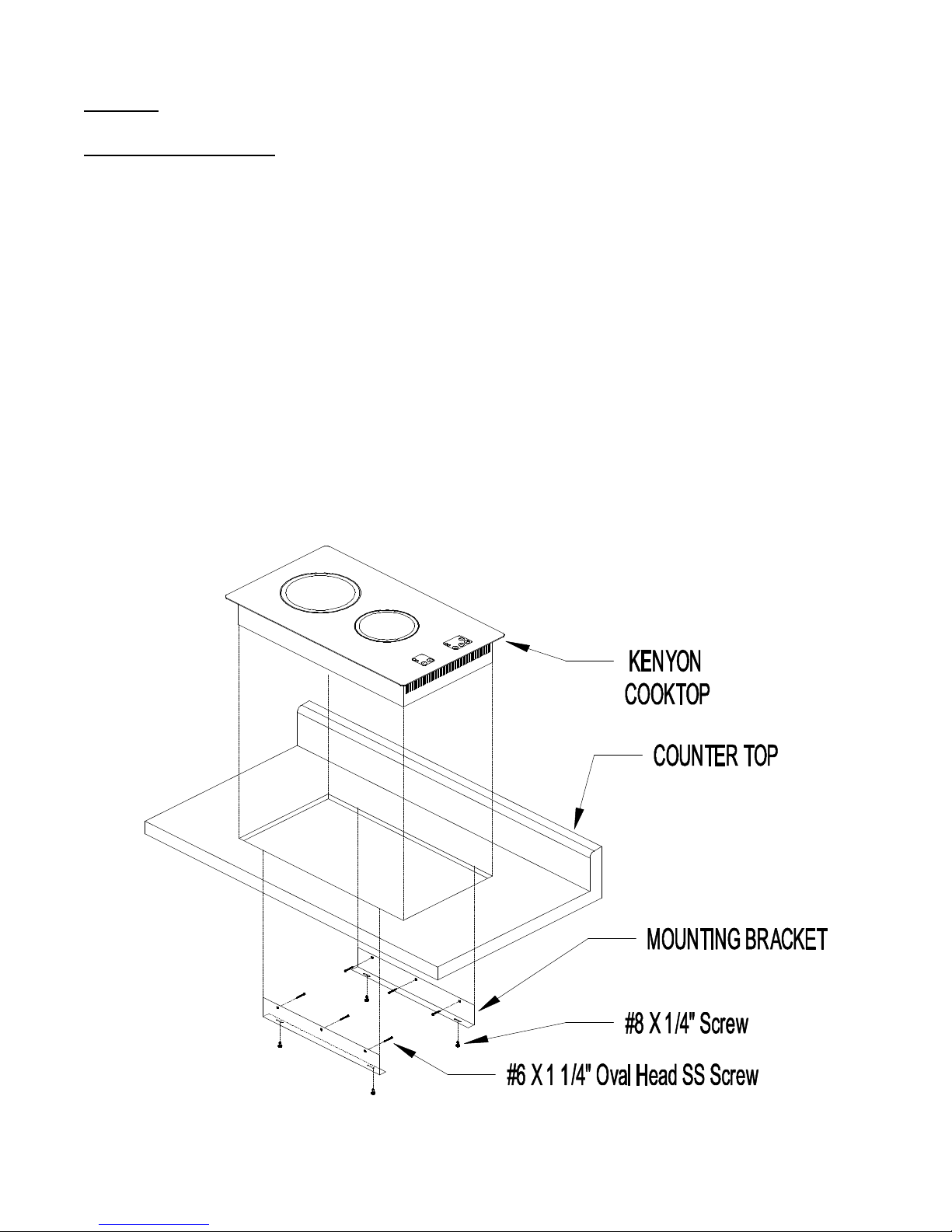

STEP #4
Installing the Cook Top
There are two mounting brackets supplied with the glass ceramic cook top. These brackets
are designed to hold the cook top firmly in place. The cook top does not have a metal frame
and should be bedded to the countertop using a soft bedding compound that will prevent
damage if later removal for service is necessary. We recommend a very small bead of sili-
cone sealant.
Attach the two mounting brackets supplied with the KENYON cook top (as shown) to the
inside vertical surface of the cutout. The brackets are to be mounted on opposing sides.
Center the bracket in the opening, flush with the countertop and secure with long self-tapping
screws that are provided. Position the cook top in the cutout opening and press firmly on all
sides to seal the frame into the bedding compound. Secure the cooktop to the brackets from
underneath with the small sheet metal screws that are supplied.
BE CAREFUL NOT TO OVERTIGHTEN THE SCREWS.
