Keychron K1 Max Bedienungsanleitung
K1 Max Wireless Mechanical Keyboard
Keychron K1 Max Wireless Mechanical Keyboard x 1
Type-C Cable x 1
Manual x 1
Quick Start Guide x 1
Extra Keycaps Set x 1
Type-A to Type-C Adapter x 1
Type-A 2.4GHz Receiver x 1
2
QUICK START GUIDE

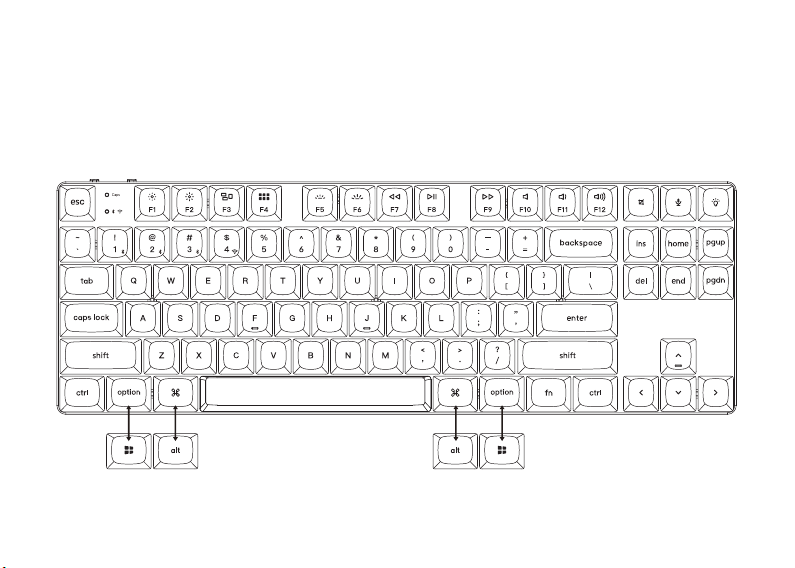

If you are a Windows user, please find the appropriate keycaps in the box, then follow theinstructions
below to find and replace the followingkeycaps.
Mac / Windows
3
/
Connect 2.4GHz Receiver
1
4
Press fn + 1 (for 4 seconds) and pair with
device named Keychron K1 Max.
Connect Bluetooth
2
G / Cable / BT
G = 2.4GHz
G / Cable / BT
Switch toggle to 2.4GHz mode
Connect the 2.4GHz receiver to
the device USB port.
Note: For the best wireless experience, we recommend using the
extension adapter for receiver and putting the 2.4GHz receiver
somewhere on your desk close to your keyboard for a low rate
of latency and fewer signal interferences.
Type-C
Cable Extension Adapter
For Receiver
2.4GHz
Receiver
/
/
/
fn + 1

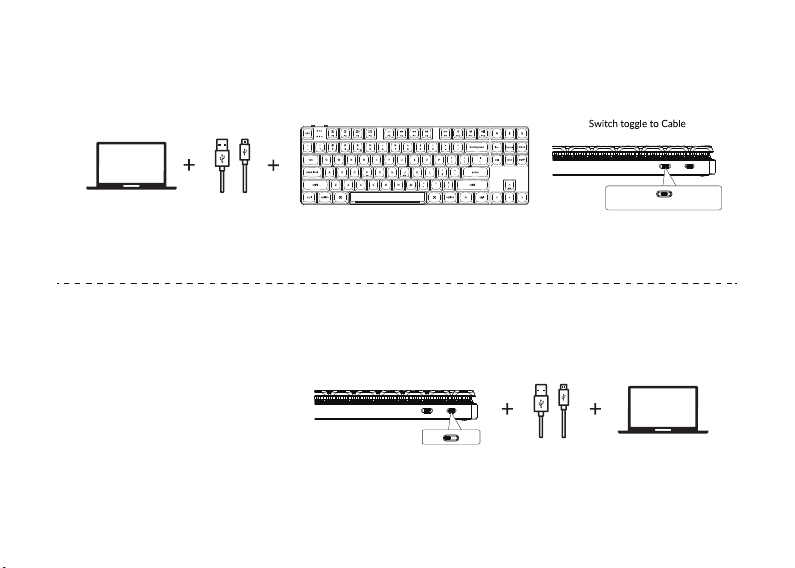

Connect Cable
3
5
Please make sure the system toggle on
the top left corner has been switched
to the same system as your computer's
operating system.
G / Cable / BT
Switch To The Right System
4
/
Mac Win
6
The Layers
6
There are four layers of key settings on the
keyboard. The layer 0 and layer 1 are for the
Mac system. The layer 2 and layer 3 are for
the Windows system.
If your system toggle is switched
to Mac, then the layer 0 will be
activated.
If your system toggle is switched to Windows, then
the layer 2 will be activated. Remember that if you
are using it in Windows mode, please make changes
to the layer 2 instead of the top layer (the layer 0).
This is a common mistake people are making.
The VIA Key Remapping Software
5
Please visit usevia.app to use the online
VIA software to remap the keys.
If the VIA cannot recognize your keyboard,
please reach our support to get the instruction.
Your keyboard’s best friend
*The online VIA software can only run on the latest version of Chrome, Edge, and Opera browsers yet.
*VIA only works when the keyboard is connected by wire to the computer.
7
Adjust The Backlight Brightness
8
Press fn + W to increase the backlight brightness Press fn + S to decrease the backlight brightness
7The Backlight
Press fn + Q to change the lighting effect Press fn + tab to turn the backlight on/off
fn + Q
/
fn + W
/
fn + S
/
fn + tab
/
The keyboard is highly customizable and easy to be rebuilt.
If anything goes wrong with any of the keyboard components
of keyboard during the warranty period, we will only replace
the defective parts of the keyboard, not the whole keyboard.
Warranty
10
Press fn + T to increase the light effect speed Press fn + G to decrease the light effect speed
Adjust The Backlight Speed
9
8
fn + T
/
fn + G
/
Factory Reset
11
9
1. Download the right firmware and QMK Toolbox from our website.
2. Unplug the power cable and switch the keyboard to Cable mode.
3. Remove the space bar keycap to find the reset button on the PCB.
4. Hold the reset key first, then plug the power cable into the keyboard.
Release the reset key after 2 seconds, and the keyboard will now enter
DFU mode.
5. Flash the firmware with the QMK Toolbox.
6. Factory reset the keyboard by pressing fn + J + Z (for 4 seconds).
Troubleshooting? Don’t know what’s going on with the keyboard?
*Step by step guide can be found on our website.
/
K1 MAX WIRELESS MECHANICAL KEYBOARD SPECIFICATIONS
10
Number of keys: 87
Switch type: Mechanical
Baery: 2000mAh
Charging me: Around 3 hours
Charging port: USB Type-C
Mode: Bluetooth / Wired / 2.4GHz
Bluetooth operang distance: Within 10 meters (open space)
Name of Bluetooth device: Keychron K1 Max
Low Power - Red Light Blinking
Charging - Stac Red
Full charged - Stac Green
Switching - Fast Blinking
Paired - Light Off
Pairing - Slow Blinking
Funcon LED Locaon
Charging Baery Indicator
Bluetooth Bluetooth Indicator
Reconnecng-Fast Blinking
Paired - Light Off
Paring - Slow Blinking
2.4G 2.4G Indicator
Status
