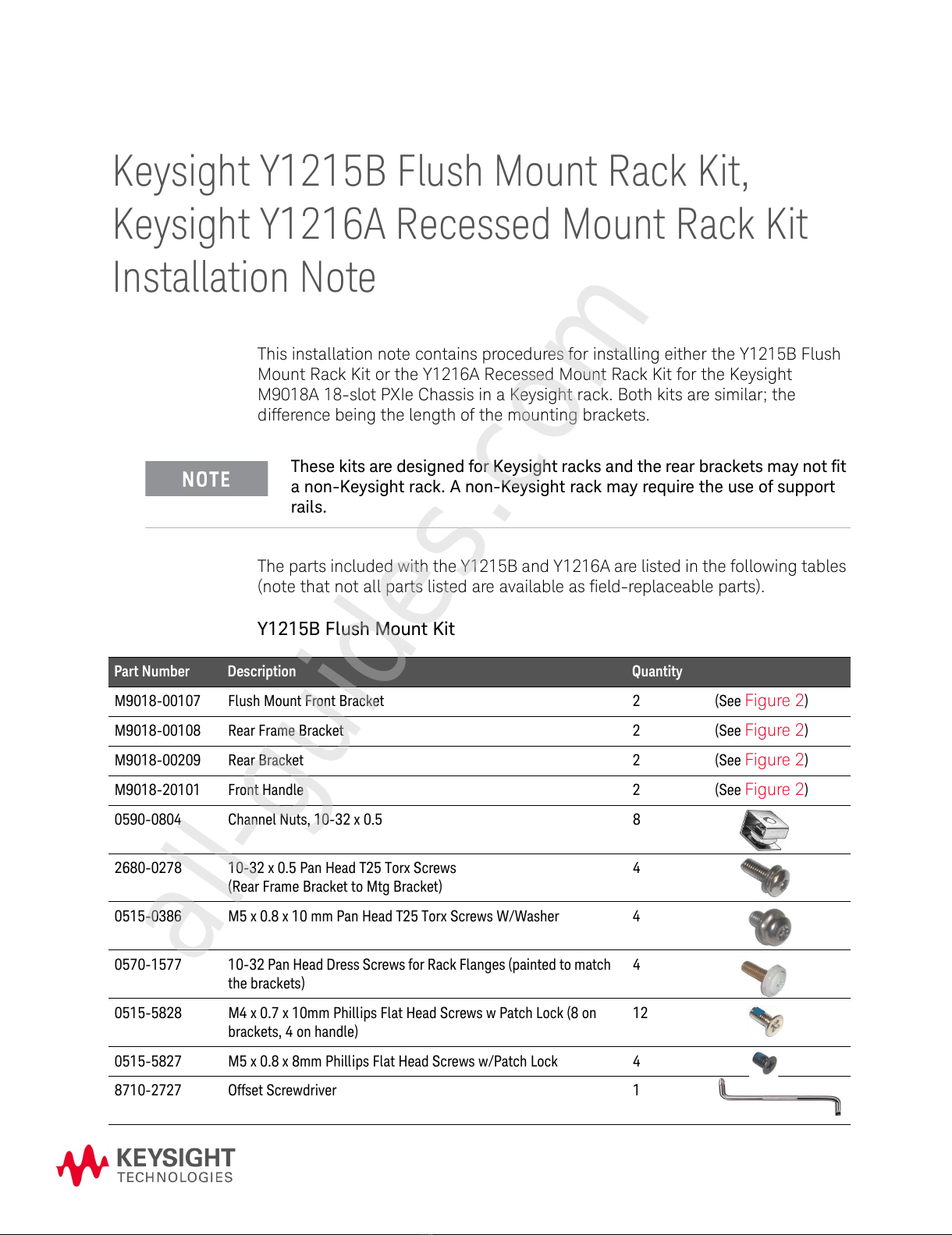

Keysight Y1215B Flush Mount Rack Kit,

Keysight Y1216A Recessed Mount Rack Kit

Installation Note

This installation note contains procedures for installing either the Y1215B Flush

Mount Rack Kit or the Y1216A Recessed Mount Rack Kit for the Keysight

M9018A 18-slot PXIe Chassis in a Keysight rack. Both kits are similar; the

difference being the length of the mounting brackets.

The parts included with the Y1215B and Y1216A are listed in the following tables

(note that not all parts listed are available as field-replaceable parts).

Y1215B Flush Mount Kit

These kits are designed for Keysight racks and the rear brackets may not fit

a non-Keysight rack. A non-Keysight rack may require the use of support

rails.

Part Number Description Quantity

M9018-00107 Flush Mount Front Bracket 2 (See Figure 2)

M9018-00108 Rear Frame Bracket 2 (See Figure 2)

M9018-00209 Rear Bracket 2 (See Figure 2)

M9018-20101 Front Handle 2 (See Figure 2)

0590-0804Channel Nuts, 10-32 x 0.5 8

2680-0278 10-32 x 0.5 Pan Head T25 Torx Screws

(Rear Frame Bracket to Mtg Bracket)

0515-0386M5 x 0.8 x 10 mm Pan Head T25 Torx Screws W/Washer 4

0570-1577 10-32 Pan Head Dress Screws for Rack Flanges (painted to match

the brackets)

0515-5828 M4 x 0.7 x 10mm Phillips Flat Head Screws w Patch Lock (8 on

brackets, 4 on handle)

0515-5827 M5 x 0.8 x 8mm Phillips Flat Head Screws w/Patch Lock 4

8710-2727Offset Screwdriver 1

All manuals and user guides at all-guides.com

all-guides.com

2 Keysight Y1215B and Y1216A Rack Kit Installation Note

Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note

Y1216A Recessed Mount Kit

General Rack Mounting Guidelines

In rack mounting the chassis, follow these guidelines:

-Always begin installing the chassis and heavy instruments at the bottom of

the rack and work up. This maintains a lower center of gravity and reduces the

possibility of the rack tipping.

-Anti-tipping feet, if available with the rack, should always be extended.

-The heaviest instrument or chassis should always be mounted at the bottom

of the rack.

-For maximum cooling and optimum rack thermal efficiency, place the

instrument or chassis with the greatest power consumption towards the top of

the rack. This promotes efficient cooling since heat rises when placed nearer

to the top of the rack, high power instruments will not unnecessarily heat

other instruments. However, in doing this, do not violate the guideline that

the heaviest instruments should be placed at the bottom of the rack.

-If instruments or modules in the chassis are consuming maximum power, 1U

of rack space is required for ventilation below the M9018A chassis.

Part Number Description Quantity

M9018-00204 Recessed Mount Front Bracket 2 (See Figure 2)

M9018-00108 Rear Frame Bracket 2 (See Figure 2)

M9018-00205 Recessed Rear Bracket 2 (See Figure 2)

M9018-20101 Front Handle 2 (See Figure 2)

0590-0804 Channel Nuts, 10-32 x 0.5 (4 for support rail-to-rack, 4 for rack

flanges)

2680-0278 10-32 x 0.5 Pan Head T25 Torx Screws (Rear Frame Bracket to

Mtg Bracket)

0515-0386M5 x 0.8 x 10 mm Pan Head T25 Torx Screws W/Washer 4

0570-1577 10-32 Pan Head Dress Screws for Rack Flanges (painted to

match the brackets)

0515-5828 M4 x 0.7 x 10mm Phillips Flat Head Screws w/Patch Lock (8 on

brackets, 4 on handle)

0515-5827 M5 x 0.8 x 8mm Phillips Flat Head Screws w/Patch Lock 4

8710-2727 Offset Screwdriver 1

To prevent injury during rack mounting, the chassis should

be empty and two people should lift it into the rack.

All manuals and user guides at all-guides.com

Keysight Y1215B and Y1216A Rack Kit Installation Note 3

Procedure Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note

Procedure

Tools Required: #1 and #2 Phillips screwdriver, T25 Torx driver, Offset

Screwdriver (supplied with rack mount kit)

Figure 1 Removing the chassis feet, side handles, and shipping screws

1Refer to Figure 1. Remove the side handles and handle covers from both sides

of the M9018A PXIe chassis.

2On M9018A chassis with serial number TW54XXXXX and later, two additional

screws must be removed (one on each side of the chassis). Refer to Figure 1.

Note that earlier chassis did not have these screws.

3Remove the four chassis feet by pulling out the small rubber insert on each

foot and then removing the Phillips screw that attaches the foot to the

chassis. See Figure 1.

4Attach the Rear Frame Brackets to the Rear Mounting Brackets. See Figure 2.

5If you are using handles, attach the front handles to the Front Mounting

Brackets. See Figure 2.

Do not stand the chassis on its side; the side handles may cause

the chassis to tip over.

Remove the

rubber plug and

then remove the

Phillips screw

inside.

Remove the side

handles and covers.

Remove these screws on both

sides of the chassis if indicated.

See Step 2 above.

All manuals and user guides at all-guides.com

Figure 2 Attaching the Front Handles and Rear Frame Brackets to Rack Mounting Brackets

(right side brackets shown)

M5 x 0.8 x 10mm

Torx T-25

Screws

M4 x 0.7 x 10 mm

Phillips Flat Head

Screws

Y1215B Flush Mount Rack Kit

Y1216A Recess Mount Rack Kit

Front Handle

M9018-20101

Flush Mount Front Bracket

M9018-00107

Rear Bracket

Rear Frame Bracket

M9018-00108

Recessed Mount Front

Bracket M9018-00204 M5 x 0.8 x 10mm

Torx T-25 Screws

Recessed Mount Rear

Bracket M9018-00205

Rear Frame Bracket

M9018-00108

M4 x 0.7 x 10mm

Phillips Flat Head

Screws

Front Handle

M9018-20101

4 Keysight Y1215B and Y1216A Rack Kit Installation Note

Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note Procedure

6Using the front and rear brackets as templates, position the brackets on the

rack’s vertical columns where the chassis is to be mounted. Do this for both

the front and rear brackets on both sides of the rack. Align the bracket holes

over the “center” holes of the rack units. Slide channel nuts over the rack

holes to be used by the rack mount flanges. See Figure 3 below and Figure 6

on page 8.

All manuals and user guides at all-guides.com

Figure 3 Center Holes of Rack, Attaching Channel Nuts

Keysight Y1215B and Y1216A Rack Kit Installation Note 5

Procedure Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note

7Attach the front and rear mounting bracket assemblies to the chassis. Refer to

Figure 4.

One

Rack

Unit

Rack Unit

Center Hole

Channel

Nuts

All manuals and user guides at all-guides.com

Figure 4 Mounting the front and rear brackets to the M9018A chassis (Right side shown)

M4 x 0.7 x 10mm Phillips

Flat Head Screw

M4 x 0.7 x 10mm Phillips

Flat Head Screw

M5 x 0.8 x 8mm Phillips

Flat Head Screw

M5 x 0.8 x 8mm Phillips

Flat Head Screw

M4 x 0.7 x 10mm Phillips

Flat Head Screw

6 Keysight Y1215B and Y1216A Rack Kit Installation Note

Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note Procedure

8If you are using the Y1217A Rack Mount Rail Kit (this may be required for

non-Keysight racks), position the rails on the rack’s vertical columns where

the chassis is to be mounted. Remember that the rails must be installed

upside down to not interfere with the M9018A chassis cooling vents. Align the

adapter holes over the “center” holes of the rack units. See Figure 5 and

Figure 6.

9Slide channel nuts over the rack holes to be used by the support rails.

All manuals and user guides at all-guides.com

all-guides.com

Keysight Y1215B and Y1216A Rack Kit Installation Note 7

Procedure Keysight Y1215B Flush Mount Rack Kit, Keysight Y1216A Recessed Mount Rack Kit Installation Note

Figure 5 Attaching the Support Rails to the Rack

10 Set the M9018A chassis onto the support rails. 

11 Slide the M9018A chassis into the rack until the rack mount Front Brackets

and the Rear Frame Brackets are against the rack’s front and rear

(respectively) vertical columns. Secure the chassis to the rack using the offset

screwdriver and dress screws (Front Bracket) and 10-32 x 0.5 Pan Head Torx

screws (Rear Bracket).

10-32 x 0.5

T25 Torx

Screw

Channel Nuts

To prevent injury during rack mounting, the chassis should

be empty and two people should lift it into the rack.

If the rack will be moved excessively or over long distances, you

should use support rails and a strap to secure the chassis to the

rack slides.

All manuals and user guides at all-guides.com

Figure 6 Y1215B Flush Mount and Y1217A Rail Kits installed on a rack 

(rack sides and M9018A are not shown)

This information is subject to change without notice.

Edition 3 September 2014

*Y1215-90002*

Y1215-90002
