KICKER PowerCans™

6.5” Powered Bluetooth®Speakers

Altavoces Bluetooth 6,5”

Haut-parleurs Bluetooth 6,5po

6,5-Zoll-Bluetooth-Aktivlautsprecher

Owner’s Manual

Manual del Propietario

Manuel d’utilisation

Benutzerhandbuch

1English

Contents

Overview........................2

Package Contents:................ 2

Speciﬁcations........................ 3

Installation ......................5

Power & Auxiliary Wiring......... 5

Switch Install ......................... 6

LED Grille Wiring.................... 7

Speaker Wiring...................... 7

Mounting............................... 9

Operation.....................11

Multi-Function Button........... 11

Status LED.......................... 12

Setting Input Source ............ 13

Line Output & AUX IN .......... 13

Remote Control Install.......... 14

Remote Control Operation ... 16

Troubleshooting............17

Warranty ......................18

Int. Warranty.................71

2English

Overview

IMPORTANT SAFETY WARNING

PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR

SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER

CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING

FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS

AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN

VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1

INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND

ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND

LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A

SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING

TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE

SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR

THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE

YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING

VOLUME.

The PowerCans are the next generation in mobile

audio systems, combining the innovations of new

transfer protocols with KICKER’s ﬁnest speaker and

amp performance. This audio system has everything

you need ready to roll right out of the box. Bluetooth

5.0 and AUX Input, integrated ampliﬁer, RGB lighting,

line output, and a wired remote control built to mount

in a standard marine panel. And at its heart, the high-

powered amp and 6.5” speakers pack a punch with

KICKER signature quality audio.

Use the following instructions to install and operate

your PowerCan and PowerCan Remote.

Package Contents:

(4) M6*14 Screws (8) Washers for mounting rings

(4) M8*16 Screws (4) Washers for mounting base

(2) 1.5” Round Rings (2) 1.75” Round Rings

(2) 2” Round Rings (2) Mounting Bracket Base

(2) 6-inch Rubber Strips for mounting rings

(1) RGB LED Pigtail (1) Ring Terminal – Black

(1) Wired Remote Control

(1) Fuse Accessory Wire with 15A ATC fuse

3English

Model: BTCAN65

Power Output

@ 14.4V, <10% THD+N

75W x 2

Height [in, mm] 6-5/8, 168

Width [in, mm] 6-5/8, 168

Depth [in, mm] 7-7/8,200

Weight [lbs, kg] 13.6, 6.2

Woofer [in, mm] 6-1/2, 160

Tweeter [in, mm] 1, 25

Wiring Harness Length [ft, m] 12, 3.66

Frequency Response [Hz] 80-20K

Signal-to-Noise Ratio >102, A-weighted,

re: rated power

Tweeter Magnet Material Neodymium

Tweeter Dome Material Titanium

Tweeter Design Dome

Woofer Cone Material Polypropolene

Woofer Surround Material Santoprene

Aux Input Stereo 3.5mm Female

1.0 V Sensitivity

Line Output Stereo 3.5mm Female

Buffered, 1V

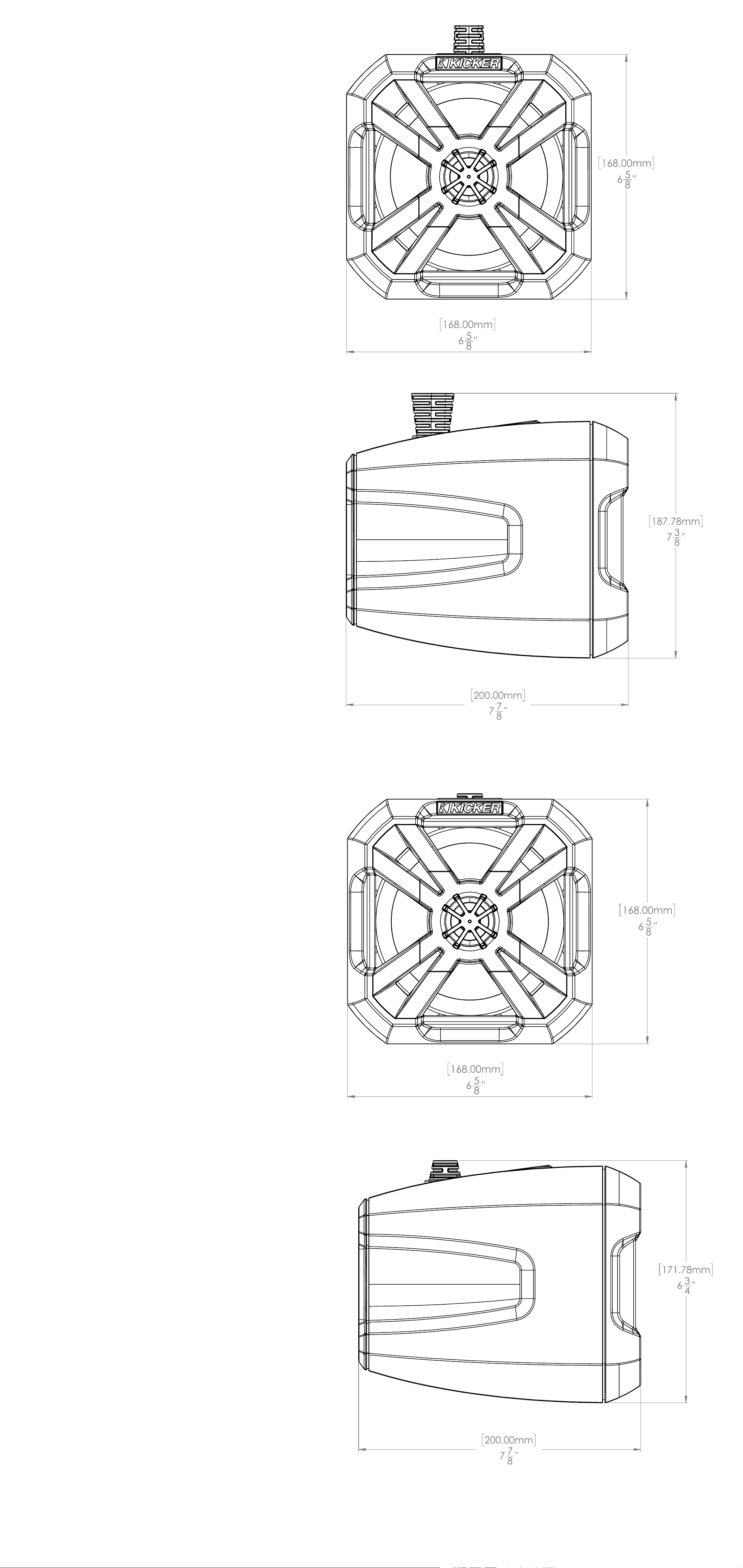

Speciﬁcations

4English

Primary

(Right)

Secondary

(Left)

5English

Installation

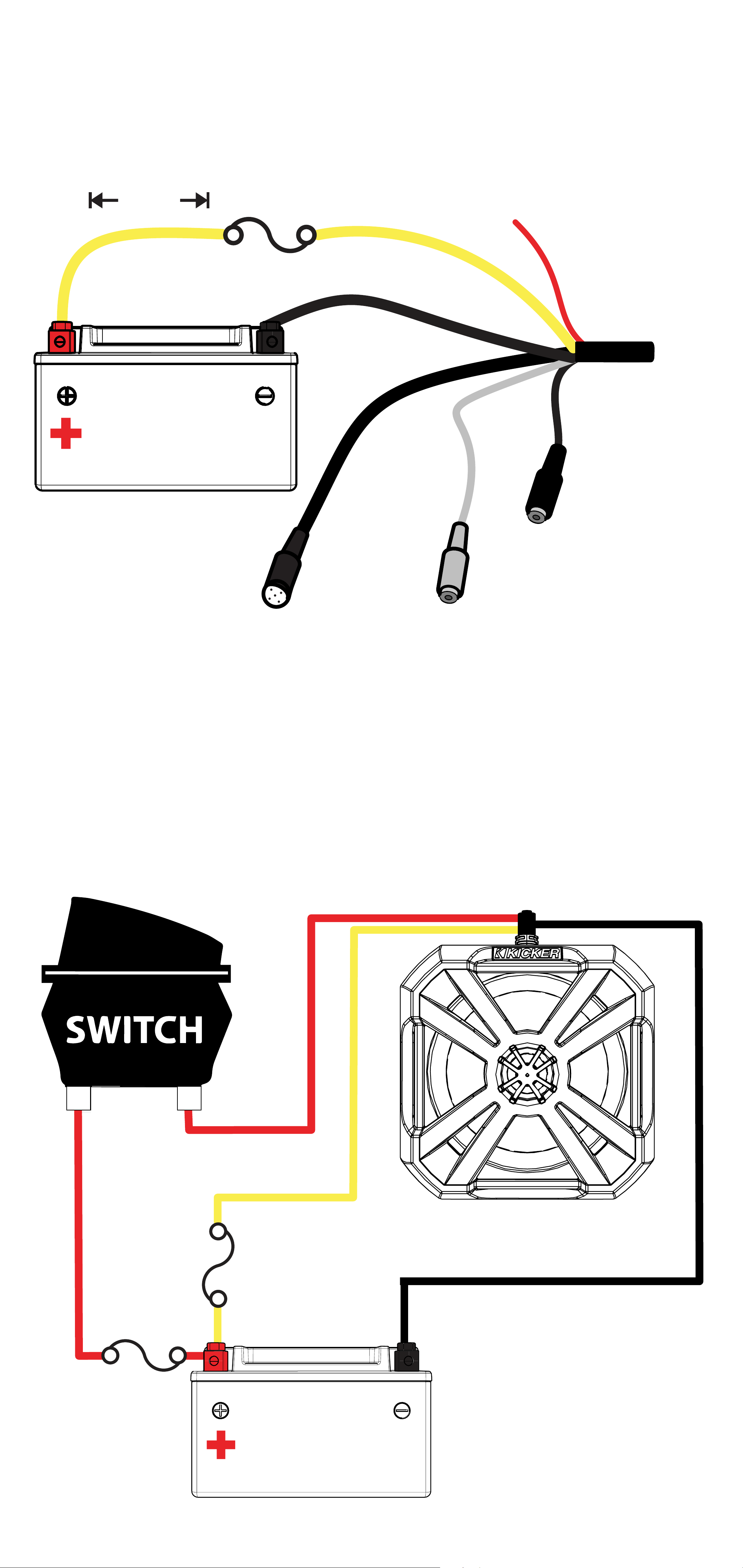

Power & Auxiliary Wiring

Disconnect the vehicle’s battery to avoid an electrical

short. Run the black ground wire to a paint-and-

corrosion-free, solid, metal area of the vehicle’s

chassis or the negative battery terminal. Crimp the

provided 5/16” ring terminal to the ground wire. The

ring terminals have been left off so that power and

ground wires may be run through vehicle tubing. Do

not install the ring terminals until all wires have been

run to their ﬁnal location.

Run the yellow +12V constant wire to the battery

location. Crimp the provided 15A ATC fuse to

the yellow wire, which includes a heat-shrink butt

connector. Once mechanically crimped, apply

heat to the connector to create a secure, insulated

connection. Then securely connect the fuse’s 5/16”

ring terminal to the positive battery terminal. Note that

while the ring terminals can be cut off if necessary,

the fuse should always be kept within 18 inches of

the battery.

6English

12V

15A ATC fuse

+12V

Ignition

(red)

+12V Constant

(yellow)

battery

wired

remote

ground

(black)

LINE OUT (1V,

3.5mm - grey)

AUX IN (1V,

3.5mm - black)

≤18”

(45cm)

Connect the Red +12V Ignition Wire to the switched

ignition power source, dash-mounted switch,

accessory or relay switch.

12V

Switch Install

If you’d like to use a switch to control power to your

PowerCan, wire it according to the following diagram.

battery

fuse

15A ATC

fuse

2A (sold

separately)

ground (black)

+12V Ignition (red)

+12V Constant (yellow)

7English

Speaker Wiring

The speaker wiring for the PowerCan comes pre-

installed with heat-shrink butt connectors on the

Right PowerCan for a fast and secure connection.

Connect the Right PowerCan’s speaker wire to the

left PowerCan’s speaker wire, then crimp and apply

heat.

Speaker wires

LED Output &

Input wires

LED Grille Wiring

1. Connect the LED Output of the Right PowerCan

(female plug), located on the smaller wire loom, to the

LED Input (male plug) of the Left PowerCan.

2. To control LED Grille behavior, install the KICKER

KMLC (sold separately) by connecting the male LED

plug of the Right PowerCan, located on the larger

wire loom, to the KMLC female plug.

8English

12V

Ground

+12V

Switch 2A fuse ≤7”

(17.5cm)

battery

3. If you’re not using the KMLC, use the included

RGB Pigtail to hard-wire your LED. Connect the RGB

Pigtail to the male LED plug of the Right PowerCan.

When hard-wiring the LED lighting, the black lead is

+12V and the blue, red and green leads are ground.

Connect the black LED wire to the positive terminal of

the battery.

a. Place a 2-amp fuse (not included) no further than

7” away from the battery terminal.

b. Install a switch (not included) on the black LED

wire between the fuse and the speaker, so the LED’s

can be turned off. Without a switch to turn them off,

they will always be on.

Red Red

Green Green

Blue Blue

Red/Green Yellow

Red/Blue Magenta

Blue/Green Cyan

Red/Green/Blue White

Connect the red, blue and/or green LED wires to the

negative terminal of the battery. See the Venn diagram

below for available combinations.

Red

Yellow

Green BlueCyan

White

Magenta

9English

Mounting

The PowerCans mount out-of-the-box to round bars

with the included 1.5”, 1.75”, and 2” diameter Bar

Clamps. Use the KPB Square Clamps (47KPBSQ),

sold separately, to mount your PowerCans to square

bars. Choose a structurally sound location to mount

the PowerCans. The Mounting Base may be rotated

±30° to accommodate some curved bars. Make sure

there are no items interfering with the route of the

wiring. Installation tools are not provided. 5mm and

6mm Allen Wrenches are required. Using mounting

hardware, including clamps and screws, not

provided by KICKER will result in a voided

warranty.

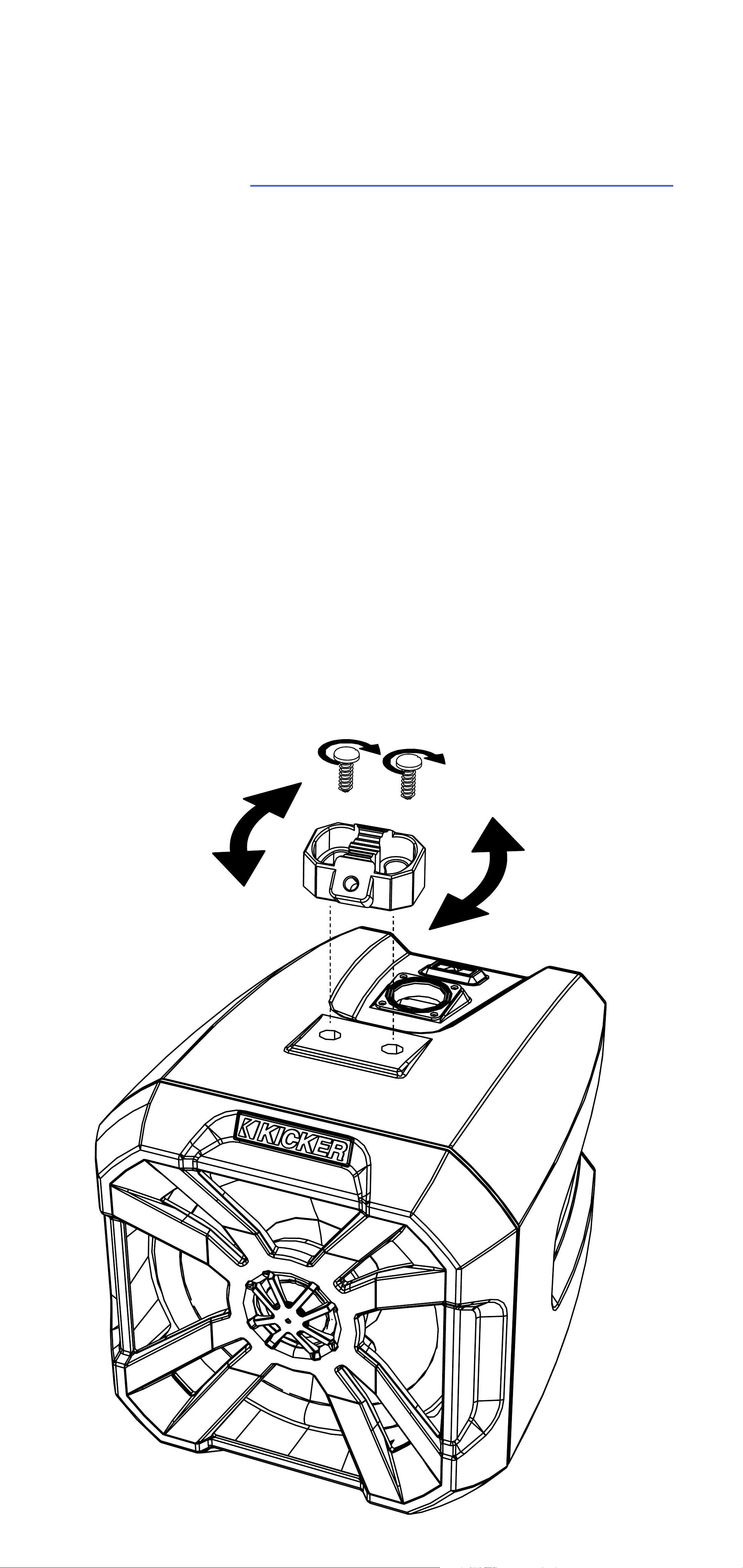

1. Screw the Mounting Bases to the PowerCans

using the Mounting Screws.

±30°

6mm Allen

Wrench required
