Kicker 48KSS269 Bedienungsanleitung
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 1of 13
48KSS269 Installation Guide
TABLE OF CONTENTS
Parts List
……………………………………………………………………………………..
2
Assembling and Mounting the KSC270
…………………………………………………......
3
Mounting the KSS69 Woofer
……………………………………………………………...
5
Mounting the KSS69 Woofer Using the Adapter
……………………………………………
7
48KSS269-27XO Mid-Range Tweeter Crossover
……………………………………….......
10
48KSS269-69XO Mid-Range Woofer Crossover
……………………………………….......
12
READ AND UNDERSTAND ALL OF THESE INSTRUCTIONS BEFORE
INSTALLATION!
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 2of 13

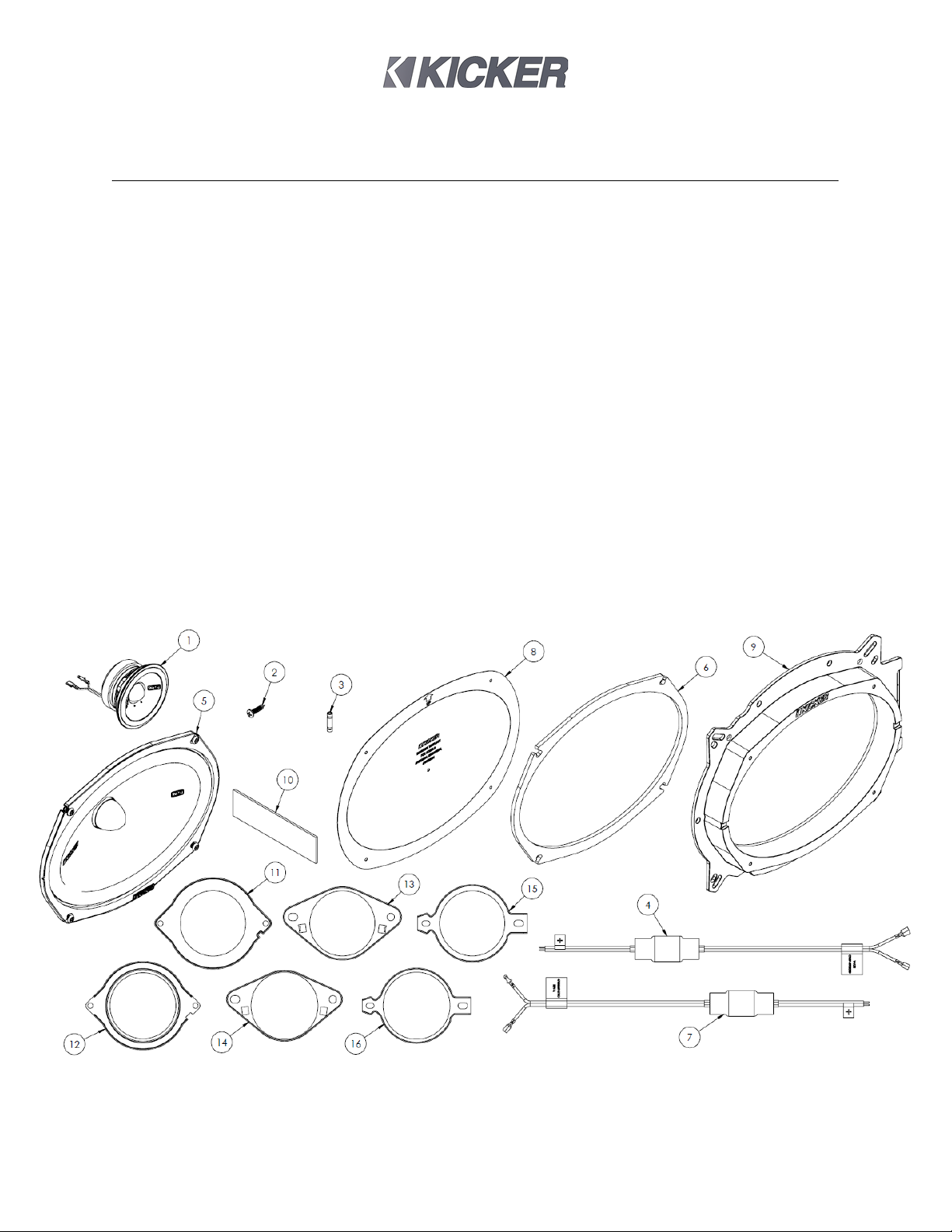

PARTS LIST
ITEM NO.
DESCRIPTION
QTY.
1
2.75” KSC270 MID-RANGE/TWEETER
2
2
30mm LONG SHEET METAL MOUNTING SCREW
12
3
BUTT CONNECTOR
8
4
48KSS269-27XO 2.75” MID-RANGE/TWEETER CROSSOVER
2
5
6”x9” KSS69 MID-BASS WOOFER
2
6
6”x9” MID-BASS WOOFER BACK GASKET/SPACER
2
7
48KSS269-69XO 6”x9” MID-BASS WOOFER CROSSOVER
2
8
6”x9” MID-BASS WOOFER MOUNTING TEMPLATE
2
9
6”x9” MID-BASS WOOFER MOUNTING ADAPTER
2
10
FOAM DAMPENER FOR MOUNTING ADAPTER
2
11
JEEP JL FLANGE
2
12
JEEP JL RETAINER
2
13
SUBARU/TOYOTA FLANGE
2
14
SUBARU/TOYOTA RETAINER
2
15
GM/CHRYSLER FLANGE
2
16
GM/CHRYSLER RETAINER
2
17
BLACK ADHESIVE TO SECURE FLANGE TO RETAINER
(NOT SHOWN)
2
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 3of 13
Kicker 48KSS269 system packs pair the Kicker KSC270 mid-range tweeter with a 6”x9”
mid-bass woofer for replacement of factory speakers. The KSC270 utilizes a choice of three
different mounting flanges allowing for bolt-in replacement for some GM, Chrysler, Subaru,
Toyota, and Jeep models. This document demonstrates mounting and wiring of the KSS270 mid-
range tweeter and 6”x9” mid-bass woofer for the following Kicker models:
•49KSS269

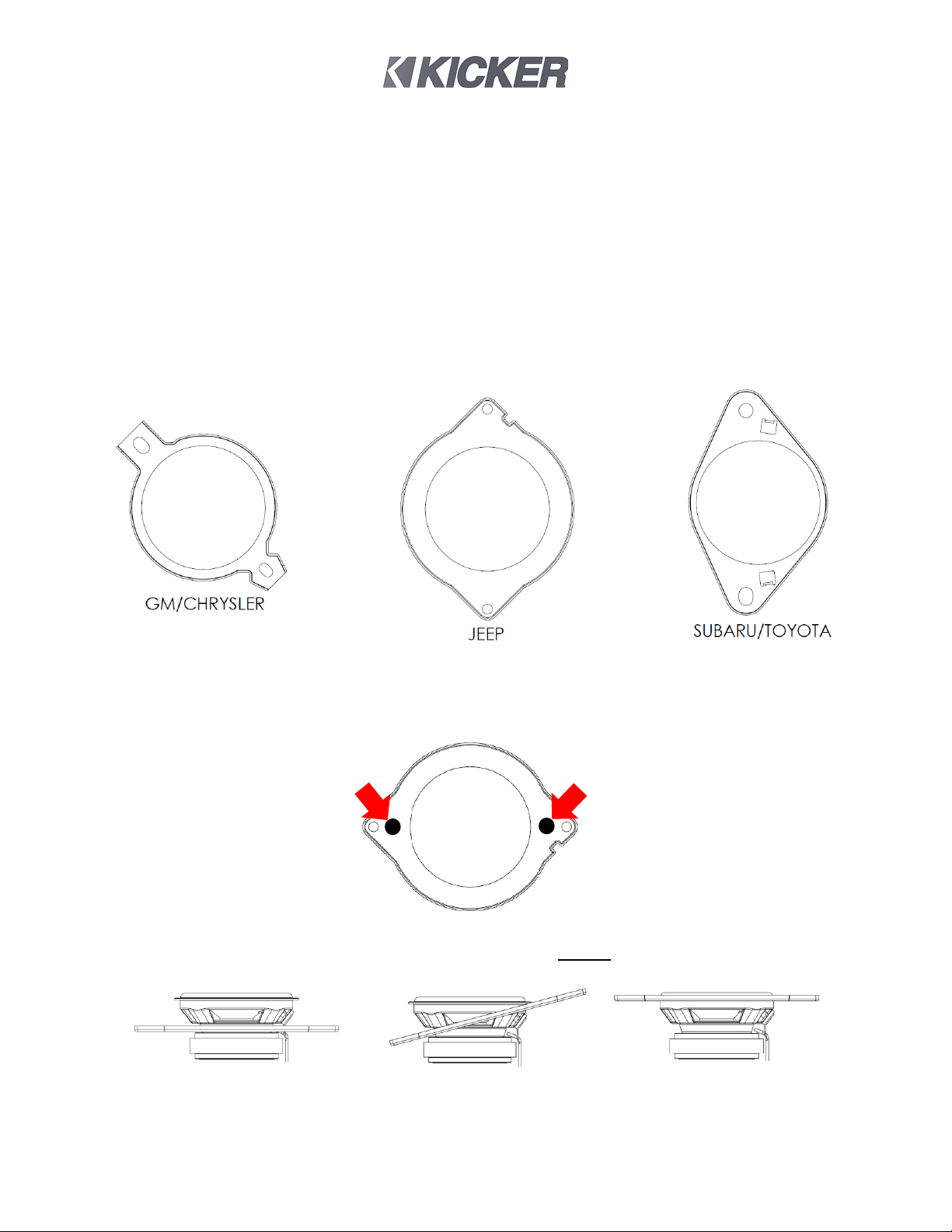

ASSEMBLING AND MOUNTING THE KSC270
1. Find flange that matches your vehicle’s factory tweeter flange.
2. Place a “BB” sized piece of black adhesive in the general location shown on the flange.
(Black adhesive is not necessary for installation. Adhesive aids in holding the assembly
together during installation.)
3. Route KCS270 wires and motor through the flange. NOTE: Place flange over terminals
first, then locate speaker in flange.
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 4of 13
4. Place retainer on top of speaker and inside the flange. If black adhesive is used, press
retainer into adhesive on the flange.
5. Rotate speaker to desired orientation in the flange.
6. Fasten speaker to mounting location using the factory hardware or supplied screws.
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 5of 13
MOUNTING THE KSS69 WOOFER
1. Prepare the speaker harness to accept the Kicker KSS speaker. Review “48KSS269-
69XO MID-RANGE WOOFER CROSSOVERS”section of the document.
2. Use the mounting template to cut and drill holes for custom mounting locations. De
cautious not to drill into any components behind the surface.
3. Using the supplied screws or factory hardware, mount the speaker to its mounting panel.
If speaker is placed behind a door panel do not use the grille.
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 6of 13
4. Apply the black adhesive into the gap of the bezel where the grille’s tabs insert and
engage the bezel.
5. Carefully insert grille into the gap in the bezel.
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 7of 13
MOUNTING THE KSS69 WOOFER USING THE ADAPTER
1. If necessary, use the mid-bass woofer mounting adapter. Find the bolt pattern that
matches your factory speaker. Factory mounting hardware will be reused.
2. Using side cutters remove any tabs that may impede installation of adapter or reassembly
of factory components. Cutting locations are molded into the backside of the adapter.
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 8of 13
3. For some applications the adapter clips to the mounting panel on one side. It may be
necessary use the foam damper to tighten the fitment of the of the clip-on side of the
adapter.
4. Fasten the adapter to the mounting panel using the factory hardware.
FOAM
FOAM
BODY PANEL
FOAM
BODY
PANEL
SPEAKER HOLE
BODY
PANEL
SPEAKER HOLE
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 9of 13
5. A back gasket/spacer is included to improve fitment. It may be necessary to space the
speaker motor further way from accessories (windows tracks, lock actuators, etc.) in
some applications. If necessary, use the back gasket/spacer.
6. Fasten the mid-bass woofer to the adapter using the supplied screws.
FOAM
BODY
PANEL
EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 10 of 13
48KSS269-27XO MID-RANGE/TWEETER CROSSOVER
DANGER! Electrical hazard. Burns, electric shock, or damage to equipment
may occur during connection of electrical wires. Always disconnect the vehicle’s
power source before making wire connections.
Kicker supplies crossovers for KSC270 to optimize the sound of the speakers. The
48KSS269-27XO crossover is terminated so that it will only connect to the KSC270 speaker.
NOTE: The KSS270 crossover is labeled with the part number 48KSS269-27XO.
