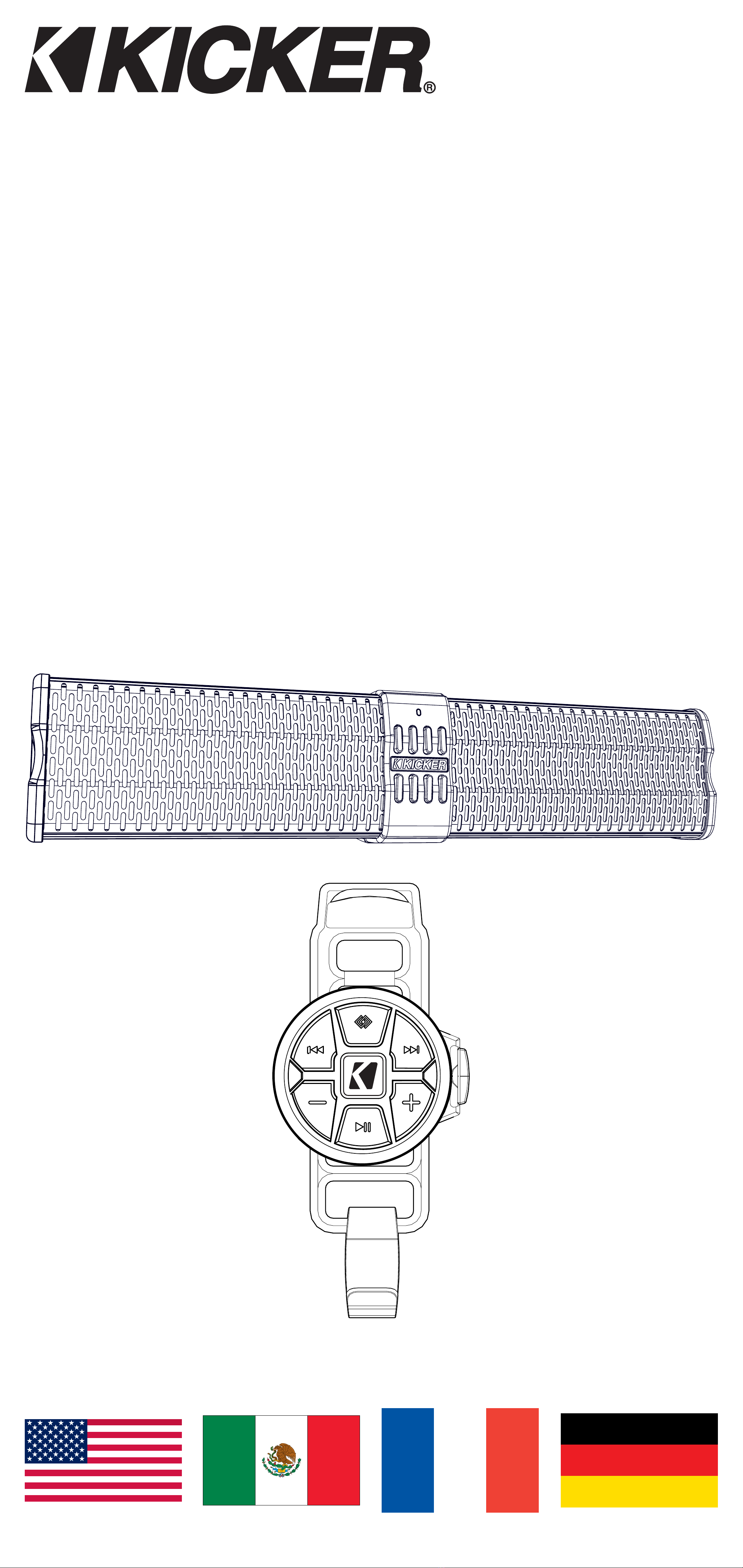

KICKER PowerBar
KPB1 | KPB2
Amplified Weatherproof Bar-Mount Speaker System with Bluetooth
Sistema de alto-falantes Amplificado à prova de intempéries com Bluetooth
Système d’enceintes Amplifiées étanches à Montage sur Barre avec Bluetooth
Verstärktes Wetterfestes Bar-Mount-Lautsprechersystem mit Bluetooth
Owner’s Manual
Manual del Propietario
Manuel d’utilisation
Benutzerhandbuch
1English
Contents
Overview........................2
Specifications........................ 3
Installation ......................4
Wiring ................................... 4
Relay Install &
Battery Management ............. 5
Mounting............................... 6
Operation.......................8
Status LED............................ 8
Control Panel ........................ 9
Setting Input Source ............ 10
Line Output & AUX IN .......... 10
Broadcast Mode ................. 11
Remote Control Install.......... 12
Remote Control Operation ... 14
Troubleshooting............15
Warranty ......................16
2English
Overview
IMPORTANT SAFETY WARNING
PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR
SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER
CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING
FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS
AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1
INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND
ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND
LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A
SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING
TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE
SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR
THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE
YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING
VOLUME.
The KICKER PowerBar-series of powered,
bar-mounted Bluetooth speakers provide you with
the power and clarity required for enjoying audio
in any outdoor and recreational setting. Featuring
an IP66 rating for weatherproof applications, the
PowerBars come with an easy-to-use control panel
and mountable remote control, so changing the
tunes is only a touch away. KICKER’s new Broadcast
Mode technology allows you to sync up two or more
KPB’s via Bluetooth, while AUX Input and Line Output
connections allow for any combination of use with
other devices. Use the KPB1 or the larger KPB2 on
the beach, the links, the patio, off-road, or anywhere
you’re missing the music.
Use the following instructions to install and operate
your KPB and KPB Remote.
3English
Model: KPB1 KPB2
Power Output
@ 14.4V, <10% THD+N
150W 300W
Total Speakers 6 10
Height [in, mm] 4-9/16, 115 4-9/16, 115
Width [in, mm] 21, 530 34-1/2, 880
Weight [lbs, kg] 16.3 7.39
Woofer [in, mm] 3, 76
Tweeter [in, mm] 1, 25
Wiring Harness Length [ft, m] 12, 3.66
Frequency Response [Hz] 65-20,000
Signal-to-Noise Ratio >75, A-weighted
re: rated power
Tweeter Magnet Material Neodymium
Tweeter Dome Material Titanium
Tweeter Design Dome
Woofer Cone Material Polypropolene
Woofer Surround Material Santoprene
Aux Input Stereo 3.5mm Female
0–1.0 V Sensitivity
Line Output Stereo 3.5mm Female
Buffered, 2.5V
Specifications
4English
Installation
Wiring
Disconnect the vehicle’s battery to avoid an electrical
short. Connect the KPB’s black ground wire to a
paint-and-corrosion-free, solid, metal area of the
vehicle’s chassis, or to the negative battery terminal.
Connect the KPB’s red power wire to the positive
battery terminal. The wire harness includes an inline
15A ATC fuse (KPB1) or 30A ATC fuse (KPB2), and
5/16” ring terminals. The ring terminals can be cut off
if they’re not needed, but the fuse should always be
kept within 18” of the battery.
Keep the audio signal cable away from factory wiring
harnesses and other power wiring. If you need to
cross this wiring, cross it at a 90-degree angle.
12V battery
WARNING: Do not
connect to +24V
battery systems.
to chassis ground or battery
IMPORTANT: The KPB draws a small amount
of power over time, even when off. If storing
the vehicle for two weeks or more, take
precautions to ensure the life of your vehicle’s
battery, such as disconnecting the fuse.
fuse
KPB1 - 15A ATC
KPB2 - 30A ATC
5English
12V
Relay Install & Battery Management
To increase battery longevity, it is good practice to
use a Battery Management System (BMS) for your
electric vehicles, as well as an accessory or relay
switch for your KPB. Relays and BMS are optional
and not included. Required current rating: 30A
Relay Pinouts
30 - Power Input
85 - Relay Ground
86 - Relay Trigger Input
87 - Power Output - Open Contact (ON)
87a - Disconnected
battery
fuse
KPB1 - 15A ATC
KPB2 - 30A ATC
30
86
87a
87
85
ground
KPB or other device
SPDT Bosch Relay
6English
Mounting
The KPB-series mounts out-of-the-box to round
bars with the included 1.5”, 1.75”, and 2” diameter
Bar Clamps. Use the KPB Square Clamps - sold
separately - to mount your KPB to square bars.
Choose a structurally sound location to mount the
KPB. The KPB may be mounted below or above
bars, and the Mounting Base may be rotated ±30° to
accommodate some curved bars. Make sure there
are no items interfering with the route of the wiring.
Installation tools are not provided. 5mm and 6mm
Allen Wrenches are required.
1. Screw the Mounting Bases to the PowerBar using
the Mounting Screws.
±30°
6mm Allen Wrench required
7English
2. Place the included rubber inserts in the Clamp
Rings for improved vibration dampening, then install
the Clamp Rings around your bar, securing them to
the Mounting Bases using the Clamp Screws.
The KPB2 may be mounted with the bases and
clamps in an inward, or outward configuration.
KICKER does not recommend a combined
inward/outward configuration.
5mm Allen
Wrench required
8English
Operation
Status LED
The LED color displays audio source, pairing status,
and warnings:
Bluetooth (Blue)
Off Power is off
Solid Bluetooth Mode
Rapid Blinking Bluetooth Pairing Mode
Alternate Red/Blue Waiting for Broadcast Mode
to connect
Long Blue + Short Red Broadcast Mode
Bluetooth Transmitter Active
AUX IN (Red)
Off Power is off
Solid AUX Mode
Alternate Red/Blue Waiting for Broadcast Mode
to connect
Long Red + Short Blue Broadcast Mode
AUX Transmitter Active
Other
Purple Broadcast Mode
Receiver Active
Red Rapid Blinking AMP FAULT Warning
(Overload, Undervoltage,
Overvoltage)
9English
Control Panel
EQ
Long Press - Power On/Off
Power on the KPB by
performing a long press of
the POWER Button
Status LED
EQ
Increase Volume Decrease Volume
Short Press - Previous Track
Long Press - Rewind
Short Press - Next Track
Long Press - Fast Forward
Short Press - Play/Pause or Mute
Very Long Press (10s) - Software Reset
Short Press - Change Input Source
Long Press - Enter Bluetooth Pairing Mode
Change EQ Presets - KICKER, LOUD,
SOUND QUALITY, & VOICE
1S
10S
short press
long press
very long press
