User Guide

Combination Photoelectric

Smoke & Carbon Monoxide Alarm

with Hardwire Interconnect & Voice

Model 900-CUAR-VCA

120V HARDWIRE INTERCONNECT

AA BATTERY BACKUP

AC POWER REQUIRED

SELFTESTING SEE SECTION 10

VOICE MESSAGE SYSTEM

COMBINATION ALARM

P/N: 900-7208-00 Rev. A

Thank You for Purchasing this Kidde Alarm

Hardwired for 120V AC, this model includes two replaceable AA backup batteries. It also contains a voice

message system and HUSHTM to temporarily silence nuisance alarms, and “self-testing” features (see section

10).

Teach children how to respond to the alarm and that they should never play with the unit. This alarm is a

multi-criteria device designed to detect both smoke and carbon monoxide from any source of combustion in a

residential environment. It is not designed for use in a recreational vehicle (RV) or boat.

NOTE: Please thoroughly read this user guide and save the document for future reference and to pass on to

any subsequent owner. Images are representative only. Actual product may vary slightly.

Underwriters Laboratories of Canada (CAN/ULC), The National Fire Protection Association (NFPA), and the

manufacturer recommend replacing this alarm ten years from the date code on back of alarm.

Date Code (on back): ___________________

Date of Purchase: ___________________

Where Purchased: ___________________

Date to Replace: ___________________

Product Support: 1-800-880-6788

Please write down the below information

and have this at hand when you call.

Contents

1. Smoke Alarm: What To Do When The Alarm Sounds . . . . . . . . . . . . 4

2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds . . . . . . . . 5

3. Other Alarm Visual And Audible Indicators . . . . . . . . . . . . . . . 6

4. Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . 7

5. Introduction, Product Features And Specifications . . . . . . . . . . . . . 8

6. Limitations Of Smoke And Carbon Monoxide Alarms . . . . . . . . . . . . 9

7. Recommended Locations For Smoke And Carbon Monoxide Alarms . . . . . . 11

8. Locations To Avoid. . . . . . . . . . . . . . . . . . . . . . . . . 14

9. Wiring / Installation / Activation . . . . . . . . . . . . . . . . . . . 15

10. Operation And Testing . . . . . . . . . . . . . . . . . . . . . . . 19

11. Recognizing Nuisance Alarms . . . . . . . . . . . . . . . . . . . . 20

12. Battery Back Up . . . . . . . . . . . . . . . . . . . . . . . . . 21

13. General Carbon Monoxide (CO) Information . . . . . . . . . . . . . . 22

14. Cleaning Your Alarm. . . . . . . . . . . . . . . . . . . . . . . . 23

15. Good Safety Habits . . . . . . . . . . . . . . . . . . . . . . . . 24

16. Service And Warranty . . . . . . . . . . . . . . . . . . . . . . . 25

1. Smoke Alarm: What To Do When The Alarm Sounds

The smoke alarm pattern is three long beeps with voice “Fire! Feu!,” a 1.5 second pause, and three long beeps re-

peating. The red LED blinks in time with the alarm pattern only on the alarm(s) that detected the hazard (initiating

alarm). The smoke alarm takes precedence when both smoke and carbon monoxide are present.

•Alert small children in the home as well as anyone else that might have difficulty recognizing the

importance of the alarm sounding or that might have difficulty leaving the area without help.

•Plan two ways out! Leave immediately by your escape plan. Don’t waste time getting dressed or picking up

valuables.

•While leaving, don’t open any inside door without first feeling its surface. If hot, or if you see smoke seeping

through cracks, don’t open that door! Instead, use your alternate exit. If the inside of the door is cool, place

your shoulder against it, open it slightly and be ready to slam it shut if heat and smoke rush in.

•If the escape route requires you to go through smoke, stay close to the floor where the air is cleaner.

Crawl if necessary, and breathe shallowly through a cloth, wet if possible.

•Once outside, go to your selected meeting place and make sure everyone is there.

•Call the fire department or 911 from your cell phone outside, or from your neighbour’s home-not from

yours!

•Don’t return to your home until the fire officials say that it is all right to do so.

NOTE: See Section RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.

2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds

The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon monoxide.

Monoxyde de carbone!” repeating every 5 seconds. The red LED blinks in time with the alarm pattern.

On DC power, after 4 minutes in CO alarm the alarm pattern will only occur every 60s.

WARNING: ACTUATION OF THIS DEVICE INDICATES THE PRESENCE OF CARBON MONOXIDE

CO WHICH CAN KILL YOU. IF ALARM SIGNAL SOUNDS:

1 IMMEDIATELY MOVE TO FRESH AIR  OUTDOORS OR BY AN OPEN DOOR/WINDOW. DO A HEAD

COUNT TO CHECK THAT ALL PERSONS ARE ACCOUNTED FOR. DO NOT REENTER THE PREMISES

OR MOVE AWAY FROM THE OPEN DOOR/WINDOW UNTIL THE EMERGENCY SERVICES

RESPONDERS HAVE ARRIVED, THE PREMISES HAVE BEEN AIRED OUT, AND YOUR ALARM

REMAINS IN ITS NORMAL CONDITION.

2 CALL YOUR LOCAL EMERGENCY SERVICE FIRE DEPARTMENT OR 911

NEVER RESTART THE SOURCE OF A CO PROBLEM UNTIL IT HAS BEEN CORRECTED. NEVER

IGNORE THE ACTIVATION OF THE ALARM!

NOTE: See Section RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.

PHONE NUMBER

3. Other Alarm Visual And Audible Indicators

Operational Mode Visual Indications Audible Indications Action/Note

Normal (standby) AC power: Green LED on

continuously.

DC power: Green LED blinks

approx every 60 sec.

Test (button press when

no alarm condition is

present)

(Note: Test is very loud,

stand a few feet away.)

Red LED blinks in time with

alarm pattern.

• Single beep.

• 3 long beeps, voice “Fire! Feu!,”

3 long beeps, 4 quick beeps, voice

“Warning! Carbon monoxide,

Monoxyde de carbone!”

4 quick beeps.

Perform button press once a week to

verify proper alarm operation.

Smoke or CO Alarm

Memory (unit has

experienced a smoke or

CO alarm event, or has

detected 100ppm CO or

greater.)

Smoke: Red LED blinks

every 15 sec.

CO: 2 red LED blinks

every 15 sec.

After button push, voice “Caution,

carbon monoxide previously detected.

Attention, niveau de monoxyde de

carbone précédemment détecté.”

(If CO was detected.

No voice for smoke alarm memory)

NOTE: Alarm memory is only retained

for 24 hrs.

Push button to clear Alarm Memory.

Smoke Alarm HushTM

Mode

Red LED blinks every 2 sec. After button push, voice “Hush mode

activated, Mode hush activé.” Smoke

alarm pattern stops. (If there is too

much smoke to allow HushTM, smoke

alarm pattern continues.) Voice “Hush

mode cancelled, Mode hush annulé”

if button pushed again during HushTM.

This feature is to be used only when

a known alarm condition, such as

smoke from cooking, activates the

alarm.

Push button during HushTM to clear

HushTM and perform a test.

CO Alarm Reset None After button push: CO alarm pattern

stops.

Unit is conrming if CO is present or

if it experienced a nuisance situation.

Re-alarm means danger. Move to fresh

air and call 911.

Initiating Alarm

(multiple alarms in an

interconnected system)

Red LED blinks in time with

alarm pattern indicating that this

is the unit initiating the alarm

in an interconnected, multiple

alarm, system.

NOTE: It is possible for more than

one unit to detect a hazard and

become an initiating alarm unit

(Red LED blinking).

Unit in either Smoke or CO alarm

mode.

4. Troubleshooting Guide

3. Other Alarm Visual And Audible Indicators

f you require further information please contact Product Support at 1-800-880-6788 or write us at:

Kidde Canada Inc., P.O. Box 40, Apsley, ON K0L 1A0. Our internet address is www.kiddecanada.com.

Trouble Condition

Visual Indications Audible Indications Action

False Low Battery

(AC power

connected before

backup batteries

activated)

Amber LED blinks

every 60 sec.

Chirp every 60 sec. * Pull the battery pull tab to activate the backup

batteries.

Low Battery Amber LED blinks every

60 sec.

Chirp and voice “Low Battery, Pile

faible” every 60 sec. (After 1 hour, voice

occurs only once every 15 mins)

* Push button once to silence for 24 hrs.

(Pushbutton again to clear HushTM and

perform a test.)

Note: 7 days after Low Battery begins, the

notications cannot be silenced.

* Replace batteries as soon as possible.

Photo Fault Amber LED blinks every

60 sec.

3 chirps every 60 sec. * See Cleaning Your Alarm section.

* Push button once to attempt to reset the unit.

* If error continues, remove alarm, dispose unit,

and replace as soon as possible.

CO Fault Amber LED blinks 2 times

every 60 sec.

3 chirps every 60 sec. * Push button once to attempt to reset the unit.

* If error continues, remove alarm, dispose unit,

and replace as soon as possible.

Memory Fault Amber LED blinks 3 times

every 60 sec.

3 chirps every 60 sec. * Push button once to attempt to reset the unit.

* If error continues, remove alarm, dispose unit,

and replace as soon as possible.

End of Unit Life Amber LED blinks 2 times

every 60 sec.

2 chirps every 60 sec.

Voice “Hush mode activated, Mode

hush activé” after button push (rst 7

days only).

* Push button once to silence for 24 hrs. (Push

button again to clear HushTM and perform

a test.)

Note: 7 days after End of Unit Life begins, the

notications cannot be silenced.

* Remove alarm, dispose unit, and replace as

soon as possible.

MCU Failure None Constant Tone * Remove alarm, dispose unit, and

replace as soon as possible.

Stuck Button Amber LED blinks 4 times

every 60 sec.

3 chirps every 60 sec. * Push button to dislodge it from being stuck.

If button cannot be unstuck, remove alarm,

dispose unit, and replace as soon as possible.

5. Introduction, Product Features And Specifications

Introduction

This alarm detects products of combustion using a photoelectric sensor and carbon monoxide using an electro-

chemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.”

Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit.

This is called “End of Unit Life” mode. See Troubleshooting Guide. To help identify the date to replace the unit, a

label has been affixed to the side of the alarm. Write the “Install date” in the space provided, and then write in

the “Replace by” date (10 years from initial power up) in permanent marker on the label prior to installing the unit.

Product Features and Specifications:

•Temperature Operating Range: 4.4°C (40°F) to 37.8°C (100°F)

•Humidity Operating range: 10-95% RH non-condensing

•Audible Alarm: 85+ dB at 3m (10ft), 3.0 to 3.5 KHz pulsing alarm, with voice messages “Fire! Feu!,” and/or

“Warning! Carbon monoxide, Monoxyde de carbone!”

•Smoke Sensor: Photoelectric

•CO Sensor: Electrochemical

•Smoke Alarm HushTM

•Powered by 120VAC (60 Hz, 42 mA max) wire-in connector with two AA battery backup.

•Hardwire interconnectable to other compatible alarms.

•Self-testing (see section 10)

•Voice message system

•This Class B digital apparatus complies with Canadian ICES-003.

ISED Compliance Notice

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following

two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the

device.

6. Limitations Of Smoke And Carbon Monoxide Alarms

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

•Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to

escape, followed by the appropriate egress actions by those occupants.

•There are situations where a smoke alarm may not be effective to protect against fire as stated in CAN/ULC-S552,

CAN/ULC-S553, and the NFPA Standard 72. For instance:

a) smoking in bed

b) leaving children home alone

c) cleaning with flammable liquids, such as gasoline

•Fire warning systems for dwelling units are capable of protecting about half of the occupants in potentially fatal

fires. A smoke alarm may not be effective in some situations, such as during incendiary fires where the fire grows so

rapidly that an occupant’s egress is blocked even with properly located smoke alarms, or when victims are intimate

with the fire (for example, when a person’s clothes catch fire while cooking), too old or young, or physically or

mentally impaired such that they cannot escape even when warned early enough that escape should be possible.

For these people, additional strategies such as protection-in-place or assisted escape or rescue are necessary. *

•Leading authorities recommend that both ionization and photoelectric smoke alarms be installed to help ensure

optimal detection of the various types of fires that can occur within the home. Ionization sensing alarms may de-

tect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sens-

ing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionization alarms.

•A battery powered alarm must have a battery of the specified type, in good condition and installed properly (this

model includes two AA replaceable backup batteries).

•Smoke alarms must be tested regularly to make sure the battery and the alarm circuits are in good operating

condition.

•Smoke alarms cannot provide an alarm if smoke does not reach the alarm. Therefore, smoke alarms may not sense

fires starting in chimneys, within walls, on roofs, on the other side of a closed door or other obstruction.

•If the alarm is located outside the bedroom or on a different floor, it may not wake up a sound sleeper.

•The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For optimal detection, a smoke

alarm should be installed in each sleeping area on every level of a home.

This alarm is not intended to alert hearing impaired individuals.

* Reference National Fire Protection Association (NFPA) standard 72

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

•IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is

NOT designed to detect any other gas.

CAUTION: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon

monoxide gas may be present in other areas. Never restart the source of a CO problem until it has been

fixed. NEVER IGNORE THE ALARM!

WARNING: THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF

FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE COMPLIANCE WITH COMMERCIAL OR

INDUSTRIAL STANDARDS. IT IS NOT SUITABLE FOR INSTALLATION IN HAZARDOUS LOCATIONS

AS DEFINED IN THE LOCAL BUILDING CODE. IT IS NOT DESIGNED FOR USE IN A

RECREATIONAL VEHICLE RV OR BOAT.

•The installation of this device should not be used as a substitute for proper installation, use, and mainte-

nance of fuel burning appliances, including appropriate ventilation and exhaust systems.

•This alarm does not prevent CO from occurring, nor can it solve any existing CO problem.

WARNING: THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM ACUTE EFFECTS OF

CARBON MONOXIDE EXPOSURE. IT WILL NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC

MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. INDIVIDUALS WITH

MEDICAL PROBLEMS MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND

VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.

•This alarm has not been investigated for carbon monoxide detection below 70 PPM.

•This device requires a continuous supply of electrical power from a healthy battery or AC connection,

depending on the model. It will not work without power.

Inhaltsverzeichnis

Andere Kidde Sicherheitssystem Handbücher

Kidde

Kidde 7CO Bedienungsanleitung

Kidde

Kidde P4010ACSCOAQ-WF Bedienungsanleitung

Kidde

Kidde Truesense Combo Bedienungsanleitung

Kidde

Kidde KN-COB-B Bedienungsanleitung

Kidde

Kidde WFPCO Bedienungsanleitung

Kidde

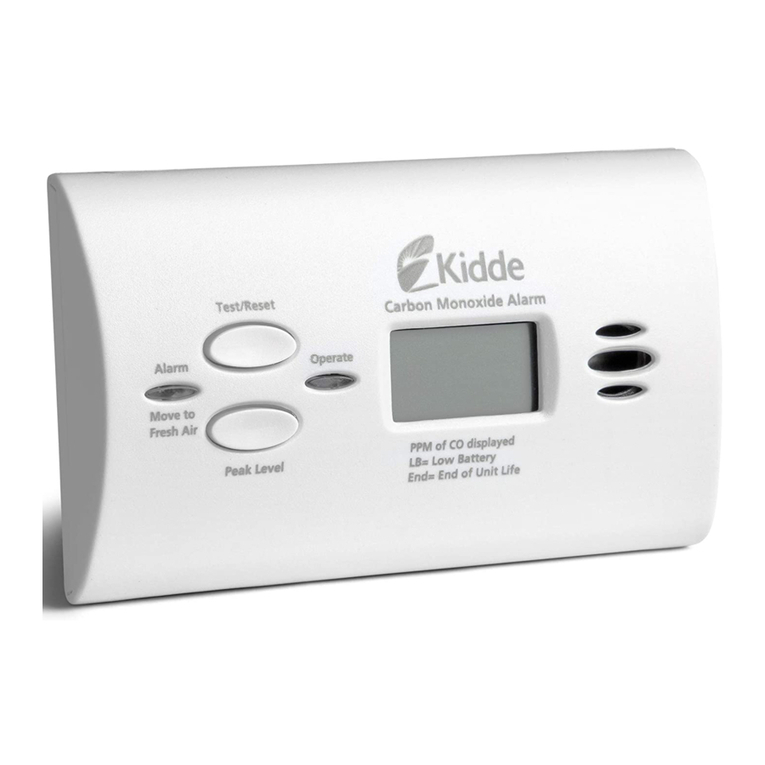

Kidde 8LLCO Bedienungsanleitung

Kidde

Kidde Slick 1SF23/9HI Montageanleitung

Kidde

Kidde KN-COPE-DCA Bedienungsanleitung

Kidde

Kidde 2030-DCR Gebrauchsanweisung

Kidde

Kidde 900-CUAR Bedienungsanleitung

Kidde

Kidde KN-COP-DP-B Bedienungsanleitung

Kidde

Kidde 123I Montageanleitung

Kidde

Kidde KN-COP-DP-10YHCA (900-0284CA) Bedienungsanleitung

Kidde

Kidde DM3000 Montageanleitung

Kidde

Kidde KF10 Bedienungsanleitung

Kidde

Kidde Fyrnetics Slick 1SFW Bedienungsanleitung

Kidde

Kidde KN-COB-DP-H) Bedienungsanleitung

Kidde

Kidde SLED177iCA Bedienungsanleitung

Kidde

Kidde FireBeta XT+ Bedienungsanleitung

Kidde

Kidde P4010ACSCOAQ-WF Bedienungsanleitung

Kidde

Kidde KN-COB-LP2 Bedienungsanleitung

Kidde

Kidde KN-COPP-B-LS Bedienungsanleitung

Kidde

Kidde KN-COPE-D Bedienungsanleitung

Kidde

Kidde KN-COB-IC Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
