Kidde KN-COB-LP2 Bedienungsanleitung
User Guide P/N: 2538-7201-00
ATTENTION: Please take a few minutes to thoroughly read
this user guide which should be saved for future reference
and passed on to any subsequent owner.
Carbon Monoxide Alarm
User Guide
Models: KN-COB-LP2
KN-COB-LP2
• Event Memory
• Battery Operation
Welcome
Note: Many times throughout this User Guide, we will refer to
Carbon Monoxide as “CO”.
This Kidde carbon monoxide (CO) alarm is an important part of your
family’s home safety plan. This alarm has been designed and tested to
detect CO buildup in a residential environment. Your alarm is for use
specifically in the home. As an owner of a CO alarm, there are some
basic facts you should know about for your protection.
Many people think that CO alarms operate like smoke alarms. Like
smoke alarms, CO alarms monitor the air in your home and sound a
loud alarm to warn you of trouble. The way you respond to a CO alarm
is quite different than a smoke alarm. That’s because a house fire and a
CO problem are two distinctly different situations. If your smoke alarm
were to alarm, you would quickly be able to judge the level of danger
you were in with your senses. You can see and smell the smoke, feel the
heat, see, and possibly hear the fire burning. You can also readily see
if your smoke alarm is alarming in a non-emergency situation. Because
your sense of sight, smell, hearing and touch give you information, you
can almost instantly judge what action to take if you hear your smoke
alarm.
CO is an invisible, odorless, tasteless and non-irritating gas – completely
undetectable to your senses. That’s why it is important to your safety
that you have a CO alarm.
Important Warning Statements
IMPORTANT: This carbon monoxide alarm is designed to detect
carbon monoxide from ANY source of combustion. It is NOT
designed to detect smoke, fire, or any other gas.
WARNING: Carbon monoxide alarms are not smoke alarms.
This carbon monoxide alarm is not a substitute for installing and
maintaining an appropriate number of smoke alarms in your
home.
This carbon monoxide alarm will not sense smoke, fire, or any
poisonous gas other than carbon monoxide even though carbon
monoxide can be generated by fire. For this reason you must
install smoke alarms to provide early warning of fire and to pro-
tect you and your family from fire and its related hazards.
CAUTION: This alarm will only indicate the presence of car-
bon monoxide at the sensor. Carbon monoxide may be present in
other areas.
!
!
Important Warning Statements
WARNING: This product is intended for use in ordinary
indoor locations of family living units. It is not designed to
measure compliance with Occupational Safety and Health
Administration (OSHA), commercial or industrial standards. It is
not suitable for installation in hazardous locations as defined in
the National Electric Code.
The installation of this device should not be used as a substitute
for proper installation, use and maintenance of fuel burning
appliances, including appropriate ventilation and exhaust sys-
tems. It does not prevent CO from occurring, nor can it solve an
existing CO problem.
WARNING: This device is designed to protect individuals
from acute effects of carbon monoxide exposure. It may not fully
safeguard individuals with specific medical conditions. If in doubt,
consult a medical practitioner.
Individuals with medical problems may consider using warning
devices which provide audible and visual signals for carbon mon-
oxide concentrations under 30 PPM.
This carbon monoxide alarm requires a continuous supply of elec-
trical power – it will not work without power.
This alarm has not been independently investigated for carbon
monoxide detection below 70 PPM.
Contents of This User Guide
1. Information About Carbon Monoxide
2. Product Features and Specifications
3. Installation Locations
4. Installation Instructions
5. KN-COB-LP2 Operating Characteristics
6. Alarm Characteristics
7. Maintenance
8. Limited Warranty
!
!
1. Information About Carbon Monoxide
2. Product Features and Specifications
3. Installation Locations
4. Installation Instructions
5. KN-COB-LP2 Operating Characteristics
6. Alarm Characteristics
7. Maintenance
8. Limited Warranty
1. Information About Carbon Monoxide
General Carbon Monoxide Information
Carbon monoxide is a colorless, odorless and tasteless poison gas that
can be fatal when inhaled. CO inhibits the blood’s capacity to carry
oxygen.
Periodically review this user guide and discuss your CO alarm emergency
procedure with all the members of your family. Never ignore a CO
alarm. A true alarm is an indication of potentially dangerous levels of
CO. CO alarms are designed to alert you to the presence of CO before
an emergency – before most people would experience symptoms of CO
poisoning, giving you time to resolve the problem calmly.
Determine if anyone in the household is experiencing symptoms of CO
poisoning. Many cases of reported CO poisoning indicate that while
victims are aware they are not well, they become so disoriented they
are unable to save themselves by either exiting the building or calling
for assistance. Also, young children and household pets may be the first
affected. You should take extra precautions to protect high-risk persons
from CO exposure because they may experience ill effects from CO at
levels that would not ordinarily affect a healthy adult.
Symptoms of CO Poisoning
The following common symptoms are related to CO poisoning and
should be discussed with ALL members of the household.
Mild Exposure:
Slight headache, nausea, vomiting, fatigue (often described as “flu-like”
symptoms).
Medium Exposure:
Severe throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure:
Unconsciousness, convulsions, cardio-respiratory failure, death.
If you experience even mild symptoms of CO poisoning, consult your
doctor immediately!
Possible Sources of Carbon Monoxide
Inside your home, appliances used for heating and cooking are the
most likely sources of CO. Vehicles running in attached garages can also
produce dangerous levels of CO.
CO can be produced when burning any fossil fuel, such as gasoline, pro-
pane, natural gas, oil and wood. It can be produced by any fuel-burning
appliance that is malfunctioning, improperly installed, or not ventilated
correctly, such as:
1. Information About Carbon Monoxide
• Automobiles, furnaces, gas ranges/stoves, gas clothes dryers, water
heaters, portable fuel burning space heaters and generators, fireplaces,
wood-burning stoves and certain swimming pool heaters.
• Blocked chimneys or flues, back drafts and changes in air pressure, cor-
roded or disconnected vent pipes, loose or cracked furnace
exchangers.
• Vehicles and other combustion engines running in an open or
closed garage, attached or near a home.
• Burning charcoal or fuel in grills and hibachis in an enclosed area.
Conditions That Can Produce Carbon Monoxide
The following conditions can result in transient CO situations:
• Excessive spillage or reverse venting of fuel-burning appliances caused
by outdoor ambient conditions, such as, wind direction and/or veloc-
ity, including high gusts of wind, heavy air in the vent pipes (cold/
humid air with extended periods between cycles).
• Negative pressure resulting from the use of exhaust fans.
• Simultaneous operation of several fuel-burning appliances competing
for limited internal air.
• Vent pipe connections vibrating loose from clothes dryers, furnaces, or
water heaters.
• Obstructions in, or unconventional, vent pipe designs which can
amplify the above situations.
• Extended operation of unvented fuel-burning devices (range, oven,
fireplace, etc.).
• Temperature inversions which can trap exhaust gases near the
ground.
• Vehicle idling in an open or closed garage, or near a home.
To be safe, know the possible sources of CO in your home. Keep fuel-
burning appliances and their chimneys and vents in good working
condition. Learn the early symptoms of exposure, and if you suspect CO
poisoning, move outside to fresh air and get emergency help. Your first
line of defense is an annual inspection and regular maintenance of your
appliances. Contact a licensed contractor or call your local utility com-
pany for assistance.
1. Information About Carbon Monoxide
Information About Carbon Monoxide Alarms –
What They Can and Cannot Do:
CO alarms provide early warning of the presence of CO, usually before a
healthy adult would experience symptoms. This early warning is possible,
however, only if your CO alarm is located, installed and maintained as
described in this guide.
Because carbon monoxide is a cumulative poison, long-term exposures to
low levels may cause symptoms, as well as short-term exposures to high
levels. This Kidde unit has a time-weighted alarm – the higher the level of
CO present, the sooner the alarm will be triggered.
This CO alarm can only warn you of the presence of CO. It does not
prevent CO from occurring, nor can it solve an existing CO problem. If
your unit has alarmed and you’ve provided ventilation by leaving your
windows and doors open, the CO buildup may have dissipated by the
time help responds. Although your problem may appear to be temporar-
ily solved, it’s crucial that the source of the CO is determined and that
the appropriate repairs are made.
This CO alarm is designed to act as a monitor; it is not designed for use
as a short-term testing device to perform a quick check for the presence
of CO.
CO alarms have limitations. Like any other electronic device, CO alarms
are not fool-proof. CO alarms have a limited operational life. You must
test your CO alarm weekly, because it could fail to operate at any time.
If your CO alarm fails to test properly, or if its self-diagnostic test reveals
a malfunction, immediately have the unit replaced. This alarm will not
monitor CO levels while in an error condition.
CO alarms can only sense CO that reaches the unit’s sensor. It’s possible
that CO may be present in other areas without reaching the alarm. The
rate and ability that which CO reaches the alarm may be affected by:
• Doors or other obstructions.
• Fresh air from a vent, an open window or other source.
• CO being present on one level of the home and not reach a CO alarm
installed on a different level. (For example, CO in the basement may
not reach an alarm on the second level, near the bedrooms).
For these reasons, we recommend you provide complete coverage by
placing a CO alarm on every level of the home. Please carefully read all
information in sections 2 and 3 on properly installing this CO alarm.
CO alarms should not be used to detect the presence of natural gas
(methane), propane, butane, or other combustible fuels.
Instruct children never to touch, unplug or otherwise interfere with the
alarm. Warn children of the dangers of CO poisoning.
2. Product Features and Specifications
Green,
Power LED
Red,
Alarm LED
Test / Reset
Button
Peak Level Button
Digital Display
Green,
Power LED
Red,
Alarm LED
Test / Reset
Button
WARNING: After ten (10) years from initial power up, this
alarm will “beep” two times every 30 seconds to indicate that it
is time to replace the alarm. Replace the alarm immediately! It
will not detect CO in this condition.
End of Life Notification
End of Life “Hush”: This model has an End of Life Hush feature which
allows you to press the test/reset button on the alarm and disable the
“chirps” for a period of 3 days. This gives you a chance to replace the
alarm at a more convenient time while still providing protection. The
two chirps will repeat again every 3 days and can be reset a total of 30
days. After 30 days, the End of Life signal cannot be “Hushed.” The
alarm must be replaced.
During this End of Life HUSH period, your alarm is monitoring for CO.
To help identify the date to replace the alarm, a label has been affixed
to the side of the alarm. Write the “replace by” date (ten years from
power up) in a permanent marker on this label.
Model KN-COB-LP2
!
Temperature:
Operating Range: 40°F (4.4°C) to 100°F (37.8°C)
Humidity:
Operating range: 10-95% non-condensing
Audible Alarm:
85+ dB at 10’ @ 3.4±0.5 KHz pulsing alarm
Sensor:
Electrochemical
Power:
2-AA Batteries
Alarm Response Times:
70 PPM = 60-240 min., 150 PPM = 10-50 min., 400 PPM = 4-15 min.
Recommended Installation Locations
CO alarms should be mounted in
or near bedrooms and living areas.
It is recommended that you install
a Kidde CO alarm on each level of
your home.
When choosing your installation
locations, make sure you can hear
the alarm from all sleeping areas. If
you install only one CO alarm in your home, install it near bedrooms,
not in the basement or furnace room.
• When wall mounting, place out of reach of children. Under no
circumstances should children be allowed to handle the CO alarm.
Locations To Avoid
IMPORTANT: Improper location can affect the sensitive electronic com-
ponents in this alarm. To avoid causing damage to the unit, to provide
optimum performance, and to prevent unnecessary nuisance alarms:
• Do not install in kitchens, garages or furnace rooms that may expose
the sensor to substances that could damage or contaminate it.
• Do not install in areas where the temperature is colder than 40°F
(4.4°C) or hotter than 100°F (37.8°C) such as crawl spaces, attics,
porches and garages.
• Do not install within 5 ft. of heating or cooking appliances. (Kidde
recommends 15 ft. to prevent nuisance alarms).
• Do not install near vents, flues, chimneys or any forced/unforced air
ventilation openings.
• Do not install near ceiling fans, doors, windows or areas directly
exposed to the weather.
• Do not install in dead air spaces, such as peaks of vaulted ceilings or
gabled roofs, where CO may not reach the sensor in time to provide
early warning.
• Do not install this unit near deep-cell large batteries. Large batteries
have emissions that can cause the alarm to perform at less than
optimum performance.
• Do not obstruct the vents located on the alarm. Do not place the
alarm where drapes, furniture or other objects block the flow of air
to the vents.
3. Installation Locations
DINING KITCHEN BEDROOM BEDROOM
BEDROOM
LIVING ROOM
Recommended Locations
Battery Installation and Replacement
To install or replace the batteries in this Kidde CO alarm, please perform
the following steps.
1. Slide open the bottom cover to expose the battery compartment.
2. If replacing batteries, remove the old batteries and properly dispose
of them as recommended by the battery manufacturer.
3. Install the new batteries. Note the polarity
illustration in the battery compartment.
4. Close the bottom cover. Note: The bottom
cover will not close if all AA batteries are not
installed.
When replacing the batteries, use one of the
following approved Alkaline brands:
• Duracell MN1500 or MX1500
• Energizer E91
• Gold Peak 15A
• Golden Power GLR6A
These batteries can be purchased where you bought the alarm or at a
local hardware store. Use of a different battery may have a detrimental
effect on the alarm operation.
NOTE: Do not use LIthium batteries in this unit.
IMPORTANT: Constant exposures to high or low humidity may reduce
battery life. A good safety measure is to replace the battery at least
once a year, or at the same time as you change your clocks for daylight
saving time.
After installing or changing the batteries, reinstall your alarm. Test
your alarm by using the Test/Reset button and check that the green LED
flashes once approximately every 60 seconds.
Low Battery HUSH® CONTROL
When the batteries need to be replaced, the unit will produce a low
battery warning. The Low Battery HUSH® feature allows you to press
the button on the alarm and disable the “chirp” for a random period of
up to 12 hours. This gives you a chance to replace the battery at a more
convenient time by disconnecting the alarm from power. During this Low
Battery HUSH® period, your alarm is monitoring for CO.
4. Installation Instructions
Battery Polarity
for the two AA batteries
Mounting
This CO alarm can be either wall mounted
or placed on a tabletop.
For wall mounting, follow these steps:
1. Remove back mounting plate from the
alarm, place it in the desired location,
and mark the location of the two holes
needed on the wall
2. Insert the two screws provided until the
screw heads are protruding approximately
1/8” from the wall. (If mounting
in a plasterboard or drywall, drill a
3/16” hole in the wall and use the
plastic anchors provided.)
3. Hook the CO alarm over the
screws and onto the keyholes in
the back mounting plate of the
alarm. After the mounting plate
is secured to the wall, slide the
alarm down over the mounting
plate until it snaps into place.
Your CO alarm may also be placed
on a tabletop. If the alarm is not wall mounted, be sure it is no more
than three feet from the floor. The alarm does not have to be within
three feet from the floor to detect CO, but at this height it is less likely
to sustain damage from a fall.
Important Labels Provided
Two labels have been provided that have important information on what
to do in case of an alarm. Add the phone number of your emergency
service provider in the space provided. Place one label next to the alarm
after it is mounted, and one label near a fresh air source such as a door
or window.
4. Installation Instructions
Wall Mount
Screw Head Distance
from Wall
Andere Handbücher für KN-COB-LP2
1
Inhaltsverzeichnis
Andere Kidde Sicherheitssystem Handbücher
Kidde
Kidde Truesense Combo Bedienungsanleitung
Kidde
Kidde 2030-DCR Gebrauchsanweisung
Kidde
Kidde SLED177iCA Bedienungsanleitung
Kidde
Kidde Slick 1SF23/9HI Montageanleitung
Kidde
Kidde KN-COB-DP2CA Bedienungsanleitung
Kidde
Kidde KN-COB-IC-CA Gebrauchsanweisung
Kidde
Kidde KN-COEG-3 (900-01 13) Bedienungsanleitung
Kidde
Kidde 123I Montageanleitung
Kidde
Kidde KN-COB-IC Bedienungsanleitung
Kidde
Kidde SLICK RF-SFTP Bedienungsanleitung
Kidde
Kidde KN-COB-DP-H) Bedienungsanleitung
Kidde
Kidde KN-COPE-DCA Bedienungsanleitung
Kidde

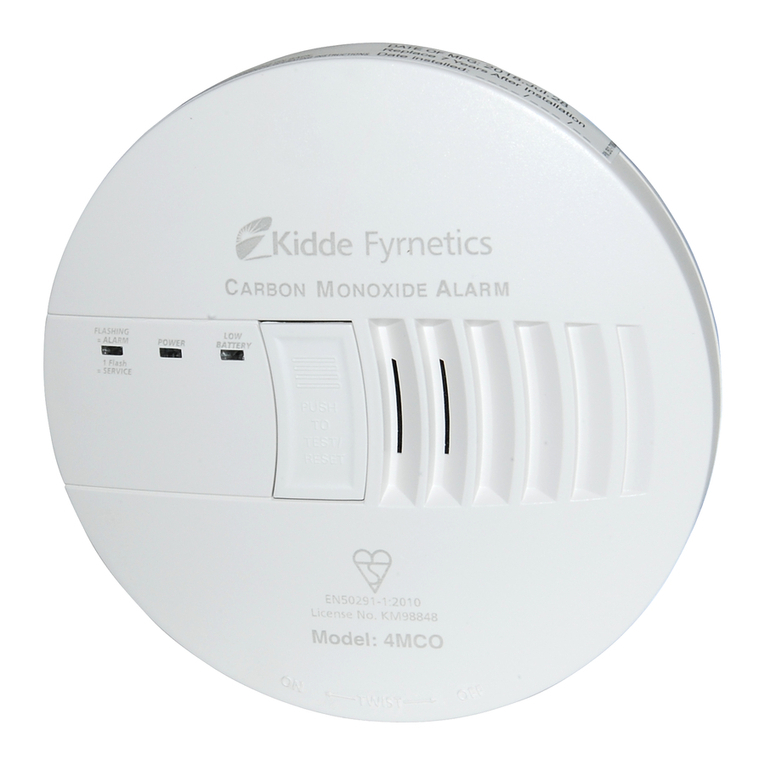

Kidde 4MCO Bedienungsanleitung
Kidde
Kidde P4010ACSCO-WF Bedienungsanleitung
Kidde
Kidde P4010ACLEDSCOCA-2 Bedienungsanleitung
Kidde
Kidde ZP885 Montageanleitung
Kidde
Kidde KN-COP-DP-B Bedienungsanleitung
Kidde
Kidde WFPCO Bedienungsanleitung
Kidde
Kidde KN-COP-DP-10YHCA (900-0284CA) Bedienungsanleitung
Kidde
Kidde 4MCO Bedienungsanleitung
Beliebte Sicherheitssystem Handbücher anderer Marken
EDM
EDM Solution 6+6 Wireless-AE Bedienungsanleitung
Highway Safety Group
Highway Safety Group EA401 Bedienungsanleitung
Siren
Siren LED GSM Bedienungsanleitung
Detection Systems
Detection Systems 7090i Montageanleitung
Se-Kure Controls
Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung
Siemens
Siemens FDM273 Bedienungsanleitung
