ATTENTION: Please take a few minutes to thoroughly read this

user guide which should be saved for future reference and passed

on to any subsequent owner.

Smoke Alarm

User Guide

• 9 Volt Battery Operated

Model: i9070

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

Smoke Alarm Procedure

NEVER IGNORE THE SOUND OF THE ALARM!

Smoke alarms are designed to minimize false alarms. Cigarette

smoke will not normally set off the alarm, unless the smoke is

blown directly into the alarm. Combustion particles from cook-

ing may set off the alarm if it is located too close to the cook-

ing area. Large quantities of combustion particles are generat-

ed from spills or when broiling. Using the fan on a range hood

which vents to the outside (non-recirculating type) will also

help remove these combustion particles from the kitchen.

If the alarm sounds, check for fires first. If a fire is discovered,

follow these steps. Become thoroughly familiar with these

steps and review with all family members:

• Alert small children in the home.

• Leave immediately by your escape plan. Every second

counts, so don’t waste time getting dressed or picking up

valuables.

• In leaving, don’t open any inside door without first feeling its

surface. If hot, or if you see smoke seeping through cracks,

don’t open that door! Instead, use your alternate exit. If the

inside of the door is cool, place your shoulder against it,

open it slightly and be ready to slam it shut if heat and

smoke rush in.

• If the air is smoky, stay close to the floor. Breathe shallowly

through a cloth, wet if possible.

• Once outside, go to your selected meeting place and make

sure everyone is there.

• Call the fire department from your neighbor’s home - not

from yours!

• Don’t return to your home until the fire officials say that it is

all right to do so.

What to do When the Alarm Sounds!

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

Welcome

9 Volt Front-loading Battery Operated Smoke Alarm with

HUSH®Control to temporarily silence nuisance alarms.

Thank you for purchasing this smoke alarm. It is an important part

of your family’s home safety plan. You can trust this product to pro-

vide the highest quality safety protection. We know you expect

nothing less when the lives of your family are at stake.

Important Warning Statements

IMPORTANT! READ ALL INSTRUCTIONS BEFORE INSTALLATION

AND KEEP THIS MANUAL NEAR THE ALARM FOR FUTURE

REFERENCE.

WARNING: BATTERY DOOR WILL NOT CLOSE UNLESS BATTERY IS

PRESENT. REMOVAL OF BATTERY WILL RENDER THE SMOKE

ALARM INOPERATIVE.

WARNING: TEST YOUR SMOKE ALARM OPERATION AFTER RV OR

MOBILE HOME VEHICLE HAS BEEN IN STORAGE, BEFORE EACH

TRIP AND AT LEAST ONCE A WEEK DURING USE.

CAUTION: DUE TO THE LOUDNESS OF THE ALARM (85 DECIBELS),

ALWAYS STAND AN ARMS-LENGTH AWAY FROM THE UNIT WHEN

TESTING.

CAUTION: BEFORE USING THE ALARM HUSH FEATURE, IDENTIFY

THE SOURCE OF THE SMOKE AND BE CERTAIN A SAFE CONDITION

EXISTS. NOTE: DENSE SMOKE WILL OVERRIDE THE HUSH

CONTROL FEATURE AND SOUND A CONTINUOUS ALARM.

SMOKE ALARMS ARE DEVICES THAT CAN PROVIDE EARLY WARN-

ING OF POSSIBLE FIRES AT A REASONABLE COST; HOWEVER,

ALARMS HAVE SENSING LIMITATIONS. IONIZATION SENSING

ALARMS MAY DETECT INVISIBLE FIRE PARTICLES (ASSOCIATED

WITH FAST FLAMING FIRES) SOONER THAN PHOTOELECTRIC

ALARMS. PHOTOELECTRIC SENSING ALARMS MAY DETECT VISIBLE

FIRE PARTICLES (ASSOCIATED WITH SLOW SMOLDERING FIRES)

SOONER THAN IONIZATION ALARMS. HOME FIRES DEVELOP IN

DIFFERENT WAYS AND ARE OFTEN UNPREDICTABLE. FOR MAXI-

MUM PROTECTION, KIDDE RECOMMENDS THAT BOTH

IONIZATION AND PHOTOELECTRIC ALARMS BE INSTALLED.

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

Contents of This User Guide

1. Recommended Locations for Smoke Alarms

2. Locations to avoid

3. Installation Instructions

4. Operation and testing

5. Nuisance Alarms

6. Maintenance

7. Limitations of Smoke Alarms

8. Good Safety Habits

9. NRC Information

10. NFPA Protection Standard 72

11. California State Fire Marshal Required Information

12. Service and Warranty

This alarm detects products of combustion using the ionization tech-

nique. It contains 0.9 microcurie of Americium 241, a radioactive materi-

al (see section 9). Distributed under U.S. NRC License No. 32-23858-01E.

Manufactured in compliance with U.S. NRC safety criteria in 10 CFR

32.27. The purchaser is exempt from any regulatory requirements. Do

not try to repair the smoke alarm yourself. Refer to the instructions in

section 12 for service.

LOSS OF POWER TO THE ALARM WILL RENDER THIS ALARM

INOPERATIVE.

Product Specifications

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

• Locate the first alarm in the immediate

area of the sleeping rooms. Try to monitor

the exit path as the sleeping rooms are

usually farthest from the exit. If more than

one sleeping area exists, locate additional

alarms in each sleeping area (See figure 3).

• Locate additional alarms to monitor any

stairway as stairways act like chimneys for

smoke and heat.

• Locate at least one alarm on every floor

level.

• Locate an alarm in every sleeping room.

• Locate an alarm in every room where elec-

trical appliances are operated (i.e. portable

heaters or humidifiers).

• Locate an alarm in every room where

someone sleeps with the door closed. The

closed door may prevent an alarm not

located in that room from waking the

sleeper.

• Smoke, heat, and combustion products

rise to the ceiling and spread horizontally.

Mounting the smoke alarm on the ceiling

in the center of the room places it closest

to all points in the room. Ceiling mount-

ing is preferred in ordinary residential con-

struction.

• For mobile home installation, select loca-

tions carefully to avoid thermal barriers

that may form at the ceiling. For more

details, see MOBILE HOME INSTALLATION

below.

• When mounting an alarm on the ceiling,

locate it at a minimum of 4” (10 cm) from

the side wall (see figure 1).

• When mounting the alarm on the wall, use

an inside wall with the top edge of the

alarm at a minimum of 4” (10 cm) and a

maximum of 12” (30.5 cm) below the ceil-

ing (see figure 1).

1. Recommended Locations for Smoke Alarms

FIGURE 1

ANYWHERE ALONG

FIGURE 3

FIGURE 2

ANYWHERE ALONG

THIS BOLD SURFACE

12”

(300mm)

FIGURE 4

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

1. Recommended Locations for Smoke Alarms

• Put smoke alarms at both ends of a hallway or large room if the hall-

way or room is more than 30 ft (9.1 m) long. For large rooms, one

smoke alarm is recommended for every 500 square feet of floor

space.

• In homes that are not well insulated, extreme heat or cold can be

transferred from the outside to the inside through poorly insulated

walls and roof. This may create a thermal barrier which can prevent

the smoke from reaching an alarm mounted on the ceiling. If you are

not sure about the insulation in your home, or if you notice that the

outer walls and ceiling are either hot or cold, install the alarm on an

inside wall. In such homes, install the smoke alarm with the top edge

of the alarm at a minimum of 4” (10 cm) and a maximum of 12”

(30.5 cm) below the ceiling (see figure 1).

• Install Smoke Alarms on sloped, peaked or cathedral ceilings at or

within 3ft (0.9m) of the highest point (measured horizontally). NFPA

72 states: “Smoke alarms in rooms with ceiling slopes greater than 1

ft in 8 ft (.3m in 2.4 m) horizontally shall be located on the high side

of the room.” NFPA 72 states: “A row of detectors shall be spaced

and located within 3 ft (0.9m) of the peak of the ceiling measured

horizontally” (see figure 2).

• Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on the

highest portion of the ceiling or on the sloped portion of the ceiling

within 12” (305mm) vertically down from the highest point (see figure

4).

Mobile Home Installation

Modern mobile homes have been designed and built to be energy effi-

cient. Install smoke alarms as recommended above (refer to RECOM-

MENDED LOCATIONS and Figures 1 and 2). In older mobile homes that

are not well insulated compared to present standards, extreme heat or

cold can be transferred from the outside to the inside through poorly

insulated walls and roof. This may create a thermal barrier which can

prevent the smoke from reaching an alarm mounted on the ceiling. In

such units, install the smoke alarm on an inside wall with the top edge

of the alarm at a minimum of 4” (10cm) and a maximum of 12”

(30.5cm) below the ceiling (see figure 1).

If you are not sure about the insulation in your mobile home, or if you

notice that the outer walls and ceiling are either hot or cold, install the

alarm on an inside wall. For minimum protection, install at least one

alarm close to the sleeping rooms. For additional protection, see SINGLE

FLOOR PLAN in figure 2.

WARNING: TEST YOUR SMOKE ALARM OPERATION AFTER RV

OR MOBILE HOME VEHICLE HAS BEEN IN STORAGE, BEFORE

EACH TRIP AND AT LEAST ONCE A WEEK DURING USE.

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

• In the garage. Products of combustion are present when you start

your automobile.

• Less than 4” (10cm) from the peak of an “A” frame type ceiling.

• In an area where the temperature may fall below 40ºF or rise above

100ºF, such as garages and unfinished attics; this should also include

electrical boxes exposed to these environments.

• In dusty areas. Dust particles may cause nuisance alarm or failure to

alarm.

• In very humid areas. Moisture or steam can cause nuisance alarms.

• In insect-infested areas.

• Smoke alarms should not be installed within 3 ft (.9m) of the following:

the door to a kitchen, the door to a bathroom containing a tub or

shower, forced air supply ducts used for heating or cooling, ceiling or

whole house ventilating fans, or other high air flow areas.

• Kitchens. Normal cooking may cause nuisance alarms. If a kitchen

alarm is desired, it should have an alarm silence feature or be a photo-

electric type.

• Near fluorescent lights. Electronic “noise” may cause nuisance alarms.

• Smoke alarms are not to be used with detector guards unless the

combination (alarm and guard) has been evaluated and found suitable

for that purpose.

2. Locations To Avoid

3. Installation Instructions

MOUNTING INSTRUCTIONS

CAUTION: This unit is sealed. The cover is not removable!

CAUTION: WHEN WALL MOUNTING: UNIT MUST BE MOUNTED

SO THAT THE BATTERY BOX FACES DOWN! (SEE FIGURE 6).

INCORRECT ORIENTATION OF WALL MOUNTED SMOKE ALARMS

WILL DECREASE OPERATIONAL EFFECTIVENESS.

1. Remove the mounting plate from the back of the alarm by hold-

ing the mounting plate and twisting in the direction indicated by

the "OFF" arrow on the alarm cover.

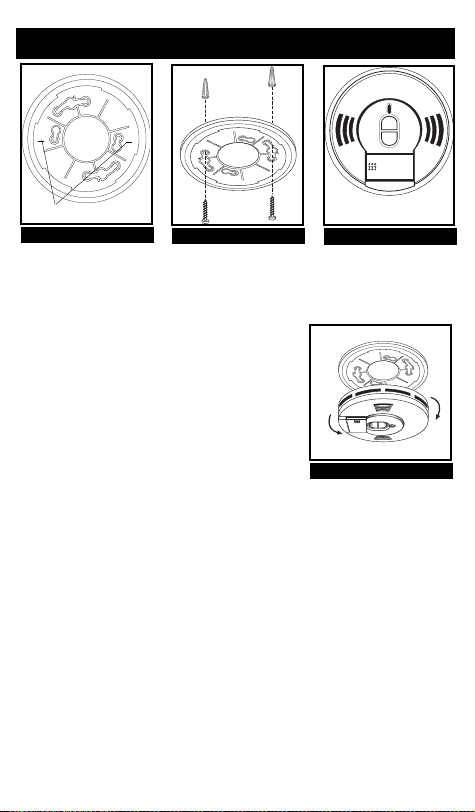

2. After selecting the proper smoke alarm location as described in

Section 1, attach the mounting plate as shown in Figure 5 and

Figure 5A. Use the screws and anchors provided to secure the

mounting plate (use 3/16" drill bit for anchor holes). To ensure aes-

thetic alignment of the alarm with the hallway or wall, the “A” line

on the mounting bracket should be parallel with the hallway when

ceiling mounted, or horizontal when wall mounted.

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

3. Make sure that the mounting screws are positioned in the small

ends of the keyholes before tightening the screws.

4. Install the alarm on the mounting plate

and rotate the alarm in the direction indi-

cated by the "ON" arrow on the cover

until the alarm ratchets into place (this

ratcheting function allows for aesthetic

alignment). NOTE: The alarm will mount

to the bracket in 4 positions (every 90

degrees). When wall mounting, make

sure the battery box is at the bottom of

the unit. (see Figure 7)

5. Be sure the battery is installed correctly and the battery compart-

ment is closed completely. See section 6 for battery installation

instructions.

CAUTION: THE BATTERY COMPARTMENT WILL NOT CLOSE

WITHOUT A BATTERY INSTALLED PROPERLY. REMOVAL OF

THE BATTERY WILL RENDER THE ALARM INOPERATIVE.

6. Test the unit to ensure proper operation by pressing the Test

Button for a minimun of 5 seconds.

CAUTION: Due to the loudness (85 decibels) of the alarm,

always stand an arms length away from the unit when testing.

Tamper Resist Feature

Battery Carrier Tamper Resist Feature

This alarm has a battery carrier tamper resist feature, which

helps prevent the battery carrier from being opened. This feature

helps prevent the removal of the battery from this device (which

will render the device inoperative).

3. Installation Instructions

FIGURE 7

Install

Remove

FIGURE 6

FIGURE 5

Alignment Marks

When mounting in a hallway, the “A”

line should be parallel with the hallway.

FIGURA 5A

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

3. Installation Instructions

To activate the battery carrier tamper

resist feature, remove the unit from the

trim plate and locate the small cut-out in

the middle of the product label on the

back of the unit. With a small screwdriver,

or similar tool, slide the switch towards

the top of the label. (see Figure 8). The

tamper resist feature is now active and

the battery carrier can not be opened

until the tamper resist feature is deactivated.

NOTE: Before activating the battery carrier tamper resist feature,

make sure a fresh battery is installed in the unit and that the bat-

tery carrier is properly closed. If the battery carrier tamper resist

feature is activated while the battery carrier is open, the battery

carrier will not close and the unit will be inoperable.

To deactivate the battery carrier tamper resist, in order to

change the smoke alarm battery, remove the unit from the

mounting plate, and locate the small cut-out in the middle of the

product label. Using a screwdriver, or similar tool, slide the

switch towards the bottom of the product label. The battery carri-

er can now be opened and the battery changed.

FIGURE 8

4. Operation and Testing

OPERATION: The smoke alarm is operating once fresh batteries

are installed and testing is complete. When the smoke alarm ion-

ization chamber senses products of combustion, the horn will

sound a loud (85db) temporal alarm until the sensing chamber is

cleared of smoke particles.

Hush® CONTROL: The Hush®feature has the capability of tem-

porarily desensitizing the alarm circuit for approximately 8 minutes.

This feature is to be used only when a known alarm condition, such

as smoke from cooking, activates the alarm. The smoke alarm is

desensitized by pushing the Hush®button on the smoke alarm

cover. If the smoke is not too dense, the alarm will silence immedi-

ately and the red LED will flash once every 10 seconds for approxi-

mately 8 minutes. This indicates that the alarm is in a desensitized

condition. The smoke alarm will automatically reset after approxi-

mately 8 minutes and sound the alarm if particles of combustion

are still present. The Hush®feature can be used repeatedly until

the air has been cleared of the condition causing the alarm.

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

Smoke alarms are designed to minimize nuisance alarms. Cigarette

smoke will not normally set off the alarm, unless the smoke is blown

directly into the alarm. Combustion particles from cooking may set off

the alarm if the alarm is located close to the cooking area. Large quan-

tities of combustible particles are generated from spills or when broil-

ing. Using the fan on a range hood which vents to the outside (non-

recirculating type) will also help remove these combustible products

from the kitchen.

Model 0976 has a Hush®button that is extremely useful in a kitchen

area or other areas prone to nuisance alarms. For more information,

refer to Section 4 OPERATION AND TESTING.

4. Operation and Testing

Pushing the test button on the alarm will end the Hush® period.

NOTE: DENSE SMOKE WILL OVERRIDE THE HUSH®

CONTROL FEATURE AND SOUND A CONTINUOUS ALARM.

CAUTION: BEFORE USING THE ALARM HUSH® FEATURE,

IDENTIFY THE SOURCE OF THE SMOKE AND BE CERTAIN A

SAFE CONDITION EXISTS.

LED INDICATOR: This smoke alarm is equipped with a red LED

indicator with two modes of operation.

Standby Condition:

The red LED will flash every 40 seconds to

indicate that the smoke alarm is operating

properly.

Alarm Condition When the alarm senses products of combus-

tion and goes into alarm, the red LED will

flash rapidly (one flash per second). The rapid

flashing LED and pulsating alarm will contin-

ue until the air is cleared.

TESTING: Test by pushing the test button on the cover and hold it

down for a minimum of 5 seconds. This will sound the alarm if all

the electronic circuitry, horn and battery are working. If no alarm

sounds, check the fuse or circuit breaker supplying power to the

alarm circuit. If the alarm still does not sound, the unit has defec-

tive batteries or other failure. DO NOT use an open flame to test

your alarm, you could damage the alarm or ignite combustible

materials and start a structure fire.

TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION.

Erratic or low sound coming from your alarm may indicate a defec-

tive alarm, and it should be returned for service (see section 12).

NOTE: WEEKLY TESTING IS REQUIRED.

TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION.

5. Nuisance Alarms

0970-7205-03(820-1494B)_En.qxd:_ 2017.4.6 4:22 PM Page

Andere Handbücher für I9070

Inhaltsverzeichnis

Andere Kidde Rauchmelder Handbücher

Kidde

Kidde 900-CUDR-V Bedienungsanleitung

Kidde

Kidde I9030 Bedienungsanleitung

Kidde

Kidde 0918LL Bedienungsanleitung

Kidde

Kidde 0910KCA Bedienungsanleitung

Kidde

Kidde RF-SM-DC Bedienungsanleitung

Kidde

Kidde 914 Leitfaden

Kidde

Kidde AirSense Stratos Micra 25 Bedienungsanleitung

Kidde

Kidde Fyrewatch 0913 Bedienungsanleitung

Kidde

Kidde 4899 Bedienungsanleitung

Kidde

Kidde 1276CA Bedienungsanleitung

Kidde

Kidde P12040 Bedienungsanleitung

Kidde

Kidde i9070CA Bedienungsanleitung

Kidde

Kidde 19HI Bedienungsanleitung

Kidde

Kidde PI9010 Bedienungsanleitung

Kidde

Kidde SIRIUS TM0109 Bedienungsanleitung

Kidde

Kidde SMOKE AND CARBON MONOXIDE ALARM Bedienungsanleitung

Kidde

Kidde P4010ACSCO-W Bedienungsanleitung

Kidde

Kidde Fyrnetics Slick 1SFW Bedienungsanleitung

Kidde

Kidde FIREX KF3R Bedienungsanleitung

Kidde

Kidde PI9000 Bedienungsanleitung

Kidde

Kidde PI9000CA Bedienungsanleitung

Kidde

Kidde 123/9HI Bedienungsanleitung

Kidde

Kidde I12040 Bedienungsanleitung

Kidde

Kidde RF-SND Bedienungsanleitung

Beliebte Rauchmelder Handbücher anderer Marken

x-sense

x-sense SD19-W Bedienungsanleitung

BRK electronic

BRK electronic First Alert P1010 Bedienungsanleitung

FireAngel

FireAngel Thermoptek ST-622 Bedienungsanleitung

teko

teko Astra-42A Bedienungsanleitung

Safetec

Safetec SDS-2/6 Betriebsanleitung

Siemens

Siemens PE-11C Bedienungsanleitung

System Sensor

System Sensor DH500ACDC Bedienungsanleitung

Resolution Products

Resolution Products RE612 CryptiX Bedienungsanleitung

First Alert

First Alert PC900V Bedienungsanleitung

Eminent

Eminent EM6590 E-Domotica Bedienungsanleitung

Ei Electronics

Ei Electronics Ei Ei168RC Bedienungsanleitung

Carrier

Carrier Kidde Quell Q301 Bedienungsanleitung

VESDA

VESDA VLF-500 Bedienungsanleitung

ELRO

ELRO FS8110 Bedienungsanleitung

Heiman

Heiman SMOKI NS-626PHS Bedienungsanleitung

Regin

Regin SDD-S65 Bedienungsanleitung

Family Gard

Family Gard FG225 Bedienungsanleitung

Greystone

Greystone DSD120 Bedienungsanleitung
